LUCCI Airfusion Aria User manual

V2.0 EN -WS- Published on 08. 2017
LUCCI
AIRFUSION ARIA
CEILING FAN
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Aria Installation Instructions
1 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read
and save all instructions before using the product.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Cleaning and maintenance shall not be undertaken by children
without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local
wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the
minimum electrical safety of this standard.
Please note warranty will be void if installation is without a means for
an all-pole disconnection incorporated in the fixed wiring in
accordance with the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an

Aria Installation Instructions
2 | P a g e
all-pole safety switch at the switchboard, then this is considered to be
an all-pole disconnection to the ceiling fan electrical circuit, meeting
the requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
ground water and get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m
above the floor in Australia.
8. This fan is suitable for indoor, alfresco and coastal areas where the fan is fully undercover with a
minimum of 2 walls. This fan is not waterproof. When installed in an alfresco or coastal area, the
ceiling fan must be positioned in a location protected from water, wind and dust. Exposure to these
elements will void the warranty. Mounting the fan in a situation where it is subject to water or
moisture is dangerous.
9. Only a licensed electrician should execute the installation.

Aria Installation Instructions
3 | P a g e

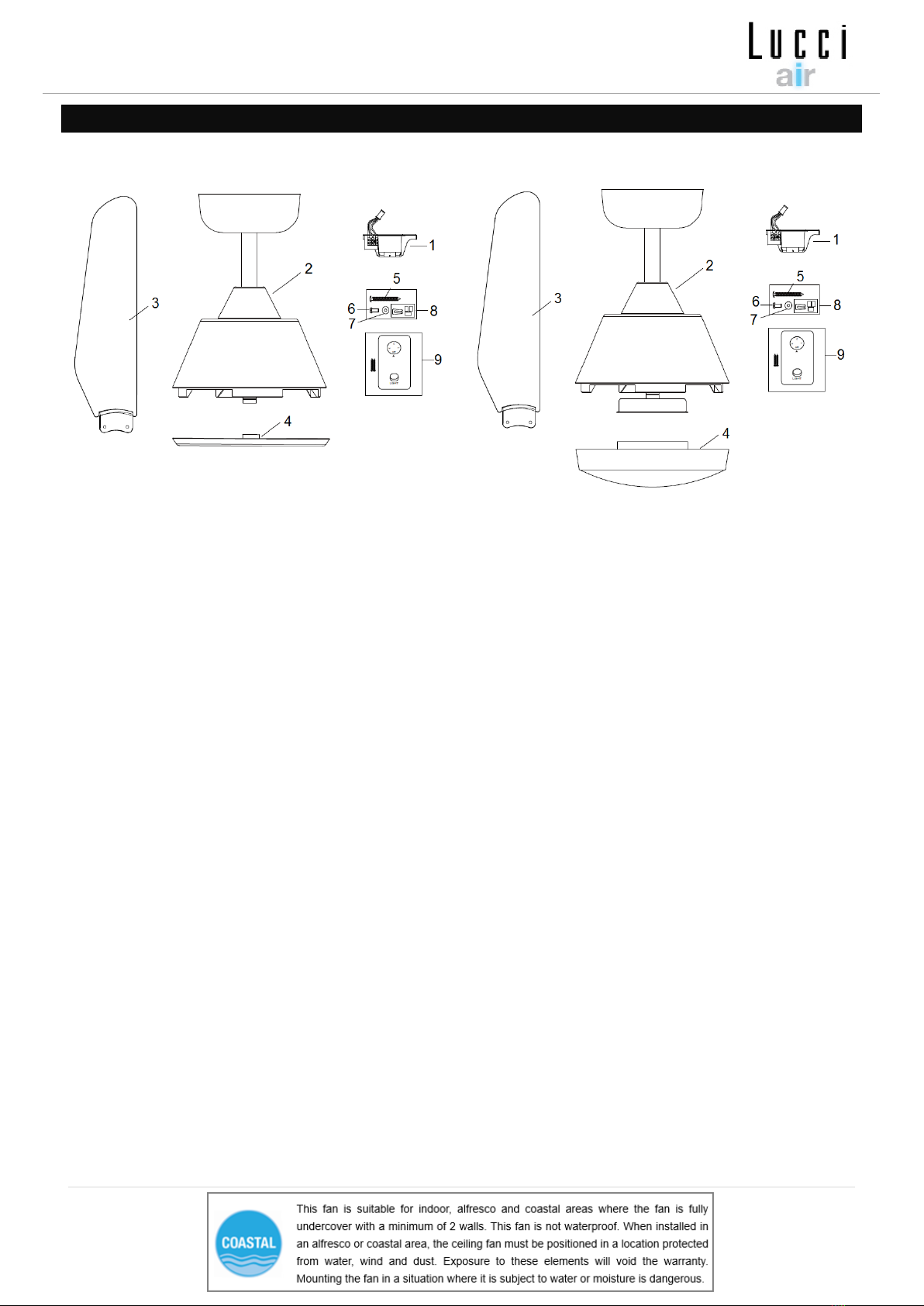

BEFORE INSTALLATION
Unpack your ceiling fan carefully. Remove all parts and hardware. Examine all parts, you should have
the following:
Fan without light
Fan with light
1
Mounting bracket x 1
1
Mounting bracket x 1
2
Pre-assembled fan motor, down rod and canopy
x 1
2
Pre-assembled fan motor, down rod and
canopy x 1
3
Blades x 4
3
Blades x 4
4
Bottom cover x 1
4
LED light kit x 1
5
Screw for mounting bracket x 2
5
Screw for mounting bracket x 2
6
Motor screws for blades x 9
6
Motor screws for blades x 9
7
Flat washer for blades x 9
7
Flat washer for blades x 9
8
Balancing kit x 1 set
8
Balancing kit x 1 set
9
Wall switch x 1 set
9
Wall switch x 1 set
Fig. 1

Aria Installation Instructions
4 | P a g e

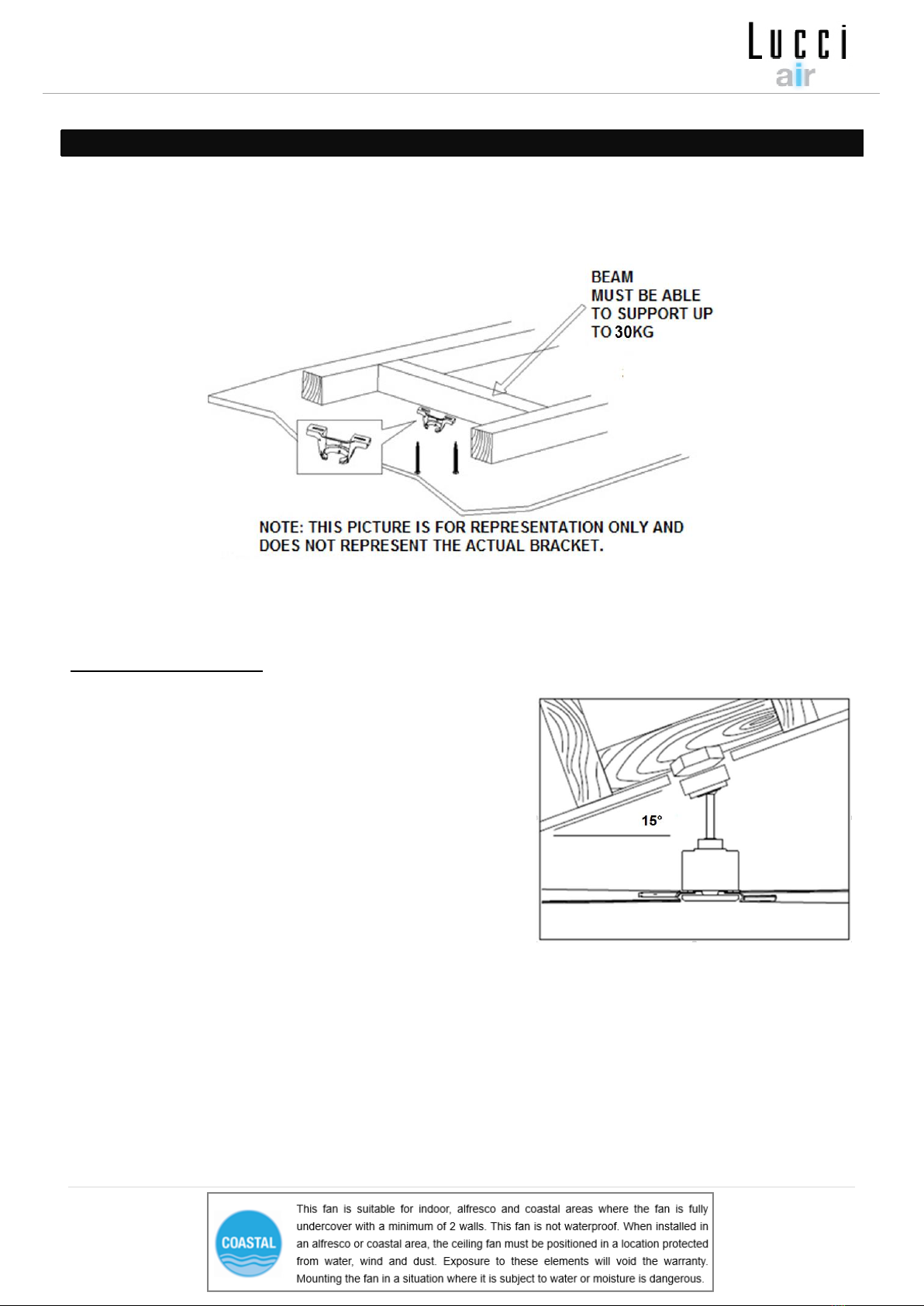

INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to
the nearest objects or walls.
•Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support.
NOTE: The bracket screws provided are for use with wooden structures only. For structures other than
wood, the appropriate screw type MUST be used.
Angled ceiling Installation
This fan hanging system supports a maximum 15 degree angled
ceiling installation.
Fig. 2
Fig. 3

Aria Installation Instructions
5 | P a g e

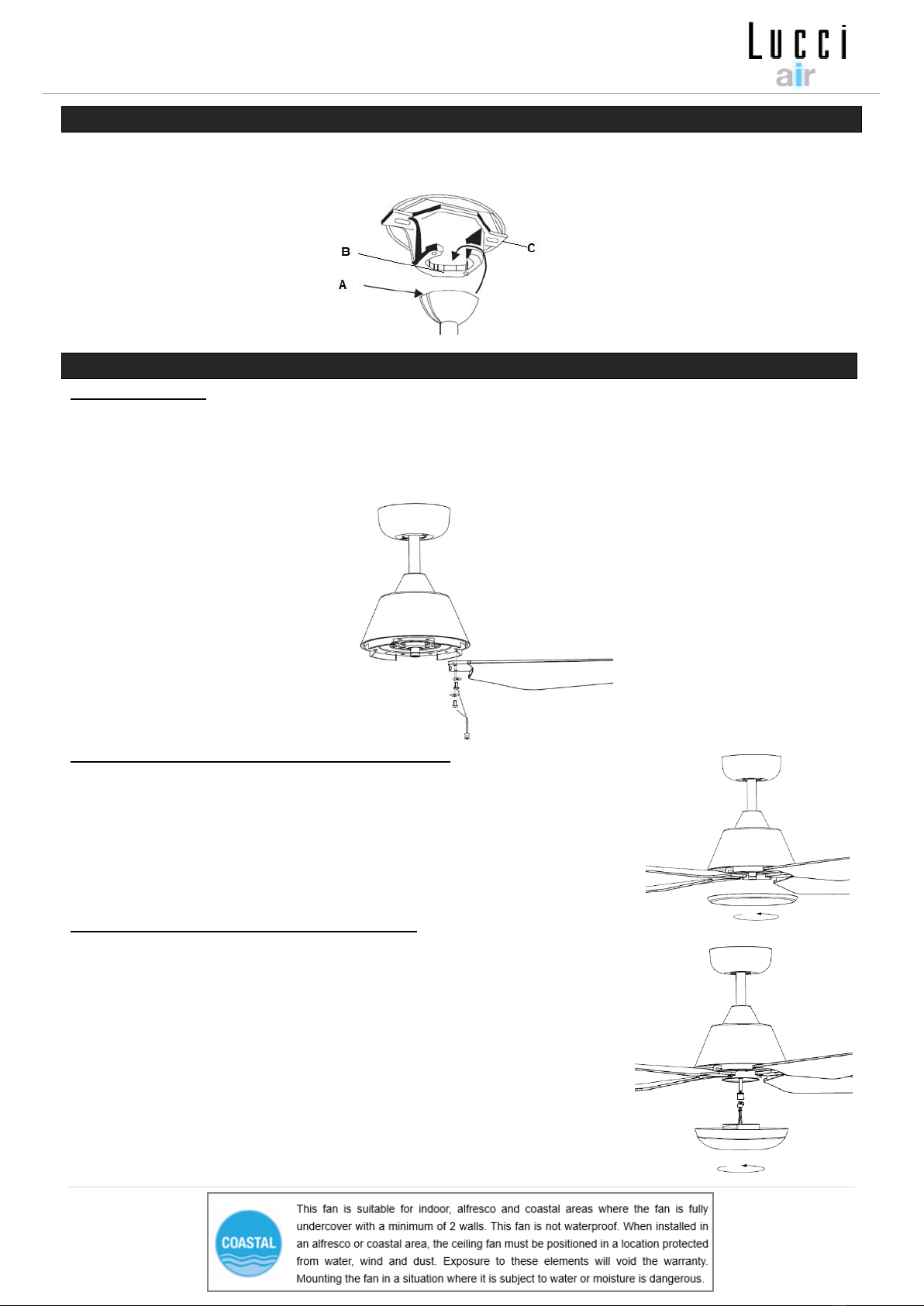

HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is
positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in
operation. (Fig.4)
INSTALLING THE FAN
Blade attachment
1. Before Installing the blades, remove the motor screws and flat washers.
2. Secure the blade on the motor by using 2 screws with washers to tighten it, ensuring they are
tightened simultaneously. (Take care not to over tighten as this can damage blades)
Once completed, repeat the process on the remaining blades.
Installing the bottom cover (For fan without light)
Secure the bottom cover to the fan by turning it clockwise.
Installing the LED light kit (For fan with light)
Attach the LED light kit to the lamp base and connect wires to the LED light kit
via the quick connectors. Secure the LED light kit on the lamp base by turning
the LED light kit body clockwise.
Fig. 4
Fig. 5
Fig. 6
Fig. 7

Aria Installation Instructions
6 | P a g e
ELECTRICAL WIRING DIAGRAM
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is
omitted when no light kit is used with the ceiling fan.
USE WITH WALL SWITCH WIRING DIAGRAM:
USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
1/ Remote without plugs
Fig. 8
Fig. 9

Aria Installation Instructions
7 | P a g e
2/ Remote with plugs
FINISHING THE INSTALLATION
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling
fan wiring via the quick connector plug.
•Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy
and that the wires are not damaged during this step. Secure the canopy to the hanger bracket using
the screws provided.
Fig. 10
Fig. 11

Aria Installation Instructions
8 | P a g e
USING YOUR CEILING FAN
FAN WALL CONTROL
Turn on the power and check the operation of the fan.
• OFF Position – Fan off
• 3rd Position – Low fan speed
• 2nd Position –Medium fan speed
• 1st Position – High fan speed
Light Control
• Toggle Switch – On/off
REVERSING SWITCH
Your ceiling fan can operate in either summer or winter mode.
SUMMER Mode: The reverse switch shall be in the “down” (SUMMER) position to make the fan rotate in an
anticlockwise direction. The airflow will be directed downwards, for cooling in summer.
WINTER Mode: The reverse switch shall be in the “up” (WINTER) position to make the fan rotate in a clockwise
direction. The airflow will be directed upwards assisting in the circulation of warm air, for energy conservation in
winter.
Fig. 13
Fig. 12

Aria Installation Instructions
9 | P a g e
AFTER INSTALLATION
WOBBLE:
NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the
fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite
acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod are
secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to the
instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should the ceiling
fan become un-balanced again. Store your balancing kit away after installation for future use if required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency
signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. This
is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new fan disappear during this
time.
The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as hearing the
motor run –All electric motors are audible to some extent.
CARE AND CLEANING:
•Periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to
avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create the
possibility of an electrical shock.
•The motor has a permanently lubricated ball bearing so there is no need to oil.
NOTE: Always turn OFF the power at the mains switch before attempting to clean your fan.
TECHNICAL INFORMATION
Aria fan models
Rated Voltage
Rated power (motor)
Rated power lamp
48 inch blade fan only
220-240 VAC
50W
N/A
48 inch blade fan with light
220-240 VAC
50W
18W, LED Life time:
30,000H, NON-DIM

Aria Installation Instructions
10 | P a g e
LUCCI CEILING FAN WARRANTY DETAIL
LUCCI WARRANTY HOTLINE- 1800 602 243
THIS WARRANTY IS VALID IN AUSTRALIA ONLY
In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243
between 9am & 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled
out at the end of the manual before making the call.
Every Lucci ceiling fan is thoroughly inspected and tested before being released for sale. In addition to
any warranty rights or conditions under statutory regulations, Lucci warrants all of its ceiling fans against
defective workmanship and faulty materials for twenty four (24) months from the date of purchase. Lucci
undertakes, at its option, to repair or replace, free of charge, each product or part thereof on condition
that;
1. The fan or relevant part has not been subjected to misuse, neglect, or been involved in an
accident.
2. The repairs are not required as a result of normal wear and tear.
3. The product was installed by a licensed electrical contractor.
4. A copy of the original receipt of purchase is presented.
5. 12 month warranty applies when used in any non-domestic applications.
6. This warranty does not cover stains, scratch and scuff marks, or dents if the product is purchased
through a factory outlet or to refurbished items.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
Lucci Design cannot be held responsible for any repair other than those carried out by it or one
of its Authorised Service Agents. Please keep this warranty information in a safe place. This
information must be produced in the event of service being required.
Distributed by:
Beacon Lighting
140 Fulton Drive
Derrimut, Victoria, 3030
Australia
Ph [phone]
Fax [phone]
Email: [e-mail]

Aria Installation Instructions
11 | P a g e
CEILING FAN WARRANTY INFORMATION
LUCCI WARRANTY HOTLINE- 1800 602 243
Complete and retain this form for your personal records and warranty purposes.
NAME…………………………………………………………………………………
ADDRESS……………………………………………………………………………
……………………………………………………POSTCODE……………………
MODEL NUMBER……………………………………………………………………
(PO# + DATECODE Sticker here)
PO NUMBER or DATECODE ………………………………………………………
DATE OF PURCHASE………………………………………………………………
INSTALLING LICENSED ELECTRICAN……………………………………………
…………………………………………………………………………………………
LICENCE No…………………………………………………………………………
ATTACH PROOF OF PURCHASE HERE
THIS COMPLETED DETAIL PAGE SHOULD BE PRODUCED AND FAXED TO
THE WHOLESALER OR THEIR AUTHORISED AGENTS BEFORE OBTAINING

Aria Installation Instructions
12 | P a g e
WARRANTY SERVICE
