Lucent Technologies Lineage 2000 J85502A-1 User manual

Product Manual
J85502A-1
Select Code 169-790-122
Comcode 107176349
Issue 4
May 1998
Lucent Technologies
Lineage®2000
25-Ampere, 60-Hertz
Ferroresonant Rectifier
Notice:
Every effort was made to ensure that the information in this
document was complete and accurate at the time of printing.
However, information is subject to change.
©1998 Lucent Technologies
All Rights Reserved
Printed in U.S.A.

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Table of Contents - 1
Table of Contents
1Introduction
General Information 1 - 1
Customer Service 1 - 1
Technical Support 1 - 2
Product Repair and Return 1 - 2
2Product Description
Overview 2 - 1
Ferroresonant Technology 2 - 2
Standard Features 2 - 2
Additional Features 2 - 4
Circuit Modules 2 - 5
Front Panel Controls and Indicators 2 - 6
Alarm and Control Flow 2 - 8
Physical, Thermal, and Electrical Specifications 2 - 9
3Ordering Information
Equipment Lists 3 - 1
Documentation 3 - 2
4Safety
Admonishments 4 - 1
Safety Statements 4 - 1
Precautions 4 - 2
Warning Statements and Safety Symbols 4 - 4
5Installation
Introduction 5 - 1
Safety 5 - 1
Preparing for Installation 5 - 1
Handling Equipment 5 - 1
Bay Mounting 5 - 2
Heat Dissipation 5 - 2

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - Table of Contents Issue 4 May 1998
AC Input Power 5 - 2
DC Output Power 5 - 5
Installation Tools 5 - 5
Unpacking 5 - 5
Installing or Adding a Rectifier 5 - 6
Installing AC Power Cables 5 - 6
Installing DC Power Cables 5 - 7
Installing Plant Control Cable Assembly for a
Lucent Technologies Controller 5 - 8
Converting AC Voltage (Optional) 5 - 10
Initial Battery Charging (Optional) 5 - 10
6Testing
Introduction 6 - 1
Precautions 6 - 1
Tools and Test Equipment 6 - 2
Battery Plant Simulator Test Set 6 - 3
Test Load Connection 6 - 3
Preparation for Testing Off Line 6 - 4
Testing Off Line 6 - 7
Startup 6 - 7
Regulation (NL/FL) Test (Off Line) 6 - 8
Rectifier Failure Alarm/Fuse Alarm Test (Off Line) 6 - 8
Current Limit Test (Off Line) 6 - 9
Backup High Voltage Shutdown (HVSD) Test
(Off Line) 6 - 10
Control (TR) Test 6 - 11
Selective High Voltage Shutdown (SHVSD) and
Restart 6 - 11
Meter Calibration Test (Off Line) 6 - 11
Test for 434A or 434B Circuit Module 6 - 12
Off-Line Test Completion 6 - 12
Bringing the Rectifier On Line 6 - 12
Testing On Line 6 - 14
Regulation (NL/FL) Test (On Line) 6 - 15
Rectifier Failure Alarm/Fuse Alarm Test (On Line) 6 - 15
Current Limit Test (On Line) 6 - 16
Isolated Current Measuring (VI) Test (MCS or
Galaxy Controller) 6 - 17
Backup High Voltage Shutdown (HVSD) Test
(On Line) 6 - 18
Meter Calibration Test (On Line) 6 - 19
Adjusting Rectifiers to Float Voltage 6 - 20
Adjusting Rectifiers Individually 6 - 21
Adjusting Rectifiers as a Group 6 - 21

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Table of Contents - 3
7Troubleshooting and Ad
j
ustments
Introduction 7 - 1
Removing a Rectifier from Service 7 - 1
Diagnostics and Troubleshooting 7 - 2
Adjustments 7 - 5
Clear Rectifier Failure Alarm (RFA) 7 - 5
Calibrate CM3 Digital Meter 7 - 6
Adjust Isolated Current Measuring Circuit (VI) 7 - 8
Adjust Internal Selective HVSD (Battery Plant
Without Controller) 7 - 9
Adjust Current Limit 7 - 10
Restoring a Rectifier to Service 7 - 11
8S
p
are Parts and Re
p
lacement Procedures
Introduction 8 - 1
Ordering Circuit Modules 8 - 1
Handling Circuit Modules 8 - 2
Electrostatic Discharge 8 - 2
Modifying the CM1 Option Board 8 - 3
Spare Fuses 8 - 4
Replacing Circuit Modules 8 - 4
Replacing CM1 Option Board 8 - 5
Replacing CM2 Control Board 8 - 6
Replacing CM3 Digital Meter Board 8 - 7
General Information on Replacing Components 8 - 8
Replacing Components 8 - 13
Output Volts Adjust Potentiometer (R4) 8 - 13
DC Output Circuit Breaker (CBA1) and Bracket 8 - 13
Snubber Board (CA1) 8 - 13
Thyristor (Q1) 8 - 14
Diode Heat Sink Assembly 8 - 14
DC Inductor (L2) 8 - 15
DC Filter Capacitors (C1 and C2) 8 - 16
Rear Compartment Components 8 - 17
Main Transformer (T1) 8 - 18
Rectifier Diode Test and/or Replacement 8 - 19
Heat Shrink Removal 8 - 21
Disconnecting a Rectifier 8 - 21
9Product Warrant
y

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 List of Figures - 1
List of Figures

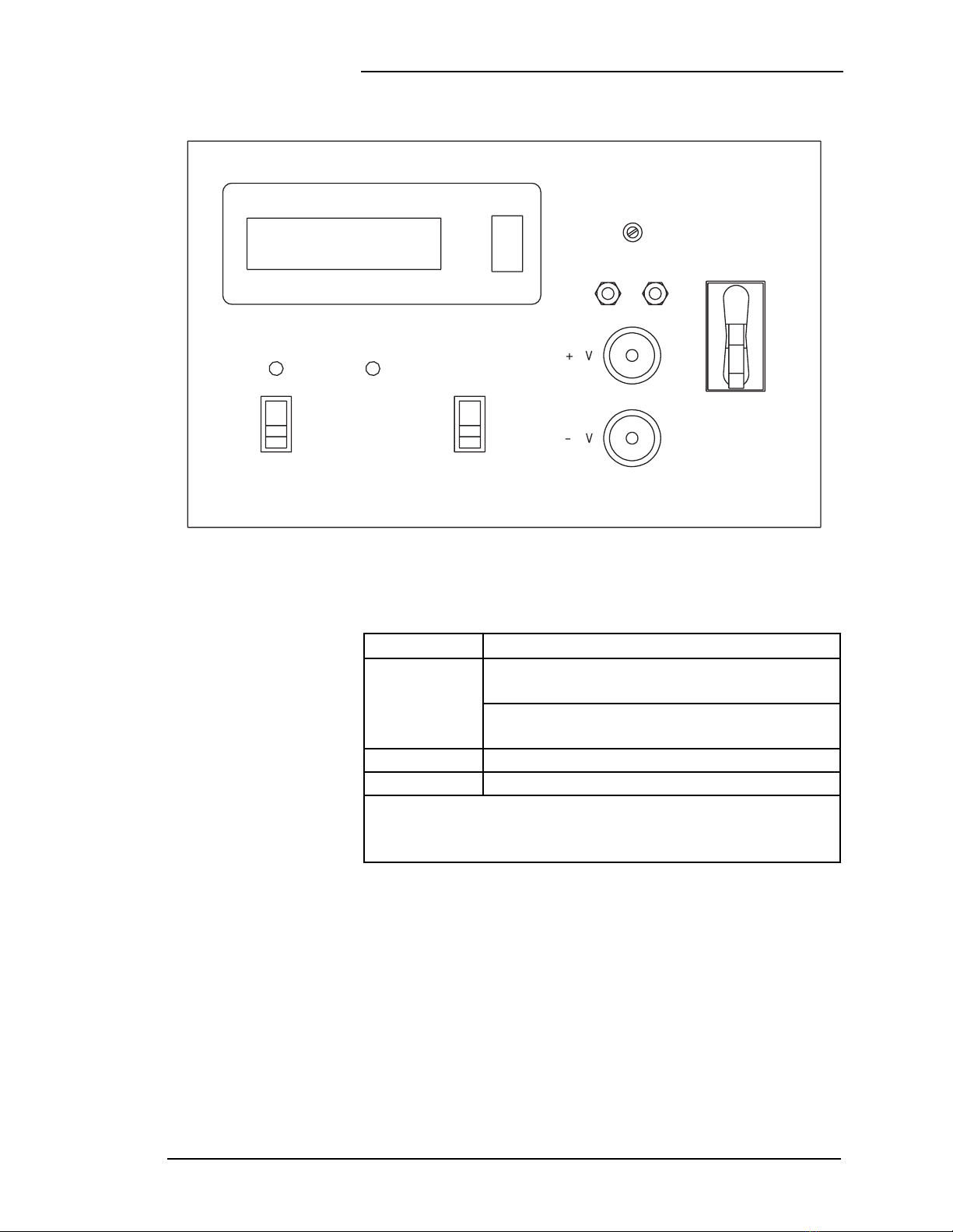

Figure 2-1: Control Panel of J85502A-1 Rectifier 2 - 7

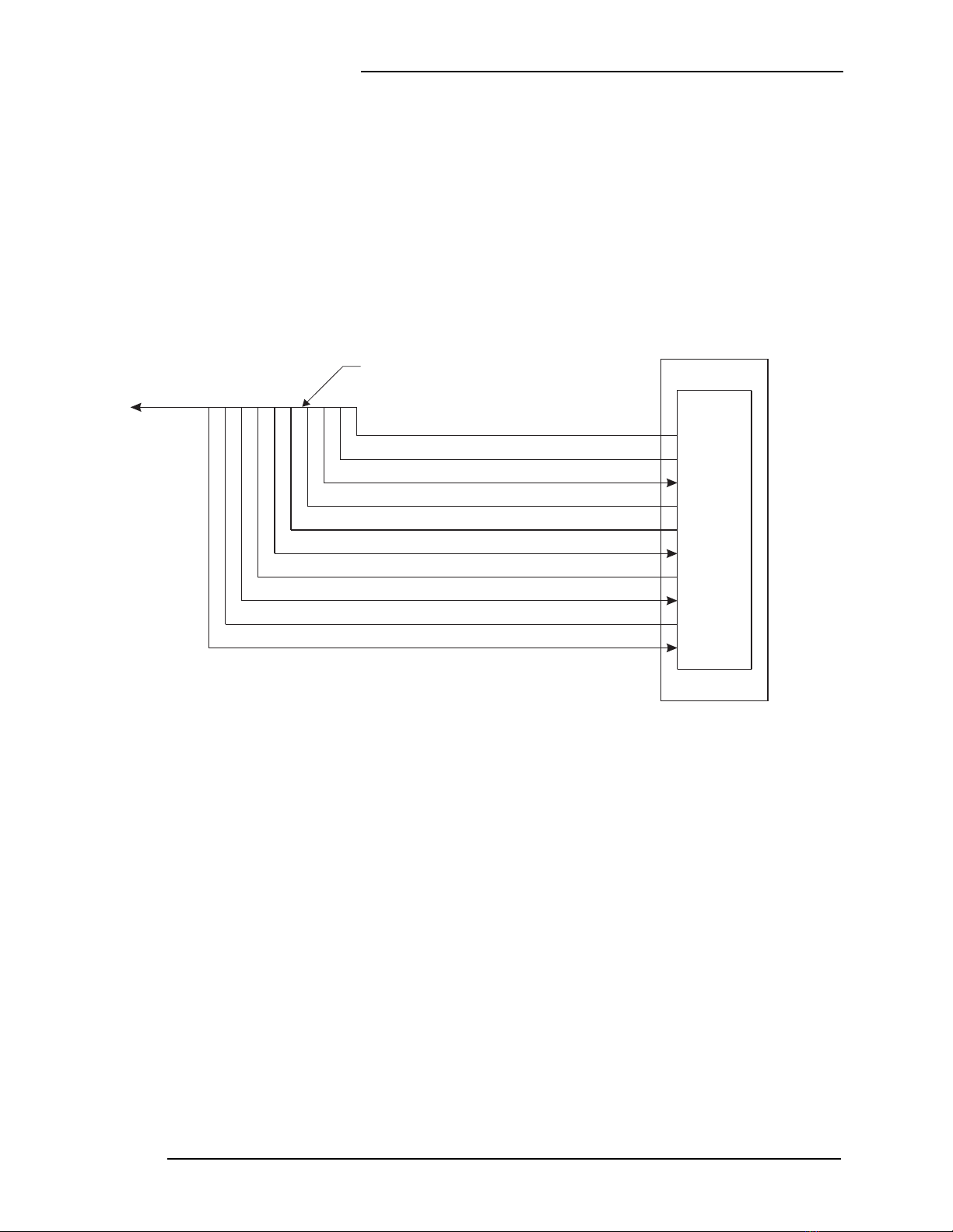

Figure 2-2: Signal Flow between Rectifier and Lucent
Technologies Controller 2 - 9
Figure 5-1: Four Views of the J85502A-1 25-ampere
Rectifier 5 - 3
Figure 5-2: J85502A-1 Rectifier with Door Open 5 - 3
Figure 6-1: Battery Plant Simulator Test Set 6 - 2
Figure 6-2: CM1 Option Board (ED83158-30
Grp 2, A) Showing Test Clip Connections and
Movable Straps “Q” and “T” 6 - 6
Figure 6-3: CM2 Control Board Showing Test Clip
Connections and Other Component Detail 6 - 7
Figure 7-1: Component Sides of CM3 Digital Meter
Boards 7 - 4
Figure 8-1: Rear Compartment of the J85502A-1
Rectifier with the Cover Removed 8 - 17
Figure 8-2: J85502A-1 Rectifier Seen from the Top
Front with Door Closed and Top Cover Removed 8 - 17

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 List of Tables - 1
List of Tables
Table 2-A: Digital Meter Accuracy 2 - 7
Table 2-B: Physical and Thermal Specifications
of the J85502A-1 Rectifier 2 - 10
Table 2-C: Input Specifications for the J85502A-1
Rectifier 2 - 10
Table 2-D: Output Specifications for the J85502A-1
Rectifier 2 - 10
Table 3-A: Equipment Lists for the J85502A-1
Rectifier 3 - 1
Table 3-B: Document References 3 - 2
Table 5-A: AC Input Requirements 5 - 4
Table 5-B: DC Output Requirements 5 - 4
Table 5-C: Rectifier Settings for Initial Battery
Charge 5 - 11
Table 6-A: Rectifier Control Settings for Testing
Off Line 6 - 4
Table 6-B: Test Set Connections 6 - 6
Table 6-C: Rectifier Control Settings
Prior to Testing On Line 6 - 13
Table 6-D: Controls for Meter Calibration Test
On Line 6 - 19
Table 7-A: Troubleshooting 7 - 3
Table 7-B: Digital Meter Tolerance 7 - 8
Table 7-C: Control Settings Prior to Restoring
Rectifier to Service 7 - 11
Table 8-A: Spare Circuit Modules 8 - 1

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - List of Tables Issue 4 May 1998
Table 8-B: Modifications for the CM1 Option Board 8 - 4
Table 8-C: Spare Fuse Information 8 - 4
Table 8-D: Torque and Minimum Yield Strength for
Mechanical Connections (Using Hex Head Cap
Screws) 8 - 11
Table 8-E: Minimum Torque for All Electrical
Connections 8 - 12

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Introduction 1 - 1
1 Introduction
General
Information This product manual (Select Code 169-790-122) describes the
J85502A-1 25-ampere ferroresonant rectifier. The J85502A-1
rectifier converts commercial 208 or 240 volts ac input power at
60 hertz into highly regulated and filtered, low-noise, 24 or
48-volt dc output power for telecommunications equipment
loads.
Since central offices usually obtain their electrical power from
potentially noisy commercial ac lines (and emergency
generators during commercial power failures), and since high
qualitydc power is required inorderforthe equipment to operate
correctly, the J85502A-1 rectifier is an excellent choice for any
telecommunications battery plant.
The J85502A-1 rectifier can be used with a Lineage®2000
battery plant, older vintage Lucent Technologies battery plants,
or any commercialbattery plant. With certain options, it can also
operate off battery.
Customer
Service Forcustomers in the United States, Canada, Puerto Rico, and the
US Virgin Islands, call 1-800-THE-1PWR (1-800-843-1797).
Services provided through this contact include initiating the
spare parts procurement process for out of service emergencies,
ordering Lucent Technologies documents, and providing other
product and service information.
For other customers worldwide, call 001-972-840-0382. This
numberis answeredfrom8:00a.m.until4:30p.m.,CentralTime
Zone (Zone 6), Monday through Friday.

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
1 - 2 Introduction Issue 4 May 1998
Technical
Support Technical support for Lucent Technologies customers is
available around the world during the normal product warranty
period and also while specific contractual agreements extend
this service.
For customers in the United States, Canada, Puerto Rico, and the
US Virgin Islands, call 1-800-CAL-RTAC (1-800-225-7822) to
contact a product specialist to answer your technical questions
and assist in troubleshooting problems.
For other customers worldwide, contact your local field support
center or your sales representative to discuss your specific needs.
Product Repair
and Return Repair and return service is provided for Lucent Technologies
customers around the world. For customers in the United States,
Canada, Puerto Rico, and the US Virgin Islands, call
1-800-255-1402 for information on returning of products for
repair.
For other customers worldwide, contact your sales
representative to discuss your particular circumstances.

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Product Description 2 - 1
2 Product Description
Overview In most telecommunications applications, the output of the
rectifier system is electrically connected in parallel with the
batteries. The rectifiers provide both the power to the telephone
equipment through the plant distribution and the charging and
float current to the batteries. In the event of commercial power
failure, the batteries supply the required dc power to the
telephone equipment. This transition needs no switching
because of the parallel connection of the rectifiers and batteries.
The rectifier provides alarms and accepts control signals from an
external source. It is Underwriters Laboratory (UL) listed and
Canadian Standards Association (CSA) certified. The rectifier
uses controlled ferroresonant technology, which reduces noise
and transients from commercial lines.
All components in the rectifier meet Lucent Technologies' strict
specifications and reliability standards. The rectifier uses an
extremely efficient free-convection cooling system that keeps
components operating at temperatures well below the
recommended maximum, resulting in high reliability.
Allcircuitsforpower control,alarms,voltage regulation,current
limiting, restart, plant interface, and remote monitoring/control
are mounted on replaceable circuit modules. Front access to the
circuit modules simplifies replacement or adjustment, if
required. Standardized modules simplify parts inventory,
resulting in lower costs and better equipment availability.
The rectifier can be used in a plant with or without batteries and
with orwithout a controller. One each of twoinput voltages, two
output voltages, and either negative or positive polarity may be
ordered. Each option requires different equipment that Lucent

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - 2 Product Description Issue 4 May 1998
Technologies has organized into numbered lists to simplify
ordering.
Ferroresonant
Technology The J85502A-1 rectifier isa member of theLucent Technologies
family of Lineage®2000 ferroresonant rectifiers. Like all the
rectifiersin the family, itrepresents asignificant advancement in
efficiency, space savings, and serviceability. The rectifier uses
the electronically controlled, closed-loop, ferroresonant
technology developed by Lucent Technologies Bell
Laboratories. This technology provides excellent output
regulation in spite of variations in the incoming commercial line
voltage and frequency and the outgoing current or “load.”
Ferroresonant technology and the rectifier's physical design
features combine to provide reliable service, easy maintenance,
and greater cost-effectiveness on a dollars-per-output-ampere
basis.
Ferroresonant technology also:
• Eliminates internal switching transients typically associated
with other technologies;
• Reduces noise and transients from commercial lines. As the
interface between commercial power and telephone
equipment, the ferroresonant rectifier significantly
attenuates noise and lightning surges from commercial
lines;
• Introduces far less noise into closely coupled telephone
lines due to lower harmonic components in the input current
waveshape compared to other technologies;
• Provides highly efficient power conversion.
Standard
Features The J85502A-1, 25-ampere rectifier has the following standard
features:
•Output current “walk-in”: This circuit controls the time
required for the rectifier to reach its rated output voltage
after it is turned on. Initially, the output voltage is about 80
percent of normal, and gradually increases to the required
value in approximately 10 seconds. As the output voltage
“walks in,” so does output current. This feature minimizes

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Product Description 2 - 3
the starting surge on the customer’s power source and is
especially important with amore limited power source, such
as an emergency generator set.
•Internal selective high voltage shutdown: If the rectifier
voltage goes too high, and it is delivering at least 10 percent
of its rated output current, the rectifier shuts down. If the
rectifier is connected to a Lineage®2000 controller, this
feature must be deactivated and the controller furnishes the
external selective high voltage shutdown (HVSD).
•External selective high voltage shutdown: If the battery
voltage goes too high, the Lineage®2000 controller signals
all of the connected rectifiers. This signal causes the
rectifier(s) delivering at least 10 percent of rated output
current to shut down. The remaining rectifiers continue
operating. Straps on the CM1 option board must be set for
List WB. See Table 8-B in this manual.
•Backup high voltage shutdown: This circuit prevents
damage to the rectifier in the event of high battery voltage.
Each rectifier senses its own output voltage and shuts down
when this voltage exceeds a preset value. This circuit
operates if the external selective HVSD fails to operate.
This backup HVSD operates from an independent voltage
source per Bellcore standards.
•Output current limit: The rectifier provides a constant
output voltage up to its rated output current, at which point
it provides constant current. When the output current tends
to increase above the rated output, the current limit circuit
overrides the voltage regulating signal and limits the output
current of the rectifier.
•Voltage monitor circuit: This circuit monitors the ±5 and
±12 volt dc bias voltage on the control board. This circuit
shuts down the rectifier and issues an RFA alarm when
those voltages fall outside acceptable levels.
•Backup current limit: In addition to the output current
limit, the ferroresonant transformers self-limit current
output between 125-175 percent of full load, or 31.25-43.75
amperes.
•Isolated output current indication: When used with a
Microprocessor Controlled System controller, the rectifier

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - 4 Product Description Issue 4 May 1998
provides an isolated 2- to 10-volt signal, corresponding to a
range of no-load to 125 percent of rated output load, which
is used to indicate the rectifier drain on the controller.
•Safety interlocks: A series-loop circuit electrically
interconnects the control circuit modules and prevents
rectifier operation if an open circuit occurs.
•Fuse alarm circuit: The low-power control functions shut
the rectifier down if a fuse alarm (FA) occurs. One fuse
alarm protects each of the regulation leads. When any FA
occurs, a Rectifier Failure Alarm (RFA) LED lights on the
front panel and an RFA signal is generated.
•Man alarm: This alarm indicates that either the rectifier
has been turned off manually or has lost commercial input
power.
•Restart circuit: The rectifier has an automatic restart
feature that is compatible with the Lineage®2000
controllers and most other controllers. If a rectifier shuts
down due to the external selective HVSD, most controllers
try at least once to restart it automatically.
•Remote sense leads: These leads permit remote regulation
of the rectifier if it is installed with a compatible controller
and the straps on the CM1 option board are set for List WA.
See Table 8-B in this manual.
•TR: This signal remotely shuts down the rectifier.
•LOA: The low output alarm signals a controller that the
rectifier input voltage is below the lower limit of the
rectifier operating voltage.
•AC voltage monitor circuit: This circuit monitors the ac
input voltage and shuts the rectifier down if the ac voltage
drops below 170 volts for plants with 208-volt ac input and
195 volts for plants with 240-volt ac input.
Additional
Features Dynamic Response
For any step load change of10 to 90 percent, or 90 to 10 percent,
or a step change of 10 percent of the input voltage, the sense

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Product Description 2 - 5
point voltage remains within 5 percent of its setting, and returns
and remains in the 1/2 percent band within 300 milliseconds.
For batteryless operation, for any step load change of 50 to 90
percent, or 90 to 50 percent, or a step change of 10 percent of the
input voltage, the sense point voltage remains within 10 percent
of its setting, and returns and remains in the 2 percent band
within 500 milliseconds.
Electromagnetic Compatibility
The J85502A-1, 25-ampere rectifier complies with FCC Docket
20780, Part 15,Subpart J as required for Class A applications. In
addition, the rectifier meets all specified operating
characteristics when subjected to electric fields upto 10volts per
meter over a frequency range of 20 to 1000MHz.
Circuit Modules The rectifier's signal processing and control circuitry are located
on replaceable circuit modules or packs. Circuit modules are
plug-in boards that can be ordered separately. Table 8-A lists
recommended spare parts for the rectifier. All circuit modules
areaccessible byopening therectifier door. Figure 5-2 showsthe
location of the circuit modules and other features of the rectifier.
Figures 6-2, 6-3, and 7-1 show the CM1, CM2, and CM3 board
layouts, respectively. A description of each module follows.
• The CM1 circuit module (ED83158-30 Group 2, A)
contains circuitry common to several rectifiers in the
Lineage®2000 rectifier family. The factory provides the
options required for each application by removing certain
wire straps and resistors from the CM1 board. The factory
modification of CM1 is complete when the board is
installed in the rectifier. However, ordered spare or
replacement CM1 boards have not been modified. The
customer must make this modification. See Section 8 for
information on parts to be removed and retained.
• The CM2 circuit module (205A1 control board) contains
the following circuits:
Local power supplies
Feedback regulator
Walk-in feature
Backup high voltage shutdown (BUHVSD)
Rectifier portion of external selective HVSD

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - 6 Product Description Issue 4 May 1998
Remote shutdown
Internal selective high voltage shutdown (ISHVSD)
Restart feature
Limited output alarm (LOA)
Fuse alarm
Electronic current limit
Output current isolation circuit
•TheCM3 circuit module (207A meter board) controls the
digital Output meter on the control panel of List 10
rectifiers. The meter displays the rectifier's output current,
voltage, or the plant battery voltage depending on the
three-position selector switch (see Figure 2-1).
•TheCA1 circuit module (ED83156-30 Group 1) contains a
triac/thyristor snubber network. Refer to schematic drawing
SD82604-01 for further information.
• The CM5 circuit module (434A or B) has ac and dc voltage
monitor circuits. When activated, these circuits shut down
the rectifier. The dc circuit issues an RFA alarm. The
rectifier must be restarted when the problem has been
cleared. When the ac circuit is activated, the rectifier shuts
down but automatically restarts when the corrected ac
voltage is restored.
Front Panel
Controls and
Indicators
Figure 2-1 shows the control panel of the J85502A-1 25-ampere
rectifier. The following list describes the controls and indicators
on the control panel. These features should be observed and
manually operated during normal rectifier performance. Bold
letters indicate labels that appear on the control panel or inside
the rectifier.
Caution
Equipment damage may occur if circuit modules are
connected or disconnected with voltages present. See
Section 8 for how to replace circuit modules and for
proper handling of circuit modules to avoid damage from
electrostatic discharge.

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Product Description 2 - 7
• The digital output meter is optional on the J85502A-1
rectifier. The meter displays (1) the rectifier output current
when the selector switch is in the AMPS position, (2) the
rectifier output voltage when the selector switch is in the
RECT V position, and (3) the plant battery voltage when
the selector switch is in the BATT V position. The default
display is rectifier output current. Table 2-A gives the
accuracy of this meter in the various positions. The
accuracy of the reading depends on the vintage of the digital
meter board (CM3) in the rectifier. The POWER (control)
Figure 2-1: Control Panel of J85502A-1 Rectifier
Table 2-A: Digital Meter Accuracy
Meter Position Accuracy
RECT V
±0.5 volt for Series 1 or 2 CM3 digital meter
boards
±0.02 volt for Series 3 CM3 digital meter
boards*
BATT V ±0.02 volt for any CM3 digital meter board
AMPS ±2.5 percent of rectifier rating
*Series 3 CM3 boards can be identified by the designation
“AM3” stamped on the wiring (noncomponent) side of the
board. See Figure 7-1 for a partial sketch of CM3 boards.
OUTPUT RECT V
BATT V
AMPS
OUTPUT
VOLTS ADJ
DC
OUTPUT
REG
POWER
ON RFA ALARM RECT TEST
FL
NLOFF
1/2 AMP
+–

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - 8 Product Description Issue 4 May 1998
switch turns the rectifier on and off. When the switch is in
the Off position, the rectifier cannot be turned on by the
plant controller. When the switch is in the On position, an
MCS controller can remotely turn the rectifier on or off to
satisfy the plant load current requirements. The POWER
ON LED emits a green light to indicate that the rectifier is
on.
• The RFA (Rectifier Failure Alarm)LED lights and a signal
is sent to the plant controller if the rectifier fails because of
external or internal high voltage, a blown +V or -Vfuse, or
an internal unbalance.
• The RECT TEST switch provides a manual test of the
rectifier regulation by simulating a full load (FL) or no load
(NL) condition. Operating the switch raises or lowers the
output voltage setting of the rectifier by 0.25 volt when on
battery. When the switch is in the center position, the
rectifier is in the normal operating state.
• The OUTPUT VOLTS ADJ potentiometer provides for
manual adjustment of the output float voltage.
• The REG test jacks allow for measuring the plant output
voltage at the points where the remote sense leads are
connected. This measurement is accurate only when the
remote sense leads are connected.
• The 1/2 AMP +V and -V alarm fuses protect the internal
voltage sense leads to the rectifier control and regulation
circuits. These fuses are located on the control panel inside
the rectifier door.
• The DC OUTPUT circuit breaker protects the plant from
rectifier malfunction and excessive current, and may be
used to disconnect the rectifier from the battery. An output
circuit breaker alarm issues and the RFA (Rectifier Failure
Alarm) LED lights when the circuit breaker trips.
Alarm and
Control Flow The J85502A-1 25-ampere rectifier is typically installed in a
battery plant that is monitored and controlled by a Lucent
Technologies Lineage®2000 controller. The rectifier generates
various monitoring and alarm signals and, in this type of
installation, sends them to the controller for processing and
subsequent action. The action may be local or remote alarm

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Product Description 2 - 9
indications or control signals fed back to the rectifier. Refer to
the various Lineage®2000 controller product manuals for a
description of rectifier signal processing and resultant action.
Figure 2-2 shows the typical signal flow between a rectifier and
a Lucent Technologies controller. The control signals and
alarms enter and leave the rectifier via the CM2 control board.
The Lineage®2000 family of controllers also uses replaceable
circuit modules that give flexibility to battery plant design.
Physical,
Thermal, and
Electrical
Specifications
Tables 2-B, 2-C, and 2-D give the physical, thermal, and
electrical specifications for the Lineage®2000 J85502A-1
25-ampere rectifier. Regulation on battery is 0.5% for the line,
load, frequency, and temperature specifications. Regulation off
battery is 2% for these specifications.
Figure 2-2: Signal Flow between Rectifier and Lucent Technologies Controller
DC Output Circuit Breaker Status (CB)
Rectifier
Control
Board
CM2
Power Switch Status (MAN)
Rectifier Shutdown (TR)
Rectifier Current Capacity (TP)
Rectifier Failure Alarm (RFA)
Rectifier Restart (RS)
Rectifier Current Drain (VI)
Rectifier Efficiency Algorithm (TRH)
Phase Failure Alarm (PHA)
* Plant Control Cable Assembly is manufactured by
Lucent Technologies and must be ordered separately.
See Lineage 2000 Battery Plant documentation for details.
®
Remote Regulation (R+,R–)
To Plant Controller
Plant Control
Cable Assembly *

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
2 - 10 Product Description Issue 4 May 1998
Table 2-B: Physical and Thermal Specifications
of the J85502A-1 Rectifier
Output DC ±24V Output DC ±48V
Dimensions
(inches) 23.25 wide x 7 tall x deep
Weight (pounds) 85 108
Heat dissipation*
BTU/hr at full load 420 810
Humidity rating 10% to 95% (non-condensing)
Operating altitude Sea level to 10,000 feet (3048 meters)
Operating
temperature 35° to 122°F 1.5° to 48.8°C
Audible noise at 5
feet above floor
and 2 feet in front
of rectifier
Less than 65 dBA
Earthquake rating Meets Zone 4 per Bellcore
TR-EOP-000063 (Issue 3)
*Measured at 28 Vdc (24 volt rectifiers) and 54 Vdc (48 volt
rectifiers).
Table 2-C: Input Specifications for the J85502A-1 Rectifier
Input AC (Volts) Nominal Line Current
(Amps) Frequency
(Hz)
Nominal Range ±24V ±48V
208 184-220 4.2 8 60±3
240 212-254 4.0 7
Data recorded at full load, 28 Vdc for 24 volt rectifiers and 54
Vdc for 48 volt rectifiers.
Table 2-D: Output Specifications for the J85502A-1 Rectifier
Nominal
Rectifier
(amps/volts)
Output
Range
(amperes)
Output
Range (dc
volts)
Minimum
Efficiency*
at Full
Load
(percent)
Minimum
Power
Factor at
Full Load
ACripple**
(mV peak to
peak)
Standard
Filter
Maximum
Noise at
Battery**
(dBrnc)
Standard
Filter
25/24 0 - 25 21.5 - 28.0 85 .90 100 32
25/48 0 - 25 43.0 - 56.0 85 .98 100 32
*Efficiency measured at nominal line, 28 Vdc or 54 Vdc.
**Measured on 100 amp/hr battery (4 times rectifier capacity) with a 2-volt lead drop for
standard and 0.5-volt drop for optional filter.

Lucent Technologies Lineage®2000 25A Ferroresonant Rectifier J85502A-1
Issue 4 May 1998 Ordering Information 3 - 1
3 Ordering Information
Equipment Lists Table 3-A shows the available equipment lists for the Lineage®
2000 J85502A-1 rectifier. List 1 or 2 and either List E or F are
required depending on the choice of input and output voltages.
The other lists are optional.
Table 3-A: Equipment Lists for the J85502A-1 Rectifier
List Number Input Voltage (AC) Output Voltage
(DC)
1 208 or 240 ±24
2 208 or 240 ±48
E434A voltage monitor board
without ac voltage alarm
F434B voltage monitor board
with ac voltage alarm
Optional List
Number Provides
10 Digital meter
WA External sensing, required when rectifier
is installed with a controller equipped
with battery regulation fuses
WB
External high voltage shutdown
(HVSD), required when rectifier is
installed with controller that provides
signal for external HVSD
BCircuit breaker in positive output lead
(negative ground system)
