Lucent Technologies LINEAGE 2000 Lucent User manual

Product Manual
H569-416
167-790-055
Comcode 107070542
Issue 2
August 1996
Lucent Technologies
LINEAGE®2000
600-Ampere, -48-Volt
ECS Battery Plant
Notice:
Every effort was made to ensure that the information in this
document was complete and accurate at the time of printing.
However, information is subject to change.
©1996 Lucent Technologies
All Rights Reserved
Printed in U.S.A.

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Table of Contents 1
Table of Contents
1 Introduction
Technical Support 1 -2
USA, Canada, Puerto Rico, and the US Virgin Islands 1 -2
Central and South America 1 -3
Europe, Middle East, and Africa 1 -3
Asia Pacific Region 1 -3
Product Repair and Return 1 -3
USA, Canada, Puerto Rico, and the US Virgin Islands 1 -3
Central and South America 1 -3
Europe, Middle East, and Africa 1 -3
Asia Pacific Region 1 -3
Customer Service 1 -4
2 Product Description
Plant Specifications 2 - 1
Typical Battery Plant Description 2 - 3
Battery Plant Subsystems 2 - 3
ECS Battery Plant Physical Description 2 - 4
Introduction 2 - 4
Rectifier 2 - 5
Controller 2 - 6
Batteries 2 - 6
DC Distribution 2 - 7
Distribution Bus Bars 2 - 7
Plant Shunt 2 - 7
Low Voltage Battery Disconnect/Reconnect (LVD/R)
Feature 2 - 7
Distribution Panels/Circuit Breakers 2 - 8
3 Engineering, Planning & Ordering
General Engineering Calculations 3 - 2
Load Equipment Voltage 3 - 2
Battery Plant Voltage 3 - 3
Load Drain and Growth 3 - 4
Reserve Capacity 3 - 5

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 Table of Contents Issue 2 August 1996
Charge Capacity and Recharge Time 3 - 9
Battery String Voltage Drop and Balancing 3 - 10
Battery Size versus Voltage Drop 3 - 11
Calculating Voltage Drop 3 - 13
Conductor Ampacity 3 - 13
Overcurrent Protection 3 - 14
Lineage® 2000 Engineering Specifics 3 - 14
Rectifier Sizing 3 - 15
Battery Sizing 3 - 15
Initial and Supplementary Bays 3 - 16
Cable and Load Breaker Sizing 3 - 17
Low-Voltage Disconnect/Reconnect Feature 3 - 23
Controller Options 3 - 23
Alarm System Interface 3 - 24
Earthquake Bracing 3 - 24
Appearance Packages 3 - 24
Planning 3 - 26
Floor Plan Data 3 - 26
Cable Rack and Routing 3 - 27
Grounding 3 - 27
Growth 3 - 27
Ordering 3 - 27
Coding and Terminology 3 - 27
J-drawings 3 - 29
T-drawings 3 - 35
SD-drawings 3 - 36
Documentation References 3 - 37
4 Installation
General 4 - 1
Installation Tools And Test Equipment 4 - 2
Suggested Installation Sequence 4 - 2
General Information 4 - 2
Sequence of Tasks 4 - 3
Installation Procedures For Plant Growth 4 - 14
Adding a Load Circuit 4 - 15
5 Maintenance
Controls and Indicators 5 - 1
Controller and Rectifier 5 - 1
CP5 Fuse Board LEDs and Fuses 5 - 1
DC Circuit Breakers 5 - 2
Troubleshooting 5 - 2
Open Distribution Breaker 5 - 4

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Table of Contents 3
Red “LVD OPEN” LED Lit 5 - 5
Yellow “LVD FAIL” LED Lit 5 - 5
Blown Fuse on CP5 5 - 5
Repair and Replacement 5 - 5
Load Circuit Breaker Replacement 5 - 6
LVD/R Contactor Replacement 5 - 7
LVD/Fuse Board (CP5) Replacement 5 - 8
Spare Parts 5 - 9
6 Product Warranty

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 List of Figures 1
List of Figures
Figure 1-1: Lineage 2000 ECS Battery Plant
(Model H569-416) 1 -4

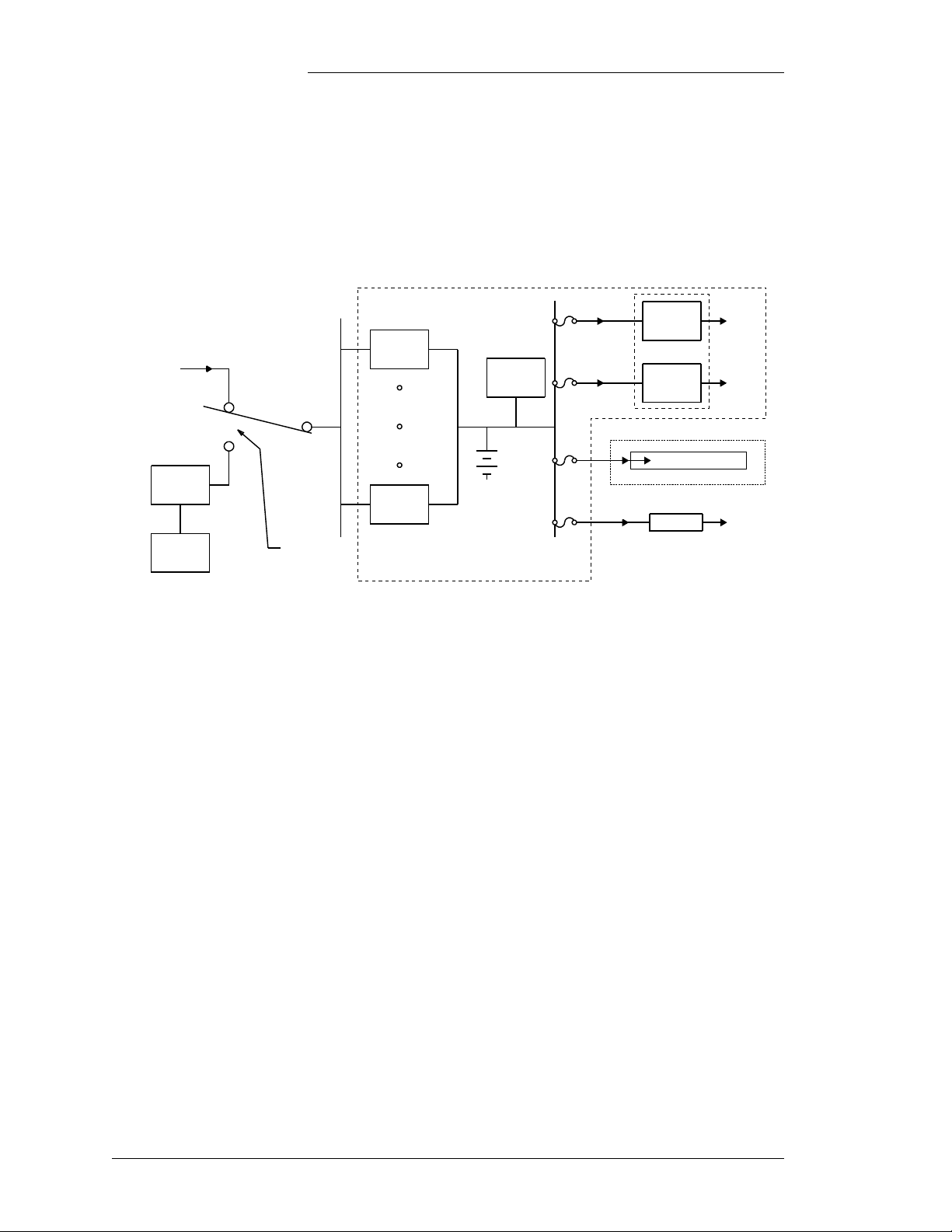

Figure 2-1: Block Diagram of Typical Battery Plant 2 - 4
Figure 2-2: Typical ECS Battery Plant System Block
Diagram 2 - 5
Figure 2-3: ECS Distribution Bus Bars 2 - 10
Figure 2-4: Low Voltage Disconnect/Reconnect
Contactor (K1) 2 - 11
Figure 2-5: ECS DC Distribution Panel (Front View) 2 - 12
Figure 2-6: ECS DC Distribution Panel (Front Door
Removed) 2 - 13
Figure 2-7: Plug-In Circuit Breaker Mounting 2 - 14
Figure 3-1: ECS Appearance Package Option 3 - 25
Figure 3-2: Typical J-Drawing A-Sheet 3 - 34
Figure 4-1: DC Distribution Cable Layout 4 - 8
Figure 4-2: Typical Floor Mounting Detail 4 - 9
Figure 4-3: Floor Mounting Template 4 - 10
Figure 4-4: LVD/Fuse Board (CP5) Jumper Locations 4 - 11
Figure 5-1: Fuse Designation and Function for
LVD/Fuse Board (CP5) 5 - 3

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 List of Tables 1
List of Tables
Table 2-A: Lineage®2000 Battery Plant Specifications
(Model H569-416) 2 - 1
Table 3-A: Initial Load Drain Information 3 - 6
Table 3-B: Anticipated Future Load Drain Information 3 - 7
Table 3-C: Reserve Capacity 3 - 8
Table 3-D: Field Wiring Specifications 3 - 18
Table 3-E: Lug And Hardware Ordering Codes 3 - 19
Table 3-F: Feeder Current Size 3 - 22
Table 3-G: Minimum Wire Gauge (Ampacity) - All
Strings 3 - 23
Table 4-A: Minimum Torque For All Electrical
Connections 4 - 4
Table 4-B: Torque and Minimum Yield Strength for
Mechanical Connections (Using Hex Head Cap Screws 4 - 5
Table 4-C: Installation Reference Documents 4 - 5
Table 5-A: Troubleshooting 5 - 4

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Introduction 1 - 1
1 Introduction
The Lineage®2000 family name of premier energy system
products is globally recognized as the right choice for the
ultimate in systems performance and reliability. Selecting this
product brings the Lucent Technologies commitment to product
and service excellence to your own telecommunications system.
This long-standing Lucent Technologies commitment has been
gained from yearsof worldwide telecommunications experience
inthedevelopment,manufacturing,engineering,installationand
servicing of leading edge energy systems, products andservices.
This document (Lucent Technologies 167-790-055) is part of a
set of product manuals which provide information on the
Lineage®2000 Evolutionary Control System (ECS) Battery
Plant and its components, such as Controller, Rectifier and
Battery manuals. Each manual contains a technical description
of the product, which is followed by detailed information on
engineering, installation, operation and maintenance. The
contents of the documentation package are identified for
ordering and reference purposes in Section 3 of this manual.
The Lineage®2000EvolutionaryControlSystem (ECS)Battery
Plant described in this manual, H569-416, is shown in Figure 1-
1. This member of the ECS family of battery plants operates
from a nominal 208/240 Vac, 50/60 Hz source. It offers a 600
ampere total plant capacity with a nominal -48 Vdc output in a
totally integrated energy system containing a controller,
rectifiers, circuit breaker distribution panels and an optional
battery disconnect/reconnect feature in one standard equipment
bay. The plant's modular front-access design facilitates
installation and growth. Growth in plant output current capacity

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
1 - 2 Introduction Issue 2 August 1996
is achieved by adding Lineage®2000 50-ampere, -48-volt
rectifiers to rectifier shelf assemblies. Growth in distribution is
achieved by adding plug-in type circuit breakers (10 through 60
amperes) to distribution panels. Adding functionality to the
basic controller is achieved through two optional circuit packs,
one to add microprocessor-based features and the second to add
a datalogger.
The ECS battery plant is compatible with all flooded and valve
regulated batteries which float within the range of 48 through
58.5 volts. In addition, the ECS plant is capable of operating in
a batteryless mode, making it suitable for those applications
where battery backup is not necessary or is achieved through the
use of an uninterruptible power supply (UPS).
Technical
Support Technical support for Lucent Technologies equipment is
available to customers around the world.
USA, Canada,
Puerto Rico, and
the US Virgin
Islands
On apost-sale basis,duringtheProductWarrantyperiod,our
Technical Supporttelephone number 1-800-CAL RTAC (1-800-
225-7822) provides coverage during normal business hours.
Product Specialists are available to answer your technical
questions and assist in troubleshooting problems. For out-of-
hours EMERGENCIES, the 800 number will put you in touch
with a Regional Technical Assistance Center Engineer via our
24 hour a day, 7 day per week Help Desk.
When Technical Support is required in the Post-Warranty
Period, the service may be billable unless you hold an extended
warranty or contractual agreement.
Note
The Lineage®2000 ECS Battery Plant H569-416 is to be
installed only in restricted access areas (dedicated equipment
rooms, equipment closets or the like) in accordance with
Articles 110-16, 110-17 and 110-18 of the National Electrical
Code or in accordance with the appropriate requirements of
the Electrical Code of the country in which the equipment is
installed.

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Introduction 1 - 3
Central and
South America If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Europe, Middle
East, and Africa If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Asia Pacific
Region If you need product technical support, contact your local Field Support/Regional Technical Assistance Center or contact your
sales representative who will be happy to discuss your specific
needs.
Product Repair
and Return Repair and return service for Lucent Technologies equipment is
available to customers around the world.
USA, Canada,
Puerto Rico, and
the US Virgin
Islands
For information on returning of products for repair, customers
may call 1-800-255-1402 for assistance.
Central and
South America If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.
Europe, Middle
East, and Africa If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.
Asia Pacific
Region If you need to return a product for repair, your sales representative will be happy to discuss your individual situation.
Customer
Service For customer service, any other product or service information,
or for additional copies of this manual or other Lucent
Technologies documents, call 1-800-THE-1PWR
(1-800-843-1797). Specify the select code number for manuals,

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
1 - 4 Introduction Issue 2 August 1996
or drawing number for drawings. Contact your regional
customer service organization or sales representative for
information regarding spare parts.

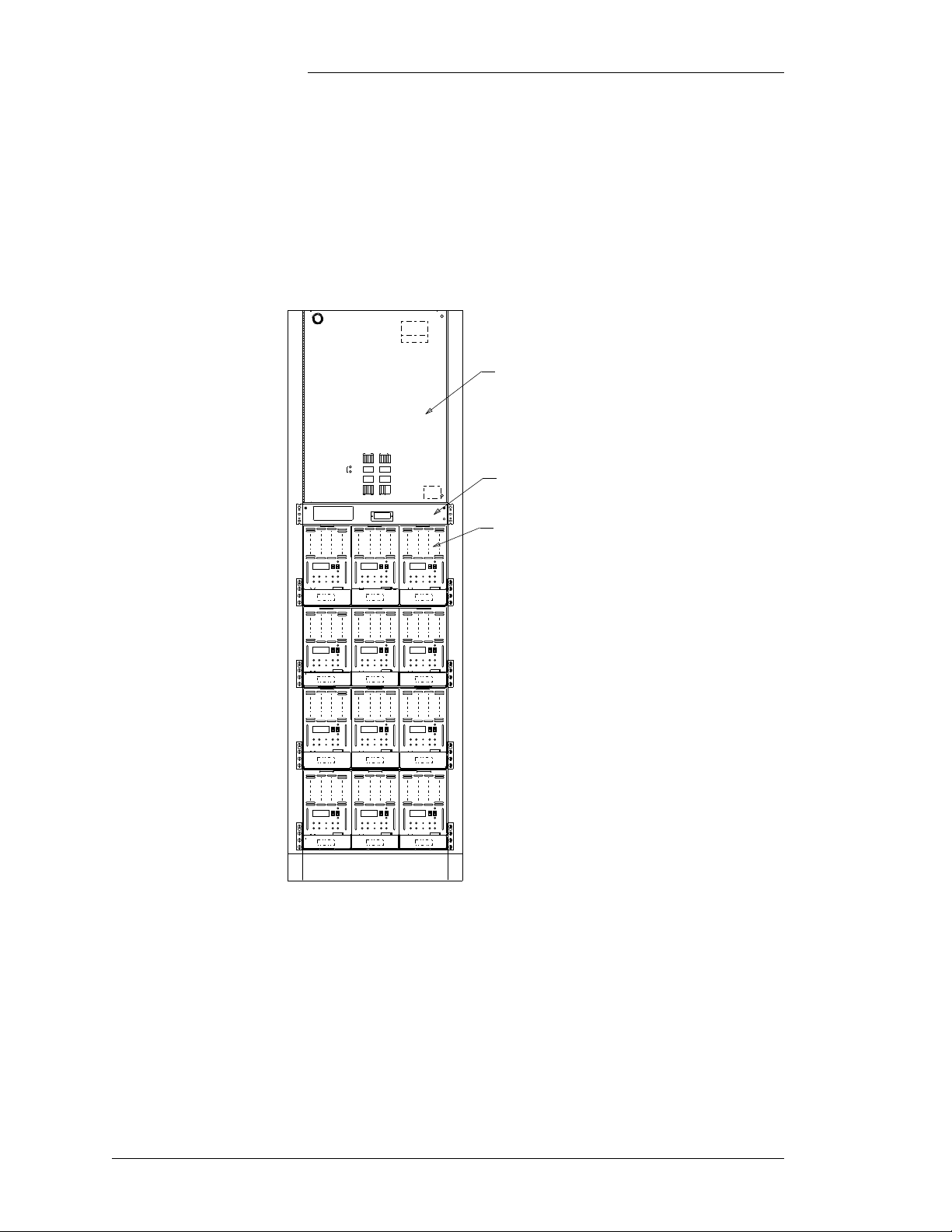

Figure 1-1: Lineage 2000 ECS Battery Plant (Model H569-
416)
LINEAGE 2000
LVD/ R FAIL
OPEN
R
E
C
T
1
R
E
C
T
7
R
E
C
T
2
R
E
C
T
8
R
E
C
T
3
R
E
C
T
9
R
E
C
T
4
R
E
C
T
10
R
E
C
T
5
R
E
C
T
11
R
E
C
T
6
M
E
T
E
R
C
P
2
C
P
3
C
P
1
D
B
B
A
T
A
B
S
C
P
1
R
B
R
E
C
T
12
U
S
E
R
1
U
S
E
R
2
U
S
E
R
3
ECS Distribution Panel
ECS Controller
SR 100/24V
Rectifiers
Lucent

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Product Description 2 - 1
2 Product Description
Plant
Specifications
Table 2-A: Lineage®2000 Battery Plant Specifications (Model H569-416)
Input Voltage 180-264 Vac (208/220/240 Vac nominal)
Input Frequency 47-63 Hz (50/60 Hz nominal)
Operating Voltage 40-60 Vdc (48 Vdc nominal)
Float Voltage 47-58.5 Vdc (48 Vdc nominal)
Plant Current Rating 600 amperes
Plant Shunt 1200 amperes maximum at 50 millivolts
LVD/R Voltage Settings 40.5 or 42.5 Vdc
Controller Basic: 113B Microprocessor option circuit pack
Datalogger circuit pack
-48 Volt Distribution 3 panels accommodate up to (21) KS23616 circuit
breakers each
Rectifier Shelf Assembly Complement: 4 maximum, each mounts 3 rectifiers
Rectifiers Type: Lineage®2000 364A2
Rating: -48 Vdc nominal, 50 amperes
Complement: 12 maximum

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 - 2 Product Description Issue 2 August 1996
Circuit Breakers Type: KS23616 Ratings: 3, 5, 10, 15, 20, 30, 45, 60 amperes
Type: KS22010, optional
Battery String Terminations
Type: Studded bus bar, accepts double-hole terminal
lugs, 1-inch centers
Size: Terminates 4/0 AWG conductors
Complement: 12 terminal lugs maximum, back to back
System Ground Termination Type: studded bus bar, accepts double-hole terminal, 1 inch center
Size: Terminates 4/0 AWG conductor
Temperature 77°F (25°C) nominal
Altitude
-200 to 13000 feet (-61 to 3962 meters)
For altitudes of 5000 to 13,000 feet, derate maximum
temperature by 3.8°F per 1000 feet above 5000 feet.
For altitudes of 1524 to 3962 meters, derate maximum
temperature by 0.656°C per 100 feet above 1524
meters.
Framework
Type: 7 foot Network Bay Frame (standard 23 inch
relay rack)
Vertical mounting centers: 1.00 inches (25 mm)
Horizontal mounting centers: 22.32 inches (567 mm)
Dimensions
Height: 84 inches (2134 mm)
Width: 26 inches (660 mm)
Depth: 18.5 inches (470 mm)
Depth when equipped with VR batteries: 26 inches
(660 mm)
Weight
Initial bay, equipped with 12 rectifiers: 651 pounds
(296 kilograms)
Rectifier Shelf Assembly: 25 pounds (11.4 kilograms)
Rectifier: 25 pounds (11.4 kilograms)
Controller: 20 pounds (9.1 kilograms)
Earthquake Initial bay: Zone 4, upper floors
Heat Dissipation
Initial Bay, full load, 12 rectifiers, controller: 6482
watts (22,098 BTU/hr) (See Note 1)
Rectifier, full load: 538 watts (1834 BTU/hr)
Controller, basic and options: 26 watts (89 BTU/hr)
Humidity rating 10% to 95% noncondensing
Audible noise 68 dBA (See Note 2)
Table 2-A: Lineage®2000 Battery Plant Specifications (Model H569-416)

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Product Description 2 - 3
Typical Battery
Plant Description A basic block diagram of a typical dc battery plant is shown in Figure2-1.Thebatteryplant acceptsalternating current fromthe
commercial utility or a standby ac power source and rectifies it
to produce dc power for the using equipment. Control and alarm
functions are provided by the plant to interact with the rectifiers
and the office. In addition, the plant provides overcurrent
protection, charge, discharge, and distribution facilities. Battery
reserve automatically provides a source of dc power if the
commercial or standby ac fails. This battery reserve is
engineered to supply dc power for a specified period of time. In
normal practice, battery capacity is sized to provide 3to 8 hours
of reserve time.
Battery Plant
Subsystems Figure 2-2 illustrates the arrangement and interconnections of the typical dc battery plant subsystems from the ac input to the
dc output. These subsystems are defined as follows:
AC Distribution: connects the commercial and/or standby ac
power sources to the rectifiers within the plant and provides
overcurrent protection. This subsystem is usually supplied by
the customer.
Rectifiers: convertan ac source voltage intothe dcvoltage level
required to charge and float the batteries and to power the using
equipment.
Controller: provides the local and remote control, monitor and
diagnostic functions required to administer the battery plant.
Batteries: provide energy storage for an uninterrupted power
feed to the using equipment during loss of ac input or rectifier
failure.
Electrostatic discharge IEC 801-2 Level 5 (15 KV) at 40% relative humidity
Radiated/ Conducted Emissions FCC Level A
Electromagnetic immunity 10V/m over the range of 20 to 2000 MHz
Notes:
1. Specified at a plant voltage of 54 Vdc, 600 amperes output, and nominal input voltages and frequencies.
2. Measured at 5 feet above the floor and 2 feet from the equipment.
Table 2-A: Lineage®2000 Battery Plant Specifications (Model H569-416)

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 - 4 Product Description Issue 2 August 1996
DC Distribution: provides overcurrent protection, connection
points for the using equipment, and bus barsusedto interconnect
the rectifiers, batteries, plant shunt, and dc distribution.
ECS Battery
Plant Physical
Description
Introduction The Lineage®2000EvolutionaryControlSystem (ECS)Battery
Plant is shown in Figure 1-1. The ECS battery plant provides
power for the using equipment as well as float and recharge
capability for the battery reserve. The plant operates from a
nominal 208/240 Vac, 50/60 Hz source. It offers a 600 ampere
total plant capacity with a nominal -48 Vdc output. The ECS
battery plant is compatible with all flooded and valve regulated
batteries that have a short-circuit current rating less than 7,000
amperes. In addition, the ECS plant is capable of operating in a
batterylessmode,makingitsuitable forthose applications where
battery backup is not necessary or is achieved through the use of
an uninterruptible power supply (UPS).
Figure 2-1: Block Diagram of Typical Battery Plant
ELECTRIC
UTILITY
(AC POWER)
ENGINE
ALTERNATOR
DC-DC
CONVERTER
DC-DC
CONVERTER
AC
LOADS
DISTRIBUTION
FACILITIES
TYPICAL EQUIPMENT FRAME
DC POWER PLANT
OUTPUT VOLTAGES
DC-AC
INVERTER
FUEL
STORAGE
TRANSFER
SWITCH
RECTIFIER
CONTROL
AND
MONITOR
RECTIFIER
DC POWER PLANT
BATTERY

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Product Description 2 - 5
The ECS battery plant is designed as a totally integrated energy
system package in which modular front-access design facilitates
installation and growth. One standard equipment bay will
accommodate a maximum of 12 Lineage®2000 SR Series -48-
volt, 50-ampere rectifiers, a Lineage®2000 ECS controller,
standard distribution panels accepting breakers from 3 to 60
amperes, and an optional low voltage battery disconnect/
reconnect feature. Style strips are an optional appearance kit.
Rectifier TheLineage®2000SRSeriesrectifiers aredesigned specifically
for applications where small size, low weight and ease of
installation are of overriding importance. The rectifiers utilize a
combination of switch-mode technology and forced air cooling
to achieve a significant reduction in size and weight over
conventional ferroresonant rectifiers. The plug in, connectorized
Figure 2-2: Typical ECS Battery Plant System Block Diagram
RECTIFIER
A/C
RECTIFIER
BATTERY
STRING
BATTERY
STRING
BATTERY
BUS
LVD
TO OFFICE
ALARMS
LINEAGE 2000
ECS
FOR ESD WRIST STRAP
CHARGE
RETURN BUS
1200 A
SHUNT
DISCHARGE
RETURN BUS
DISTRIBUTION
TO OFFICE
LOADS
CHARGE
BUS
ALARMS
OUTPUT VOLTS
AMPS
FLOAT
EQ
BD
ACF
MNF
EO
MJF
RFA
µP
SWI
NORM
V
Lucent

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 - 6 Product Description Issue 2 August 1996
design of the rectifiers reduces installation time to minutes,
permitting easy growth and maintenance without service
interruption.
The Lineage®2000 SR Series 50 ampere rectifiers operate over
208/240 Vac 50/60 Hz nominal single phase inputrange without
any necessary tap changes. A power factor correction circuit
incorporated in the design insures a power factor of 90 percent
or greater for loads above 50 percent of the full load rating. The
rectifiers provide the ECS controller with a full complement of
status and alarm signals. The SR Series 50 ampere rectifier is
both UL recognized and CSA certified.
The rectifier status and alarm signals, ac input, and dc output are
all connectorized. The rectifiers plug into a rectifier shelf
assembly that accommodates a maximum of three individual 50
ampere rectifiers. The ECS plant can be equipped with a total of
fourrectifiershelf assembliesforatotal capacity of 12 SR Series
50 ampere rectifiers. (See the Lineage®2000 SR Series rectifier
product manual for additional information.)
Controller The ECS controller performs the centralized monitoring, control
and reporting functionsfor the ECSbattery plant. The basic ECS
controller can monitor and control up to 12 rectifiers. It also
provides a single interface point for power alarm and status
reporting.
Two optional expansion circuit packs are available to upgrade
the ECS controller: a microcomputer board equipped with a
powerful 16-bit microprocessor, and a datalogger board. The
microcomputer board adds sophisticated firmware features such
as remote communications, alarm history, and statistics. The
datalogger board may be used in conjunction with the
microcomputer option to provide general purpose ac and dc,
voltage and current monitoring and control. (See the ECS
controller manual for further information.)
Batteries The ECS Model H569-416 battery plant is compatible with
batteries with a short-circuit current rating less than 7000
amperes. For appropriate system loads and reserve times,
selection of the VR Series battery enables one to maximize space
efficiency and fully realize the benefits of front access, modular
growth, ease of installation and maintenance offered by the ECS
battery plant system design.

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Product Description 2 - 7
DC Distribution The ECS dc distribution is shown in Figure 2-3.The distribution
contains the plant charge and discharge bus bars, battery bus,
distribution bus, circuit breaker bus, positive and negative
rectifier bus, plant shunt, optional LVD/R contactor, fuse panel
and circuit breaker panels.
Distribution Bus
Bars The distribution bus bars include the charge return bus, discharge return bus, battery bus, LVD bus, distribution bus,
circuit breaker bus and positive and negative buses (See Figure
2-3). Battery strings are terminated to the battery bus and the
charge return bus. Negative rectifier outputs are routed to the
distribution circuit breakers through the negative rectifier bus,
the distribution bus and the circuit breaker bus. Positive rectifier
outputs are to the discharge return bus through the positive
rectifier bus, charge return bus and the plant shunt.
The load conductors are terminated on distribution strips above
the circuit breaker panels and the return conductors for load
circuits are terminated on the discharge return bus.
Plant Shunt A current shunt is a sensing device which provides a millivolt
signal proportional to the current flowing through it. The
millivolt-to-ampere ratio of the shunt is the dc resistance of the
shunt (in milliohms), which is thermally stable and accurately
known.
The current shunt in theECS Battery Plant is connected between
theChargeReturnBus andtheDischargeReturn Bus (see Figure
2-3). It is used to measure the total current supplied to the load
from the rectifiers and/or batteries. The shunt has a full scale
rating of 50 millivolts at the maximum plant current of 1200
amperes. The shunt millivolt signal is sent, via the CP5 Fuse
Board, to the controller where it is translated back to amperes
and displayed on the digital meter.
Low Voltage
Battery
Disconnect/
Reconnect (LVD/
R) Feature
To prevent costly battery damage due to deep discharges, the
ECS Battery Plant may be equipped with an optional automatic
battery disconnect. This disconnect is designed to isolate
batteriesfrom the load when the plant voltagereaches the lowest
usable battery voltage. The disconnect level is below the
operating range ofmostload equipment, in which case service to
the load would already have been lost. The disconnect does not

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 - 8 Product Description Issue 2 August 1996
separate the load circuits from the rectifiers, thus enabling the
rectifiers to begin powering the load as soon as ac power is
restored.
The LVD/R option consists of the LVD/R Contactor, circuitry
on the CP5 Fuse Board and associated wiring. Figure 2-4 is a
pictorial of the contactor (K1). The LVD circuit on CP5
monitors the plant charge bus voltage, designated RB. When the
RB voltage drops below a preset level, a comparator circuit on
the CP5 Fuse Board senses the low voltage condition and
removes power to the contactor. This opens the connection
between the battery buses and LVD bus, disconnecting the
batteries from the rectifiers and the load. The user has a choice
of disconnect threshold voltages (40.5 and 42.5 volts).
When the contactor is open and the rectifiers are not delivering
power, the controller is also unpowered. In this state, the
controller displays and LEDs are extinguished and various
alarms are issued to the alarm reporting center. (See the
Lineage®2000 Controller manual for further details.)
The red “LVD OPEN” and yellow “LVD FAIL” LEDs are
located on the front side of the dc distribution panel as shown in
Figure 2-5. The red “LVD OPEN” LED on the CP5 Fuse Board
is lit whenever the contactoris open, during a normal disconnect
or in the unlikely event of a contactor failure. The LVD sensing
circuitry on CP5is redundant. Afailure ofeither voltagedetector
circuit lights the yellow “LVD FAIL” LED, but the contactor
will stay closed. A Fuse Alarm Minor (MNF) is issued when a
LVD circuit fails, lighting a yellow LED on the controller front
panel and sending Power Minor (PMN) alarms to the alarm
reporting center.
Once the contactor opens it remains open until the RB voltage
again exceeds the set threshold voltage. Voltage does not return
until ac power is restored and the rectifiers restart. Once the
LVD circuit is energized, the LVD/R contactor closes the
circuit, allowing the batteries to be charged.
Distribution
Panels/Circuit
Breakers
Distribution Panels: The battery plant is equipped with three
distribution panels. Panels can accommodate up to 21 KS23616
circuit breakers each. Each bus bar in the panel is rated at 200
amperes in a 25°C ambient temperature. The unique plug-in
panel and circuit breaker design makes installation and growth a
snap.

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
Issue 2 August 1996 Product Description 2 - 9
Circuit Breakers: The KS23616 circuit breaker is available in
3, 5, 10, 15, 20, 30, 45 and 60 ampere ratings. These are plug-in
rather than screw-mounted breakers. The 45- and 60-ampere
circuit breakers take up two positions on the panel.

Lucent Technologies Lineage®2000 ECS Battery Plant H569-416
2 - 10 Product Description Issue 2 August 1996
Figure 2-3: ECS Distribution Bus Bars
To Loads
To Loads
To Loads
LVD Bus
Plant
Shunt
Circuit
Breaker
Bus
Discharge
Return Bus
Battery Bus
LVD/R
(K1)
or
Strap
Charge
Return
Bus
Distribution
Bus
Negative
Rectifier
Bus
Positive
Rectifier
Bus
To Rect.
Shelves
