LUX LUMEN StarPole User manual

StarPole

StarPole p.2/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
CONTENT
1PICTURE...........................................................................................................................3
2DIMENSIONS ...................................................................................................................4
3PHYSICAL INSTALLATION .............................................................................................5
3.1 STARPOLE SETUP....................................................................................................................... 5
3.2 SPECIFICATION ........................................................................................................................... 6
3.3 BATTERY UNIT............................................................................................................................ 6
3.4 TRANSPORT CASES..................................................................................................................... 8
4CONFIGURATION ..........................................................................................................10
5INSTALLATION..............................................................................................................12
5.1 PROVIDE THE STAREYES WITH THE CORRECT OPTICS............................................................... 12
5.2 PROVIDE THE STAREYE MAXI WITH SNOOT IF REQUESTED........................................................ 13
5.3 FOCUS THE STAREYE MAXI ...................................................................................................... 13
5.4 POSITION THE BASE BLOCK....................................................................................................... 13
5.5 PLACE HEAD ON POLE ............................................................................................................... 13
5.6 CONNECT THE XLR 5P CABLE TO THE CONNECTOR ON TOP PART............................................ 14
5.7 ASSEMBLE THE POLE ON THE BASE PLATE ................................................................................ 15
6EXTERNAL CONNECTIONS..........................................................................................16
6.1 DC POWER INPUT ..................................................................................................................... 16
7EMC AND SAFETY REQUIREMENTS...........................................................................17
8SAFETY INFORMATION................................................................................................18

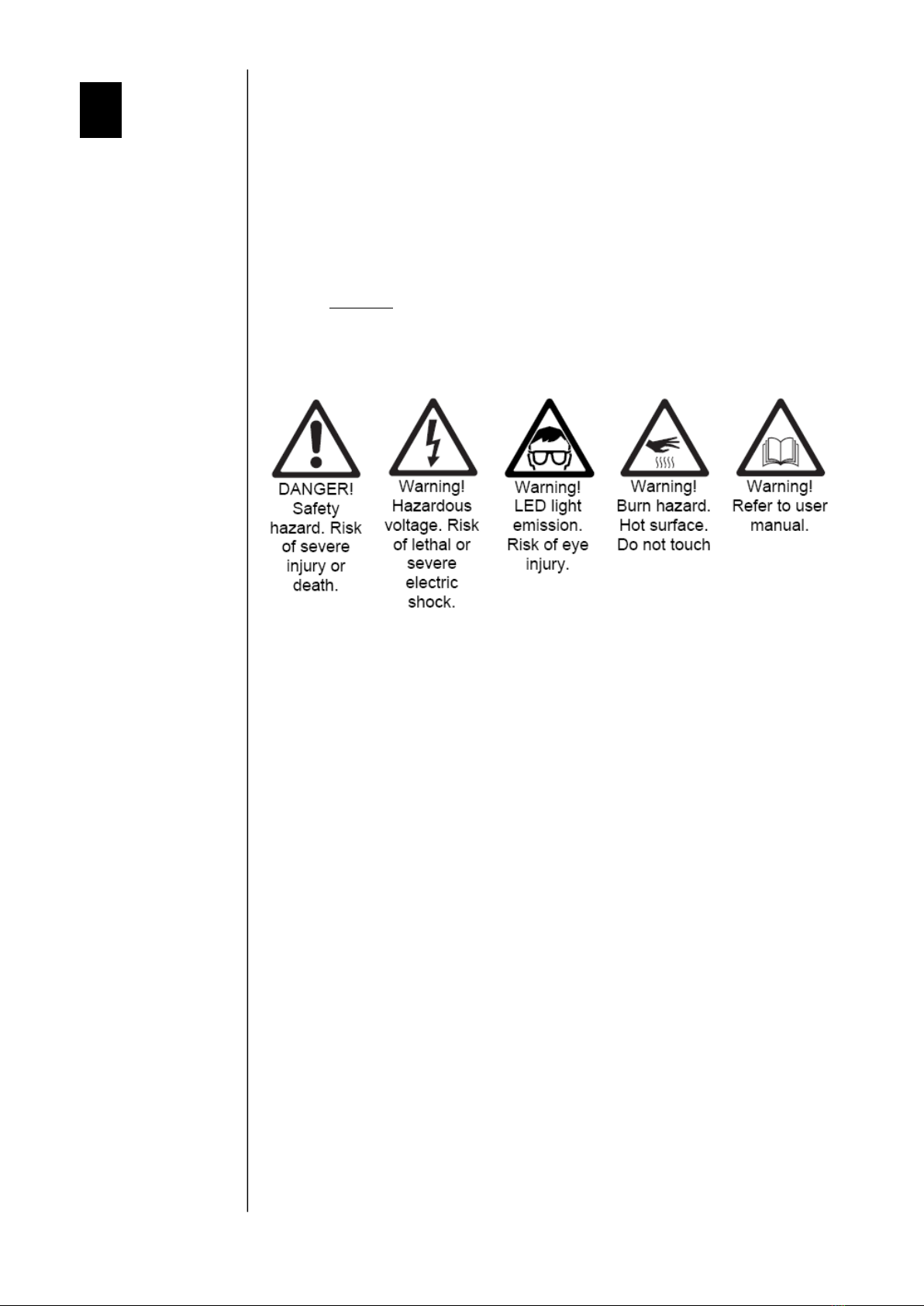

8.1 SYMBOLS.................................................................................................................................. 18
8.2 PROTECTION FROM ELECTRIC SHOCK ....................................................................................... 19
8.3 PROTECTIONS FROM FIRE AND BURNS ...................................................................................... 19
8.4 PROTECTION FROM INJURY....................................................................................................... 20
8.5 DISPOSING OF THIS PRODUCT ................................................................................................... 20
9SERVICE AND MAINTENANCE ....................................................................................21
9.1 SAFETY PRECAUTIONS .............................................................................................................. 21
9.2 CLEANING................................................................................................................................. 21
10 USED LIST OF ABBREVIATIONS ..................................................................................22

StarPole p.3/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com

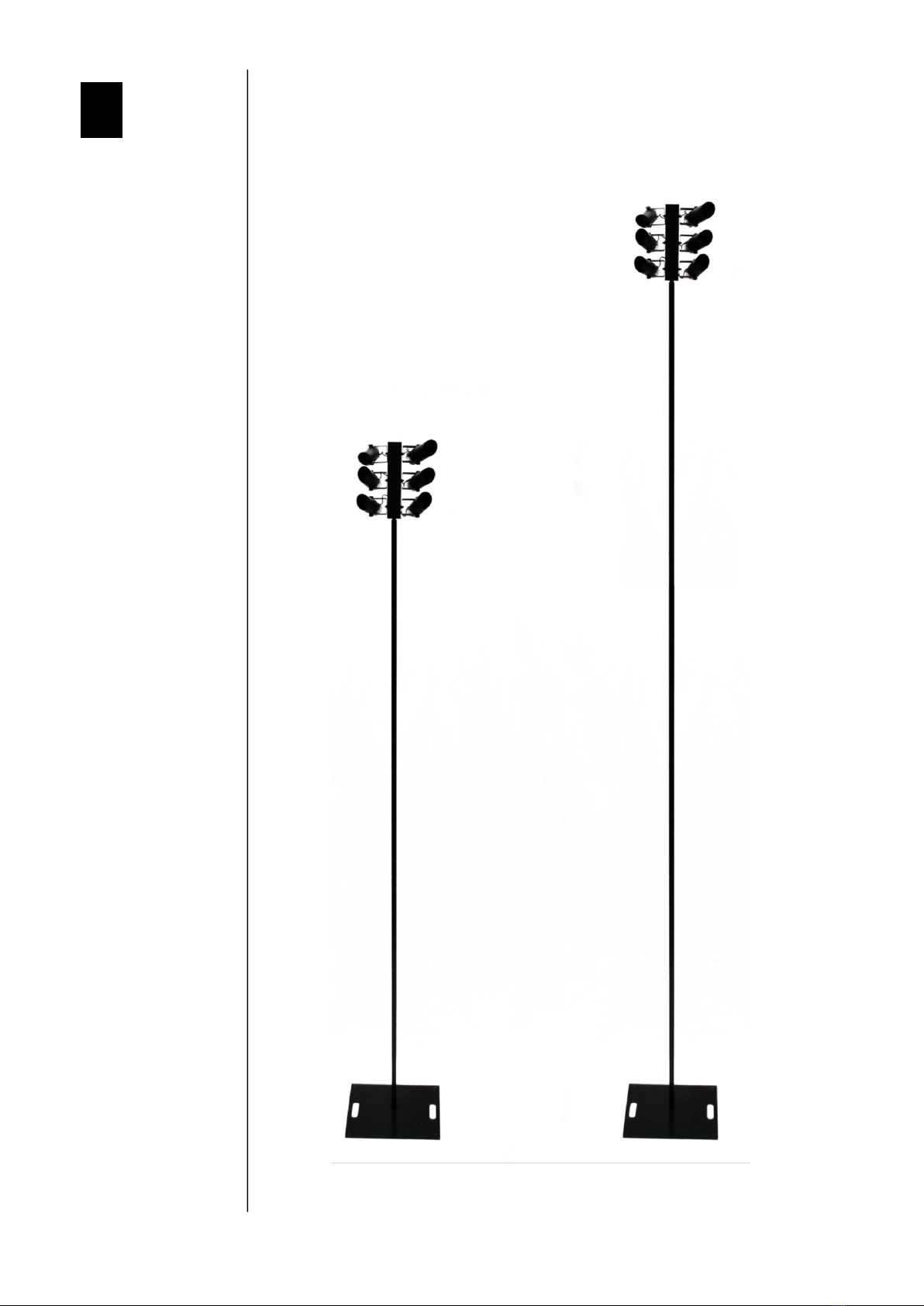

1Picture

StarPole p.4/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
2Dimensions
The StarPole consists of various elements. In the setup with a Base plate, a
StarPole Head and a StarPole pole the total dimension is: L 340 x W400 x H
3675mm/2775mm
L (cm)
W (cm)
H (cm)
HEAD
21,8
7,7
277,5 or 367,5
BASE PLATE
34
40
10
POLE
2
4
15, 250 or 340
LED DRIVER BOX
35
28
11
LED DRIVER RACK
65
72
83
CASE for 10 heads
90
60
53
CASE for cables
90
61,5
53
CASE for 12 poles
60
40
11,8
CASE for 16 base plates
91
52,8
66

StarPole p.5/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
3Physical Installation
Thank you for selecting this StarPole luminaire as best solution in your setup.
Warning! Read the safety precautions in this manual before integrating this led-unit
into your installation.
Installation must be carried out by qualified professionals only.
Assure yourself that there is sufficient and unrestricted air flow around the
StarPole luminaire.
3.1 StarPole Setup
The following items are available for your customized StarPole setup:
•StarPole Head with 6 StarEye Maxi LED fixtures
•StarPole Pole in following heights:15cm (Floor model), 250cm or 340cm
•StarPole Base plate
•StarPole Bracket for suspension on trusses
•StarPole LED Driver box containing one 6ch LED Driver and two 240W power
supplies.
•StarPole LED Driver rack containing four 6ch LED Drivers and eight 240W
power supplies.
•StarPole Battery unit
•Extension cables 4x#1,5mm, with wago 5p connectors in following lengths:
1m, 2m, 3m, 4m, 5m, 10m and 20m.
•Short form manual
•Assembly manual
Please also consult following documents:
•StarPole Assembly
•StarPole Configuration
The StarPole Head consists of 6 StarEye Maxi LED spots, linked with Higo
connectors. The top part fits in the pole and is secured with bolts.
The pole can have a height of 15cm or 250cm or 340cm. It is mounted on the base
plate on top of the base block with bolts. This base block has 4 possible positions
on the plate, also to be fixed with bolts. The position of the base block determines
the position of the pole.
The StarPole uses a simple stabilized DC power supply of 24 volt DC.
Cabling goes through the aluminum pole, with an XLR 5p connector on top and a
wago 5p connector at the bottom.
The 6 StarEye Maxi spots are controlled per 2 by a LED driver 6ch. 1 StarPole uses
3 outputs of a 6ch LED driver. It is possible to connect 2 StarPoles to each LED
driver. The StarEye Maxi LED-unit is polarity sensitive.

StarPole p.6/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
3.2 Specification
The StarPole luminaire is an elegant and efficient solution for indoor event lighting.
•Power consumption max. 60 watt (6x10W)
•Power voltage: 24 volt DC
•Current: max 3A (full rated output)
•Weight: 15,4kg
•Possible lenses:
Spot: 22°
Medium: 26°
Wide: 48°
Ultra wide: 60°
•Possible LED light colours:
Warm White, 2700K, CRI 80
Warm White, 3000K, CRI 80
Warm White, 3500K, CRI 80
Neutral White, 4000K, CRI 80
Cold White, 5700, CRI 80
•The housing is anodized in black
•The ingress protection of the StarPole luminaire is IP20
3.3 Battery Unit
Charger
•1 x Meanwell PA-120N-27c
•110V or 220V, selectable by switch on charger, to be set by Lux
Lumen.
Battery
Autonomy (with maximum load): max.12 hours
To fully charge empty battery: 10 hours
How to charge the battery: connect the XLR with the
battery, then plug in the
power 220V.
Electronic controller
•Lumen Radio CRMX
•12vDC-48vDC

StarPole p.7/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com

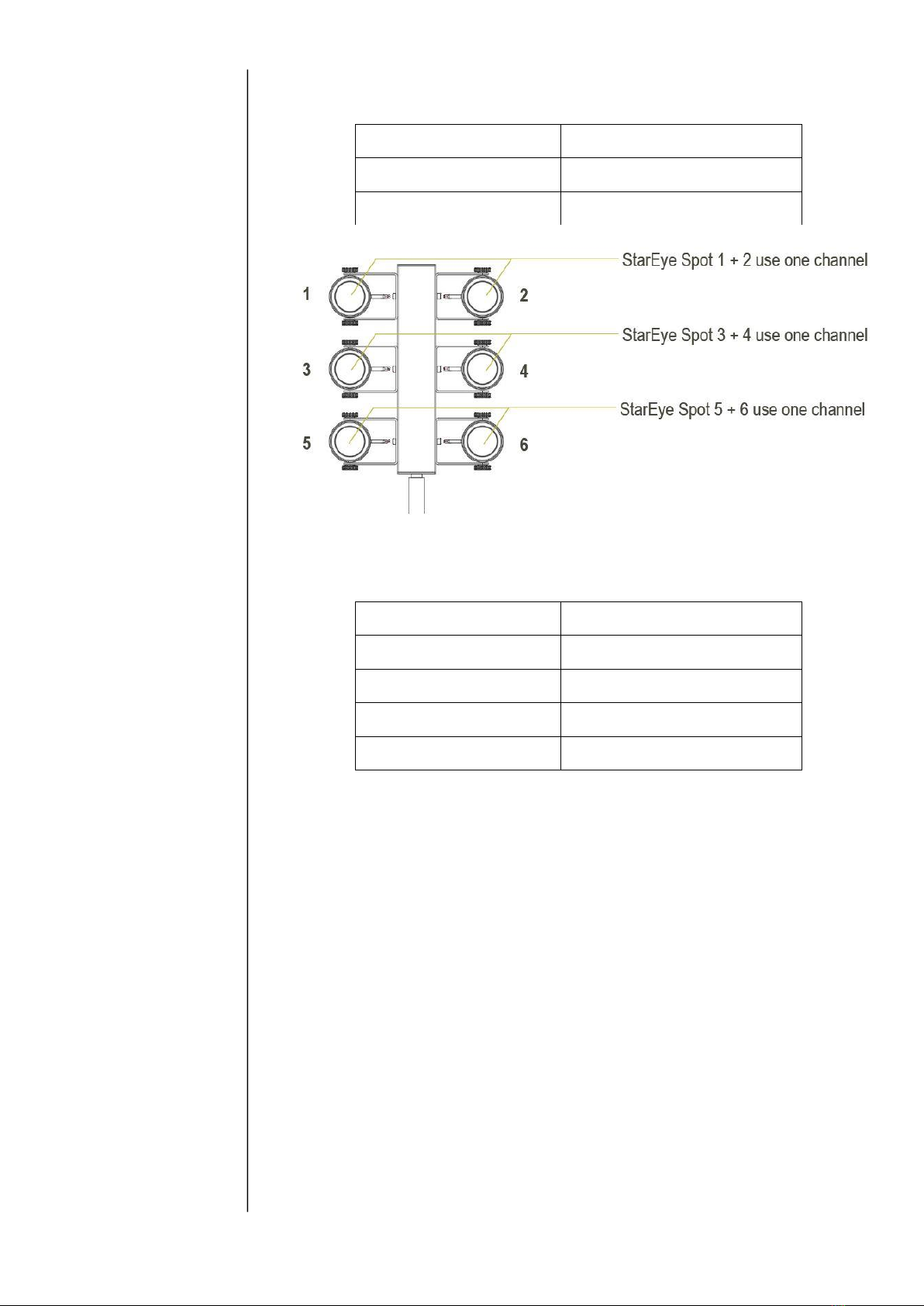

•DMX rotary wheels for 3 DMX channels
Startadress
2 x Bottom StarEye Maxi
Startadress + 1
2 x Middle StarEye Maxi
Startadress + 2
2 x Top StarEye Maxi
•Starting address to be set using the wheels.
•DMX start addresses:
001 up to 509
Customized
6xx
Standalone static
7xx
Standalone dynamic
8xx
Battery status
9xx
Wireless Signal status
Status LEDs on Electronic controller
Power: Red LED
•Off No power
•Fix red LED: Operational
•Single blinking red LED: Standalone modus
•Double blinking red LED: Short circuit
DMX: Green LED
•Off Not signal from transmitter
•Fix green LED: active signal from transmitter
•Single blinking green LED: Link from transmitter, no radio
•Double blinking green LED: Active radio, no DMX

StarPole p.8/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
Wireless signal
Range max.100m
Synchronize
Use the push button on the transmitter to synchronize all receivers.
To disconnect from the transmitter signal, press long on the push button of
the receiver.

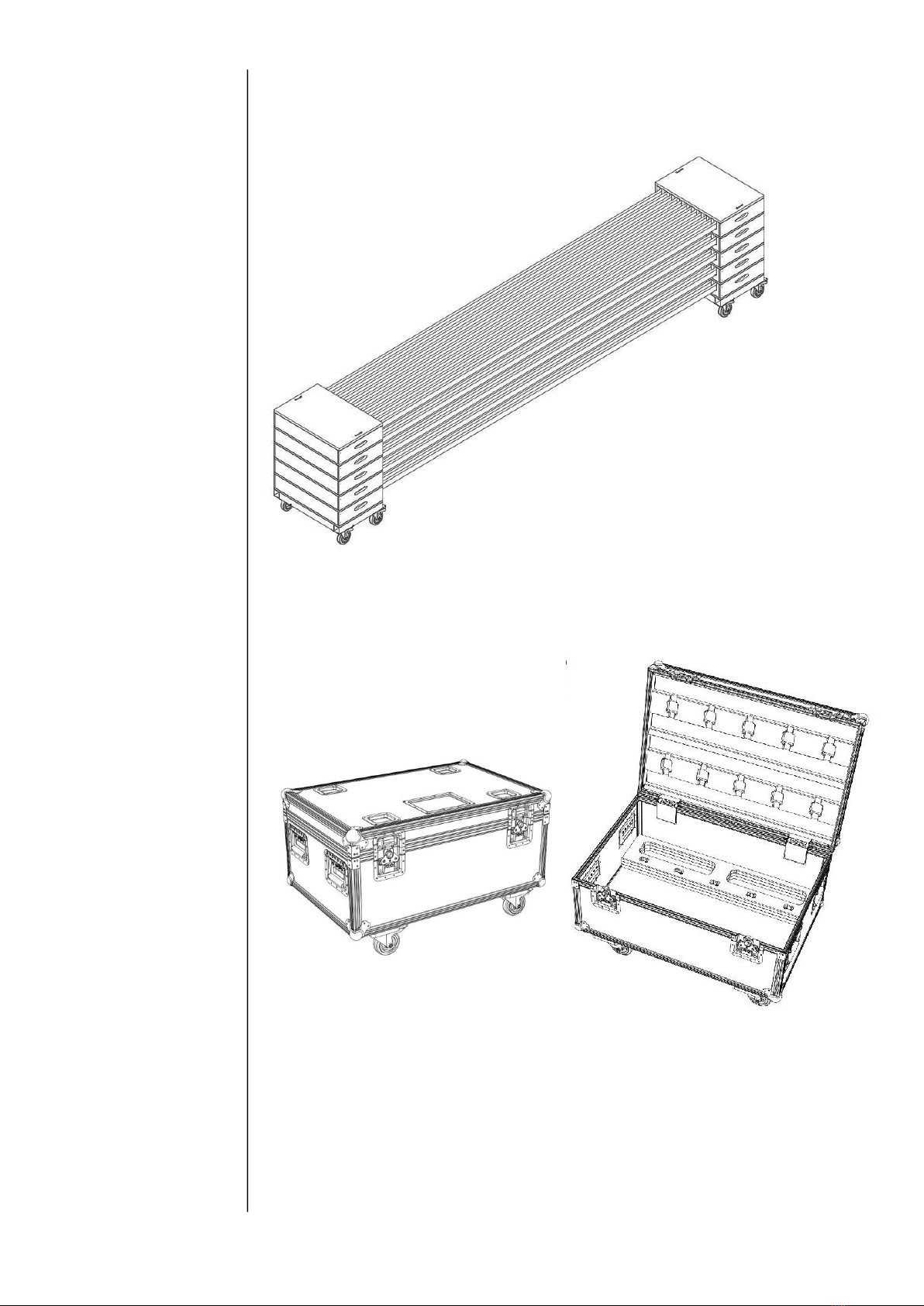

3.4 Transport cases
All parts are delivered in dedicated transportation cases.
•Case for 16 x StarPole Base plate:
•Case for StarPole Cabling:
•Case for 12 StarPole poles (image: 5 cases, piled up):

StarPole p.9/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
•Case for 10 StarPole Heads:

StarPole p.10/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
4Configuration
Please also consult the document ‘StarPole Configuration’

StarPole p.11/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com

StarPole p.12/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
5Installation
Please additionally consult the document with the StarPole Assembly overview.

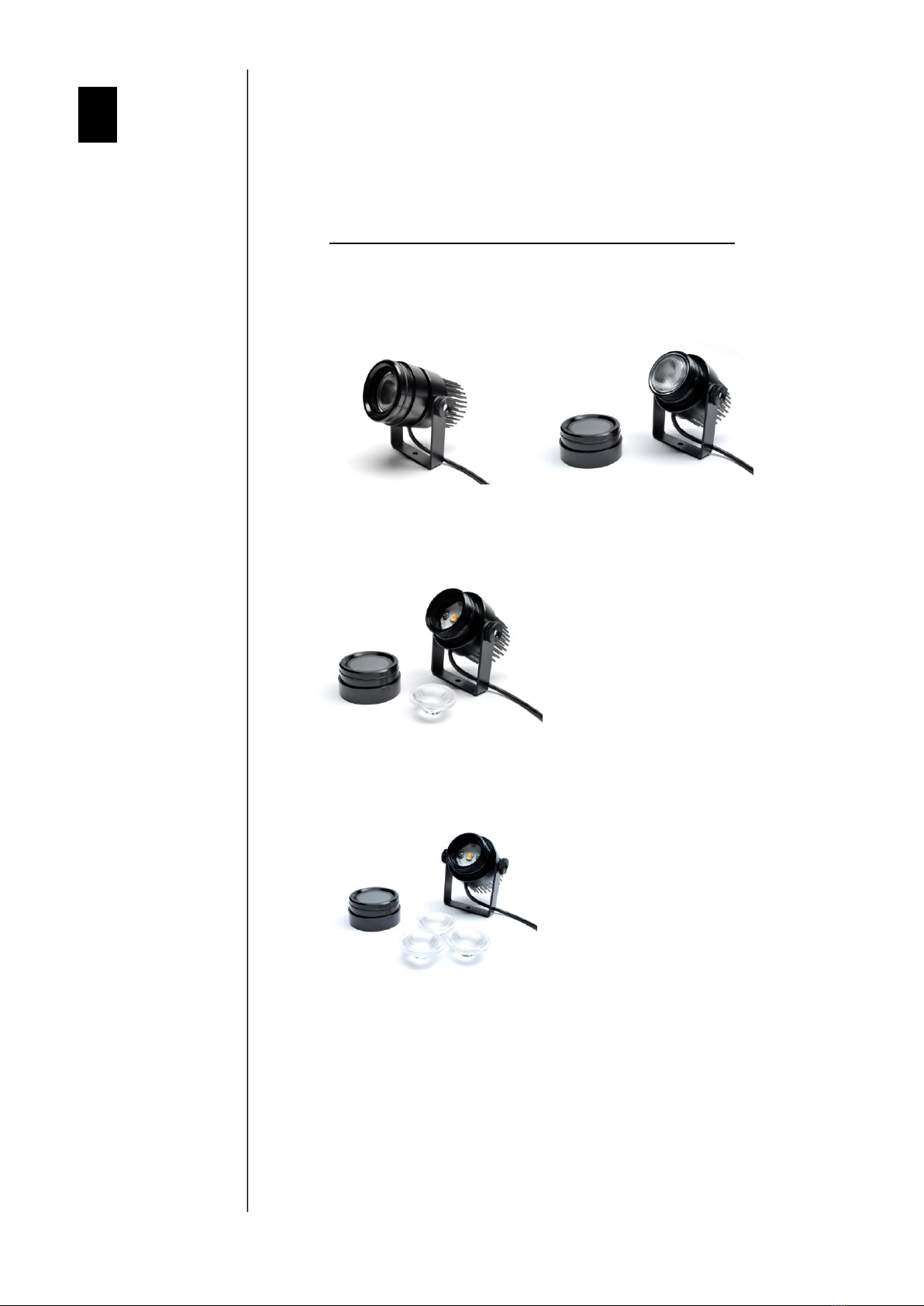

5.1 Provide the StarEyes with the correct optics
Step 1:
Screw the front cover counterclockwise to remove it from the led-unit.
Step 2:
Take out the old lens. Don’t touch the LED itself to avoid damage to the StarEye!
Step 3:
Insert the new lens into the led-unit.
Step 4:
Screw the front cover onto the housing clockwise. Do not displace the rubber band
to prevent fluid ingress

StarPole p.13/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
5.2 Provide the StarEye Maxi with snoot if requested
5.3 Focus the StarEye Maxi
5.4 Position the base block
Position the base block on the correct position on the base plate,
Secure with bolts.
5.5 Place head on pole
Place the top part on the pole and secure the joint with bolts.

StarPole p.14/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
5.6 Connect the XLR 5p cable to the connector on top Part.

StarPole p.15/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com

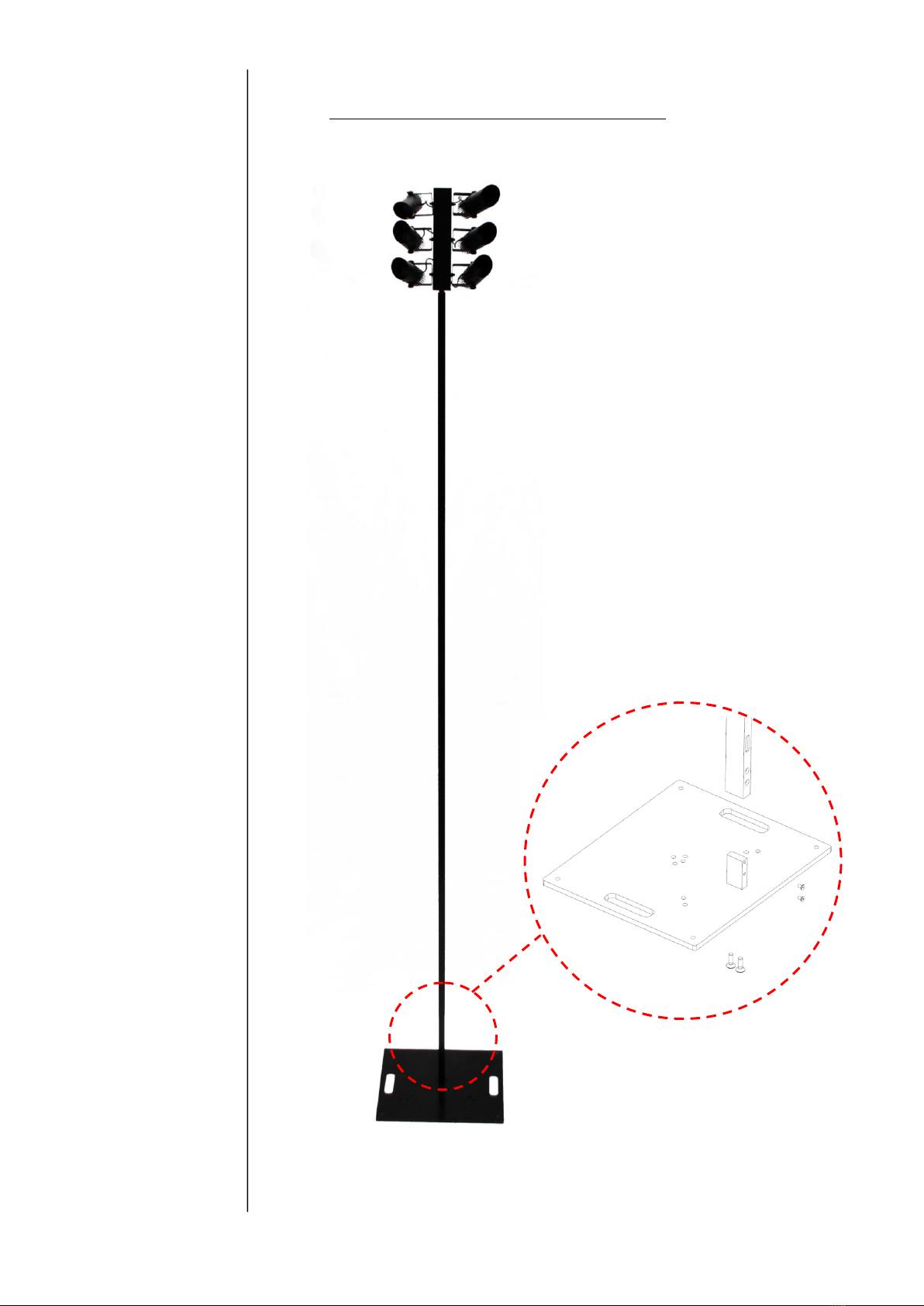

5.7 Assemble the pole on the base plate
Fix the joint with bolts.

StarPole p.16/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
6External connections
6.1 DC power input
Safety precautions
Never connect the live power on the input terminals of the StarPole led-unit!
In case of doubts, contact your supplier.
Polarity
The StarPole luminaire is polarity sensitive. However, the LED-units are provided
with a Higo connector, it is advised to observe polarity and cabling if necessary:
•Red inner conductor = positive
•Black inner conductor = negative
Improper connection might damage the StarPole luminiare and power supply
permanently. In case of inversed polarity, the warranty is void.
Power supply: Rated voltage
The rated input voltage range of the StarPole luminaire is 24 volt DC. Due to the
use of a step down-convertor, integrated in the housing, a highly efficient system is
created.
Cable
The cable used in the StarPole is 4x#0,5mm with a XLR 5p connector on top and a
wago 5 connector at the bottom. It is possible to extend the cable with a cable
4x#1,5mm of maximum 25m until the 6ch LED Driver.
Cables are available at Lux Lumen with length 1m, 2m, 3m, 4m, 5m, 10m and 20m.

StarPole p.17/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
7EMC and safety requirements
The StarPole is fully compliant to the LVD and EMC directive of the European
council, if used in a properly designed setup.
EMC requirements of the power supply
The StarPole luminaire is only intended to be used in lighting applications, and as
such, the complete assembly of led-unit and power supply needs to be fully
compliant with the harmonized standards.
Immunity according to:
•EN 61547:2009 (General EMC immunity requirements lighting eq.)
•EN 61000-4-1:2006 (General immunity testing techniques)
•EN 61000-4-2:2008 (ESD immunity test)
•EN 61000-4-3:2006 + A1:2007 (Radiated immunity test)
•EN 61000-4-4:2004 (Fast transients and burst immunity)
•EN 61000-4-5:2005 (Surge immunity test)
•EN 61000-4-6:2008 (Conducted immunity test)
•EN 61000-4-8:1993 (Magnetic field immunity test)
•EN 61000-4-11:2004 (Voltage variations immunity test)
•EN 61000-6-1:2005 (Generic standards for immunity)
Emission according to:
•EN 61000-3-2:2005+A1:2008+A2:2009 (Harmonics emission test<16A)
•EN 61000-3-3:2008 (Flicker+ voltage changes limits< 16A)
•EN 55015:2006+A2:2009 (Conducted + radiated emission lighting
equipment)
To achieve this compliance, a proper power supply must be supplied. In case of
doubts, contact your supplier.
LVD requirements of the power supply
The StarPole luminaire is only intended to be used in lighting applications, and as
such, the complete assembly of led-unit and power supply needs to be fully
compliant with following harmonized standards:
•EN 60598: general requirements of lighting equipment.

StarPole p.18/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
8Safety information
Before installing, powering up, or servicing the StarPole luminaire, it is highly
recommended that you read this manual and ensure yourself that you completely
understand its content. Observe the safety precautions in this manual. Install and
operate the led-unit only as described in this manual, and in conformity with local
regulations. If you have any questions how to operate this product safely, please
contact your supplier.
8.1 Symbols
Following symbols are used to identify important safety information on the
product and in this manual.

StarPole p.19/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
8.2 Protection from electric shock
Although this device itself does not operate with dangerous voltages, the
installation in which is intended to be used, can contain dangerous voltages.
Shut down the power of the complete installation before carrying out any
installation, or maintenance work.
Use only AC to DC power sources, suitable for the application, and conform to
local regulations. Please ensure yourself that the AC to DC power supply is able to
deliver the rated current requirements of the installation.
If any cable, seal or housing is damaged, cracked, or reformed, disconnect the
power of the installation immediately.
For any additional servicing, not described in this manual, please contact your
point of sale.
8.3 Protections from fire and burns
Do not operate this led-unit if ambient temperatures, is above 45 °C (113 °F).
Please ensure yourself that sufficient ventilation around the led-unit is possible.
It might be necessary to allow the led-unit to cool down for 5 minutes, before
servicing.
Do not modify the LED fixture, in a way, not described in this manual.

StarPole p.20/22
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM
T: [phone] –F: [phone]
www.lux-lumen.com
8.4 Protection from injury
Ensure yourself that the led-unit and all its accessories are securely fastened.
Verify that the led-unit is firmly fixed to its supporting underground.
8.5 Disposing of this product
This led-lighting device is manufactured in compliance with directive of the
European community: waste electrical and electronically equipment. Please help to
preserve our environment and ensure that this product will be recycled properly at
the end of its life.
