LUX LUMEN StarEye User manual

LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
StarEye led-unit
12 volt 350 mA
Integrated dimmable step down convertor

StarEye spot dimmable p.2/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
CONTENT
1 PI TURE .................................................................................. 3
1.1 G ENERAL ....................................................................................... 3
2 DIMENSIONS ........................................................................... 4
3 SAFETY INFORMATION ............................................................ 5
3.1 S YMBOLS ...................................................................................... 5
3.2 P ROTECTION FROM ELECTRIC SHOCK ....................................................... 6
3.3 P ROTECTIONS FROM FIRE AND BURNS ...................................................... 6
3.4 P ROTECTION FROM INJURY .................................................................. 7
3.5 D ISPOSING OF THIS PRODUCT .............................................................. 7
4 PHYSI AL INSTALLATION ....................................................... 8
4.1 U NPACKING .................................................................................... 8
4.2 L OCATION AND ORIENTATION ............................................................... 8
4.3 M OUNTING ..................................................................................... 8
4.4 A DJUSTING OF INTENSITY ...................................................................
5 EXTERNAL ONNE TIONS...................................................... 10
5.1 DC POWER AT INPUT ....................................................................... 10
6 EM AND SAFETY REQUIREMENTS ........................................ 11
7 INSTALLATION SETUP ........................................................... 12
7.1 S PECIFICATION .............................................................................. 12
8 SERVI E AND MAINTENAN E ................................................ 13
8.1 S AFETY PRECAUTIONS ...................................................................... 13
8.2 C LEANING .................................................................................... 13
9 WARRANTY ............................................................................ 14
.1 A PPLICATION OF WARRANTY ............................................................... 14
.2 RMA PROCEDURE ........................................................................... 16
10 USED LIST OF ABBREVIATIONS .......................................... 17

StarEye spot dimmable p.3/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
1 Picture
1.1 General

StarEye spot dimmable p.4/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
2 Dimensions

StarEye spot dimmable p.5/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
3 Safety information
Before installing, powering up, or servicing the StarEye led-unit,
it is highly recommended that you read this manual, and you
ensure yourself that you completely understand its content.
Observe the safety precautions in this manual. Install and
operate the led-unit only as described in this manual, and in
conformity with local regulations. If you have any questions how
to operate this product safely, please contact your point of sale.

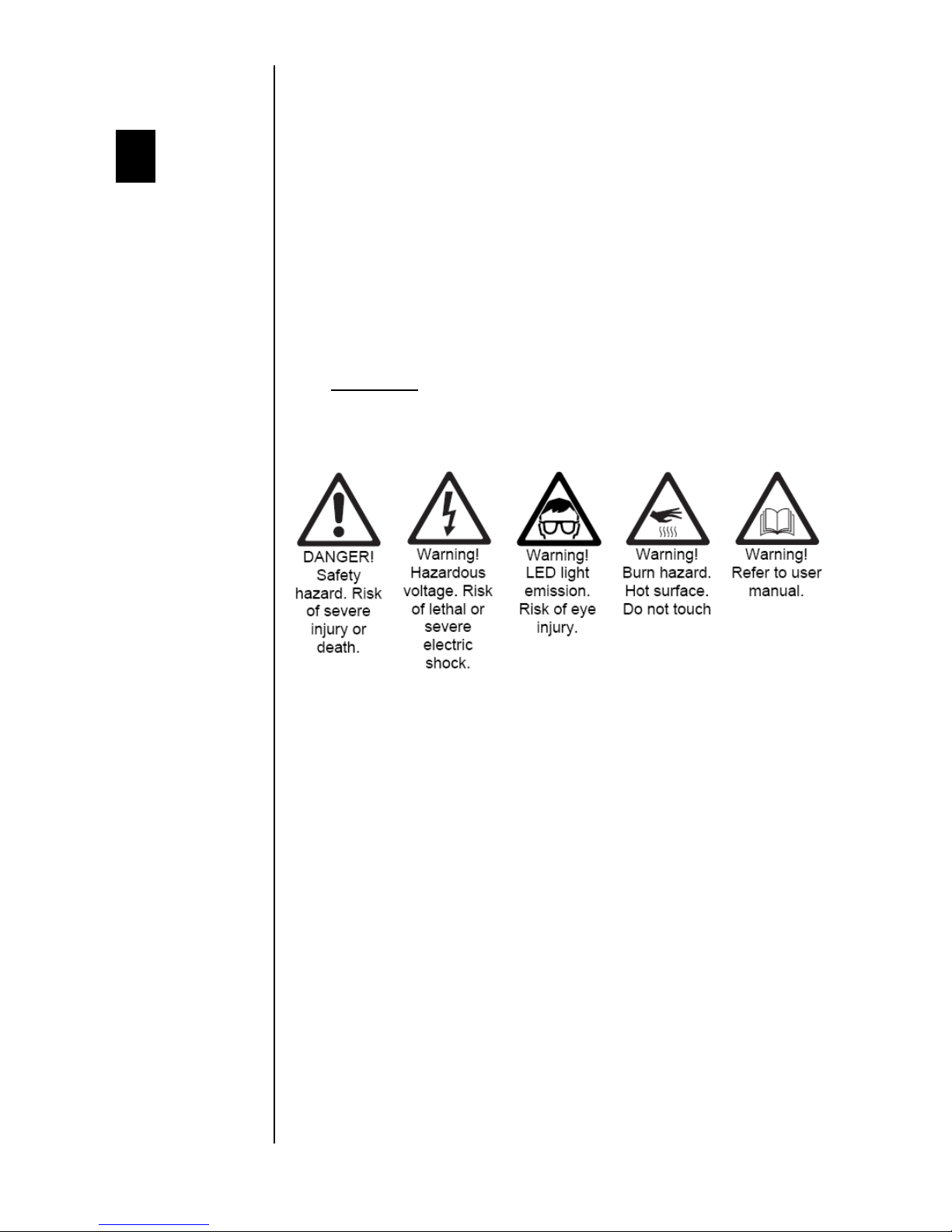

3.1 Symbols
Following symbols are used to identify important safety
information on the product and in this manual.

StarEye spot dimmable p.6/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
3.2 Protection from electric shock
Although this device itself does not operate with dangerous
voltages, the installation in which is intended to be used, can
contain dangerous voltages.
Shut down the power of the complete installation before carrying
out any installation, or maintenance work.
Use only AC to DC power sources, suitable for the application,
and conform to local regulations. Please ensure yourself that the
AC to DC power supply is able to deliver the rated current
requirements of the installation.
If any cable, seal or housing is damaged, cracked, or reformed,
disconnect the power of the installation immediately.
For any additional servicing, not described in this manual, please
contact your point of sale.
3.3 Protections from fire and burns
Do not operate this led-unit if ambient temperatures, is above
45 °C (113 °F). Please ensure yourself that sufficient ventilation
around the led module is possible.
It might be necessary to allow the led-unit to cool down for 5
minutes, before servicing.
Do not modify the led-fixture, in a way, not described in this
manual.

StarEye spot dimmable p.7/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
3.4 Protection from injury
Ensure yourself that the led-module, and all its accessories are
securely fastened. Verify that the led unit is firmly fixed to its
supporting underground.
3.5 Disposin of this product
This led-lighting device is manufactured in compliance with
directive of the European community: waste electrical and
electronically equipment. Please help to preserve our
environment, and ensure that this product will be recycled
properly at the end of its life.

StarEye spot dimmable p.8/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
4 Physical installation
Thank you for selecting this StarEye led-unit as best solution in
your setup.
Warning! Read the safety precautions in this manual before
integrating this led-unit into your installation.
Installation must be carried out by qualified professionals only.
Assure yourself that there is sufficient and unrestricted air flow
around the StarEye led-unit.
4.1 Unpackin
The following items are included in your package:
•Led fixture, complete with focussing bracket.
•Protective antistatic packaging, with short form manual
label.
4.2 Location and orientation
This led-unit can be used in all directions.
4.3 Mountin
Track mounting
The StarEye can be equipped with a track adaptor in order to be
installed easily on 12 V track systems.
Surface mounting
The StarEye led-unit can be mounted on all kind of non
combustible materials, but take in consideration that the module
can have a Tc of approx 30 °C higher as ambient temperature.
In case of problems, or doubts, please contact your point of sale.

StarEye spot dimmable p. /17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
4.4 Adjustin of intensity
At the back of the StarEye led-unit, you will find a small
potentiometer, which allows to vary the light output of the
fixture.
This can be seen here:
Use a flat screwdriver, width of 2 mm.

StarEye spot dimmable p.10/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
5 External connections
5.1 DC power at input
Safety precautions
Never connect the live power on the input terminals of the
StarEye led-unit!
In case of doubts, contact your point of sale.
Polarity
The StarEye led-unit is polarity sensitive. So observe polarity and
cabling:
•Inner conductor marked with 1 = positive
•Inner conductor marked with 2 = negative
Improper connection, might damage the StarEye led-unit and
power supply permanently. In case of inversed polarity, the
warranty is void.
Power supply: Rated voltage
The rated input voltage range of the Star-eye led spot is 12V
DC. Due to the use of a step down-convertor, integrated in the
housing, a highly efficient system is created.

StarEye spot dimmable p.11/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
6 EM and safety requirements
The StarEye led-unit is fully compliant to the LVD and EMC
directive of the European council, if used in a properly designed
setup.
EM requirements of the power supply
The StarEye led-unit is only intended to be used in lighting
applications, and as such, the complete assembly of led unit and
power supply needs to be fully compliant with the harmonized
standards.
Immunity according to:
•EN 61547:200 (General EMC immunity requirements
lighting eq.)
•EN 61000-4-1:2006 (General immunity testing techniques)
•EN 61000-4-2:2008 (ESD immunity test)
•EN 61000-4-3:2006 + A1:2007 (Radiated immunity test)
•EN 61000-4-4:2004 (Fast transients and burst immunity)
•EN 61000-4-5:2005 (Surge immunity test)
•EN 61000-4-6:2008 (Conducted immunity test)
•EN 61000-4-8:1 3 (Magnetic field immunity test)
•EN 61000-4-11:2004 (Voltage variations immunity test)
•EN 61000-6-1:2005 (Generic standards for immunity)
Emission according to:
•EN 61000-3-2:2005+A1:2008+A2:200 (Harmonics
emission test<16A)
•EN 61000-3-3:2008 (Flicker+ voltage changes limits< 16A)
•EN 55015:2006+A2:200 (Conducted + radiated emission
lighting equipment)
To achieve this compliance, a proper power supply must be
supplied. In case of doubts, contact your point of sale.
LVD requirements of the power supply
The StarEye led-unit is only intended to be used in lighting
applications, and as such, the complete assembly of led unit and
power supply needs to be fully compliant with following
harmonized standards:
•EN 605 8: general requirements of lighting equipment.

StarEye spot dimmable p.12/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
7 Installation setup
7.1 Specification
The StarEye led-unit is a small and efficient solution for outdoor
detail lighting.
It uses a simple stabilized DC power supply of 12V DC.
It houses an integrated dimmer, which can be set by an internal
potentiometer to vary the light output from 10-100%.
It is possible to use a selection of accessories to manipulate the
light output, like louvers, glare-controllers etc…
•Power consumption: max. 1,5 watt
•Power voltage: 12 volt
•Current: max. 120 mA (full rated output)
•Weight: 85 gr
•Different lenses are possible:
oFWHM 6.5°
oFWHM 15°
oFWHM 20°
oFWHM 17° x 7°
•Different colors are possible:
oWarm white, 2700K CRI = 80, Efficacy 80lm/watt
oNeutral white, 4000K CRI = 75, Efficacy 100 lm/watt
oCold white, 6500K CRI=75, Efficacy 130lm/watt
The ingress protection of the StarEye led-unit is IP 20, and as
such, the unit can only be used in indoor applications.
The dimensions of the main led housing is a cylindrical aluminum
lathed part of 35mm diameter with length of max. 35 mm. The
height with bracket is max. 55 mm. The housing is anodized in
black or aluminum-silver natural. Adapters for track lighting are
available. The StarEye led-unit is polarity sensitive.

StarEye spot dimmable p.13/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
8 Service and maintenance
8.1 Safety precautions
Read carefully the safety information in this manual. Lock out
the power on the entire system and allow all electronic devices
to discharge, and cool down, before executing any service or
maintenance.
8.2 Cleanin
The StarEye led-unit itself
Extensive dirt, and particle build-up degrades performance, may
cause overheating can result in damaged led-unit, and power
supply’s. Damage by inadequate cleaning or maintenance is not
covered by the product warranty.
Never use solvents to clean the outer housing of the unit.
Never use water, or wet cloth.

StarEye spot dimmable p.14/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
9 Warranty
9.1 Application of warranty
Warranty period
Warranty service is valid for one year from the date of purchase
by the consumer, as evidenced by invoice date given out by your
point of sale.
Warranty service
Service under warranty can only be done by Lux Lumen.
Coördinaties:
Lux Lumen
Kernenergiestraat 53 A
2610 Wilrijk
Belgium
Any cost of secure transportation of the product to and from Lux
Lumen service department, will be borne by the customer.
Limitations
Lux Lumen will not warrant the following:
•Periodic check-ups, maintenance and repair or replacement
of parts due to normal wear and tear.
•Consumables
•Any software
•Defects caused by modifications carried out without Lux
Lumen’s approval.
•Damage resulting from the fact that a product is not
conforming to country specific standards or specifications in
another country that the country of purchase.
Costs incurred by Lux Lumen’s service center in making any
adoptions or modifications of a product necessary for country
specific technical or safety standards or specifications, or any
other cost to adjust the product as a result of any specifications
which have changed since the delivery of the product.

StarEye spot dimmable p.15/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
Warranty service is excluded if damage or defects have
been caused by:
Improper use, extensive use, handling or operation of the
product as referred to in the user manual or operator manual
and/or relevant user documents, including without limitation,
incorrect storage, dropping, excessive shocks, corrosions, dirt,
water, or sand damage, if the product is not rated to be used in
severe conditions, indicated by its IP and IK degree, mentioned
in the product specifications in this manual.
Repairs, modifications or cleaning carried out by a non Lux
Lumen service centre.
Use of spare parts, software or consumables, which are not
compatible with the product.
Connecting the product to equipment not intended to be used
with this product.
Defects caused by improper condition of the power supply
network.
Inadequate packaging of the product when returning it under the
RMA procedure.
Accidents or disasters or any cause beyond the control of Lux
Lumen, including but not limited to lightning, water, fire, public
disturbances, improper ventilation, and acts of god.
Others
It is the responsibility of the customer to backup and save any
software files and programs before repair and to restore the
same after such repair.
This warranty does not affect the consumer’s statutory rights
under applicable national legislation in force, nor the consumer’s
rights against the retailer arising from the sales/purchase
contract. In the absence of applicable national legislation, this
warranty will be the consumer’s sole and exclusive remedy, and
Lux Lumen cannot be liable for any incidental or consequential
damages for breach of any express or implied warranty of this
product.
For full details of the warranty offered on this product, please
contact Lux Lumen’s service center.

StarEye spot dimmable p.16/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
9.2 RMA procedure
To send material back to Lux Lumen, you need a RMA (Return
Material Authorization) document that you will receive from Lux
Lumen.
Without the RMA document, we cannot accept the material.
The procedure to obtain a RMA:
Step1:
Customer contacts Lux Lumen about warranty, defects
if material has to be returned.
Step2:
Lux Lumen sends the customer a filled out RMA document (using
a unique RMA number)
Step3:
Customer sends material (include a copy of the RMA document
with the material)
Step 4:
Lux Lumen evaluates the problem, and informs the client if
repair is done under warranty, or makes an offer to the client for
repair.
Step 5:
The procedure related to lux lumen quality procedures, according
ISO 001 is started up.

StarEye spot dimmable p.17/17
LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK
T: [phone] – F: [phone]
www.lux-lumen.com
10 Used list of abbreviations
•AC: Alternating current
•DC: Direct current
•°F: Temperature in degrees Fahrenheit
•°C: Temperature in degrees Celsius
•LED: Light Emitting Diode
