LYSON W4096 User manual
The following manual encompasses the device bearing the following code:
W4096, W4097, W4096W i W4097W
Manual
1. General safety operational principles.
1.1. Electrical safety.
1.2. Operational safety.
2. Device characteristics.
2.1. Description of operation.
2.2. Technical parameters.
3. Storing the device.
4. Cleaning and maintenance.
5. Recycling.
6. Guarantee.
Wax extractor with a steam generator
Prior to operating the device please refer to the manual and
act according to the guidelines contained therein. The
manufacturer cannot be held accountable for the damages
cause by misusing the device or its improper handling
.
1. General safety operational principles
1.1 Electrical safety
a)
The device must be connected to the socket , having the
voltage specified on the product nominal plate.
b)
Electric installation must be equipped with RCD having
the nominal activation current below 30 mA. The
operation of the over-current circuit breaker must be
checked periodically .
c)
Regularly check the supply cable. If a supply cable
gets damaged, they must be replaced. In order to avoid
the threat, it must be performed by a guarantor or by a
specialised servicing centre or by an authorised person.
Do not operate the device when a supply cable is
damaged .
d)
In case of damage and in order to avoid the threat, the
repairs must be performed by a guarantor or by a
specialised servicing centre or by an authorised person.
Power supply cable must be kept away from the heat
sources, sharp edges and its good technical state must be
taken care of..
5 e) The wax extractor must not be displaced while in
operation.
1.2. Operational safety
a)
The following equipment is not intended to be used by
persons with limited physical, sensory or mental
capabilities (including children) or persons inexperienced
or unfamiliar with that type of equipment unless the usage
occurs under supervision or in line with the equipment
operating manual provided by safety supervising persons.
b)
Steam generator (5) must be protected against humidity
(also during the storage)
c)
Do not operate the device in the vicinity of flammable
materials.
d)
It is forbidden to make any maintenance works while
device is under operation.
e)
The device may be activated indoors only. It has not been
adjusted to be operated outdoors.
2. Device characteristics
The device is intended to obtain wax from frames or dry honey
by means of steam-based method

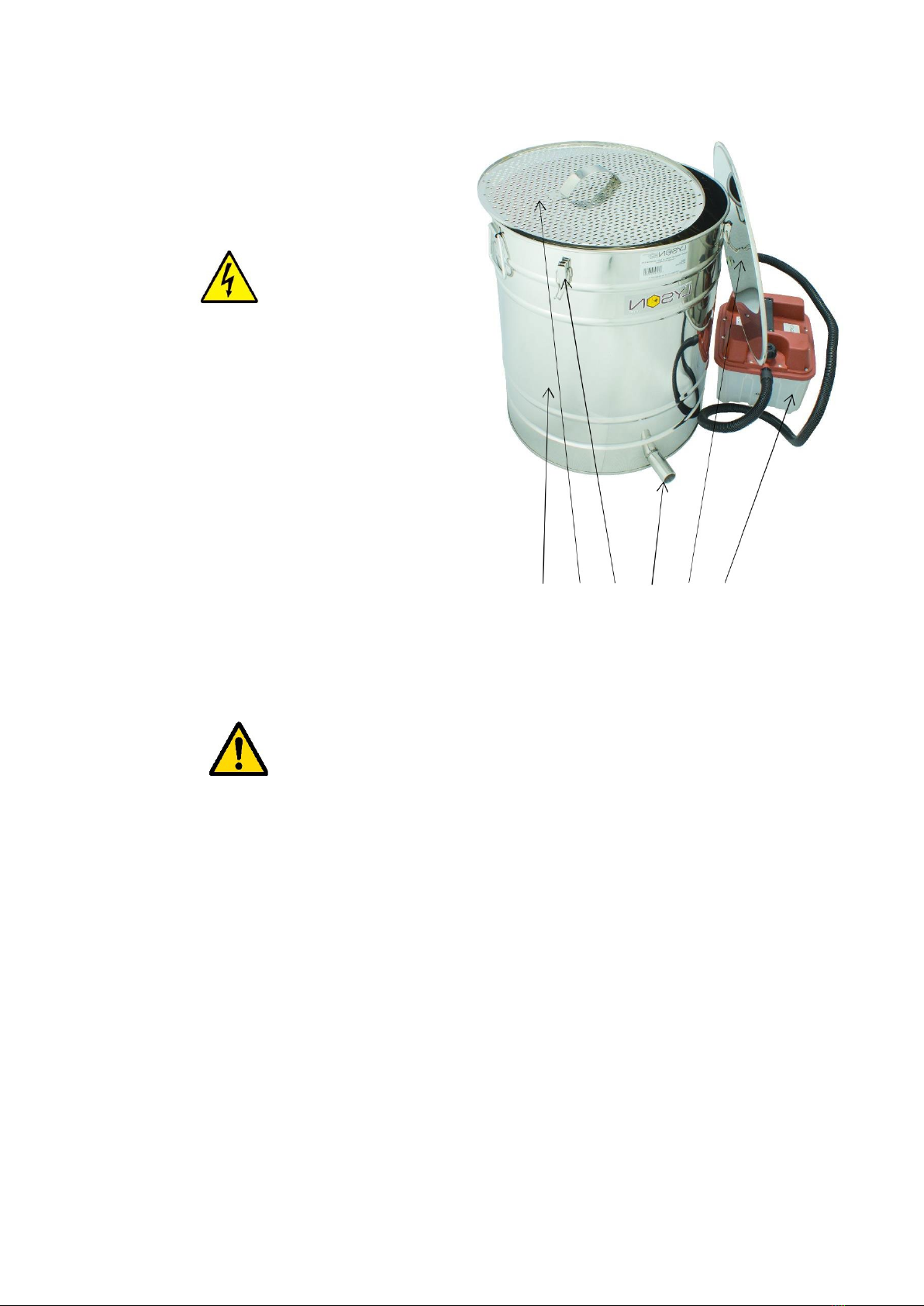

12 34 6 5
2.1. Description of operation
1-
Steam generator (5) must be filled with water until the
maximum level and connect to the mains.
2-
On the bottom of the settler (1) place the perforated inlet (2)
3-Fill the settler (1) with dry honey.
4-
The settler (1) must be covered with the lid (6) and the
clamps lightened .
5-
Wait until steam has been generated and extracted wax has
Pored out.
6-
Be careful not to get burnt by hot steam.
7-
Once the batch has been extracted, check the water level
and refill if necessary.
8-
If the steam generator has run out of water during
extraction, one must:
•Disconnect the generator from the mains
•Wait for a moment for the device to cool down
•Open the valve
•Refill water to the generator.
•Close the valve
Connect to the mains
9-
Add dry honey to the basket.
10-
Activities number 7 and 8 must be repeated until the batch
has finished.
11-
Once the process has terminated, disconnect the steam
generator from the mains
12-
Clean the basket from the remains and prepare for
subsequent usage.
2.2. Device technical parameters
1)
stainless steel settler
2)
perforated inlet, stainless steel, acid-resistant
3)
clamps to close the lid (6)
4)
wax discharge
5)
steam generator:
-power supply 230V/50Hz
-power 1800W
-capacity 4L.
6)
stainless wax extractor lid
3. Storing the device
Once the operation terminates, the device must be cleaned
and dries thoroughly.
The device is to be stored in dry rooms with the
temperatureabove 0º C.
Prior to every season, an additional technical check-up
must be performed and if any defects have been
detected,contact the service centre
.
5. Recycling
Worn-out product must be removed as waste only
within selective waste collection organised by the
Network of Communal Electric and Electronic Waste
Collecting Points. A customer is entitled to return the
used equipment to the electrical equipment distributor
network, at least free of charge and directly, if the
device to be returned is of proper type and serves the
same purpose as the newly purchased device
6. Guarantee
Products purchased from “Łysoń’ company are
encompassedby the manufacturer’s guarantee.
The guarantee duration equals 24 months
A receipt or a VAT invoice is issued for each product
purchased
Guarantee terms, see www.lyson.com.pl
4. Cleaning and maintenance
IMPORTANT!
Prior to the maintenance, unplug the device.
Prior to the first usage, device must be cleaned and
dried thoroughly.
The device is to be washed with hot water with the
agents admissible to come into contact with the
equipment used in food processing added.
The device is to be washed with soft fabrics, make
sure to protect electric components.
After washing, rinse with clean water and dry. The
device is to be stored in a dry room.
The device components must not be protected with
chemical agents.
IMPORTANT!
If you notice a build-up of limescale on the heater,
purchase a suitable descaling agent and apply it to the
device. Limescale deposits increase the boiling time of
the water and can cause the heating element damage.
After removing the deposits, boil the water a few times
and emty the tank completely. Remove any residues of
the descaling agent from the generator, as it may
cause corrosion of the metal elements.
This manual suits for next models
