NPN TRANSISTOR OUTPUT MODULE
(16 points, full and partial interlock) MODEL
R8-DCM16ALH
INSTRUCTION MANUAL
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
contents of the package you received as below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■ PACKAGE INCLUDES:
Transistor output module ..............................................(1)
■MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■CONFORMITY WITH EU DIRECTIVES
•Theequipmentmustbemountedinsideapanel.
•
The actual installation environments such as panel con-
figurations, connected devices, connected wires, may affect
the protection level of this unit when it is integrated in
a panel system. The user may have to review the CE re-
quirements in regard to the whole system and employ ad-
ditional protective measures to ensure the CE conformity.
■GENERAL PRECAUTIONS
•Beforeyouremoveormounttheunit,turnoffthepower
supply and I /O signal for safety.
•Switches on the side of the module can be set for mainte-
nance only while the power supply is off. Do not access
them while the power is supplied.
■ ENVIRONMENT
•Indooruse
•Whenheavydustormetalparticlesarepresentintheair,
install the unit inside proper housing with sufficient ven-
tilation.
•Donotinstalltheunitwhereitissubjectedtocontinuous
vibration. Do not apply physical impact to the unit.
•Environmentaltemperaturemustbewithin-10to+55°C
(14to131°F)withrelativehumiditywithin30to90%RH
in order to ensure adequate life span and operation.
■WIRING
•Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
•Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■EXCITATION SUPPLY
•Inputconnector:Ratedcurent50mADCperchannel
•Outputconnector:Ratedcurent3ADC(ratedcurrent3A
for internal fuse (slow blow fuse i2t(A2sec)max.5.04)
■AND ....
•Theunitisdesignedtofunctionassoonaspowerissup-
plied,however,awarmupfor10minutesisrequiredfor
satisfying complete performance described in the data
sheet.
INSTALLATION

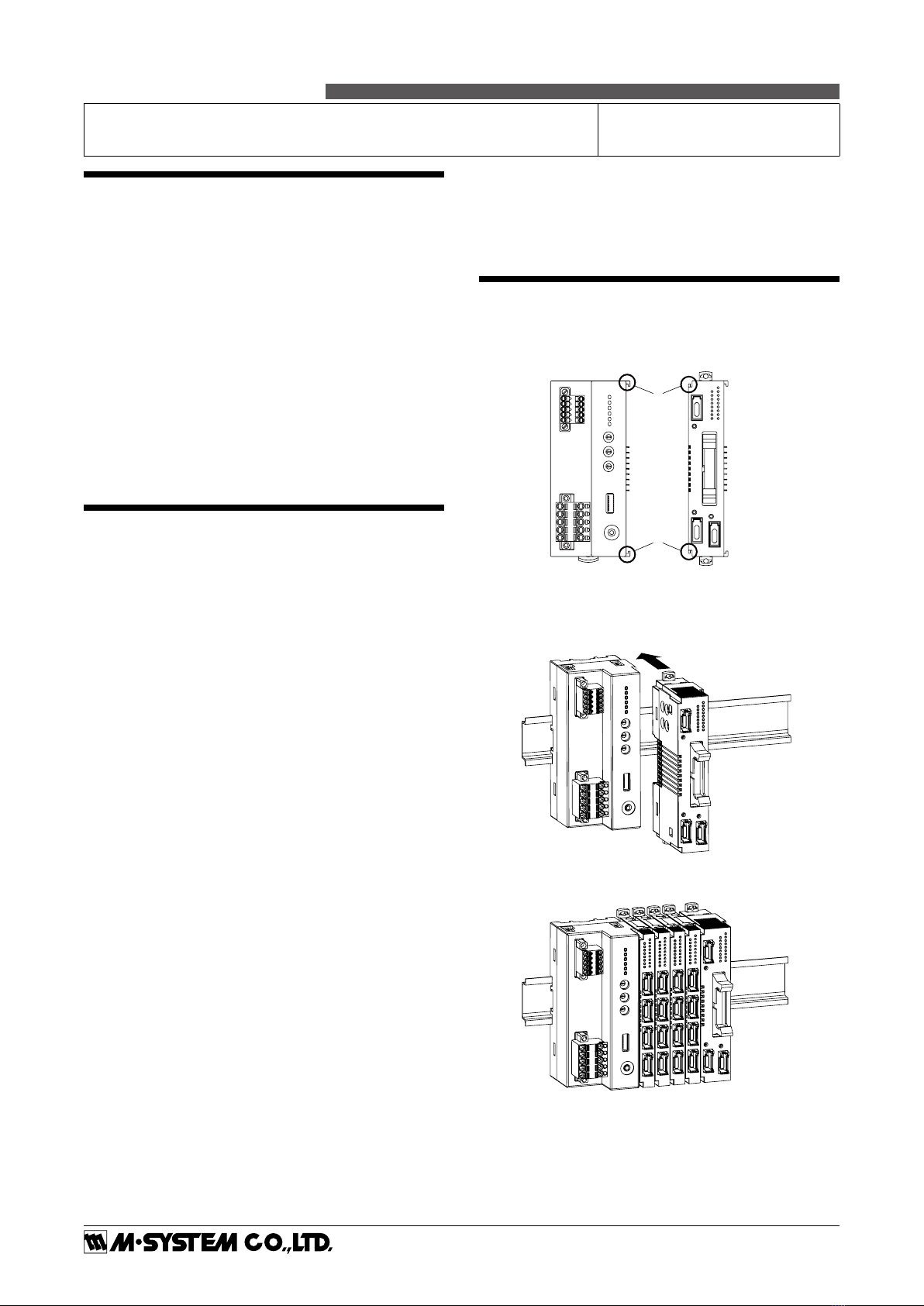

■HOW TO MOUNT THE MODULE ON DIN RAIL
• I/O Module
Confirm that the locking clamps of the I/O module are set.
Insert the module in parallel to the next one while aligning the grooves of
both modules (A & B in the above figure).
Maintain it perpendicularly to the rail.
More I/O modules can be added in the same manner.
A
B

R8-DCM16ALH
P. 2 / 5EM-9746 Rev.2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
■HOW TO MOUNT THE MODULE ON DIN RAIL
Release the locking clamps and pull out straight the module.
Caution !
1) Be careful not to hurt your hand by pointed edges of the internal
communication bus connector.
2) I/O modules cannot hold tightly on the DIN rail by themselves without
power/network module.
Secure them to the position if necessary by using DIN rail end plates.
• Removing an intermediate module
• Protective Cover
The protective cover is to be attached over the connected I/O module
at the right end.
Align the hooks on the cover with the grooves of the module and slide it
straight until the hooks are latched.
When removing the cover, pull it out while squeezing the hooks inward.
Groove
Hook

R8-DCM16ALH
P. 3 / 5EM-9746 Rev.2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
COMPONENT IDENTIFICATION
OUT
12
19 20
IL ALL
IL1
IL2
Full Interlock
Indicator LED
Partial
Interlock
2
Indicator LED
Partial
Interlock 2
Connector
Partial Interlock 1
Indicator LED
Partial Interlock 1
Connector
Full interlock
Connector
8
7
6
5
4
3
2
1
SW1 SW2
On
12
SW3
On
21
21
SW5
On
On
SW4
RUN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Function Setting
DIP SW
Status Indicator LED
Discrete Output Indicator LED
Internal Bus Connector
Output Connector
FRONT VIEWLEFT SIDE VIEW
Full Interlock
Function Setting
DIP SW
RIGTH SIDE VIEW
Partial Interlock
Function 1 Setting
DIP SW
Partial Interlock
Function 2 Setting
Rotary SW
■INDICATOR LED
LED OPERATION FUNCTION
Status OFF Stopping
Green ON Valid host communication
Green Blinking
Reading/writingcongura-
tion
RedON Setting error
RedBlinking Parameter error
Output OFF OFF
Green ON ON
Interlock OFF Interlock invalid
Interlock valid
Output ON
RedON Interlock valid
OutputOFF
■INPUT CONNECTOR ASSIGNMENT
PIN ID FUNCTION
No.
1 24V Excitation supply 24 V
2 IL Discrete input
3 0V Excitation supply 0 V
4 NC No connection
1
2
3
4
■OUTPUT CONNECTOR ASSIGNMENT
1 Do1 Output 1
2 Do2 Output 2
3 Do3 Output 3
4 Do4 Output 4
5 Do5 Output 5
6 Do6 Output 6
7 Do7 Output 7
8 Do8 Output 8
9 Do9 Output 9
10 Do10 Output 10
11 Do11 Output 11
12 Do12 Output 12
13 Do13 Output 13
14 Do14 Output 14
15 Do15 Output 15
16 Do16 Output 16
17, 18 0V Excitation supply 0V
19, 20 24V Excitation supply 24V
1
19
2
20
PIN ID FUNCTION
No.

R8-DCM16ALH
P. 4 / 5EM-9746 Rev.2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
■MODULE ADDRESS
ModuleaddresscanbesetwithSW1-1through1-4forthe
tens,andSW1-5through1-8fortheonesplacedigit.
Addressisselectedbetween0to31.(Factorysetting:0)
MODULE ADDRESS
SW1
1
5
2
6
3
7
4
8
0 OFF OFF OFF OFF
1OFF OFF OFF ON
2OFF OFF ON OFF
3OFF OFF ON ON
4OFF ON OFF OFF
5 OFF ON OFF ON
6OFF ON ON OFF
7OFF ON ON ON
8ON OFF OFF OFF
9ON OFF OFF ON
■OPERATING MODE
*Factorysetting
• Interlock Communication Logic Reversal
Setting internal communication bus logic.
INTERLOCK COMMUNICATION LOGIC REVERSAL SW2-1
Interlockfunctionsettingoff:1
Interlockfunctionsettingon:
normal=1,interlock=0
ON
Interlockfunctionsettingoff:0(*)
Interlockfunctionsettingon:
normal=0,interlock=1
OFF
Caution:1and0valuesarevalidatedaslogicthroughinternal
communication bus logic.
• Output at The Loss of Communication
Setting for all output.
OUTPUT AT THE LOSS OF COMMUNICATION SW2-5
OutputHold(*)(lastdatacorrectlyrerceivedis
hold
OFF
Stopoutput(OutputxedatOFF) ON
• Terminator DIP SW
TERMINATOR SW SW2-6
Without(*) OFF
With ON
• Conguration Mode
CONFIGURATION MODE SW2-8
DIP switch setting (*) OFF
PC Configurator and communicaton ON
Caution:SW2-2through2-4and2-7areunused;besuretoturn
OFFunusedchannels.
■FULL INTERLOCK FUNCTION
It is available to apply full interlock function to all outputs
(Do1 through Do16)
FULL INTERLOCK FUNCTION SW3-1
OFF OFF
ON(*)(alloutputsOFFifinputOFF) ON
Caution:SW3-2isunused;be suretoturn OFFunused chan-
nels.
■PARTIAL INTERLOCK
• Partital interlock function 1
Atoutput,itisavailabletoapplyinterlockfunctiontoDo1
thoughDo8.
PARTIAL INTERLOCK 1 SW4-1
OFF OFF
ON(*)(InputOFFwithoutputOFF) ON
• Partital interlock function 2
Atoutput,itisavailabletoapplyinterlockfunctiontoDo9
though Do16.
PARTIAL INTERLOCK 2 SW5-1
OFF OFF
ON(*)(InputOFFwithoutputOFF) ON
Caution:SW4-2and5-2 areunused;be suretoturnOFF un-
used channels.
■PC CONFIGURATOR
The following parameters can be set with using PC Configu-
ratorSoftware(model:R8CFG):
•Outputatthestartup
•Outputatthelossofcommunication
•Commonsetting(lossofinternalbuscommunicationde-
tection time)
TurnSW2-8ONtoallowprogrammingbythePCCongu-
rator via the Power / Network Module.
RefertotheusersmanualoftheR8CFGfordetailedopera-
tion of the software program.

R8-DCM16ALH
P. 5 / 5EM-9746 Rev.2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EXTERNAL DIMENSIONS unit: mm (inch)
24 (.94) [75 (2.95)]
115 (4.53)6 (.24)7 (.28) 6 (.24) 7 (.28)
DIN RAIL
(35 mm wide)
[3 (.12)] [4 (.16)]
55 (2.17)
CONNECTION DIAGRAM
INTERNAL POWER
INTERNAL BUS
EXC. SUPPLY
IL ALL FULL INTERLOCK
1
5
2
3
6
4
7
13
8
9
11
10
14
12
15
16
17
18
19
20
0V
0V
Do 1
Do 2
Do 3
Do 4
Do 5
Do 6
Do 7
Do 8
Do 11
Do 12
Do 13
Do 14
Do 15
Do 16
24V
24V
Do 9
Do 10
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
BUS CONNECTOR
1
4
2
3
NC
1
4
2
3
IL1 PARTIAL INTERLOCK 1
IL2 PARTIAL INTERLOCK 2
NC
1
4
2
3
NC
24V
0V
IL ALL
Detecting
Circuit
IL ALL
24V
0V
IL1
IL1
24V
0V
IL2
IL2
Detecting
Circuit
Detecting
Circuit
WIRING INSTRUCTIONS
■e-CON connector (discrete input)
PWBconnectorXN2D-1474-S002(Omron)
RecommendedcableconnectorXN2A-1470(Omron)*1
Applicablewiresize:0.08mm2(AWG28)-0.5mm2(AWG20)
(Outersheathdiameter:max.1.5dia)
■MIL connector (discrete output)
PWBconnectorXG4A-2034(Omron)
RecommendedsocketXG5N-201(Omron)*1
RecommendedcontactXG5W-0231(Omron)*1
Applicablewiresize:AWG22,number ofconductor 17, di-
ameterofconductor0.16mm
*1.Notincludedinthepackage.Refertothespecications
of the product.
