Makita DBN600 User manual

INSTRUCTION MANUAL
Cordless Finish Nailer
DBN600
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: DBN600
Nail size 16Ga x 25 / 30 / 32 / 35 / 38 / 40 / 45 / 50 / 57 / 60 / 64 mm
Magazine capacity 100 pcs.
Dimensions without hook (L x W x H)
(when using BL1840B battery)
296 x 108 x 318 mm
Rated voltage D.C. 18 V
Net weight 3.4 - 3.8 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge
BL1815 / BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B
• Some of the battery cartridges listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges listed above. Use of any other battery cartridges may cause
injuryand/orre.
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
Wear safety glasses.
Wear ear protection.
Do not use on scaffoldings, ladders.
Keepngersawayfromtriggerwhennot
drivingfastenerstoavoidaccidentalring.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for fastening on interior work and
furniture work.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745:
Sound pressure level (LpA) : 89 dB(A)
Sound power level (LWA) : 100 dB (A)
Uncertainty (K) : 3 dB(A)
WARNING: Wear ear protection.
Vibration
The vibration total value determined according to
EN60745:
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).

3ENGLISH
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.

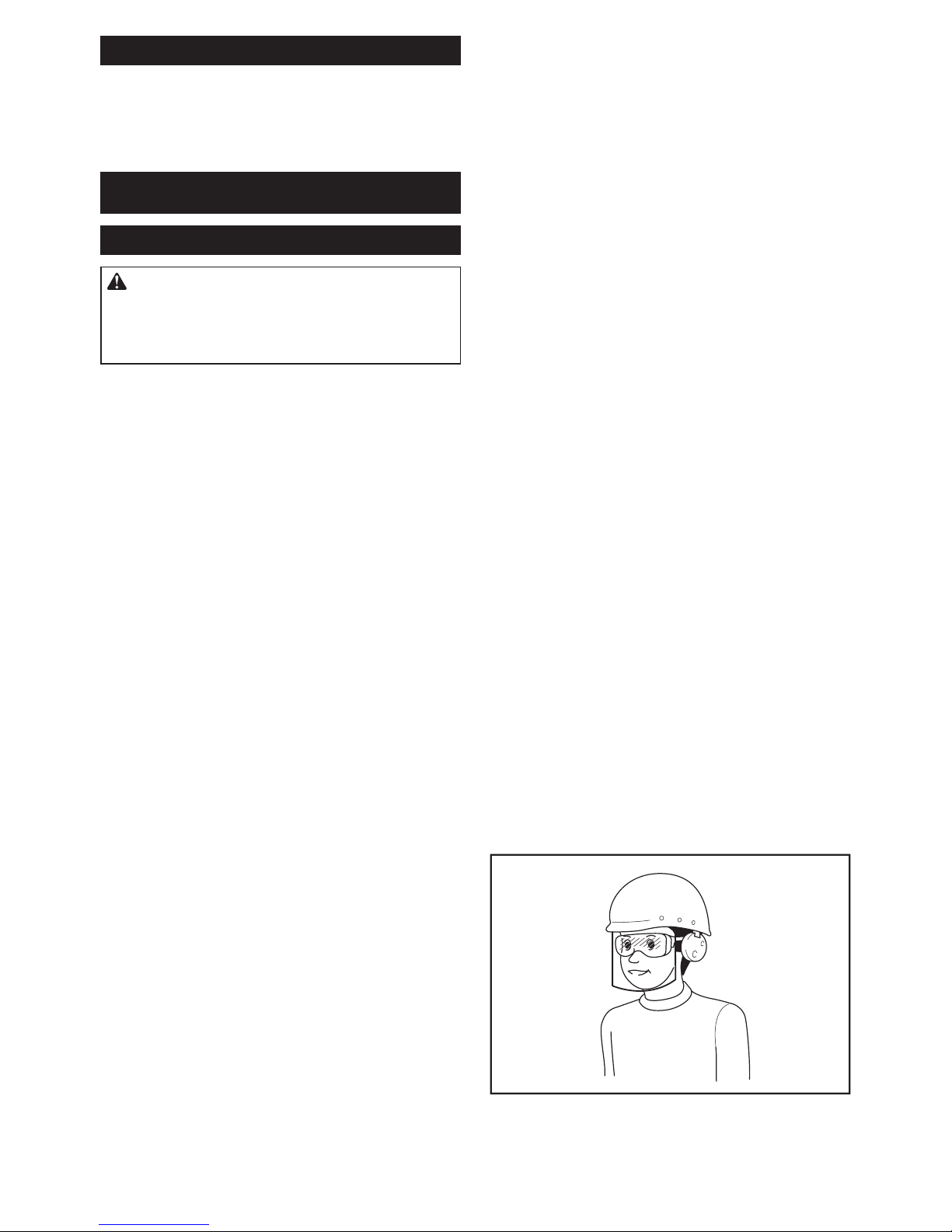

9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.

4ENGLISH
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless nailer safety warnings
1. Always assume that the tool contains fasten-
ers. Careless handling of the nailer can result in
unexpectedringoffastenersandpersonalinjury.
2. Do not point the tool towards yourself or any-
one nearby. Unexpected triggering will discharge
thefastenercausinganinjury.
3. Do not actuate the tool unless the tool is
placed rmly against the workpiece. If the tool
is not in contact with the workpiece, the fastener
maybedeectedawayfromyourtarget.
4. Disconnect the tool from the power source
when the fastener jams in the tool. While
removingajammedfastener,thenailermaybe
accidentally activated if it is plugged in.
5. Use caution while removing a jammed fas-
tener. The mechanism may be under compression
and the fastener may be forcefully discharged
whileattemptingtofreeajammedcondition.
6.
Do not use this nailer for fastening electrical
cables. It is not designed for electric cable installa-
tion and may damage the insulation of electric cables
therebycausingelectricshockorrehazards.
7. Always wear safety glasses to protect your
eyes from dust or fastener injury.
8. Keep hands and feet away from the ejection
port area.
9. Follow instruction for lubricating and chang-
ing accessories.
10. Always remove the battery cartridge before
loading the fasteners, adjustment, inspection,
maintenance or after operation is over.
11. Make sure no one is nearby before operation.
Never attempt to drive fasteners from both the
inside and outside of wall at the same time.
Fasteners may rip through and/or y off, pre-
senting a grave danger.
12. Watch your footing and maintain your balance
with the tool. Make sure there is no one below

5ENGLISH
when working in high locations.
13. Never use fastener driving tools marked with
the symbol "Do not use on scaffoldings, lad-
ders" for specic application for example:
• when changing one driving location to
another involves the use of scaffoldings,
stairs, ladders, or ladder alike constructions,
e.g. roof laths;
• closing boxes or crates;
• ttingtransportationsafetysystemse.g.on
vehicles and wagons.
14. Check walls, ceilings, oors, roong and
the like carefully to avoid possible electrical
shock, gas leakage, explosions, etc. caused by
stapling into live wires, conduits or gas pipes.
15. Use only fasteners specied in this manual.
The use of any other fasteners may cause
malfunction of the tool.
16. Do not tamper with the tool or attempt to use it
for other than driving fasteners.
17. Do not operate the tool without fasteners. It
shortens the service life of the tool.
18. Stop driving operations immediately if you
notice something wrong or out of the ordinary
with the tool.
19. Never fasten into any materials which may
allow the fastener to puncture and y through
as a projectile.
20. Never actuate the switch trigger and contact
element at the same time until you are pre-
pared to fasten workpieces. Allow the work-
piece to depress the contact element. Never
defeat its purpose by securing the contact
element back or by depressing it by hand.
21. Never tamper with the contact element. Check
the contact element frequently for proper
operations.
22. Always remove fasteners from the tool when
not in use.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).

6ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoffyourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that causes
it to draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the tool
off and stop the application that caused the tool to become
overloaded. Then turn the tool on to restart.
Overheat protection
When the tool/battery is overheated, the tool stops
automatically. In this situation, let the tool/battery cool
before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically and the battery indicator shows following
state. In this case, remove the battery from the tool and
charge the battery.
On Off Blinking
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.

7ENGLISH
Indicator lamps Remaining
capacity
Lighted Off Blinking
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Trigger-lock button
CAUTION: When not operating the tool,
depress the trigger-lock button from B side to
lock the switch trigger in the OFF position.
To prevent the switch trigger from accidentally pulled,
the trigger-lock button is provided.
To pull the switch trigger, depress the trigger-lock button
from A side.
After use, always press in the trigger-lock button from
B side.
1
AB
2
►1. Trigger-lock button 2. Switch trigger
Nailing mode selection
The tool employs two nailing actions. Select the desired
nailing by the mode selecting switch.
12
3
►1. Mode selecting switch 2. Sequential mode
3. Continuous mode
Intermittent nailing (sequential mode)
This mode suits for driving a nail carefully and accurately.
Continuous/ intermittent nailing (continuous mode)
When the tool is set to this mode, you can choose either
continuous or intermittent nailing by sequences of the
trigger operation.
Adjusting the nailing depth
WARNING: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before adjusting the depth of nailing.
Turntheadjustertoadjustthenailingdepth.Thenailing
depthgetsdeeperasyouturntheadjustertoAdirec-
tion,shallowertoBdirectioninthegure.Therangeof
thenailingdepthadjustmentis3mm.
1
B
A
►1.Adjuster
NOTICE: Do not turn the adjuster too much, or
the adjuster may get stuck.
Adjustthenailingdepthasnecessary.
2
13
►1. Too deep 2. Flush 3. Too shallow
Lighting up the lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch trigger or actuate the contact element to
light up the lamp. The lamp keeps on lighting while pull-
ing the switch trigger or actuating the contact element.
The lamp goes out approximately 10 seconds after
releasing the switch trigger and the contact element.

8ENGLISH

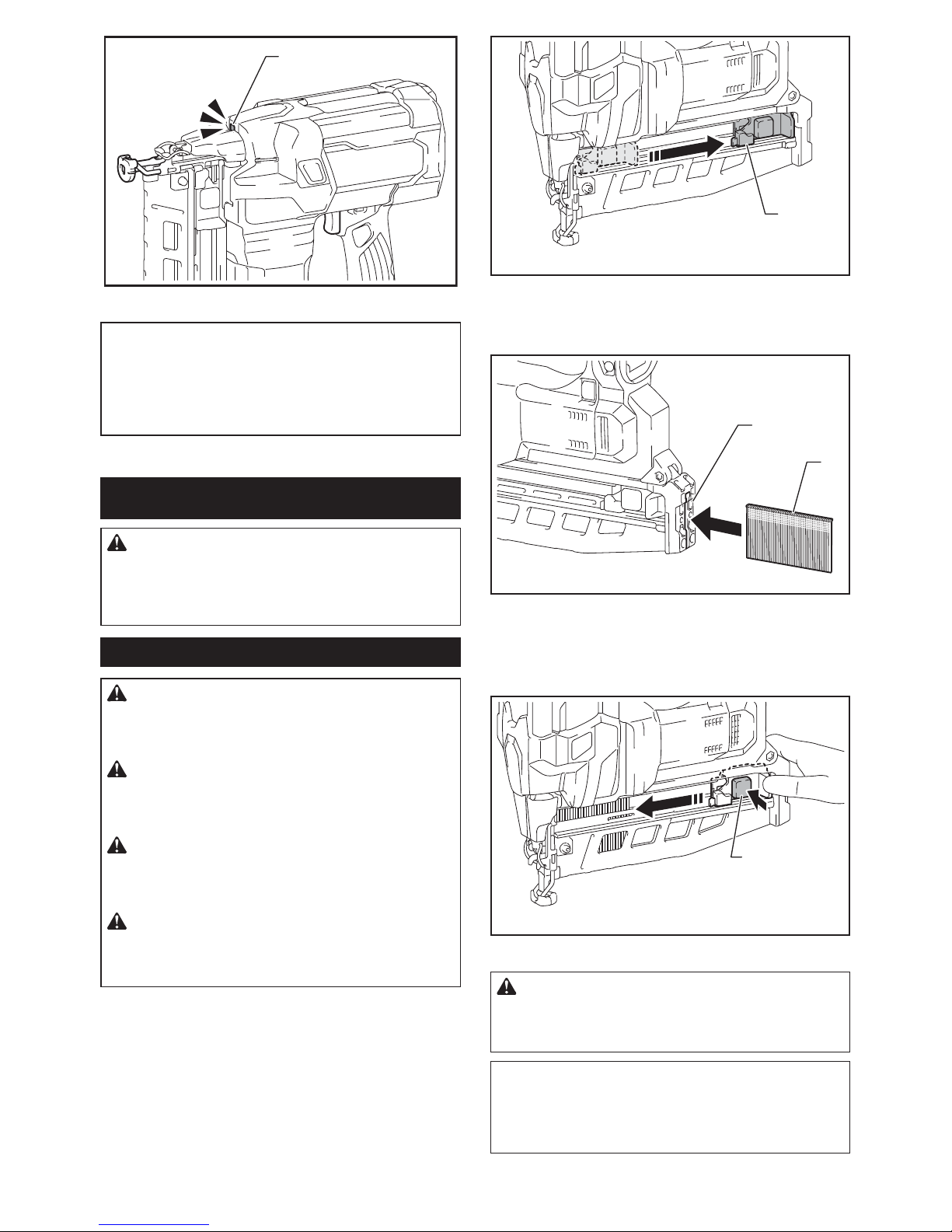

1
►1. Lamp
NOTE: Use a dry cloth to wipe the dirt off the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
NOTE:Thenailermaynotrenailsevenifthelamp
lights up because the remaining battery power is low.
In this case, charge the battery cartridge.
ASSEMBLY
CAUTION: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before carrying out any work on the
nailer.
Loading or unloading the nails
CAUTION: Always make sure that the battery
cartridge is removed before loading the nails.
Unintentionalringmaycausepersonalinjuriesand
property damage.
CAUTION: Do not abruptly slide the pusher
lever on the magazine loaded with nails.
Accidentally dropping nails especially when working
inhighplacesmaycausepersonalinjuries.
CAUTION: Load the nails in the correct direc-
tion. Loading in wrong direction may cause prema-
ture wear and tear of the driver and damage of the
other parts.
CAUTION: Do not use deformed connected
nails.Usenailsspeciedinthismanual.Usingnails
otherthanthosespeciedmaycausethenailjam-
ming and breakage of the nailer.
1. Remove the battery cartridge.
2. Pull the pusher lever down ward until it locks with
a little click.
1
►1. Pusher lever
3. Insert a connected nails into the slit on the bottom
of the magazine.
1
2
►1. Slit 2. Connected nail
4. Press the pusher button.
The pusher lever is unlocked and it holds the nails in
the magazine.
1
►1. Pusher button
CAUTION: Be careful not to place your nger
on the rail of the pusher lever when pressing
the pusher button.Thepushermayhityournger
stronglyandcauseinjury.
NOTICE: If the inserted connected nails remain
in the bottom of the magazine, pusher lever does
not return even if you press the pusher button.
Bring the connected nails into the magazine so that
the entire connected nails can be seen.
To remove nails, follow the installation procedures in reverse.

9ENGLISH
Nose adapter
CAUTION: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before installing the nose adapter.
Whenringnailsonthematerialwitheasily-marred
surfaces, use the nose adapter. Put the nose adapter
on the front end of the contact element.
Make sure that the nose adapter completely covers the
front end of the contact element as illustrated.
1
2
►1. Nose adapter 2. Contact element
You can store the nose adapter on the holder on the
magazine to keep it from being lost.
1
2
►1. Nose adapter 2. Holder
Hook
CAUTION: Do not hang the hook from the
waist belt. Dropping the nailer, which is caused by
the hook accidentally coming out of place, may cause
unintentionalringandresultinpersonalinjuries.
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool.
To install the hook, insert it into a groove in the tool
housing on either side and then secure it with a screw.
To remove, loosen the screw and then take it out.
1
3
2
►1. Groove 2. Hook 3. Screw
OPERATION
Inspecting trigger function
CAUTION: Make sure that the trigger function
is in working order before each operation. The
tool must not operate only by pulling the trigger
or only by placing the contact element against the
workpiece. If you nd such issues, contact Makita
authorized service centers for repairs.
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
Driving nails
WARNING: Continue to place the contact
element rmly on the material until the nail is
driven completely.Unintentionalringmaycause
personalinjuries.

10 ENGLISH
CAUTION: Do not drive nails on hard mate-
rials such as metal or the like. If the nail cannot
penetrate the material, the nailer may be kicked back
towardyouandcauseinjury.
NOTE: If you drive nails continuously for a long time,
the exhaust air will get hot due to the heat from the
motor.
The tool employs two nailing actions: intermittent nailing
(sequential mode) and continuous/intermittent nailing
(continuous mode).
13
4
5
2
►1. Switch trigger 2. Contact element 3. Mode select-
ing switch 4. Sequential mode 5. Continuous mode
Intermittent nailing (sequential mode)
1. Set the mode selecting switch to the sequential
mode.
2. Release the trigger lock.
3. Placeatthecontactelementonthematerial.
4. Pull the switch trigger fully to drive a nail.
5. To drive the next nail, release the switch trigger
and contact element once, and then repeat the step 3
and 4 above.
WARNING: Always be sure to rst place the
contact element against the workpiece before
pulling the trigger.
Continuous/intermittent nailing
(continuous mode)
1. Set the mode selecting switch to the continuous
mode.
2. Release the trigger lock.
3. Pulltheswitchtriggerrstandthenplacethe
contact element against the workpiece.
4. Todrivethenextnail,keepyourngerpullingthe
switch trigger and place the contact element against the
workpiece again.
NOTE: This tool stops automatically under the follow-
ing conditions:
• When you release the switch trigger or contact
elementfromworkpiecebeforethetoolnishes
the operation completely. In this case, pull the
trigger again until the tool turns into standby.
• When keeping either pulling the switch trigger
or placing the contact element about 5 seconds
without another action. In this case, release the
switch trigger or the contact element from work-
piece to restart the operation.
Anti dry re mechanism
When the remaining nails in the magazine decrease to
6 - 9 pieces, the switch trigger can no longer be pulled.
At this time, insert a new strip of nails in the magazine
and the switch trigger can be pulled again.
Removing jammed nails
WARNING: Always make sure that the battery
cartridge is removed before removing jammed
nails.
CAUTION: Be sure to lock the latch after
removing jammed nails.
Release the latch and open the door. Remove the
jammednailsandlockthelatch.
1
2
►1. Latch 2. Door
Handling of the nails
Handle nails and their box carefully. If the nails have
been handled roughly, they may be out of shape or their
connector breaks, causing poor nail feed.

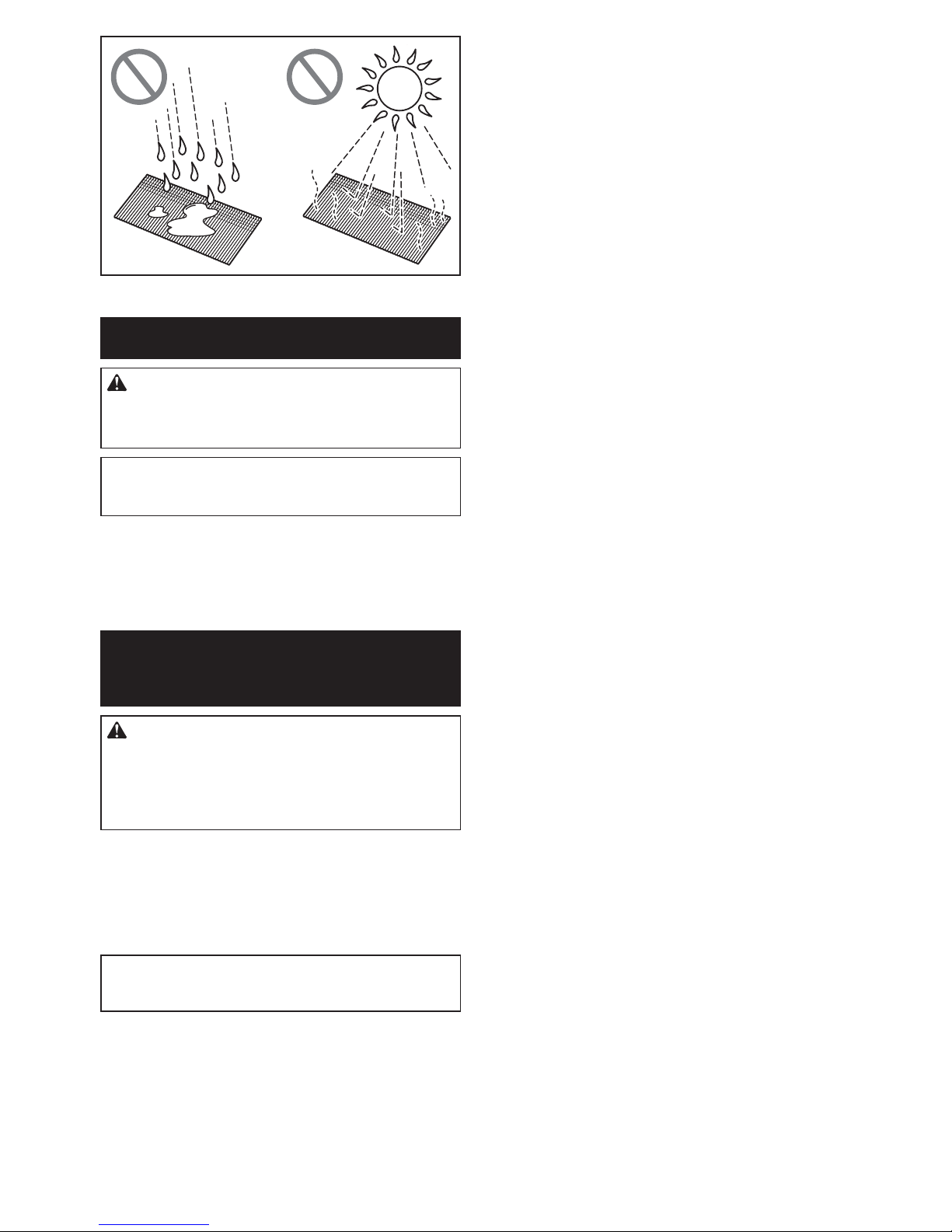

NOTICE: Avoid storing nails in a very humid or
hot place or place exposed to direct sunlight.

11 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Nails
• Makita genuine battery and charger
• Safety goggles
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885612-224
EN
20170925
