INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Power Planer
MODEL 1902
002543
DOUBLE
INSULATION

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
SYMBOLS END201-2
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
..................Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use
The tool is intended for planing wood.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
Noise and Vibration
The typical A-weighted sound pressure level is 84 dB (A).
Uncertainty is 3 dB(A).
The noise level under working may exceed 85 dB (A).
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
These values have been obtained according to
EN60745.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents;
EN60745, EN55014, EN61000 in accordance with
Council Directives, 89/336/EEC, 98/37/EC.
Yasuhiko Kanzaki CE2006
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Responsible manufacturer:
Makita Corporation Anjo Aichi Japan
Model 1902
Planing width 82 mm
Planing depth 1 mm
Shiplapping depth 9 mm
No load speed (min-1)16,000
Overall length 290 mm
Net weight 2.5 kg
Safety class /II

3
GENERAL SAFETY RULES GEA001-3
WARNING:
Read all instructions. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term “power tool” in all of the
warnings listed below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Work area safety
1. Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
2. Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
9. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
10. Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal inju-
ries.
11. Avoid accidental starting. Ensure the switch is
in the off-position before plugging in. Carrying
power tools with your finger on the switch or plug-
ging in power tools that have the switch on invites
accidents.
12. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
13. Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
14. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
15. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Power tool use and care
16. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
17. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
18. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.

4
19. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
21. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
22. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working con-
ditions and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
23. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
24. Follow instruction for lubricating and changing
accessories.
25. Keep handles dry, clean and free from oil and
grease.
GEB010-2
SPECIFIC SAFETY RULES
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to planer safety rules. If you use this tool unsafely or
incorrectly, you can suffer serious personal injury.
1. Wait for the cutter to stop before setting the
tool down. An exposed cutter may engage the sur-
face leading to possible loss of control and serious
injury.
2. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body
leaves it unstable and may lead to loss of control.
3. Rags, cloth, cord, string and the like should
never be left around the work area.
4. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
5. Use only sharp blades. Handle the blades very
carefully.
6. Be sure the blade installation bolts are securely
tightened before operation.
7. Hold the tool firmly with both hands.
8. Keep hands away from rotating parts.
9. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or wob-
bling that could indicate poor installation or a
poorly balanced blade.
10. Make sure the blade is not contacting the work-
piece before the switch is turned on.
11. Wait until the blade attains full speed before
cutting.
12. Always switch off and wait for the blades to
come to a complete stop before any adjusting.
13. Never stick your finger into the chip chute.
Chute may jam when cutting damp wood. Clean
out chips with a stick.
14. Do not leave the tool running. Operate the tool
only when hand-held.
15. Always change both blades or covers on the
drum, otherwise the resulting imbalance will
cause vibration and shorten tool life.
16. Use only Makita blades specified in this man-
ual.
17. Always use the correct dust mask/respirator for
the material and application you are working
with.
SAVE THESE INSTRUCTIONS.
WARNING:
MISUSE or failure to follow the
safety rules stated in this instruction
manual may cause serious personal
injury.

5
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Adjusting depth of cut
Depth of cut may be adjusted by simply turning the knob on the front of the
tool.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF” position when released.
For tool without lock button and lock-off button
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
For tool with lock button
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
For continuous operation, pull the switch trigger and then push in the lock but-
ton.
To stop the tool from the locked position, pull the switch trigger fully, then
release it.
For tool with lock-off button
To prevent the switch trigger from being accidentally pulled, a lock-off button is
provided.
To start the tool, depress the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
1. Knob
1
002549
1. Switch trigger
1
004881
1. Lock button/Lock-off button
2. Switch trigger
1
2
004884

6
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.

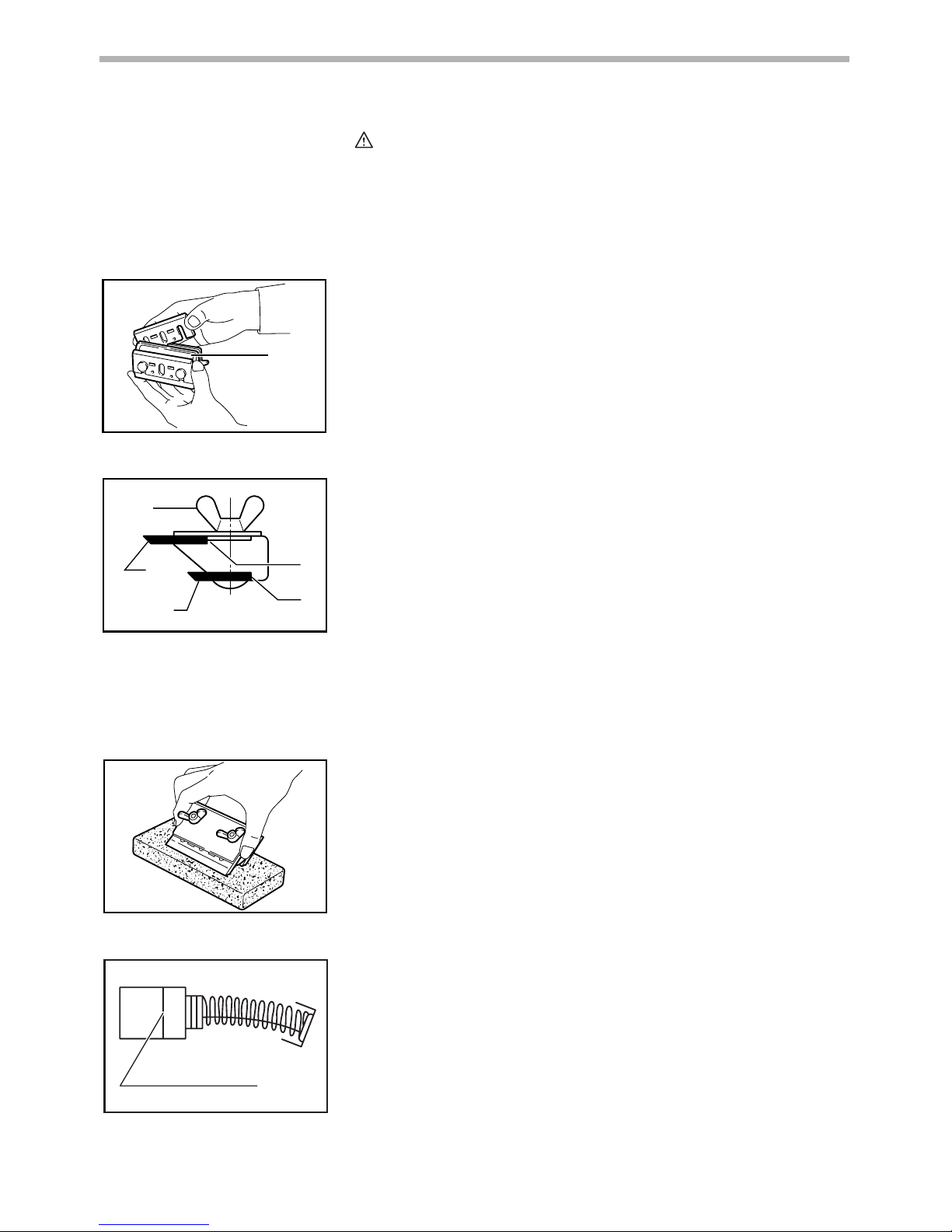

Removing or installing planer blades
CAUTION:
•Tighten the blade installation bolts carefully when attaching the blades to
the tool. A loose installation bolt can be dangerous. Always check to see
they are tightened securely.
•Handle the blades very carefully. Use gloves or rags to protect your
fingers or hands when removing or installing the blades.
•Use only the Makita wrench provided to remove or install the blades.
Failure to do so may result in overtightening or insufficient tightening of
the installation bolts. This could cause an injury.
For tool with standard planer blades
To remove the blades on the drum, unscrew the installation bolts with the
socket wrench. The drum cover comes off together with the blades.
To install the blades, first clean out all chips or foreign matter adhering to the
drum or blades. Use blades of the same dimensions and weight, or drum oscil-
lation/vibration will result, causing poor planing action and, eventually, tool
breakdown.
Place the blade on the gauge base so that the blade edge is perfectly flush
with the inside edge of the gauge plate. Place the adjusting plate on the blade,
then simply press in the heel of the adjusting plate flush with the back side of
the gauge base and tighten two screws on the adjusting plate. Now slip the
heel of the adjusting plate into the drum groove, then fit the drum cover on it.
Tighten all the installation bolts evenly and alternately with the socket wrench.
1. Socket wrench
2. Bolt
1. Bolt
2. Drum
3. Planer blade
4. Drum cover
5. Adjusting plate
1
2
002564
1
2
3
4
5
002555

7
For tool with mini planer blades
1. Remove the existing blade, if the tool has been in use, carefully clean the
drum surfaces and the drum cover. To remove the blades on the drum,
unscrew the three installation bolts with the socket wrench. The drum
cover comes off together with the blades.
2. To install the blades, loosely attach the adjusting plate to the set plate
with the pan head screws and set the mini planer blade on the gauge
base so that the cutting edge of the blade is perfectly flush with the inside
flank of the gauge plate.
3. Set the adjusting plate/set plate on the gauge base so that the planer
blade locating lugs on the set plate rest in the mini planer blade groove,
then press in the heel of the adjusting plate flush with the back side of the
gauge base and tighten the pan head screws.
4. It is important that the blade sits flush with the inside flank of the gauge
plate, the planer blade locating lugs sit in the blade groove and the heel
of the adjusting plate is flush with the back side of the gauge base.
Check this alignment carefully to ensure uniform cutting.
1. Inside edge of gauge plate
2. Blade edge
3. Planer blade
4. Adjusting plate
5. Screws
6. Heel
7. Back side of gauge base
8. Gauge plate
9. Gauge base
1
2
3
4
5
6
7
8
9
002556
1. Socket wrench
2. Bolt
1. Pan head screw
2. Adjusting plate
3. Planer blade locating lugs
4. Gauge plate
5. Heel of adjusting plate
6. Set plate
7. Inside flank of gauge plate
8. Gauge base
9. Back side of gauge base
10.Mini planer blade
1
2
002564
1
2
3
4
5
6
7
8
9
10
002565

8
5. Slip the heel of the adjusting plate into the groove of the drum.
6. Set the drum cover over the adjusting plate/set plate and screw in the
three hex flange head bolts so that a gap exists between the drum and
the set plate to slide the mini planer blade into position. The blade will be
positioned by the planer blade locating lugs on the set plate.
7. The blade’s lengthwise adjustment will need to be manually positioned
so that the blade ends are clear and equidistant from the housing on one
side and the metal bracket on the other.
8. Tighten the three hex flange head bolts (with the socket wrench pro-
vided) and rotate the drum to check clearances between the blade ends
and the tool body.
9. Check the three hex flange head bolts for final tightness.
10. Repeat procedures 1 - 9 for other blade.
For the correct planer blade setting
Your planing surface will end up rough and uneven, unless the blade is set
properly and securely. The blade must be mounted so that the cutting edge is
absolutely level, that is, parallel to the surface of the rear base.
Refer to some examples below for proper and improper settings.
1. Mini planer blade
2. Groove
3. Set plate
4. Hex. flange head bolt
5. Drum cover
6. Drum
1
2
3
4
5
6
002566
(A) (B)
(B)
(A) (B)
(A)
(A) Front base (Movable shoe)
(B) Rear base (Stationary shoe)
Correct setting
Nicks in surface
Gouging at start
Gouging at end
Although this side view cannot
show it, the edges of the blades
run perfectly parallel to the rear
base surface.
Cause: One or both blades fails to
have edge parallel to rear
base line.
Cause: One or both blade edges
fails to protrude enough in
relation to rear base line.
Cause: One or both blade edges
protrudes too far in relation
to rear base line.
EN0004-1

9
Connecting a vacuum cleaner
For tools with European type (round) chip cover
When you wish to perform clean planing operation, connect a Makita vacuum
cleaner to your tool as shown in the figure.
For tools with standard (non-round) chip cover
A nozzle and joint (optional accessories) are necessary to connect a Makita
vacuum cleaner to your tool. Consult a Makita catalogue or representative on
the nozzle and joint.
Nozzle assembly (optional accessory)
Use of the special nozzle assembly will minimize chip scatter, making for a
cleaner work area.
1. European type (round) chip cover
1
004889
1. Vacuum cleaner
1
004951
1. Chip cover
2. Screwdriver
1
2
002597
1. Nozzle assembly
1
002570

10

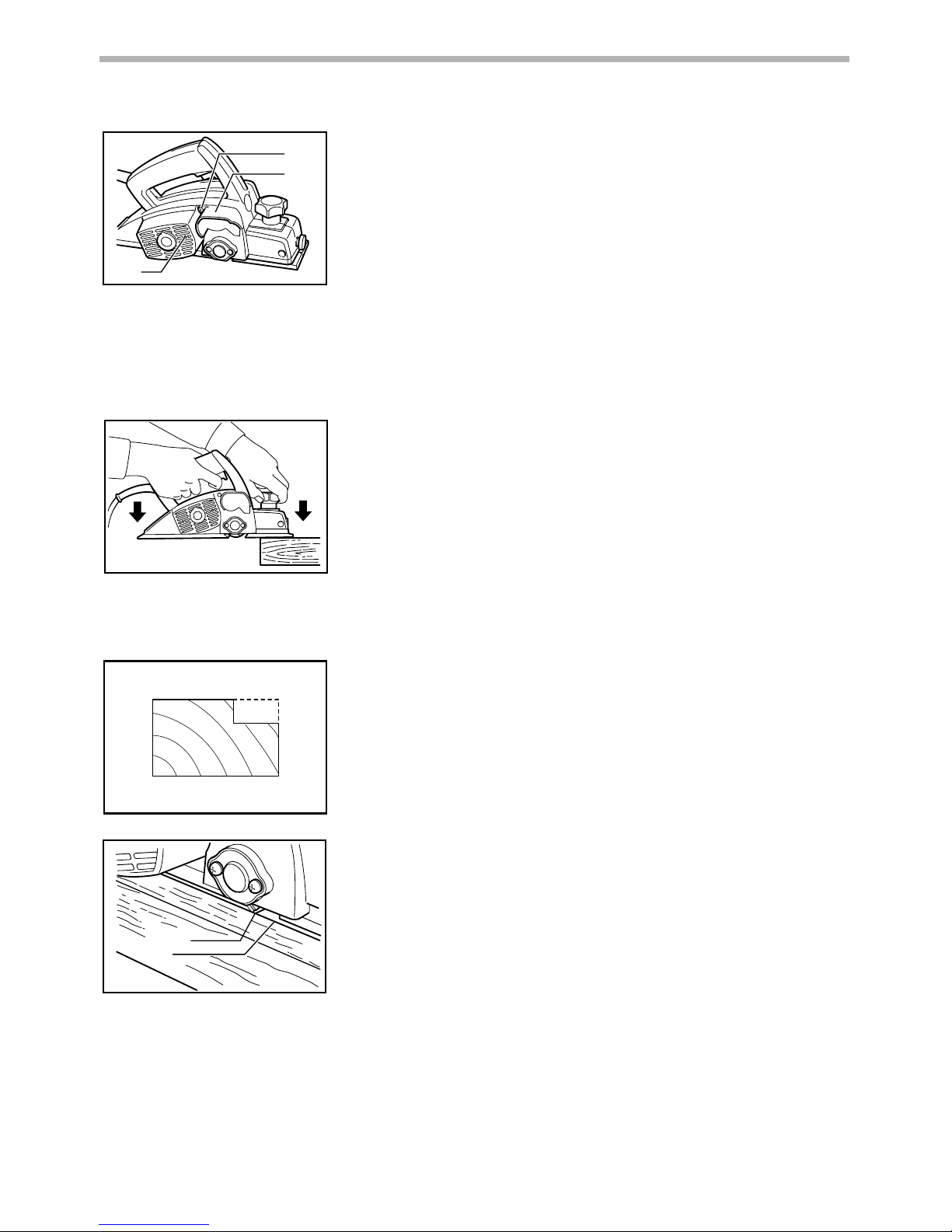

The nozzle assembly may be attached after the chip cover on the tool body is
removed. When slipping on the assembly, fit the pin on it into the rear cover
hole. Use the chip cover screws to fasten it in place.
OPERATION
Planing operation
First, rest the tool front base flat upon the workpiece surface without the
blades making any contact. Switch on and wait until the blades attain full
speed. Then move the tool gently forward. Apply pressure on the front of tool
at the start of planing, and at the back at the end of planing. Planing will be
easier if you incline the workpiece in stationary fashion, so that you can plane
somewhat downhill.
The speed and depth of cut determine the kind of finish. The power planer
keeps cutting at a speed that will not result in jamming by chips. For rough cut-
ting, the depth of cut can be increased, while for a good finish you should
reduce the depth of cut and advance the tool more slowly.
Shiplapping (Rabbeting)
To make a stepped cut as shown in the figure, use the edge fence (guide rule).
Draw a cutting line on the workpiece. Insert the edge fence into the hole in the
front of the tool. Align the blade edge with the cutting line.
1. Chip cover screw
2. Chip cover
3. Hole
1
2
3
002571
1. End
2. Start
12
002579
002580
1. Blade edge
2. Cutting line
1
2
1
2
002582

11
Adjust the edge fence until it comes in contact with the side of the workpiece,
then secure it by tightening the screw.
When planing, move the tool with the edge fence flush with the side of the
workpiece. Otherwise uneven planing may result.
Maximum shiplapping (rabbeting) depth is 9 mm.
You may wish to add to the length of the fence by attaching an extra piece of
wood. Convenient holes are provided in the fence for this purpose, and also for
attaching an extension guide (optional accessory).
Chamfering
To make a chamfering cut as shown in the figure, align the “V”groove in the
front base with the edge of the workpiece and plane it.
1. Screw
2. Edge fence
1
2
002583
002584
1. “V”groove
003634
1
002587

12
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
Sharpening the planer blades
For standard blades only
Always keep your blades sharp for the best performance possible. Use the
sharpening holder to remove nicks and produce a fine edge.
First, loosen the two wing nuts on the holder and insert the blades (A) and (B),
so that they contact the sides (C) and (D). Then tighten the wing nuts.
Immerse the dressing stone in water for 2 or 3 minutes before sharpening.
Hold the holder so that the both blades contact the dressing stone for simulta-
neous sharpening at the same angle.
Replacing carbon brushes
Remove and check the carbon brushes regularly. Replace when they wear
down to the limit mark. Keep the carbon brushes clean and free to slip in the
holders. Both carbon brushes should be replaced at the same time. Use only
identical carbon brushes.
1. Sharpening holder
1
002588
1. Wing nut
2. Blade (A)
3. Blade (B)
4. Side (D)
5. Side (C)
1
2
34
5
002589
002590
1. Limit mark
1
001145

13
Use a screwdriver to remove the chip cover.
Use a screwdriver to remove the brush holder caps. Take out the worn carbon
brushes, insert the new ones and secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.
1. Chip cover
2. Screwdriver
1
2
004902
1. Brush holder cap
2. Screwdriver
1
2
002598
•High-speed steel Planer blade
•Tungsten-carbide Planer blade
(For longer blade life)
•Mini planer blade
•Sharpening holder assembly
•Blade gauge
•Set plate set
•Edge fence (Guide rule)
•Extension guide set
•Dressing stone
•Nozzle assembly
•Dust bag assembly
•Joint
•Socket wrench

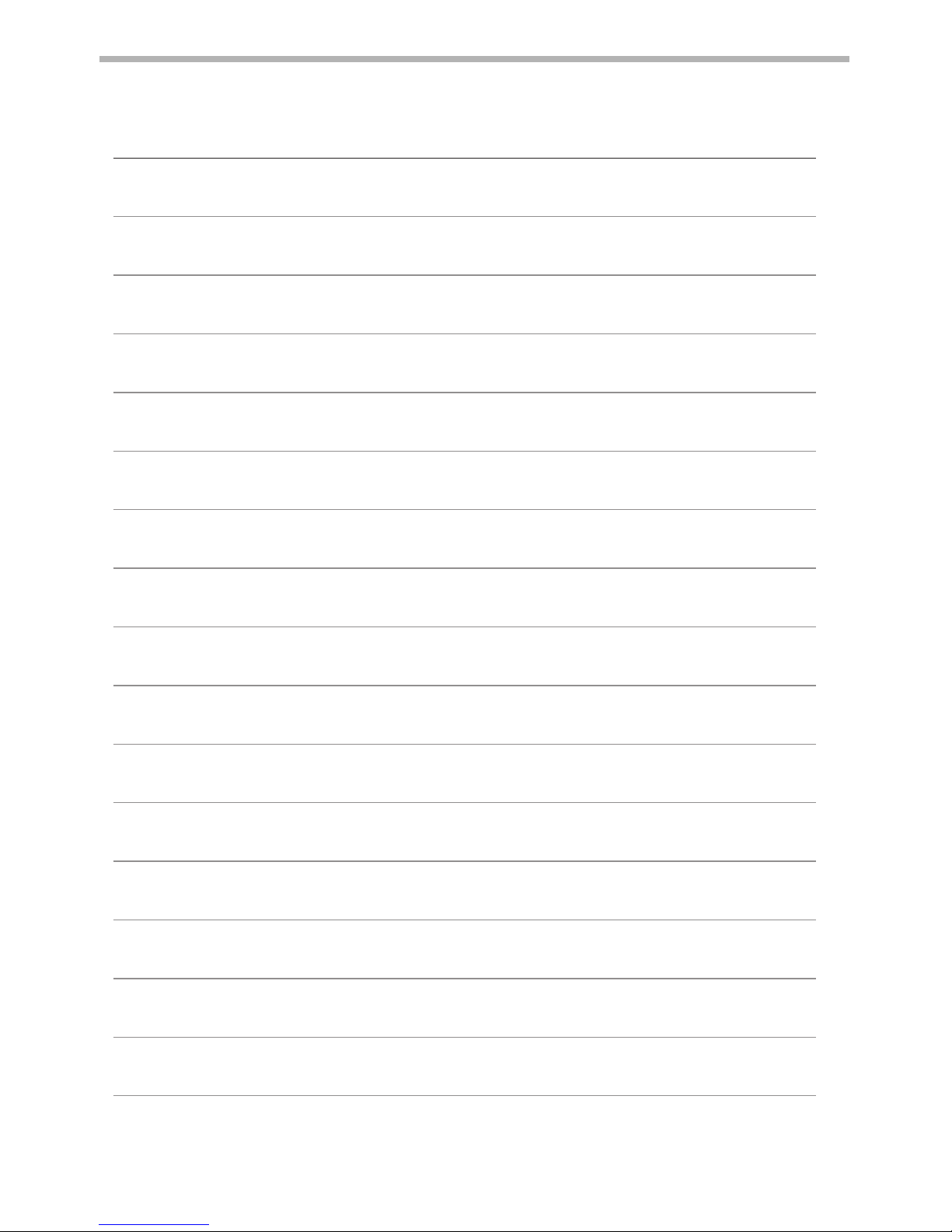

Memo
14

Memo
15

Makita Corporation Anjo, Aichi, Japan
884128D226
