INSTRUCTION MANUAL
Planer
M1901
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: M1901
Planing width 82 mm
Planing depth 2 mm
Shiplapping depth 9 mm
No load speed 16,000 min-1
Overall length 285 mm
Net weight 2.7 kg
Safety class /II
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• Weight according to EPTA-Procedure 01/2003
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
Waste Electric and Electronic Equipment
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for planing wood.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745:
Sound pressure level (LpA) : 85 dB(A)
Sound power level (LWA) : 96 dB (A)
Uncertainty (K) : 3 dB(A)
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60745:
Work mode: planing softwood
Vibration emission (ah) : 3.5 m/s2
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
Makita declares that the following Machine(s):
Designation of Machine: Planer
Model No./ Type: M1901
Conforms to the following European Directives:
2006/42/EC
They are manufactured in accordance with the following standard or
standardized documents: EN60745
Thetechnicalleinaccordancewith2006/42/ECisavailablefrom:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
17.8.2015
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

3ENGLISH
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropri-
ateconditionswillreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and changing
accessories.
3. Keep handles dry, clean and free from oil and grease.

4ENGLISH
Planer safety warnings
1. Wait for the cutter to stop before setting the
tool down. An exposed rotating cutter may
engage the surface leading to possible loss of
controlandseriousinjury.
2. Hold the power tool by insulated gripping
surfaces only, because the cutter may contact
its own cord. Cutting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
3. Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form. Holding the work by your hand or against
the body leaves it unstable and may lead to loss of
control.
4. Rags, cloth, cord, string and the like should
never be left around the work area.
5. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
6. Use only sharp blades. Handle the blades very
carefully.
7. Be sure the blade installation bolts are
securely tightened before operation.
8. Hold the tool rmly with both hands.
9. Keep hands away from rotating parts.
10. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced blade.
11. Make sure the blade is not contacting the
workpiece before the switch is turned on.
12. Wait until the blade attains full speed before
cutting.
13. Always switch off and wait for the blades to
come to a complete stop before any adjusting.
14. Never stick your nger into the chip chute.
Chute may jam when cutting damp wood.
Clean out chips with a stick.
15. Do not leave the tool running. Operate the tool
only when hand-held.
16. Always change both blades or covers on the
drum, otherwise the resulting imbalance will
cause vibration and shorten tool life.
17. Use only Makita blades specied in this
manual.
18. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool.
Adjusting depth of cut

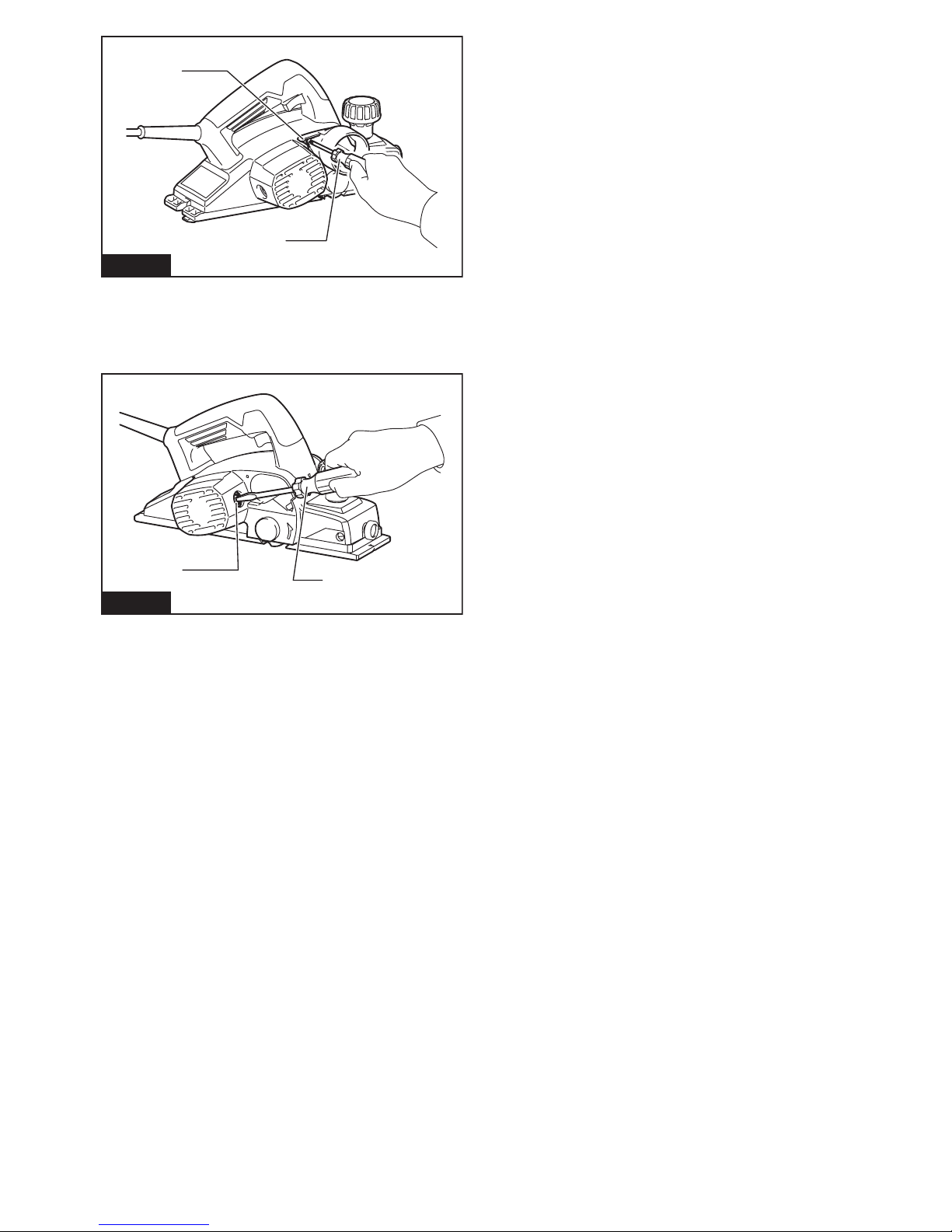

1
2
Fig.1
►1. Pointer 2. Knob
Depthofcutmaybeadjustedbysimplyturningthe
knob on the front of the tool so that the pointer points
the desired depth of cut.
Switch action
12
Fig.2
►1. Switch trigger 2. Lock button or Lock-off button
CAUTION: Before plugging in the tool, always
check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
For tool with lock button
CAUTION: Switch can be locked in "ON" posi-
tion for ease of operator comfort during extended
use. Apply caution when locking tool in "ON"
position and maintain rm grasp on tool.

5ENGLISH
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
For tool with lock-off button
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop.
CAUTION: Do not pull the switch trigger hard
without depressing the lock-off button. This can
cause switch breakage.
Foot
123
Fig.3
►1. Planer blade 2. Rear base 3. Foot
After a cutting operation, raise the back side of the tool
so that the foot comes out of the rear base. This pre-
vents the planer blades to be damaged.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Removing or installing planer
blades
CAUTION: Tighten the blade installation bolts
carefully when attaching the planer blades to
the tool. A loose installation bolt can be dangerous.
Always check to see they are tightened securely.
CAUTION: Handle the planer blades very
carefully. Use gloves or rags to protect your n-
gers or hands when removing or installing the
blades.
CAUTION: Use only the Makita wrench
provided to remove or install the planer blades.
Failure to do so may result in overtightening or insuf-
cienttighteningoftheinstallationbolts.Thiscould
causeaninjury.
For tool with conventional planer
blades
To remove the planer blades on the drum, unscrew
the installation bolts with the socket wrench. The drum
cover comes off together with the blades.
12
Fig.4
►1. Socket wrench 2. Bolts
1
6
2
3
4
5
Fig.5
►1. Bolts 2. Drum 3. Planer blade 4. Drum cover
5.Adjustingplate6. Groove
To install the planer blades, do the following procedure.
1. Clean out all chips or foreign matter adhering to
the drum and planer blades.
2. Choose planer blades of the same dimensions
and weight. Otherwise drum oscillation/vibration will
result, causing poor planing action and, eventually, tool
breakdown.
3. Use the blade gauge to set the planer blades
correctly. Put the planer blade on the gauge base. Apply
thecuttingedgeofthebladeontheinsideankofthe
gauge plate.

6ENGLISH
1
2
3
4
5
6
7
8
9
Fig.6
►1.Insideankofgaugeplate2. Blade edge
3. Planer blade 4.Adjustingplate5. Screws
6. Heel 7. Back side of gauge base 8. Gauge plate
9. Gauge base
4. Placetheadjustingplateontheplanerblade.
Presstheadjustingplatesothatitsheelisushwith
the back side of gauge base. Tighten two screws on the
adjustingplate.
5. Sliptheheeloftheadjustingplateintothedrum
groove,thentthedrumcoveronit.
6. Tighten all the installation bolts evenly and alter-
nately with the socket wrench.
7. Repeat the procedure above for the other blade.
For tool with mini planer blades
To replace the mini planer blades, do the following
procedure.
1. Carefully clean the drum surfaces and the drum
cover.
2. Unscrew the three installation bolts with the socket
wrench.Removethedrumcover,adjustingplate,set
plate and the mini planer blade.
12
Fig.7
►1. Socket wrench 2. Bolts
3. Use the blade gauge to set the planer blades
correctly. Put the mini planer blade on the gauge base.
Applythecuttingedgeofthebladeontheinsideankof
the gauge plate.
1
2
3
4
5
6
7
8
9
10
Fig.8
►1. Screws 2.Adjustingplate3. Planer blade locating
lugs 4. Gauge plate 5.Heelofadjustingplate6. Set
plate 7.Insideankofgaugeplate8. Gauge base
9. Back side of gauge base 10. Mini planer blade
4. Looselyattachtheadjustingplatetothesetplate
withthescrews.Puttheadjustingplateandsetplate
on the gauge base. Fit the planer blade locating lugs on
the set plate into the mini planer blade groove.
5. Applytheheeloftheadjustingplateontotheback
side of the gauge base and tighten the screws. Check
the alignments carefully to ensure uniform cutting.
6. Sliptheheeloftheadjustingplateintothegroove
of the drum.
7. Putthedrumcoveronthesetplateandlooselyt
them onto the drum with the three bolts. Slip the mini
planer blade into the space between the drum and set
plate. Make sure that the planer blade locating lugs on
thesetplatetintheminiplanerbladegroove.
1
2
3
4
5
6
7
Fig.9
►1. Mini planer blade 2. Groove 3. Set plate 4. Bolts
5. Drum cover 6. Drum 7.Adjustingplate
8. Adjusttheminiplanerbladepositionlengthwayso
that the blade ends are clear and equidistant from the
housing on one side and the metal bracket on the other.
9. Tighten the three bolts with the socket wrench
provided and rotate the drum to check the clearances
between the blade ends and the tool body.
10. Checkthethreeboltsfornaltightness.
11. Repeat the procedure above for the other blade.

7ENGLISH
For the correct planer blade setting
Your planing surface will end up rough and uneven, unless the planer blade is set properly and securely. The planer
blade must be mounted so that the cutting edge is absolutely level, that is, parallel to the surface of the rear base.
Refer to some examples below for proper and improper settings.
(A) (B)
(B)
(A) (B)
(A)
(A) Front base (Movable shoe)
(B) Rear base (Stationary shoe)
Correct setting
Nicks in surface
Gouging at start
Gouging at end
Although this side view cannot
show it, the edges of the blades
run perfectly parallel to the rear
base surface.
Cause: One or both blades fails to
have edge parallel to rear
base line.
Cause: One or both blade edges
fails to protrude enough in
relation to rear base line.
Cause: One or both blade edges
protrudes too far in relation
to rear base line.
Connecting a vacuum cleaner
For European countries only
Fig.10
When you wish to perform clean planing operation,
connect a Makita vacuum cleaner to your tool. Then
connect a hose of the vacuum cleaner to the nozzle as
showninthegures.
OPERATION
Holdthetoolrmlywithonehandontheknobandthe
other hand on the switch handle when performing the
tool.
Planing operation
12
Fig.11
►1. Start 2. End
Applythetoolfrontbaseatupontheworkpiecesurfacewithout
the planer blades contacting the workpiece. Switch on and wait
until the blades attain full speed. Then move the tool gently for-
ward at a uniform speed. Apply pressure on the front of tool at the
start of planing, and on the rear at the end of planing.
Thespeedanddepthofcutdeterminethenish.Toobtainagood
surfacenish,planedeeplyuntilyougetnearthedesireddepth,
andthenplanethinlyandslowlyforthenalpass.

8ENGLISH
Shiplapping (Rabbeting)
Fig.12
Tomakeasteppedcutasshowninthegure,usethe
edge fence (guide rule).
Draw a cutting line on the workpiece. Insert the edge
fence into the hole in the front of the tool. Align the
blade edge with the cutting line.
12
Fig.13
►1. Blade edge 2. Cutting line
Adjusttheedgefenceuntilitcomesincontactwiththe
side of the workpiece, then secure it by tightening the
screw.
1
2
Fig.14
►1. Screw 2. Edge fence
Whenplaning,movethetoolwiththeedgefenceush
with the side of the workpiece. Otherwise uneven plan-
ing may result.
Fig.15
Maximum shiplapping (rabbeting) depth is 9 mm
(11/32″).
You may wish to add to the length of the fence by
attaching an extra piece of wood. Convenient holes
are provided in the fence for this purpose, and also for
attaching an extension guide (optional accessory).
Fig.16
NOTE: The shape of the guide rule is differ from
country to country. In some country, the guide rule is
not included as a standard accessory.
Chamfering
Fig.17

9ENGLISH
Fig.18
Tomakeachamferingcutasshowninthegure,align
the "V" groove in the front base with the edge of the
workpiece and plane it.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and unplugged before attempting to
perform inspection or maintenance.
CAUTION: Never use gasoline, benzine, thin-
ner, alcohol or the like. Discoloration, deformation
or cracks may result.
Sharpening the planer blades
For conventional planer blades only
Always keep your planer blades sharp for the best per-
formance possible. Use the sharpening holder (optional
accessory)toremovenicksandproduceaneedge.
1
Fig.19
►1. Sharpening holder
First, loosen the two wing nuts on the holder and insert
the planer blades (A) and (B), so that they contact the
sides (C) and (D). Then tighten the wing nuts.
1
2
34
5
Fig.20
►1. Wing nut 2. Planer blade (A) 3. Planer blade (B)
4. Side (D) 5. Side (C)
Immerse the dressing stone in water for 2 or 3 minutes
before sharpening. Hold the holder so that the both
blades contact the dressing stone for simultaneous
sharpening at the same angle.
Fig.21
Replacing carbon brushes
1
Fig.22
►1. Limit mark
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the chip cover or nozzle.

10 ENGLISH
1
2
Fig.23
►1. Chip cover or Nozzle 2. Screwdriver
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
12
Fig.24
►1. Brush holder cap 2. Screwdriver
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.

11

www.makita.com
Makita
Jan-Baptist Vinkstraat 2, 3070, Belgium
Makita Corporation Anjo, Aichi, Japan
885473-222
EN
20150929
