Makita 3612BR User manual

1/2" MODEL 3612BR
1/2" MODEL 3612BRA
Equipped with electric brake
Collet chuck
capacity
1i2"
INSTRUCTION MANUAL
-
Main body No load speed 0 vera I I Net
stroke (RPM) length weight
287 mm 5.7 kg
11 1-5/16") (12.7
lbs)
~__~~~-._____.~~~~~___~~ ~~
23,000
0 65"
(0 ~~ 2-9/16")
DOUBLE
INSULATION

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USINGELECTRICTOOLS, BASIC SAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. Whennotinuse, tools should be stored in dry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will do thejob better andsafer atthe rate for which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't use toolfor purpose not intended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESS PROPERLY. Don't wear loose clothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Nevercarry tool by cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspect tool cords periodicallyand if damaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys andadjusting wrenches are removedfromtool before turning
it on.
15. AVOID UNINTENTIONAL STARTING. Don't carrytool
with finger onswitch.
Be sure switch is OFF when
plugging in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product
will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating. Table 1 showsthe
correct size to usedependingoncord lengthand nameplate ampere rating.
If
in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1 MINIMUM GAGE FOR CORD SETS
Total Length of Cord in Feet
0 - 25
Ampere Rating
More Not More
Than Than
26 - 50 51 - 100 101 - 150
0- 6
6- 10
10
- 12
12 16
18
18
16
14
16 16 14
16 14 12
16 14 12
12
Not Recommended
17. OUTDOOR USE EXTENSION CORDS. Whentool isusedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what youare doing, usecommon sense. Don't operate
tool when you are tired.
19. CHECK DAMAGED PARTS. Beforefurther use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintendedfunction. Check for alignment of
movingparts, binding
of movingparts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
20. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21 . REPLACEMENTPARTS. Whenservicing. useonly identical replacement parts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug
will fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet,
reversethe plug. If
it stilldoes notfit, contact a qualified electriciantoinstall
the proper outlet. Do not change the plug
in any way.
3

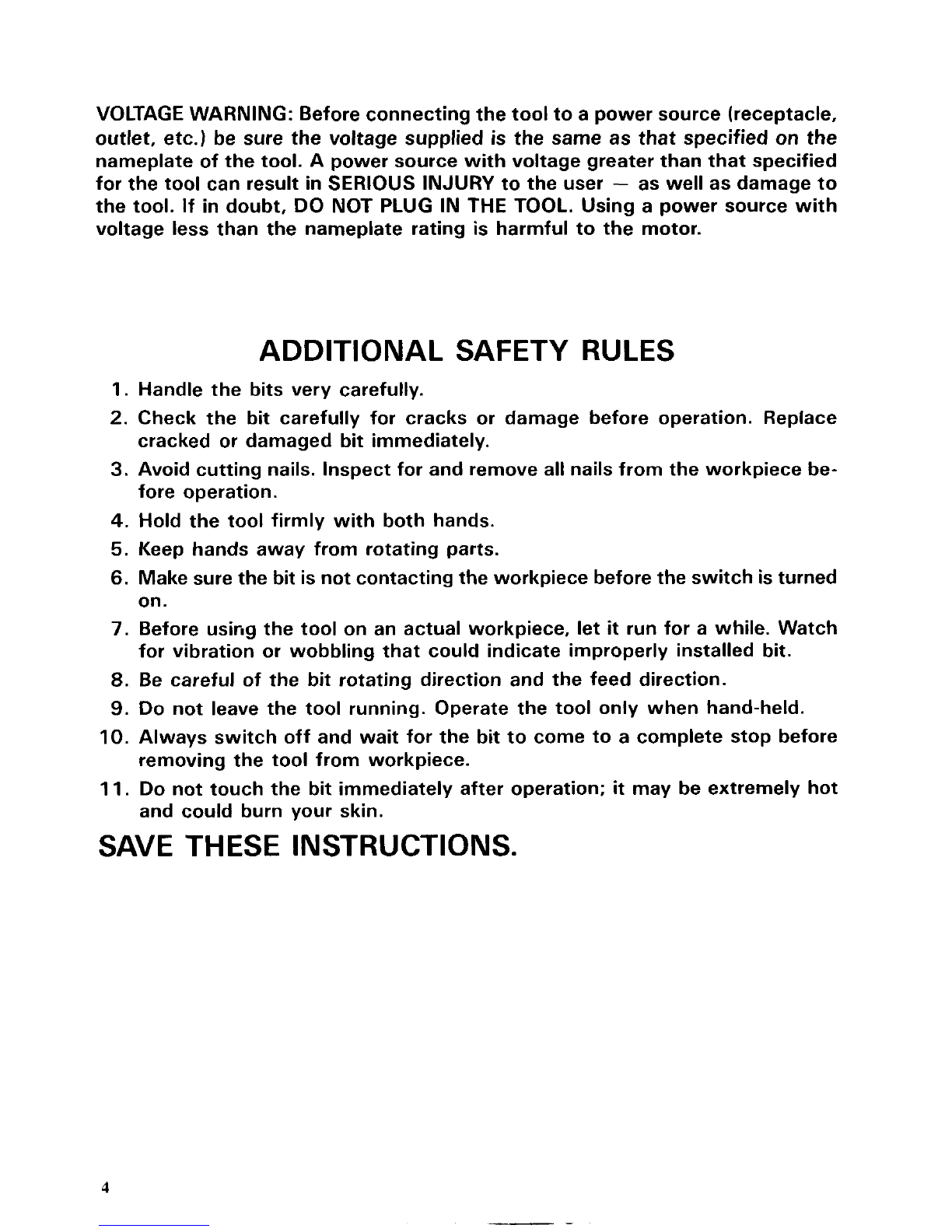

VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified
on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user
- as well as damage to
the tool. If in doubt,
DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating
is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Handle the bits very carefully.
2. Check the bit carefully for cracks or damage before operation. Replace
3. Avoid cutting nails. Inspect for and remove all nails from the workpiece be-
4. Hold the tool firmly with both hands.
5. Keep hands away from rotating parts.
6. Makesure the bit is notcontacting the workpiece before the switch is turned
7. Before using the tool on an actual workpiece, let it run for a while. Watch
8. Be careful of the bit rotating direction and the feed direction.
9. Do not leave the tool running. Operate the tool only when hand-held.
cracked or damaged bit immediately.
fore operation.
on.
for vibration or wobbling that could indicate improperly installed bit.
IO. Always switch off and wait for the bit to come to a complete stop before
11. Do not touch the bit immediately after operation; it may be extremely hot
removing the tool from workpiece.
and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

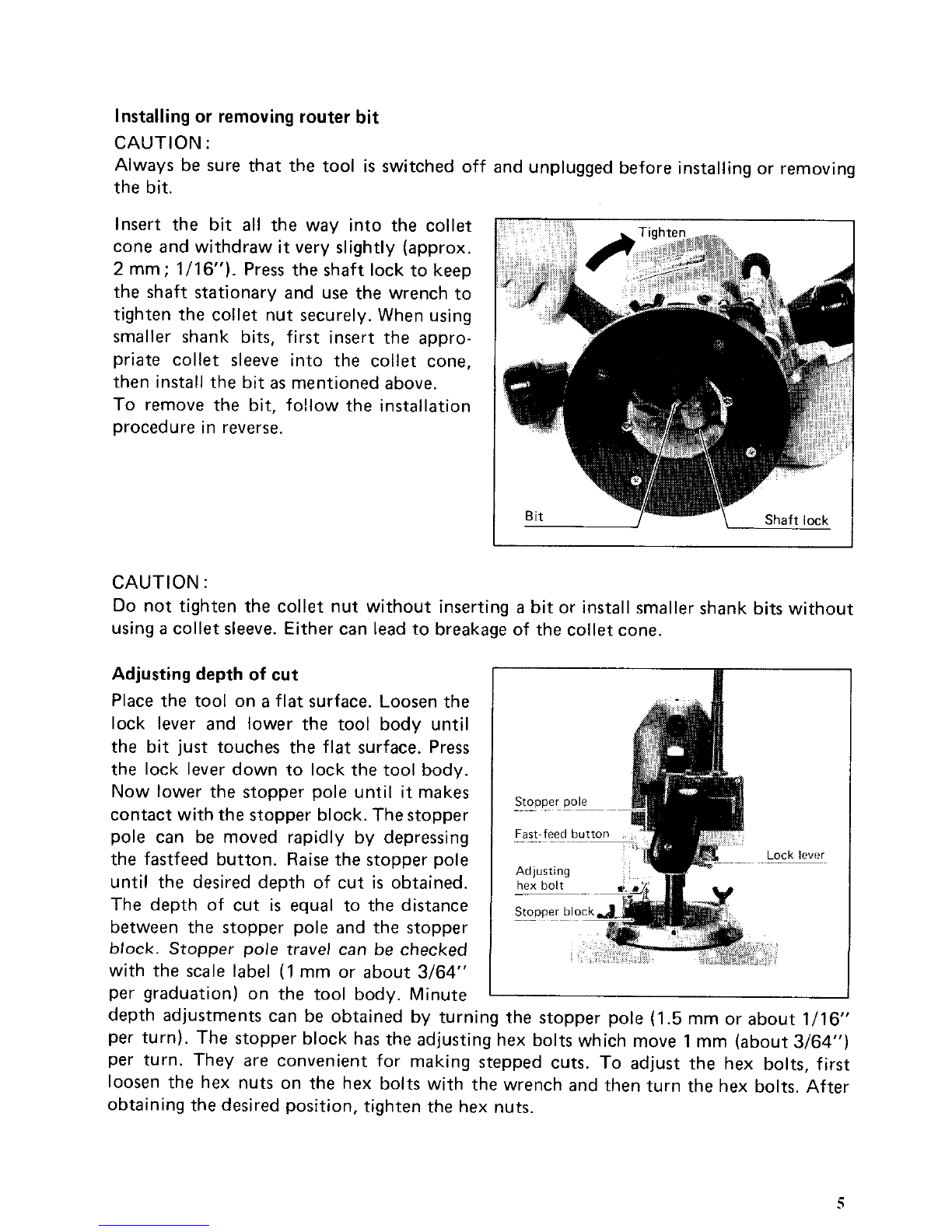

Installingor removing router bit
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore installingor removing
the bit.
Insert the bit
all the way into the collet
cone and withdraw
it very slightly (approx.
2 mm; 1/16"). Press the shaft lock to keep
the shaft stationary and use the wrench to
tighten the collet nut securely. When using
smaller shank bits, first insert the appro-
priate collet sleeve into the collet cone,
then install the bit
as mentionedabove.
To remove the bit, follow the installation
procedure in reverse.
CAUTION
:
Do not tighten the collet nut without inserting a bitor install smaller shank bits without
using
a collet sleeve. Either can lead to breakage of the collet cone.
Adjusting depth of cut
Place the tool on a flat surface. Loosenthe
lock lever and lower the tool body until
the bit just touches the flat surface. Press
the lock lever down to lock the tool body.
Now lower the stopper pole until
it makes
contactwiththe stopper block.Thestopper
pole can be moved rapidly by depressing
the fastfeed button.
Raise the stopper pole
until the desired depth of cut
is obtained.
The depth of cut
is equal to the distance
between the stopper pole and the stopper
block. Stopper
pole travel can be checked
with the scale label (1mm or about 3/64"
per graduation) on the tool body. Minute
depth adjustments can be obtained by turning the stopper pole
(1.5 mm or about 1/16"
per turn). The stopper block has the adjusting hex bolts which move 1mm (about3/64")
per turn. They are convenient for making stepped cuts. To adjust the hex bolts, first
loosen the hex nuts on the hex bolts with the wrench and then turn the hex bolts. After
obtainingthe desired position, tighten the hex nuts.
5

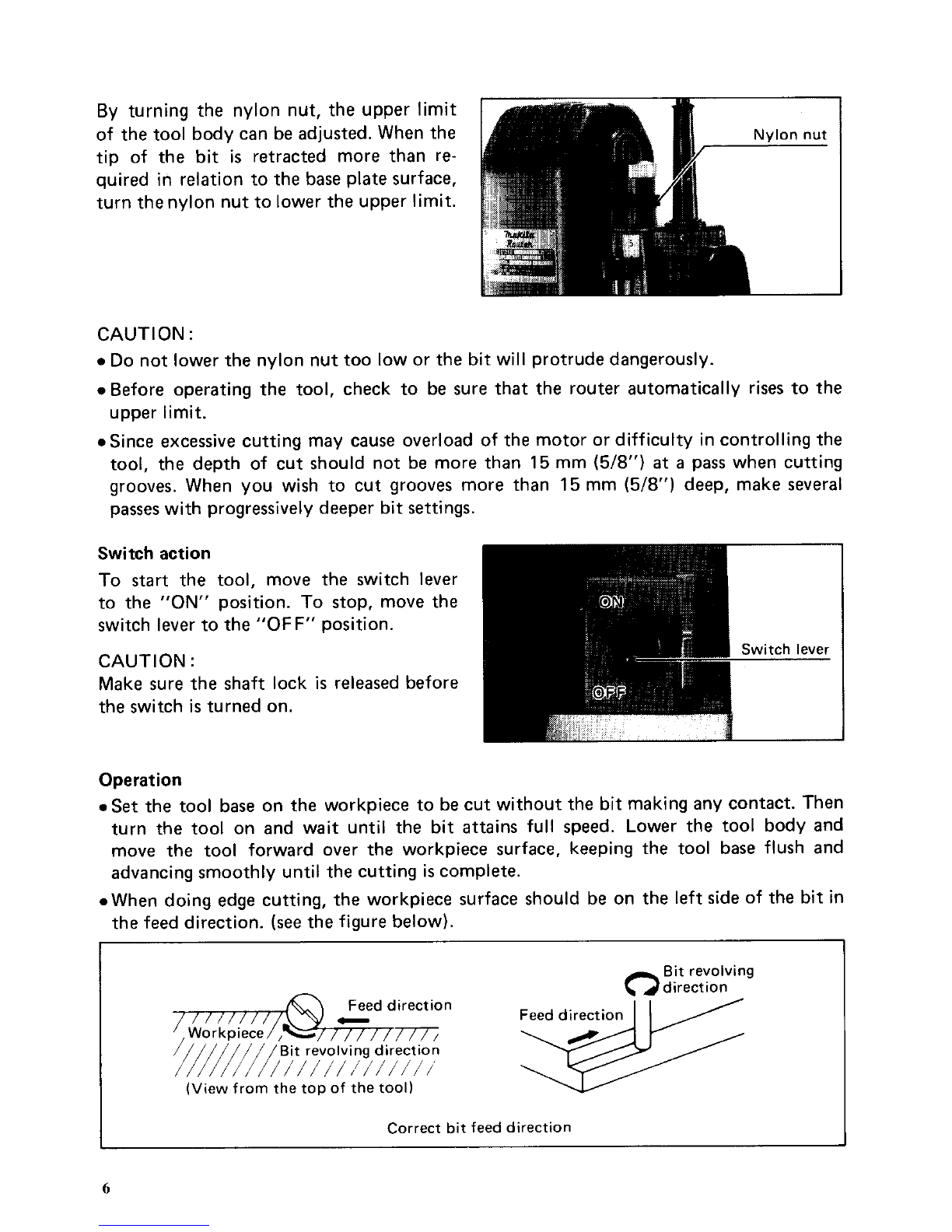

By turning the nylon nut, the upper limit
of the tool body can be adjusted. When the
tip of the bit
is retracted more than re-
quired in relation to the base platesurface,
turn thenylonnut to lower the upper limit.
CAUTION
:
0 Do not lower the nylon nut too low or the bit will protrude dangerously.
0 Before operating the tool, check to be sure that the router automatically rises to the
upper limit.
0Since excessive cutting may cause overload of the motor or difficulty incontrolling the
tool, the depth of cut should not be more than
15 mm (5/8") at a pass when cutting
grooves. When you wish to cut grooves more than 15 mm (5/8") deep, make several
passes with progressively deeper bitsettings.
Switch action
To start the tool, move the switch lever
to the "ON" position.
To stop, move the
switch lever to the
"OFF" position.
CAUTION
:
Make sure the shaft lock is released before
the switch
is turned on.
Operation
0Set the tool base on the workpiece to be cut without the bit making any contact. Then
turn the tool on and wait until the bit attains full speed. Lower the tool body and
move the tool forward over the workpiece surface, keeping the tool base flush and
advancing smoothly until the cutting
is complete.
0 When doing edge cutting, the workpiece surface should be on the left side of the bit in
the feed direction.
(see the figure below).
Bit revolving
direction
Feed direction
(Viewfrom the topof the tool)
Correct bit feed direction
6

NOTE :
0 Moving the tool forward too fast may cause a poor quality of cut, or damage tothe bit
or motor. Moving the tool forward too slowly may burn and mar the cut. The proper
feed rate will depend on the bit
size, the kind of workpiece and depth of cut. Before
beginning the cut on the actual workpiece,
it is advisable to make a sample cut on a
piece of scrap lumber. This will show exactly how the cut will look as well as enable you
tocheck dimensions.
When using the straight guide or the trimmer guide, be sure to install it on the right side
inthe feed direction. This will help to keep
it flush with the side of the workpiece.
Straight guide (Optional accessory)
The straight guide is effectively used for
straight cuts when chamfering or grooving.
Install the straight guide on the guide
holder with the wing bolt
(B). Tighten the
wing bolt
(B) only tight enough to hold
the straight guide temporarily. Then insert
the guide holder into the holes in the tool
base and tighten the wing bolts (A).Adjust
the distance between the bit and the
straight guide by turning the fine adjusting
screw (1.5 mm or about 1/16” per turn.)
At the desired distance, tighten the wing
bolt
(B) to secure the straight guide in
place.
When cutting, move the tool with the
straight guide flush with the side of the
workpiece.
Wider straight guide
of desired dimensions
may be made by usingthe convenient holes
in the guide to bolt on extra pieces of
wood.
When using
a board-jointing bit, attach
pieces of wood to the straight guide which
have
a thickness of more than 15 mm
(5/8”)
so that the bit does not strike the
straight guide.
Wins bolt (6)
Wing bolt (A)
Straightguide
More than
115” (5’8”)
7

Trimmer guide (Optionalaccessory)
Trimming, curved cuts in veneers for fur-
niture and the like can be done easily with
the trimmer guide. The guide roller rides
the curve and assures
a fine cut.
Install the trimmer guide on the guide
holder with the wing bolt
(6). Tightenthe
wing bolt
(B) only tight enough to hold the
trimmer guide temporarily.Then insertthe
guide holder into the holes
in the tool base
and tighten the wing bolts (A).Adjust the
distance between the bit and the trimmer
guide by turning the fine adjusting screw
(1.5 mm or about 1/16" per turn). At the
desired diestance, tighten the wing bolt
(6)
to secure the trimmer guide in place.When
adjusting the guide roller up on down,
loosen
the wing bolt (C). After adjusting
it, tightenthe wing bolt (C) securely.
When cutting,
move the tool with the guide
roller ridingthe side
of the workpiece.
Wing bolt (C) I \ Guide roller
4 Guide roller
8

Templet guide(Optionalaccessory)
The templet guide provides
a sleeve through
which the bit passes, allowing
use of the
router with templet patterns.
To install the templet guide, loosen the
screws on the tool base, insert the templet
Base plate Templet guide
I
guide and then tighten the screws
Secure the templet tothe workpiece. Place
the tool on the templet and move the tool
with the templet guide sliding along the
side
of the templet.
I Screw V
Bit ~ Tjmplet guide
9

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
If ohter type of carbon brushes are em-
ployed in tools equipped with an electric
brake, the electric brake may not operate
properly.
/
Limit mark
Use a screwdriver to remove the brush 1
holder caps. Take out the worn carbon
brushes, insert the newones and secure the
brush holder caps.
Brush holder cap
71
I I
Screwdriver
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacementparts.

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The
use of any other accessories or attachments might present a risk of injury to persons. The
accessories or attachments should be used only in the proper and intended manner.
0 Templet guide
1
0 Collet sleeve
Use a sleeve which fits for the diameter
of the bit shank.
, " I*
0 Straight guide
Part NO. 342428-9
0 Wrench 24
Part No. 781 210-5
0 Wrench 8
Part No. 781213-9
0 Templet guide 25
lmml
Part No I Tompler gufde I A I B I C
321812 1 I 25 122 6 157164") 1 254 ll"1 I 11 17116'1
0 Lock nut
(fortemplet guide 25)
Part No. 252627-4
0 Templet guide adapter
(fortemplet guide 25)
0 Trimmer guide
Part No. 123022-4
0 Guide holder
Part No. 132306-9

Bits
STRAIGHT - Single Flute
7330054A 318 1 1-114 112 2.112
733005-6A 112 1-114 1-7/16 112 2-718
733005-8A 112 1.112 1.114 112 3
733006-4A 314 1-114 1-114 112 2-112
733006-6A 718 1-114 1-3116 1
I2 2-112
, 733006-8A 1 1-114 1-3/16 112 2-112
CARBIDE TIPPED
PART NO. A
8 C
D E
733002-0A 318 1 1-1I2 112 2.314
733002-4A 112 1-114 1-318 112 2-718
HIGH SPEED STEEL
PART
NO.
A E
C D E
733232-6A 1I8 5/16 1-118 114 1-518
STRAIGHT - 2 Flute
-ID+
CARBIDE TIPPED
PART NO. A
E C D E
733003-2A 3/16 7/16 1-318 114
2
733003-4A 114 314 1-3/16 1I4 2-118
733003-8A 5/16 1 1-118 114 2-3/16
HIGH SPEED STEEL (STRAIGHT
- 2 Flute)
I PARTNO. A B C D E I
7332334A 5/16 718 1-3/16 114 2-1 I8
733234-2A 112 718 1-118 1I4 2-1
I8
STRAIGHT - 2 Flute, 1/2"Shank
IDi-
CARBIDE TIPPED
I PARTNO. A B C D E
HINGE MORTISING
CARBIDE TIPPED
PART NO. A
B C D E
733006-9A 112 112 1-1116 114 1-13/16
HIGH SPEEDSTEEL
PART
NO. A E
C D E
733235-0A 112 112 314 114 1-15/16
12

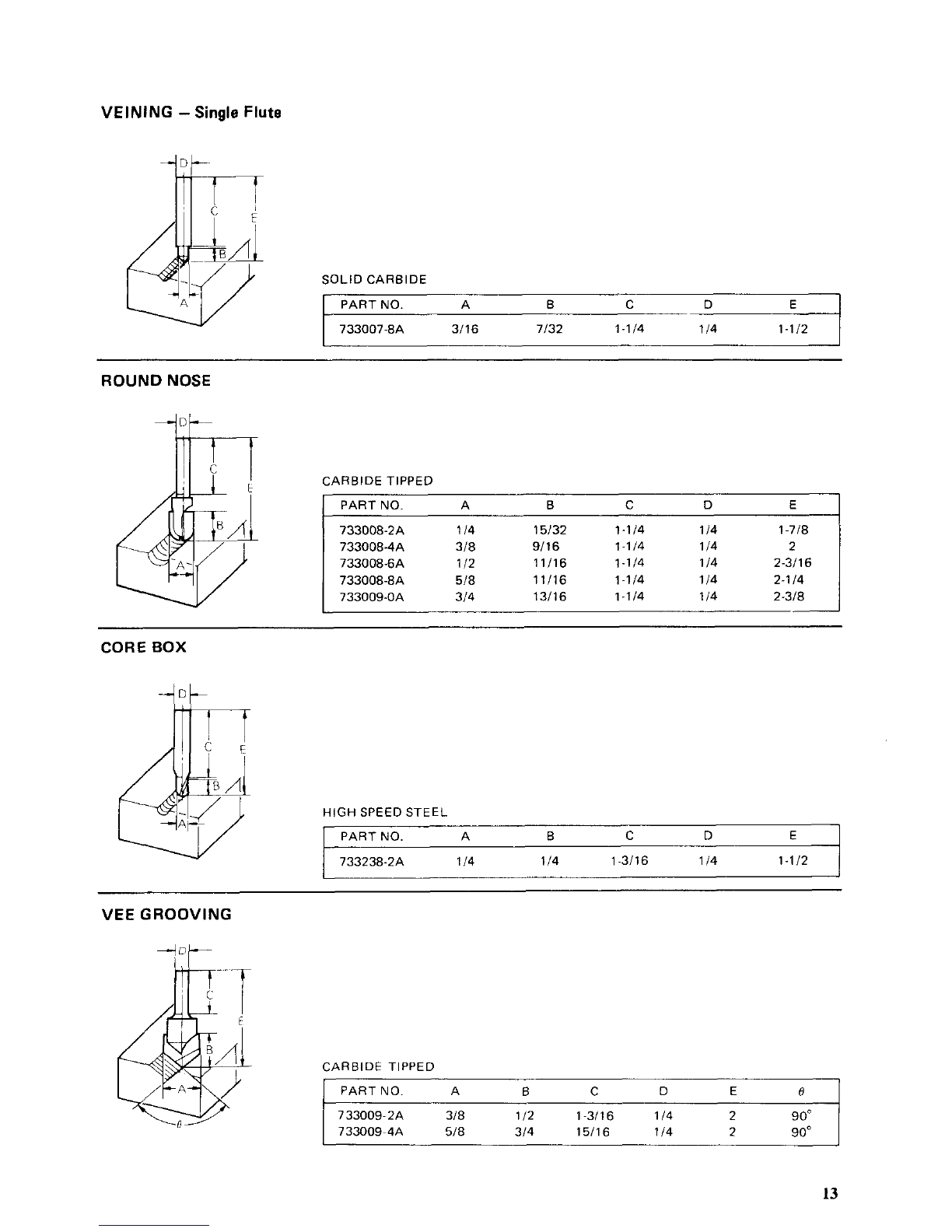

VEINING -Single Flute
SOLID CARBIDE
A
PART NO.
E C
733007-SA 3116 7132 1-1I4 1-1
12
ROUND NOSE
CARBIDE TIPPED
I PARTNO. A E C D E 1
733008-2A 114 15/32 1-114 114 1-718
733008-4A 318 9116 1-114 114
2
733008-6A 112 11116 1-114 114 2-3/16
733008-8A
518 11/16 1-114 114 2-114
733009-0A 314 13116 1-114 114 2-318
CORE BOX
-4DC
& -J
HIGHSPEED STEEL
I PARTNO. A B C D E
I 733238.2~ 114 114 1-3116 114 1-112 1
VEE GROOVING
An/-
CARBIDE TIPPED
PART NO. A E3
C D E a
733009-2A 318 112 1-3/16 1/4 2 90"
733009~4A
518 3/4 15116 114 2 90"
13

14' DOVETAIL
CARBIDE TIPPED
PART NO A
6 C D E
733009-6A 1
/2 112 1-1/4 1I4 1-7/8
HIGHSPEED STEEL
PART NO. A
B
C D E
733239-6A 1 /2 1 /2 1-3/8 1I4 2
STAGGER TOOTH
I-Ad
CARBIDE TIPPED
I PARTNO. A B C D E 1
733007-0A 3/8 1.112 1-1/4 112 3
PNAELPILOT
CARBIDE TIPPED
PART NO. A B C D E
7330304A 318 1 1 3/8 2-1/2
733030-6A 112 1
118 1.112 1I2 3-114
HIGHSPEED STEEL
PART NO. A
B
C D E
733236-0A 114 3/4 1 1/4 2-7/16
CORNER ROUNDING
AD&
CARBIDE TIPPED - Ball Bearing Pilot
I PARTNO. AI Az 8 C D E R
733120-6A 1-1/4 1-1/4 2-1 18
733120-8A 1-112 314 1-114 2-1/4
2-3/8
733121-2A 1-1/2 3/4 1-1/2 2-1/2
REPLACEMENT BEARING-NO 733132-4A
HIGH SPEED STEEL
- Solid Pilot
3/16
114
5/16
3/8
1
/2
3/8
1
/2
I PARTNO. Ai Az B C D E R
1733240-2A 11/16 3/16 1/2 1/4 1-3/4
733240-6A 15/16 3/16
5/53
1 1/4 1-7/8 3/8 ll4 I
14

BEADING
CARBIDE TIPPED - Ball Bearing Pilot
733121-4A 7/8 3/8 3/8 1-114 114 1-15/16 3/16
733121-6A 112 3/8 1
/2 1-114 114 114
733121-8A 1~118 112 3/8 112 1-114 114 2-1/16 5/16
733122-0A 1-114 112 318 518 1-114 114 2-1/8 318
733122-2A 11/2 112 318 314 1114 114 2-114
112
REPLACEMENT BEARING ~ NO. 733132-2A
CARBIDE TIPPED
- Ball Bearing Pilot
COVE
733122-6A 718 318 318 1/4 1-5/8 114
733122-8A 1-1/8 318 114 1-314 318
733123-0A 1-3/8 3/8
5/8 114 1-718 1/2
REPLACEMENT BEARING ~ NO. 733132-2A
HIGH SPEED STEEL
solid Pilot
PARTNO. Ai A2
B
C D E
R
733242.6A 11116 3/16 1/2 1 1/4 1-314 1/4
733242-8A 15/16 3/16 3/4 1 114 2-1/32 318
45" CHAMFERING
CARBIDE TIPPED - Ball Bearing Pilot
PART NO AI A2
B C
D E
733124-4A 13/16 112 1/2 1-1/4 1/4 2-1/4
REPLACEMENT BEARING
- NO 733132 4A
RABBETING
4Ol-
CARBIDE TIPPED - Ball Bearing Pilot
PART NO AI A2
B C D E
733124-2A 1-114 112 112 1-7/16 114 2-1/4
I REPLACEMENT BEARING - NO 733132-4A I
15

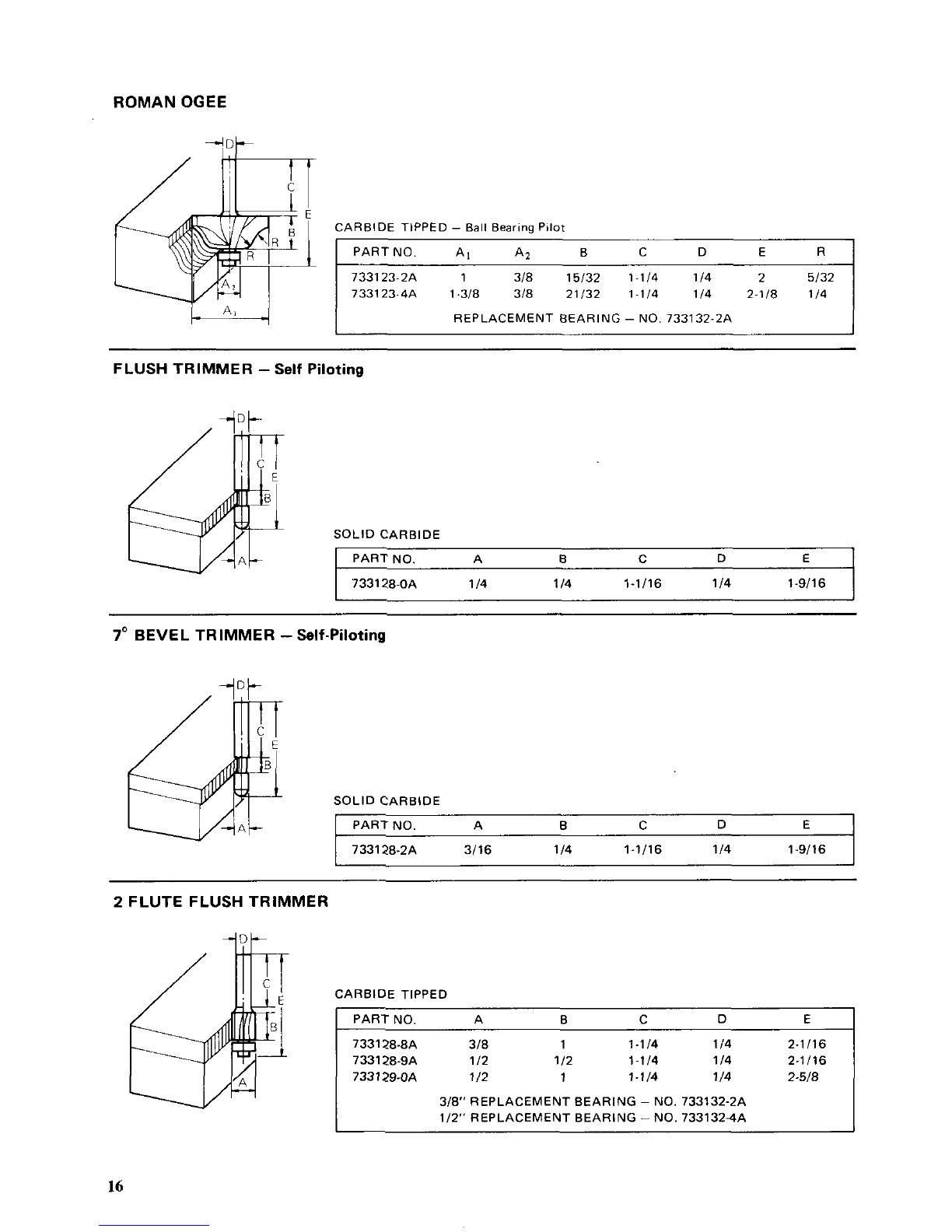

ROMAN OGEE
CARBIDE TIPPED - Ball Bearing Pilot
PARTNO A, A2 B C D E R
733123-2A 1 3/8 15/32 1-1/4 114 2 5/32
733123 4A 1-318 3/8 21/32 1-1/4 1/4 2-1/8 114
REPLACEMENT BEARING
- NO 733132-2A
FLUSH TRIMMER - Self Piloting
SOLID CARBIDE
PART
NO. A B C D E
733128-0A 1/4 1/4 1-1/16 114 1-9/16
7' BEVEL TRIMMER - Self-Piloting
SOLID CARBIDE
PART NO. A B C
D E
733128-2A 3/16 1
I4 1-1/16 114 1-9/16
~~ ~
2 FLUTE FLUSH TRIMMER
CARBIDE TIPPED
PART
NO.
733128-8A 1-114 2-1/16
733128-9A 1-1/4 2-1/16
733129-OA
112 1.114 2-518
3/8" REPLACEMENT BEARING - NO. 733132-2A
1/2" REPLACEMENT BEARING -NO. 7331324A
16

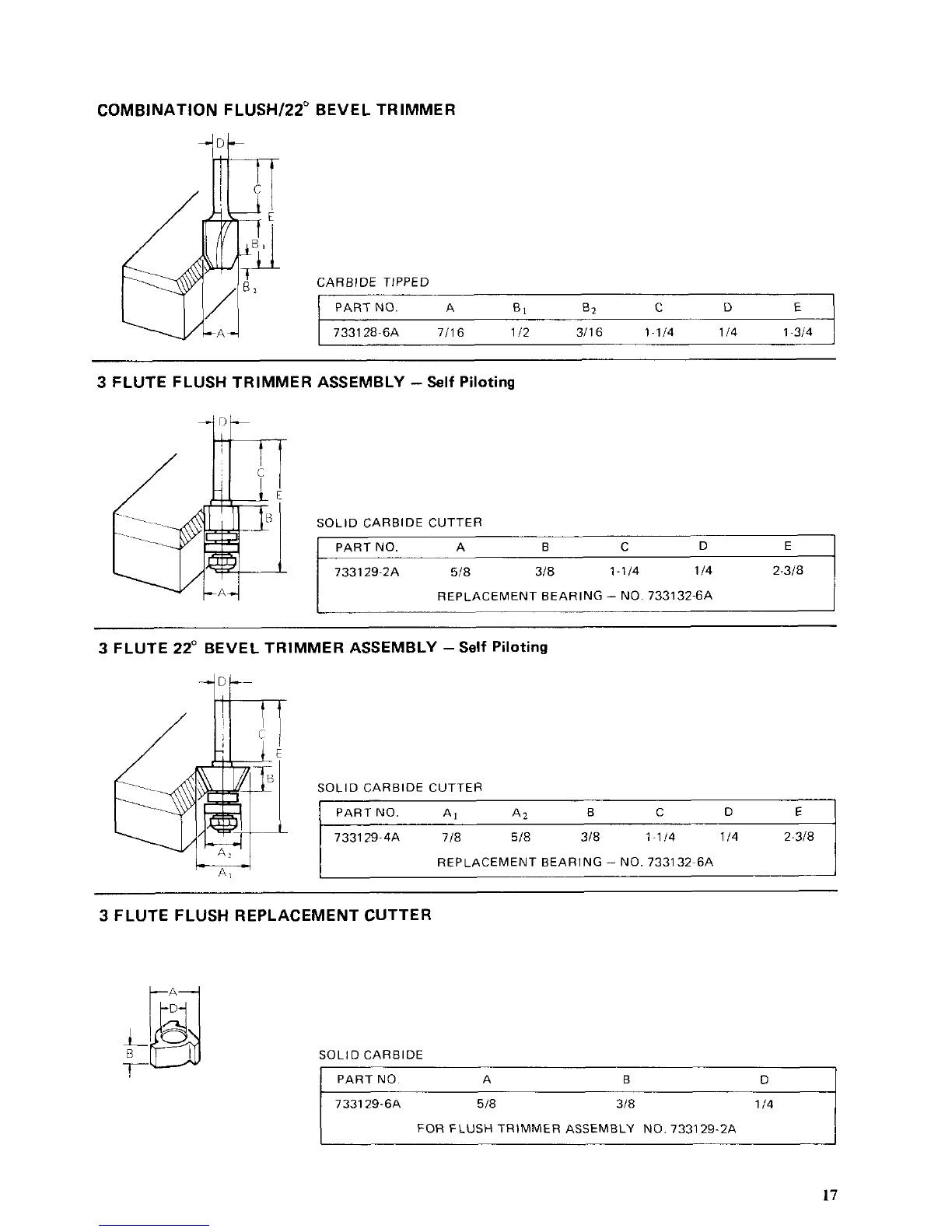

COMBINATION FLUSH/22" BEVEL TRIMMER
4DC
CARBIDE TIPPED
PART
NO
A
BI 62 C
D E
733128-6A 711 6 112 3/16 1-114 114 1-314
3 FLUTE FLUSH TRIMMER ASSEMBLY - Self Piloting
SOLID CARBIDE CUTTER
PART NO. A B C
D E
733129-2A 518 318 1-114 114 2-318
REPLACEMENT BEARING
- NO. 733132-6A
3 FLUTE 22" BEVEL TRIMMER ASSEMBLY -Self Piloting
-ID!-
SOLID CARBIDE CUTTER
PARTNO. AI A2 B C D E
733129-4A 718 5/8 3/8 1-114 114 2-318
REPLACEMENT BEARING
- NO. 733132~6A
3FLUTE FLUSHREPLACEMENTCUTTER
SOLID CARBIDE
I PARTNO A B D
733129-6A 518 3/8 114
FOR FLUSHTRIMMER ASSEMBLY NO. 733129-2A
17

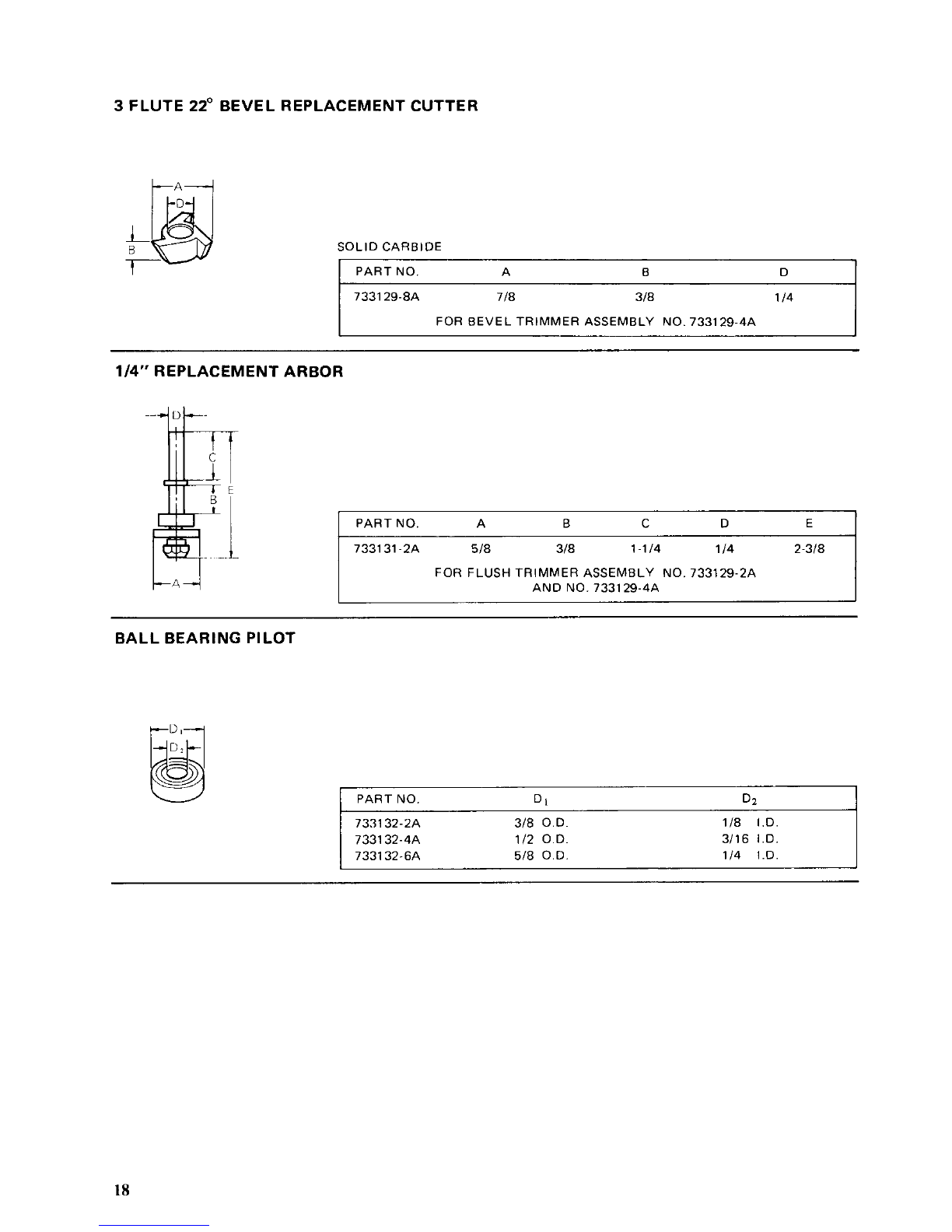

3 FLUTE 22" BEVEL REPLACEMENT CUTTER
SOLID CARBIDE
I PARTNO. A B D 1
733129-8A 7 /8 3/8 1/4
FOR BEVELTRIMMER ASSEMBLY NO. 733129-4A
114" REPLACEMENT ARBOR
PARTNO. A 8 C
D E
733131-2A 5/8 3/8 1-1/4 114 2-3/8
LA4
FOR FLUSH TRIMMER ASSEMBLY NO. 733129-2A
AND NO. 733129-4A
BALL BEARING PILOT
I PARTNO. Dl D2 I
733132-2A 3/8 0 D
733132-4A 1/2 OD
733132-6A
5/8 0 D
1/8 1.D
3/16
I D.
1/4 1.D
18

Feb-20--'92 US
1/2"
ROUTER
Model 3612BR
Model 3612BRA
Note: The switch and other part configurations
may differ from country to country.
19

Feb-20- 92 US
ILLM ,";, DESCRIPTION ILLM ,"zD DESCRIPTION
MACHINE MACHINE
1
2
3
4
5
6
I
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
1
1
1
4
1
2
4
1
1
1
1
1
4
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
Nut M10
Nylon Nut M10
Motor Housing
Name Plate
Rivet 0-5
FIELD ASSEMBLY
Hex Bolt M5xB5 (With Washer1
Countersunk Head
Screw M4x14 IWith Washer]
Ball Bearing 2012LLB
Knob L
Motor Bracket
Compression Spring
10
Half Nut
Pan Head Screw M5x40 IWith Washerl
Collet Nut
Collet cone
Pan Head Screw M6x40 (With Washer)
Knob
R
Compression Spring 15
Set Bolt M10
Lock
Lever
Spring Washer 5
Hex Bolt M5x12
Retaining Ring R - 12
Pin 6
Compression Spring 7
Screw M10x77
Bearing Retainer 50
Fan 92
ARMATURE ASSEMBLY
IWith Item 29 - 321
Insulation Washer
Ball Bearina 6200V
33
34
35
36
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
81
62
63
64
65
-
1
1
1
1
1
2
1
1
2
1
2
2
1
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
2
4
1
2
-
Note The Switch and other part specifications may differ from country to country.
Wave Washer 20
Wing Bolt M5x10
Baffle Plate
Chlp Deflector
Switch
Pan Head
Screw M4x16 IWith Washer)
Strain Relief
Switch Cover
Pan Head
Screw M4x20 (With Washer)
Hex Nut
M12
Brush Holder Cap
Carbon Brush
Cord Guard
Cord
Pole
Compression
Spring 11
Base
Wing Bolt M5x15
Compression Spring 7
Hex Bolt M5x16
Hex Nut M5
Hex Bolt M5x40
Hex Nut M5
Flat
Head Screw M6
Compression Spring 12
Hex Bolt M5x28
Hex Nut M5
Pan Head Screw M5x10 IWith Washer1
Countersunk Head
Screw M4x8
Base Plate
Spring Pin 5-18
stopper
MAKlTA LIMITED ONE YEAR WARRANTY
1 Warranty Policy
Cvery Makila tool IS thoroughly inspected and tested before leaving the factory. It IS warranted to
be free of defects from workmanship and materials for the penod of ONE YEAR from the date of
1 nncinal ourchaw Should anv trouble develoa durini this one-"ear oeriod. return the COMPLETE
Fiz: fre:ght prepaid, ii & of Makita's Factdry or A\thorized Selvtce Centers. If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does
not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained,
alterations have been made to the tool
IN NO EVENT SHALL MAKlTA BE LIABLE FOR ANY INDIRECT, INCIDENTAL
OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY
MAKlTA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,''
AFTER THE ONE-YEAR TERM OFTHISWARRANTY.
Tlur Warranty gjves you spefifjc legal nghts. and you may also have other nghts which vary from
State to
state. Some States do not allow the exclusion or Imitation of incidental or consequential
damages,
so the above limitation 01 exclusion may not apply to yo". Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
!
Ma ki ta Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi 446 Japan
883389J061 PRINTED IN JAPAN
1995 - 4 - N
