INSTRUCTION MANUAL
Demolition Hammer
HM1214C
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model HM1214C
Blows per minute 950 - 1,900 min-1
Overall length 700 mm
Net weight 12.3 kg
Safety class II
without notice.
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for chiselling work in concrete,
brick, stone and asphalt as well as for driving and com-
pacting with appropriate accessories.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
Sound pressure level (LpA
Sound power level (L
Wear ear protection
Vibration
The vibration total value (tri-axial vector sum) deter-
Vibration emission (ah,CHeq2
2
NOTE:
The declared vibration emission value has been
measured in accordance with the standard test method
and may be used for comparing one tool with another.
NOTE:
The declared vibration emission value may
also be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible manufac-
turer declare that the following Makita machine(s):
Demolition Hammer
are of series production and
Conforms to the following European Directives:
And are manufactured in accordance with the following
EN60745
The technical documentation is kept by our authorised
Makita International Europe Ltd.
Michigan Drive, Tongwell,
The conformity assessment procedure required by
VIII.
Tillystraße 2
D-90431 Nürnberg

3ENGLISH
Tomoyasu Kato
Director
Makita Corporation
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instruc-
tions.
Save all warnings and instruc-
tions for future reference.
-
ated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
liquids, gases or dust.
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet con-
ditions.
the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
9.
If operating a power tool in a damp location is unavoid-
able, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30 mA or less is always
recommended.
Personal safety
11.
Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
A
moment of inattention while operating power tools
12. Use personal protective equipment. Always
wear eye protection.
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
that have the switch on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.-
lery or long hair can be caught in moving parts.
17. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
Do not force the power tool. Use the correct
power tool for your application. The correct
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
21. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool.
hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean.
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
Service
25.
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.

4ENGLISH
26. Follow instruction for lubricating and chang-
ing accessories.
27. Keep handles dry, clean and free from oil and
grease.
HAMMER SAFETY WARNINGS
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool.
3. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden wir-
ing or its own cord. Cutting accessory contacting
electric shock.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly recom-
mended that you wear a dust mask and thickly
padded gloves.
5. Be sure the bit is secured in place before
operation.
6. Under normal operation, the tool is designed
to produce vibration. The screws can come
loose easily, causing a breakdown or accident.
Check tightness of screws carefully before
operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for
a while by operating it under no load. This
will loosen up the lubrication. Without proper
Be sure no one is below when using the tool in
high locations.
9.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Do not point the tool at any one in the area
injure someone seriously.
13. Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
14. Do not operate the tool at no-load
unnecessarily.
15. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety rules
for the subject product.
MISUSE or failure to follow the safety rules
stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION:
on the tool.
Switch action
OFF
ON
1
1. Switch lever
CAUTION:
that the tool is switched off.
of operator comfort during extended use. Apply
Speed change
1
1.
is running. The dial is marked 1 (lowest speed) to 5 (full
speed).
Refer to the table below for the relationship between
per minute.

5ENGLISH

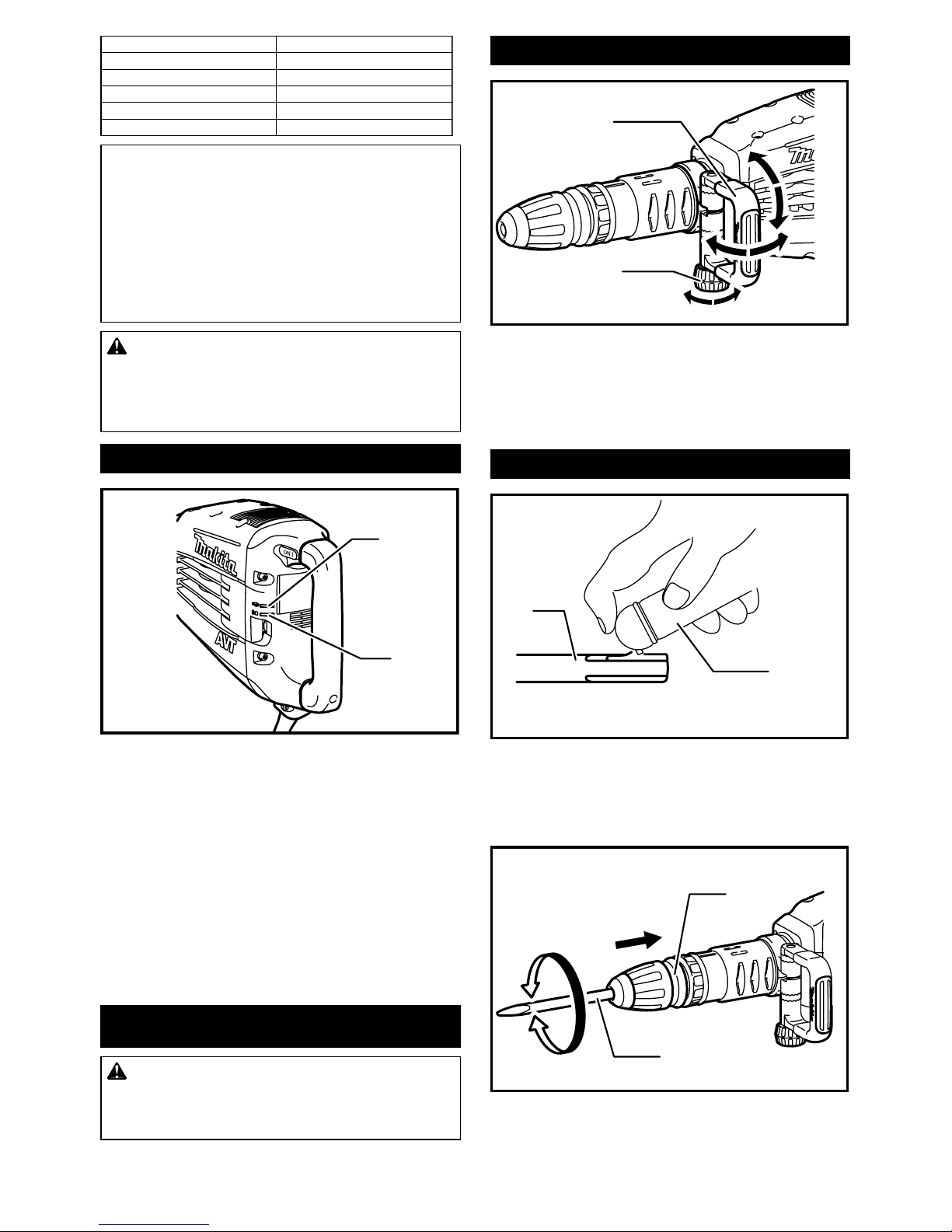

Number on adjusting dial Blows per minute
5
4
3
2
1
1,900
1,700
1,450
1,200
950
NOTE:
than those on load in order to reduce vibration
under no load, but this does not show trouble.
Once operation starts with a bit against con-
crete, blows per minute increase and get to the
-
the tool may not have this function even with the
motor rotating.
CAUTION:
far as 5 and back to 1. Do not force it past 5 or
work.
Indicator lamp
1
2
1.2. Service
indicator lamp (red)
The green power-ON indicator lamp lights up when the
tool is plugged. If the indicator lamp does not light up,
the mains cord or the controller may be malfunction.
The indicator lamp is lit but the tool does not start even
if the tool is switched on, the carbon brushes may be
switch may be malfunction.
carbon brushes are nearly worn out to indicate that the
motor will automatically be shut off.
ASSEMBLY
CAUTION:
unplugged before carrying out any work on the
tool.
Side handle (auxiliary handle)
1
2
1. Side handle 2. Clamp nut
The side handle can be swung 360° on the vertical and
secured at any desired position. It also secures at eight
different positions back and forth on the horizontal.
desired position. Then tighten the clamp nut securely.
Installing or removing the bit
1
2
1. Bit shank 2. Bit grease
Clean the bit shank and apply bit grease before install-
ing the bit.
Insert the bit into the tool. Turn the bit and push it in until
it engages.
1
2
1. Releasing cover 2. Bit
releasing cover down a couple of times. Then insert the
bit again. Turn the bit and push it in until it engages.

6ENGLISH
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the releasing cover down all the
way and pull the bit out.
1
1. Releasing cover
Bit angle
1
1. Change ring cover
The bit can be secured at 12 different angles. To
change the bit angle, slide the change ring cover for-
ward, then turn the change ring cover to change the bit
angle. At the desired angle, slide the change ring cover
back to the original position. The bit will be secured in
place.
OPERATION
Chipping/Scaling/Demolition
hold the tool by both side grip and switch handle during
operations. Turn the tool on and apply slight pressure
on the tool so that the tool will not bounce around,
MAINTENANCE
CAUTION:
unplugged before attempting to perform inspec-
tion or maintenance.
or the like. Discoloration, deformation or cracks
may result.
Lubrication
CAUTION:
Authorized Service Centers only.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. It should be
relubricated regularly. Send the complete tool to Makita
service.
-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.

7ENGLISH
OPTIONAL
ACCESSORIES
CAUTION:
-
in this manual. The use of any other accessories
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.

M a k i t a C o r p o r a t i o n
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
www.makita.com
EN
20160926
Other manuals for HM1214C
12
Table of contents
Other Makita Power Tools manuals

Makita
Makita 4304T User manual

Makita
Makita DCG180ZX User manual

Makita
Makita DHR280 User manual

Makita
Makita VR250D User manual

Makita
Makita 3601B User manual

Makita
Makita JS8000 User manual

Makita
Makita DJS131 User manual

Makita
Makita DTW281RTJ User manual

Makita
Makita BST220 Manual

Makita
Makita HM1810 User manual

Makita
Makita DHR243Y1J User manual

Makita
Makita TW060D User manual

Makita
Makita RF1100 User manual

Makita
Makita RP1800 User manual

Makita
Makita DTW284 User manual

Makita
Makita HM1304B User manual

Makita
Makita M9800KX4 User manual

Makita
Makita HM0810B User manual

Makita
Makita VR251D User manual

Makita
Makita DTW180 User manual
