Makita M9800 Series User manual

INSTRUCTION MANUAL
Multi Tool
M9800
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: M9800
Oscillation per minute 15,000 - 22,000 min-1
Oscillation angle, left/right 1.6 ° (3.2 ° total)
Overall length 283 mm
Net weight 1.2 - 1.3 kg
Safety class /II
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• The weight may differ depending on the attachment(s). The lightest and heaviest combination, according to
EPTA-Procedure 01/2014, are shown in the table.
Symbols
The followings show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
Wear safety glasses.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
Waste Electric and Electronic Equipment
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for sawing and cutting wood,
plastic, gypsum, non-ferrous metals, and fastening
elements (e. g. unhardened nails and staples). It is also
intended for working soft wall tiles, as well as dry sand-
ing and scraping of small surfaces. It is especially for
workingclosetoedgeandushcutting.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
Work mode Sound pres-
sure level
(LpA) :
Uncertainty (K) Applicable
standard
Sanding 78 dB(A) 3 dB(A) EN62841-2-4
Cutting with
plunge cut
saw blade
79 dB(A) 3 dB(A) EN62841-1
Cutting with
segmental
saw blade
79 dB(A) 3 dB(A) EN62841-1
Scraping 78 dB(A) 3 dB(A) EN62841-1
The noise level under working may exceed 80 dB (A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).

3ENGLISH
Vibration
The following table shows the vibration total value (tri-axial vector sum) determined according to applicable standard.
Work mode Vibration emission Uncertainty (K) Applicable standard
Sanding (ah)2.5 m/s21.5 m/s2EN62841-2-4
Cutting with plunge cut saw blade (ah)8.0 m/s21.5 m/s2EN62841-1
Cutting with segmental saw blade (ah)4.0 m/s21.5 m/s2EN62841-1
Scraping (ah)9.5 m/s21.5 m/s2EN62841-1
NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and
may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual use of the power tool can differ from the declared
value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
times when the tool is switched off and when it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
mayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical Safety
1.
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodiedplugsand
matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Use of power supply via an RCD with a rated residual
current of 30 mA or less is always recommended.
8. Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
forappropriateconditionswillreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.

4ENGLISH
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
affect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
Multi tool safety warnings
1. This power tool is intended to function for
sawing, cutting, grinding and sanding. Read all
safety warnings, instructions, illustrations and
specications provided with this power tool.
Failure to follow all instructions listed below may
resultinelectricshock,reand/orseriousinjury.
2. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden wir-
ing or its own cord. Cutting accessory contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
3.
Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body
leaves it unstable and may lead to loss of control.
4. Position the cord clear of the spinning acces-
sory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into
the spinning accessory.
5.
Always use safety glasses or goggles. Ordinary
eye or sun glasses are NOT safety glasses.
6. Avoid cutting nails. Inspect workpiece for any
nails and remove them before operation.
7. Hold the tool rmly.
8.
Make sure the application tool is not contacting
the workpiece before the switch is turned on.
9. Keep hands away from moving parts.
10. Do not leave the tool running. Operate the tool
only when hand-held.

5ENGLISH
11. Always switch off and wait for the blade to
come to a complete stop before removing the
blade from the workpiece.
12. Do not touch the application tool or the work-
piece immediately after operation; they may be
extremely hot and could burn your skin.
13. Do not operate the tool at no-load
unnecessarily.
14. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
15.
Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
16. This tool has not been waterproofed, so do not
use water on the workpiece surface.
17. Ventilate your work area adequately when you
perform sanding operations.
18. Use of this tool to sand some products, e.g.
leaded paint surfaces, wood and metals could
expose user and bystanders to dust contain-
ing hazardous substances. Use appropriate
respiratory protection.
19. Be sure that there are no cracks or breakage
on the pad before use. Cracks or breakage
may cause a personal injury.
20. Do not use accessories which are not speci-
cally designed and recommended by the tool
manufacturer. Just because the accessory
can be attached to your power tool, it does not
assure safe operation.
21. Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As appro-
priate, wear hearing protectors, gloves and
workshop apron capable of stopping small
abrasive or workpiece fragments. The eye pro-
tectionmustbecapableofstoppingyingdebris
generated by various operations . The dust mask
orrespiratormustbecapableofltratingparticles
generated by your operation. Prolonged exposure
to high intensity noise may cause hearing loss.
22. Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken accessory
mayyawayandcauseinjurybeyondimmediate
area of operation.
23. Never lay the power tool down until the acces-
sory has come to a complete stop. The spinning
accessory may grab the surface and pull the
power tool out of your control.
24. Do not run the power tool while carrying it at
your side. Accidental contact with the accessory
could snag your clothing, pulling the accessory
into your body.
25. Do not operate the power tool near ammable
materials. Sparks could ignite these materials.
26. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
27. Always be sure that the tool is switched off
and unplugged before carrying out any work
on the tool.
28. If working place is extremely hot and humid,
or badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure opera-
tor safety.
29. Always be sure you have a rm footing. Be
sure no one is below when using the tool in
high locations.
30. Before starting operation, make sure that there
is no hidden supply lines such as electric, gas
and water lines under the working surface.
Cutting or damaging the supply lines may cause
electric shock, gas leakage, property damage, or
other accidents.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool.
Switch action
CAUTION: Before plugging in the tool, always
check to see that the tool is switched off.
To start the tool, slide the slide switch toward the "I
(ON)" position.
To stop the tool, slide the slide switch toward the "O
(OFF)" position.
1
►1. Slide switch

6ENGLISH
Adjusting the orbital stroke rate
Theorbitalstrokerateisadjustable.Tochangetheorbital
stroke rate, turn the dial between 1 and 5. The higher the
number is, the higher the orbital stroke rate is. Preset the
dial to the number suitable for your workpiece.
1
►1. Dial
NOTE: The dial cannot be turned directly from 1 to 5
or from 5 to 1. Forcing the dial may damage the tool.
When changing the dial direction, always turn the dial
moving it through each intermediate number.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Installing or removing application tool
Optional accessory
WARNING: Do not install application tool
upside down. Installing application tool upside down
maydamagethetoolandcauseseriouspersonalinjury.
WARNING: Install attachment tool in the cor-
rect direction according to your work. Application
tool can be installed at an angle of every 30 degree.
WARNING: Always install the application tool so
that the protrusions of the tool ange t in the holes
on the application tool. Failure to do so may cause the
applicationtoolownoffandresultinpersonalinjury.
WARNING: When installing the application
tool, be sure to tighten the application tool instal-
lation bolt securely.
Put an application tool (optional accessory) on the tool
angesothattheprotrusionsofthetoolangetinthe
holes in the application tool and secure the application
toolbytighteningtheboltrmlywiththehexwrench.
When using sanding application tool, mount the appli-
cation tool on the sanding pad so that it matches the
sanding pad direction.
Thesandingpadhasahookandlooptypettingsys-
temwhichallowseasyandrapidttingofasanding
paper.
As sanding papers have holes for dust extraction,
mount a sanding paper so that the holes in a sanding
paper match those in the sanding pad.
To remove a sanding paper, raise its end and peel it off.
Loosen and remove the application tool installation bolt
using a hex wrench and then take off the application
tool.

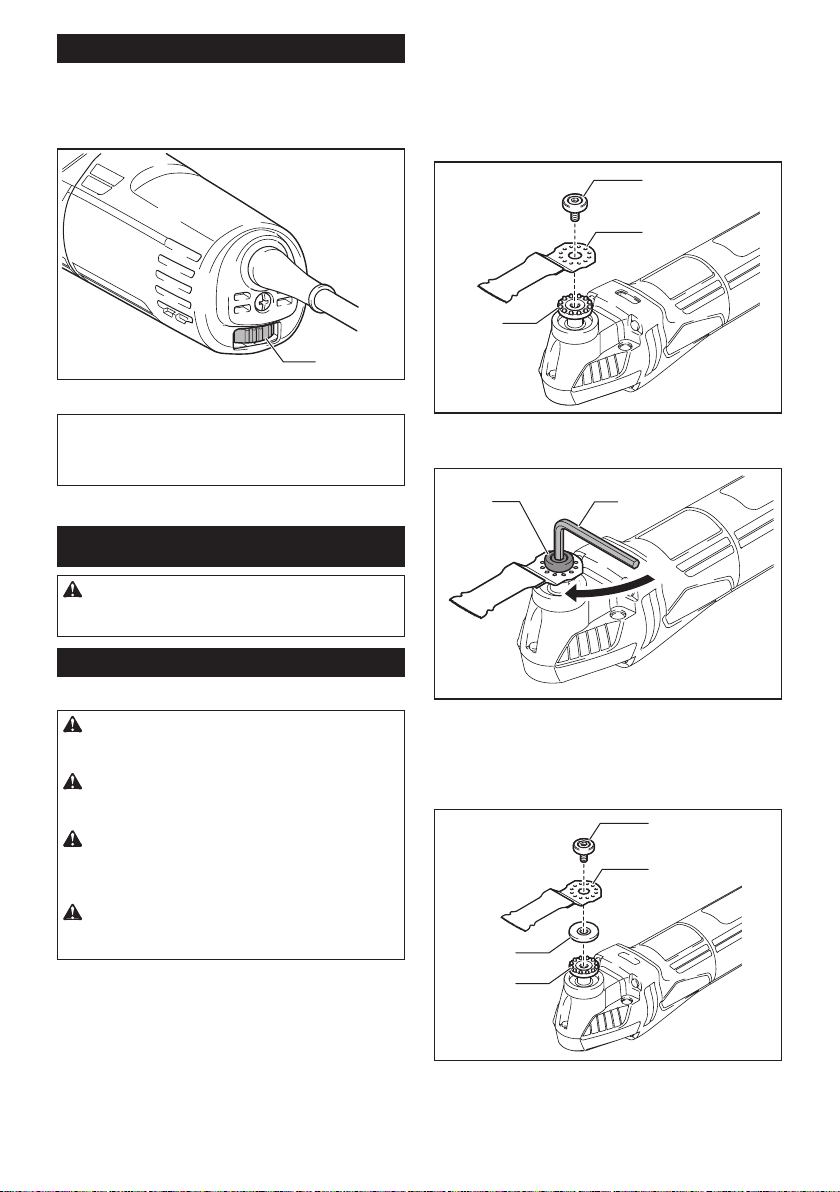

1
2
3
►1. Application tool installation bolt 2. Holes in the
application tool 3.Protrusionsofthetoolange
12
3
►1. Application tool installation bolt 2. Hex wrench
3. Tighten
When using application tools with a different type of
installation section, use a correct adapter (optional
accessory).
1
2
3
4
►1. Application tool installation bolt 2. Holes in the
application tool 3. Adapter 4. Protrusions of the tool
ange

7ENGLISH
OPERATION
WARNING: Before starting the tool and
during operation, keep your hand and face away
from the application tool.
CAUTION: Do not apply excessive load to the
tool which may cause a motor lock and stop the
tool.
Cutting, sawing and scraping
CAUTION: Do not move on the tool forcibly
in the direction (eg. towards either side) of tool
application with no cutting edge. It may damage
the tool.
Put the application tool on the workpiece.
And then move the tool forward so that the application
tool movement does not slow down.
NOTE: Forcing or excessive pressure on the tool may
reduceefciency.
NOTE: Before cutting operation, it is recommended to
preset the orbital stroke rate 3 - 5.
Sanding
CAUTION: Do not reuse a sanding paper used
for sanding metal to sand wood.
CAUTION: Do not use a worn sanding paper
or sanding paper without grit.
Apply a sanding paper on the workpiece.
NOTE: Using a test material sample to try is recom-
mendable to determine a correct orbital stroke rate
suitable for your work.
NOTE: Use a sanding paper with the same grit until
sanding the whole workpiece is completed. Replacing
a sanding paper with different grit sanding paper may
notgetanenish.
Dust extraction attachment
Optional accessory
WARNING: Do not use extraction attachment
when grinding a metallic workpiece with this tool.
Hot dust may ignite dust in the vacuum cleaner and it
maycausere.
When you wish to perform cleaner operation, install the
dust extraction attachment to the tool. Connect a hose
of vacuum cleaner to the dust extraction attachment.
Assemble the dust extraction attachment and install it
to the tool.
1. Installjoint,dustnozzleanddustattachment.
2. Install the nozzle band on the tool so that its pro-
trusionstintheholesinthetooltosecureit.

8ENGLISH
3. Put the felt ring, spacer (if necessary), and the
sanding pad on the dust attachment and then secure
them with the application tool installation bolt.
1
2
3
4
9
6
10
7
8
5
►1. Joint 2. Nozzle band 3. Dust nozzle 4. Dust
attachment 5. Spacer 6. Felt ring (ø 47 mm) 7. Pad
(with STARLOCK marking) 8. Application tool instal-
lation bolt 9. Felt ring (ø 37 mm) 10. Pad (with OIS
marking)
NOTICE: When using the pad with STARLOCK
marking, be sure to install the spacer between the
dust attachment and the felt ring.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Cleaning
From time to time wipe off the tool using a dry cloth or a
cloth dampened in soapy water.

9

10

11

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885697-220
EN
20181130
