WR100D
EN Cordless Ratchet Wrench INSTRUCTION MANUAL 4
SV Batteridriven spärrdragare BRUKSANVISNING 8
NO Batteridreven skralle BRUKSANVISNING 12
FI Akkukäyttöinen räikkäavain KÄYTTÖOHJE 16
LV Bezvada sprūdatslēga LIETOŠANAS INSTRUKCIJA 21
LT Akumuliatorinis reketo
veržliaraktis NAUDOJIMO INSTRUKCIJA 26
ET Juhtmeta hammasrattaga
mutrivõti KASUTUSJUHEND 31
RU Аккумуляторный торцевой
гайковерт
РУКОВОДСТВО ПО
ЭКСПЛУАТАЦИИ 36

1
2
3
Fig.1
1
2
Fig.2
1
Fig.3
1
2
3
Fig.4
2
1
Fig.5
AB
1
Fig.6
1
2
Fig.7
1
2
Fig.8
2

1
2
Fig.9
Fig.10
Fig.11
Fig.12
3

4ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: WR100D
Fastening capacities
(with manual retightening)
Standard bolt M5 - M12
High tensile bolt M5 - M10
Square drive 6.35mm , 9.5mm
No load speed 0 - 800 min-1
Maximum fastening torque 47.5 N•m
Overall length 341 mm
Rated voltage D.C. 10.8 V - 12 V max
Net weight 1.0 - 1.2 kg
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications and battery cartridge may differ from country to country.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1015 / BL1016 / BL1020B / BL1021B / BL1040B / BL1041B
Charger DC10SA / DC10SB / DC10WC / DC10WD / DC18RE
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Intended use
The tool is intended for fastening bolts and nuts.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-2-2:
Sound pressure level (LpA) : 74 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
NOTE:
The declared noise emission value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared noise emission value(s) may
also be used in a preliminary assessment of exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-2-2:
Work mode: fastening
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
as the times when the tool is switched off and when
it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.

5ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Cordless Ratchet Wrench safety
warnings
1. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Hold the tool rmly.
3. Always be sure you have a rm footing.
Be sure no one is below when using the tool in
high locations.
4. Wear ear protectors.
5. Check the impact socket carefully for wear,
cracks or damage before installation.
6. Keep hands away from rotating parts.
7. Do not touch the ratchet head, impact socket,
bolt, nut or the workpiece immediately after
long time operation. They may be extremely hot
and could burn your skin.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace strict
adherence to safety rules for the subject product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.

6ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip off your hands
and result in damage to the tool and battery cartridge
and a personal injury.
CAUTION: Be careful not to pinch your n-
gers between the tool and battery.
► Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Battery protection system
The tool is equipped with a battery protection system.
This system automatically cuts off power to the motor to
extend battery life.
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
Overloaded:
The tool is operated in a manner that causes it to draw
an abnormally high current.
In this situation, turn the tool off and stop the application
that caused the tool to become overloaded. Then turn
the tool on to restart.
If the tool does not start, the battery is overheated. In
this situation, let the battery cool before turning the tool
on again.
Low battery voltage:
The remaining battery capacity is too low and the tool
will not operate. If you turn the tool on, the motor does
not run or the motor runs again but stops soon. In this
situation, remove and recharge the battery.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
► Fig.2: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off
75% to 100%
50% to 75%
25% to 50%
0% to 25%
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch lever actuates properly and returns to the
"OFF" position when released.
To start the tool, simply pull the switch lever. Tool speed
is increased by increasing pressure on the switch lever.
Release the switch lever to stop.
► Fig.3: 1. Switch lever
To prevent the switch lever from accidentally pulled, the
lock lever is provided.
When the lock lever is in the lock position , the switch
lever cannot be actuated.
When the lock lever is in the unlock position , the
switch lever can be actuated.
► Fig.4: 1. Lock lever 2. Lock 3. Unlock
CAUTION: When not operating the tool,
always slide the lock lever to the lock position .
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after switch lever
release, have tool serviced at a Makita service center.
Lighting up the front lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch lever to light up the lamp. The lamp
keeps on lighting while the switch lever is being pulled.
The light automatically goes out approximately 10 sec-
onds after the switch lever is released.
► Fig.5: 1. Switch lever 2. Lamp

7ENGLISH
NOTICE: When the tool is overheated, the lamp
ickers. Cool down the tool fully before operating
the tool again.
NOTICE: Use a dry cloth to wipe the dirt off the lens
of the lamp. Be careful not to scratch the lens of lamp,
or it may lower the illumination.
Reversing lever action
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing lever only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
This tool has a reversing lever to change the direction
of rotation. Turn the reversing lever to the A side for
clockwise rotation or to the B side for counterclockwise
rotation.
Make sure that the reversing lever is fully turned with
a click.
► Fig.6: 1. Reversing lever
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing socket
adaptor
To install the socket adaptor, push it into the adaptor
hole until it locks into place.
► Fig.7: 1. Socket adaptor 2. Adaptor hole
To remove the socket adaptor, insert a stick like a
screwdriver into the backside of the socket adaptor, and
then tap it gently.
► Fig.8: 1. Socket adaptor 2. Screwdriver
NOTICE: During removal procedure, keep holding
the socket adaptor to prevent it from falling off from
the tool.
Installing or removing socket
CAUTION: Before operation, make sure that
the socket is properly locked onto the socket
adaptor. Incomplete attachment of the socket may
cause injury.
NOTICE: Always use the correct size socket for bolt/
nut. An incorrect size socket will result in inconsistent
fastening torque and/or damage to the bolt/nut.

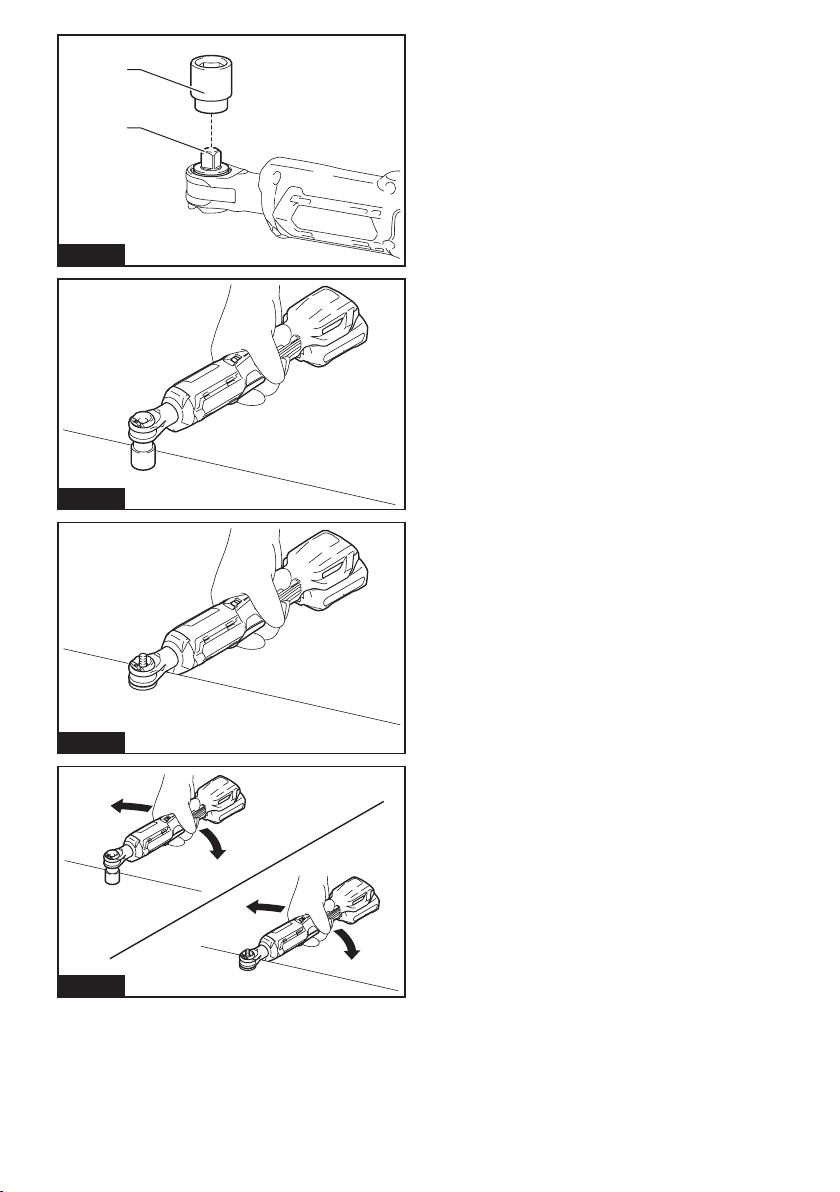

To install the socket, push it onto the socket adaptor
until it locks into place. To remove the socket, simply
pull it off.
► Fig.9: 1. Socket 2. Socket adaptor
OPERATION
CAUTION: Hold the tool rmly especially
when the bolt/nut reaches the seating position.
The socket stops rotating and the motor reaction
generate instant backlash to rotate the tool.
NOTICE: Hold the tool pointed straight at the bolt/nut.
Hold the tool rmly and place the socket over the bolt/
nut. Turn the tool on and fasten. When the bolt/nut
reaches the seating position, the tool stops automatically.
► Fig.10
The tool also works without socket. The adaptor hole
can fasten M8 (5/16") bolt/nut. (works as 13mm socket)
► Fig.11
Using as hand tool
You can use the tool as a hand ratchet wrench by turning the tool
in the direction arrows as illustrated. In particular when loosening
a stiff bolt/nut, loosen it by hand rst then turn the tool on.
► Fig.12
NOTICE: Excessive fastening torque may damage
the bolt/nut, the socket or the tool.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool spec-
ied in this manual. The use of any other accessories
or attachments might present a risk of injury to persons.
Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Socket
• Socket adaptor
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
