Makita STRAIGHT SHEAR JS1660 User manual

MODEL JS1660
Strokes
per
Mild steel Hard steel Stainless Aluminum minute
Max. cutting capacities
INSTRUCTION MANUAL
Overall Net
length weight
DOUBLE
INSULATION
SPECIFICATIONS
Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keepwork area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. When not in use, tools shouldbestored in dry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will do thejob better andsafer at the ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
7. DRESS PROPERLY. Don't wear looseclothing orjewelry. Theycanbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Never carry tool bycordor yank it todisconnectfrom
receptacle. Keep cord from heat,
oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspecttoolcords periodicallyand
if damaged, haverepairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
L

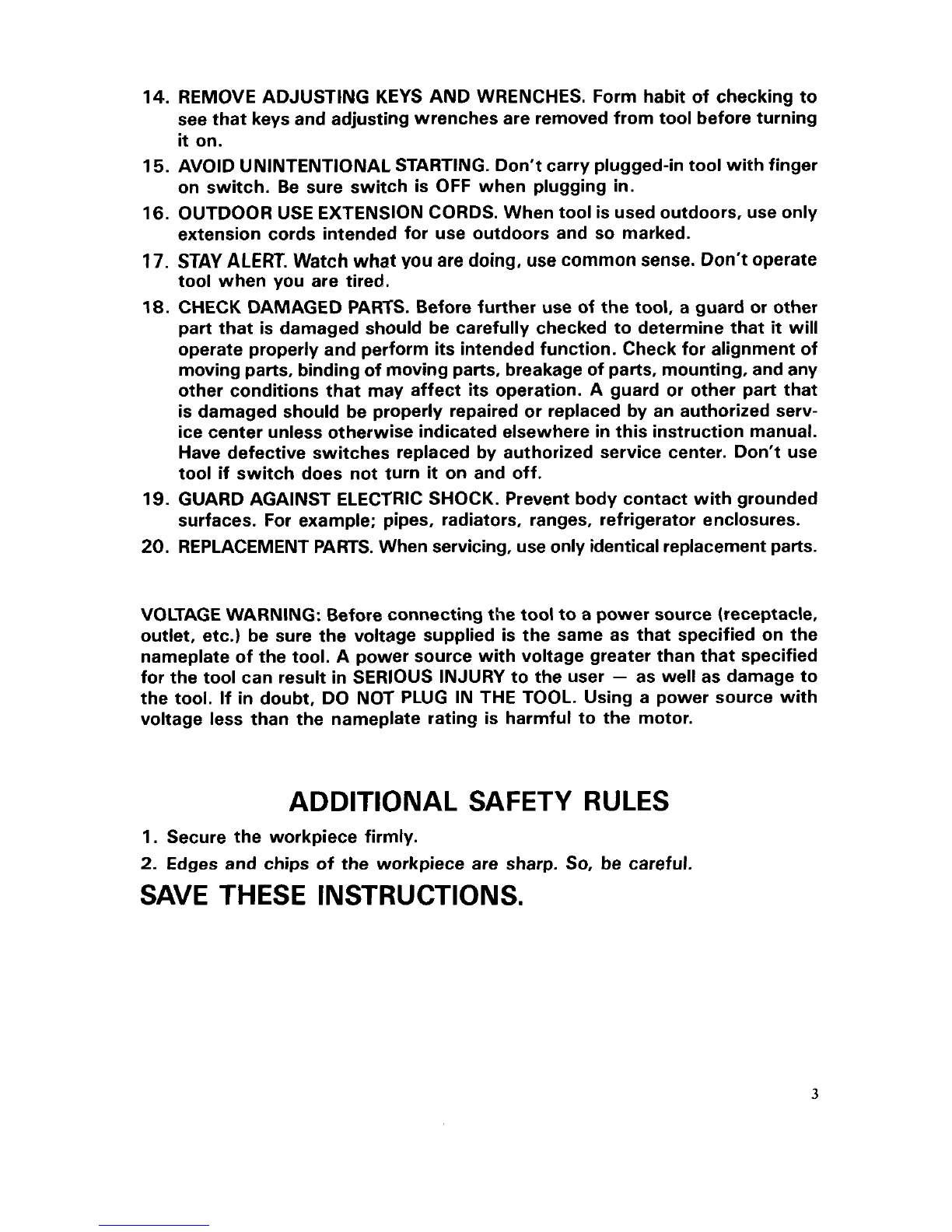

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool withfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. Whentool is usedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof moving parts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicatedelsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURYto the user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Secure the workpiece firmly.
2. Edges and chips of the workpiece are sharp. So, be careful.
SAVE THESE INSTRUCTIONS.
3

Adjusting blade clearance
Adjust the clearance between the side
blades and the center blade according to
the thicknessof the workpiece.
First use
a screwdriver to loosen the screw.
Workpiece thickness
(mm)
Less than 0.8 (1 /32")
0.8 - 1.3 (1/32" - 3/64")
More than 1.3 (3/64")
Then use the hex wrench to adjust the
clearance by tightening or loosening the
bolt. There may be
a slight difference be-
tween clearances
@ and @ .
Check the smaller clearance with the thick-
ness gauge and adjust
it.
Marking on
thickness gauge
0.5
1
.o
1.5
When using the thickness gauge to adjust
the blade clearance, refer to the table on
the right.
After adjusting the clearance, tighten the screw securely.
Lubrication
Before operation, lubricate the contact
point of the center blade and the pin.
To
keep good cutting performance, also use a
cutting lubricant from time to time during
operation.
4

Switch action
To start the tool, move the slide switch
forward, and the slide switch will lock in
the "ON" position.
To stop, lightly depress
the rear of the slide switch, and it will re-
turn tothe
"OFF" position.
CAUTION
:
Before plugging in the tool, always check
to
see that the slide switch actuates pro-
perly and returns to the
"OFF" position
when depressed.
Operation
Turn the tool on and set the front ends
of the side blades on the workpiece. Now
simply move the tool forward, keeping
the side blades flush with the workpiece
surface.
CAUTION
:
When cutting a small portion of the work-
piece, you may have difficulty complet-
ing the end of the cut. In that
case, try to
cut
it again, pulling the workpiece back
slightly.
Slide switch
7
r- I
5

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
Workpiece Thickness
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
* carbon brushes should be replaced at the
same time. Use only Makita carbon brushes.
Cutting length
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder
caps.
Hard steel
Limit mark
1.2
mm (3/64") 180 m ( 590 ft.)
Stainless
Mild steel I 1.6 mm (1/16") I 200 m ( 656 ft.)
1.2
mm (3/64") 150 m ( 492 ft.)
Aluminum 2.0 mm (5/64") 400
m (1,312 ft.)
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
6

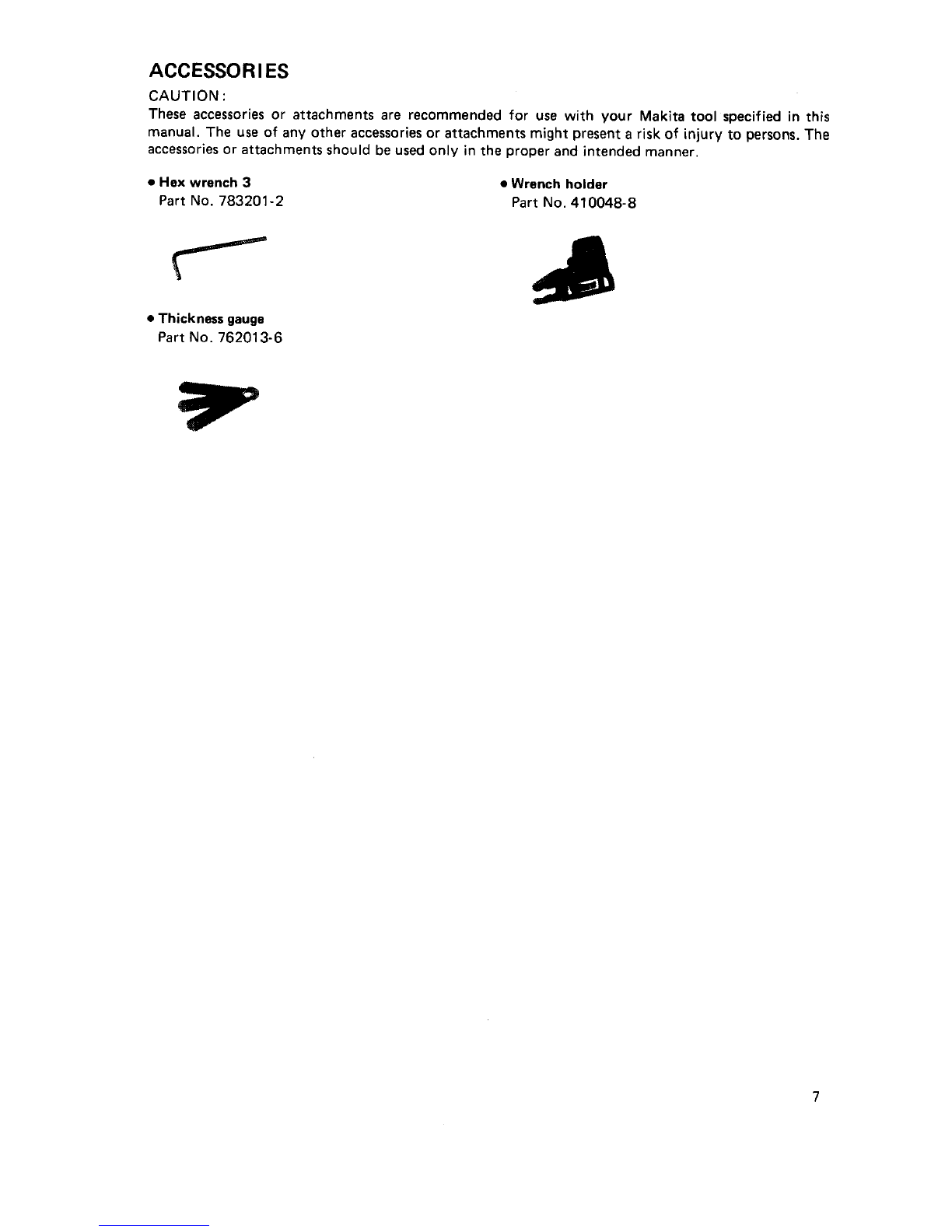

ACCESSOR I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachmentsmight present a risk of injury to persons. The
accessories or attachmentsshould be used only in the proper and intendedmanner.
0 Hex wrench 3
Part No. 783201-2
0 Wrench holder
Part No. 410048-8
0 Thickness gauge
Part No. 762013-6
7

May-08-'87 EN

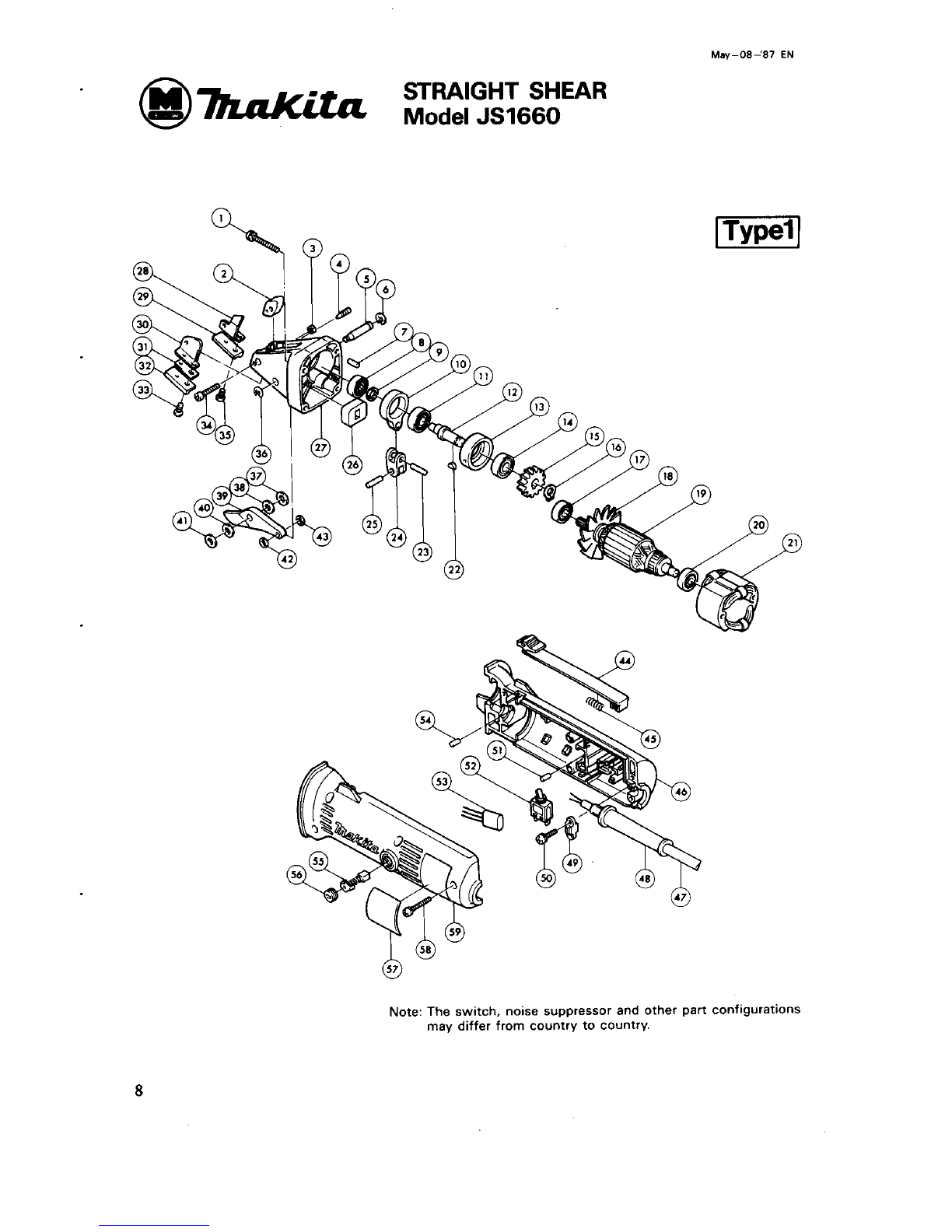

STRAIGHT SHEAR
Model JS1660
Note:The switch, noise suppressorand other part configurations
may differ from country to country.
8

MODEL JS1660
'EM ,& DESCRIPTION
15
16
17
18
19
July-17-'89
US
';iM ,,& DESCRIPTION
1
1
1
1
1
MACHINE
~
24
25
26
27
28
29
st 1
1
1
1
1
1
1
14 1 1
20 1 1
21 1
Pan Head
Screw M4x35 (With Washer)
Block
Hex. Lock Nut M4-7
Set
Screw M5x12
PI" 7
Stop Ring E-6
Rubber Pm 4
Ball Bearing 627LLB
Flat Washer 7
Rod
Bail Bearing
60wLLB
Crank Shaft
Bush
Ball Bearing 60wLB
HeIicai Gear 44
Retaining Ring
5-10
Ball Bearing 608L8
Fan
52
ARMATURE ASSEMBLY
IWith Item 17
- 201
Ball Bearing 627LLB
FIELD
ASSEMBLY
Woodruff Key 3
P," 5
Link
Pl"
5
Dust Cover
Crank
Housing
Slip Plate R
Side Blade
MACHINE
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
54
55
56
57
58
59
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
2
1
5
1
-
Slip Piate L
SPEC*'
Side Blade
Hex. Socket Head Bolt
M5x10
Hex. Socket Head Bolt M4x25
Hex Socket Head 8olt M5x10
Stop Ring E-4
Teflon Washer 7
Thin Washer 7
Center Blade
Thin Wisher
7
Teflon Washer 7
Flat Washer
5
Flat Washer 5
Switch Rod
Compression Spring
6
Housing Sat IWith Item 591
Cord
Card Guard
Strain
Relief
Pan Head Screw M4x18 (With Washer1
Rubber Pm 4
Swnch
Rubber Pin 4
Carbon Brush
Brush Holder Cap
Name
Plate
Pan Head Screw M4x30 IWith Washer1
HouPingSet IWith
Item 461
Note: The switch and other pert specifications may differ from country to country.
9

MAKmA LIMED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is wananted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, retum the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair
(or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repain are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterationshave been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIALDAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY’
AND “FITNESS FOR A SPECIFIC PURPOSE,
AFTER THE ONE-YEARTERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental orconseauentid
damages,
so the above Imitation or exclusion may not apply to you. Some states do ndt allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
~~ -,Ltd.
11-8,3-chome, Sumiyorhi-cho,Anjo, Aichi 446, Japan
883605 - 061
PRINTED IN JAPAN
1989 - 8 - N
