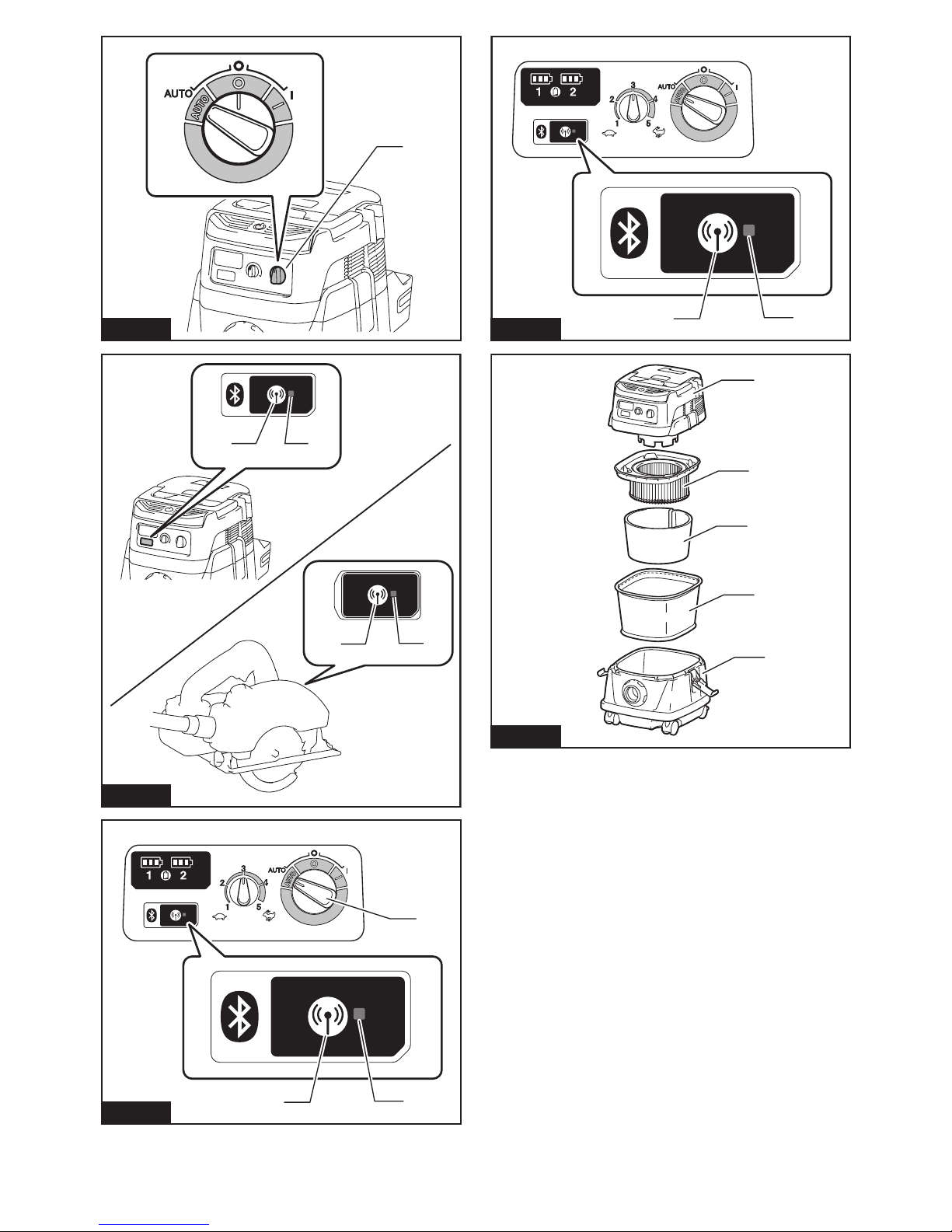

Fig.1
1
Fig.2
1
2
Fig.3
1
2
3
Fig.4
Fig.5
2
1
3
Fig.6
1
2
3
4
Fig.7
Fig.8
2

Fig.9
1
Fig.10
2
1
2
1
Fig.11
Fig.12
1
Fig.13
2
1
Fig.14
3

1
Fig.15
2
1
2
1
Fig.16
3
2
1
Fig.17
2
1
Fig.18
1
2
3
4
5
Fig.19
4

1
2
3
4
5
6
6
6
Fig.20
1
Fig.21
1
2
Fig.22
1
2
Fig.23
1
Fig.24
Fig.25
Fig.26
5

Fig.27
Fig.28
Fig.29
Fig.30
Fig.31
Fig.32
6

7ENGLISH
ENGLISH (Original instructions)
WARNING
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
SPECIFICATIONS
Model: DVC864L
Standard lter type Powder lter (for dry dust)
Volume ow (air) (with BL1850B, ø38 mm x 2.5 m hose) 2.1 m3/min
Vacuum (with BL1850B, ø38 mm x 2.5 m hose) 98 hPa
Recoverable capacity 8 L
Dimensions (L x W x H) 366 mm x 334 mm x 368 mm
Rated voltage D.C. 36 V
Standard battery cartridge BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840,
BL1840B, BL1850, BL1850B, BL1860B
Net weight 7.7 - 8.4 kg
Bluetooth®version 4.1 (Bluetooth low energy)
Frequency band 2,402 - 2,480 MHz
Maximum radio-frequency power 1.0 dBm (EIRP)
Transmission range Approximately 10 m
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications and battery cartridge may differ from country to country.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by Makita is under license. Other trademarks and trade names are those of their respective owners.
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
Take particular care and attention.
Warning! The cleaner may contain haz-
ardous dust.
Never stand on the cleaner.
Dust class L (light). The cleaners are capa-
ble of picking up dust class L. Follow your
country's regulations relating to dusts and
to occupational health and safety.

8ENGLISH
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material! In observance of the
European Directives, on Waste Electric
and Electronic Equipment and Batteries
and Accumulators and Waste Batteries and
Accumulators and their implementation
in accordance with national laws, electric
equipment and batteries and battery
pack(s) that have reached the end of
their life must be collected separately and
returned to an environmentally compatible
recycling facility.
Intended use
The tool is intended for collecting dry dust. The tool
is suitable for commercial use, for example in hotels,
schools, hospitals, factories, shops, ofces and rental
businesses.
Noise
The typical A-weighted noise level determined accord-
ing to EN60335:
Sound pressure level (LpA) : 70 dB(A) or less
Uncertainty (K) : 2.5 dB(A)
The noise level under working may exceed 80 dB (A).
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60335:
Vibration emission (ah,M) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
Cordless vacuum cleaner safety
warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
1. Before use, make sure that this cleaner must
be used by people who have been adequately
instructed on the use of this cleaner.
2. Do not use the cleaner without the lter.
Replace a damaged lter immediately.
3. AVOID UNINTENTIONAL STARTING. Be sure
switch is OFF when installing battery (ies).
4. Do not attempt to pick up ammable materials,
re works, lighted cigarettes, hot ashes, hot
metal chips, sharp materials such as razors,
needles, broken glass or the like.
5. NEVER USE THE CLEANER IN THE VICINITY
OF GASOLINE, GAS, PAINT, ADHESIVES OR
OTHER HIGHLY EXPLOSIVE SUBSTANCES.
The switch emits sparks when turned ON and
OFF. And so does the motor commutator during
operation. A dangerous explosion may result.
6.
Never vacuum up toxic, carcinogenic, com-
bustible or other hazardous materials such as
asbestos, arsenic, barium, beryllium, lead, pes-
ticides, or other health endangering materials.
7. Never use the cleaner outdoors in the rain.
8. Do not use close to heat sources (stoves, etc.).
9. Do not block cooling vents. These vents per-
mit cooling of the motor. Blockage should be
carefully avoided otherwise the motor will burn
out from lack of ventilation.
10. Keep proper footing and balance at all times.
11. Do not fold, tug or step on the hose.
12. Stop the cleaner immediately if you notice
poor performance or anything abnormal
during operation.
13. REMOVE THE BATTERY(IES). When not in
use, before servicing, and when changing
accessories.
14. Clean and service the cleaner immediately
after each use to keep it in tiptop operating
condition.
15. MAINTAIN THE CLEANER WITH CARE. Keep
the cleaner clean for better and safer per-
formance. Follow instructions for changing
accessories. Keep handles dry, clean, and free
from oil and grease.
16.
CHECK DAMAGED PARTS. Before further use
of the cleaner, a guard or other part that is dam-
aged should be carefully checked to determine
that it will operate properly and perform its
intended function. Check for alignment of mov-
ing parts, binding of moving parts, breakage of
parts, mounting, and any other conditions that
may affect its operation. A guard or other part
that is damaged should be properly repaired or

9ENGLISH
replaced by an authorized service center unless
otherwise indicated elsewhere in this instruc-
tion manual. Have defective switches replaced
by authorized service center. Don’t use the
cleaner if switch does not turn it on and off.
17. REPLACEMENT PARTS. When servicing, use
only identical replacement parts.
18. STORE IDLE CLEANER. When not in use, the
cleaner should be stored indoors.
19. Be kind to your cleaner. Rough handling can
cause breakage of even the most sturdily built
cleaner.
20. Do not attempt to clean the exterior or interior
with benzine, thinner or cleaning chemicals.
Cracks and discoloration may be caused.
21. Do not use cleaner in an enclosed space where
ammable, explosive or toxic vapors are given
off by oil-base paint, paint-thinner, gasoline,
some mothproong substances, etc., or in
areas where ammable dust is present.
22. Do not operate the this or any tool while under
the inuence of drugs or alcohol.
23. As a basic rule of safety, use safety goggles or
safety glasses with side shields.
24. Use a dust mask in dusty work conditions.
25. This machine is not intended for use by per-
sons including children with reduced physical,
sensory or mental capabilities, or lack of expe-
rience and knowledge.
26. Young children should be supervised to
ensure that they do not play with the cleaner.
27. Never handle battery(ies) and cleaner with wet
hands.
28. Use extreme caution when cleaning on stairs.
29. Do not use the cleaner as a stool or work
bench. The machine may fall down and may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.

10 ENGLISH
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Important safety instructions for
wireless unit
1. Do not disassemble or tamper with the cleaner.
The wireless unit in the cleaner cannot be
removed.
2. Do not operate the wireless activation function
in places where medical instruments, heart
pace makers, or automated devices, such as
automatic doors and re alarms, are nearby.
3. Do not use the cleaner in places where the
temperature exceeds 50°C (122°F).
4. The wireless unit is an accurate instrument. Be
careful not to drop or strike the cleaner.
5. Do not leave the cleaner in a place where
static electricity or electrical noise could be
generated.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip off your hands
and result in damage to the tool and battery cartridge
and a personal injury.
CAUTION: Be careful not to pinch your n-
gers when opening or closing the battery cover.
Failure to do so may cause personal injury.
To install the battery cartridge, release the lock rst,
and open the battery cover. And then, insert the battery
cartridge.
► Fig.1: 1. Lock 2. Battery cover
Align the tongue on the battery cartridge with the groove
in the housing and slip it into place. Insert it all the way
until it locks in place with a little click. Then lock the
battery cover.
► Fig.2: 1. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
NOTE: The cleaner does not work with only one
battery cartridge.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
► Fig.3: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.

11 ENGLISH
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Indicating the remaining battery
capacity
► Fig.4: 1. Battery indicator 2. Check button
3. Stand-by switch
► Fig.5
Press the check button to indicate the remaining battery
capacities. The battery indicators correspond to each
battery.
Battery indicator status Remaining
battery
capacity
On Off Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
NOTE: During the cleaner turned on with the stand-by
switch set to "AUTO", the battery indicator does not
work.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the
tool off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection
On Blinking
When the tool is overheated, the tool stops automatically, and
the battery indicator blinks about 60 seconds. In this situa-
tion, let the tool cool down before turning the tool on again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Switch action
► Fig.6: 1. Stand-by switch 2. Power button 3. Suction
force adjusting knob
To start the cleaner:
1. Set the stand-by switch to the "I" side. The cleaner
gets into stand-by state.
2. Press the power button.
To make the cleaner get into stand-by mode, press the
power button again.
To turn off the cleaner, set the stand-by switch to the "O" side.
The suction power can be adjusted according to your work need.
Suction power can be increased by turning the suc-
tion force adjusting knob from the symbol to
the symbol.
NOTICE: Always set the stand-by switch to the "O"
side when not using the cleaner for long time. The
cleaner consumes power during stand-by state.
Locking or unlocking the caster
► Fig.7: 1. Caster 2. Stopper lever 3. FREE position
4. LOCK position
Locking the caster is convenient when storing the cleaner,
stopping the work on the way and keeping the cleaner still.
To operate the stopper, move it by hand.
To lock the caster with a stopper, lower the stopper
lever and the caster no longer will rotate. To release the
caster from the locked position, raise the stopper lever.
NOTE:
When moving the cleaner, make sure that the
caster is unlocked. Moving the cleaner with the caster
in the locked position may cause damage to the caster.
Carriage handle
When carrying the cleaner, carry it by holding the han-
dle on the head. The handle is retractable at the head
when not in use.
► Fig.8

12 ENGLISH
WIRELESS ACTIVATION
FUNCTION
What you can do with the wireless
activation function
The wireless activation function enables clean and
comfortable operation. By connecting a supported tool
to the cleaner, you can run the cleaner automatically
along with the switch operation of the tool.
► Fig.9
NOTICE: Be sure to refer to the instruction man-
ual of the tool when using the cleaner with wire-
less activation function.
NOTICE: Do not disassemble or tamper with the
wireless unit.
NOTICE: Always close the lid of the wireless unit
in the tool when operating or storage.
NOTICE: Do not remove the wireless unit from the
tool while the power is being supplied to the tool.
Doing so may cause a malfunction of the wireless unit.
NOTICE: Do not press the wireless activation
button too hard and/or press the button with an
object with a sharp edge.
NOTE: Wireless activation needs Makita tools
equipped with the wireless unit.
NOTE: Prior to the initial use of the wireless activa-
tion function with each tool, the tool registration is
required. Once the registration is nished with the
tool, the re-registration is not required unless it is
cancelled.
NOTE: Before registration, be sure to the wireless
unit is properly inserted into the tool.
NOTE: One cleaner can register up to 10 tools. If
more than 10 tools are registered to the cleaner, the
tool registered earliest will be cancelled automatically.
NOTE: The position of the wireless activation button
varies depending on the tool.
NOTE: The cleaner also starts by pressing the power
button when the stand-by switch is set to "AUTO".
However the power button will not actuate when the
wireless activation function is used.
Tool registration for the cleaner
NOTE: A Makita tool supporting the wireless activa-
tion function is required for the tool registration.
NOTE: Finish installing the wireless unit to the tool
before starting the tool registration.
NOTE: During the tool registration, do not pull the
switch trigger on the tool or turn on the power switch
on the cleaner.
NOTE: Refer to the instruction manual of the tool, too.
If you wish to activate the cleaner along with the
switch operation of the tool, nish the tool registration
beforehand.
1. Install the batteries to the cleaner and the tool.
2. Set the stand-by switch on the cleaner to "AUTO".
► Fig.10: 1. Stand-by switch
3.
Press the wireless activation button on the cleaner for 3
seconds until the wireless activation lamp blinks in green. And then
press the wireless activation button on the tool in the same way.
► Fig.11: 1. Wireless activation button 2. Wireless
activation lamp
If the cleaner and the tool are linked successfully, the
wireless activation lamps will light up in green for 2
seconds and start blinking in blue.
NOTE: The wireless activation lamps nish blinking
in green after 20 seconds elapsed. Press the wireless
activation button on the tool while the wireless acti-
vation lamp on the cleaner is blinking. If the wireless
activation lamp does not blink in green, push the wire-
less activation button briey and hold it down again.
NOTE: When performing two or more tool registration
for the cleaner, nish the tool registration one by one.
Starting the wireless activation
function
NOTE: Finish the tool registration for the cleaner for
wireless activation.
NOTE: Always place the cleaner so that you can see
the status of the wireless activation lamp.
NOTE: Refer to the instruction manual of the tool, too.
After registering a tool to the cleaner, the cleaner will auto-
matically runs along with the switch operation of the tool.
1. Install the wireless unit to the tool.
2. Connect the hose of the cleaner with the tool.
► Fig.12
3. Set the stand-by switch on the cleaner to "AUTO".
► Fig.13: 1. Stand-by switch
4. Push the wireless activation button on the tool
briey. The wireless activation lamp will blink in blue.
► Fig.14: 1. Wireless activation button 2. Wireless
activation lamp
5.
Pull the switch trigger of the tool. Check if the cleaner
runs while the switch trigger on the tool is being pulled.
To stop the wireless activation, push the wireless activa-
tion button on the tool, or set the stand-by switch on the
cleaner to "I" or "O".
NOTE: The wireless activation lamp on the tool will stop
blinking in blue when there is no operation for 2 hours. In
this case, set the stand-by switch on the cleaner to "AUTO"
and press the wireless activation button on the tool again.
NOTE: The cleaner starts/stops with a delay. There is a time
lag when the cleaner detects a switch operation of the tool.
NOTE: The transmission distance of the wireless unit
may vary depending on the location and surrounding
circumstances.
NOTE: When two or more tools are registered to one
cleaner, the cleaner may start running even if you
don't pull the switch trigger because other user is
using the wireless activation function.

13 ENGLISH
Cancelling tool registration for the
cleaner
Perform the following procedure when cancelling the
tool registration for the cleaner.
1. Install the batteries to the cleaner and the tool.
2. Set the stand-by switch on the cleaner to "AUTO".
► Fig.15: 1. Stand-by switch
3. Press the wireless activation button on the cleaner
for 6 seconds. The wireless activation lamp blinks in
green and then become red. After that, press the wire-
less activation button on the tool in the same way.
► Fig.16: 1. Wireless activation button 2. Wireless
activation lamp
If the cancellation is performed successfully, the wire-
less activation lamps will light up in red for 2 seconds
and start blinking in blue.
NOTE: The wireless activation lamps nish blinking in
red after 20 seconds elapsed. Press the wireless acti-
vation button on the tool while the wireless activation
lamp on the cleaner is blinking. If the wireless acti-
vation lamp does not blink in red, push the wireless
activation button briey and hold it down again.
Erasing all tool registrations
You can erase all tool registrations from the cleaner as
follows.
► Fig.17: 1. Stand-by switch 2. Wireless activation
button 3. Wireless activation lamp
1. Install the batteries to the cleaner.
2. Set the stand-by switch to "AUTO".
3. Hold down the wireless activation button for about
6 seconds until the wireless activation lamp blinks in red
(about twice per one second).
4. When the wireless activation lamp starts blinking
in red, release your nger from the wireless activation
button. Thereafter, hold down the wireless activation
button again for about 6 seconds.
5. When the wireless activation lamp starts blinking
fast (about 5 times per one second) in red, release your
nger from the wireless activation button. When the
wireless activation lamp lights up in red and later lights
off, all tool registrations are erased.
NOTE: If the wireless activation lamp does not blink
in red, press the wireless activation button briey and
try again.
Description of the wireless activation lamp status
► Fig.18: 1. Wireless activation button 2. Wireless
activation lamp
The wireless activation lamp shows the status of the wireless activation function. Refer to the below table for the
meaning of the lamp status.
Status Wireless activation lamp Description
Color
On Blinking
Duration
Standby Blue Cleaner: con-
tinuing
Tool: 2 hours
Waiting for the tool registration or the wireless activation function
is available.
The lamp on the cleaner blinks when the stand-by switch is set in
AUTO. The lamp on the tool blinks when the wireless activation
button is pushed. The lamp on the tool will automatically turn off
when no operation is performed for 2 hours.
When the tool is
running.
The wireless activation of the cleaner is available and the tool is
running.
Tool
registration
Green 20 seconds Ready for the tool registration. Searching the tool to be registered.
2 seconds The tool registration has been nished. The wireless activation
lamp will start blinking in blue.
Cancelling/
erasing
tool
registration
Red
(slow: 2 times/sec.)
20 seconds Ready for the cancellation of the tool registration. Searching the
tool to be cancelled.
(fast: 5 times/sec.)
When the
wireless acti-
vation button is
pressed down.
Ready to erase all tool registrations.
2 seconds The tool registration has been cancelled/erased. The wireless
activation lamp will start blinking in blue.
Others Red 3 seconds The power is supplied to the wireless unit and the wireless activa-
tion function is starting up.
Off - - The stand-by switch is not set to "AUTO".

14 ENGLISH
Troubleshooting for wireless activation function
Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual,
do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
The wireless activation lamp does
not light/blink.
The wireless unit is not installed into
the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly in the tool.
The terminal of the wireless unit and/or
the slot is dirty.
Gently wipe off dust and dirt on the terminal of the
wireless unit and clean the slot of the tool.
The wireless activation button on the
tool has not been pushed.
Push the wireless activation button on the tool
briey.
The stand-by switch on the cleaner is
not set to "AUTO".
Set the stand-by switch on the cleaner to "AUTO".
No power supply Supply the power to the tool and the cleaner.
Cannot nish tool registration / can-
celling tool registration successfully.
The wireless unit is not installed into
the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly in the tool.
The terminal of the wireless unit and/or
the slot is dirty.
Gently wipe off dust and dirt on the terminal of the
wireless unit and clean the slot of the tool.
The stand-by switch on the cleaner is
not set to "AUTO".
Set the stand-by switch on the cleaner to "AUTO".
No power supply Supply the power to the tool and the cleaner.
Incorrect operation Push the wireless activation button briey and
perform the tool registration/cancellation procedures
again.
The tool and cleaner is away from each
other (out of the transmission range).
Get the tool and the cleaner closer to each other.
The maximum transmission distance is approxi-
mately 10 m however it may vary according to the
circumstances.
Before nishing the tool registration/
cancellation;
- the switch trigger on the tool is pulled
or;
- the power button on the cleaner is
turned on.
Push the wireless activation button briey and
perform the tool registration/cancellation procedures
again.
The tool registration procedures for the
tool or the cleaner has not nished.
Perform the tool registration procedures for the tool
and the cleaner at the same timing.
Radio disturbance by other appliances
which generate high-intensity radio
waves.
Keep the tool and the cleaner away from the appli-
ances such as Wi-Fi devices and microwave ovens.

15 ENGLISH
State of abnormality Probable cause (malfunction) Remedy
The cleaner does not run along with
the switch operation of the tool.
The wireless unit is not installed into
the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly in the tool.
The terminal of the wireless unit and/or
the slot is dirty.
Gently wipe off dust and dirt on the terminal of the
wireless unit and clean the slot of the tool.
The wireless activation button on the
tool has not been pushed.
Push the wireless activation button briey and make
sure that the wireless activation lamp is blinking
in blue.
The stand-by switch on the cleaner is
not set to "AUTO".
Set the stand-by switch on the cleaner to "AUTO".
More than 10 tools are registered to
the cleaner.
Perform the tool registration again.
If more than 10 tools are registered to the cleaner,
the tool registered earliest will be cancelled
automatically.
The cleaner erased all tool
registrations.
Perform the tool registration again.
No power supply Supply the power to the tool and the cleaner.
The tool and cleaner is away from each
other (out of the transmission range).
Get the tool and the cleaner closer to each other.
The maximum transmission distance is approxi-
mately 10 m however it may vary according to the
circumstances.
Radio disturbance by other appliances
which generate high-intensity radio
waves.
Keep the tool and the cleaner away from the appli-
ances such as Wi-Fi devices and microwave ovens.
The cleaner runs while the tool's
switch trigger is not pulled.
Other users are using the wireless acti-
vation of the cleaner with their tools.
Turn off the wireless activation button of the other
tools or cancel the tool registration of the other
tools.
Cannot erase all tool registrations in
the cleaner.
Pressing the wireless button on the tool. Press the wireless button on the cleaner for erasing
all tool registrations.
The stand-by switch on the cleaner is
not set to "AUTO".
Set the stand-by switch on the cleaner to "AUTO".
The wireless activation button is not
hold down correctly.
Hold down the wireless activation button for more
than 6 seconds and then release it when the wire-
less activation lamp blinks in red. Hold down the
wireless activation button for more than 6 seconds
again until the wireless activation button rapidly
blinks in red and then release the button.
PARTS DESCRIPTION
► Fig.19: 1. Tank cover 2. Powder lter (HEPA)
3. Damper 4. Prelter 5. Tank
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
CAUTION: Always wear dust mask during
assembly or maintenance.
Installing the powder lter (HEPA)
and prelter (for dry dust)
CAUTION: Never pick up water or other liquids
or wet dusts when using the powder lter. Picking
up such things may cause the powder lter breakage.
To use powder lter:
1. Place the prelter in the tank with aligning the
mounting position markings.
2. Mount the damper on the powder lter and then
place them in the prelter with aligning the mounting
position markings.
3. Finally, mount the tank cover and lock it.
► Fig.20: 1. Tank cover 2. Powder lter (HEPA)
3. Damper 4. Prelter 5. Tank 6. Mounting
position marking
NOTICE: Before using the powder lter, make
sure that prelter and damper are always used
together. It is not allowed to install powder lter
solely.

16 ENGLISH
Installing the paper pack
Optional accessory
WARNING: When using the paper pack, also
use the prelter together that is preinstalled on
the tool. Failure to use the prelter together may
cause unusual noise and heat, resulting in a re.
CAUTION: Before using the paper pack, make
sure that powder lter, damper and prelter are
always used together.
1. Remove the rubber holder.
► Fig.21: 1. Rubber holder
2. Extend the paper pack.
3. Align the paper pack opening with the dust suction
opening of the cleaner.
4. Insert the cardboard of the paper pack onto the
holder so that it is positioned at the end beyond the
detent protrusion.
► Fig.22: 1. Paper pack 2. Holder
Installing the polyethylene bag
Cleaner can also be used without polyethylene bag.
However, using polyethylene bag is easier to empty the
tank without letting your hands dirty.
Spread the polyethylene bag in the tank. Insert it
between the holder plate and the tank, and pull it to the
hose inlet.
► Fig.23: 1. Holder plate 2. Polyethylene bag
Spread the bag around the top of the tank so that the
prelter edge can catch and hold the bag securely.
► Fig.24: 1. Prelter
NOTE: A polyethylene bag available on the
market can be used. 0.04 mm or thicker one is
recommended.
NOTE: Too much dust will tear the bag easily, so
do not collect the dust more than the half of the bag
capacity.
Emptying the polyethylene bag
WARNING: Always make sure that the
cleaner is switched off and the battery cartridge is
removed before emptying the polyethylene bag.
Failure to do so may cause an electric shock and
serious personal injury.
CAUTION: Do not apply a great impact on the
tank. Applying a great impact may cause deformation
and damage to the parts.
CAUTION: Empty the tank at least once a day
although this depends on picked-up dust volume
in the tank. Or, the suction force will weaken and the
motor may be broken.
CAUTION: Do not grab the hook when empty-
ing the tank. Grabbing the hook may cause the hook
to break.
Unhook and lift up the tank cover.
Shake off the dust from the prelter and then take the
polyethylene bag out of the tank.
► Fig.25
NOTE:
Take the polyethylene bag carefully out of the
tank so that the polyethylene bag cannot be caught and
torn by the protrusion inside the tank when emptying it.
NOTE: Empty the polyethylene bag before it
becomes full. Too much dust in the tank may cause
the polyethylene bag to be torn.
Installing the tool box
1. Release the lock of the battery cover, and open
the battery cover.
2. Set the rails on the tool box along the grooves on
the housing.
3. Close the battery cover and apply the lock.
► Fig.26
The tool box is convenient for carrying batteries, pipe, or cuffs.
► Fig.27
Connecting the hose
NOTICE: Never force the hose for bending or
stamp it. Never move the cleaner by a hose.
Forcing, stamping and pulling the hose may cause a
breakage or deformation of the hose.
NOTICE: When picking up large wastes such as
planer carvings, concrete dusts or similar other
than small wastes, use the 38 mm inner diameter
hose (optional accessory). Using the 28 mm inner
diameter hose (optional accessory) may cause a
hose stufng and damage.
Insert the hose onto the mounting port of the tank and
turn it clockwise until it locks.
► Fig.28
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Storage of accessories
The pipes can be placed into the pipe holder when not
using the cleaner for a short time.
► Fig.29
► Fig.30
The hose can be stored around the tool by connecting
each ends.
► Fig.31

17 ENGLISH
Cleaning of powder lter (HEPA) and
prelter
Clogged powder lter, prelter and damper cause poor
suction performance. Clean out the lters and dampers
from time to time.
To remove dust or particles adhering to the lters, shake
the frame bottom quickly several times.
► Fig.32
Occasionally wash the powder lter in water, rinse and
dry thoroughly in the shade before use. Never wash
lters in a washing machine.
NOTE: Do not rub or scratch the powder lter, the
prelter or the damper with hard objects such as a
brush and a paddle.
NOTE: The lters wear out in course of time. It is
recommended to have some spares for them.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Hose
• Front cuff (22, 24, 38)
• Straight pipe
• Corner nozzle
• Round brush
• Powder lter,HEPA (for dry dust)
• Damper
• Prelter
• Nozzle assembly
• Bent pipe
• Polyethylene bag
• Paper pack
• Holder set
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.

18 FRANÇAIS
FRANÇAIS (Instructions originales)
AVERTISSEMENT
Cet appareil peut être utilisé par des enfants de 8 ans et plus, ainsi
que par des personnes présentant des capacités physiques, senso-
rielles ou mentales réduites, ou par des personnes dénuées d’ex-
périence et de connaissances s’ils ont pu faire l’objet d’une surveil-
lance ou recevoir des instructions préalables concernant l’utilisation
en toute sécurité de l’appareil et s’ils comprennent les risques asso-
ciés. Ne laissez pas les enfants jouer avec l’appareil. Le nettoyage
et l’entretien à la charge de l’utilisateur ne doivent pas être réalisés
par des enfants sans surveillance.
SPÉCIFICATIONS
Modèle : DVC864L
Type de ltre standard Filtre à poudre (pour les poussières sèches)
Débit volumétrique (air) (avec BL1850B, tuyau de ø38 mm x 2,5 m) 2,1 m3/min
Vide (avec BL1850B, tuyau de ø38 mm x 2,5 m) 98 hPa
Capacité de récupération 8 L
Dimensions (L x P x H) 366 mm x 334 mm x 368 mm
Tension nominale 36 V CC
Batterie standard BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840,
BL1840B, BL1850, BL1850B, BL1860B
Poids net 7,7 - 8,4 kg
Version Bluetooth®4,1 (Bluetooth low energy)
Bande de fréquence 2 402 à 2 480 MHz
Puissance de radio fréquence maximale 1,0 dBm (PIRE)
Plage de transmission Environ 10 m
• Étant donné l’évolution constante de notre programme de recherche et de développement, les spécications
contenues dans ce manuel sont sujettes à modication sans préavis.
• Les spécications et la batterie peuvent être différentes suivant les pays.
• Le poids ne comprend pas les accessoires, mais la ou les batteries. Le poids combiné le plus léger et le plus
lourd de l’appareil et de la ou des batteries est indiqué dans le tableau.
La marque verbale et les logos Bluetooth® sont des marques déposées détenues par Bluetooth SIG, Inc. et toute
utilisation de ces marques par Makita fait l’objet d’une licence. Les autres marques commerciales et noms commer-
ciaux appartiennent à leurs propriétaires respectifs.
Symboles
Vous trouverez ci-dessous les symboles utilisés pour
l’appareil. Veillez à comprendre leur signication avant
toute utilisation.
Lire le mode d’emploi.
Veuillez être prudent et rester attentif.
Avertissement ! Il se peut que l’aspirateur
contienne des poussières dangereuses.
Ne vous tenez jamais sur l’aspirateur.

19 FRANÇAIS
Catégorie de poussière L (légère). Un
aspirateur est capable de ramasser les
poussières de catégorie L. Suivez les
réglementations de votre pays concernant
les poussières et la santé et la sécurité
au travail.
Ni-MH
Li-ion
Uniquement pour les pays européens
Ne jetez pas les appareils électriques ou
les batteries avec vos ordures ménagères !
Conformément aux directives européennes
relatives aux déchets d’équipements
électriques et électroniques et aux piles
et accumulateurs ainsi qu’aux déchets de
piles et d’accumulateurs et leur mise en
œuvre conformément aux lois nationales,
les équipements électriques et les piles et
batteries en n de vie doivent faire l’objet
d’une collecte sélective et être conés à
une usine de recyclage respectueuse de
l’environnement.
Utilisations
L’outil est conçu pour la collecte des poussières
sèches. L’outil est prévu pour un usage commercial,
par exemple, dans les hôtels, écoles, hôpitaux, usines,
magasins, bureaux et agences de location.
Bruit
Niveau de bruit pondéré A typique, déterminé selon
EN60335 :
Niveau de pression sonore (LpA) : 70 dB (A) ou moins
Incertitude (K) : 2,5 dB (A)
Le niveau de bruit en fonctionnement peut dépasser 80
dB (A).
AVERTISSEMENT : Portez un serre-tête
antibruit.
Vibrations
Valeur totale de vibrations (somme de vecteur triaxial)
déterminée selon EN60335 :
Émission de vibrations (ah, M) : 2,5 m/s2ou moins
Incertitude (K) : 1,5 m/s2
NOTE : La valeur d’émission de vibrations déclarée
a été mesurée conformément à la méthode de test
standard et peut être utilisée pour comparer les outils
entre eux.
NOTE : La valeur d’émission de vibrations déclarée
peut aussi être utilisée pour l’évaluation préliminaire
de l’exposition.
AVERTISSEMENT : L’émission de vibrations
lors de l’usage réel de l’outil électrique peut être
différente de la valeur d’émission déclarée, suivant la
façon dont l’outil est utilisé.
AVERTISSEMENT : Les mesures de sécurité à
prendre pour protéger l’utilisateur doivent être basées
sur une estimation de l’exposition dans des condi-
tions réelles d’utilisation (en tenant compte de toutes
les composantes du cycle d’utilisation, comme par
exemple le moment de sa mise hors tension, lorsqu’il
tourne à vide et le moment de son déclenchement).
Déclaration de conformité CE
Pour les pays européens uniquement
La déclaration de conformité CE est fournie en Annexe
A à ce mode d’emploi.
CONSIGNES DE
SÉCURITÉ
Consignes de sécurité pour
aspirateur sans l
AVERTISSEMENT : IMPORTANT ! LIRE
ATTENTIVEMENT toutes les consignes de
sécurité et toutes les instructions AVANT
UTILISATION. Le non-respect des avertissements et
des instructions peut entraîner une électrocution, un
incendie et/ou de graves blessures.
1. Avant l’utilisation, veillez à ce que l’aspirateur
soit utilisé par des personnes ayant reçu des
instructions adéquates quant à son utilisation.
2. N’utilisez pas l’aspirateur sans le ltre.
Remplacez immédiatement le ltre s’il est
endommagé.
3. ÉVITEZ LES DÉMARRAGES INTEMPESTIFS.
Veillez à mettre l’outil hors tension lors de la
mise en place de la ou des batteries.
4. N’essayez pas d’aspirer des matériaux
inammables, du matériel pyrotechnique, des
cigarettes allumées, des cendres chaudes,
des copeaux de métal chauds, des matériaux
tranchants comme un rasoir, des aiguilles, des
morceaux de verre, etc.
5. N’UTILISEZ JAMAIS L’ASPIRATEUR À
PROXIMITÉ D’ESSENCE, GAZ, PEINTURE,
ADHÉSIFS OU AUTRES SUBSTANCES TRÈS
EXPLOSIVES. L’interrupteur émet des étincelles
à la mise sous et hors tension. Tout comme le
commutateur du moteur pendant le fonctionne-
ment. Une dangereuse explosion peut survenir.
6. N’aspirez jamais des matériaux toxiques, can-
cérigènes, combustibles ou d’autres produits
dangereux comme l’amiante, l’arsenic, le
baryum, le béryllium, le plomb, les pesticides
ou d’autres matières présentant un danger
pour la santé.
7. N’utilisez jamais l’aspirateur à l’extérieur sous
la pluie.
8. N’utilisez pas l’aspirateur près de sources de
chaleur (cuisinières, etc.).
9. Ne bloquez pas les fentes d’aération. Ces
fentes permettent le refroidissement du
moteur. Il faut éviter soigneusement de les blo-
quer sous peine de griller le moteur en raison
d’un manque d’aération.
10. Maintenez constamment une bonne assise et
un bon équilibre.
11. Ne pliez pas le tuyau, ni ne tirez ou marchez
dessus.

20 FRANÇAIS
12. Arrêtez immédiatement l’aspirateur si vous
remarquez des performances médiocres
ou toute autre anomalie pendant le
fonctionnement.
13. RETIREZ LA OU LES BATTERIES. Lorsque
vous n’utilisez pas l’aspirateur, avant de
le réparer et lors du remplacement des
accessoires.
14. Procédez au nettoyage et à l’entretien de l’as-
pirateur immédiatement après chaque utilisa-
tion pour le maintenir dans des conditions de
fonctionnement optimales.
15. ENTRETENEZ SOIGNEUSEMENT
L’ASPIRATEUR. L’aspirateur doit toujours être
propre pour améliorer la sécurité et les per-
formances. Suivez les instructions pour rem-
placer les accessoires. Les poignées doivent
toujours être sèches, propres et exemptes
d’huile ou de graisse.
16. VÉRIFIEZ LES PIÈCES ENDOMMAGÉES.
Avant toute nouvelle utilisation de l’aspirateur,
vériez soigneusement un carter de protec-
tion ou toute autre pièce endommagés pour
déterminer qu’ils fonctionnent bien et rem-
plissent leurs fonctions respectives. Vériez
l’alignement des pièces mobiles, le blocage
des pièces mobiles, les pièces cassées, l’ins-
tallation et tout autre état susceptible d’affec-
ter le fonctionnement. Un carter de protection
ou toute autre pièce endommagés doivent
être réparés ou remplacés correctement par
un centre de service après-vente agréé sauf
indication contraire de ce mode d’emploi.
Conez le remplacement des interrupteurs
défectueux à un centre de service après-vente
agréé. N’utilisez pas l’aspirateur s’il ne peut
pas être mis sous et hors tension au moyen de
l’interrupteur.
17. PIÈCES DE RECHANGE. En cas de réparation,
utilisez uniquement des pièces de rechange
identiques.
18. RANGEZ L’ASPIRATEUR APRÈS UTILISATION.
Lorsque vous n’utilisez pas l’aspirateur, ran-
gez-le à l’intérieur.
19. Épargnez votre aspirateur. Une manipulation
brutale peut entraîner la rupture de l’aspirateur
le plus robuste.
20. Ne nettoyez pas l’extérieur ou l’intérieur avec
du benzène, du diluant ou d’autres produits
chimiques de nettoyage. Vous risqueriez de le
ssurer ou de le décolorer.
21. N’utilisez pas l’aspirateur dans un endroit
fermé où des vapeurs inammables, explo-
sives ou toxiques sont dégagées par de la
peinture à base d’huile, du diluant pour pein-
ture, de l’essence, certains produits antimites,
etc., ou dans des endroits exposés à des pous-
sières inammables.
22. N’utilisez pas cet outil ou tout autre sous l’em-
prise de drogues, de médicaments ou d’alcool.
23. Par mesure de sécurité, utilisez des lunettes
à coques ou des lunettes de sécurité avec
écrans latéraux.
24. Utilisez un masque anti-poussière dans des
conditions de travail poussiéreuses.
25. Cette machine n’est pas destinée à être utilisée
par des personnes (y compris les enfants) aux
facultés physiques, sensorielles ou mentales
diminuées ou sans expérience ni expertise.
26. Les jeunes enfants doivent être sous la sur-
veillance d’un adulte an de s’assurer qu’ils ne
jouent pas avec l’aspirateur.
27. Ne manipulez jamais la ou les batteries et
l’aspirateur avec les mains mouillées.
28. Redoublez de précaution lorsque vous net-
toyez des escaliers.
29. N’utilisez pas l’aspirateur comme marchepied
ou établi. La machine pourrait tomber et pro-
voquer des blessures corporelles.
Utilisation et entretien des outils fonctionnant sur
batterie
1. Rechargez la batterie uniquement avec le char-
geur spécié par le fabricant. Un chargeur qui
est adapté à un type spécique de batterie peut
présenter un risque d’incendie s’il est utilisé avec
un autre type de batterie.
2. Utilisez un outil électrique uniquement avec la
batterie spéciquement indiquée. L’utilisation
de toute autre batterie peut présenter un risque de
blessure et d’incendie.
3. Lorsque vous n’utilisez pas la batterie, tenez-la
à l’écart des objets métalliques, comme des
trombones, pièces de monnaie, clés, clous,
vis ou autres petits objets métalliques, sus-
ceptibles de créer une connexion entre deux
bornes. Court-circuiter les bornes d’une batterie
entre elles peut provoquer des brûlures ou un
incendie.
4. Dans des conditions d’utilisation inadéquate,
il peut y avoir une fuite de l’électrolyte de la
batterie. Le cas échéant, évitez tout contact
avec ce liquide. En cas de contact accidentel,
rincez à l’eau. Si le liquide pénètre dans les
yeux, consultez par ailleurs un médecin. Le
liquide s’échappant de la batterie peut provoquer
une irritation ou des brûlures.
5. N’utilisez pas une batterie ou un outil s’ils sont
endommagés ou modiés. Une batterie endom-
magée ou modiée peut avoir un comportement
imprévisible susceptible d’entraîner un incendie,
une explosion ou des blessures.
6. N’exposez pas la batterie ou l’outil au feu ou à
une température excessive. L’exposition au feu
ou à une température supérieure à 130 °C peut
provoquer une explosion.
7. Respectez toutes les instructions de charge et
ne chargez pas la batterie ou l’outil en dehors
de la plage de température indiquée dans les
instructions. Une charge incorrecte ou à une
température en dehors de la plage indiquée peut
endommager la batterie et augmenter le risque
d’incendie.
CONSERVEZ CES
INSTRUCTIONS.
