Mandik FDMC Series User manual

1
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
These technical specifications state a row of manufactured sizes and models of fire dampers (further only dampers)
FDMC. It is valid for production, designing, ordering, delivery, assembly and operation.
1. Description.........................................................................................................................
2
2. Design................................................................................................................................
3
3. Dimensions, weights...........................................................................................................
3
4. Placement and Assembly....................................................................................................
5
5. Statement of installations....................................................................................................
6
6. Pressure loss, noise data....................................................................................................
10

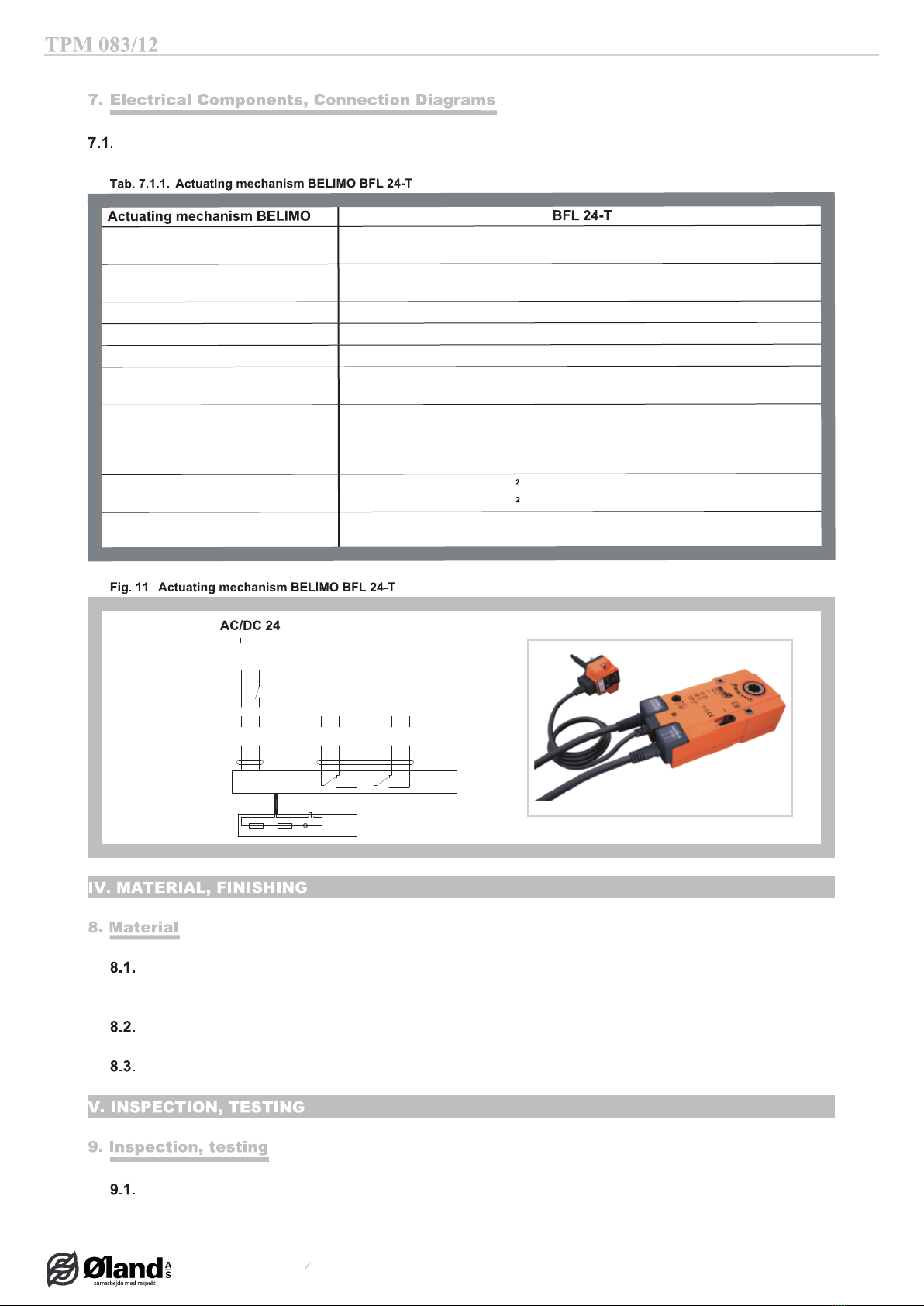

7. Electrical Components, Connection Diagrams....................................................................
11
8. Material...............................................................................................................................
11
9. Inspection, testing...............................................................................................................
11
10. Logistic terms....................................................................................................................
12
11. Assembly..........................................................................................................................
12
12. Entry into service and revisions.........................................................................................
12
13. Ordering key.....................................................................................................................
13

2
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Fire dampers are shutters in ducts of air-conditioning devices that prevent spreading the fire and
combustion products from one fire segment to the other one by means of closing the duct in the
points of fire separating constructions.
Damper blade automatically closes air duct using an actuating mechanism back spring. The back
spring of the actuating mechanism is started when the thermoelectrical starting mechanism BAT
is activated, when a reset button on BAT is pushed or when a power supply of the actuating
mechanism is stopped.
The damper is sealed with a silicon packing against smoke penetration after closing the blade. At
the same time, the damper blade is bed in a material which enlarges its capacity and air proofs
the air duct.
Dampers have one inspection hole, since the shutting device and the inspection hole can be set
into the most advantageous position (with respect to the operation and manipulation with the
control device).
Damper characteristics
• CE certified acc. to EN 15650
• Tested in accordance with EN 1366-2
• Classified acc. to EN 13501-3+A1
• Fire resistance EIS 60
• External Casing leakage class C, Internal leakage class 1 acc. to EN 1751
• Cycling test in class C 10000 acc. to EN 15650
• Corrosion resistant acc. to EN 15650
• Certificate of constancy of performance No. 1391-CPR-0090/2014
• Declaration of Performance No. CDM/FDMC/001/13
• Hygienic assessment of fire dampers - Report No. 1.6/13/16/1
Working conditions
Right damper function is secured under the following conditions:
a) Maximum air circulation speed: 12 m.s
Maximum pressure difference: 1200 Pa
b) Dampers could be displaced into position “CLOSED” only in case that ventilator, or Air
Handling Unit is switched off. The goal is the securing of proper closing and safe
function of Fire Damper in case of Fire.
c) The air circulation in the whole damper section must be secured as steady on whole
surface.

3
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Operation of the dampers does not depend on the direction of air circulation. The dampers can
be located in an arbitrary position.
Dampers are suitable for systems without abrasive, chemical and adhesive particles.
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from - 20°C to + 50°C.
FDMC is always equipped by actuating mechanism BFL 24-T (further only "actuating mecha-
nism"). After being connected to power supply AC/DC 24V, the actuating mechanism displaces
the damper blade into operation position "OPEN" and at the same time it pre-stretches its back
spring. When the actuating mechanism is under voltage, the damper blade is in the position
"OPEN" and the back spring is pre-stretched. Time needed for full opening of the flap blade from
the position "CLOSED" to the position "OPEN" is maximum 140s. If the actuating power supply
is cut off (due to loss of supply voltage, activation of thermoelectrical actuating mechanism or
pushing the reset button on the thermoelectrical starting mechanism BAT), the back spring
displaces the damper blade into the breakdown position "CLOSED". The time of displacing the
blade from the position "OPEN" to the position "CLOSED" takes maximum 16 s. In case that the
power supply is restored again (the blade can be in any position), the actuating mechanism starts
to re-displace the damper blade into the position "OPEN". A thermoelectrical starting mechanism
BAT, which contains three thermal fuses Tf1 and Tf2, is a part of the actuating mechanism. These
fuses are activated when temperature +72 °C has been exceeded (the fuse Tf1 when the
temperature around the damper and the fuses Tf2 when the temperature inside the air-condition-
ing piping has been exceeded). After the thermal fuse Tf1 or Tf2 has been activated, the power
supply is permanently and irreversibly cut off and the actuating mechanism, by means of the
pre-stretched spring, displaces the damper blade into the breakdown position "CLOSED".
Dimensions
POSITION:
1 Damper body
2 Damper blade
3 Actuating mechanism
4 BAT thermoelectrical starting mechanism
5 Inspection hole covering
420
50 50
D
160
55
80

4
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
- 3,1 0,0036 BFL
- 3,4 0,0068 BFL
- 3,6 0,0092 BFL
- 3,7 0,0109 BFL
- 3,8 0,0129 BFL
- 4,1 0,0172 BFL
- 4,4 0,0222 BFL
- 4,7 0,0293 BFL
9 5,5 0,0374 BFL
24 6,0 0,0484 BFL
41,5 6,6 0,0630 BFL
59 7,0 0,0793 BFL
61,5 7,3 0,0821 BFL
84 8,2 0,1065 BFL
Weight and effective area
The Blade overlaps
For fire damper the open damper blade overlaps the damper body from dimension 250 by the
“a” value. These values are specified in the Tab. 3.2.1
Value has to be respected when projecting related air-conditioning piping.

5
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
The distance between the fire damper and the construction (wall, ceiling) must be minimal in
range from 10 to 50 mm. In case that two or more dampers are supposed to be installed in one
fire separating construction, the distance between the adjacent dampers must be at least 50 mm
Fire dampers are suitable for installation in arbitrary position in vertical and horizontal passages
of fire separating constructions. Damper assembly procedures must be done so as all load
transfer from the fire separating constructions to the damper body is absolutely excluded.
Back-to-back air-conditioning piping must be hung or supported so as all load transfer from the
back-to-back piping to the damper is absolutely excluded.
To provide needed access space to the control device, all other objects must be situated at least
350 mm from the control parts of the damper. Inspection hole must be accessible.
The control mechanism has to be protected (covered) against damage and pollution during
installation process.
All fire dampers has to be closed during installation process. The damper body should not be
deformed in the course of bricking in. Once the damper is built in, its blade should not grind on
the damper body during opening or closing.
Round dampers are with rubber tightness and glued all the way around.
Installation opening dimensions

6
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Examples of fire damper installing
The fire damper can be installed into a solid wall construction made e.g. of normal
concrete/masonry, porous concrete with minimum thickness 100 mm or into solid ceiling
construction made e.g. of normal concrete/porous concrete with minimum thickness 150 mm.
Recommended installation openings are specified in Fig. 5.
The fire damper can be installed into a gypsum wall construction with fire classification EI 60.

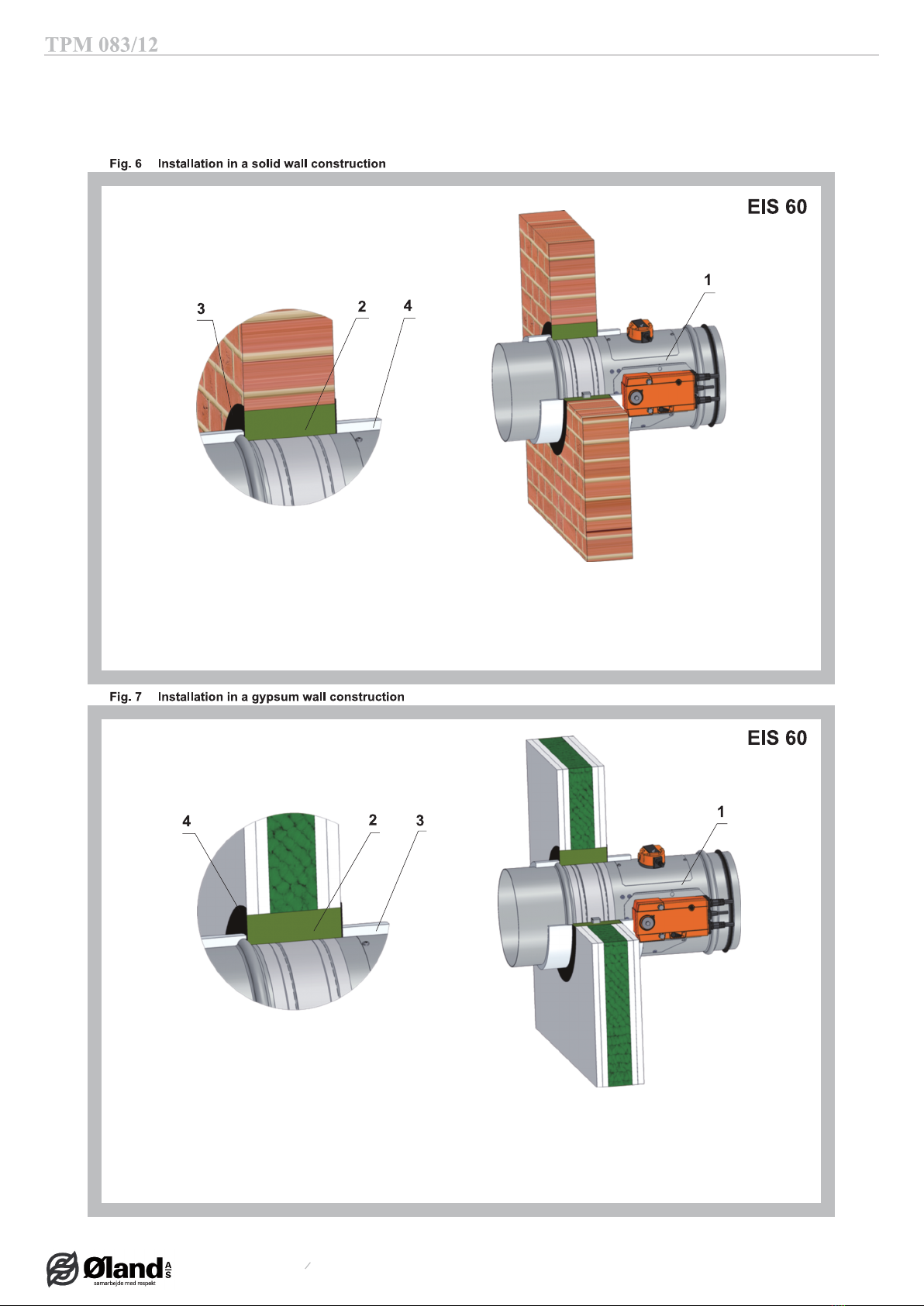

Statement of installation
Damper installed in a solid wall construction. Space between damper and
wall is filled by mineral stone wool (min. density 140 kg/m ) or another
approved fire insulation system. Surface is covered by fire protection
mastic (Promastop P,K) or equal min. thickness 1 mm.
EIS 60 6
Damper installed in a gypsum wall construction. Space between damper
and wall is filled by mineral stone wool (min. density 140 kg/m ) or
another approved fire insulation system. Surface is covered by fire
protection mastic (Promastop P,K) or equal min. thickness 1 mm.
EIS 60 7
Damper installed in a solid ceiling construction. Space between damper
and ceiling is filled by mortar, gypsum or another approved fire sealing
system for damper installation. EIS 60 8
Damper installed in a solid ceiling construction. Space between damper
and wall is filled by mineral stone wool (min. density 140 kg/m ) or
another approved fire insulation system. Surface is covered by fire
protection mastic (Promastop P,K) or equal min. thickness 1 mm.
EIS 60 9

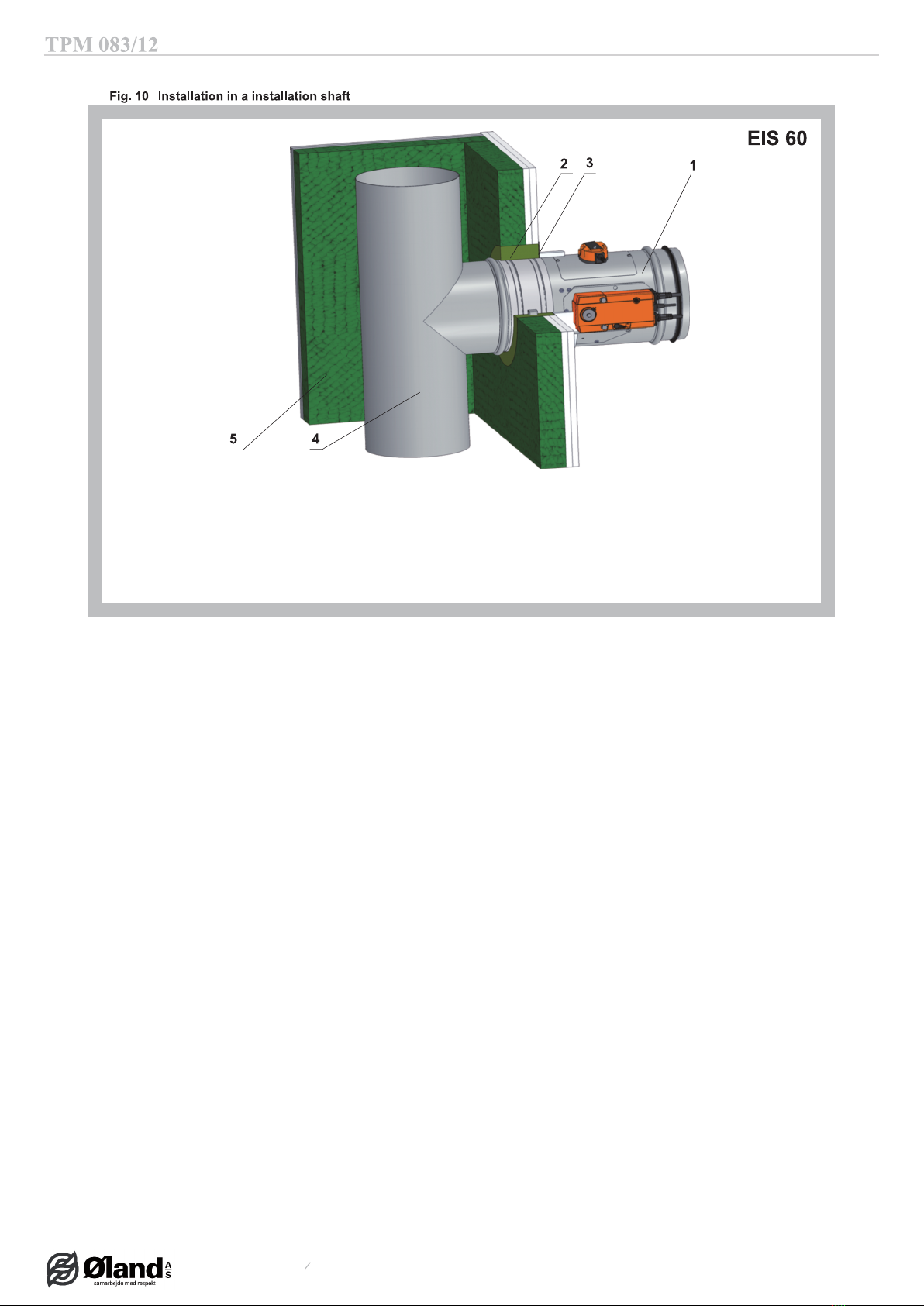

Duct ended by installation shaft. Space between damper and ceiling is
filled by mortar, gypsum or another approved fire sealing system into duct
installation - solid or gypsum wall construction
EIS 60 10

7
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Appropriate isolation and installation materials for fire resistance EIS 60 should be used. Producer
of these materials is random (Isover, Protecta, Rockwool, PAROC etc.) Used materials must be
approved and have min. the same fire resistance as required for Fire Damper - EIS 60, or higher.
Position:
1 Fire damper FDMC
3
Fire protection mastic min. thickness 1 mm:
2Stuffing box (mineral stone wool min. density 140 kg/m³)
or another approved fire sealing system for damper installation
Protecta FR Akryl or Isover U Protect BSF or
other approved
4
Glass fiber felt with aluminium foil width 50 mm,
thickness 10 mm
Position:
1 Fire damper FDMC
3
Fire protection mastic min. thickness 1 mm:
2Stuffing box (mineral stone wool min. density 140 kg/m³)
or another approved fire sealing system for damper installation
Protecta FR Akryl or Isover U Protect BSF or
other approved
4
Glass fiber felt with aluminium foil width 50 mm,
thickness 10 mm

8
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Position:
1 Fire damper FDMC
2 Mortar or gypsum with min. density 800 kg/m or another approved fire sealing
system for damper installation
Position:
1 Fire damper FDMC
3
Fire protection mastic min. thickness 1 mm:
2Stuffing box (mineral stone wool min. density 140 kg/m³)
or another approved fire sealing system for damper installation
Protecta FR Akryl or Isover U Protect BSF or
other approved
4
Glass fiber felt with aluminium foil width 50 mm,
thickness 10 mm

9
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Position:
1 Fire damper FDMC
4
Duct
2Stuffing box (mineral stone wool min. density 140 kg/m³)
or another approved fire sealing system for damper installation
5
Installation shaft - inner space
3 Fire protection mastic min. thickness 1 mm:
Protecta FR Akryl or Isover U Protect BSF or other approved

10
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
85 113 141 170 198 226 254 283 429 573 716 859
1002
1145
1288
1431
6,5 8,7 10,9 13,1 15,3 17,5 19,6 21,8 4,1 5,4 6,8 8,1 9,5 10,9 12,2 13,6
21,6 29,1 35,0 39,7 43,7 47,2 50,3 53,0 15,1 22,6 28,4 33,2 37,2 40,7 43,7 46,5
148,0
26,3 41,0 59,1 80,4
105,1
133,0
164,2
2,6 4,6 7,2 10,3 14,0 18,3 23,2 28,6
133 177 221 265 309 353 398 442 530 707 884
1060
1237
1414
1590
1767
5,4 7,2 9,0 10,8 12,6 14,4 16,2 18,0 3,9 5,2 6,6 7,9 9,2 10,5 11,8 13,1
21,2 28,7 34,5 39,3 43,3 46,8 49,8 52,6 13,3 20,8 26,6 31,3 35,3 38,8 41,9 40,4
11,3 20,2 31,5 45,3 61,7 80,6
102,0
125,9
1,9 3,3 5,2 7,4 10,1 13,2 16,7 20,6
166 222 277 333 388 443 499 554 665 887
1108
1330
1552
1773
1995
2217
5,0 6,7 8,4 10,0 11,7 13,4 15,1 16,7 3,8 5,1 6,4 7,6 8,9 10,2 11,4 12,7
21,0 28,5 34,3 39,0 43,1 46,5 49,6 52,3 11,3 18,8 24,6 29,4 33,4 36,9 39,9 42,7
9,6 17,1 26,7 38,5 52,4 68,4 86,6
106,9
1,3 2,3 3,6 5,1 7,0 9,1 11,5 14,2
191 254 318 382 445 509 573 636 842
1122
1403
1683
1964
2244
2525
2806
4,9 6,5 8,1 9,7 11,3 13,0 14,6 16,2 3,7 4,9 6,2 7,4 8,7 9,9 11,1 12,4
20,3 27,8 33,6 38,3 42,4 45,8 48,9 51,6 8,9 16,4 22,2 27,0 31,0 34,5 37,6 40,3
8,2 14,7 22,9 33,0 44,9 58,6 74,2 91,6 0,9 1,5 2,4 3,4 4,7 6,1 7,7 9,5
217 290 362 434 507 579 651 724
1039
1385
1732
2078
2425
2771
3117
3464
4,7 6,2 7,8 9,4 10,9 12,5 14,0 15,6 3,6 4,9 6,1 7,3 8,5 9,7 10,9 12,1
19,6 27,1 32,9 37,7 41,7 45,2 48,3 51,0 8,2 15,7 21,5 26,3 30,3 33,8 36,9 39,6
6,9 12,2 19,1 27,5 37,4 48,8 61,8 76,3 0,7 1,2 1,9 2,7 3,7 4,8 6,1 7,5
275 366 458 550 641 733 824 916
1069
1425
1782
2138
2494
2851
3207
3563
4,4 5,9 7,4 8,9 10,4 11,8 13,3 14,8 3,6 4,8 6,0 7,2 8,4 9,6 10,9 12,1
17,8 25,3 31,1 35,9 39,9 43,3 46,4 49,2 7,2 14,7 20,5 25,3 29,3 32,8 35,9 38,6
5,0 8,9 13,9 20,1 27,3 35,7 45,1 55,7 0,6 1,1 1,7 2,5 3,4 4,5 5,6 7,0
339 452 565 679 792 905
1018
1131
1357
1810
2262
2714
3167
3619
4072
4524
4,2 5,7 7,1 8,5 9,9 11,3 12,7 14,2 3,5 4,7 5,9 7,1 8,3 9,4 10,6 11,8
15,7 23,1 29,0 33,7 37,7 41,2 44,3 47,0 6,6 14,1 19,9 24,7 28,7 32,2 35,3 38,0
3,4 6,1 9,5 13,7 18,7 24,4 30,9 38,2 0,5 0,8 1,3 1,8 2,5 3,3 4,1 5,1

11
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Actuating mechanism
Nominal voltage AC 24V 50/60Hz
DC 24 V
Power consumption - motoring
- holding
2,5 W
0,8 W
Dimensioning 4VA (Imax 8,3 A @ 5 ms)
Protection class III
Degree of protection IP 54
Running time - motor
- spring return
<60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
- 30 °C … 55 °C
The safe position will be attained up to max. 75°C
- 40 °C … 55 °C
Connecting - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm (BFL 24-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm (BFL 24-T-ST) with 6-pin plug-in connectors
Thermal trips Tf1: duct outside temperature 72°C
Tf2: duct inside temperature 72°C
12 S3
S1 S2 S5S4 S6
<5° <80°
BAT
Tf Tf LED
~
- +
Damper bodies are supplied in the design made of galvanized plate without any other surface
finish.
Damper blades are made of fire resistant asbestos free boards made of mineral fibres.
Fasteners is galvanized.
The appliance is constructed and and preset by the manufacturer, its operation is dependent on
proper installation and adjustment.

12
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
Dampers are transported by box freight vehicles without direct weather impact, there must not
occur any sharp shocks and ambient temperature must not exceed +40°C. Dampers must be
protected against mechanic damages when transported and manipulated. During transportation,
the damper blade must be in the "CLOSED" position.
Dampers are stored indoor in environment without any aggressive vapours, gases or dust. Indoor
temperature must be in the range from -5°C to +40°C and maximum relative humidity 80%.
Dampers must be protected against mechanic damages when transported and manipulated.
All effective safety standards and directives must be observed during fire damper assembly.
To ensure reliable fire damper function it is necessary to avoid blocking the closing mechanism
and contact surfaces with collected dust, fibre and sticky materials and solvents.
Manual operation
Without power supply, the damper can be operated manually and fixed in any required
position. Release of the locking mechanism can be achieved manually or automatically
by applying the supply voltage.
In case that dampers are found unable to serve for their function for any cause, it must be clearly
marked. The operator is obliged to ensure so that the damper is put into condition in which it is
able to function and meanwhile he is obliged to provide the fire protection another appropriate
way.
Before entering the dampers into operation after their assembly and by sequential checks, the
following checks must be carried out.
Results of regular checks, imperfections found and all-important facts connected with the damper
function must be recorded in the "FIRE BOOK" and immediately reported to the operator.
Before entering the dampers into operation after assembly and after sequential revisions, checks
and functionality tests of all designs including operation of the electrical components must be
done. After entering into operation, these revisions must be done according to requirement set
by national regulations.
Visual inspection of proper damper integration, inside damper area, damper blade, contact
surfaces and silicon sealing.
Inspection hole disassembly: release the covering lid by unscrewing screws. Then tilt remove lid
from its original position.
Check of blade displacement into the breakdown position "CLOSED" can be done after cutting
off the actuating mechanism supply (e.g. by pressing the RESET button at the thermoelectrical
starting mechanism BAT or cutting off the supply from ELECTRICAL FIRE SIGNALISATION).
Check of blade displacement back into the "OPEN" position can be done after restoration of
power supply (e.g. by releasing the RESET button or restoration of supply from ELECTRICAL
FIRE SIGNALISATION).

13
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
technical specifications
size
type

14
Park Allé 366, DK-2605 Brondby
Telefon [phone]; E-mail:[email protected]
The producer reserves the right for innovations of the product. For actual product information see
www.mandik.com
MANDÍK, a.s.
Dobříšská 550
26724 Hostomice
Czech Republic
Tel.: [phone]
E-Mail: [email protected]
www.mandik.com
Your distributor
