FDMB
Fire damper
Technical Documentation
Installation, Commissioning, Operation, Maintenance and Service Manual
TPM 164/22
Version 2022-12-20

FDMB - Fire damperPage 2 Version 2022-12-20
TPM 164/22
These technical specifications state a row of manufactured sizes and models of fire dampers FDMB.
It is valid for production, designing, ordering, delivery, maintenance and operation.
CONTENT
I. GENERAL.....................................................................................................................................................................................3
Description..............................................................................................................................................................................3
Design.....................................................................................................................................................................................4
Design with mechanical control..........................................................................................................................................4
Design with actuating mechanism.......................................................................................................................................6
Communication and control module MDCM.....................................................................................................................11
Dimensions...........................................................................................................................................................................12
Technical parameters............................................................................................................................................................14
Placement and Assembly......................................................................................................................................................20
Statement of installations.....................................................................................................................................................22
Installation in solid wall construction................................................................................................................................23
Installation outside solid wall construction.......................................................................................................................25
Installation in gypsum wall construction...........................................................................................................................27
Installation outside gypsum wall construction..................................................................................................................30
Installation in solid ceiling construction............................................................................................................................32
Shaft wall...........................................................................................................................................................................33
Suspension systems..............................................................................................................................................................35
Duct connection....................................................................................................................................................................37
II. TECHNICAL DATA.....................................................................................................................................................................38
Pressure loss.........................................................................................................................................................................38
Noise data.............................................................................................................................................................................40
III. MATERIAL, FINISHING.............................................................................................................................................................41
Material................................................................................................................................................................................41
IV. INSPECTION, TESTING.............................................................................................................................................................41
V. TRANSPORTATION AND STORAGE...........................................................................................................................................42
Logistic terms........................................................................................................................................................................42
VI. ASSEMBLY, ATTENDANCE AND MAINTENANCE......................................................................................................................42
Assembly...............................................................................................................................................................................42
Entry into service and revisions.........................................................................................................................................46
Spare parts.........................................................................................................................................................................47
VII. PRODUCT DATA.....................................................................................................................................................................48
Data label..............................................................................................................................................................................48
VIII. ORDERING INFORMATION....................................................................................................................................................48
Ordering key.........................................................................................................................................................................48

Page 3Version 2022-12-20 FDMB - Fire damper
TPM 164/22
I. GENERAL
Description
Working conditions
■Exact damper function is provided under the following conditions
■maximum air velocity 12 m/s
■underpressure max. -1200 Pa
■the air circulation in the whole damper section must be secured as steady on whole surface.
■Dampers can be installed in position with horizontal or vertical blade axis.
■Dampers can be installed in position with actuating mechanism on top or on the side of damper.
■Dampers are suitable for systems without abrasive, chemical and adhesive particles.
■Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3, class 3K22.
■Temperature in the place of installation is permitted to range from -30°C to +50°C.
Fire dampers are shutters in ducts of air-conditioning devices
that prevent spreading the fire and combustion products
from one fire segment to the other one by means of closing
the duct in the points of fire separating constructions.
Dampers blade automatically closes air duct using a shutting
spring or an actuating mechanism back spring. Closing spring
is released either by pushing of the button or by thermal fuse.
The back spring of the actuating mechanism is started when
the thermoelectrical starting mechanism BAT is activated,
when a reset button on BAT is pushed or when a power
supply of the actuating mechanism is stopped.
The damper is sealed with a silicon packing against smoke
penetration after closing the blade. At the same time, the
damper blade is bedded in a material which enlarges its
capacity and air proofs the air duct.
Dampers have two inspection holes.
Damper FDMB with actuating mechanism Damper FDMB with mechanical control
Damper characteristics
■CE certified acc. to EN 15650
■Tested in accordance with EN 1366-2
■Classified acc. to EN 13501-3+A1
■External Casing leakage: A<160 or B<160 class B, A≥160 and B≥160 class C
■Internal leakage min. class 2 acc. to EN 1751
■Cycling test in class C10000 acc. to EN 15650
■Corrosion resistant acc. to EN 15650
■Certificate of constancy of performance UKCA No. TBD* & UKNI No. TBD*
■Certificate of constancy of performance CE No. 1391-CPR-2020/0136
■Declaration of Perfomance UKCA & UKNI No. PM/FDMB/02/22/1
■Declaration of Perfomance CE No. PM/FDMB/01/22/5
■Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c * Document in process

FDMB - Fire damperPage 4 Version 2022-12-20
TPM 164/22

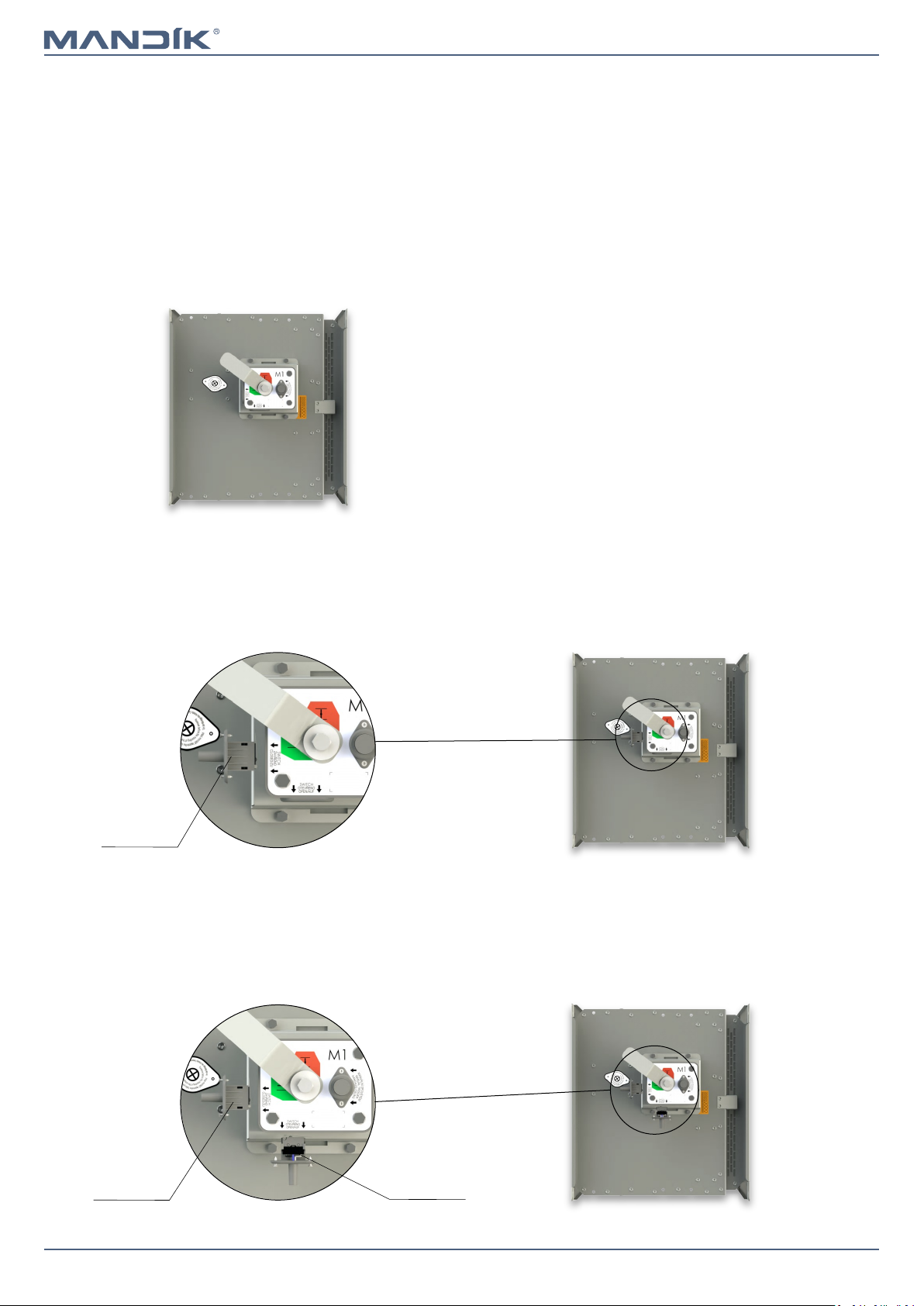

Design
Design with mechanical control
■Design .01 with mechanical control can be complemented
with a limit switch signalling of the damper blade position
"CLOSED".
■Cable is connected directly to limit switch.
■Limit switch detail → see page 5
Design .11
■Design .01 with mechanical control can be complemented
with a terminal switches signaling of the damper blade
position "CLOSED" and "OPEN".
■Limit switches are connected via damper casing, cables
are connected directly to limit switches.
■Limit switch detail → see page 5
Design .80
■Design with mechanical control with a thermal protective
fuse which actuates the shutting device, after the nominal
start temperature 72°C has been reached.
■Automatic initiation of the shutting device is not activated
if the temperature does not exceed 70°C.
■In case that other start temperatures are required,
thermal fuses with nominal start temperature +104°C or
+147°C can be supplied (this requirement must be
specified in the order).
Design .01
ATTENTION:
■Mechanisms are produced in five designs M1 to M4, dif-
ference is only in size of inner spring, which closes the fire
damper.
■For the size of fire dampers is always assigned the size of
mechanism → see pages 14 to 19
■It is not recommended to use different size of mechanism,
than given by the manufacturer, otherwise, there is a risk
of fire damper destruction.
Design .01
Design .11
Limit switch
“CLOSED”
Design .80
Limit switch
“CLOSED”
Limit switch
“OPEN”

Page 5Version 2022-12-20 FDMB - Fire damper
TPM 164/22
Nominal voltage and maximal current AC 230V / 5A
Class of protection IP 67
Working temperature
-25°C … +120°C
Limit switch G905-300E03W1
This limit switch is possible to connect in following two versions
■CUT-OFF if the arm is moving … connect wire 1+2
■SWITCH-ON if the arm is moving … connect wire 1+4
1(COM) - black wire
2(NC) - gray wire
4(NO) - blue wire
Mechanical control
Fusible link

FDMB - Fire damperPage 6 Version 2022-12-20
TPM 164/22
Design with actuating mechanism
■The dampers are equipped by Belimo actuators with
spring return and thermoelectric activation device of BFL,
BFN or BF depending on the damper size (further mentio-
ned as „actuators“).
■After being connected to power supply 230V or AC/DC
24V, the actuating mechanism displaces the damper
blade into operation position "OPEN" and at the same
time it pre-stretches its back spring.
■When the actuating mechanism is under voltage, the
damper blade is in the position "OPEN" and the back
spring is pre-stretched.
■Time needed for full opening of the flap blade from the
position "CLOSED" to the position "OPEN" is maximum
120 sec. If the actuating power supply is cut off (due to
loss of supply voltage, or pushing the reset button on the
thermoelectrical starting mechanism BAT), the back
spring displaces the damper blade into the breakdown
position "CLOSED".
■The time of displacing the blade from the position "OPEN"
to the position "CLOSED" takes maximum 20 sec.
■In case that the power supply is restored again (the blade
can be in any position), the actuating mechanism starts to
re-displace the damper blade into the position "OPEN".

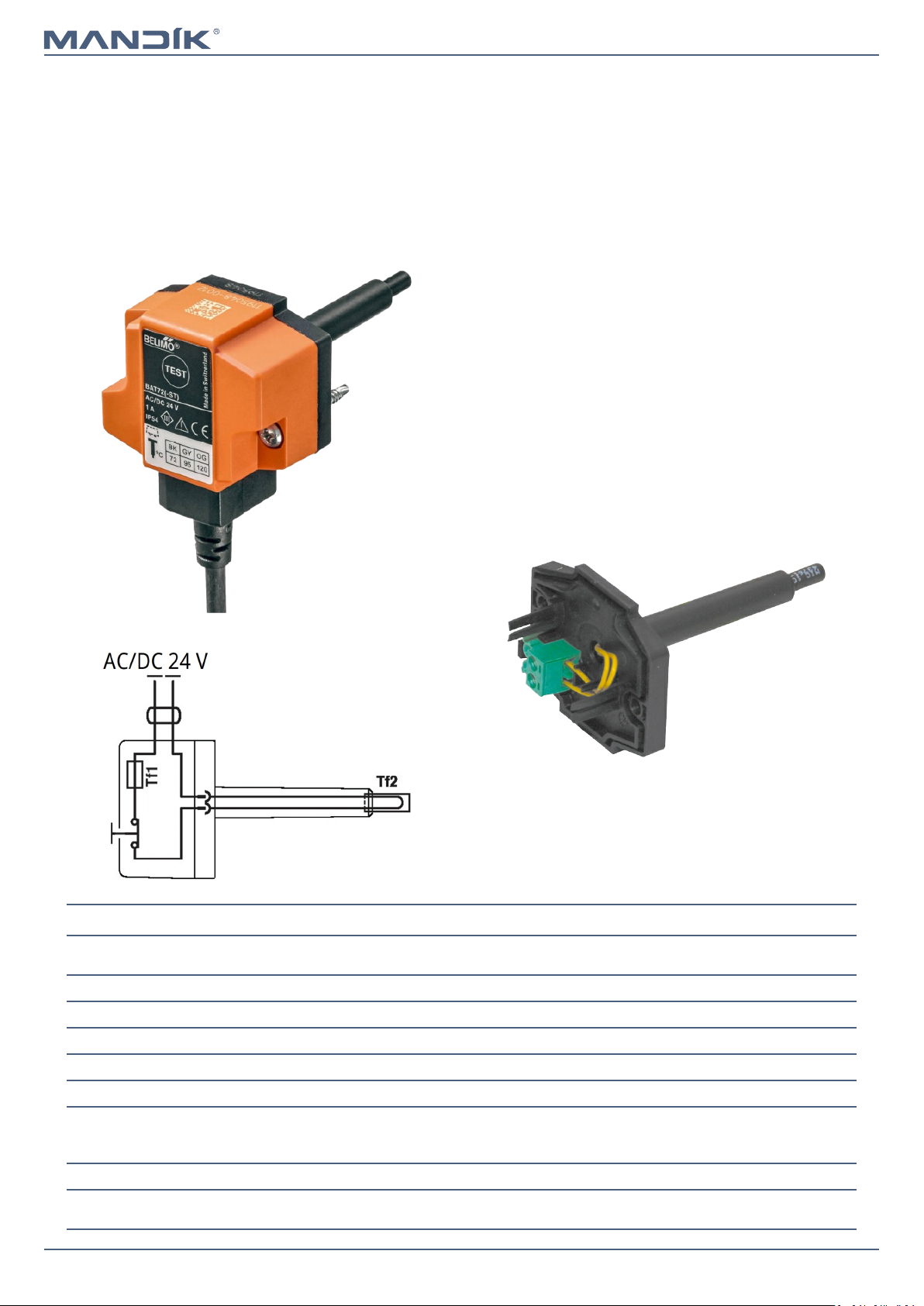

■A thermoelectrical starting mechanism BAT, which
contains two thermal fuses Tf1 and Tf2, is a part of the
actuating mechanism.
■These fuses are activated when temperature +72°C has
been exceeded (the fuse Tf1 when the temperature
around the damper and the fuses Tf2 when the
temperature inside the air-conditioning ducting has been
exceeded).
■After the thermal fuse Tf1 or Tf2 has been activated, the
power supply is permanently and irreversibly cut off and
the actuating mechanism, by means of the pre-stretched
spring, displaces the damper blade into the breakdown
position "CLOSED".
■Signalisation of damper blade position "OPEN" a "CLOSE"
is provided by two limit switches.
Design .40 and .50
Design .40 and .50
Actuating mechanism
Thermoelectrical starting
mechanism BAT

Page 7Version 2022-12-20 FDMB - Fire damper
TPM 164/22
Actuator BELIMO BFL 230-T
Actuator BELIMO BFL 24-T(-ST)
BELIMO - 4 N.m
Actuator BELIMO BFL 230-T, BFL 24-T(-ST)
Actuator BELIMO - 4 Nm BFL 230-T BFL 24-12(-ST)
Power voltage AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - motoring
- holding
3,5/5 W
1,1/2,1 W
2,5/4 W
0,8/1,4 W
Dimensioning 6,5/10 VA (Imax 4 A @ 5 ms) 4/6 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
< 60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +55°C
The safe position will be attained up to max. +75°C
-40°C … +55°C
Connection - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm² (BFL 24-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm² (BFL 24-T-ST) with 6-pin plug-in connectors
Thermal trips duct outside temperature +72°C
duct inside temperature +72°C
S2S1 S3 S5S4 S6
2
1
<5° <80°
N L1
BAT
Tf Tf LED
S2S1 S3 S5S4 S6
2
1
<5° <80°
BAT
Tf Tf LED

FDMB - Fire damperPage 8 Version 2022-12-20
TPM 164/22
Actuator BELIMO BFN 24-T(-ST)
BELIMO - 9 N.m
Actuator BELIMO BFN 230-T, BFN 24-T(-ST)
Actuator BELIMO - 9 Nm BFN 230-T BFN 24-12(-ST)
Power voltage AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - motoring
- holding
3,5/5 W
1,1/2,1 W
2,5/4 W
0,8/1,4 W
Dimensioning 6,5/10 VA (Imax 4 A @ 5 ms) 4/6 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
< 60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +55°C
The safe position will be attained up to max. +75°C
-40°C … +55°C
Connection - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm² (BFN 24-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm² (BFN 24-T-ST) with 6-pin plug-in connectors
Thermal trips duct outside temperature +72°C
duct inside temperature +72°C
Actuator BELIMO BFN 230-T
S2S1 S3 S5S4 S6
2
1
<5° <80°
N L1
BAT
Tf Tf LED
S2S1 S3 S5S4 S6
2
1
<5° <80°
BAT
Tf Tf LED

Page 9Version 2022-12-20 FDMB - Fire damper
TPM 164/22
Actuator BELIMO BF 230-TN
Actuator BELIMO BF 230-TN, BF 24-TN(-ST)
Actuator BELIMO - 40 Nm BF 230-TN BF 24-TN(-ST)
Power voltage AC 230 V
50/60Hz
AC/DC 24 V
50/60Hz
Power consumption - motoring
- holding
8 W
3 W
7 W
2 W
Dimensioning 12,5 VA (Imax 500 mA @ 5 ms) 10 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
120 s
~ 16 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +50°C
The safe position will be attained up to max. +75°C
-40°C … +50°C
Connection - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm²
cable 1 m, 6 x 0,75 mm²
(BF 24-T-ST) with plug-in connectors
Thermal trips Tf1: duct outside temperature Duct +72°C
Tf2/Tf3: duct intside temperature Duct +72°C
BELIMO - 40 N.m
Actuator BELIMO BF 24-TN (-ST)
S2S1 S3 S5S4 S6
2
1
<5° <80°
N L1
BAT
Tf Tf LED
S2S1 S3 S5S4 S6
2
1
<5° <80°
BAT
Tf Tf LED

FDMB - Fire damperPage 10 Version 2022-12-20
TPM 164/22
Thermoelectrical starting mechanism BAT 72
Power voltage AC/DC 24 V
50/60Hz
Rated current 1 A
AC/DC throughput resistance <1 Ω
Protection class III
Degree of protection IP 54
Probe length 65 mm
Ambient temperature
Storage temperature
Ambient humidity
-30°C … +50°C
-40°C … +50°C
Max. 95% RH, non-condensing
Connection supply Cable 1 m, 2 x 0.5 mm², Betaflam cable heatresistant up to 145°C
Response temperature thermal fuse Duct inside temperature 72°C
Duct outside temperature 72°C
Thermoelectrical starting mechanism BAT
■If the thermal fuse Tf1 breaks (for a temperature close to
the fire damper), it is necessary to replace the actuating
mechanism. Thermoelectric starting mechanism BAT is
integral part of the actuating mechanism.
■If the thermal fuse Tf2 (for temperature in the duct) is
interrupted, it is enough to replace only the spare part
ZBAT72.
■When one of the thermal fuses responds, the supply
voltage is interrupted permanently and irreversibly.
■The function (interruption of the supply voltage) can be
checked by pressing the test button.
■Installation is carried out with the pre-assembled, self-
drilling and self-tapping screws.
Temperature thermal fuse
Spare parts are only supplied on the basis of an order.
BELIMO ZBAT 72
Black (BK) = 72°C (standard)

Page 11Version 2022-12-20 FDMB - Fire damper
TPM 164/22
■The MDCM damper control module is connected on a bi
directional communication loop back to a control panel, typically
located at the FCC.
■Each MDCM has a 230v local spur to power the damper actuator.
■Up to 96x MDCM's can be connected on one loop and multiple
loops can be incorporated.
■This accessory is only required with MANDIK control systems.
OVERRIDE MDCM
6 5 4 3 2 1 L N N L+ +
MOTOR POWERCOMMS
S S - -
F1
S5 S6 S4 S3 S2 S1
COMMS OPEN CLOSED COMMAND
L
L
N L
+
S90C CONTROLLER
S90 mounted in an addressablesmoke
control damper control panel to BS
ISO 21927-9
Cable glands
Comms cable
Damper control module PCB mounted on plastic rail
Earth stud
230v 50hz 3A fused supply (by others)
Switches 6 core
Drive open / close 230v
Damper actuator
Power
Comms IN
Comms OUT
MDCM
160mm x 160mm x 62mm deep steel
enclosure powder coated red - IP 54
-
56
+-
78
S E
Communication and control module MDCM

FDMB - Fire damperPage 12 Version 2022-12-20
TPM 164/22
Dimensions
FDMB with actuating mechanism
FDMB with mechanical control
1 Damper casing
2 Mechanics
3 Damper blade
4
Inspection hole covering
5 Sensor sticker
6 Hole for camera
130
123
375
A
38
* X=14 (A<160 or B<160)
* X=23 (AxB≤500x400)
* X=36 (AxB>500x400)
A+60
B
B+60
A+60
B-X*
B+60
(60+X)/2
A-X* (60+X)/2
1 Damper casing
2 Actuating mechanism
3 Damper blade
4
Inspection hole covering
5 BAT thermoelectrical
starting mechanism
6 Hole for camera
Y=72 mm (BFL)
Y=76 mm (BFN)
Y=83 mm (BF)
* X=14 (A<160 or B<160)
* X=23 (AxB≤500x400)
* X=36 (AxB>500x400)
375
A
38
A+60
B
B+60
A+60
B-X*
B+60
(60+X)/2
A-X* (60+X)/2
Y

Page 13Version 2022-12-20 FDMB - Fire damper
TPM 164/22
a
c
Damper blade overlaps
■Open damper blade overlaps the damper body by the
value “c” or “a”. These values are specified in chapter
Technical parameters → see pages 14 to 19
Values "a" and "c" has to be respected when
projecting related air-conditioning ducts.
Flange of Damper - OPERATORS SIDE
Flanges of dampers are 30 mm wide with oval hole.
Flange of Damper - INSTALLATIONS SIDE
16,5
30
16,5
10
20
16,5
30+X/2
16,5
10
20
X=14 (A<160 or B<160)
X=23 (AxB≤500x400)
X=36 (AxB>500x400)

FDMB - Fire damperPage 14 Version 2022-12-20
TPM 164/22
Technical parameters
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
100
x
100 - - 4,5 5,7 0,0030
BFL M1
150
x250 - 65 7 8,2 0,0234 BFL M1
110 - - 4,6 5,8 0,0037 280 - 80 7,5 8,7 0,0271
125 - - 4,8 6 0,0048
160
x
100 - - 5,1 6,3 0,0055
BFL
M1
140 - 5 5 6,2 0,0059 110 - - 5,2 6,4 0,0069
150 - 15 5,2 6,4 0,0066 125 - - 5,5 6,7 0,0088
160 - 20 5,5 6,7 0,0073 140 - 5 5,7 6,9 0,0108
180 - 30 5,7 6,9 0,0088 150 - 15 5,8 7 0,0121
200 - 40 5,9 7,1 0,0102 160 - 20 6,1 7,3 0,0113
225 - 52,5 6,1 7,3 0,0120 180 - 30 6,4 7,6 0,0137
250 - 65 6,4 7,6 0,0138 200 - 40 6,6 7,8 0,0161
280 - 80 6,9 8,1 0,0160 225 - 52,5 6,8 8 0,0191
110
x
100 - - 4,6 5,8 0,0034
BFL M1
250 - 65 7,1 8,3 0,0222
110 - - 4,7 5,9 0,0043 280 - 80 7,7 8,9 0,0258
125 - - 4,9 6,1 0,0055 300 - 90 8 9,2 0,0282
140 - 5 5,2 6,4 0,0067 315 - 97,5 8,2 9,4 0,0300
150 - 15 5,3 6,5 0,0075 355 - 117,5 9 10,2 0,0349
160 - 20 5,6 6,8 0,0084 400 - 140 9,6 10,8 0,0403
180 - 30 5,8 7 0,0100 450 - 165 10,2 11,4 0,0392
200 - 40 6 7,2 0,0116 500 - 190 10,8 12 0,0446
M2
225 - 52,5 6,2 7,4 0,0137 550 - 215 11,7 12,9 0,0500
250 - 65 6,5 7,7 0,0157 560 - 220 11,8 13 0,0511
280 - 80 7 8,2 0,0182 600 - 240 12 13,2 0,0554
125
x
100 - - 4,7 5,9 0,0041
BFL M1
630 - 255 12,3 13,5 0,0586
110 - - 4,9 6,1 0,0050 650 - 265 12,5 13,7 0,0608
125 - - 5,1 6,3 0,0065 700 - 290 13,1 14,3 0,0662
140 - 5 5,3 6,5 0,0080 710 - 295 13,3 14,5 0,0673
150 - 15 5,4 6,6 0,0089 750 15 315 13,5 15 0,0716
BFN
160 - 20 5,7 6,9 0,0099 800 40 340 14,2 15,7 0,0770
180 - 30 6 7,2 0,0118 900 90 390 14,8 16,3 0,0878
200 - 40 6,2 7,4 0,0138 1000 140 440 19,8 21,3 0,0986
225 - 52,5 6,4 7,6 0,0162
180
x
100 - - 5,3 6,5 0,0064
BFL
M1
250 - 65 6,7 7,9 0,0186 110 - - 5,4 6,6 0,0079
280 - 80 7,2 8,4 0,0215 125 - - 5,6 6,8 0,0102
140
x
100 - - 4,9 6,1 0,0047
BFL M1
140 - 5 5,9 7,1 0,0125
110 - - 5 6,2 0,0058 150 - 15 6 7,2 0,0140
125 - - 5,2 6,4 0,0075 160 - 20 6,3 7,5 0,0131
140 - 5 5,5 6,7 0,0092 180 - 30 6,6 7,8 0,0159
150 - 15 5,6 6,8 0,0103 200 - 40 6,8 8 0,0187
160 - 20 5,9 7,1 0,0114 225 - 52,5 7 8,2 0,0222
180 - 30 6,1 7,3 0,0137 250 - 65 7,5 8,7 0,0258
200 - 40 6,3 7,5 0,0159 280 - 80 7,9 9,1 0,0300
225 - 52,5 6,5 7,7 0,0187 300 - 90 8,2 9,4 0,0328
250 - 65 6,9 8,1 0,0215 315 - 97,5 8,4 9,6 0,0349
280 - 80 7,4 8,6 0,0249 355 - 117,5 9,2 10,4 0,0406
150
x
100 - - 5 6,2 0,0051
BFL M1
400 - 140 10 11,2 0,0469
110 - - 5,1 6,3 0,0063 450 - 165 10,5 11,7 0,0465
125 - - 5,3 6,5 0,0082 500 - 190 11,2 12,4 0,0529
M2
140 - 5 5,6 6,8 0,0100 550 - 215 12 13,2 0,0593
150 - 15 5,7 6,9 0,0112 560 - 220 12,1 13,3 0,0605
160 - 20 6 7,2 0,0124 600 - 240 12,3 13,5 0,0657
180 - 30 6,2 7,4 0,0149 630 - 255 12,7 13,9 0,0695
200 - 40 6,5 7,7 0,0173 650 - 265 12,9 14,1 0,0721
225 - 52,5 6,7 7,9 0,0204 700 - 290 13,6 15,1 0,0785 BFN
Sizes listed within the maximum/minimum sizes can be manufactured on request.

Page 15Version 2022-12-20 FDMB - Fire damper
TPM 164/22
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
180
x
710 - 295 13,8 15,3 0,0797
BFN M2
225
x
710 - 295 14,8 16,3 0,1078
BFN M2750 15 315 14 15,5 0,0849 750 15 315 15,2 16,7 0,1147
800 40 340 14,8 16,3 0,0913 800 40 340 15,9 17,4 0,1233
900 90 390 15,3 16,8 0,1041 900 90 390 16,5 18 0,1406 M3
1000 140 440 20 21,5 0,1169 1000 140 440 20,5 23,3 0,1579 BF
200
x
100 - - 5,5 6,7 0,0072
BFL
M1
250
x
100 - - 5,9 7,1 0,0093
BFL
M1
110 - - 5,6 6,8 0,0089 110 - - 6,1 7,3 0,0115
125 - - 5,9 7,1 0,0115 125 - - 6,4 7,6 0,0149
140 - 5 6,1 7,3 0,0141 140 - 5 6,6 7,8 0,0182
150 - 15 6,2 7,4 0,0158 150 - 15 6,8 8 0,0204
160 - 20 6,6 7,8 0,0149 160 - 20 7,1 8,3 0,0194
180 - 30 6,8 8 0,0181 180 - 30 7,4 8,6 0,0236
200 - 40 7 8,2 0,0213 200 - 40 7,6 8,8 0,0278
225 - 52,5 7,2 8,4 0,0253 225 - 52,5 8 9,2 0,0331
250 - 65 7,8 9 0,0294 250 - 65 8,2 9,4 0,0384
280 - 80 8,1 9,3 0,0342 280 - 80 8,8 10 0,0447
300 - 90 8,5 9,7 0,0374 300 - 90 9,2 10,4 0,0489
315 - 97,5 8,7 9,9 0,0398 315 - 97,5 9,5 10,7 0,0521
355 - 117,5 9,4 10,6 0,0463 355 - 117,5 10,3 11,5 0,0605
400 - 140 10,3 11,5 0,0535 400 - 140 11,1 12,3 0,0700
450 - 165 10,9 12,1 0,0537 450 - 165 11,7 12,9 0,0719
500 - 190 11,5 12,7 0,0611
M2
500 - 190 12,4 13,6 0,0818
M2
550 - 215 12,4 13,6 0,0685 550 - 215 13,1 14,3 0,0917
560 - 220 12,6 13,8 0,0700 560 - 220 13,2 14,4 0,0937
600 - 240 12,7 13,9 0,0759 600 - 240 13,7 15,2 0,1016
BFN
630 - 255 13,1 14,3 0,0804 630 - 255 14,2 15,7 0,1075
650 - 265 13,3 14,5 0,0833 650 - 265 14,4 15,9 0,1115
700 - 290 14 15,5 0,0907
BFN
700 - 290 15,2 16,7 0,1214
710 - 295 14,2 15,7 0,0922 710 - 295 15,4 16,9 0,1234
750 15 315 14,7 16,2 0,0981 750 15 315 15,8 17,3 0,1313
M3
800 40 340 15,7 17,2 0,1055 800 40 340 16,3 17,8 0,1412
900 90 390 16 17,5 0,1203 900 90 390 17,2 18,7 0,1610
1000 140 440 20,2 21,7 0,1351 1000 140 440 21 23,8 0,1808 BF
225
x
100 - - 5,6 6,8 0,0083
BFL
M1
280
x
100 - - 6,2 7,4 0,0106
BFL
M1
110 - - 5,8 7 0,0102 110 - - 6,4 7,6 0,0131
125 - - 6,1 7,3 0,0132 125 - - 6,6 7,8 0,0169
140 - 5 6,3 7,5 0,0162 140 - 5 6,9 8,1 0,0207
150 - 15 6,5 7,7 0,0181 150 - 15 7,1 8,3 0,0232
160 - 20 6,8 8 0,0171 160 - 20 7,4 8,6 0,0221
180 - 30 7 8,2 0,0209 180 - 30 7,7 8,9 0,0269
200 - 40 7,3 8,5 0,0246 200 - 40 8 9,2 0,0317
225 - 52,5 7,7 8,9 0,0292 225 - 52,5 8,3 9,5 0,0377
250 - 65 8 9,2 0,0339 250 - 65 8,5 9,7 0,0438
280 - 80 8,4 9,6 0,0395 280 - 80 9,1 10,3 0,0510
300 - 90 8,8 10 0,0432 300 - 90 9,6 10,8 0,0558
315 - 97,5 9,1 10,3 0,0460 315 - 97,5 9,8 11 0,0594
355 - 117,5 10 11,2 0,0534 355 - 117,5 10,7 11,9 0,0691
400 - 140 10,7 11,9 0,0618 400 - 140 11,6 12,8 0,0799
450 - 165 11,3 12,5 0,0628 450 - 165 12,3 13,5 0,0828
500 - 190 12 13,2 0,0714
M2
500 - 190 13 14,2 0,0942
M2
550 - 215 12,8 14 0,0801 550 - 215 13,6 14,8 0,1056
560 - 220 12,9 14,1 0,0818 560 - 220 13,8 15,3 0,1078
BFN
600 - 240 13,3 14,5 0,0887 600 - 240 14,4 15,9 0,1170
630 - 255 13,7 15,2 0,0939
BFN
630 - 255 14,8 16,3 0,1238
650 - 265 13,9 15,4 0,0974 650 - 265 15 16,5 0,1284
700 - 290 14,6 16,1 0,1060 700 - 290 15,8 17,3 0,1398
Sizes listed within the maximum/minimum sizes can be manufactured on request.

FDMB - Fire damperPage 16 Version 2022-12-20
TPM 164/22
Sizes listed within the maximum/minimum sizes can be manufactured on request.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
280
x
710 - 295 16 17,5 0,1420
BFN
M2
315
x
710 - 295 16,9 18,4 0,1638
BFN
M2
750 15 315 16,5 18 0,1512
M3
750 15 315 17,2 18,7 0,1744
M3
800 40 340 17,1 18,6 0,1626 800 40 340 18 19,5 0,1875
900 90 390 18,2 21 0,1854 BF 900 90 390 19,3 22,1 0,2138 BF
1000 140 440 21,5 24,3 0,2082 1000 140 440 22,2 25 0,2401
300
x
100 - - 6,4 7,6 0,0114
BFL M1
355
x
100 - - 6,9 8,1 0,0137
BFL M1
110 - - 6,5 7,7 0,0141 110 - - 7,1 8,3 0,0170
125 - - 6,8 8 0,0182 125 - - 7,3 8,5 0,0219
140 - 5 7,1 8,3 0,0223 140 - 5 7,6 8,8 0,0268
150 - 15 7,3 8,5 0,0250 150 - 15 7,8 9 0,0301
160 - 20 7,6 8,8 0,0239 160 - 20 8,2 9,4 0,0288
180 - 30 7,9 9,1 0,0291 180 - 30 8,5 9,7 0,0352
200 - 40 8,2 9,4 0,0343 200 - 40 8,8 10 0,0415
225 - 52,5 8,5 9,7 0,0408 225 - 52,5 9,2 10,4 0,0494
250 - 65 8,9 10,1 0,0474 250 - 65 9,6 10,8 0,0573
280 - 80 9,5 10,7 0,0552 280 - 80 10,2 11,4 0,0668
300 - 90 9,9 11,1 0,0604 300 - 90 10,7 11,9 0,0731
315 - 97,5 10,1 11,3 0,0643 315 - 97,5 10,9 12,1 0,0778
355 - 117,5 11,1 12,3 0,0748 355 - 117,5 11,9 13,1 0,0905
400 - 140 11,9 13,1 0,0865 400 - 140 12,8 14 0,1047
450 - 165 12,6 13,8 0,0900 450 - 165 13,6 14,8 0,1100
500 - 190 13,3 14,5 0,1024
M2
500 - 190 14,3 17,3 0,1251
BFN M2
550 - 215 14,1 15,6 0,1148
BFN
550 - 215 15,1 18,1 0,1403
560 - 220 14,2 15,7 0,1173 560 - 220 15,3 18,3 0,1433
600 - 240 14,8 16,3 0,1272 600 - 240 15,9 18,9 0,1554
630 - 255 15,2 16,7 0,1347 630 - 255 16,4 19,4 0,1645
650 - 265 15,4 16,9 0,1396 650 - 265 16,7 19,7 0,1706
700 - 290 16,2 17,7 0,1520 700 - 290 17,5 20,5 0,1857
710 - 295 16,5 18 0,1545 710 - 295 17,7 20,7 0,1888
750 15 315 17 18,5 0,1644
M3
750 15 315 18 21 0,2009
M3800 40 340 17,5 19 0,1768 800 40 340 19,1 21,9 0,2160
BF900 90 390 18,7 21,5 0,2016 BF 900 90 390 20,5 23,3 0,2463
1000 140 440 21,9 24,7 0,2264 1000 140 440 22,8 25,6 0,2766 M4
315
x
100 - - 6,6 7,8 0,0121
BFL M1
400
x
100 - - 7,4 8,6 0,0156
BFL M1
110 - - 6,7 7,9 0,0149 110 - - 7,6 8,8 0,0193
125 - - 7 8,2 0,0192 125 - - 7,9 9,1 0,0249
140 - 5 7,3 8,5 0,0235 140 - 5 8,2 9,4 0,0305
150 - 15 7,5 8,7 0,0264 150 - 15 8,4 9,6 0,0342
160 - 20 7,8 9 0,0252 160 - 20 8,7 9,9 0,0329
180 - 30 8,1 9,3 0,0308 180 - 30 9,1 10,3 0,0401
200 - 40 8,4 9,6 0,0363 200 - 40 9,4 10,6 0,0473
225 - 52,5 8,7 9,9 0,0432 225 - 52,5 9,8 11 0,0563
250 - 65 9,1 10,3 0,0501 250 - 65 10,2 11,4 0,0654
280 - 80 9,7 10,9 0,0584 280 - 80 10,6 11,8 0,0762
300 - 90 10,1 11,3 0,0639 300 - 90 11,3 12,5 0,0834
315 - 97,5 10,3 11,5 0,0680 315 - 97,5 11,5 12,7 0,0888
355 - 117,5 11,3 12,5 0,0791 355 - 117,5 12,6 13,8 0,1033
400 - 140 12,1 13,3 0,0915 400 - 140 13,5 14,7 0,1195
450 - 165 12,9 14,1 0,0955 450 - 165 14,3 15,5 0,1263
500 - 190 13,6 14,8 0,1086
M2
500 - 190 15,2 16,7 0,1437
BFN M2
550 - 215 14,3 15,8 0,1218
BFN
550 - 215 16 17,5 0,1611
560 - 220 14,5 16 0,1244 560 - 220 16,1 17,6 0,1646
600 - 240 15,1 16,6 0,1349 600 - 240 16,8 18,3 0,1785
630 - 255 15,5 17 0,1428 630 - 255 17,3 18,8 0,1890
650 - 265 15,8 17,3 0,1481 650 - 265 17,6 19,1 0,1959
700 - 290 16,5 18 0,1612 700 - 290 18,7 20,2 0,2133

Page 17Version 2022-12-20 FDMB - Fire damper
TPM 164/22
Sizes listed within the maximum/minimum sizes can be manufactured on request.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
400
x
710 - 295 18,8 20,3 0,2168 BFN M2
500
x 1000 140 440 26,5 29,3 0,4090 BF M4
750 15 315 19 21,8 0,2307
BF M3
550
x
125 - - 9,3 10,5 0,0350
BFL M1
800 40 340 20,3 23,1 0,2481 140 - 5 9,7 10,9 0,0428
900 90 390 21,9 24,7 0,2829 150 - 15 9,9 11,1 0,0480
1000 140 440 23,6 26,4 0,3177 M4 160 - 20 10,4 11,6 0,0364
450
x
125 - - 8,4 9,6 0,0283
BFL M1
180 - 30 10,7 11,9 0,0463
140 - 5 8,7 9,9 0,0346 200 - 40 11,1 12,3 0,0563
150 - 15 8,9 10,1 0,0388 225 - 52,5 11,6 12,8 0,0687
160 - 20 9,3 10,5 0,0374 250 - 65 12,1 13,3 0,0812
180 - 30 9,6 10,8 0,0456 280 - 80 12,6 13,8 0,0961
200 - 40 9,9 11,1 0,0538 300 - 90 13,4 14,6 0,1061
225 - 52,5 10,4 11,6 0,0641 315 - 97,5 13,7 14,9 0,1135
250 - 65 10,8 12 0,0744 355 - 117,5 14,9 16,1 0,1335
280 - 80 11,4 12,6 0,0867 400 - 140 15,9 17,4 0,1559
BFN
M2
300 - 90 12 13,2 0,0949 450 - 165 16,9 18,4 0,1808
315 - 97,5 12,2 13,4 0,1011 500 - 190 17,9 19,4 0,2057
355 - 117,5 13,3 14,5 0,1175 550 - 215 18,9 20,4 0,2306
400 - 140 14,3 15,5 0,1360 560 - 220 19,1 20,6 0,2356
450 - 165 15,2 16,7 0,1445
BFN
M2
600 - 240 20 21,5 0,2555
500 - 190 16 17,5 0,1644 630 - 255 20,4 23,2 0,2704
BF
550 - 215 17 18,5 0,1843 650 - 265 20,8 23,6 0,2804
560 - 220 17,1 18,6 0,1883 700 - 290 21,8 24,6 0,3053
600 - 240 17,9 19,4 0,2042 710 - 295 22 24,8 0,3103
630 - 255 18,4 19,9 0,2161 750 15 315 22,3 25,1 0,3302
M3650 - 265 18,7 20,2 0,2241 800 40 340 23,9 26,7 0,3551
700 - 290 19,5 22,3 0,2440
BF
900 90 390 25,7 28,5 0,4049
710 - 295 19,7 22,5 0,2480
560
x
125 - - 9,4 10,6 0,0356
BFL M1
750 15 315 20 22,8 0,2639
M3
140 - 5 9,8 11 0,0436
800 40 340 21,5 24,3 0,2838 150 - 15 10 11,2 0,0489
900 90 390 23,2 26 0,3236 160 - 20 10,5 11,7 0,0371
1000 140 440 24,8 27,6 0,3634 M4 180 - 30 10,8 12 0,0472
500
x
125 - - 8,8 10 0,0316
BFL M1
200 - 40 11,2 12,4 0,0574
140 - 5 9,2 10,4 0,0387 225 - 52,5 11,7 12,9 0,0701
150 - 15 9,4 10,6 0,0434 250 - 65 12,2 13,4 0,0828
160 - 20 9,8 11 0,0419 280 - 80 12,8 14 0,0980
180 - 30 10,2 11,4 0,0511 300 - 90 13,3 14,5 0,1082
200 - 40 10,5 11,7 0,0603 315 - 97,5 13,8 15 0,1158
225 - 52,5 11 12,2 0,0718 355 - 117,5 15 16,2 0,1361
250 - 65 11,4 12,6 0,0834 400 - 140 16,1 17,6 0,1590
BFN
M2
280 - 80 12 13,2 0,0972 450 - 165 17,1 18,6 0,1844
300 - 90 12,7 13,9 0,1064 500 - 190 18,1 19,6 0,2098
315 - 97,5 13 14,2 0,1133 550 - 215 19,1 20,6 0,2352
355 - 117,5 14,1 15,3 0,1318 560 - 220 19,3 20,8 0,2403
400 - 140 15,1 16,3 0,1525
M2
600 - 240 20,2 21,7 0,2606
450 - 165 16,1 17,6 0,1626
BFN
630 - 255 20,5 23,3 0,2758
BF
500 - 190 17 18,5 0,1850 650 - 265 21 23,8 0,2860
550 - 215 17,9 19,4 0,2074 700 - 290 22 24,8 0,3114
560 - 220 18,2 19,7 0,2119 710 - 295 22,2 25 0,3165
600 - 240 18,9 20,4 0,2298 750 15 315 22,4 25,2 0,3368 M3
630 - 255 19,5 21 0,2433 800 40 340 24,2 27 0,3622
650 - 265 19,8 22,6 0,2522
BF
600
x
140 - 5 10,2 11,4 0,0469
BFL M1
700 - 290 20,9 23,7 0,2746 150 - 15 10,5 11,7 0,0526
710 - 295 21 23,8 0,2791 160 - 20 10,9 12,1 0,0400
750 15 315 21,2 24 0,2970
M3
180 - 30 11,3 12,5 0,0510
800 40 340 22,8 25,6 0,3194 200 - 40 11,7 12,9 0,0619
900 90 390 24,6 27,4 0,3642 225 - 52,5 12,3 13,5 0,0756

FDMB - Fire damperPage 18 Version 2022-12-20
TPM 164/22
Sizes listed within the maximum/minimum sizes can be manufactured on request.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
600
x
250 - 65 12,7 13,9 0,0893
BFL M1
650
x
630 - 255 22,6 25,4 0,3247
BF M2
280 - 80 13,3 14,5 0,1058 650 - 265 23 25,8 0,3367
300 - 90 14,1 15,3 0,1167 700 - 290 24 26,8 0,3666
315 - 97,5 14,4 15,6 0,1249 710 - 295 24,3 27,1 0,3726
355 - 117,5 15,6 16,8 0,1469
M2
750 15 315 24,5 27,3 0,3965 M3
400 - 140 16,8 18,3 0,1715
BFN
700
x
150 - 15 11,6 12,8 0,0618
BFL
M1
450 - 165 17,8 19,3 0,1989 160 - 20 12 13,2 0,0473
500 - 190 18,9 20,4 0,2263 180 - 30 12,5 13,7 0,0603
550 - 215 19,9 21,4 0,2537 200 - 40 12,9 14,1 0,0732
560 - 220 20,1 21,6 0,2592 225 - 52,5 13,5 14,7 0,0894
600 - 240 20,9 23,7 0,2811
BF
250 - 65 14 15,2 0,1056
630 - 255 21,5 24,3 0,2976 280 - 80 14,7 15,9 0,1251
650 - 265 21,8 24,6 0,3085 300 - 90 15,5 16,7 0,1380
M2
700 - 290 23,2 26 0,3359 315 - 97,5 15,9 17,1 0,1477
710 - 295 23,4 26,2 0,3414 355 - 117,5 17,1 18,6 0,1737
BFN
750 15 315 23,5 26,3 0,3633 M3 400 - 140 18,4 19,9 0,2028
800 40 340 25,3 28,1 0,3907 450 - 165 19,5 21 0,2352
630
x
140 - 5 10,5 11,7 0,0494
BFL M1
500 - 190 20,7 22,2 0,2676
150 - 15 10,7 11,9 0,0554 550 - 215 21,5 24,3 0,3000
BF
160 - 20 11,2 12,4 0,0422 560 - 220 21,9 24,7 0,3065
180 - 30 11,5 12,7 0,0538 600 - 240 23 25,8 0,3324
200 - 40 12,1 13,3 0,0653 630 - 255 23,6 26,4 0,3519
225 - 52,5 12,6 13,8 0,0798 650 - 265 24,1 26,9 0,3648
250 - 65 13,1 14,3 0,0942 700 - 290 25,4 28,2 0,3972
280 - 80 13,7 14,9 0,1116 710 - 295 25,8 28,6 0,4037
300 - 90 14,5 15,7 0,1231
710
x
150 - 15 11,7 12,9 0,0627
BFL
M1
315 - 97,5 14,8 16 0,1318 160 - 20 12,1 13,3 0,0480
355 - 117,5 16,1 17,3 0,1549
M2
180 - 30 12,6 13,8 0,0612
400 - 140 17,2 18,7 0,1809
BFN
200 - 40 13 14,2 0,0744
450 - 165 18,3 19,8 0,2098 225 - 52,5 13,6 14,8 0,0908
500 - 190 19,4 20,9 0,2387 250 - 65 14,1 15,3 0,1073
550 - 215 20,4 21,9 0,2676 280 - 80 14,8 16 0,1270
560 - 220 20,7 22,2 0,2734 300 - 90 15,6 16,8 0,1402
M2
600 - 240 21,5 24,3 0,2965
BF
315 - 97,5 16 17,2 0,1500
630 - 255 22,2 25 0,3139 355 - 117,5 17,2 18,7 0,1763
BFN
650 - 265 22,5 25,3 0,3254 400 - 140 18,5 20 0,2060
700 - 290 23,5 26,3 0,3543 450 - 165 19,7 21,2 0,2389
710 - 295 23,7 26,5 0,3601 500 - 190 20,9 22,4 0,2718
750 15 315 24 26,8 0,3832 M3 550 - 215 21,7 24,5 0,3047
BF
650
x
140 - 5 10,9 12,1 0,0510
BFL
M1
560 - 220 22,2 25 0,3112
150 - 15 11,2 12,4 0,0572 600 - 240 23,2 26 0,3376
160 - 20 11,5 12,7 0,0437 630 - 255 23,8 26,6 0,3573
180 - 30 12 13,2 0,0556 650 - 265 24,2 27 0,3705
200 - 40 12,6 13,8 0,0676 700 - 290 25,7 28,5 0,4034
225 - 52,5 13 14,2 0,0825
750
x
150 - 15 12,1 13,3 0,0664
BFL
M1
250 - 65 13,4 14,6 0,0975 160 - 20 12,6 13,8 0,0510
280 - 80 14,2 15,4 0,1154 180 - 30 13 14,2 0,0649
300 - 90 14,8 16 0,1274 200 - 40 13,5 14,7 0,0789
315 - 97,5 15,1 16,3 0,1363
M2
225 - 52,5 14,2 15,4 0,0963
355 - 117,5 16,4 17,6 0,1603 250 - 65 14,7 15,9 0,1138
400 - 140 17,6 19,1 0,1872
BFN
280 - 80 15,5 16,7 0,1347
M2
450 - 165 18,7 20,2 0,2171 300 - 90 16,2 17,4 0,1487
500 - 190 19,8 21,3 0,2470 315 - 97,5 16,7 17,9 0,1591
550 - 215 20,9 22,4 0,2769 355 - 117,5 17,9 19,4 0,1871
BFN560 - 220 21,1 23,9 0,2829 BF 400 - 140 19,2 20,7 0,2185
600 - 240 21,9 24,7 0,3068 450 - 165 20,3 21,8 0,2534

Page 19Version 2022-12-20 FDMB - Fire damper
TPM 164/22
Sizes listed within the maximum/minimum sizes can be manufactured on request.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
A x B
[mm]
Damper blade
overlaps
Weight Effective
area Sef
[m2]
Actu.
mech.
Mech.
contr.
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
a
[mm]
c
[mm]
mech
[kg]
servo
[kg]
750
x
500 - 190 21,6 23,1 0,2883 BFN
M2
900
x
200 - 40 15,2 16,4 0,0958
BFL
M1
550 - 215 22,6 25,4 0,3232
BF
225 - 52,5 16 17,2 0,1170
M2
560 - 220 22,9 25,7 0,3302 250 - 65 16,6 17,8 0,1382
600 - 240 23,9 26,7 0,3581 280 - 80 17,4 18,6 0,1637
630 - 255 24,6 27,4 0,3790 300 - 90 18,3 19,5 0,1806
650 - 265 25,1 27,9 0,3930 315 - 97,5 18,7 20,2 0,1933
BFN
800
x
150 - 15 12,7 13,9 0,0710
BFL
M1
355 - 117,5 20,2 21,7 0,2273
160 - 20 13,1 14,3 0,0546 400 - 140 21,6 23,1 0,2654
180 - 30 13,7 14,9 0,0696 450 - 165 23 24,5 0,3078
200 - 40 14,1 15,3 0,0845 500 - 190 24,3 27,1 0,3502 BF
225 - 52,5 14,8 16 0,1032 550 - 215 25,7 28,5 0,3926
250 - 65 15,3 16,5 0,1219
M2
1000
x
160 - 20 15 16,2 0,0692
BFL
M1
280 - 80 16,1 17,3 0,1444 180 - 30 15,7 16,9 0,0882
300 - 90 16,9 18,1 0,1593 200 - 40 16,4 17,6 0,1071
M2
315 - 97,5 17,3 18,5 0,1705 225 - 52,5 17,1 18,3 0,1308
355 - 117,5 18,7 20,2 0,2005
BFN
250 - 65 17,9 19,1 0,1545
400 - 140 20 21,5 0,2341 280 - 80 18,8 20 0,1830
450 - 165 21,3 22,8 0,2715 300 - 90 19,7 21,2 0,2019
BFN
500 - 190 22,5 24 0,3089 315 - 97,5 20,1 21,6 0,2161
550 - 215 23,7 26,5 0,3463
BF
355 - 117,5 21,7 23,2 0,2541
560 - 220 24 26,8 0,3538 400 - 140 23,2 24,7 0,2967
600 - 240 25 27,8 0,3837 450 - 165 24,7 26,2 0,3441
900
x160 - 20 14,1 15,3 0,0619 BFL M1 500 - 190 26,1 28,9 0,3915 BF
180 - 30 14,7 15,9 0,0789

FDMB - Fire damperPage 20 Version 2022-12-20
TPM 164/22
■The fire dampers are suitable for installation in arbitrary
position in vertical and horizontal passages of fire separ-
ating structures. The damper assembly procedures must
be done so that all load transfer from the fire separating
constructions to the damper body is absolutely excluded.
The back-to-back air-conditioning ducting must be susp-
ended or supported so that all load transfer from the
back-to-back ducting to the damper flanges is absolutely
excluded. The gap between the installed damper and the
building structure must be perfectly filled with approved
material all over its volume.
■To provide the necessary space for access to the control
device, all other items must be situated at least 350 mm
from the control parts of the damper. At least one inspec-
tion hole must be accessible.
■The damper must be installed so that the damper blade
(in closed position) is situated in the fire separating
structure - marked by the label BUILT-IN EDGE on the
damper body. If such solution is not possible, the ducting
between the fire separating structure and the damper
blade must be protected according to the certified install-
ation method → see pages 22 to 34
■During the installation and plastering process, the control
mechanism must be protected (covered) against damage
and pollution. The damper body should not be deformed
during bricking in. Once the damper is built in, the damper
blade should not grind on the damper body during
opening or closing.
■The distance between the fire damper and the structure
(wall, ceiling) must be 75 mm at the minimum. If two or
more dampers are to be installed in one fire separating
structure, the distance between adjacent dampers must
be 200 mm at the minimum, according to EN 1366-2.
The distance between the fire damper and the construction
■minimum distance 200 mm between dampers installed in the duct;
■minimum distance 75 mm between damper and construction (wall/ceiling).
■This is the EN 1366-2 test standard distances. They are
considered as minimum. Actual location should be
based on wall manufacturers requirements.
■Always consult the wall manufacturers specific guide-
lines for deflection heads, penetration size, location to
other services, fire stopping and load bearing capacity.
■No other services should pass through the dampers
building work opening.
■For lightweight walls always consult the wall manufac-
turer specific guidelines for penetrations sizes and dis-
tances.
Placement and Assembly
