Mandik FDMA User manual

1
These technical specifications state a row of manufactured sizes and models of fire dampers (further only dampers)
FDMA. It is valid for production, designing, ordering, delivery, assembly and operation.
1. Description.........................................................................................................................
2
2. Design................................................................................................................................
3
3. Communication and control devices....................................................................................
15
4. Dimensions, weights...........................................................................................................
18
5. Placement and Assembly....................................................................................................
27
6. Statement of installations....................................................................................................
30
7. Installation in Fire resistant foam................................................................….……….....…
44
8. Installation outside of wall construction EIS60, EIS45..........................................................
46
9. Suspension system....................................................................….…………………......….
50
10. Pressure loss....................................................................................................................
57
11. Coefficient of local pressure loss.......................................................................................
58
12. Noise data.........................................................................................................................
60
13. Material.............................................................................................................................
62
62
14. Inspection.........................................................................................................................
62
15. Logistic terms..................................................................................................................
62
16. Assembly..........................................................................................................................
62
17. Entry into service and revisions.........................................................................................
63
18. Spare parts.......................................................................................................................
64
19. Restore function of actuating mechanism after fuses initiation...........................................
64
20. Data label….....................................................................................................................
64
21. Quick review………..........................................................................................................
65
22. Ordering key…….........................................................................................................….
65

2
Fire dampers are shutters in ducts of air-conditioning devices that prevent spreading the fire and
combustion products from one fire segment to the other one by means of closing the duct in the
points of fire separating constructions.
Dampers blade automatically closes air duct using a shutting spring or an actuating mechanism
back spring. The shutting spring is started by releasing an initiation lever. The impulse for
releasing the lever can be either a manual one, a thermal one or an electromagnetic one. The
back spring of the actuating mechanism is started when the thermoelectrical starting mechanism
BAT is activated, when a reset button on BAT is pushed or when a power supply of the actuating
mechanism is stopped.
The damper is sealed with a silicon packing against smoke penetration after closing the blade. At
the same time, the damper blade is bedded in a material which enlarges its capacity and air
proofs the air duct.
rectangular dampers have two inspection holes.
Round dampers have one inspection hole, since the shutting device and the inspection hole can
be set into the most advantageous position (with respect to the operation and manipulation with
the control device).
Damper characteristics
• CE certified acc. to EN 15650
• Tested in accordance with EN 1366-2
• Classified acc. to EN 13501-3+A1
• Fire resistance EIS 120, EIS 90
• External Casing leakage class C, Internal leakage class 2 acc. to EN 1751
• Cycling test in class C 10000 acc. to EN 15650
• Corrosion resistant acc. to EN 15650
• ES Certificate of conformity No. 1391-CPR-2016/0158
• Declaration of Performance No. PM/PKTM_90/01/16/1
• Hygienic assessment of fire dampers - Report No. 1.6/13/16/1

3
Working conditions
Right damper function is secured under the following conditions:
a) Maximum air circulation speed: 12 m.s
Maximum pressure difference: 1200 Pa
b) The air circulation in the whole damper section must be secured as steady on whole
surface.
Operation of the dampers does not depend on the direction of air circulation. The dampers can
be located in an arbitrary position.
Dampers are suitable for systems without abrasive, chemical and adhesive particles.
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from - 30°C to + 50°C.
Design with mechanical control
Design with mechanical control with a thermal protective fuse which actuates the shutting device
after the nominal start temperature 72 °C has been reached. Automatic initiation of the shutting
device is not activated if the temperature does not exceed 70 °C. In case that other start
temperatures are required, thermal fuses with nominal start temperature + 104 °C or +147 °C can
be supplied (this requirement must be specified in the order).

4
Design .01 with mechanical control can be complemented with a limit switch signalling of the
damper blade position "CLOSED".
Jmenovité napětí, proud AC 240 V; 3 A
DC 250 V; 0,1 A
Krytí IP 65
Teplota okolí provozní -15 °C … +70 °C
Design .01 with mechanical control can be complemented with initiation by means of an
electromagnet (solenoid). The voltage of the electromagnet (solenoid) can be AC 230V, AC/DC
24V. By voltage AC 230 V is damper equipped by electromagnet EM230. By voltage AC/DC 24
V is damper equipped by electromagnet EM230 with pre-pulse switch SIEM24. SEIM24 activates
the electromagnet after capacitor charge witch is placed inside of SIEM24. It takes about 10 sec.
Charging time depends on the current supply. For reliable operation is necessary connect to
electromagnet or pre-pulse switch appropriate supply for 20 to 30 sec. After activation of
electromagnet is released initiation lever and damper is closed. After activation is initiation lever
released. If is damper set up in position "OPEN" is necessary unlock initiation lever by pulling of
electromagnet core.
Electromagnet (Solenoid)
Pulse switch
Electromagnet (Solenoid)
Pulse switch
Limit switch
„CLOSE“
Limit switch
„CLOSE“

5

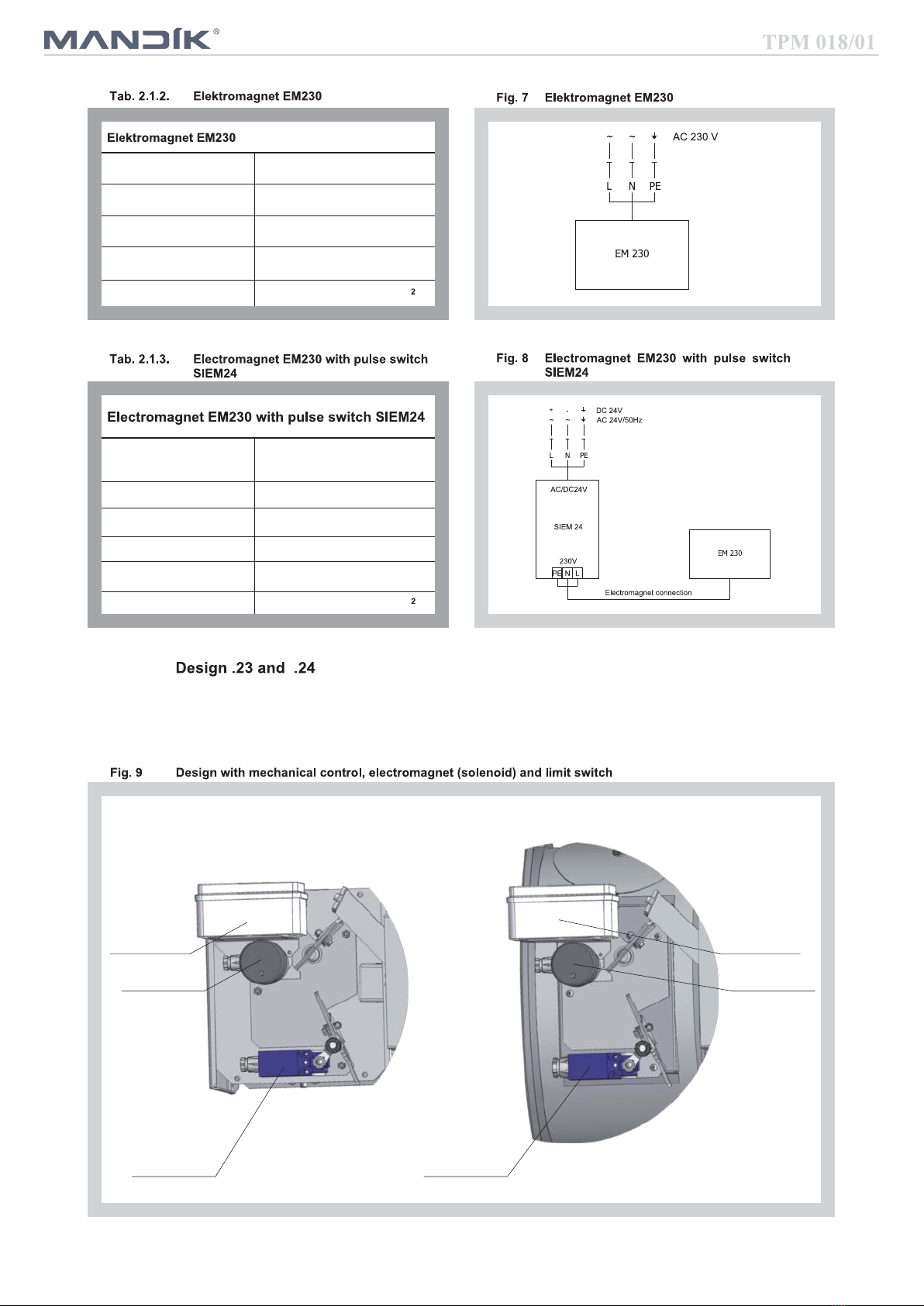

Nominal voltage AC 230 V / 50 Hz
Attraction current 1,2 A
Degree of protection IP 40
Ambient temperature -10 °C … +40 °C
Connection cable 1m, 3x0,75mm
Design .20 or .21 with mechanical control and electromagnet can be complemented with limit
switch signalling of the damper blade position "CLOSE".
Electromagnet
Pulse switch
Limit switch
„CLOSE“
Limit switch
„CLOSE“
Electromagnet
Pulse switch
Nominal voltage AC 24 V / 50 Hz
DC 24 V
Attraction current 1 A
Degree of protection IP 40
Ambient temperature -10 °C … +40 °C
Switching frequency max. 1x per minute
Connection cable 1m, 3x0,75mm

6

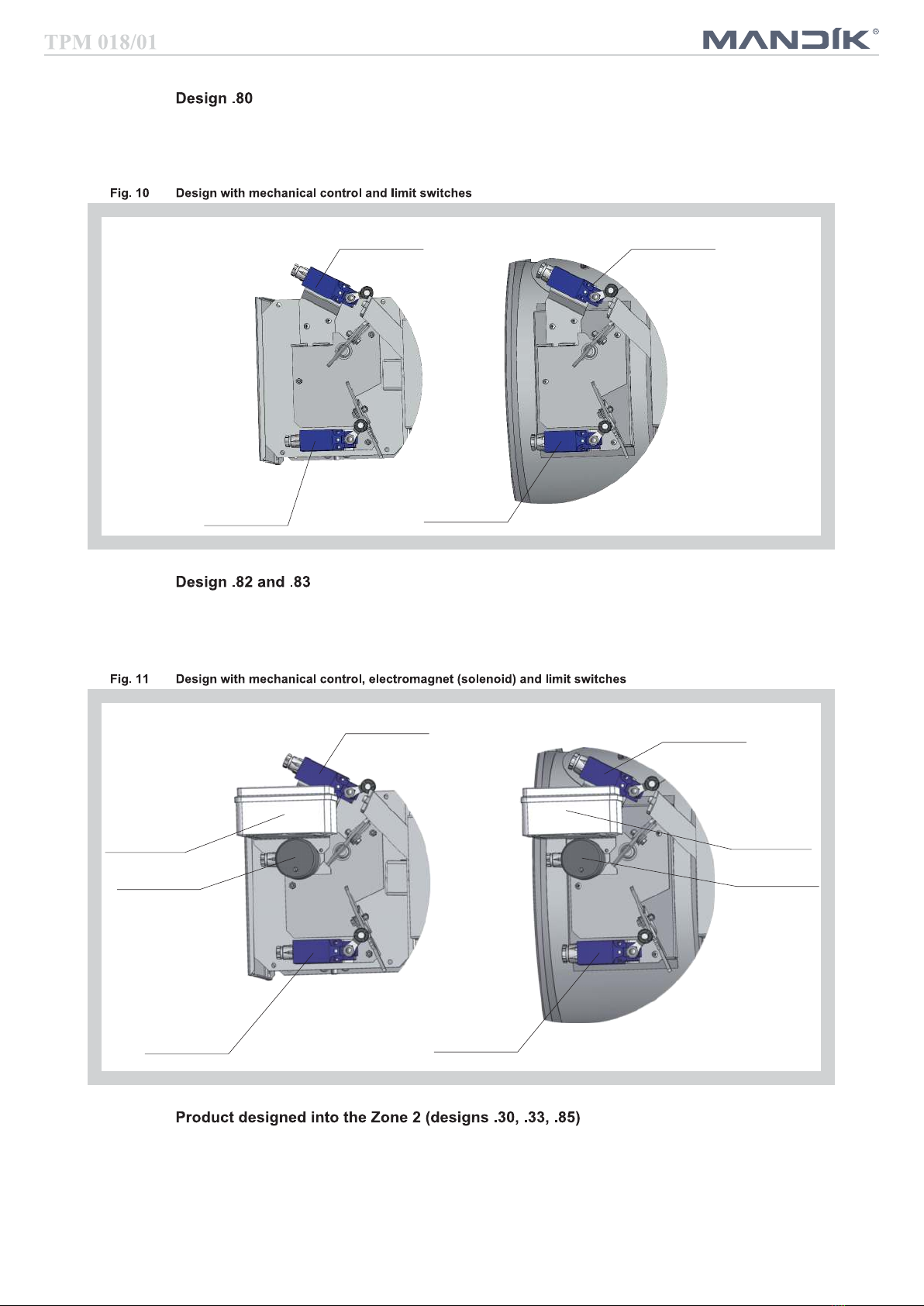

Design .23, or .24 can be complemented with a terminal switch signalling of the damper blade
position "OPEN".
Design .11 can be complemented with a terminal switch signalling of the damper blade position
"OPEN".
Limit switch „OPEN“
Limit switch
„CLOSE“
Limit switch „OPEN“
Limit switch
„CLOSE“
Limit switch „OPEN“
Limit switch
„CLOSE“
Limit switch „OPEN“
Limit switch
„CLOSE“
Electromagnet
Pulse switch
Electromagnet
Pulse switch
Product is designed to the Zone 2 with mechanical actuating mechanism and fusible link,
electromagnetic initiator (AC 230V) and auxiliary with end-switches (signalling the position of the
blade “Open” or/and “Close”). Such designs are the same as the designs .23, .24 and .83 and
they are adapted to fulfill the requirements of the usage in the Non- explosive environment.

7
FDMB is always equipped by electric actuating mechanism BFL, BFN, BF 230-T or BFL, BFN,
BF 230-T (further only "actuating mechanism"). After being connected to power supply AC/DC
24V or 230V, the actuating mechanism displaces the damper blade into operation position
"OPEN" and at the same time it pre-stretches its back spring. When the actuating mechanism is
under voltage, the damper blade is in the position "OPEN" and the back spring is pre-stretched.
Time needed for full opening of the flap blade from the position "CLOSED" to the position "OPEN"
is maximum 140 sec. If the actuating power supply is cut off (due to loss of supply voltage, or
pushing the reset button on the thermoelectrical starting mechanism BAT), the back spring
displaces the damper blade into the breakdown position "CLOSED". The time of displacing the
blade from the position "OPEN" to the position "CLOSED" takes maximum 20 sec. In case that
the power supply is restored again (the blade can be in any position), the actuating mechanism
starts to re-displace the damper blade into the position "OPEN".
A thermoelectrical starting mechanism BAT, which contains two thermal fuses Tf1 and Tf2, is a
part of the actuating mechanism. These fuses are activated when temperature +72 °C has been
exceeded (the fuse Tf1 when the temperature around the damper and the fuses Tf2 when the
temperature inside the air-conditioning piping has been exceeded). After the thermal fuse Tf1 or
Tf2 has been activated, the power supply is permanently and irreversibly cut off and the actuating
mechanism, by means of the pre-stretched spring, displaces the damper blade into the
breakdown position "CLOSED".

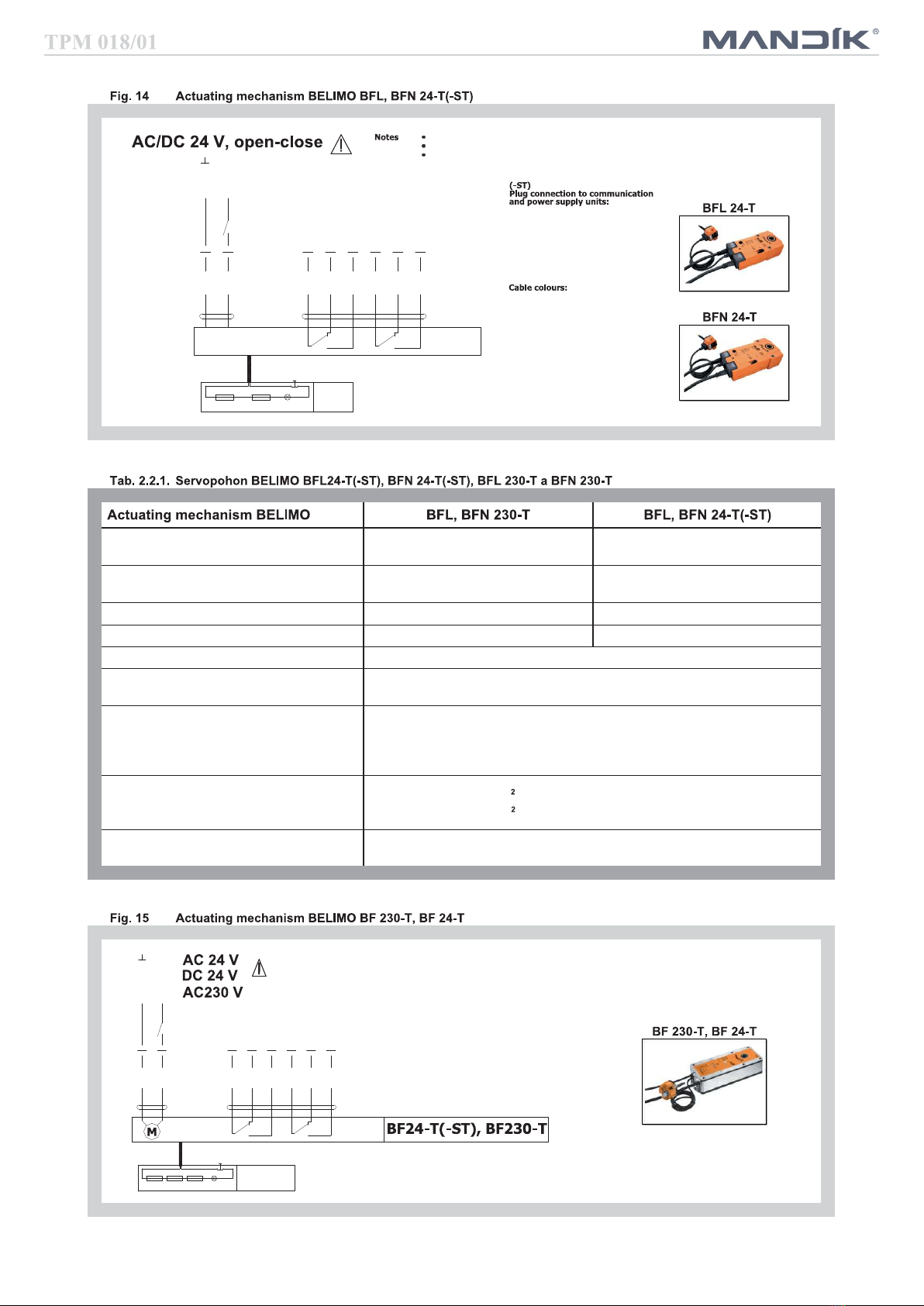

Signalisation of damper blade position "OPEN" a "CLOSE" is provided by two limit switches.
Design with electric actuating mechanism
Actuating mechanism
BAT BAT
Actuating mechanism
12S3
S1 S2 S5S4 S6
NL1
Caution: Power supply voltage!
<5° <80°
BAT
Tf Tf LED
The actuator must be protected by a fuse that does not exceed 16 A.
Parallel connection of other actuators possible. Observe the performance data.
Combination of power supply voltage and safety extra-low voltage not permitted
at the both auxiliary switches.
1 = blue
2 = brown
S1 = violet
S2 = red
S3 = white
S4 = orange
S5 = pink
S6 = grey

8
Nominal voltage AC 230 V 50/60 Hz AC 24 V 50/60 Hz
DC 24 V
Power consumption - motoring
- holding
3,5/5 W
1,1/2,1 W
2,5/4 W
0,8/1,4 W
Dimensioning 6,5/10 VA (Imax 4 A @ 5 ms) 4/6 VA (Imax 8,3 A @ 5 ms)
Protection class II III
Degree of protection IP 54
Running time - motor
- spring return
<60 s
~ 20 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
- 30 °C … 55 °C
The safe position will be attained up to max. 75°C
- 40 °C … 55 °C
Connecting - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm (BFL/BFN 24-T-ST) with 3-pin plug-in connectors
cable 1 m, 6 x 0,75 mm (BFL/BFN 24-T-ST) with 6-pin plug-in connectors
Thermal trips duct outside temperature 72 °C
duct inside temperature 72 °C
12S3
S1 S2 S5S4 S6
Connection via safety isolating transformer.
<5° <80°
BAT
Tf Tf LED
Parallel connection of other actuators possible. Observe the performance data.
Combination of power supply voltage and safety extra-low voltage not permitted
at the both auxiliary switches.
~
- +
Application examples for integration
into monitoring and control systems
or into bus networks can be found in
the documentation of the connected
communication and power supply unit.
1 = blue
2 = brown
S1 = violet
S2 = red
S3 = white
S4 = orange
S5 = pink
S6 = grey
12S3
S1 S2 S5S4 S6
NL1
BF230-T: for separation from the mains, a device that
insulates polar conductors must be at disposal
Connection 24V through
an insulation transformer.
~
- +
BLF24-ST-T: Design with connector plugs for communication
Parrallel connection of other driver is possible.
Pay attention to the power input data.
<5° <80°
(Minimum distance between contacts - 3 mm).
to network and communication device BKN230-24
BAE72B-S
Tf1 Tf2 Tf3 LED

9

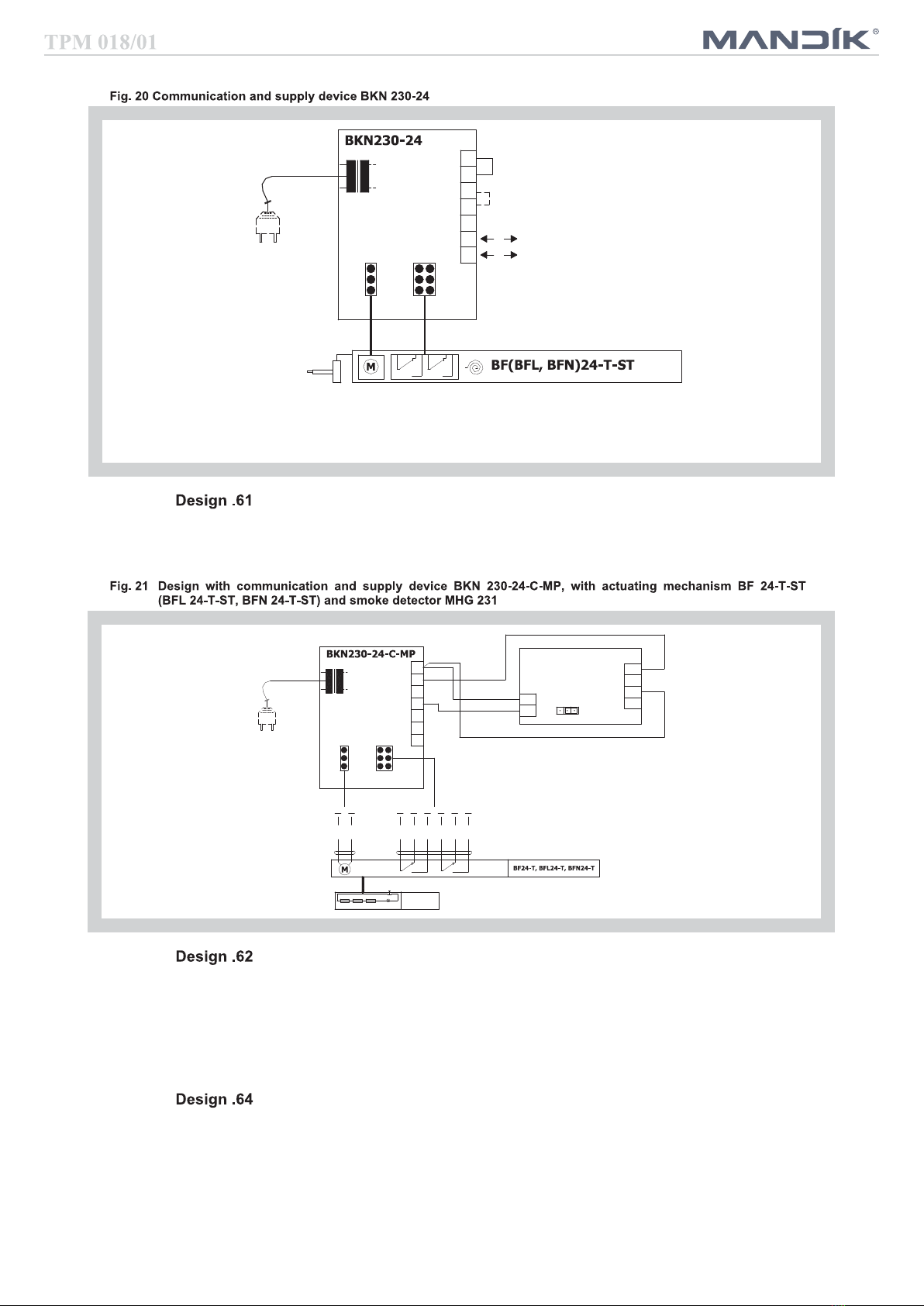

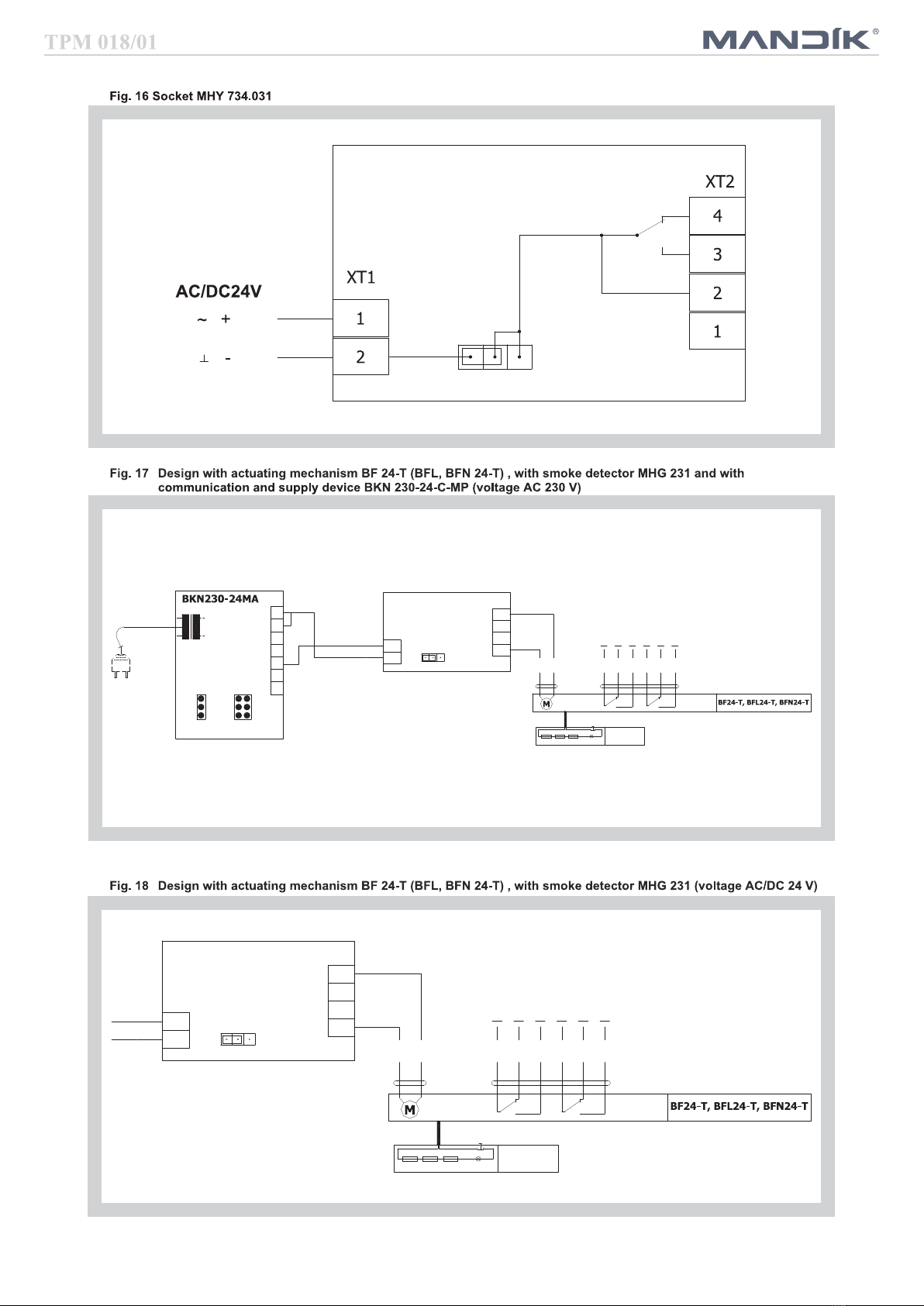

Design .41 or .51 with actuating mechanism can be complemented with smoke detector
MHG 231. The voltage can be AC 230 V or AC/DC 24 V. Design with voltage AC 230 V is
equpped with Communication and supply device BKN 230-24-MP and with actuating mechanism
BF 24-T (BFL 24-T, BFN 24-T).
The smoke detector is activated when smoke spreads in air duct system. Deactivation of smoke
detector is provided by interruption of supply voltage for min. 2s.
Signalisation of damper blade position "OPEN" a "CLOSE" is provided by two limit switches..
Nominal voltage AC/DC 24 V
Voltage range AC 18 … 28 V
DC 24 … 30 V
Power Consumption Socket
(without actuating mechanism) max. 50mA
Degree of protection IP 40
Ambient temperature
Non-operating temperature
- 25 °C … + 70 °C
- 5 °C … + 40 °C
Connection - net
- motor
- communication and supply device
BKN 230-24-MP
Cabel 1m, connected to terminal XT1
Screw terminals on the terminal block XT2
Screw terminals on the terminal block XT1 a XT2
Nominal voltage AC 24 V 50/60 Hz
DC 24 V
AC 230 V 50/60 Hz
Power consumption - motoring
- holding
7 W
2 W
8 W
3 W
Dimensioning 10 VA (Imax 8,3 A @ 5 ms) 12,5 VA (Imax 500 mA @ 5 ms)
Protection class III II
Degree of protection IP 54
Running time - motor
- spring return
140 sec
~ 16 sec
Ambient Temperature
- normal duty
- safety duty
- non-operating temperature
- 20 °C … + 50 °C
The safe position will be attained up to max. 75°C
- 40 °C … + 50 °C
Connecting - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm
cable 1 m, 6 x 0,75 mm
(BF 24-T-ST) with plug-in connectors
Thermal trips Tf1: duct outside temperature Duct 72 °C
Tf2/Tf3: duct intside temperature Duct 72 °C
