These technical specifications state a row of manufactured sizes and models of multi smoke dampers (further only
dampers) MSD. It is valid for production, designing, ordering, delivery, maintenance and operation.
1. Description.........................................................................................................................
3
2. Design................................................................................................................................
4
3. Dimensions, weights...........................................................................................................
12
4. Placement and Assembly....................................................................................................
20
5. Statement of installations....................................................................................................
22
6. Suspension systems...........................................................................................................
32
7. Duct connection..................................................................................................................
36
8. Pressure loss......................................................................................................................
44
9. Coefficient of local pressure loss.........................................................................................
45
10. Noise data............….………………………………….........................................................
46
11. Material.............................................................................................................................
48
12. Inspection, testing.............................................................................................................
48
13. Logistic terms....................................................................................................................
49
14. Assembly..........................................................................................................................
50
15. Entry into service and revisions.........................................................................................
51
16. Spare parts.......................................................................................................................
51
17. Data label.......................….…..........................................................................................
51
18. Ordering key.....................................................................................................................
52

3

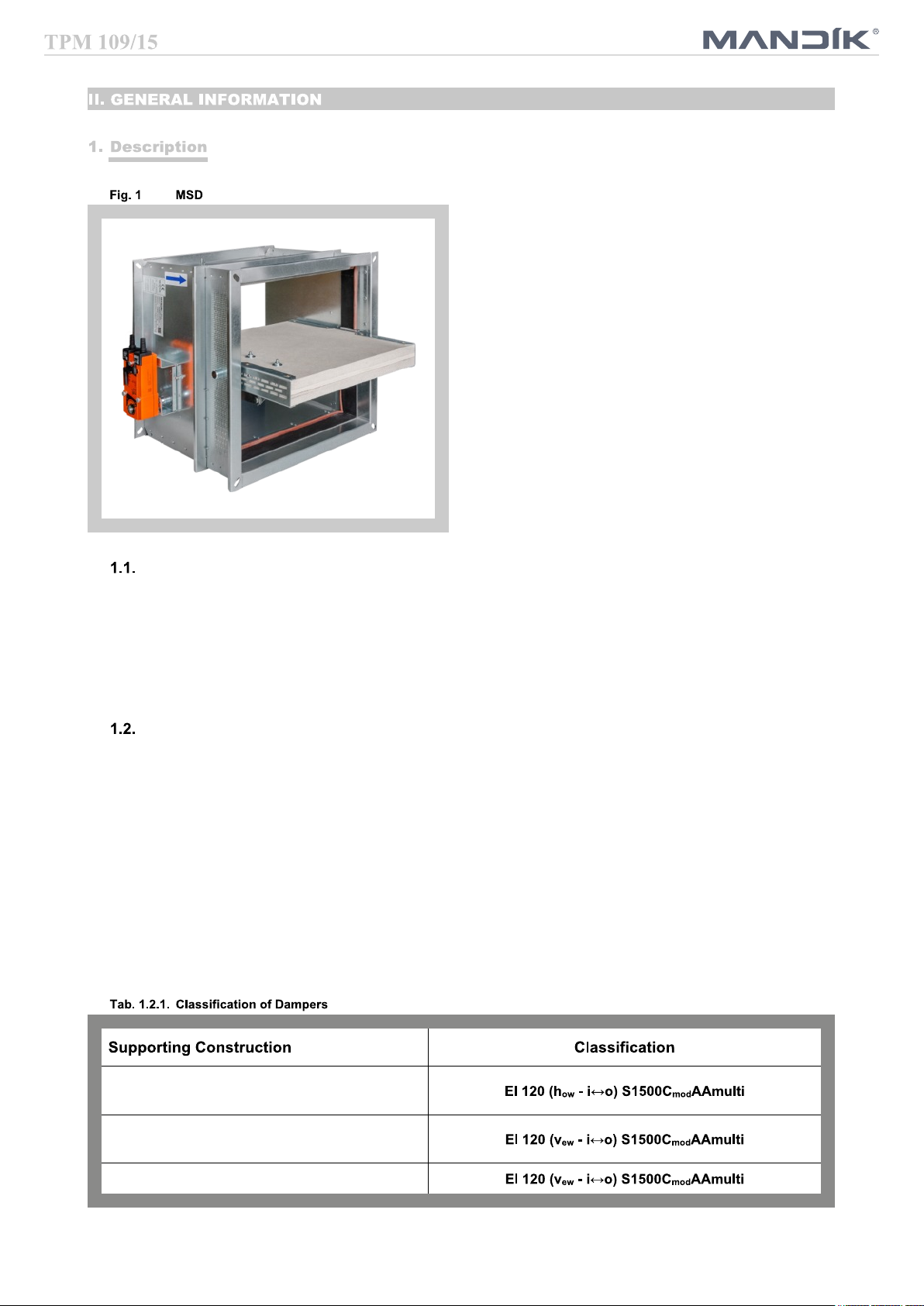

Multi smoke dampers are shutters in the smoke exhaust duct systems. The dampers are
designed to remove heat and combustible products (e.g. smoke) from effected fire compartments.
In the event of fire the Smoke and Fire ventilation system opens the damper in the affected
section and removes combustion products and heat from this section.
The damper blade is controlled by electrical actuating mechanism.
Dampers are fire resistant and are intended for systems with automatic activation.
Dampers can be installed in construction of the fire compartment.
Damper characteristics
• CE certified acc. to EN 12101-8
• Tested in accordance with EN 1366-10
• Classified acc. to EN 13501-4+A1
• Fire resistance according Tab. 1.2.1
• External casing leakage class min. C acc. to EN 1751
• Internal leakage: class min. 2, for max. dimension 1500 x 800 mm min. class 3 acc. to EN 1751
• Cycling test in class Cmod acc. to EN 12101-8
• ES Certificate of conformity No. 1391-CPR-2021/0084
• Declaration of Perfomance No. PM/MSD/01/21/3
• Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c
Porous concrete ceiling construction,
thickness 150 mm
Porous concrete wall construction,
thickness 100 mm
Gypsum wall EI 120, thickness min. 125 mm

4
Working conditions
Exact damper function is provided under the following conditions:
a) maximum air velocity 15 m/s
b) underpressure max. -1500 Pa or overpressure max. 500 Pa.
Dampers can be installed in arbitrary position (horizontal or vertical blade axis).
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from -30°C to +50°C.
Design with actuating mechanism
Belimo actuators are used for dampers, series BEN, BEE, BE for 230V AC resp. 24 V AC/DC,
Schischek InMax 50.75-S actuators (universal 24V or 230V supply) are used for large size of
dampers.
After connection to the power supply voltage, the actuator moves the damper blade to the
"OPEN" position or "CLOSED" (according to the corresponding connection, see wiring diagram).
If the power supply is interrupted, the actuator stops at the current position. The signalling of the
"OPEN" and "CLOSED" damper blade positions is ensured by two built-in fixed “potential-free”
end- limit switches.
The actuator for operating the damper blade can be mounted in an insulated cover/box. It is
accessible after removing the cover lid. The electrical connection of the actuator is made with a
non-flammable cable (or a cable located in the adjoining cable duct), which passes through an
opening made in the wall of the insulated cover/box when installing the damper or when
connecting the actuator power cable. The cable entry must meet a minimum fire resistance of 30
minutes.
Actuating mechanism
Belimo modulating actuators, BEN (BEE)-SR series for 24V AC/DC are specially designed for
remote control of fire dampers. The position of the damper blade is adjustable by means of control
voltage 0 (2)...10V DC.
The signalling of the "OPEN" and "CLOSED" damper blade positions is ensured by two built-in
fixed “potential-free” limit switches.
The actuator for operating the damper blade is mounted in an insulated cover/box. It is accessible
after removing the cover lid. The electrical connection of the actuator is made with non-flammable
cables (or cables located in the adjoining cable duct), which pass through an opening made in the
wall of the insulated cover when installing the damper or when connecting the power cables of
the actuator. The cable entry must meet a minimum fire resistance of 30 minutes.

5

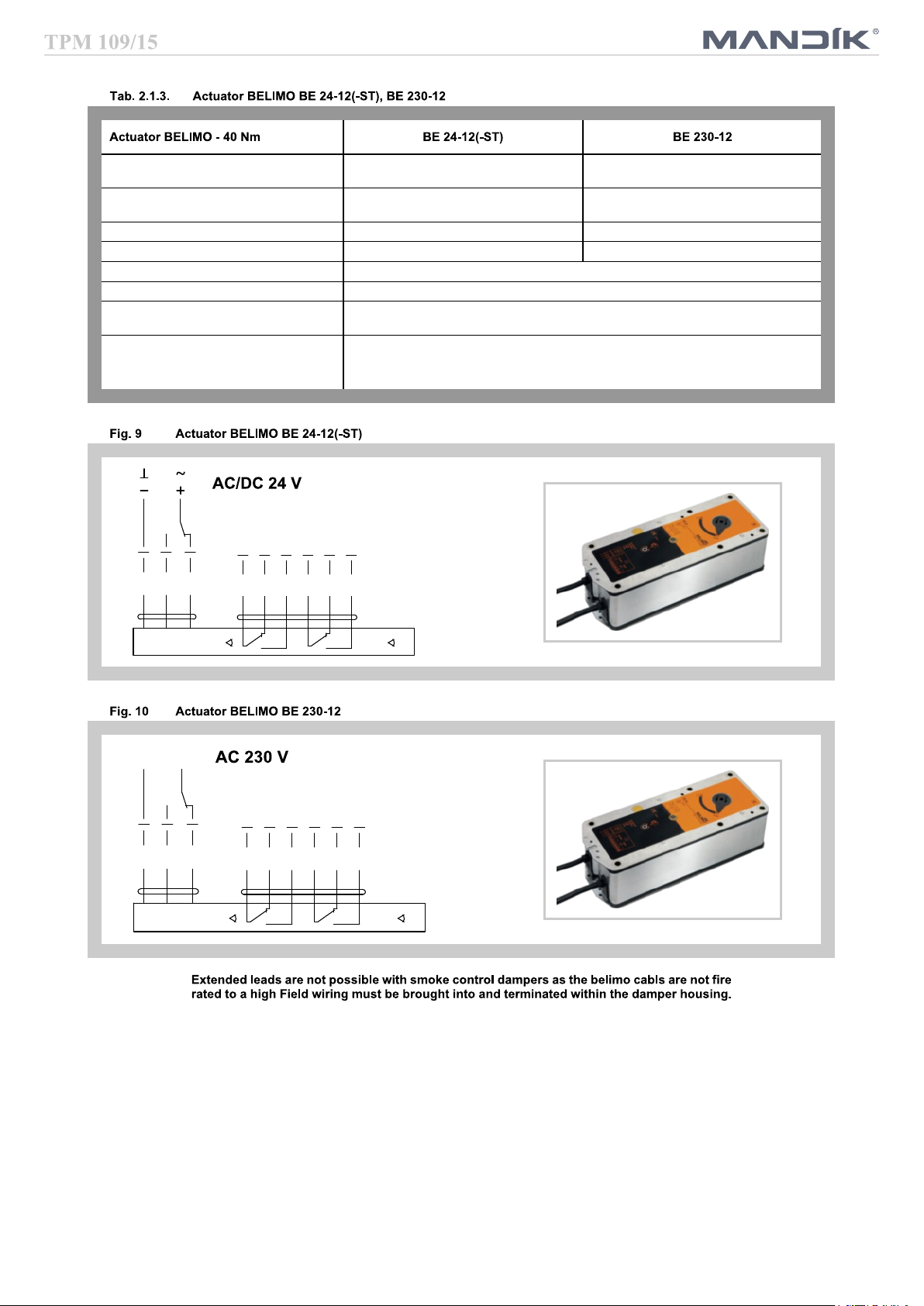

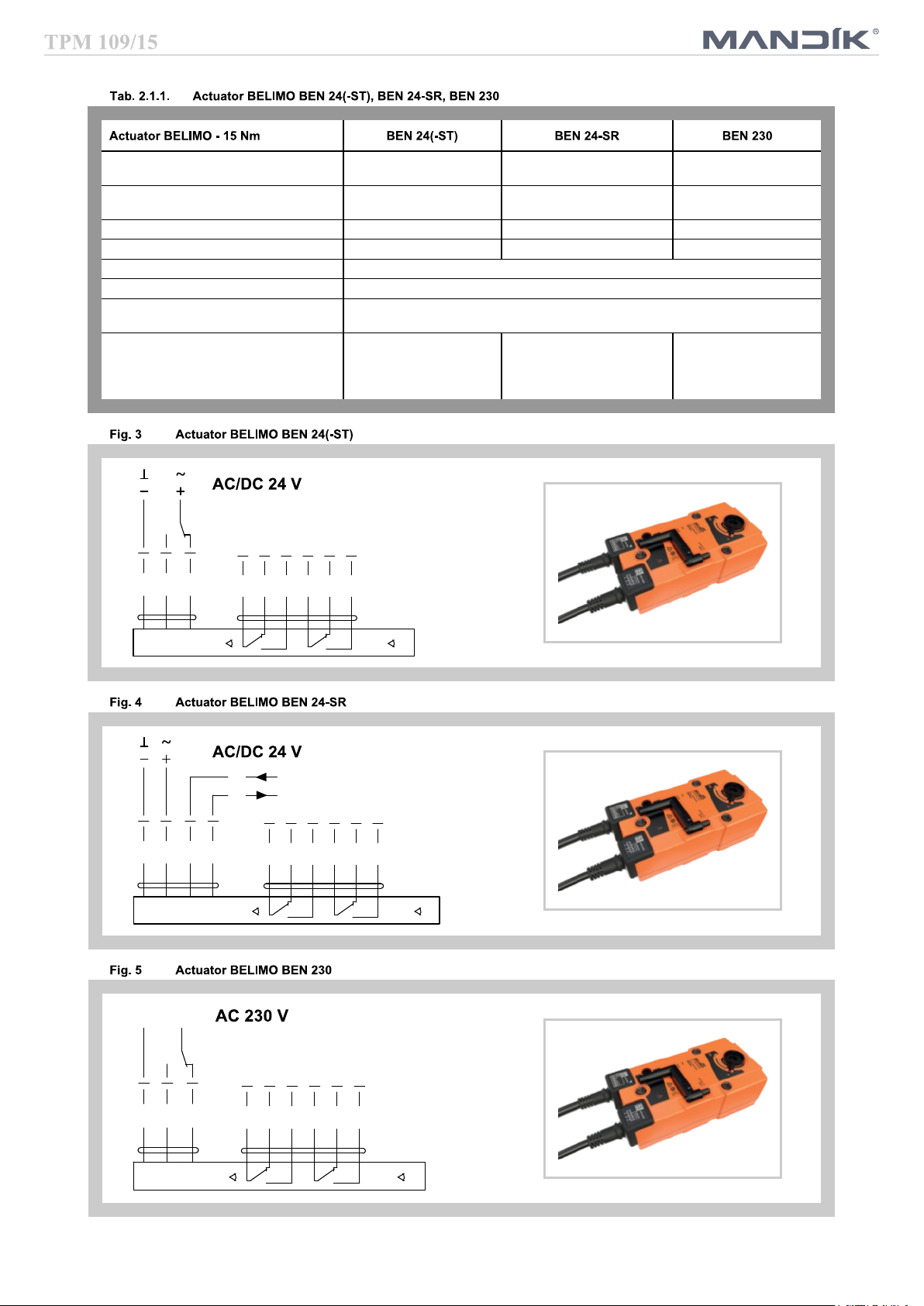

Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
3 W
0,1 W
3 W
0,3 W
4 W
0,4 W
Dimensioning 6 VA (Imax 8,2 A @ 5 ms) 6,5 VA (Imax 8.2 A @ 5 ms) 7 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEN 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V

6
S2S1 S3 S5S4 S6
2
13
<5° <80°
S2S1 S3 S5S4 S6
2
13
<5° <80°
N L1
S2S1 S3 S5S4 S6
2
13
<5° <80°
5
Y
U
DC (0)2...10 V
DC 2...10 V
Power voltage AC/DC 24 V
50/60Hz
AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
2,5 W
0,1 W
3 W
0,3 W
3,5 W
0,4 W
Dimensioning 5 VA (Imax 8,2 A @ 5 ms) 5,5 VA (Imax 8.2 A @ 5 ms) 6 VA (Imax 4 A @ 5 ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BEE 24-ST) with plug
connectors
Cable 1 m, 4 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2

7
S2S1 S3 S5S4 S6
2
13
<3° <87°
S2S1 S3 S5S4 S6
2
13
<3° <87°
N L1
Power voltage AC/DC 24 V
50/60Hz
AC 230 V
50/60Hz
Power consumption - in operation
- in the end position
12 W
0,5 W
8 W
0,5 W
Dimensioning 18 VA (Imax 8,2 A @ 5 ms) 15 VA (Imax 7,9 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Adjustment time for 95° < 60 s
Ambient temperature
Storage temperature
-30°C … +50°C
-40°C … +80°C
Connection - drive
- auxiliary switch
Cable 1 m, 3 x 0,75 mm2
Cable 1 m, 6 x 0,75 mm2
(BE 24-ST) with plug connectors

8
Nominal voltage 24-240 VAC/DC
50/60Hz
Power consumption - motoring
- heating
10 W
16 W (start at -20°C)
Protection class I
Degree of protection IP 66
Running time for 95° < 60 s
Ambient temperature range
Non-operating temperature
-40°C … +50°C
-40°C … +70°C
Connecting Cable 1 m, 0,5 mm2

9
BKNE 230-24
Actuating mechanism
Design with the communication and supply device BKNE 230-24
Design with communication and power supply device BKNE 230-24 and with actuator BEN (BEE,
BE)-ST for 24V.
The BKNE 230-24 serves on the one hand as a decentralized network device for powering the
actuator and on the other hand transmits the signal of the communication and control device
BKSE 24-6.
It simplifies electrical installation and connection of dampers. In the meantime, it facilitates
“on-site inspection” and allows central control and inspection of dampers using a simple 2-wire
line.
The BKNE 230-24 transmits the "OPEN" / "CLOSED" damper position (switches in the actuator)
and fault messages to the BKSE 24-6. It also receives commands from the control device and
controls the adjustment of the actuator to the desired position. The last control command will be
retained even after a temporary network failure..
The BKNE 230-24 controls the switching position of the actuator, its adjustment time and the data
exchange with the BKSE 24-6. In addition, it controls the actuator current (actuator connection)
and the power supply.
To simplify the connection, the actuator is equipped with plug connectors that plug directly into
the BKNE 230-24.
The actuator, communication and power supply device BKNE 230-24 can be mounted in an
insulated cover, they are accessible after removing the cover. The electrical connection of the
actuator and the BKNE 230-24 communication and power supply device is made with a non-
flammable cable (or a cable located in an adjoining cable duct), the two-wire BKNE 230-24 cable
should be connected to terminals 6 and 7. It is also recommended to use cable, which is used for
fire signalling network. The cables pass through an opening made in the wall of the insulated
cover when installing the damper or when connecting the actuator power cable. The cable entry
must meet a minimum fire resistance of 30 minutes.
For more information on actuators and devices, see the Belimo catalogue.
This variant is not available for dampers with Schischek InMax 50.75-S actuator.

10
1
2
3
4
5
6
7b
a
AC 230 V
Power voltage AC 230V 50/60Hz
Power consumption 10 W (including actuator)
Dimensioning 19 VA (including actuator)
Protection class II
Ambient operation temperature
Storage temperature
-30°C … +50°C
-40°C … +80°C
Connection - network
- drive
- terminal blocks
cable 1 m without plug
6-pin plug, 3-pin plug
screw terminals for 2x1.5 mm2 conductor
yellow flashing damper rotates to the open position
yellow lit-up damper is open
green flashing damper rotates to the closed position
green lit-up damper is closed
yellow or green flashes twice as often fault
yellow + green dark network outage
1 to 5 should not be
connected
two-wire line to
BKSE 24-6
Communication and supply device
