Mase FM 8000 S User manual

FM
3000 S
5000 S
8000 S
9000 ST
cod.41553
MANUALEDIUSOEMANUTENZIONE
USEANDMAINTENANCEMANUAL
MANUELD’INSTRUCTIONSETD’ENTRETIEN
GEBRAUCHSANWEISUNGUNDWARTUNGSVORSCHRIFTEN
MANUAL USO Y MANTENIMIENTO
GEBRUIKS-ENONDERHOUDSHANDLEIDING
masemase masemase
mase
GENERATORS

MASE FM
2
NR.000000
GENERATORS
MASE GENERATORS S.p.A.
Tel.[phone]
Fax [phone] (commercial dept.)
Fax [phone] (service dept.)
Fax [phone] -Tlx 550397
DICHIARAZIONE CE DI CONFORMITA'
EC DECLARATION OF CONFORMITY
Fabbricante/Manufacturer: MASE GENERATORS S.p.A.
Indirizzo /Address : Via Tortona 345, Pievesestina (FO)
Il sottoscritto Lorenzo Santucci in qualità di direttore tecnico della MASE GENERATORS S.p.A., dichiara
sotto la propria responsabilità che il gruppo elettrogeno modello .................... :
The undersigned Lorenzo Santucci as MASE GENERATORS S.p.A. technical manager declares, under his
sole responsability, that the generator model................:
Codice / Code Descrizione / Model Matricola / Serial N.
E' conforme alle disposizioni delle Direttive di seguito elencate :
CEE 89/392 (come emendata delle Direttive CEE 91/368 e CEE 93/44)
CEE 89/336 (come emendata delle Direttive CEE 92/31)
CEE 73/23 modificata da CEE 93/68.
Corresponds to the requirements of the following EEC Directives :
89/392/EEC (as amended by the Directive 91/368/EEC and 93/44/EEC)
89/336/EEC (as amended by the Directive 92/31/EEC )
73/23//EEC as amended by 93/68/EEC.
Cesena, / / ......................................................
Direttore Tecnico
Technical Director
MASE GENERATORS S.p.A.Sede legale ed Amm.: 47023 CESENA (FO) ITALY - Via Tortona, 345 - C.F./P.I. 00687150409 Cap. Soc. milioni
1250 interamente versato - Registro Società Tribunale Forl' n. 6818 - CCIAA Forl' n.164063 - c.c.p. n. 11541471 - EXPORT FO n. 006368
Nomefile:41553.P65 Data di aggiornamento: 30/04/99 Redatto: M.C.
A

MASE FM
3
1
2
3
4
5
6
7
8
2
9
1
10
1
4
5
6
2
3
8
7
910
11

MASE FM
43
4
52
763
11
2
4
FM 8000 S FM9000ST
76
10
3
14
82 3
10
7 6
14
8
11
7 632
14
11
7 69
FM 9000 STD
3
FM 5000 S
FM 3000 S

MASE FM
5
4
6
1
5
1
23
7
1
1
2
3

FMMASE F
68
4
2
11
3

MASE FM
79
FM 3000 S

MASE FM
810
FM 5000 S

MASE FM
9
11
FM 8000 S

MASE FM
10
12
FM 9000 ST

MASE FM
11 13
FM 9000 STD

FMMASE GB
23
INDEX
1GENERAL INFORMATION.................................24
1.1 Purpose of the manual.........................................24
1.2 Symbols ...............................................................24
1.3 Reference documents..........................................25
1.4 Facsimile of EEC declaration of conformity .........25
1.5 Reference regulations and legislative provisions.25
1.6 Marking ................................................................25
1.7 Machine identification ..........................................25
1.8 Generator composition.........................................25
1.9 Instrument panel (Fig. 3)......................................25
2TECHNICAL CHARACTERISTICS.....................26
2.1 Table of technical characteristics.........................26
3SAFETY REGULATIONS ...................................27
3.1 Precautions ..........................................................27
3.2 Prescriptions for safety during installation ...........27
3.3 Connection to earth..............................................28
4USING THE GENERATOR .................................28
4.1 Preliminary safety checks ....................................28
4.2 Refuelling .............................................................28
4.3 Starting.................................................................28
4.4 Using the generator .............................................29
4.5 Protections and warning signals ..........................29
4.6 Switching off.........................................................29
5MAINTENANCE ..................................................29
5.1 Preamble..............................................................29
5.2 Spark plug maintenance ......................................29
5.3 Engine oil .............................................................30
5.4 Air filter.................................................................30
6TRANSPORT ......................................................30

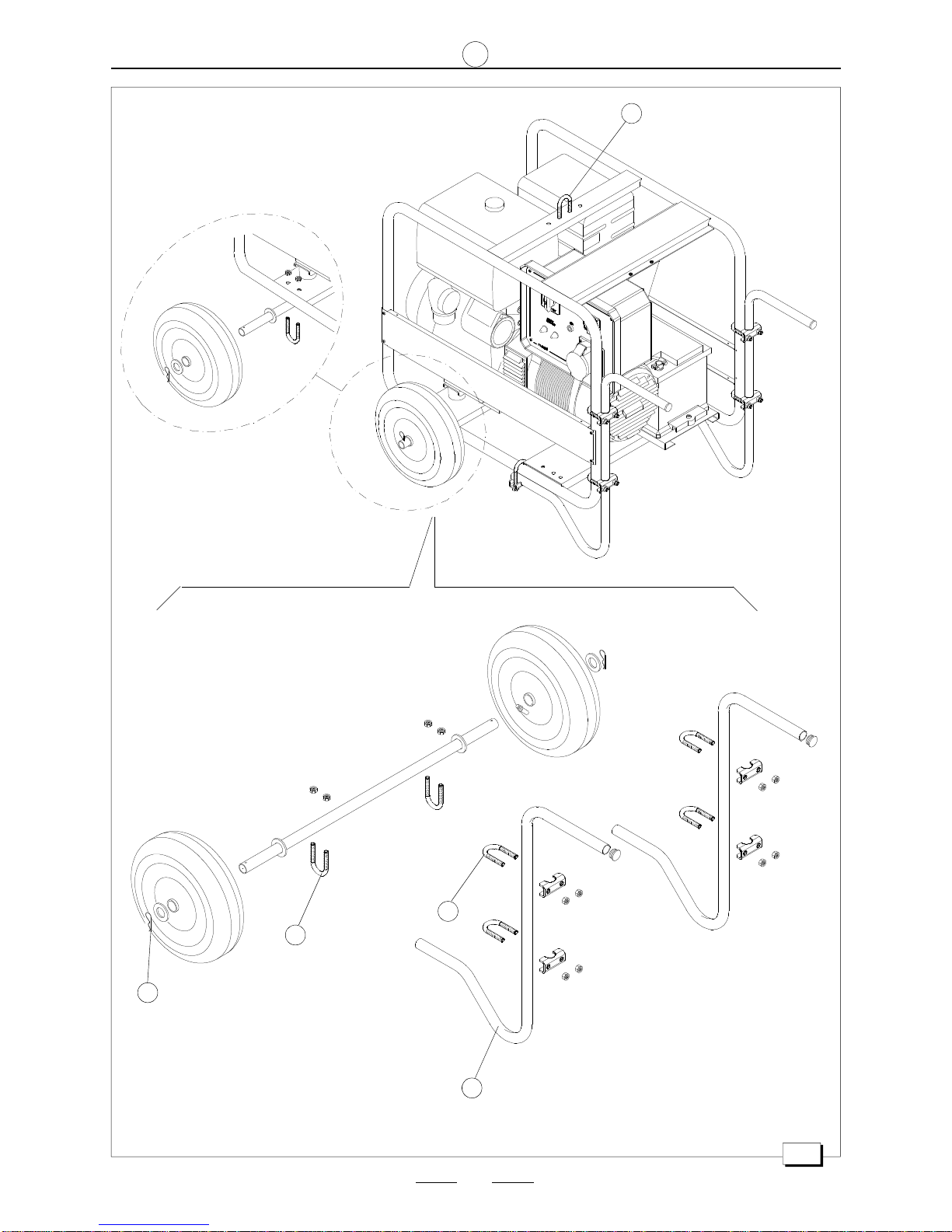

6.1 Trolley (optional) ..................................................30
6.2 Lifting ...................................................................30
7STORAGE ...........................................................31
8SCRAPPING .......................................................31

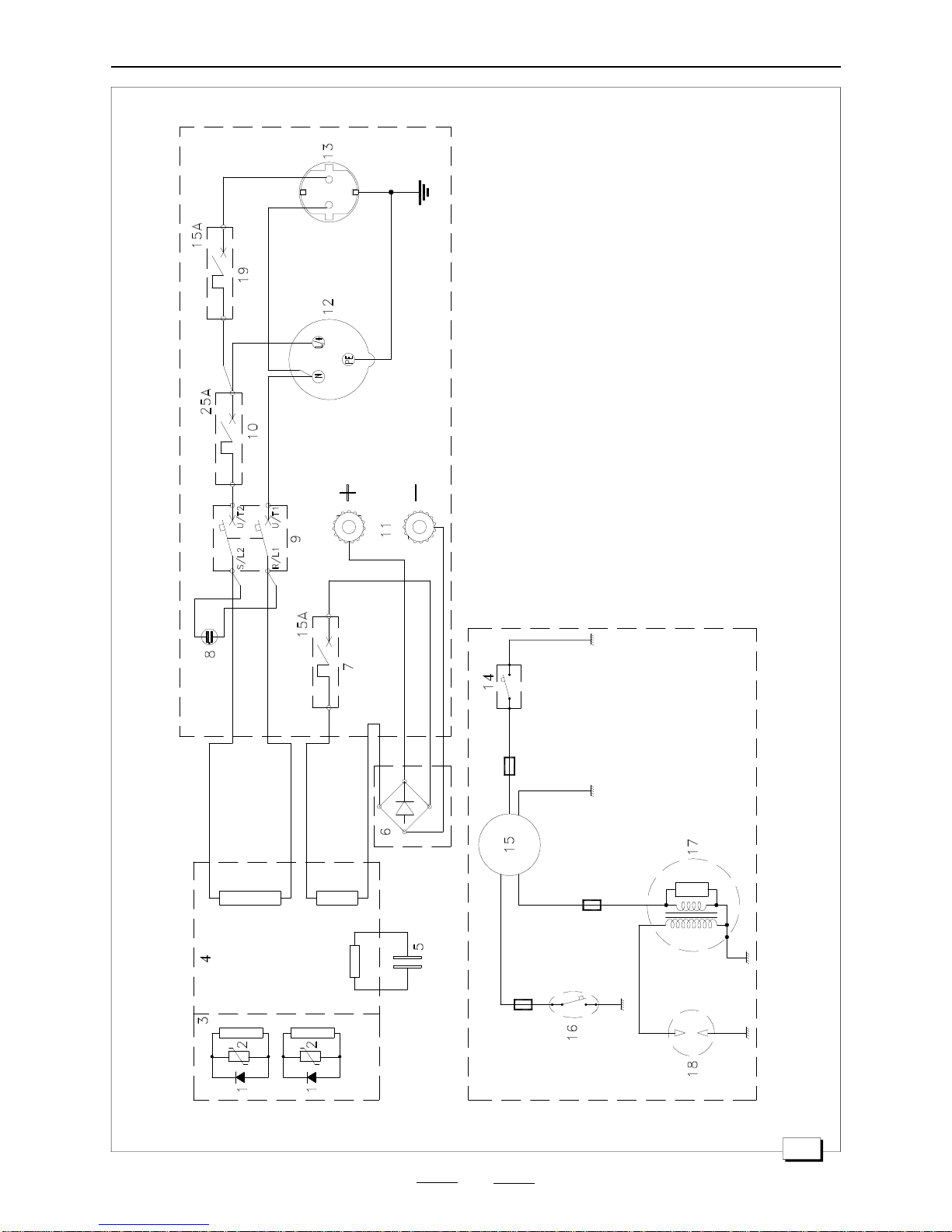

9WIRING DIAGRAMS...........................................31

FMMASE GB
24
1. GENERAL INFORMATION
Carefully consult this manual before proceeding with any operation on the generator.
1.1 PURPOSE OF THE MANUAL
Thank you for choosing a MASE product.
This manual has been drawn up by the manufacturer and constitutes an integral part of the generator equipment. It
must be kept safely, protected from humidity and from any agent which might damage it, and must accompany the
generator if transferred to another user or to a new owner.
The information contained in the manual is addressed to all those persons involved in the operating life cycle of the
generator,andisusefulforinformationforboththosewhoeffectivelycarryoutthedifferentoperationsandthosewho
coordinate the activities, arrange the necessary logistics and regulate access to the place of installation.
Themanualdefines the purposefor which thegenerator wasconstructed and containsall theinformation necessary
to guarantee safe and proper use.
Constant observance of the instructions contained in this manual guarantees the safety of the operator, operating
economy and a longer life of the generator.
Tofacilitateconsultation,ithasbeendividedintosectionsidentifyingthemainconcepts.Foraquicklookatthetopics,
consult the index on Page 23.
1.2 Symbols
Thoseparts of thetextnot to beignoredare highlighted inboldtype preceded byasymbol, as illustratedanddefined
below:
Indicates that particular attention must be paid in order to prevent running into serious danger
which could lead to death of personnel or possible hazards to health.
A condition which may occur during the lifetime of a product, system or plant considered at risk
regarding damage to persons, property, the environment or economic loss.
Indicates that particular attention must be paid in order to prevent serious consequences which
could result in damage to tangible goods, such as the resources or the product.
Instructions of particular importance.
Thedrawingsareprovidedbywayofexample.Evenif the generator in your possession differsconsiderablyfromthe
illustrations contained in this manual, the safety of the generator and the information provided are nevertheless
guaranteed.
The manufacturer in his pursuit of a policy of constant development and upgrading of the product may make any
modifications without prior notice.

FMMASE GB
25
1.3 Reference documents
The instructions for use provided with each generator
are made up of a collection of documents of which this
manual represents the General Part.
Normally, the following documents are provided:
a – EEC declaration of conformity
b – Instruction manual for use of the generators (this
manual)
c – Wiring diagrams of the control panels and power
board
d – Engine use and maintenance manual
e–Useandmaintenancemanualissuedbythealternator
manufacturer
f – Any other manuals for the optional accessories
issued by the respective manufacturers
g – List of Mase Service Centres
1.4 Facsimile of EEC declaration of conformity
The generators intended for countries in the European
Community are in conformity with the applicable EEC
Directives (see 1.5).
ThegeneratorsconstructedbyMASEinconformity
with the applicable EEC Directives are furnished
withanEECdeclarationofconformity(Fig.A)
1.5Referenceregulationsandlegislativeprovisions
AlltheMASEgeneratorsaredesignedandmanufactured
in compliance with the legislation in force.
The generator and its components are constructed in
accordance with the following applicable regulations
and directives:
EN292-1/2Machinesafetyregulations.Generaldesign
principles.
EN 294 Machinesafetyregulations. Safety distances to
preventcontactofdangerouspartswiththeupperlimbs.
ISO 3046 Alternate internal-combustion engines.
IEC 34-1 Rotary electric machines.
ISO 8528-1 Alternate current generators driven by
alternate internal-combustion engines.
EN 60204-1 (CEI 44-5) Machine safety. Electrical
equipment of machines.
EN 60439-1 (CEI 17-13/1) Assembled protection and
manoeuvring equipment for low voltage (BT panels).
EN50081-1/2 Electromagnetic compatibility. General
regulationonemission–Part1:Residential,commercial
and light-industry environments. Part 2: Industrial
environment.
EN 50082-1/2 Electromagnetic compatibility. General
regulationonimmunity–Part1:Residential,commercial
and light-industry environments. Part 2: Industrial
environment.
89/392/EECandsubsequentamendmentscontainedin
theDirectives91/368/EEC,93/44/EECand93/68/EEC.
Essential machine requirements for safety and health
protection (“Machine” directive).
73/23/EEC and subsequent amendments contained in
theDirective93/68/EEC.Guaranteeofsafetyofelectrical
material intended for use within certain voltage limits
(“Low Voltage” directives).
1.6 Marking
The generator identification plate carries all the
identification data in conformity with ISO 8528 and in
accordance with the provisions for EEC marking for
those cases where required. Below is a facsimile of the
identification plate fixed on the control panel of each
generator (Fig. 1).
1.7 Machine identification
See Fig. 1.
1 – Manufacturer
2– Machine code
3– Year of construction
4– Power factor
5– Declared frequency
6– Continuous power
7– Rated voltage
8– Rated current
9–Weight
10 – Serial number
1.8 Generator composition
The generators of the FORMULA series are essentially
composed of the following components:
-Engine air filter (Fig. 2 Ref. 1)
-Knob for pull-start
-Petrol-powered internal-combustion engine (Fig. 2
Ref. 3)
-Terminal for earth connection of generator(Fig. 2
Ref. 4)
-Alternator unit (Fig. 2 Ref. 5)
-Instrument and outlet panel (Fig. 2 Ref. 6)
-Engine exhaust (Fig. 2 Ref. 7)
-Load-bearing chassis (Fig. 2 Ref. 8)
-Lifting hook (Fig. 2 Ref. 9)
-Fuel tank (Fig. 2 Ref. 10)
-Fuel closing tap (Fig. 2 Ref. 11)
1.9 Instrument panel (Fig. 3)
Eachgenerator isfittedwith aninstrumentpanel for the
controls carrying the following components:
1) Main switch
2) Single-phase thermal switch
3) Pilot light
4) Schuko outlet, 16A 2P+GND
5) EEC outlet, 16A 230V 2P+GND
6) DC output terminals
7) DC thermal switch
8) Three-phase thermal switch
9) Differential magnetothermal switch
10) EEC outlet, 32A 230V 2P+GND
11) EEC outlet, 16A 400V 3P+GND
The machine code number, the serial number and the
year of construction must always be quoted when
contacting the manufacturer for information, requests
for spare parts, etc.

FMMASE GB
26
2. TECHNICAL CHARACTERISTICS
2.1 Table of technical characteristics
MODEL FM 3000 S FM 5000 S FM 8000 S FM 9000ST
GENERATOR Synchronous, self-energised, self-regulating, two-pole
Type Single-phase Three-phase
Maximum power 2300 W4000 W6100 W7000 VA
Continuous power 2000 W3400 W6750 W6750 W
Voltage 230 V 400 V
Frequency 50 Hz
12V direct current 15 A
Power factor Cos Ø 1
ENGINE
Type 4-stroke, petrol, overhead valves
Model SUZUKI V160 SUZUKI V270 SUZUKI V420
Cooling Forced air
No. of cylinders 1
Fuel Unleaded petrol
Power 4.6 HP 8.2 HP 12.3 HP
Capacity 162 cm3 272 cm3 419 cm3
Aspiration Natural
Rotation 3000 rpm
Tank capacity 3.8 lt. 6.5 lt. 8.2 lt.
Oil sump capacity 0.55 lt. 1.1 lt.
Autonomy at ¾ load 3.5 h 3 h 2.5 h
Starting Pull-start with self-winding cord
GENERATOR
Dimensions (LxWxH) 595 x 420 x 460 mm 720 x 505 x 580 mm
Weight 49 kg 70 kg 90 kg
Sound power 92 LwA 94 LwA 96 LwA

FMMASE GB
27
3. SAFETY REGULATIONS
3.1 Precautions
Before starting the generator and before starting any
lubricationormaintenanceoperation,itisindispensable
for the staff responsible to read and understand all the
WARNINGS and all the CAUTION and DANGER
indicationslistedinthismanualandinthesupplementary
documentation furnished.
Nevertheless, the manufacturer cannot foresee all the
possible circumstances which may lead to potential
risks in the effective conditions of use of the generator.
Any operations and/or procedures for maintenance not
expresslyrecommendedorindicatedintheusermanuals
must always be notified to and approved by the
manufacturer.
In the event that a procedure not specifically
recommended needs to be applied, the user is
responsibleforassuringthatsuchprocedureissafeand
does not cause harm to people.
Themanufacturerdeclinesallresponsibilityfordamage
to persons or things deriving from inobservance of the
safety regulations.
Carefully examine the safety warning plates on the
machine and respect the relevant instructions.
-Do not permit incompetent persons or without
adequate training to use the generator.
-Do not permit children or animals to approach the
generator when it is in operation.
-Do not access the generator with wet hands,
since it is a potential source of electric shock if
improperly used.
-Any inspections of the generator must be carried
out with the engine off. Inspections with the
engine on are to be carried out by specialised
personnel only.
-The exhaust gas contains carbon monoxide and
other noxious residues. Never operate the
generator in inadequately ventilated places.
-Do not operate the generator near places with a
danger of explosion or fire.
-If filling the fuel tank manually, do so exclusively
with the engine off.
-The generator must be connected to earth using a
copper wire with a cross-section of not less than
6 mm2.
Do not allow access to persons
with a pacemaker because of possible
electromagnetic interference with the device.
In the event of fire, use a
homologated fire extinguisher – never use water.
Whenusingthegeneratoralways
bear in mind that in wet or very humid places and in
confinedconductionspacesitisobligatorytocomply
with articles 313 and 318 of Presidential Decree No.
547 27/04/55, as well as Chap. 11 Section IV of the
CEI 64-8 regulation.
3.2 Prescriptions for safety during installation and
starting
The personnel in charge of
installationandstartingofthegeneratormustalways
wearaprotectivehelmet,safetyshoesandoveralls.
Immediately change wet overalls.
Use protective gloves.
Do not remove the original protections on all the
exposed rotating parts, hot surfaces, air intakes,
belts and live parts.
Do not leave disassembled parts, tools or anything
else not forming part of the system on or near the
engine.
Neverleaveinflammableliquidsorcloths soakedin
inflammable liquids in proximity of the generator,
near electric equipment (including lamps) or parts
of the electrical system.
Takethenecessaryprecautionstopreventthedanger
ofelectrocution.Checkthattheearthingsystemhas
been installed and constructed in accordance with
regulations.
Forproperandsafeinstallationofthegeneratoroperate
as follows:
•Install the necessary protections for safety on the
complementary parts of the system.
•Insulate all the connectors and stripped wires. Do
not leave the power terminal board uncovered.
•Ensurethattheelectricpowerandutilityconnections
are carried out properly.
•Check perfect functioning of the devices fitted to
stop the generator in case of a fault: low oil level.
•Check that the engine exhaust is free and the
exhaust pipes clear.
•Check that the exhaust gas is discharged to the
outside atmosphere in a safe position away from
doors, windows and air intakes.
•Checkthattherearenofuelleaksandthatthepipes
are undamaged.

FMMASE GB
28
3.3 Connection to earth
For the safety of the users the connection to earth must
always be carried out taking particular care that the
cross-sectionofthecableusedisneverlessthan4mm2.
For the connection of the earth cable use the dedicated
terminal on the chassis (Fig. 6 Ref. 1).
4. USING THE GENERATOR
4.1 Preliminary safety checks
Before beginning with any starting procedure, it is
extremely important to become “familiar” with the
generator and its controls. Furthermore, a visual
inspection must be carried out on the machine and the
installation.
Any potential or real danger must be eliminated before
proceeding.
•Identify the position of the emergency stop button,
switches and other emergency systems on the
generator.
•Learnthespecialemergencyproceduresrelativeto
the installation in question.
•Identify the position of the fire extinguisher or other
protection and emergency devices and learn their
functioning.
•Identify any sources of danger such as fuel, engine
oil or acid solution leaks, condensate in the drip
caps, high voltage, high pressure.
•Ensure that the generator is clean and that the
surrounding areas are clean and free of obstacles.
•Checkthattherearenoobstructionsintheinletsand
ventilation ducts.
•Check that the exhaust pipe is not oriented against
obstacles, or make sure that these are at least two
metres away.
•Check that the earth connection has been carried
out properly.
At first starting of the generator, after having done any
type of maintenance work, it is always good practice to
check:
-the oil level by means of the dipstick (see table of
recommended oils)
-that all the electrical utilities are off so that the
generator is not started on load
-that the fuel pipes are undamaged and properly
connected
-that there are no electrical connections in a bad
state.
4.2 Refuelling
Refuellingmustalwaysbecarried
out with the engine off.
-Do not smoke and do not use open flames
during refuelling.
-Refuel in well-ventilated places.
-Avoid contact of fuel with the skin and do not
inhale the fumes.
Petrol is highly toxic and
inflammable. Fuel must be kept in special airtight
containers and stored in inaccessible places.
Always use new petrol. Petrol
kept in containers for long periods of time forms
deposits which may damage the engine.
Do not use additives or special fluids to start the
engine, as the gaskets and other rubber parts may
get damaged.
Refuellingmustbecarriedoutwithextremecare,ensuring
that fuel does not overflow from the engine tank and
respectingthemaximumlevelindexmarkedbyaredline
on the tank fuel filter. Use lead-free and alcohol-free
petrol with a minimum octane rating of 87.
Leaded petrol may be used, provided that it is alcohol-
free.
Whenrefuellinghasbeencompleted,carefullyclosethe
fillercap.
4.3 Starting
Before starting the generator, check that:
-the main switch is in position “0” to prevent putting
the still cold engine under stress (Fig. 3 Ref. 1)
-theenginestopswitchisinposition“ON”(Fig.4Ref.2)
-the fuel tap lever is in position “ON” (Fig. 4 Ref. 3).
Iftheengineiscold,turnthestartlevertotherightbefore
trying to start (Fig. 5 Ref. 1)
(iftheengine is hot,the start leverneed notbe turnedto
the right).
Proceedby resolutely pullingthe self-windingcord(Fig.
2 Ref. 2) to start running the engine.
Repeattheoperationiftheenginedoesnotstartafterthe
first attempt.
Assoon as theenginehas started, returnthe startlever
to its original position.
To prevent damage to the self-
windingcord,neverreleaseitsuddenlyafterpulling
it to full travel, but guide it back until completely
rewound.
Presenceofelectricpoweronthe alternator is signalled
by a pilot lamp on the instrument panel.

FMMASE GB
29
4.4 Using the generator
Before connecting any utility leave the engine to run for
a few minutes so that it gradually reaches the operating
temperature.
Each generator is equipped with two outlets:
-both single-phase for models FM 3000 – 5000 –
8000 (Fig. 3 Ref. 5-10)
-onesingle-phaseandonethree-phaseoutletforthe
model FM 9000 (Fig. 3 Ref. 4-11).
The power available for the outlets is that indicated on
theadhesivelabelcarryingthetechnicalcharacteristics.
The sum of absorption of all the
utilities connected to the generator must never
exceedthecontinuouspowervalueofthegenerator.
4.5 Protections and warning signals
The generator is equipped with several protections and
warningsignalswhichsafeguarditagainstmalfunctioning
and improper use. These are:
-AC CIRCUIT PROTECTION: in case of a short-
circuit or overload, the automatic thermal switch
(Fig. 3 Ref. 2-B) trips interrupting current delivery
to the outlets.
To restore the thermal switch contact, after
having identified and eliminated the cause of the
cut-out and waiting for about a minute, press the
thermal switch button resetting it to the original
position (Fig. 3 Ref. 2-8).
-DCOUTPUTPROTECTION:incaseofanoverload,
short-circuit or polarity inversion of the DC outlet
terminals, the automatic thermal switch (Fig. 3 Ref.
7) trips interrupting current delivery.
To restore the thermal switch contact, after having
identified and eliminated the cause of the cut-out
and waiting for about a minute, press the thermal
switchbuttonresettingittotheoriginalposition(Fig.
3 Ref. 7).
-LOW OIL PROTECTION: this protection
automatically turns off the engine when the oil level
fallstobelowtheminimum.Thisissignalledbyared
light located on the engine (Fig. 4 Ref. 1).
4.6 Switching off
Beforeswitchingoff,disconnectanyloadsconnectedto
the outlets, close the fuel tap and let the engine idle for
about 10 seconds.
To switch off the engine, position the on/off switch to
“OFF” (Fig. 4 Ref. 2).
5. MAINTENANCE
5.1 Preamble
Any maintenance operation on
thegeneratormustbecarriedoutwiththeengineoff
and leaving it to cool down sufficiently, and must
onlybecarriedoutbyauthorisedandsuitablytrained
personnel.
Itisrecommendedtoscrupulouslyfollowtheinstructions
inthe manual providedby theenginemanufacturer and
attached to each generator.
It is important to regularly inspect and carry out
maintenance on the generator. The frequency of
maintenance should be decided on the basis of the
number of hours of operation.
DESCRIPTION OPERATION
Spark plug Check and clean every 100 hours
Replace every 300 hours
Engine oil First oil change after 20 hours
Periodic oil change every 100 hours
Tank fuel filter Check and clean every 300 hours
Fuel filter cup Check and clean every 100 hours
Air filter Clean every 50 hours
Replace every 300 hours
Cooling fins Check and clean every 300 hours
Safety of the user depends on
how efficiently maintenance is carried out.
Carefully follow all the instructions relative to
inspections and maintenance.
Before any maintenance operation, switch off the
engine and disconnect the spark plug.
Never work near a fire or open flames (such as gas
heaters etc.) as these present a danger of fire and
explosion of fuel vapours.
5.2 Spark plug maintenance
SPARK PLUG TYPE NGK BPR6ES
Thecarbonresidueswhichwithusedepositonthespark
plugs must periodically be removed. Use a small metal
brush or a specific detergent.
Adjust the distance between the spark plug electrodes
resetting a value of 0.7 – 0.8 mm.
For further information consult
the engine use and maintenance manual.
Dispose of the solvents used for
spark plug cleaning in an appropriate manner.
Carryoutthecleaningoperations
wearing protective gloves and glasses.

FMMASE GB
30
5.3 Engine oil
Checktheengineoillevelwiththedipstickpositionedon
the oil fillercap (Fig. 5 Ref. 2).
Check the oil only with the engine is positioned on a flat
surface and the oil filler cap not screwed down but only
resting.
If the engine oil level is low, top up using only classified
multigrade oils SE, SF, SG, SH in accordance with the
API classification system.
To change the engine oil, remove the fillercap and the
drain plug (Fig. 5 Ref. 3) and let the oil flow into a
collection container.
Itisrecommendedto carry out thisoperationwiththeoil
hot for easier drainage.
Close the drain plug and pour in the necessary quantity
of oil to fill the oil sump to the maximum level.
FM 3000S - Oil sump capacity 0.55 l
FM 5000S - Oil sump capacity 1.1 l
FM 8000S - Oil sump capacity 1.1 l
FM 9000S - Oil sump capacity 1.1 l
By law the used oil must be
disposed of at authorised centres for used oil
recovery.
Protect hands from contact with
oil by wearing gloves.
In the event of accidental contact with engine oil,
thoroughly wash the affected part with soap and
water.
During oil top-up and refuelling,
respectthemaximumlevelindication.Anexcessive
quantity of engine oil may cause damage to the
engine.
5.4 Air filter
Check and clean the filtering element according to the
following procedures:
-Brushordustoffallthedust,dirtanddepositsonthe
air filter cover.
-Remove the air filter cover by unscrewing the
retaining screws (Fig. 7 Ref. 1).
-Immersethe filtering elementinanon-inflammable
solvent and wash it.
-Toremovethesolvent,wringoutthefilteringelement
without twisting it to prevent breakage.
-Immerse the filtering element in a container of
engine oil. Squeeze the filtering element to remove
excess oil. Ensure that the filtering element is
moistened in oil but not soaked.
-Dry the inside of the air filter with a clean cloth.
FOR FURTHER INFORMATION CONSULT THE
ENGINE USE AND MAINTENANCE MANUAL.
Protect hands from contact with
oil and solvents by wearing gloves.
In the event of accidental contact with engine oil or
solvent, thoroughly wash the affected part with
soap and water.
Dispose of the solvents used for
air filter cleaning in an appropriate manner.
Keep the solvent out of reach of
children and animals.
Appropriately dispose of used solvents.
6. TRANSPORT
6.1 Trolley (optional)
Atwo-wheeltrolleyisavailabletotransportthegenerators
of the FM series.
Figure 8 illustrates an assembled trolley and the
components making up the kit.
To assemble the trolley proceed as follows:
-Anchorthewheelaxletothechassisbaseusingthe
special U-bolts (Fig. 8 Ref. 1)
-Fit the wheels to the hubs and lock them with the
plastic pins (Fig. 8 Ref. 2)
-Fix the lifting handlebars (Fig. 8 Ref. 3) to the
chassis anchoring them with the U-bolts provided.
6.2 Lifting
The generators of the FM series are fitted with a lifting
hook to be used for handling (Fig. 8 Ref. 4).
Hook the generator carefully and lift it slowly without
suddenmovementstopreventdamagetothegenerator.
During lifting all personnel must
keep a safe distance and the operators must wear
protective helmets.

FMMASE GB
31
7. STORAGE
Beforestoringthegeneratorforalongperiodofinactivity,
thefollowingoperationsmustbecarriedouttosafeguard
the integrity of the generator:
-Remove the spark plug and pour 5 cm3engine oil
into the combustion chamber. With the aid of the
self-winding cord let the engine turn a few times so
that the oil can spread to grease the cylinder and
piston, and then remount the spark plug.
-Emptyoutthetank and the carburettorremoving all
the petrol.
-Change the engine oil
-Clean the air filter
-Cleantheoutsideofthegenerator,removingalldust
and impurities.
-Cover the generator with a nylon sheet and store in
a dry and ventilated place.
8. SCRAPPING
At the end of its lifetime the generator must be taken to
official scrapyards.
Do not dispose of the generator
at household refuse disposal sites, as many of its
parts are polluting.
9. WIRING DIAGRAMS
FM 3000 S
1Diode
2Varistor
3Rotor
4Stator
5Capacitor
6Diode bridge
7Magnetothermal switch
8230 V pilot lamp
9Main switch
10 Magnetothermal switch
11 Battery charger terminals
12 Single-phase outlet
13 Single-phase outlet
14 Stop button
15 Low-level protection card
16 Low oil level protection float
17 DC alternator
18 Spark plug
FM 4000 S
1Diode
2Varistor
3Rotor
4Stator
5Capacitor
6Diode bridge
7Magnetothermal switch
8230 V pilot lamp
9Main switch
10 Magnetothermal switch
11 Battery charger terminals
12 Single-phase outlet
13 Single-phase outlet
14 Stop button
15 Low-level protection card
16 Low oil level protection float
17 DC alternator
18 Spark plug
FM 8000 S
1Diode
2Varistor
3Rotor
4Stator
5Capacitor
6Diode bridge
7Magnetothermal switch
8230 V pilot lamp
9Main switch
10 Magnetothermal switch
11 Battery charger terminals
12 Single-phase outlet
13 Single-phase outlet
14 Stop button
15 Low-level protection card
16 Low oil level protection float
17 DC alternator
18 Spark plug
19 Magnetothermal switch

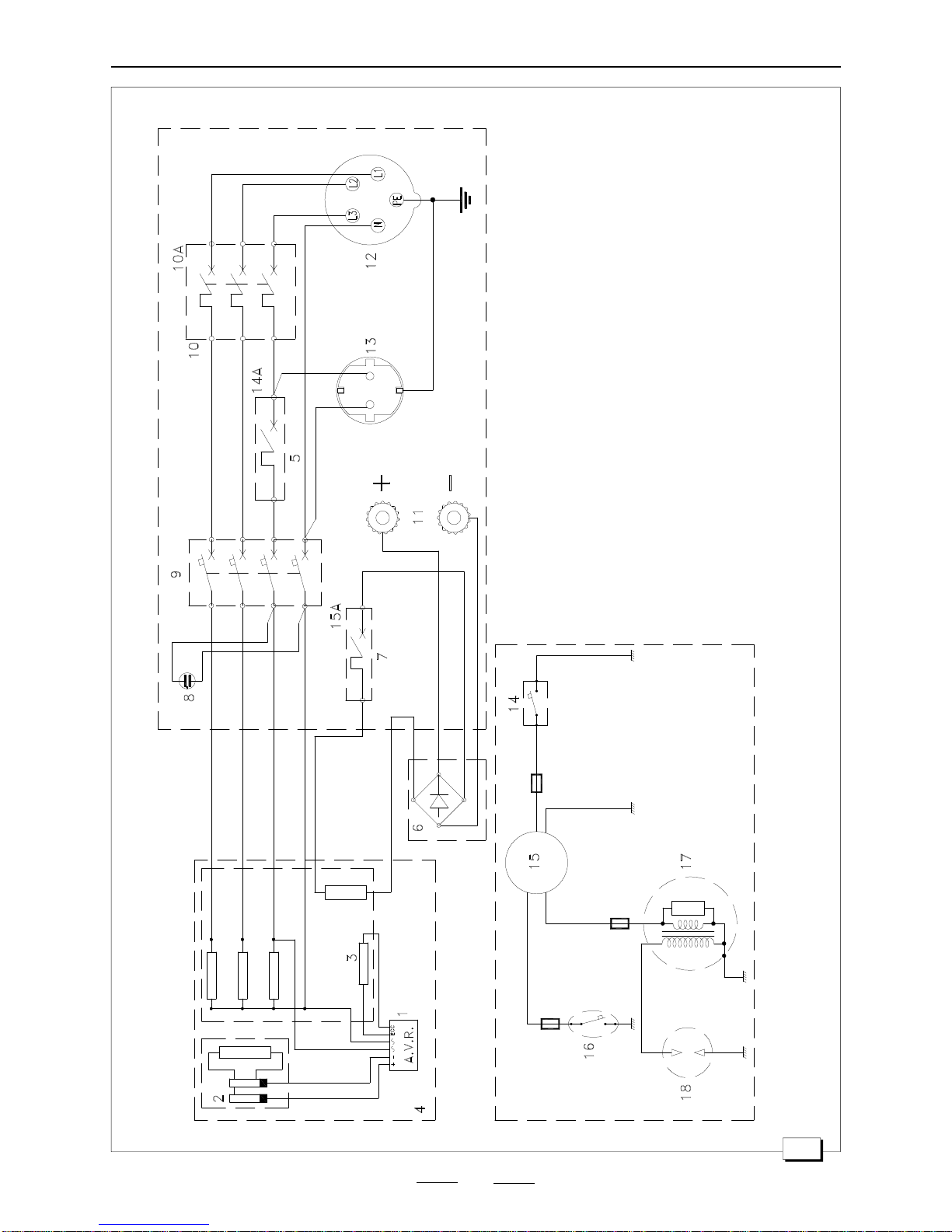

FM 9000 S
1Electronic voltage regulator
2Rotor
3Stator
4Alternator
5Magnetothermal switch
6Diode bridge
7Magnetothermal switch
8230 V pilot lamp
9Main switch
10 Magnetothermal switch
11 Battery charger terminals
12 Three-phase outlet
13 Single-phase outlet
14 Stop button
15 Low-level protection card
16 Low oil level protection float
17 DC alternator
18 Spark plug
19 Magnetothermal switch
