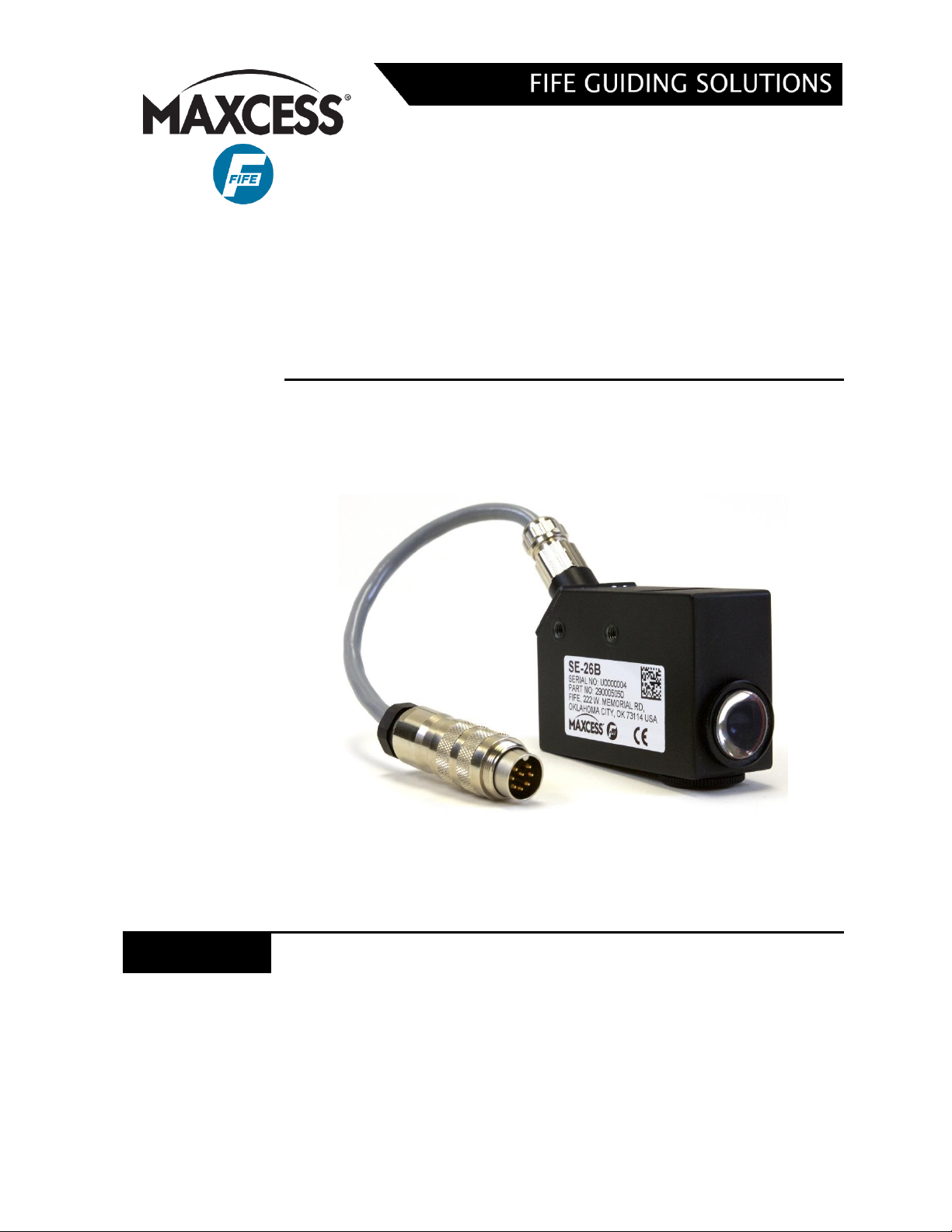

Maxcess SE-26B User manual

SE-26B
Line Guide Sensor
Installation Manual
EN
MI 1-928 1 B

CONTENTS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
INTRODUCTION 1-1
About these operating instructions ...................................................................... 1-1
Product overview .................................................................................................. 1-2
SAFETY INSTRUCTIONS 2-1
Safety symbols ..................................................................................................... 2-1
Basic safety information ....................................................................................... 2-3
INSTALLATION 3-1
Product dimensions.............................................................................................. 3-1
Mechanical installation ......................................................................................... 3-2
Guiding types supported............................................................................. 3-2
Change sensing orientation ........................................................................ 3-2
M20 mounting bracket................................................................................ 3-3
Different material types .............................................................................. 3-3
Electrical installation ............................................................................................ 3-3
OPERATION 4-1
Modes of operation .............................................................................................. 4-1
Line guiding................................................................................................ 4-1
Edge guiding............................................................................................... 4-1
MAINTENANCE 5-1
TROUBLESHOOTING 6-1
SPECIFICATIONS 7-1
SERVICE 8-1
LIST OF FIGURES
Figure 1. SE-26B Outline dimensions ................................................................................. 3-1
Figure 2. SE-26B Mounted on M20 mounting bracket ........................................................ 3-1
Figure 3. Guiding types ...................................................................................................... 3-2
Figure 4. Changing sensor direction .................................................................................. 3-2
Figure 5. Guiding different material types.......................................................................... 3-3

1–1
INTRODUCTION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
About these
operating
instructions
All of the information herein is the exclusive proprietary
property of Maxcess International, and is disclosed with the
understanding that it will be retained in confidence and will
neither be duplicated nor copied in whole or in part nor be
used for any purpose other than for which disclosed.
Copyright 2017, all rights reserved.
Periodically there will be updates to this manual. The latest
version is available on our website or by calling your
regional office listed on the back page of this publication.
The line guiding sensor must not be installed or used in a
machine or system which does not comply with the
machinery directive 2006/42/EC.
These line guiding sensors were designed and
manufactured to be installed as Partly Completed
Machinery into a machine or partly completed machine.
The instructions must be read and used by all persons who
have the responsibility of installing and maintaining this
line guide sensor.
These instructions must be retained and incorporated in
the technical documentation for the machine or partly
completed machinery into which the line guide sensor is
installed.
CE marking
This line guiding sensor is marked with the CE sign
according to the EMC directive 2004/108/EC.
Conventions used in
this manual
All dimensions and specifications are shown in the format
mm [inches] unless specified otherwise.
Language
These are the original instructions, written in English.

1–2
INTRODUCTION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Product overview
The SE-26B is a visible white LED light sensor that can be
used to guide to the center of a line or to an edge. The
sensor provides two output signals to the Fife guiding
controller, one for EDGE mode and one for LINE mode.
The lens and cover components can be unscrewed and
interchanged to change the sensing orientation.
Model number format
The model number consists of the base model "SE-26B"
and may be followed by optional alphanumeric
characters.
Serial number format
LMMDDYYNNN
L= manufacturing location
MM = 2 digit month
DD = 2 digit day
YY = 2 digit year
NNN = 3 digit sequential number
Available accessories
Cable assemblies
Connect the SE-26B pigtail to a Fife guiding controller.
The maximum length is 15 m [49 ft].
Maxcess part number
Length
29L224616-005
5.0 m [16 ft]
29L224616-XXX
As specified in meters
M20 Fine adjustment bracket
See page 3-3.
Maxcess part number
29L72962001

2–1
SAFETY INSTRUCTIONS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Instructions for use
To ensure safe and problem free installation of the line
guiding sensor, the sensor must be properly transported and
stored, professionally installed and placed in operation.
Proper operation and maintenance will ensure a long service
life of the device. Only persons who are acquainted with the
installation, commissioning, operation and maintenance of
the system and who possess the necessary qualifications for
their activities may work on the line guiding sensor. Note:
The safety information may not be comprehensive.
Please note the following:
The content of these operating instructions
Any safety instructions on the device
The machine manufacturer’s specifications
All national, state, and local requirements for
installation, accident prevention and environmental
protection
Safety symbols
Information about
safety symbols
The safety instructions and symbols described in this section
are used in these operating instructions. They are used to
avoid possible dangers for users and to prevent material
damage.
SIGNAL WORD
Source of danger and its results
Avoiding dangers
The signal word DANGER refers to the danger of death or
serious bodily injuries.
The signal word WARNINGrefers to the danger of moderate
to severe bodily injuries.
The signal word CAUTION refers to the danger of slight to
moderate bodily injuries or material damage.
The signal word NOTICE refers to the possibility of damage
to equipment.

2–2
SAFETY INSTRUCTIONS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Symbols used
The following safety identification symbols are used in these
operating instructions.
WARNING/CAUTION –General danger or important note
Reference to general hazards that may result in bodily injuries
or damage to device or material.
WARNING/CAUTION –Danger due to crushing
Reference to danger of injury caused by crushing.
WARNING/CAUTION –Danger due to cutting
Reference to danger of injury caused by cutting.
WARNING/CAUTION –Danger due to voltage, electric shock
Reference to danger of injury caused by electric shock due to
voltage.
WARNING/CAUTION –Danger due to hot surfaces
Reference to risk of injury caused by burning.

2–3
SAFETY INSTRUCTIONS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Basic safety
information
Proper use
The line guiding sensor is intended to be used on machines
or systems to sense the position of a line or an edge of a
moving web and give this signal to a guding controller.
Indoor operation, see environmental specifications.
Improper use
Operation outside the technical specifications
Operation in an Ex-area or intrinsically safe area
Outdoor operation
Any other use than the proper use shall be deemed
inappropriate
Installation and commissioning
Any line guiding sensor which is damaged must not be
installed or put into operation.
Only perform installation, maintenance or repair tasks on the
line guiding sensor when the machine into which the SE-26B
is installed has been stopped and is secured from being
turned on.
Only perform installation, maintenance or repair tasks on the
line guiding sensor when there is no electrical power in the
system.
The line guiding sensor must be securely mounted before
being placed in operation.
Only replacement parts obtained from Maxcess may be used.
No modifications may be made to the line guiding sensor.
Do not place electrical cables under mechanical strain.

2–4
SAFETY INSTRUCTIONS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Basic safety information
(continued)
Operation
None, as tasks performed by the operator are generally not
required.
Maintenance and repair
WARNING –Death or injury can result from unexpected
movement of the machine into which the SE-26B is installed.
Protect against unexpected movement by removing electrical
power from the line guiding sensor and the machine into
which the line guiding sensor is installed.
Decommissioning
The line guiding sensor must be disposed of in accordance
with all the applicable national, state and local regulations.

3–1
INSTALLATION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Product dimensions
Figure 1. SE-26B Outline dimensions
Figure 2. SE-26B Mounted on M20 mounting bracket

3–2
INSTALLATION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Mechanical installation
WARNING –Death or injury can result from
unexpected movement of the machine into which the
SE-26B is installed.
Protect against unexpected movement by removing
electrical power from the SE-26B and the machine
into which the sensor is installed.
WARNING –Danger of injury from crushing.
Maintenance and repair tasks on the SE-26B must be
performed only when the machine into which the SE-
26B is installed has been stopped and has been
secured from being turned on again.
Guiding types supported
Line guiding
Edge of line or material
Figure 3. Guiding types
Install the SE-26B
1. Center the edge or line on the web in the sensor's
light spot.
2. Install the sensor using two M5 bolts.
The web surface at the guide point must be
supported.
The web surface must be 10 [ 0.394] from the
front surface of the sensor lens; see Figure 2.
No web plane change can be tolerated by the
sensor.
To change the sensing orientation:
Unscrew the lens and hole cover components
and interchange them. Note that each part has
a corresponding o-ring. See Figure 4.
Figure 4.
Changing sensing orientation

3–3
INSTALLATION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Using the M20 mounting
bracket
The M20 fine adjustment mounting bracket clamps onto a
25.4 [1.0] square bar. Dimensions from the centerline of the
square bar to the web surface permit plus and minus
adjustments of the system. See Figure 2 on page 3-1.
When the M20 tilt feature is used, the sensor must be
readjusted.
Different material types
FLAT non-reflective materials
Mount the SE-26B sensor perpendicular to the web so that all
of the light from the sensor is reflected back into the lens.
GLOSSY reflective materials
(Example: glossy laminates, metallic materials, shiny Mylar®)
Mount the SE-26B sensor at a 15° angle from perpendicular by
tilting the mounting bracket. This causes a portion of the
sensor light to be reflected away from the lens. See Figure 5.
For glossy materials
For flat materials

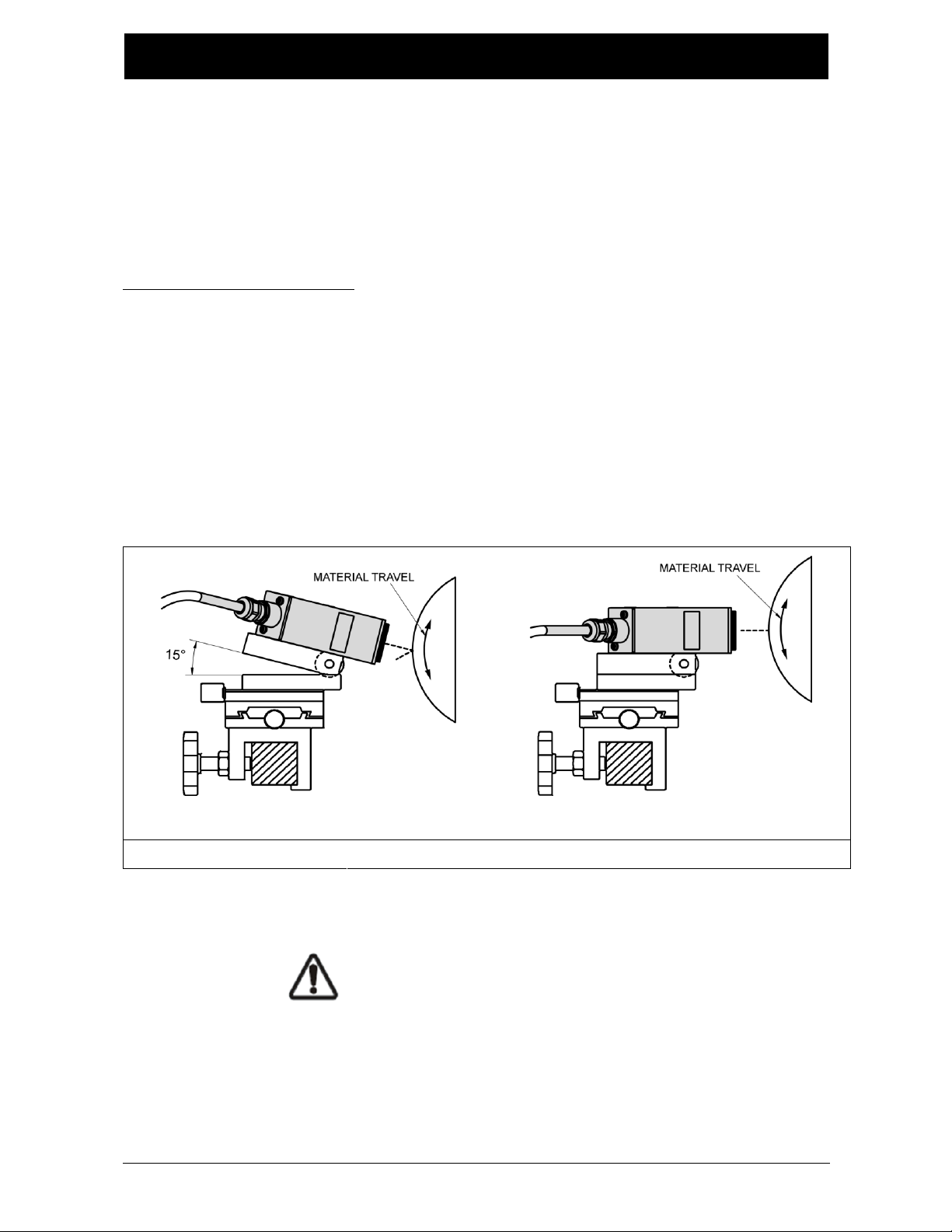

Figure 5. Guiding different material types
Electrical installation
CAUTION –Never place electrical cables under mechanical
strain. Always provide mechanical support of wiring with either
clamps or flexible or rigid conduit.
All wiring must comply with the essential requirements of the
appropriate standard(s) and is the responsibility of the installer.

4–1
OPERATION
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Modes of operation
There are two modes of operation: line guiding and edge
guiding. See Figure 3.
Line guiding
LINE mode is for guiding to the center of a printed line
1.27 [0.050] to 2.54 [0.100] wide with a minimum of
2.54 [0.100] of plain background on both sides of the line.
Lines as small as 0.25 [0.010] with good contrast are
possible to guide from. The line may be continuous or
broken.
Edge guiding
EDGE mode is for guiding to the edge of a material on a
roller or backup plate, to the edge of a continuous printed
pattern, or to the edge of line wider than 2.54 [0.100] on a
solid background.
Select the mode
Select the mode in the Fife guiding controller that is
connected to the sensor; edge guiding on Sensor 1 and line
guiding on Sensor 2.
ASC mode
ASC mode prevents large guide movements when the line or
edge of the material is lost by the sensor. When guiding to a
non-continuous line or edge, enable ASC mode in the Fife
guiding controller.

5–1
MAINTENANCE
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Maintenance
No regular maintenance is required on the SE-26B. The sensor is not field serviceable.
Contact Maxcess for service requests: page 8-1.

6–1
TROUBLESHOOTING
www.maxcessintl.com
SE-26B
MI 1-928 1 B
Fault description
Probable cause
Solution
No Light Spot
No power to Fife guding
controller.
Check Fife guding controller power
wiring.
Cable connection loose.
Check cable connections on SE-26B
pigtail and Fife guiding controller.

7–1
SPECIFICATIONS
www.maxcessintl.com
SE-26B
MI 1-928 1 B
General
Supply voltage range
–
+/-12V supply from Fife controller
Supply current
–
50 mA, +12 VDC
40 mA, -12 VDC
Temperature range
Operating
Storage
-
-
0° to 50°C (-32° to 122°F)
0° to 80°C (-32° to 176°F)
Focus Distance
-
10 mm [0.394 in.] From web surface to
sensor lens surface.
Illumination
-
White LED
Light Spot Size
-
1.2 x 4.2 mm [0.047 x 0.165 inch]
LED Light Lifetime
-
100,000 hours
Enclosure
-
IP65
Climatic class
-
3K3 (EN60721)
Relative humidity
-
5% to 85%
Pollution degree
-
2 (IEC664-1)
Sensor Output Range
-
-20 mA to +20 mA for line guiding
-20 mA to +10 mA for edge guiding
Certifications and
environmental
compatibility
Product certifications
–
CE
RoHS

8–1
SERVICE
Service requests
and replacement
parts
To request service contact one of the following addresses or
your regional office listed at the bottom of this page.
Fife
222 West Memorial Rd.
Oklahoma City, OK, 73114
USA
Phone: [phone]
Fax: [phone]
Web: www.maxcessintl.com
Fife-Tidland GmbH
Max-Planck-Strasse 8
65779 Kelkheim
Deutschland
Telefon: [phone]
Fax: [phone]
Web: www.maxcess.eu
If it is necessary to return the SE-26B for service, care must be
taken to properly package the unit to prevent damage during
shipment. If possible, use the original shipping containers.
AMERICAS
Tel [phone]
Fax [phone]
[e-mail]
www.maxcessintl.com
EUROPE, MIDDLE EAST
AND AFRICA
Tel [phone]
Fax [phone]
[email protected]
www.maxcess.eu
CHINA
Tel [phone]
Fax [phone]
[email protected].cn
www.maxcessintl.com.cn
INDIA
Tel [phone]
Fax [phone]
[e-mail]
www.maxcess.in
JAPAN
Tel [phone]
Fax [phone]
[e-mail]
www.maxcess.jp
KOREA, TAIWAN,
AND SE ASIA
[e-mail]
www.maxcess.asia
© 2017 Maxcess
