Meanwell DR Series User manual

Installation Manual
Type：DR Family with Class II（Series：DR-15, DR-30, DR-60, DR-100）
DR-15-5 INPUT: 100 -240VAC 0.88A 50/60Hz OUTPUT: 5V 2.4A
DR-15-12 INPUT: 100 -240VAC 0.88A 50/60Hz OUTPUT: 12V 1.25A
DR-15-15 INPUT: 100 -240VAC 0.88A 50/60Hz OUTPUT: 15V 1A
DR-15-24 INPUT: 100 -240VAC 0.88A 50/60Hz OUTPUT: 24V 0.63A
DR-30-5 INPUT: 100 -240VAC 1.1A 50/60Hz OUTPUT: 5V 3A
DR-30-12 INPUT: 100 -240VAC 1.1A 50/60Hz OUTPUT: 12V 2A
DR-30-15 INPUT: 100 -240VAC 1.1A 50/60Hz OUTPUT: 15V 2A
DR-30-24 INPUT: 100 -240VAC 1.1A 50/60Hz OUTPUT: 24V 1.5A
DR-60-5 INPUT: 100 -240VAC 1.8A 50/60Hz OUTPUT: 5V 6.5A
DR-60-12 INPUT: 100 -240VAC 1.8A 50/60Hz OUTPUT: 12V 4.5A
DR-60-15 INPUT: 100 -240VAC 1.8A 50/60Hz OUTPUT: 15V 4A
DR-60-24 INPUT: 100 -240VAC 1.8A 50/60Hz OUTPUT: 24V 2.5A
DR-100-12 INPUT: 100 -240VAC 3A 50/60Hz OUTPUT: 12V 7.5A
DR-100-15 INPUT: 100 -240VAC 3A 50/60Hz OUTPUT: 15V 6.5A
DR-100-24 INPUT: 100 -240VAC 3A 50/60Hz OUTPUT: 24V 4.2A
Introduction
DR with class II is a double insulated DIN rail power supply series, meaning it is ungrounded. Like other Mean Well’s
DIN series, they can be mounted on a TS35 Standard DIN rail.
Installation
（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a
heat source.

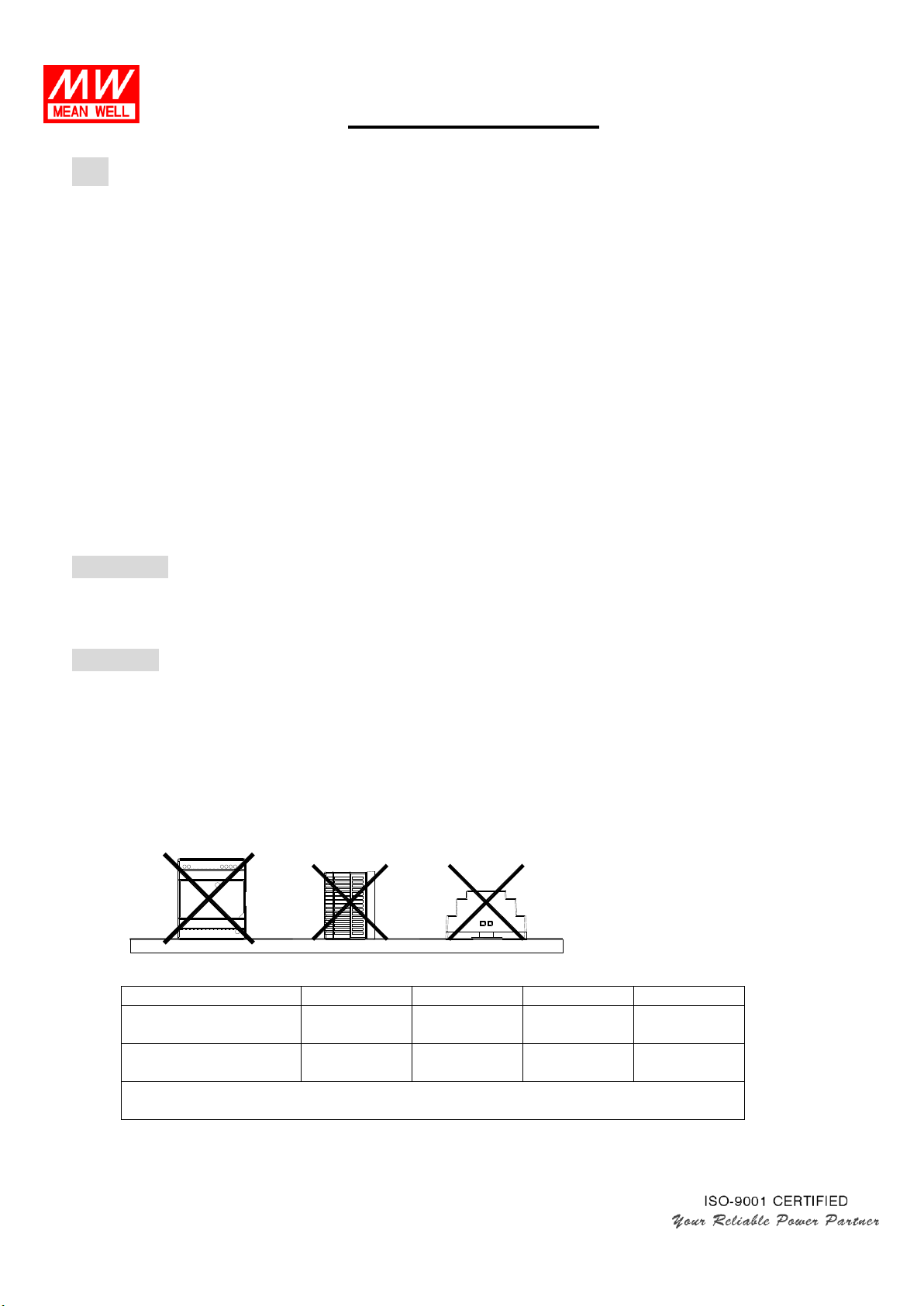

（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top for DR-15, the input terminals on the right and output on the left for DR-30, DR-60, and DR-100.
Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
（3）Use stranded copper wire only, and recommended wires are shown as below.
AWG
18
16
14
12
Rated Current of
Equipment (Amp)
6A
6-10A
13-16A
16-25A
Cross-section of
Lead(mm2)
0.75
1.00
1.5
2.5
Note：Current each wire carries should be de-rated to 80% of the current suggested
above when using 5 or more wires connected to the unit.
Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are
securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make
sure each contact is connected to wires to prevent too much current stress on a single contact.

Installation Manual
3
1
2
4
（4）Use wire that can withstand temperatures of at least 80°C such as UL1007.
（5）Recommended wire strapping length is 7mm/0.275inch.
（6）Recommended torque setting for terminals is 5 kgf-cm (4.4 Lb-in).
（7）Recommended screwdriver is 3mm, slotted type.
（8）Suggested fuse and maximum number of the DR classⅡPSUs that can be connected to a circuit breaker at
230V are shown as below.
Model
Fuse
Circuit breaker
C16
D16
DR-15
T2A/L250V
19
22
DR-30
F2A/L250V
7
15
DR-60
F3.15A/L250V
3
7
DR-100
F3.15A/L250V
3
6
（9）Mounting Instruction：
Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible.
Admissible DIN rail：TS35/7.5 or TS35/15
For rail fastening：
（a）Tilt the unit slightly rearwards.
（b）Fit the unit over top hat rail.
（c）Slide it downward until it hits the stop.
（d）Press against the bottom for locking.
（e）Shake the unit slightly to check the locking action.
（10）For other information about the products, please refer to www.meanwell.com for details.
Warning / Caution !!
（1）Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do
not remove the case of the power supply by yourself!
（2）Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides
together is not allowed.
（3）Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
（4）Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
（5）Only install the unit in a pollution degree 2 environment (Note.1).
（6）Please do not install the unit in places with high moisture or near the water.
（7）The maximum operating temperatures is 50°C for DR-15 and DR-30 series and 40°C for DR-60 and DR-100 series,
please do not install the unit in places with high ambient temperature or near fire source.
（8）Output current and output wattage must not exceed the rated values on its specification.
"Click"

Installation Manual
（9）Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from supply
voltage. Make sure that inadvertent connection in circuit will be impossible!
（10）For continued protection against risk of fire, replace only with same type and rating of fuse.
Pour ne pas compromettre la protection contre les risqué d’incendie, remplacer par un fusible de même type
et de memes caractéristiques nominales.
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as
control cabinets.
