Medisana 48618 User manual

0297
GB Infrared thermometer
Art. 48618
Manual Please read carefully!
TM 750

GB Manual
1 Safety Information ..................... 1
2 Useful Information ..................... 4
3 Operation................................... 6
4 Miscellaneous.......................... 13
5 Warranty .................................. 16











 









GB
Unit and controls
1Sensor cover
2Sensor
3Button for Forehead
measurement mode
4Button for Ear measure-
ment mode
5Indicator LED
6Backlight LCD display
7SET -button
8Battery compartment
(on backside)
9Memory -button
0Beeper
qDate
wTime
eSymbol for continuous
temperature measurement
rMeasurement unit (°C or °F)
tMeasurement result
zBattery exchange symbol
uMemory display
iSurface temperature
measurement mode
oEar measurement mode
pForehead measurement mode

1 Safety Information
IMPORTANT INFORMATION!
RETAIN FOR FUTURE USE!
Explanation of symbols:
This instruction manual belongs to this device.
It contains important information about starting
up and operation. Read the instruction manual
thoroughly. Non-observance of these instructions
can result in serious injury or damage to the device.
WARNING!
These warning notes must be observed to prevent
any injury to the user.
CAUTION!
These notes must be observed to prevent any
damage to the device.
NOTE
These notes give you useful additional information
on the installation or operation.
Classication: Type BF applied part
LOT number
Manufacturer
Date of manufacture
1
GB
Read the instruction manual carefully before using this
device, especially the safety instructions, and keep the
instruction manual for future use. Should you give this
device to another person, it is vital that you also pass on
these instructions for use.

CONTRAINDICATION:
The device is not suitable for measuring the temperature of
infants up to 6 months of age.
1 Safety Information
INTENDED USE:
The MEDISANA Infrared thermometer TM 750 is suitable to
measure the body temperature of humans. The measurement is
carried out in the ear or on the forehead. Additionally the thermo-
meter is suitable to measure the temperature of objects in the
range of 0°C to 100°C (32°F - 212°F).
Safety Information
• Only use the unit for the specic purpose described in the instruction
manual. Any misuse will void the warranty.
• The unit is not designed for commercial use.
• Using this thermometer is no substitute for consulting a doctor.
• The thermometer and the patient must remain in a stable environ-
ment for at least 30 minutes before measuring the temperature.
• This device is not designed to be used by persons (including child-
ren) with limited physical, sensory or mental abilities, or by persons
with insuf cient experience and/or knowledge, unless under obser-
vation by a person responsible for their safety, or unless they have
been instructed in the use of the device.
• Children must be supervised to ensure that they do not play with the
device.
• The temperature in the forehead and temple area dif fers from the in-
ternal temperature, which is taken orally or rectally. Vasoconstriction,
an ef fect which constricts the blood vessels and cools the skin, can
occur during the early stages of a fever. In this case, the temperature
measured by this thermometer may be unusually low. If the measure-
ment therefore does not match the patient’ s own perception or is un-
usually low , repeat the measurement every 15 minutes. As a referen-
ce, you can also measure the internal body temperature using a con-
ventional oral or rectal thermometer.
2
GB

1 Safety Information
• A control measurement using a conventional thermometer is re-
commended in the following cases:
1. If the reading is surprisingly low
2. For children under three years of age who have a weakened
immune system or who react unusually in the presence or ab-
sence of fever
3. If you are using the thermometer for the rst time or want to
familiarise yourself with it
•Babies’ skin reacts very quickly to the ambient temperature. There-
fore, do not take their temperature with this thermometer during or
after breastfeeding, because the skin temperature may then be
lower than the internal body temperature.
•If a fault occurs or the unit is damaged, do not attempt to repair the
unit yourself, as this will void the warranty. Contact your dealer and
only have repairs carried out by authorized service partners.
•Do not use the thermometer if it is damaged.
•Do not open up the device. It contains small parts which might be
swallowed by children.
•Do not use the thermometer in damp environments. Do not immer-
se the thermometer in water or other liquids. It is not watertight.
•For cleaning, follow the instructions in 4.1 Cleaning and mainten-
ance.
•Do not shake or tap the thermometer. Do not drop it.
•Protect the device from direct sunlight, extremely high or low tem-
peratures, dirt and dust.
•If the thermomter is not going to be used for a long period, remove
the batteries.
•Measurements in the ear should always be carried out in the same
ear.
• Do not measure on hurt or dirty parts of the body.
• The use of the thermometer by dif ferent persons may lead to infec-
tions with contagious diseases. Consult your doctor.
3
GB

2 Useful Information
WARNING
Please ensure that polythene packing is kept away
from the reach of children! Risk of su󰀨ocation!
Thank you very much for your condence and congratulations!
By purchasing the Infrared thermometer TM 750, you have ac-
quired a high-quality product by MEDISANA. T o ensure the best re-
sults and long-term satisfaction with your MEDISANA Infrared
thermometer TM 750, we recommend that you read the following
operating and maintenance instructions carefully.
2.1 Items supplied and packaging
Please check rst of all that the device is complete and is not da-
maged in any way. In case of doubt, do not use it and contact your
dealer or your service centre.
The following parts are included:
• 1 MEDISANA Infrared thermometer TM 750
• 2 Batteries (AAA type, LR03) 1,5V
• 1 Instruction manual
The packaging can be reused or recycled. Please dispose properly
of any packaging material no longer required. If you notice any
transport damage during unpacking, please contact your dealer
without delay.
2.2 Useful information on taking temperature with the infrared
thermometer TM 750
What is fever?
Our normal body temperature is between 36°C (96,8°F) and 37,5°C
(99,5°F). Fluctuations are quite normal, depending on time of day and
the body’s condition, for example in the female menstruation cycle.
However, when body temperature rises above 38°C (100,4°F), the
phenomenon is known as fever.
4
GB

2 Useful Information
Fever often occurs in the case of infections, and is a sign that the
body’ s immune system is working overtime. This perfectly normal
reaction to foreign bodies, germs and microorganisms should be
checked at regular intervals. If the fever should exceed 39°C
(102,2°F) and not fall again within 1 to 2 days, you should denitely
contact your doctor.
A fever is often associated with fatigue, pains in the limbs, shivering
and chills. The course of an illness can be best monitored by taking
a temperature reading 2 to 3 times a day at 4 to 6 hour intervals.
Always take the temperature at the same place and on the same
part of the body. If you have to take the temperature several days in
succession, always do it at approximately the same time of day so
that the results are comparable.
Taking a temperature reading - quickly and accurately!

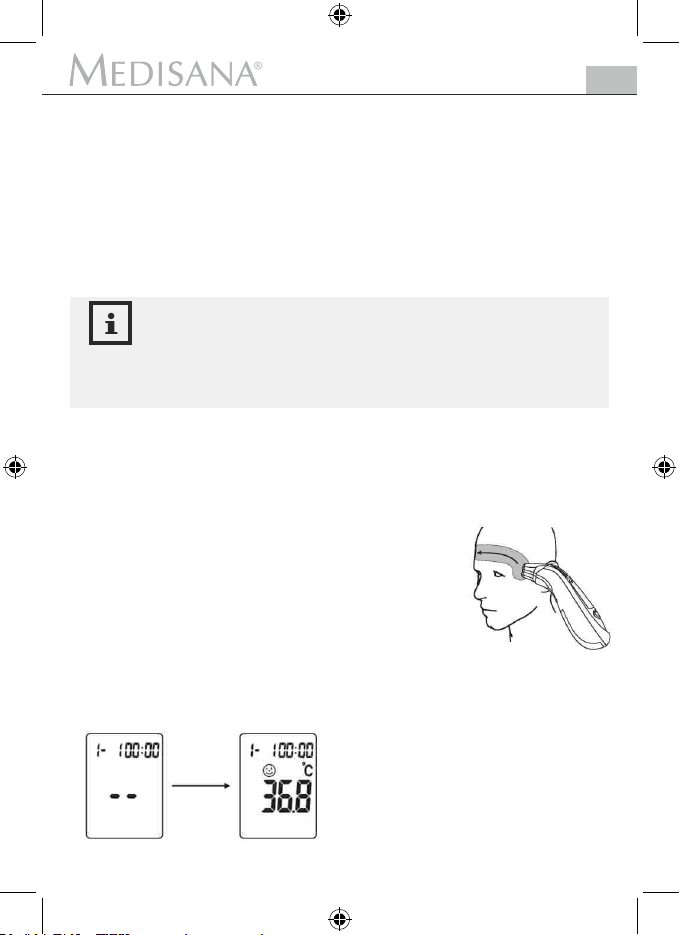

The MEDISANA Infrared thermometer TM 750 allows a precise
measurement of body temperature. The temperature is taken between
the forehead and the temple or alternatively in the ear. The reading is
displayed within a few seconds.
Additional function
Apart from measuring body temperature, the Infrared thermometer
TM 750 from MEDISANA can also be used to measure the tempe-
rature of objects (e.g. uids, surfaces, ambient temperature).
The temperature range for this function is between 0° and 100°
Celsius (32°F - 212°F).
5
GB

3 Operation
WARNING
BATTERY SAFETY INFORMATION
• Do not disassemble batteries!
• Clean the battery and device contacts if necessary before
putting in the batteries!
• Remove discharged batteries from the device immediately!
• Increased risk of leakage, avoid contact with skin, eyes
and mucous membranes! If battery acid comes in contact
with any of these parts, rinse the a󰀨ected area with copious
amounts of fresh water and seek medical attention
immediately!
• If a battery has been swallowed seek medical attention
immediately!
• Replace all of the batteries simultaneously!
6
3.1 Getting started

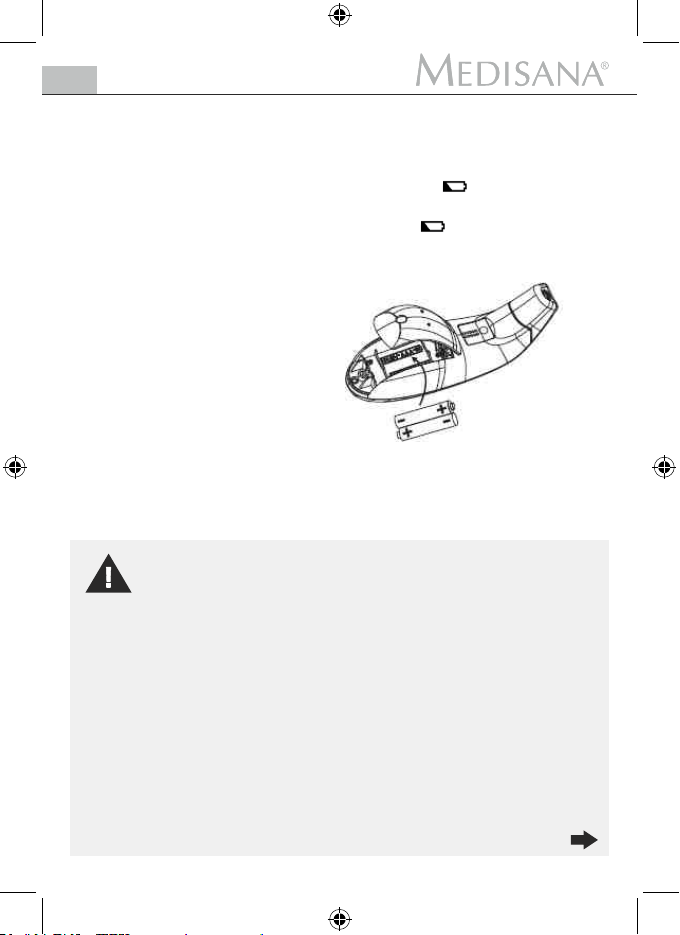

Removing / inserting batteries
For correct function, the included 2 batteries 1.5V (LR03,AAA) need to
be inserted. When the battery exchange symbol zappears in the
display after a longer time of usage, the batteries should be replaced
soonest. When the battery exchange symbol zappears together
with "Lo" or nothing at all appears in the display 6, the batteries need
to be replaced immediately.
Removal:
Remove the lid of the
battery compartment 8
and take out the batteries.
Insertion:
Put in two new 1,5V-batteries of type LR03 / AAA. Make sure, the
batteries are the right way around (see the diagram in the battery
compartment 8). Put the battery compartment lid back.
GB

3 Operation
WARNING
BATTERY SAFETY INFORMATION
• Only replace with batteries of the same type, never use
di󰀨erent types of batteries together or used batteries with
new ones!
• Insert the batteries correctly, observing the polarity!
• Keep the battery compartment well sealed!
• Remove the batteries from the device if it is not going to be
used for an extended period!
• Keep batteries out of children's reach!
• Do not attempt to recharge these batteries! There is a
danger of explosion!
• Do not short circuit! There is a danger of explosion!
• Do not throw into a re! There is a danger of explosion!
• Keep unused batteries in their packaging away from metal
objects in order to prevent short circuiting!
• Do not throw used batteries into the household refuse; put
them in a hazardous waste container or take them to a
battery collection point, at the shop where they were
purchased!
Before use
Acclimatise the thermometer to the temperature of the room:
For an accurate reading of a patient’s temperature, their body must
rst acclimatise to the temperature of the room where the measure-
ment will be made. The same applies to the Infrared thermometer
TM 750. When taken somewhere else, it automatically adjusts itself
to the new environment. The thermometer takes a certain amount of
time to equalise its own temperature to that of the room. This de-
pends on the di󰀨erence between the two temperatures and can take
more than 30 minutes. Precise readings can only be taken once this
process is completed.
7
GB

3 Operation
Setting the unit of measure, the time and the date:
When the thermometer is used for the rst time or after a battery
change, the unit of measure, the time and the date must rst be set.
If you want to return to the setting mode later on, press and hold
the SET -button 7for approx. 5 seconds, when device is switched
on.
After the self-test (where all the display symbols are shown in suc-
cession in the display 6) two short beeps can be heard. Now you
adjust the unit of measure (°C or °F) with the SET -button 7. Press
the Memory-button 9 to conrm the setting. Use the same proce-
dure (SET -button 7to adjust a value and Memory-button 9to con-
rm) for setting the year, month, day, hour and minute. After the last
press on the Memory-button 9the display 6shows "OFF" and
then the device will switch o󰀨 automatically.
3.2 Information on measuring temperature
• The sensor 2of the thermometer must be kept clean and intact at
all times in order to guarantee that the measurements are accurate.
• Ear wax a󰀨ects the measuring accuracy. If necessary, clean your
ear and the sensor tip of the thermometer before measuring in or-
der to avoid erroneous measurements.
•Before taking a measurement on the forehead, clean the area and
remove any dirt, sweat or cosmetics before moving the sensor to
the measuring position as otherwise erroneous results could be
measured.
•Do not measure your temperature immediately after eating,
training or bathing. Wait for half an hour.
•Do not take successive measurements at intervals of less than one
minute. If you have to take your temperature at shorter intervals,
the results may uctuate slightly.
• The human body temperature uctuates within a natural range.
There is no such thing as a standard body temperature.
•Measure and record your body temperature on normal days. This
will allow you to detect a fever more easily.
•In order to make an accurate measurement in the ear, the sensor
must be directed at the eardrum and be inserted far enough into
the ear canal.
8
GB

3 Operation
NOTE
Forehead temperatures should only be taken for
checking purposes, since the skin temperature at the
forehead is easily a󰀨ected by outside inuences,
meaning that the measurement can be falsied.
• Some people will have di󰀨erent readings for the right and left ears.
Always measure the same person in the same ear when measuring
temperature changes.
• The measurements can also be inuenced by your sleeping position.
If someone has slept on a particular ear for a considerable period,
the temperature will be higher than normal in this ear. In this case,
measure in the other ear or wait for a few minutes before measuring.
1. Switch on the thermometer by shortly pressing the button for fore-
head measurement mode 3. The device performs a self-test and
emits two short beeps.
2. In order to measure the body temperature on the forehead correctly,
the sensor cover 1needs to be put on the sensor.
3. Place the measuring head with the sensor (and
the put on sensor cover) on a temple and press
the button for forehead measurement mode 3.
The symbol for forehead measurement mode
pappears in the display. Slowly move the
thermometer smoothly over the forehead (button
still pressed down) to the other temple. Release the
button for forehead measurement mode 3.
4. After the temperature has been determined, the device emits a
signal tone. The result will be shown in the display 6.
9
GB
3.3 Measuring the temperature at your forehead

3 Operation
5.If the measurement result is 38,0°C (100.4°F) or higher, the indi-
cator LED 5lights up in red (= fever alarm). In all other cases
the indicator LED 5lights up in green.
6.The measurement result will automatically be saved. After some
seconds without pressing any button the device will switch o󰀨
automatically.

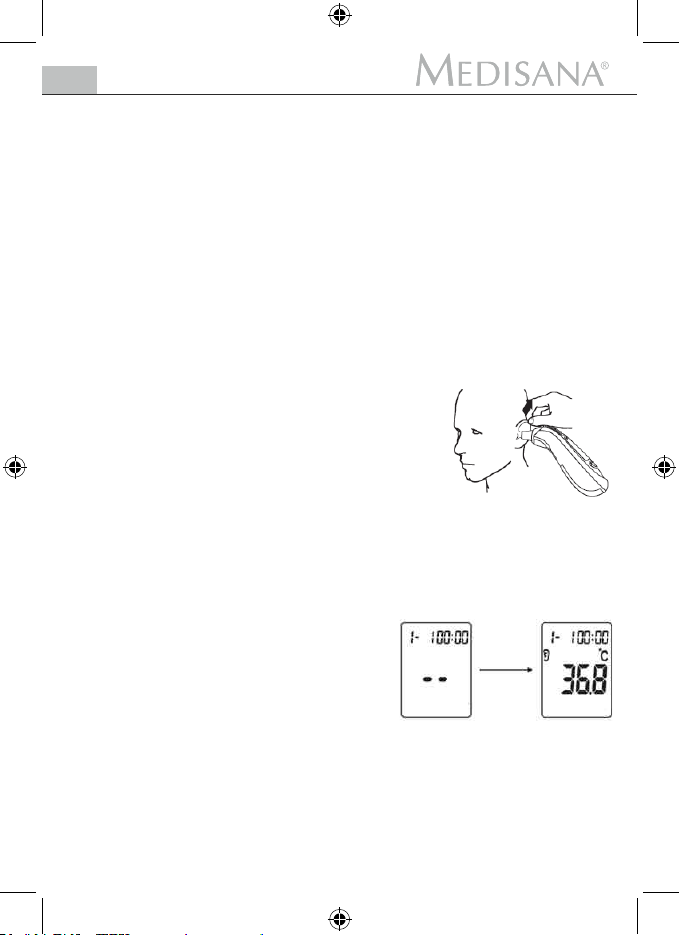

3.4 Measuring the temperature in your ear
1.To measure the temperature in your ear, rst remove the sensor
cover 1.
2.Switch on the thermometer by shortly pressing the button for ear
measurement mode 4. The device performs a self-test and emits
two short beeps.
3.Stretch your ear canal by pulling your ear
backwards and upwards and carefully insert
the sensor into the ear. For children under
the age of 1 year, the sensor should be inser-
ted into the ear canal, while the child is lying
at (e.g. on a bed) with the head slightly turned,
so that the ear points upward. Press and hold the
button for ear measurement mode 4for approx. 1 second. The
symbol for ear measurement mode oappears in the display.
4.Release the button. After the measurement process is complete,
you will hear a beep and the body temperature will be displayed
in the display 6.
5.If the measurement result is 38,0°C
(100.4°F) or higher, the indicator LED
5lights up in red (= fever alarm).
In all other cases the indicator LED
5lights up in green.
6.The measurement result will automatically be saved. After some
seconds without pressing any button the device will switch o󰀨
automatically.
10
GB

3 Operation

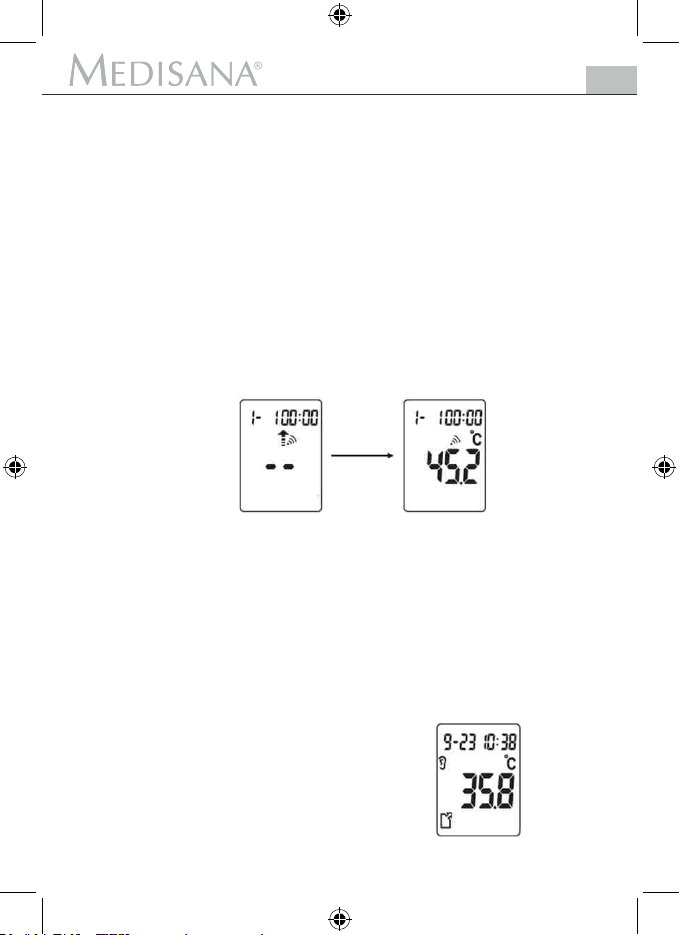

3.5 Measuring the temperature of an object
1. Switch on the thermometer by shortly pressing button for forehead
measurement mode 3or the button for ear measurement mode 4.
The device performs a self-test and emits two short beeps.
2. Press and hold the set 7& memory 9buttons at the same time
for at least 3 seconds. The symbol for the surface temperature
measurement mode iappears in the display 6.
3. To begin the measurement, point the sensor 2at the middle of the
object (resp. of the liquid) at a distance of approx. 3 cm. Press the
button for forehead measurement mode 3or the button for ear
measurement mode 4. If the object has water, dust or dirt on it,
remove this rst so that the reading is as accurate as possible.
4. Release the button. After the measurement process is complete,
you will hear a beep and the object temperature will be displayed
in the display 6.
5. The measurement result will automatically be saved. Again press
and hold the set 7& memory 9buttons at the same time for
at least 3 seconds to return to body temperature measurement
mode. After some seconds without pressing any button the device
will switch o󰀨 automatically.
3.6 Recalling stored data
The MEDISANA Infrared thermometer TM 750 can store up to 30
results. You can call up your stored data with a short press of the
memory button 9. Firstly, the average value of all stored measure-
ment results appears in the display 6, e.g.:
11
GB

3 Operation
NOTE
In case all memory slots are used, a new measure-
ment result will be saved by deleting the oldest slot
(slot no. 30) automatically.

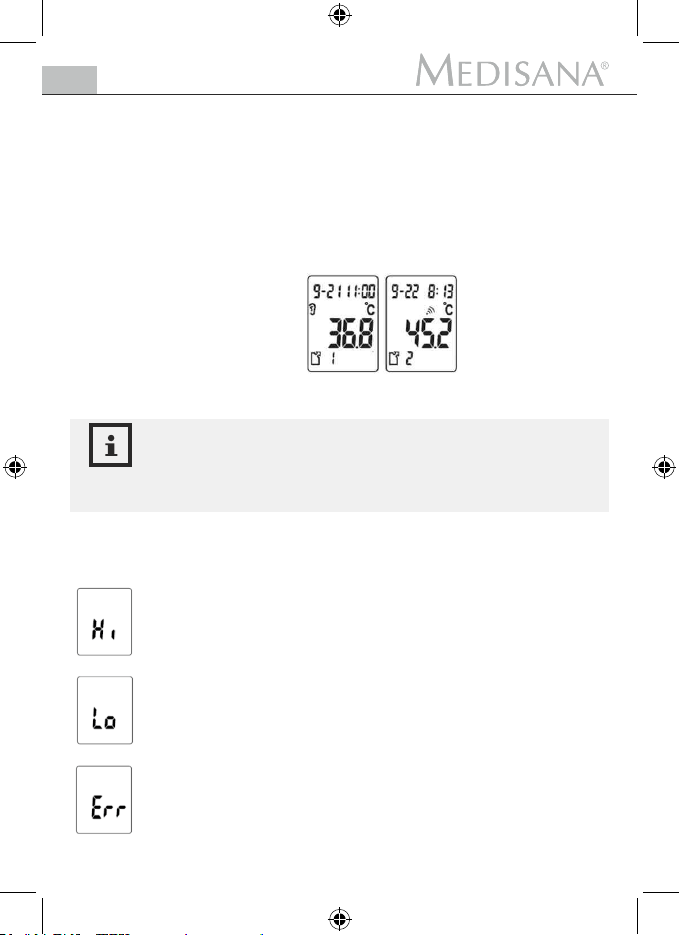

After another short press on the memory button 9, the memory
slot number 1 (the most recently saved value) will appear in the
display, together with the temperature reading and the symbol for
the measurement mode (ear or forehead measurement mode or
surface temperature mode). With a further press of the memory
button 9, you can call up the result stored in memory slot “2”. A
total of 30 memory slots are available, and these will be displayed in
order if you continue to press the memory button 9.
If a memory slot is empty, the symbol “- „- -““ will appear next to
it in the display.
3.7 Error messages
Display Description
12
The measured temperature is too high.
Hi appears in the display if the reading is above 43°C /
109.4°F (body mode) or 100°C / 212°F (object mode).
The measured temperature is too low.
Lo appears in the display if the reading is below 34°C /
93.2°F (body mode) or 0°C / 32°F (object mode).
The ambient temperature is not in the tolerance range
of 15°C - 40°C (59°F - 104°F).
GB

4 Miscellaneous

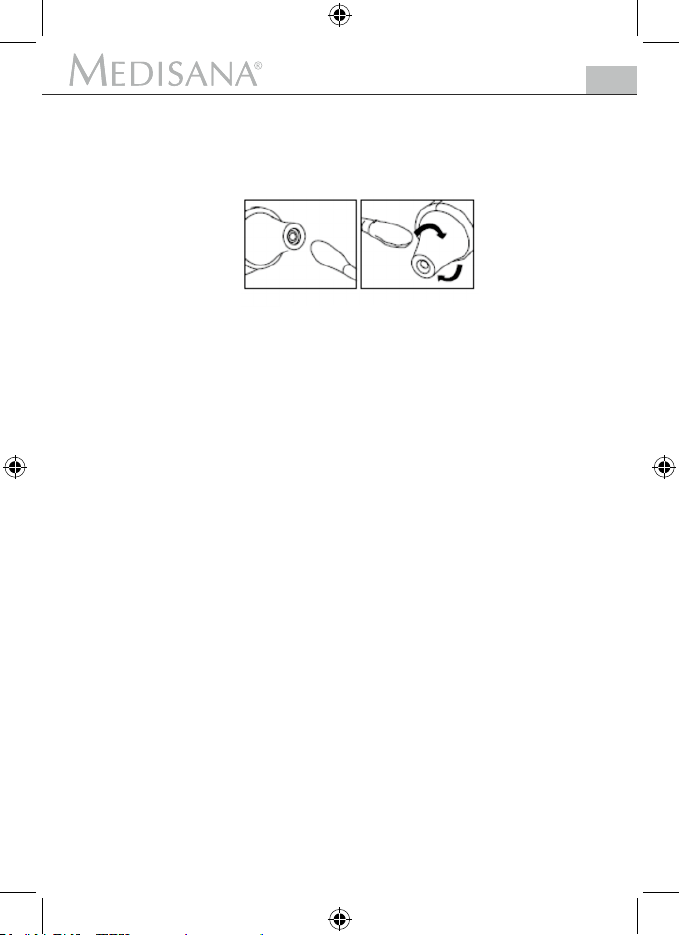

4.1 Cleaning and maintenance
• The sensor 2is the most delicate part of the MEDISANA Infrared
thermometer TM 750. Protect it from dirt and damage. Clean the
sensor with a cotton bud dipped in warm water or 70% isopropyl
alcohol.
•Do not immerse the thermometer in water or any other liquid. It is
not watertight.
•To clean the thermometer, use a soft cloth slightly dampened with
mild soapy water or 70% isopropyl alcohol. Do not let water get into
the unit. Only use the unit again when completely dry.
•Never use aggressive cleaning agents, thinners, benzine or tough
brushes.
•Take care not to scratch the lens of the sensor, the display or the
housing.
• Do not use or store the unit in an environment where the ambient
temperature or humidity is too high or too low (see operating condi-
tions in the “Technical specications” section), in direct sunshine, in
the vicinity of static electricity or in a dusty environment.
• Remove the batteries if you do not wish to use the unit for an exten-
ded period of time. Otherwise there is a danger that the batteries
may leak.
• If the thermometer is used as described in these instructions, no
regular maintenance or calibration is required.
13
GB

4 Miscellaneous

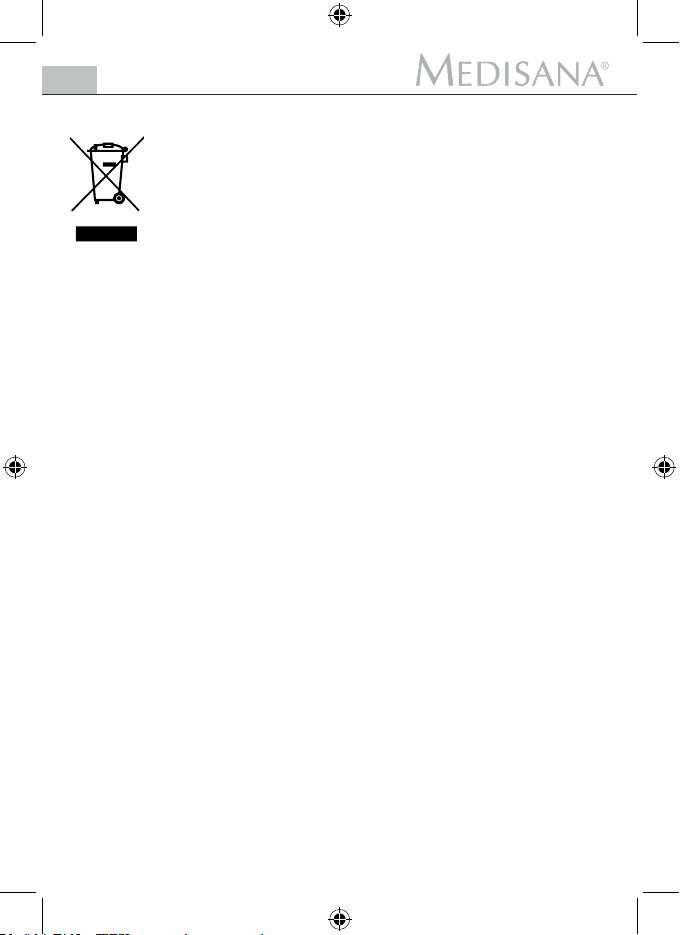

4.2 Disposal
This product must not be disposed of together with domes-
tic waste. All users are obliged to hand in all electrical or
electronic devices, regardless of whether or not they con-
tain toxic substances, at a municipal or commercial collec-
tion point so that they can be disposed of in an environ-
mentally acceptable manner.
Please remove the batteries before disposing of the device / unit. Do
not dispose of old batteries with your household waste, but at a
battery collection station at a recycling site or in a shop. Consult your
municipal authority or your supplier for information about disposal.
Name and model:
Display system:
Power supply:
Measuring range:
Accuracy of
measurement:
(laboratory readings);
(under operating
conditions)
Display resolution:
Memory capacity:
Operating conditions:
Storage / transport
conditions:
Dimensions:
Weight:
Article No.:
EAN Code:
MEDISANA Infrared thermometer TM 750
Digital display (LCD)
3 V= , 2 batteries 1,5 V (type LR03, AAA)
Body temperature measurement mode:
34°C - 43°C (93.2°F - 109.4°F)
Surface temperature measurement mode:
0°C - 100°C (32°F - 212°F)
Forehead: In the measuring range of 35°C-
42°C (95°F-107.6°F)/ ±0.2°C (±0.4°F);
Ear: In the measurement range of 35°C-
42°C (95°F-107.6°F)/ ±0.2°C (±0.4°F)
outside of above mentioned measurement
range: ± 0,3°C (0.5°F);
Surface mode: ≤ 30°C (86°F): ± 1,5°C
(2.7°F), > 30°C (86°F): ±5% (3 cm distance)
0,1°C (0.2°F)
up to 30 readings
15°C-40°C (59°F - 104°F), rel. humidity
up to 95%, 700~1060 hPa
-25°C-55°C (-13°F - 131°F), rel. humidity
up to 95%, 700~1060 hPa
approx. 134,3 x 42,4 x 47,6 mm
approx. 65 g without batteries
48618
40 15588 48618 0
GB
4.3 Technical specications
14

4 Miscellaneous
0297
In accordance with our policy of continual product im-
provement, we reserve the right to make technical and
optical changes without notice.
The CE-mark of this device refers to the EC-directive 93/42/EEC
MDD.
The unit is designed for home use only. For commercial use, a
metrological inspection must be carried out once every year. This
calibration will be charged for and can be carried out by an appropri-
ate authority or an authorised service centre - in accordance with the
regulations for users of medical equipment.
Electromagnetic compatibility:
The device complies with the EN 60601-1-2 standard for electro-
magnetic compatibility. Please check the supplementary sheet for
details on this measurement data.
15
GB
The current version of this instruction manual can be found under
www .medisana.com

5 Warranty
5.1 Warranty and repair terms
Please contact your dealer or the service centre in case of a claim
under the warranty. If you have to return the unit, please enclose
a copy of your receipt and state what the defect is.
The following warranty terms apply:
1. The warranty period for MEDISANA products is three years from
date of purchase. In case of a warranty claim, the date of purcha-
se has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of
charge within the warranty period.
3.Repairs under warranty do not extend the warranty period
either for the unit or for the replacement parts.
4. The following is excluded under the warranty:
a. All damage which has arisen due to improper treatment, e.g.
nonobservance of the user instructions.
b. All damage which is due to repairs or tampering by the
customer or unauthorised third parties.
c. Damage which has arisen during transport from the manu-
facturer to the consumer or during transport to the service
centre.
d. Accessories which are subject to normal wear and tear.
5. Liability for direct or indirect consequential losses caused by
the unit are excluded even if the damage to the unit is
accepted as a warranty claim.
MEDISANA GmbH
Jagenbergstraße 19
41468 NEUSS
Germany
16 48618 (76140) 06/2019 Ver. 1.2
GB
REP
Medisana authorized representative
in Malaysia:
Zuellig Pharma Sdn Bhd, No.15,
Persiaran Pasak Bumi, Seksyen U8,
Perindustrian Bukit Jelutong,
40150 Shah Alam, Selangor, Malaysia
Tel: [phone]
