Mercia Garden Products 2DTSHDB0606SFD5W-V1-PEFC User manual
!
x2
2mm Drill bit
12mm CSK
1!
2!
3!
50kg
¡
¢
£
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 1990mm
Depth = 1859mm
Height = 1911mm
Base Dimensions:
Width = 1803mm
Depth = 1803mm
Ply Door Stop QTY 2
PLY TRIANGLE
T-Hinge QTY 2
PI-07-0113
Window Block QTY 10
PI-07-0011
3
Door Gable QTY 1
AI-02S11DBGSD3W1803X1837-V1
12
Plain Gable QTY 1
AI-02S11DBGP1803X1832-V1
Window Side QTY 2
AI-02S111SW1755X1239-V1
56
4
Window QTY 5
AI-FW496X462-V1
Floor QTY 1
AI-S11MBF1803X1803-V1
Door QTY 1
AI-02SFD594X1060-V1
78
14
13
Large Roof QTY 2
640 x 1835mm
AI-S11MBDBR640X1835-V1
Window Cross QTY 5
PI-04-0013
Small Roof QTY 2
535 x 1835mm
AI-S11MBDBR535X1835-V1
Wooden Door Handle QTY 1
PI-04-0024
12
Fascia - 12x60x686mm QTY 4
SR1260-G-686mm
15
16
17
19

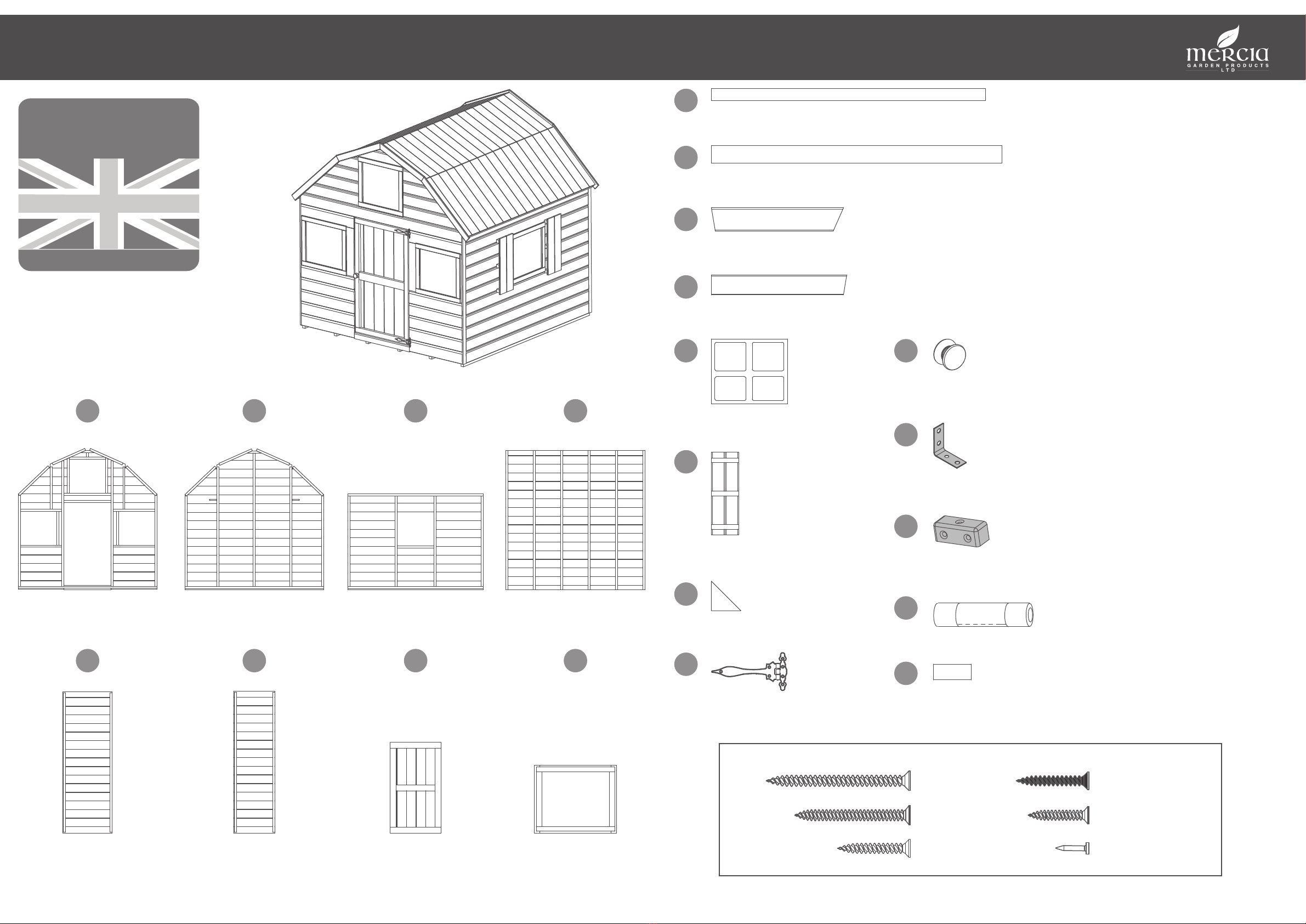

Building Content:
20
Felt
Corner Brace QTY 2
PI-07-0012
18
21
Door Spacer Strip
QTY 4
SR1260-100mm
30mm Black Screw x 14
50mm Screw x 84
20mm Screw x 26
40mm Screw x 24
Felt Tacks x 100
30mm Screw x 74
Nail Bag
11
Cover Trim - 12x40x1200mm QTY 4
S1240-1200mm
Fascia - 12x60x540mm QTY 4
SR1260-G-540mm
Roof Support Bar - 28x28x1755mm QTY 1
FS2828-1755mm
9
10
Window Shutters QTY 4
AI-02WS190X520-V1
Pre Assembly

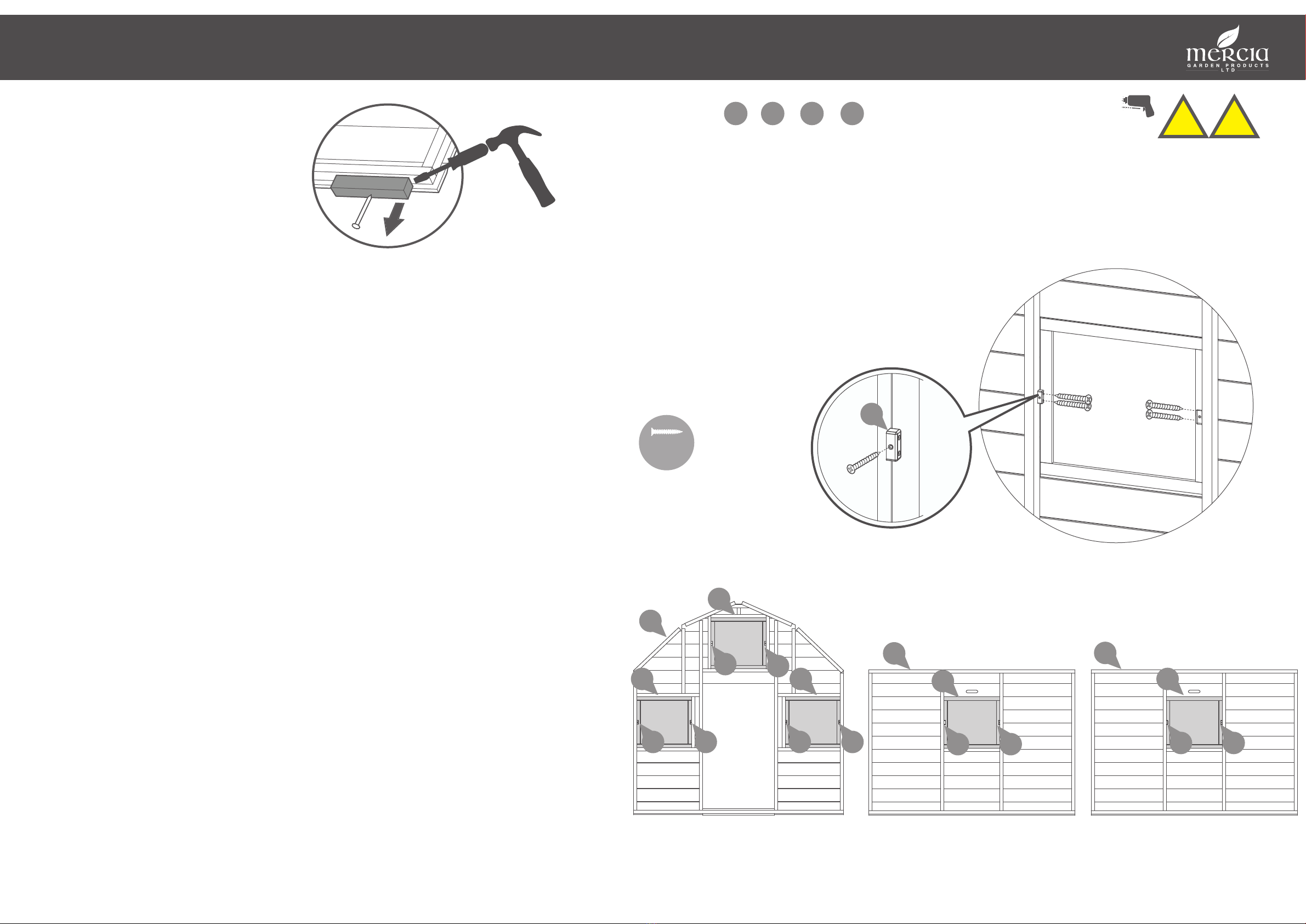

Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts needed - & & &
Fix the Window Blocks (No. 19) to the
Windows (No. 8) as shown with 1x30mm
screw.
Place one Window (No. 8) into each
window hole in the Door Gable (No.1), x
by screwing though the Window Blocks
(No.19) with 2x30mm screws per window
block as shown.
Place one Window (No. 8) into the
window hole in each Window Side (No.3),
x by screwing though the Window
Blocks (No.19) with 2x30mm screws per
window block as shown.
30x30mm screws.
30mm
screw
1! 2!
Pre drill
hole
81
19
19
1
8
8
19 19
3
888
33
19 19
19 19
19 19 19 19
3!
1! 2!
Pre drill
hole
1
7
30mm
screw

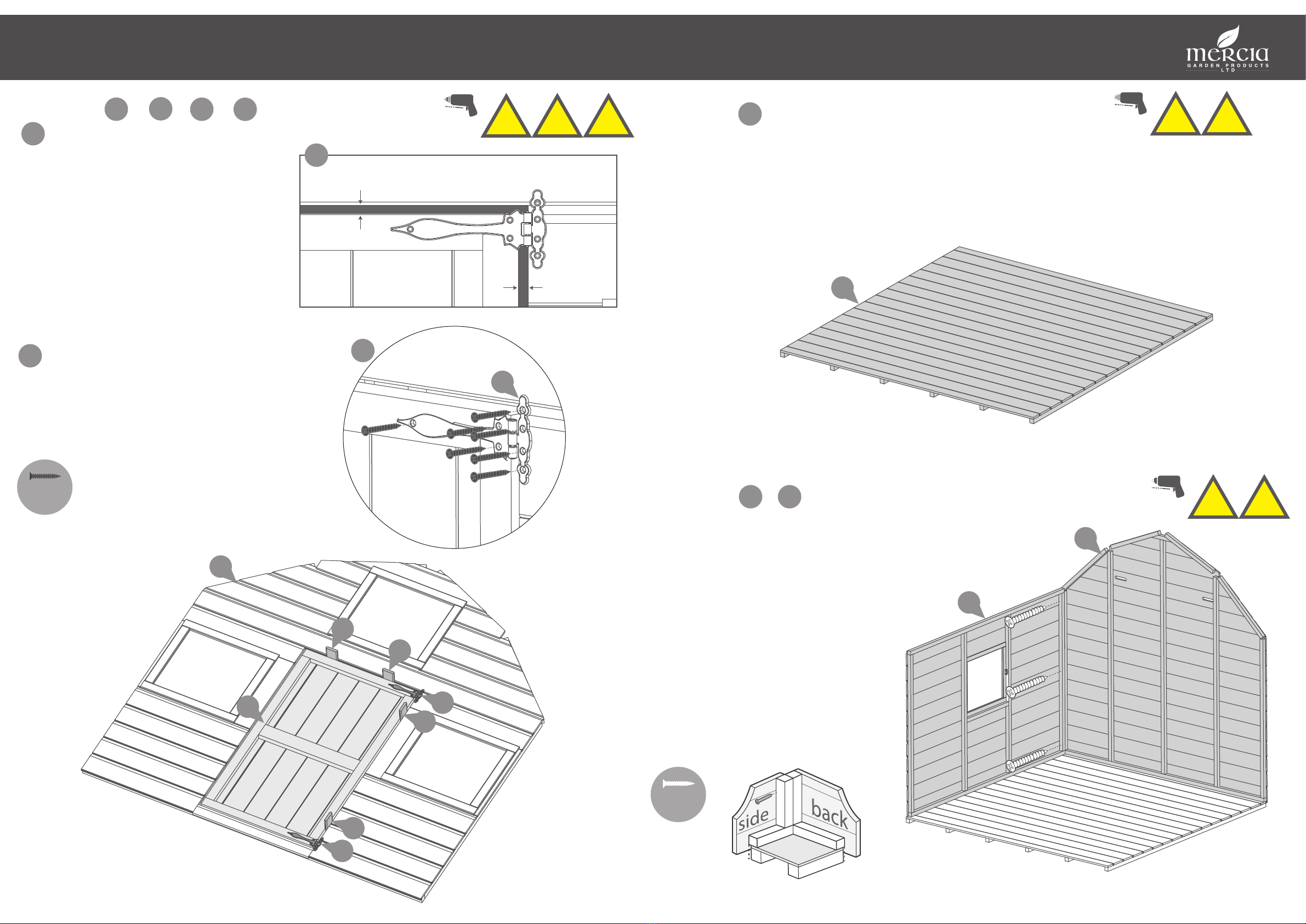

Step 2
Parts needed - & & &
Flip the Door Gable (No. 1) over so
the boards are facing upwards and place the
Door (No. 7)within the door aperture as
shown. Position two Door Spacer Strips
(No.21) within the top gap between the
door (No. 7) and the door gable (No. 1). Next
position two Door Spacer Strips (No. 21)
down the hinge side between the door
(No.7) and the door gable (No. 1).
The 12mm gap is to prevent serious injury
should a child’s ngers become trapped
between the door and the door panel.
Place the Hinges (No. 16)at the top
and bottom of the door (No. 7) and using
7x30mm black screws per hinge, x the
hinge to the door and the door panel.
14x30mm black screws
17
B
16
A
21
12mm
12mm
A
B
16
16
16
21
21
21
21
4
Step 3
Parts needed -
Place the Floor (No. 4) on your rm and
level base, ensure base has suitable
drainage free from areas where standing
water can collect.
(See front page on base requirements).
41! 2!
Pre drill
hole
3
2
1! 2!
Pre drill
hole
Step 4
Parts needed - &
Place the Plain Gable (No.2)and one
Window Side (No.3)on top of the oor,
ensuring the panels are positioned
centrally on the oor, as shown in the
illustration.
Fix together by screwing through the
framing of the Window Side (No.3)into
the framing of the Plain Gable (No.2)
using 3x50mm screws.
Do not secure the building to the
Floor until the Roof is tted.
3x50mm screws.
2 3
50mm
screw
Step 5
Parts needed - &
Place the Door Gable (No.1)and the
remaining Window Side (No.3)on top
of the oor, ensuring the panels are
positioned centrally on the oor, as
shown in the illustration.
Fix together by screwing through the
framing of the Window Sides (No.3)
into the framing of the Door and Plain
Gable (No. 1 & 2) using 3x50mm
screws.
Do not secure the building to the
Floor until the Roof is tted.
9x50mm screws.
1
50mm
screw
3
31 1! 2!
Pre drill
hole
Step 6
Parts needed - &

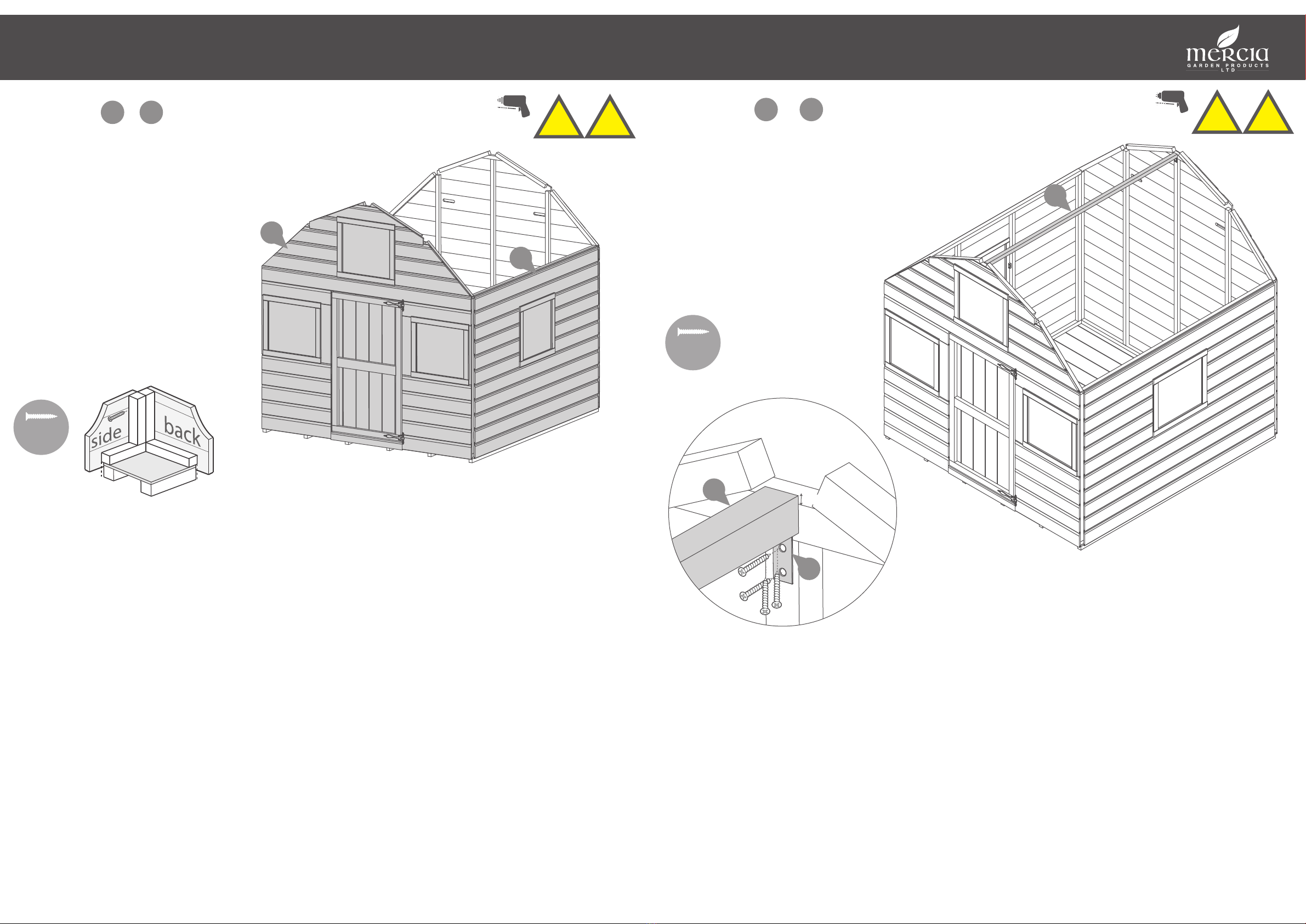

Locate the Roof Support Bar (No. 9) in
line with the central framing of the Door
and Plain Gable (No. 1 & 2) and at a
distance of 6mm above the horizontal
angled framing.
Fix in place with one Corner brace
(No.18) per end, using 4x30mm screws
per brace.
8x30mm Screws.
30mm
screw
91! 2!
Pre drill
hole
6mm
9
18
9
18
¡
Step 7
Parts needed -
Place the Large Roofs (No. 5) on top of
the playhouse on either side. Ensure the
roof framing slots into the gap between
the top rafters of the gables and the
boards nish ush to the front and back
of the playhouse, as shown in the
illustration.
Make sure the 6mm overhang on the
length of the roof is slotted within the
gable.
5
51! 2!
Pre drill
hole
5
5
6
Step 8
Parts needed -
Locate the Small Roofs (No. 6) on
top of the playhouse. Ensure the
roof framing slots into the gap
between the top rafters of the
gables and the boards nish ush
to the front and back of the play-
house, as shown in the illustration.
Make sure the 12mm overhang on
the length of the roof is at the apex
of the building.
Make sure the 6mm overhang on
the length of the Large Roofs (No.5)
is next to the Small Roof.
61! 2!
Pre drill
hole
5
6
5
6
5
6
6
Step 9
Secure the Roofs internally, using
6x50mm screws per roof panel join.
Ensure to go through one roof panel
framing and into the other. This will pull
the two roof panels together.
Position the panels so there is equal
spacing.
**Make sure that the edges of the
framing within the roof panels are
ush with the outer cladding on the
front and back panels.**
Do not secure the building to the Floor
until the roof is tted.
18x50mm Screws
50mm
screw
1! 2!
Pre drill
hole
*Internal Views*
6
5
6
5
6
5
6
5
6
Step 10

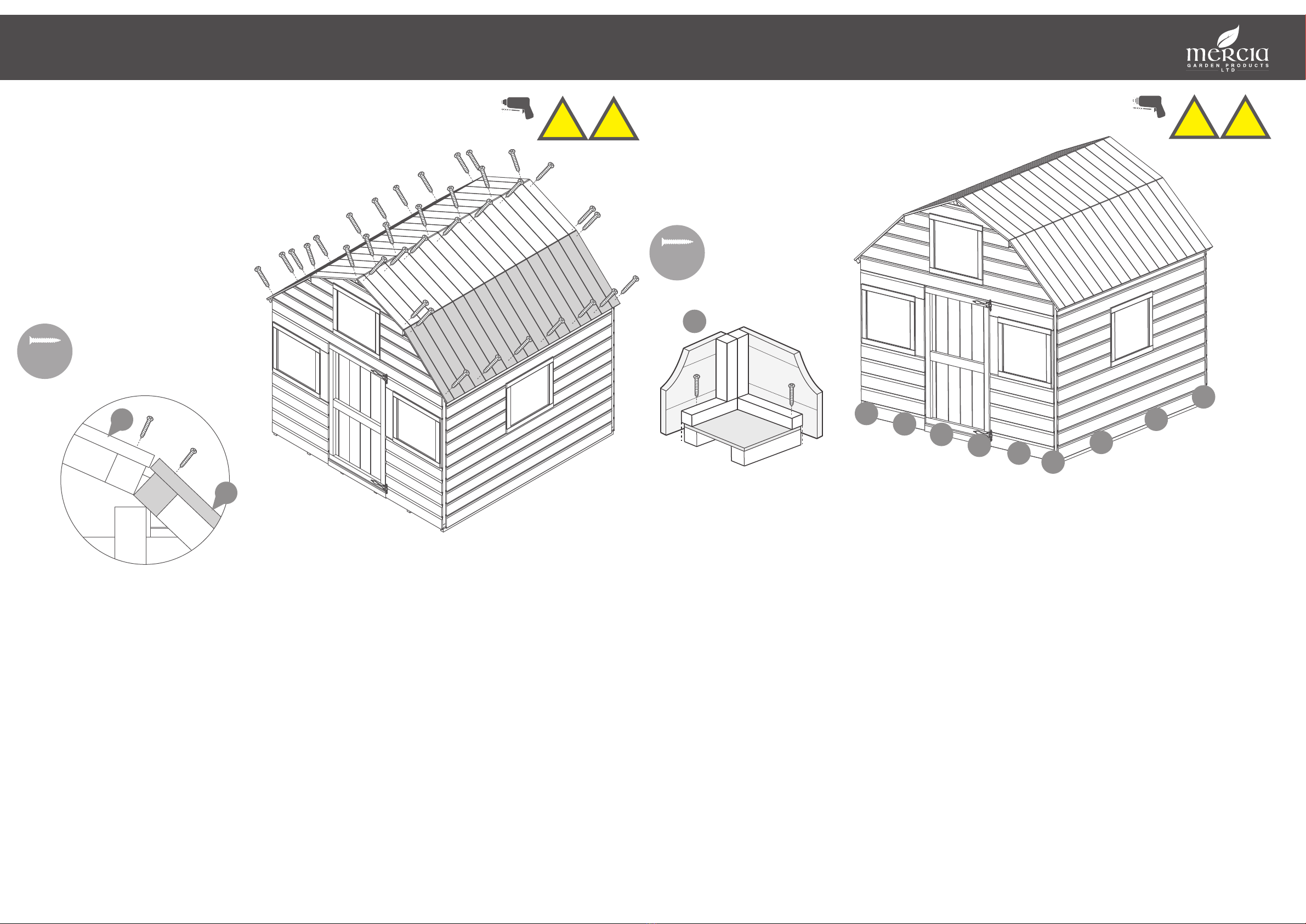

Further secure each Roof Panel in place
using 30mm screws, ensuring there is no
more than 300mm between each screw.
Make sure to screw through the cladding
in to the panel framing and roof support
bar below.
Do not secure the building to the Floor
until the roof is tted.
36x50mm Screws.
50mm
screw
1! 2!
Pre drill
hole
5
1! 2!
Pre drill
hole
50mm
screw
B
Step 11
Once the roof is tted and the building
is square, secure the building to the
Floor, using 50mm screws in alignment
with the oor joists.
18x50mm Screws
B
B
BBBBB
B
B
¢
Step 12
Parts needed -
Cut the Felt (No. 20) into 3 sheets
measuring:
1935mm (L) X 1000mm (W) and lay onto
roof. Start at the bottom of the roof and
work your way up so that rain pours over the
top of the laps and not under them. Ensure
there is a 50mm overhang around the sides.
Fix in place using felt tacks at 100mm
intervals.
100 x Felt tacks.
Felt
tacks
1! 2!
Pre drill
hole
20
HANDLE
WITH CARE
1 2
3
4
1. 2.
3.
20
100mm
Step 13
Parts needed -
Locate the Cover Trims (No. 10)
to each corner of the playhouse
as shown.
Fix in place using 3x30mm
screws per Cover Trim.
12x30mm Screws.
30mm
screw
10
10
10 1! 2!
Pre drill
hole
10
10
Step 14
Parts needed - &
Locate the Fascias (No. 11) centrally
to the front and back of the
playhouse. Fix in place using
3x30mm screws per Fascia.
Locate the Fascias (No. 12) either
side of the previously xed Fascias
(No. 11). Fix in place using 3x30mm
screws per Fascia.
Ensure to the trap the felt between
the fascia and playhouse.
24x40mm Screws.
11 11
12
11 12 1! 2!
Pre drill
hole
40mm
screw
12
11 11
12
12
11 11
12 12
Step 15
Parts needed -

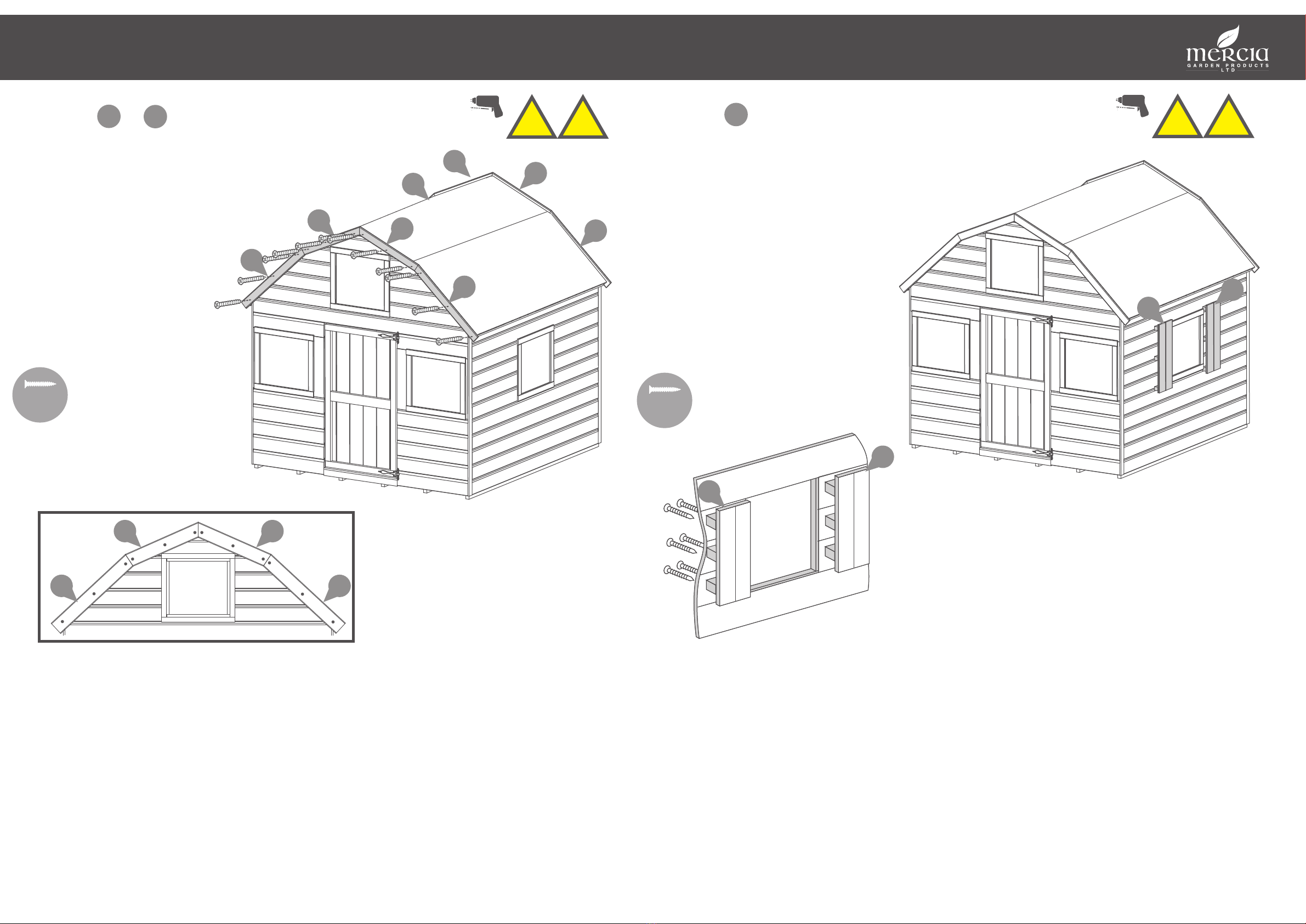

Position the Window Shutters (No.14)
around the windows on the sides of the
playhouse, as shown in the illustration.
Secure in place by screwing from inside
the playhouse, through the cladding into
the Shutter (No.14) framing, using
6x30mm screws per shutter.
Every eort has been made to reduce
sharp edges but it is recommended
that any points are rounded.
24x30mm screws.
14
30mm
screw
14
14
1! 2!
Pre drill
hole
14
14
Step 16
Parts needed - & &
Place a Window Cross (No. 13) against
the inside of each window. Position the frame
centrally to the window and x using 4x20mm
screws per frame.
Locate the Wooden Door Handle (No. 17)
onto the outside of the door. Fix in place by
hand, screwing through the door with the screw
attached to the door handle.
Fix the Ply Door Stop (No. 15) to the
inside of the Door Panel at the top and bottom
of the door opening using 3x30mm screws as
shown per door stop.
26x20mm Screws
20mm
screw
17
15
13
A
B
C
A
B
C
13 17
15 1! 2!
Pre drill
hole
15
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
£
£
£
£
¡
£
¤
£
££
¤
£
¢
¥
¤¥
¤
¦
1
2
3
4
5
6
7
8
9
¦
§
§
§
§
¨£
2
§
1
¨
§
3
4
§
©
¢
£
ª
£
£
¦
¢
«
¤
§
12
£
§
£
£
¦
¢
«
¤
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 01PTOSBA0806SDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX10DDNWGP-V1 User manual
Mercia Garden Products
Mercia Garden Products 03HEL1008DDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 0619WKNE2633LBDD1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644RANE5504HGDD8MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03PTODB0406-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OAOSB0702PB-V2 User manual
Mercia Garden Products
Mercia Garden Products 0628CSNE0303HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products Wessex 03WES1208-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619PNNE0403HGDD3SW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHAX0705HGD2MW-V1 User manual
Mercia Garden Products
Mercia Garden Products CARLTON ARBOUR ESDXL21PT050 User manual
Mercia Garden Products
Mercia Garden Products 01PTGRO1208DD-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 02DTSHAX05051W-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0705SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products BOURNEMOUTH 03BRN0707-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 04GREEN0606SD-V5 User manual
Mercia Garden Products
Mercia Garden Products 01OSBA0406DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03TGCOR0707-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHAX0608SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG125SG-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0305SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619RANE0325FGSD3TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V1 Instruction manual
Popular Garden House manuals by other brands
Palmako
Palmako Laura installation manual
Lemeks
Lemeks Palmako PA120-8830 Assembly, installation and maintenance manual
Rowlinson Garden Products
Rowlinson Garden Products SS024R Assembly instructions
Lemeks
Lemeks Palmako FR34-4040-4 Assembly, installation and maintenance manual
Forest garden
Forest garden OPR86 quick start guide
Sentry Buildings
Sentry Buildings The Jefferson Assembly Book
Tiger
Tiger ROSEN General assembly instructions
SUKKAHMART
SUKKAHMART Hard Wall Aluminium 2x3m Assembly instructions
Lemeks
Lemeks Palmako FR28-4925 Assembly, installation and maintenance manual
Palmako
Palmako Nordic + LA90-2926 installation manual
Lemeks
Lemeks Palmako FR34-5032 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako PA28-2929-1 Assembly, installation and maintenance manual
