Metra electronics 99-5841b User manual

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

99-5841B

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Integrated controls for info center

• Painted black

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips

• F) HVAC interface and wiring harness (not shown) • G) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Cutting tool

TABLE OF CONTENTS

Dash Disassembly..................................................2

Kit Preparation.......................................................3

Kit Assembly

–ISO DIN radio provision with pocket..................4

–ISO DDIN radio provision.....................................4

Axxess Interface Installation............................5-14

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface and

harness included

Antenna Adapter: Included with kit

A B C D E

Ford Fusion 2013-2017

1.800.221.0932

MetraOnline.com

For 2013-2016 models only:

1. Unclip the trim from around the shifter.

(Figure A)

2. Unclip the U-shaped trim from the rear

of the shifter. (Figure B) 14-16 only

For 2017 models only:

3. Remove the left and right side panels on

the center console, and then remove the

(2) 9/32” screws exposed. (Figure D)

All models:

4. Unclip the trim surrounding the center

dash. (Figure C)

Ensure that the vehicle is completely off

before proceeding onto the following

(3) steps

5. Remove the (2) 9/32” screws securing

the radio/climate control panel, and

then unclip, unplug, and remove.

6. Remove the (4) 9/32” screws securing

the display screen, and then unplug

and remove.

7. Remove the (2) 9/32” screws securing

the radio chassis, and then unplug

and remove.

Continue to Kit Preparation

DASH DISASSEMBLY

(Figure B)

(Figure A)

(Figure D)

(Figure C)

REV. 8/23/2018 INST99-5841B

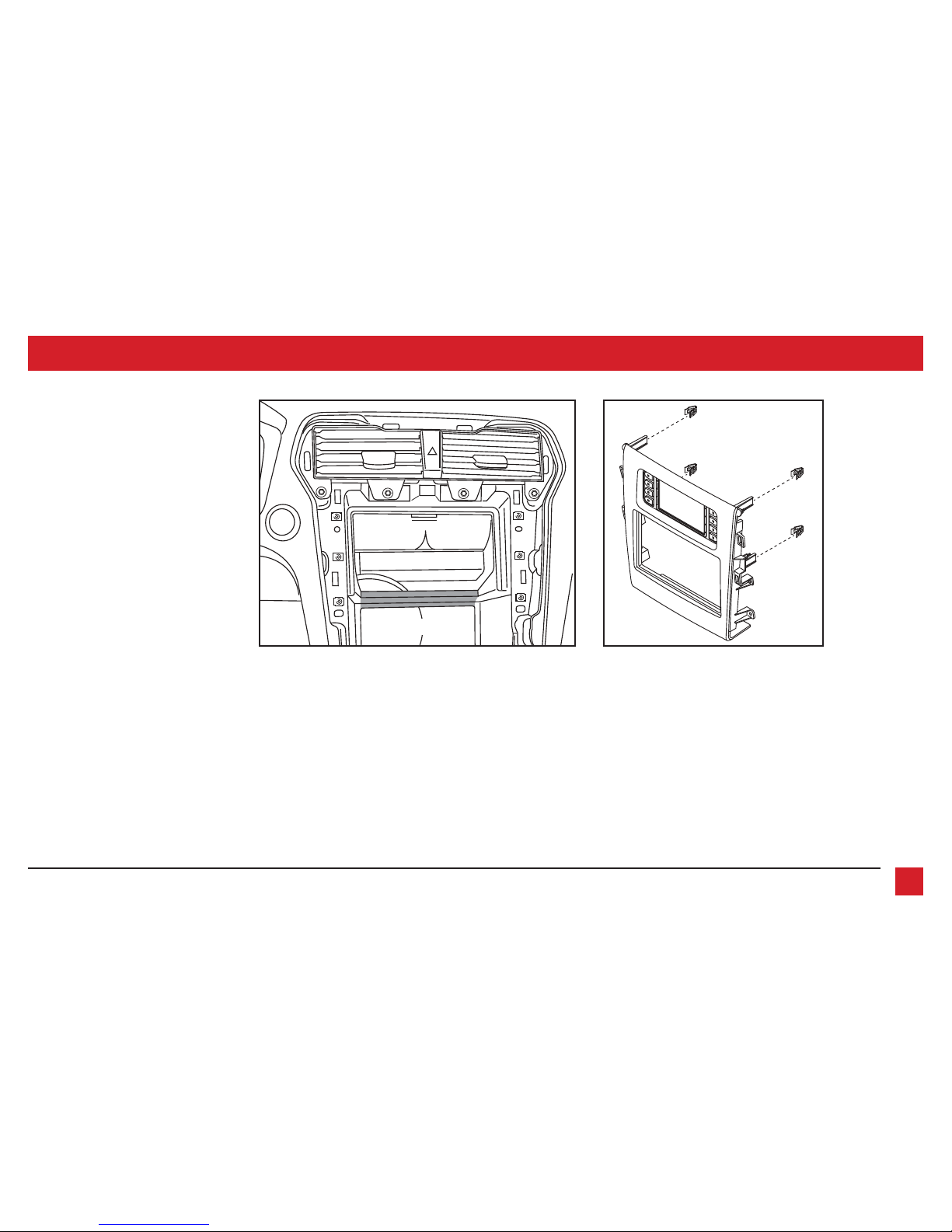

KIT PREPARATION

(Figure A) (Figure B)

1. Cut and remove the shaded area from

the sub-dash to allow clearance for the

aftermarket radio. (Figure A)

2. Attach the

(4) panel clips

provided to

the

radio trim panel

. (Figure B)

Continue to Kit Assembly

Remove shaded area

1.800.221.0932

MetraOnline.com

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Attach the

pocket

to the

radio brackets

using the (4) #8 x 3/8” Phillips screws

provided. (Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio into the bracket/pocket

assembly, and then secure it using the

screws supplied with the radio.

(Figure B)

Continue to Axxess

Interface Installation

ISO DDIN radio provision

1. Attach the

brackets

to the radio using

the screws supplied with the radio.

(Figure A)

Continue to Axxess

Interface Installation

(Figure B)

(Figure A) (Figure A)

REV. 8/23/2018 INST99-5841B 5

AXXESS INTERFACE INSTALLATION

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Retains SYNC

(4.2-inch display screen models only)

• Retains the factory backup camera

• Can be used in both ampliﬁed and non-ampliﬁed models (including Sony*)

• Retains balance and fade (excluding Sony)

• Micro “B” USB updatable

INTERFACE FEATURES

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Tape • Wire cutter • Zip ties

TOOLS REQUIRED

• Axxess interface (built into the touchscreen display)

• 5841 harness

• HVAC interface

• HVAC interface harness

• 4-pin ﬂat to 4-pin stacked harness

• 16-pin harness with stripped leads

• 54-pin backup camera harness

• 12-pin backup camera harness

• 4-pin harness with yellow RCA jacks

• Male DIN connector with a 6-pin harness

• Female 3.5mm connector with stripped leads

Connections

For models

without

a Sony ampliﬁer.......................................................................................6

For models

with

a Sony ampliﬁer ............................................................................................ 7

3.5mm jack steering wheel control retention......................................................................... 8

Backup camera harness............................................................................................................8

Installation ....................................................................................................................................9

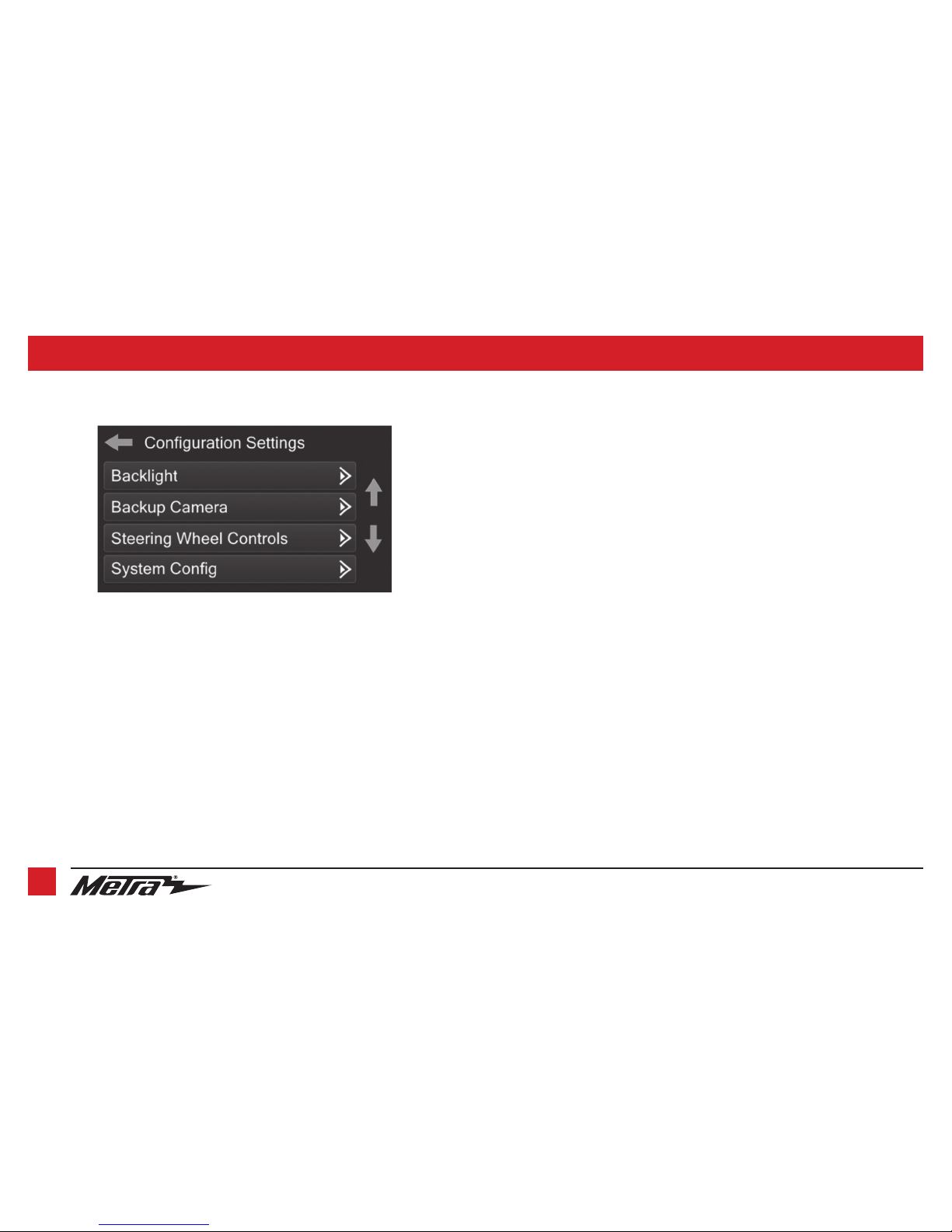

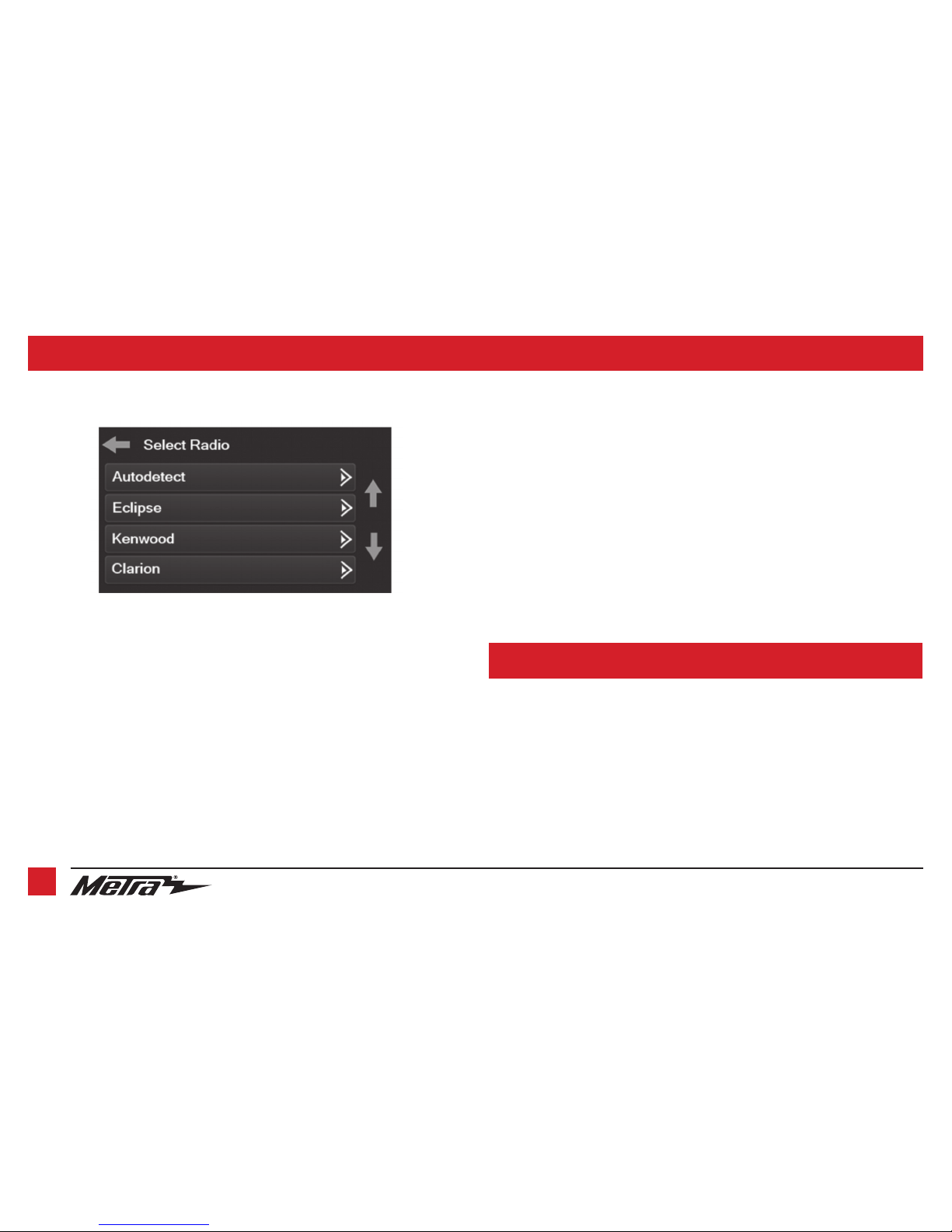

Programming...............................................................................................................................10

Final assembly.............................................................................................................................10

Extra features...............................................................................................................................10

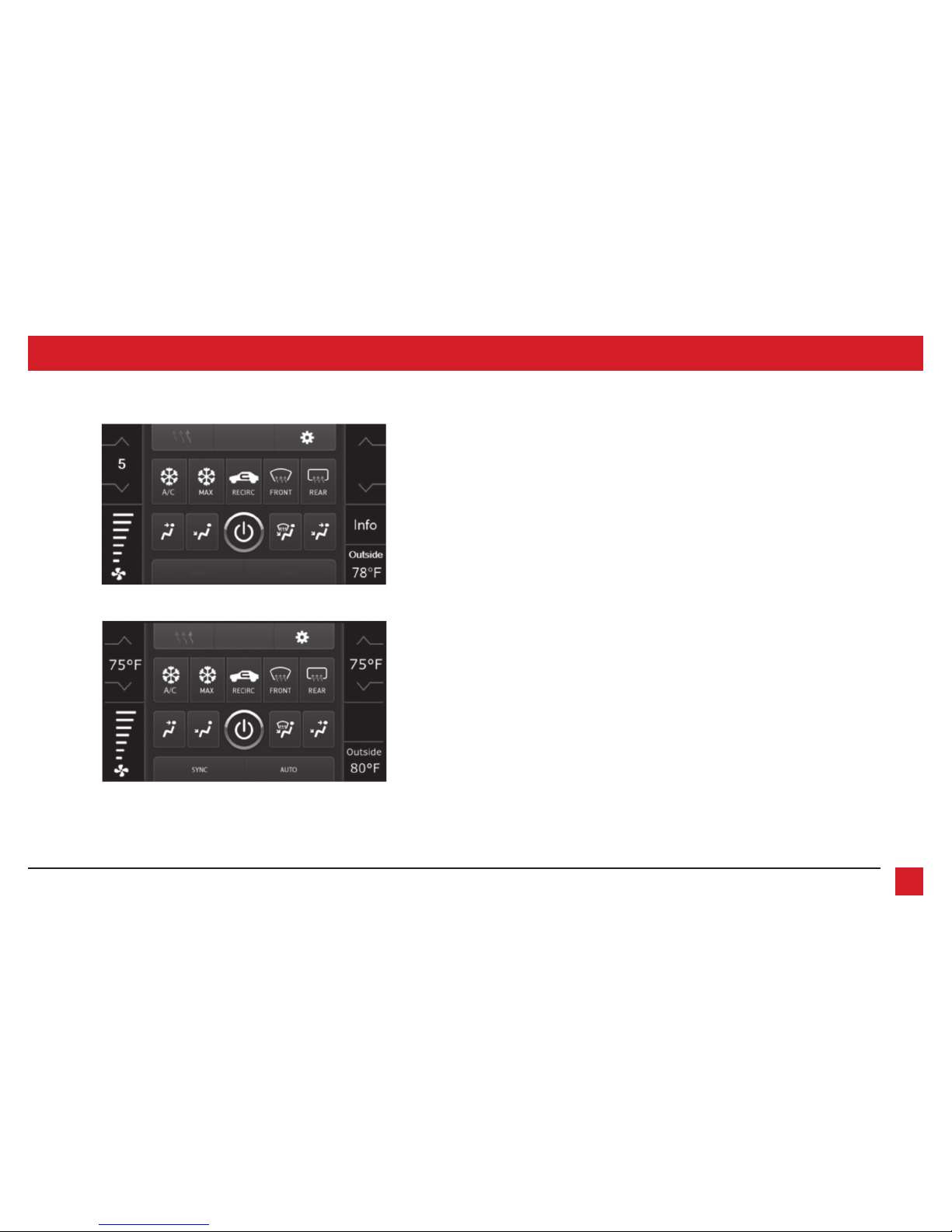

Touchscreen display operation...............................................................................................11-12

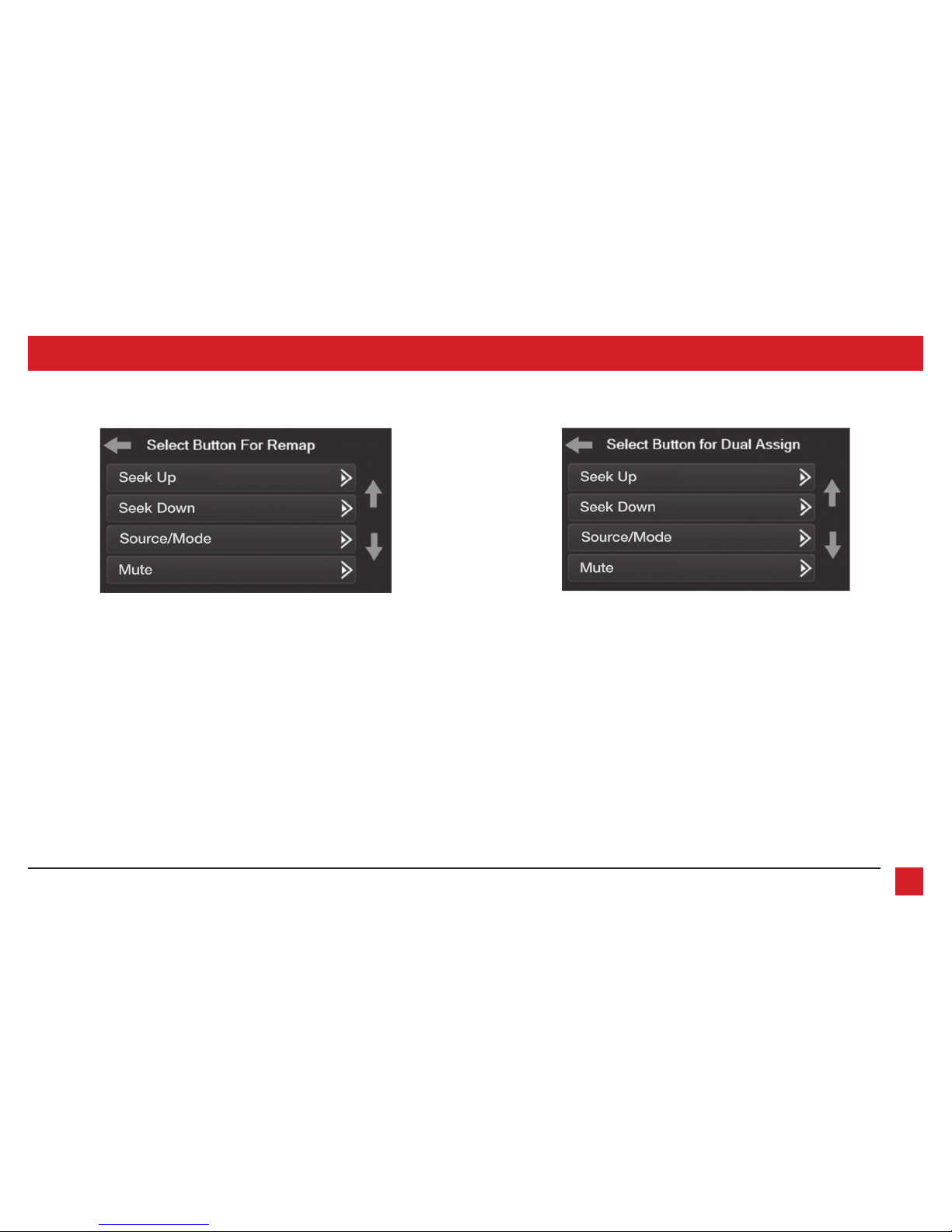

Steering wheel control settings ............................................................................................ 13-14

Troubleshooting...........................................................................................................................14

INTERFACE COMPONENTS

TABLE OF CONTENTS

* Only for 2013-2016 models

1.800.221.0932

MetraOnline.com

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire

From the 5841 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Blue wire to the power antenna wire.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative output.

• For models with a 4.2-inch display screen and SYNC®:Connect the Red and White RCA

jacks labeled “RSE/SYNC®/SAT” to the audio AUX-IN jacks of the aftermarket radio.

• Disregard the Red and White RCA jacks labeled “FROM 3.5”, they will not be

used in this application.

Continue to 3.5mm jack steering wheel control retention

Attention! This interface will work with models that are either Sony ampliﬁed, or non-ampliﬁed.

Please follow the instructions carefully for your model vehicle. Failure to do so will result in

either no sound, or low sound. If you are unsure if your vehicle is factory ampliﬁed or not,

please contact your local dealership.

For models

without

a Sony ampliﬁer:

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.

• If the aftermarket radio has a mute wire, and the vehicle is equipped with SYNC®, connect

the Brown wire to it. If the mute wire is not connected, the radio will turn off when

SYNC®is activated.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Tape off and disregard the following (5) wires, they will not be used in this application.

Blue/White, Green, Green/Black, Purple, Purple/Black

CONNECTIONS

REV. 8/23/2018 INST99-5841B

CONNECTIONS (CONT.)

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire

From the 5841 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Blue wire to the power antenna wire.

• Tape off and disregard the following (4) wires, they will not be used in this application:

Green, Green/Black, Purple, Purple/Black

• Disregard the Red and White RCA jacks labeled “RSE/SYNC®/SAT”, they will not be used

in this application.

• Disregard the Red and White RCA jacks labeled “FROM 3.5”, they will not be used

in this application.

Continue to 3.5mm jack steering wheel control retention

Attention! This interface will work with models that are either Sony ampliﬁed, or non-ampliﬁed.

Please follow the instructions carefully for your model vehicle. Failure to do so will result in

either no sound, or low sound. If you are unsure if your vehicle is factory ampliﬁed or not,

please contact your local dealership.

For models

with

a Sony ampliﬁer:

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear

sound from the factory ampliﬁer.
