Midea M7 User manual

ROBOT VACUUM CLEANER
Please read this User’s Manual carefully for proper use of Midea Robot Vacuum Cleaner.
A quality product of
Customer Care
[phone]
Landline:
[phone]
Viber/SMS:
[email protected]om.ph
Email:
1-800-10-863-5522
Toll free:
Monday - Sunday / 8:00am - 8:00pm

21
FAQs
17
17
17
18
19
19
20
MAINTENANCE

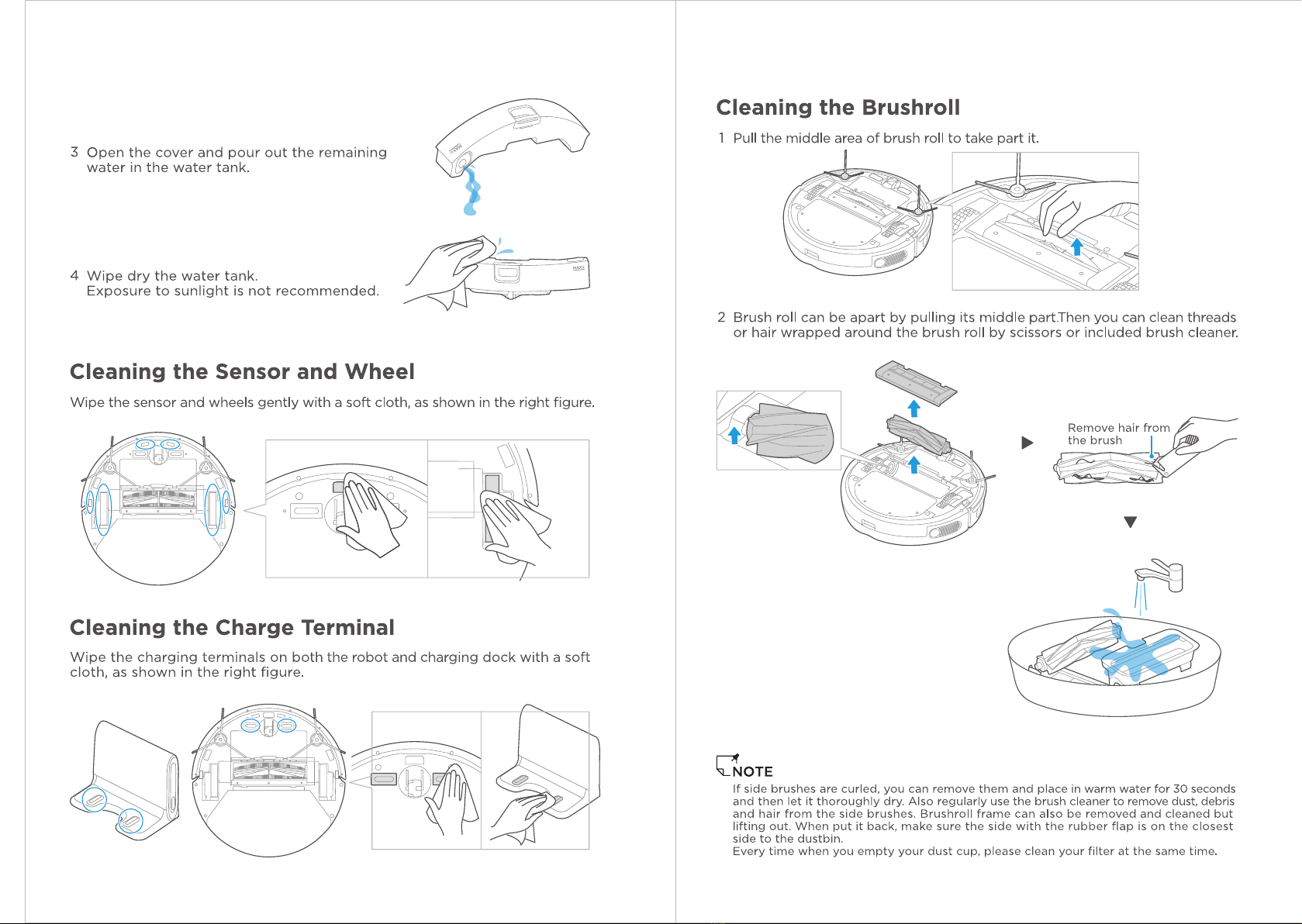

Cleaning the Side Brush
Cleaning the Dustbin,Sponge and Filter
Cleaning the Water Tank
Cleaning the Sensor and Wheel
Cleaning the Charge Terminal
Cleaning the Brushroll
INSTRUCTION OF THE PRODUCT
CONTENTS
09
Assembly and parts description
Parts list
09
09
PRODUCT OPERATION
SAFETY INSTRUCTIONS
11
11
12
12
13
14
15
16
01
TECHNICAL DATA 08

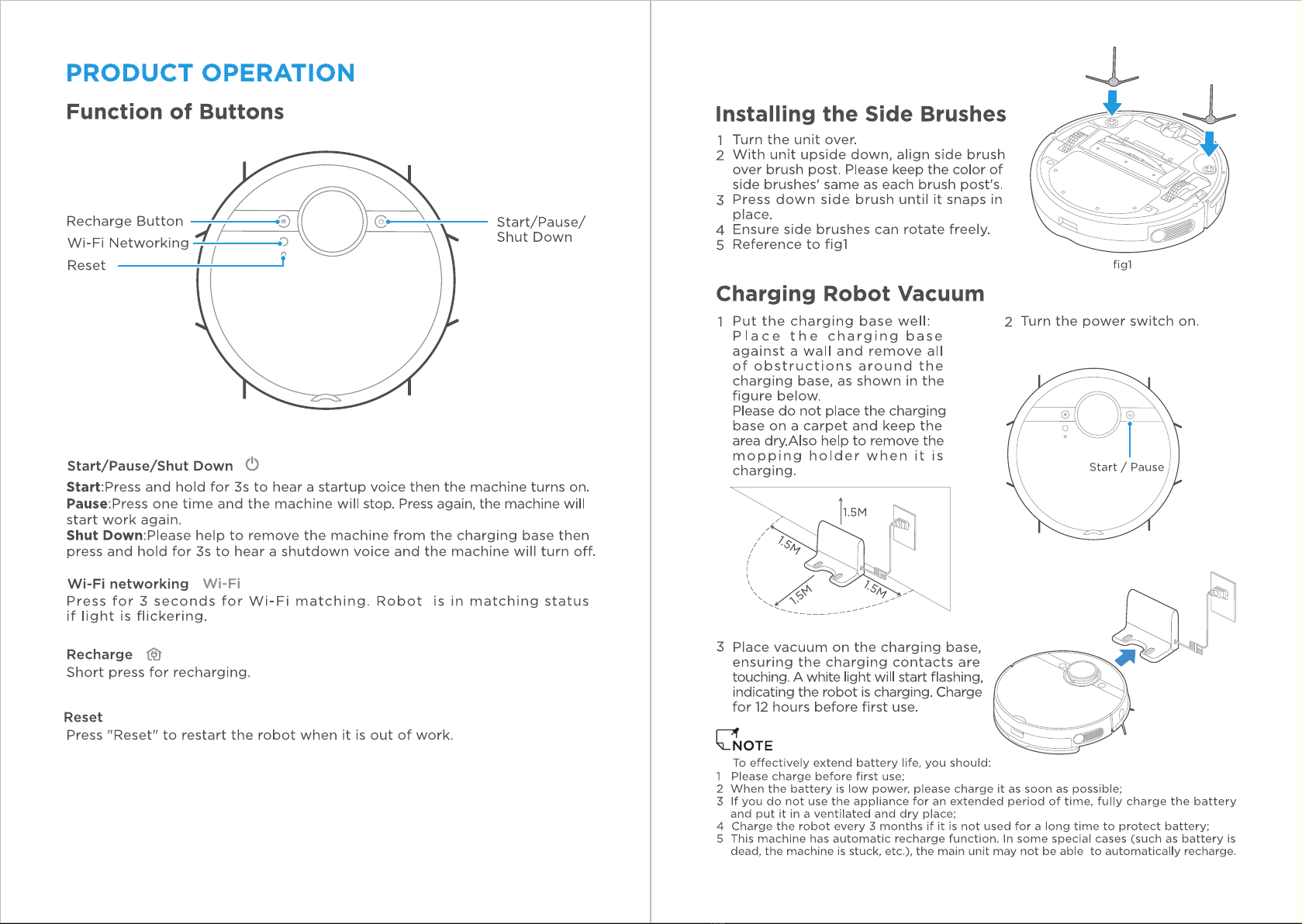

Function Of Buttons
Installing The Side Brushes
Charging Robot Vacuum
Cleaning
Mopping

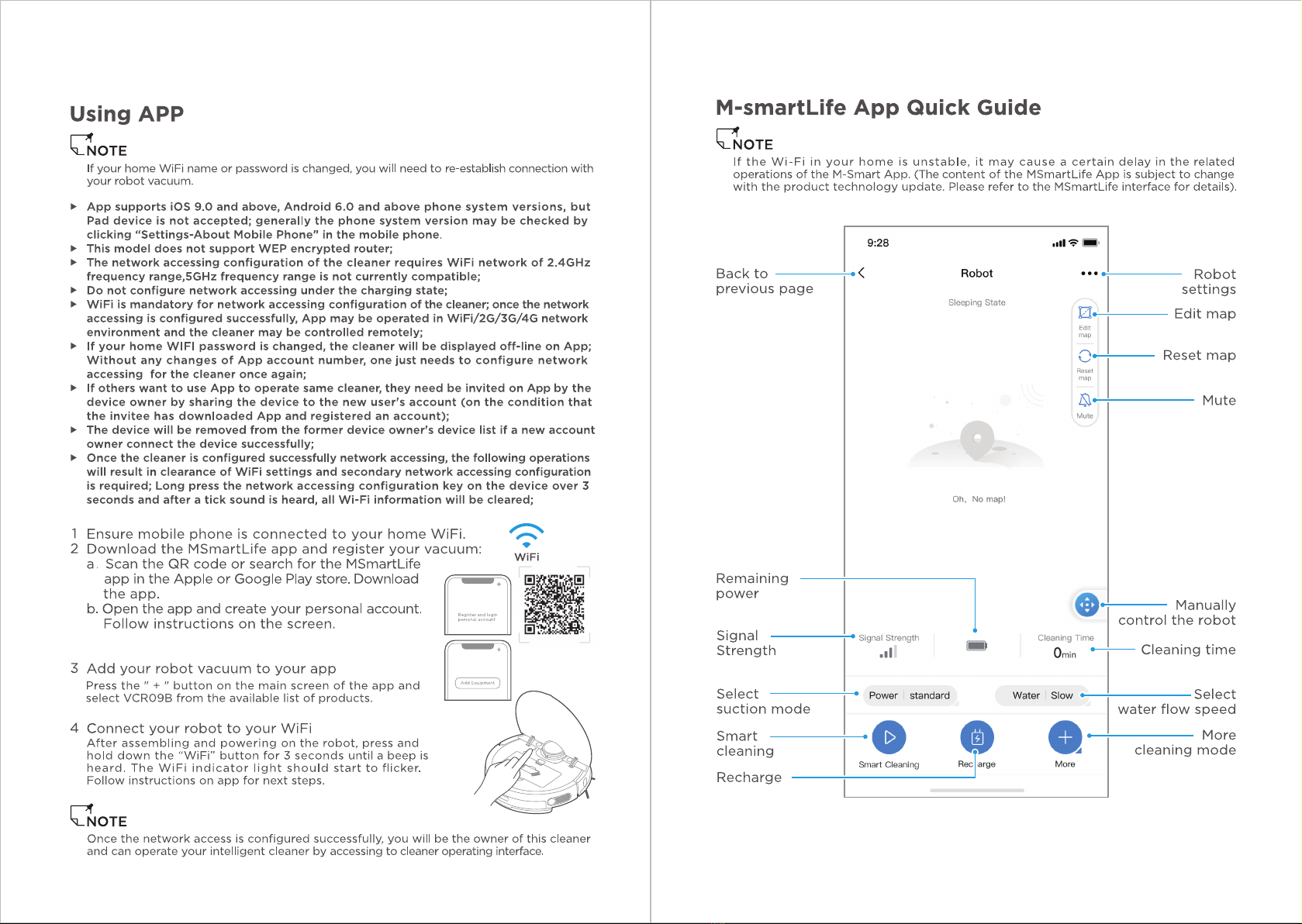

Using APP
M-smartLife App Quik Guide

01 02
SAFETY INSTRUCTIONS
Warning for the machine
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
Plug must be removed from the socket-outlet
before cleaning or maintaining the appliance.
Switch o before cleaning or maintaining the
appliance.
If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
WARNING: For the purposes of recharging the
battery, only use the detachable supply unit pro-
vided with this appliance.
Use only with M7-DS supply unit.
This appliance contains batteries that are only
replaceable by skilled persons.
1.
2.
3.
4.
5.
Do not bring the smart robot close to heatsource,
radiation or burning cigarette butts. It is strictly
forbidden to vacuum the following objects:
1)All liquids such as water and solvents;
2)Lime, cement dust and other construction dust
and garbage;
3)Heat generating objects, such as unextinguished
carbon butts, cigarette butts;
4)Sharp fragments, such as glass, etc.;
5)Flammable and explosive items, such as gaso-
line and alcohol products.
Before using, please remove all fragile items from
the ground (such as glasses, lamps, etc.), and
items that may be tangled with the side brush,
Roller brush and drive wheels(such as wires, cur-
tains and other easily-entangled materials).
Please pay attention to your hair and avoid entan-
glement on wheels or roller brushes when using,
cleaning and maintaining the robot.
Do not use this product at an altitude of more
than 2000m
6.
7.
8.
9.

Correct Disposal of this product.
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or human health from uncon-
trolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resourc-
es. To return your used device, please use the
return and collection systems or contact the
retailer where the product was purchased. They
can take this product for environmental safe recy-
cling.
10.
-
WIFI:2400-2483.5MHz, MAX POWER:20dBm,
BLUETOOTH MAX POWR:10dBm
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between the antenna of this device and persons
during device operation.To ensure compliance,
operations at closer than this distance is not rec
ommended.
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION
11.
12.
03 04
Warning for docking station
1.
2.
3.
4.
5.
6.
7.
“IMPORTANT SAFETY INSTRUCTIONS – SAVE
THESE INSTRUCTIONS" and "DANGER – TO
REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE INSTRUC-
TIONS".
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
Children should be supervised to ensure that they
do not play with the appliance.
If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
Docking station is only applicable to the product
M7/M7 Pro.
Warning: The battery charger(Docking station) is
not intended to charge non-rechargeable batter-
ies.

05 06
Warning for battery
1.
2.
3.
4.
5.
6.
7.
8.
9.
Do not dismantle, open or shred secondary cells or
batteries.
b) Do not expose cells orbatteries to heat or fire.
Avoid storage in direct sunlight.
Do notshort-circuita cell ora battery. Do not store
cells orbatteries haphazardly in a box
or drawer where theymay short-circuit each otheror
be short-circuited by othermetal objects.
Do not remove a cell or battery from its original
packaging until required for use.
Do notsubjectcellsorbatteries to mechanical shock.
In the event of a cell leaking, donot allow the liquid to
comein contact with the skin or eyes. Ifcontacthas
been made, wash the aected area with copious
amounts of water and seekmedical advice.
Do notuseany charger other than that specifically
provided for use with the equipment.
Observe the plus (+) and minus(–) marks on the cell,
battery and equipmentand ensure correctuse.
Do notuseany cell or battery which isnot designed
foruse with the equipment.
Do notmix cells of dierentmanufacture, capacity,
size or type within a device.
10.
11.
Keep cells and batteriesoutof the reach of children.
Seek medical advice immediately if a cell ora battery
hasbeen swallowed.
[symbol IEC 60417-5957
( 2004-12 )]
[symbol ISO 7000-0790
( 2004-01 )]
[symbol IEC 60417-5031
( 2002-10 )]
[symbol IEC 60417-5032
( 2002-10 )]
[symbol IEC 60417-5172
( 2003-02 )]
time-lag miniature fuse-link where X is the symbol for
the time/current characteristic as given in IEC 60127
for indoor use only
read operator's manual
direct current
alternating current
class II equipment

07 08
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
Always purchase the correct cell or battery for the
equipment.
Keep cells and batteries clean and dry.
Wipe the cell or battery terminals with a clean dry
cloth if they become dirty.
Secondary cells and batteries need to be charge
before use. Always use the correct
charger and refer to the manufacturer’s instruc-
tions or equipment manual for proper charging
instructions.
Do not leave a battery on prolonged charge when
not in use.
After extended periods of storage, it may be nec-
essary to charge and discharge the cells
or batteries several times to obtain maximum
performance.
Secondary cells and batteries give their best per-
formance when they are operated at normal room
temperature (20 °C ±5 °C).
Retain the original product manual for future
reference.
Use only the cell or battery in the application for
which it was intended.
When possible, remove the battery from the
equipment when not in use.
Dispose properly.
TECHNICAL DATA
Warning for batery
Product Model: M7/M7 Pro
Host Charging Voltage: 16.9 V
Host Rated Voltage:14.4 V
Host Rated Power:55 W
Docking Station Model:M7-DS
Docking Station Input:100-240V~,50-60Hz,38W
Docking Station Output:16.9V ,2A
Battery Model:BP14452B
Battery Rated Voltage:14.4V
Battery Capacity:5200mAh 74.88Wh
Charging Limit Voltage:16.8V
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Imported and Distributed by:
CONCEPCION MIDEA INC.
Km. 20 East Service Road, South
Superhighway, Alabang, Muntinlupa City,
Philippines 1700
Note: you can also view the instructions on the app.
Jiangsu Midea Cleaning Appliances Co.,Ltd.
Add.: No.39 Caohu Avenue,
Xiangcheng District, Suzhou, Jiangsu, China

09 10
Only for M7 Pro

11 12

13 14

15 16

17 18

19 20

21 22
In case of malfunction, please refer to the following table
Problem Troubleshooting
Cause Solution
App displays
disconnection
Disconnection
between the
mobile phone
and the
appliance
Slow App
operation
Network
connection
is not so
smooth
The QR code
of the mobile
phone itself
cannot be
scanned by
App.
The hardware
cations
of the mobile
phone are very
low, the camera
has no f
J d e if the mobile
phone is accessed
to network;
the ro ter
works normally;
The cleaneris req ired
to be powered;
The WiFi
con rations of
e
cleared;
The WiFi password
or network is chan ed.
Netw y;
Poor W
reception of the
mobile phone;
The network
bandwidth is
e.
phones for
c
The mobile phone shall
be accessed to network
onc
Re-start the r er;
Power on the cleaner once
Add new appliances into
App;
After system start- p, lon
press “WiFi” 3 seconds
andrelease it after a tick
so ndis heard;clear all
WiFi con rations of
t h e cleaner and add
ho sehold electrical
appliances once a ain for
operation.
Re-start the ro ter and
red ce the n mber of
acces
Check the settin s of the
mobile phone itself;
Broaden network
bandwidth.
and scan;
Add appliance by prod ct
cat .
T es that this pr
ho sehold wastes thro ho t the EU. To prevent possible harm to the
envir ncontrolled waste disposal, recycle it
responsibly to promot tainable r f material reso rces. To ret rn
yvice et rn and collection systems or contact
the retailer where the pr chased.
They can take this pr or environmental safe recy
2400-2483.5MHz, WIFI MAX RF POWER: 20 dBm,
BLUETOOTH MAX RF POWER: 10 dBm
Correct Disposal of this product

23 24
：
：
:
Jiangsu Midea Cleaning Appliances Co.,Ltd.
Responsible that the product:
Product Name:Robot Vacum Cleaner
