Miele CS 1223 User manual

Operating and installation instructions
Induction wok
CS 1223
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 180 670
en-GB

Guide to the appliance .............................................4
Warning and Safety instructions .....................................6
Caring for the environment.........................................12
Before using for the first time.......................................13
Induction........................................................14
The induction principle .............................................14
Suitable pans .....................................................15
Operation .......................................................16
Switching on and off ...............................................16
Residual heat indicator .............................................16
Settings .........................................................17
Auto heat-up .....................................................17
Booster function...................................................18
Safety features ...................................................19
Lock ............................................................19
Safety switch-off...................................................20
Overheating protection .............................................21
Cleaning and care ................................................22
Problem solving guide ............................................24
Optional accessories..............................................26
Contents
2

Safety instructions for installation...................................27
Appliance and building-in dimensions ...............................31
Preparing the worktop.............................................32
Installation of several appliances....................................33
Fixing the spring clamps and spacer bars ............................35
Installing the appliance(s)..........................................37
General installation tips ...........................................38
Electrical connection..............................................39
After sales service, data plate ......................................41
Contents
3

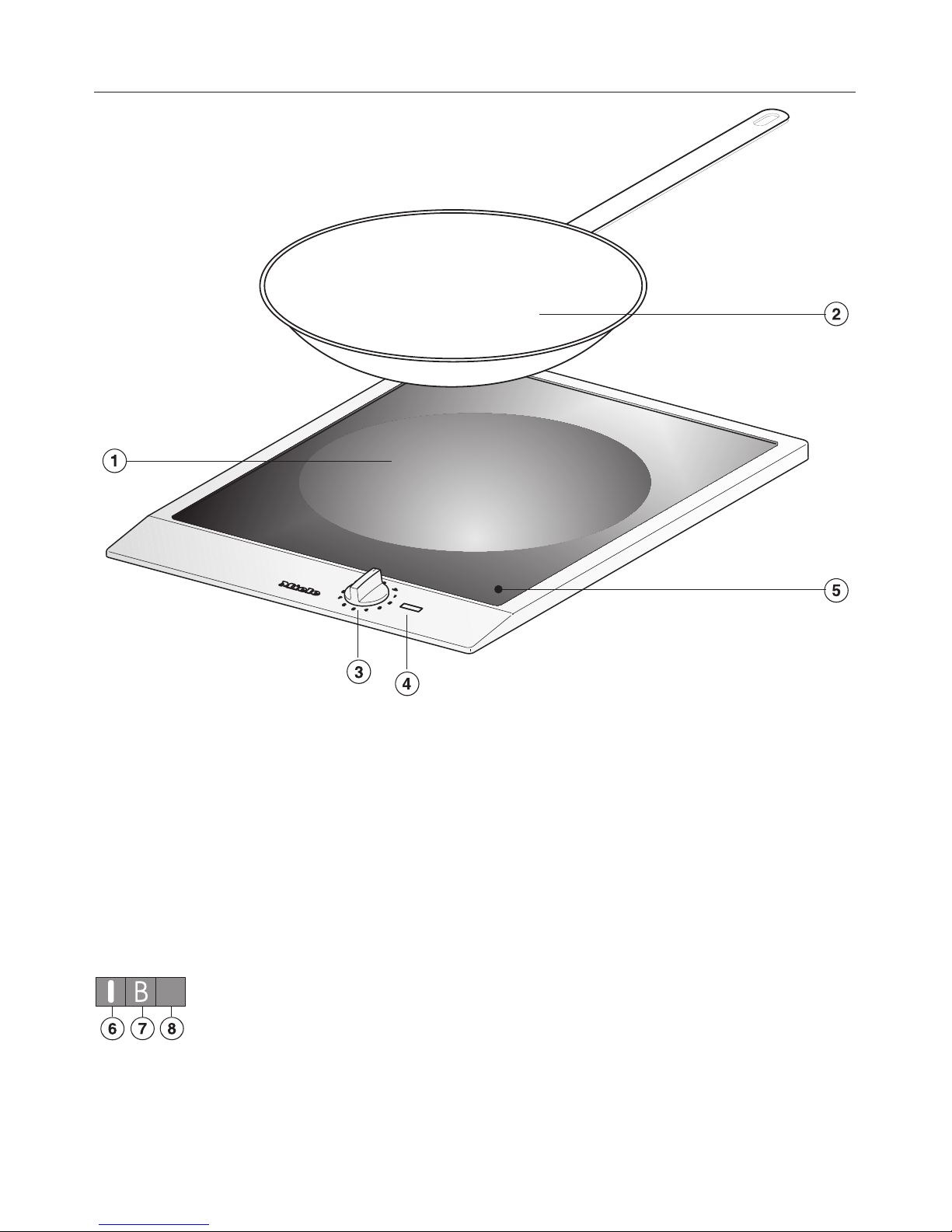

aWok basin (C300 mm)
rating: 2400 W
with Booster: 3200 W
bWok

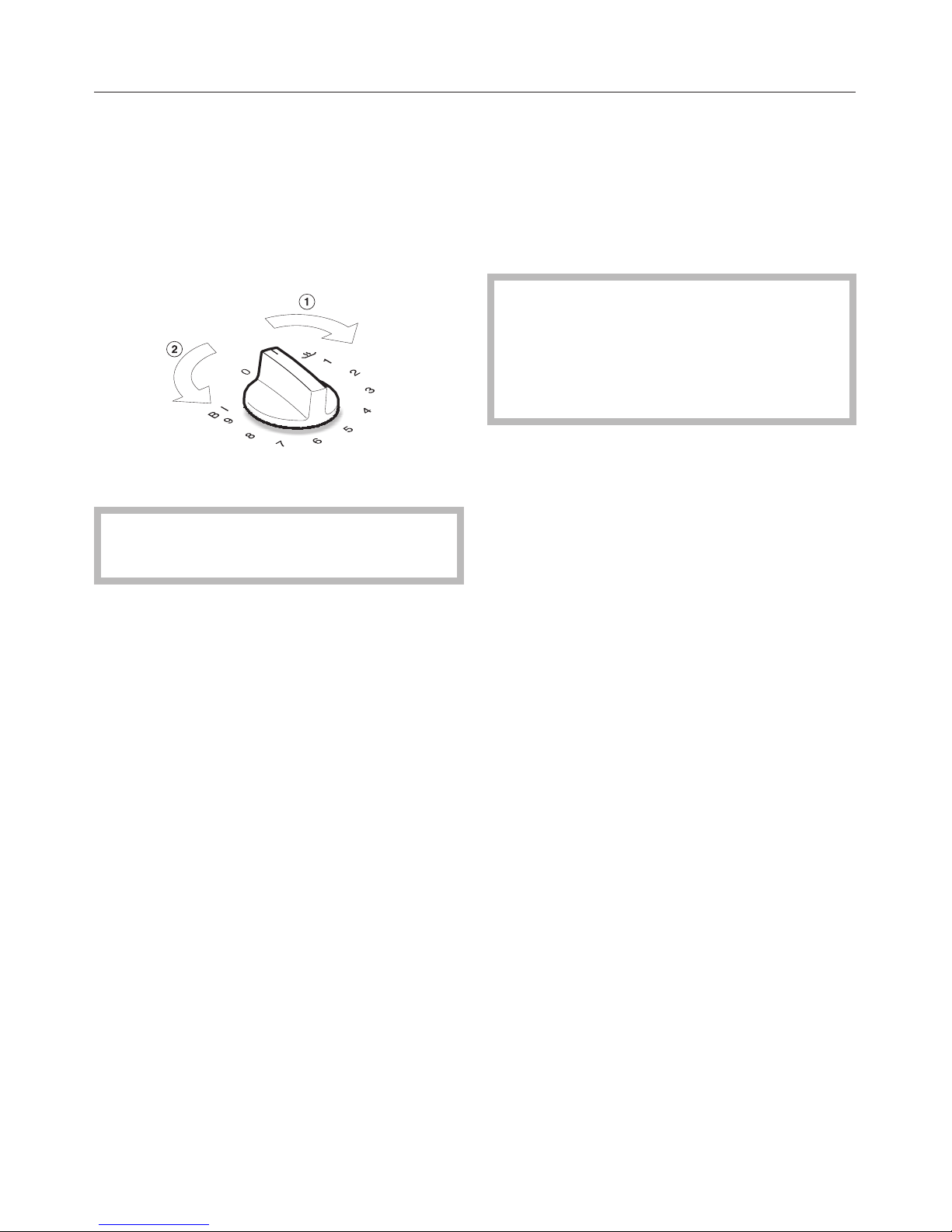

cControl knob
dIndicators
Indicators
fIn-operation indicator
gBooster indicator
hResidual heat indicator
eDisplay
ßNo wok on cooking zone,
or wok unsuitable
AAuto heat-up
FFault
(see "Problem solving guide")
C/0Safety switch off
(see "Safety features")
IBooster in operation
HOverheating protection
(see "Safety features")
LSafety lock
(see "Safety features")
Guide to the appliance
4

Accessories supplied
The wok supplied with your CombiSet appliance as well as a
range of optional accessories are available to order (see
"Optional accessories").
Wok
Guide to the appliance
5

This appliance is built in accordance
with current safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This appliance is intended for
domestic use only and must be used as
described in these instructions.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Warning and Safety instructions
6

Safety with children
~Activate the safety lock to ensure
that children cannot switch on the
induction hob inadvertently.
~This appliance is not a toy! To avoid
the risk of injury keep children well
away and do not let them play with it or
use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may only use the
induction wok when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
~The induction wok heats up and
remains hot for quite a while after it has
been switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
~Take care that children are not able
to pull the wok down off the appliance.
Turn the wok handle inwards away from
the edge of the appliance. Danger of
burning or scalding.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Warning and Safety instructions
7

Technical safety
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Before installation, check the
appliance for visible signs of damage.
Under no circumstances should you
use it if it has been damaged. A
damaged appliance is dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
~Before connecting the appliance to
the mains supply, make sure that the
rating on the data plate corresponds to
the voltage and frequency of the
household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For safety reasons, this appliance
may only be used when it has been
built in.
~This appliance may be connected
via a fused plug and switched socket. If
you wish to connect it to an isolator
switch, or if the appliance is supplied
without a plug, it must be installed and
connected by a suitably qualified and
competent person in strict accordance
with current local and national safety
regulations. The manufacturer cannot
be held liable for damage caused by
incorrect installation or connection.
~If the connection cable is damaged,
it must be replaced by a suitably
qualified electrician with a special
connection cable of type H 05 V V-F
(pvc insulated), available from the Miele
Service Department.
Warning and Safety instructions
8

~Never open the casing. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected, or
–the screw-out fuse is removed (in
countries where this is applicable), or
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~To avoid the risk of damage to the
electrical cable ensure that is installed
in such a way that it cannot touch any
parts of the appliance which become
hot.
~Do not use the appliance if it is
faulty, or if the ceramic surface is
cracked, chipped or damaged in any
way. Switch it off immediately, and
disconnect it from the mains electricity
supply. Danger of electric shock.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Warning and Safety instructions
9

Correct use
For people fitted with a heart
pacemaker:
Please note that the area immediately
surrounding the appliance is
electromagnetically charged, and that
this could affect a pacemaker.
If in any doubt consult the manufacturer
of the pacemaker or your doctor.
~Only use the wok supplied with the
appliance. For safety reasons, other
woks should not be used: fire hazard.
See "Operation - pans"
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. There is a danger of
burning until the residual heat indicator
goes out.
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.
~This appliance must not be set up or
operated in the open air.
~When using an electric socket near
the appliance, care should be taken
that the cable of the electrical
appliance does not come into contact
with the hot appliance. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.
~Do not cover the appliance, e.g.
with a cloth, kitchen foil, etc. This could
be a fire hazard if the appliance is
switched on by mistake.
~Do not leave the appliance
unattended whilst it is in use.
A wok that has boiled dry can cause
damage to the ceramic surface for
which the manufacturer cannot be held
liable.
Boiling fat or oil could ignite and cause
a fire.
~If, despite this, oil or fat does catch
fire, do not attempt to put out the flames
with water. Use a suitable fire blanket,
saucepan lid, damp towel or similar to
smother the flames.
~Do not flambéunder a cooker hood.
The flames could set the cooker hood
on fire.
~To prevent damage to items which
are susceptible to magnetic fields, e.g.
credit cards, diskettes, pocket
calculators etc, do not leave them in the
immediate vicinity of the hob.
~Spray canisters, aerosols and other
inflammable substances should not be
stored in a drawer under the hob.
Cutlery inserts must be heat-resistant.
~Do not drop anything on the ceramic
surface. Even a light object could
cause damage in certain
circumstances.
Warning and Safety instructions
10

~Keep the appliance clean. Grains of
salt, sugar and sand (e.g. from
cleaning vegetables) can cause
scratches.
~Do not allow either solid or liquid
sugar, or pieces of plastic or aluminium
foil to get onto the induction hob when it
is hot. If this should occur, switch off
the appliance, and carefully scrape off
all the sugar, plastic or aluminium
residues from the surface whilst they
are still hot, using a shielded scraper
blade. Take care not to burn yourself.
If residues are allowed to cool before
being removed, the ceramic surface
will be susceptible to pitting or even
cracking.
Once the residues have been removed,
allow the appliance to cool down, and
then clean with a suitable proprietary
ceramic hob cleaner.
~To prevent the risk of spillages etc.
burning on, remove any soiling as
quickly as possible and ensure that the
base of the wok is clean, dry and free
of grease.
~If a drawer is fitted directly
underneath the appliance, ensure that
there is sufficient space between the
drawer and its contents and the
underside of the appliance in order to
ensure sufficient ventilation for the
appliance.
~Do not use the appliance as a
resting place for anything else. Take
particular care never to place cutlery or
other metal objects on the appliance.
When the appliance is switched on
either deliberately or by mistake, or
when there is residual heat present,
there is the risk of metal objects heating
up, with a danger of burning.
Depending on the material, other
objects left on the appliance could also
melt or catch fire.
Switch the appliance off after use.
~Always ensure that food is
sufficiently cooked or reheated. Many
factors will affect the overall cooking
time, including the size and quantity of
the food and its temperature.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking at a
sufficiently high temperature for long
enough. Therefore, when cooking or
reheating food such as poultry, it is
particularly important that the food is
completely cooked through. If in doubt,
select a longer cooking or reheating
time.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
11

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
Caring for the environment
12

Please stick the extra data plate for the
appliance supplied with this
documentation in the space provided in
the "After sales service" section of this
booklet.
Cleaning for the first time
^Remove any protective wrapping and
sticky labels.
^Before using for the first time, clean
the appliance with a damp cloth only
and then wipe dry.
Do not use washing up liquid to
clean the ceramic surface as it can
leave a blue sheen which may be
difficult to remove.
Before using for the first time
When the induction wok is first
connected, and after a power cut, all of
the indicators in the display light up for
approx. 1 second for testing purposes.
The appliance can be used as soon as
the indicators go out.
Metal components have a protective
coating which may give off a slight
smell when heated up for the first
time. The smell and any vapours do
not indicate a faulty connection or
appliance, and they are not harmful
to health.
Before using for the first time
13

The induction principle
An induction coil is located underneath
the induction wok. When the appliance
is switched on, this coil creates a
magnetic field. This magnetic field in
turn creates, or induces, current in the
base of the wok on it. This heats up the
base of the wok. The wok basin itself is
heated up indirectly by the heat given
off by the wok pan.
The appliance only works when the wok
supplied is used (see "Suitable pans").
Induction heating does not work...
–if it is switched on without the wok in
place.
–if the wok is removed from the
appliance whilst it is switched on.
If this happens, ßwill flash in the
display.
If the wok is replaced within 3 minutes,
the ßsymbol will go out and you can
continue as normal.
If the wok is not replaced, the induction
wok will switch off automatically after 3
minutes. 0and Cflash alternately in the
display.
To use the induction wok again, first
turn the control to "0".
Take particular care never to place
cutlery or other metal objects on the
appliance. When the appliance is
switched on either deliberately or by
mistake, or when there is residual
heat present, there is the risk of
metal items heating up with the
danger of burning.
Switch the appliance off after use.
Induction
14

Noises
The following noises might occur when
the induction wok is in operation:
–On the higher power settings, it
might buzz. This will decrease or
cease altogether when the power
setting is reduced.
–You might hear a clicking sound from
the electronic switches, especially on
lower settings.
The appliance has a cooling fan to help
extend the life of the electronics. When
the hob is being used intensively, this
will come on and you will hear a
whirring sound. The fan may continue
to run after the appliance has been
switched off.
Suitable pans
Only use the wok supplied with the
appliance for cooking food.
This wok is designed specifically for the
appliance.
,If other woks are used, there is a
risk of fat or food overheating, and
burning.
Induction
15

Switching on and off
The induction wok is switched on by
turning the control clockwise ato the
power setting required, and is switched
off by turning the control anticlockwise
bto "0".
Do not turn the control to "0" by
turning it past BI.
When the induction wok is switched on,
the in-operation indicator lights up.
Once it has reached a certain
temperature, the residual heat indicator
also lights up.
After the appliance has been switched
off, the in-operation indicator goes out.
Residual heat indicator
The residual heat indicator remains on
until the induction wok is cool enough
to touch.
Do not touch or place any heat
sensitive objects on the induction
wok while the residual heat display
is still on.
Danger of burning.
Operation
16

Settings
Cooking process Settings
Keeping food warm,
melting chocolate
1-2
Warming food up 3 - 6
Stir-frying, e.g. Chinese
dishes
7- 9
Auto heat-up
Continued
cooking setting
Heat-up time
in minutes and
seconds (approx.)
1 0:15
2 0:15
3 0:25
4 0:50
5 2:00
6 5:50
7 2:50
8 2:50
9-
When Auto heat-up has been activated,
the induction wok switches on
automatically at the highest setting and
then switches to the continued cooking
setting selected. The heat-up time
depends on which continued cooking
setting has been chosen (see chart).
Taking the wok off the zone whilst Auto
heat-up is in operation interrupts the
Auto heat-up. It will resume if the wok is
placed back on the appliance within 3
minutes.
Activating Auto heat-up
^Turn the control anticlockwise as far
as it will go, and hold in that position
until Aappears in the display.
If you hold the control for too long, L
will appear in the display which
means that the lock has been
activated (see "Safety features -
Lock").
^Turn the control clockwise to the
continued cooking setting required.
Auto heat-up will not be activated if you
do not select a continued cooking
setting within 5 seconds.
The continued cooking setting can be
changed during the first 10 seconds
after Auto heat-up has been activated;
after that, it cannot be changed.
Changing the continued cooking
setting after 10 seconds deactivates
Auto heat-up.
An Alights up in the display during the
Auto heat-up phase.
Operation
17

Booster function
The induction wok is equipped with a
booster function which increases the
power level.
If activated, the appliance will operate
on power setting 9with an extra boost
of power for a period of 10 minutes.
Taking the wok off the appliance whilst
the Booster is in operation interrupts the
Booster. It will resume if the wok is
placed back on the appliance within 3
minutes.
If the wok reaches its maximum
permitted temperature before
10 minutes is up, the booster
function switches off and the
appliance resumes at power setting
9.
Only the wok supplied has this
safety feature, which ensures that
the appliance switches off when it
gets too hot.
To switch on the booster function
^Turn the control past power setting 9
to BI, and then back to 9.
Iappears in the display, and the B
indicator also lights up.
After 10 minutes the appliance will
automatically switch down to power
setting 9, and the Bindicator and the I
symbol in the display goes out.
To switch off the booster function
The booster function can be cancelled
early.
^Turn the control past power setting 9
to BI; or reduce the power setting.
Operation
18

Lock
The induction wok is fitted with a safety
lock to prevent unauthorised use, e.g.
by children.
To activate the lock
^Turn the control anticlockwise as far
as it will go, and hold in that position
until Lappears in the display.
Every time the control is touched after
this, an Lwill show in the display for 3
seconds.
To deactivate the system lock
^Turn the control anticlockwise as far
as it will go, and hold in that position
until the Lgoes out, and 0appears
briefly in the display.
Safety features
19

Safety switch-off
The induction wok is fitted with a safety
switch-off feature in case you forget to
switch it off yourself.
If the induction hob is heated for an
unusually long period of time (see
chart), and the power setting is not
altered, it will switch itself off
automatically.
Cand 0will flash alternately in the
display.
To use the induction wok again, first
turn the control to "0". The indicator light
and the display will go out.
Power setting Maximum
operating time in
hours
110
25
35
44
53
62
72
82
91
Safety features
20
