Miele SmartLine CS 7611 User manual

Operating and installation instructions
SmartLine induction wok
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 883 161

Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 14
Overview............................................................................................................... 15
Wok burner............................................................................................................ 15
Controls / Indicators.............................................................................................. 16
Cooking zone data ................................................................................................ 17
Accessories supplied ............................................................................................ 18
Before using for the first time ............................................................................ 19
Cleaning the SmartLine appliance for the first time .............................................. 19
Switching on the SmartLine appliance for the first time ....................................... 19
Induction .............................................................................................................. 20
Operation.............................................................................................................. 22
Power level range .................................................................................................. 22
Operating principles .............................................................................................. 22
Switching on the wok ............................................................................................ 23
Setting the power level.......................................................................................... 23
Switching off.......................................................................................................... 23
Residual heat indicator.......................................................................................... 23
Setting the power level - extended power level range .......................................... 23
Auto heat-up ......................................................................................................... 24
Booster.................................................................................................................. 25
Keeping warm ....................................................................................................... 26
Timer..................................................................................................................... 27
Minute minder duration ......................................................................................... 27
Switching off a cooking zone automatically.......................................................... 28
Additional functions ............................................................................................ 29
Stop & Go.............................................................................................................. 29
Recall..................................................................................................................... 29
Wipe protection ..................................................................................................... 30
Demonstration mode............................................................................................. 30
Displaying the SmartLine appliance data.............................................................. 30
Safety features..................................................................................................... 31
System lock / Safety lock...................................................................................... 31
Safety switch-off ................................................................................................... 33
Overheating protection.......................................................................................... 34
Programming ....................................................................................................... 35

Contents
3
Cleaning and care ............................................................................................... 38
Problem solving guide ........................................................................................ 40
Optional accessories .......................................................................................... 44
Service.................................................................................................................. 45
Contact in case of fault ......................................................................................... 45
Data plate .............................................................................................................. 45
Warranty ................................................................................................................ 45
Installation............................................................................................................ 46
Safety instructions for installation ......................................................................... 46
Safety distances.................................................................................................... 47
Surface-mounted .................................................................................................. 49
Installation notes – surface-mounted.................................................................... 49
Worktop cut-out – surface-mounted..................................................................... 51
Spacer bars – surface-mounted............................................................................ 54
Installation dimensions– Surface-mounted.......................................................... 55
Installation – surface-mounted.............................................................................. 56
Flush-fit ................................................................................................................. 58
Installation notes – flush-fit ................................................................................... 58
Worktop cut-out – flush-fit .................................................................................... 60
Spacer bars – flush-fit ........................................................................................... 63
Installation dimensions–Flush ............................................................................. 64
Installation – flush-fit ............................................................................................. 65
Electrical connection ............................................................................................. 67

Warning and Safety instructions
4
This wok complies with all current local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the wok. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the appliance.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation” and in “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.

Warning and Safety instructions
5
Correct application
 This wok burner is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
 The wok burner is not suitable for outdoor use.
 It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
 This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.

Warning and Safety instructions
6
Safety with children
 Young children must not be allowed to use this appliance.
 Older children may only use the gas wok burner if its operation
has been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.
 Cleaning may only be carried out by older children under the
supervision of an adult.
 Please supervise children in the vicinity of the wok burner and do
not let them play with it.
 The appliance gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the appliance
until it has cooled down and there is no danger of burning.
 Danger of burning!
Do not store anything which might arouse a child's interest in
storage areas above or next to the wok burner. Otherwise children
could be tempted to climb onto the wok burner with the risk of
burning themselves.
 Danger of burning and scalding! Turn the handles of pots and
pans on the cooktop to the side or the rear so that children cannot
pull them down and burn themselves.
 Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
 Activate the system lock to ensure that children cannot switch on
the wok inadvertently. Use the safety lock when the wok is in use to
prevent children from altering the settings selected.

Warning and Safety instructions
7
Technical safety
 Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
 Damage to the wok burner can compromise your safety. Check
the appliance for visible signs of damage. Never use a damaged wok
burner.
 Reliable and safe operation of this appliance can only be assured
if it has been connected to the mains electricity supply.
 The wok must not be connected to the inverter of an autonomous
power supply, e.g. a solar power system. When the wok is
switched on, power surges could result in a safety switch-off. This
may damage the electronic unit.
 The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
 Before connecting the appliance to the mains electricity supply,
ensure that the connection data on the data plate (voltage and
frequency) matches the mains electricity supply.
This data must correspond in order to avoid the risk of damage to
the appliance. Consult a qualified electrician if in any doubt.
 Do not connect the appliance to the mains electricity supply by a
multi-socket adapter or an extension lead. These are a fire hazard
and do not guarantee the required safety of the appliance.
 For safety reasons, this appliance may only be used after it has
been built in.

Warning and Safety instructions
8
 This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
 Never open the casing of the wok burner.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
 Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
 The wok burner is not intended for use with an external timer
switch or a remote control system.
 If the plug is removed from the connection cable or if the cable is
supplied without a plug, the wok must be connected to the electrical
supply by a suitably qualified electrician.
 If the mains connection cable is damaged, it must be replaced
with a special mains connection cable, available from Miele, by a
Miele authorised service technician or suitably qualified and
competent electrician in order to avoid a hazard (see “Installation -
Electrical connection”).
 During installation, maintenance and repair work, the wok must be
completely disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the main circuit breaker has been disconnected, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.

Warning and Safety instructions
9
 Danger of electric shock!
Do not use the wok if it is faulty, or if the ceramic surface is cracked,
chipped or damaged in any way. If you detect a fault during use
switch it off immediately. Disconnect the wok from the electricity
supply. Contact Miele.
 If the wok burner is installed behind a furniture door, do not close
the door while the appliance is in operation. Heat and moisture
would build up behind a closed furniture door, potentially causing
damage to the appliance, the furniture unit and the flooring. Do not
close the door until the appliance has cooled down and the residual
heat indicators have gone out.
 In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
 DO NOT MODIFY THIS APPLIANCE.

Warning and Safety instructions
10
Correct use
 The wok gets hot when in use and remains hot for quite a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
 Oil and fat can overheat and catch fire. Do not leave the wok
burner unattended when cooking with oil and fat. If it does ignite, do
not attempt to put the flames out with water.
Switch off the wok burner and use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the flames.
 The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
 Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
 Do not heat an empty pan.
 Do not heat up food in closed containers e.g. tins or sealed jars
on the wok burner, as pressure can build up in the containers,
causing them to explode.
 Do not cover the wok burner, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
wok burner is switched on by mistake or if residual heat is still
present.
 When the wok is switched on, either deliberately or by mistake, or
when there is residual heat present, there is a risk of any metal items
left on the wok heating up. Depending on the material, other items
left on the appliance could also melt or catch fire. Damp pan lids
might adhere to the ceramic surface and be difficult to dislodge. Do
not use the wok as a resting place for other items. Always switch off
the wok after use and do not rely on the pan detector.

Warning and Safety instructions
11
 You could burn yourself on the hot wok. Protect your hands with
heat-resistant pot holders or gloves when using a hot wok. Do not let
them get wet or damp. This causes heat to transfer through the
material more quickly with the risk of scalding or burning yourself.
 When using an electrical appliance, e.g. a hand-held food mixer,
near the wok burner, ensure that the cable of the electrical appliance
cannot come into contact with the hot wok burner. The insulation on
the cable could become damaged.
 Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
 Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
 Placing hot pans on the sensors and indicators could damage the
electronics underneath. Do not place hot pans on the sensors or
indicators.
 Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the wok when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, switch off
the wok immediately and scrape off all residues straight away using
a scraper blade suitable for use on glass. Wear oven gloves when
doing this. Allow the ceramic surface to cool down and then clean it
with a suitable ceramic cooktop cleaning agent.
 Do not heat an empty wok as this can damage the ceramic glass.
Do not leave the wok unattended whilst it is being used.
 Because induction heating works so quickly, the base of the pan
could heat up to the temperature at which oil or fat self-ignites within
a very short time. Do not leave the wok unattended whilst it is being
used.
 Heat oil or fat for a maximum of one minute. Never use the
Booster function to heat oil or fat.

Warning and Safety instructions
12
 For people fitted with a heart pacemaker: please note that the
area immediately surrounding the wok is electromagnetically
charged when it is switched on. It is very unlikely to affect a
pacemaker. However, if in any doubt, consult the manufacturer of
the pacemaker or your doctor.
 When switched on, the electromagnetic field of the wok can
impair the function of magnetisable objects. Do not leave credit
cards, digital storage devices, pocket calculators, etc. in the
immediate vicinity of the wok.
 Metal objects stored in a drawer under the wok can become hot if
the appliance is used intensively for a long time. Do not store any
metal items or utensils in a drawer under the wok.
 The wok is fitted with a cooling fan. If a drawer is fitted directly
underneath the built-in wok, ensure that there is sufficient space
between the drawer and its contents and the underside of the wok in
order to ensure sufficient ventilation for the wok. Do not store
pointed or small items or paper in the drawer. They could get in
through the ventilation slots or be sucked into the casing by the fan
and damage the fan or impair cooling.
 Only use the wok pan supplied with the appliance. For safety
reasons, other wok pans must not be used. Danger of burning (see
“Induction - Suitable cookware”).

Warning and Safety instructions
13
Cleaning and care
 Do not use a steam cleaning appliance to clean this wok burner.
Pressurised steam could reach the electrical components and cause
a short circuit.
 If the wok is built-in above a pyrolytic oven, do not use it during a
Pyrolytic cleaning programme as this could trigger the overheating
protection device on the wok (see “Safety features – Overheating
protection”).

Caring for the environment
14
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.

Overview
15

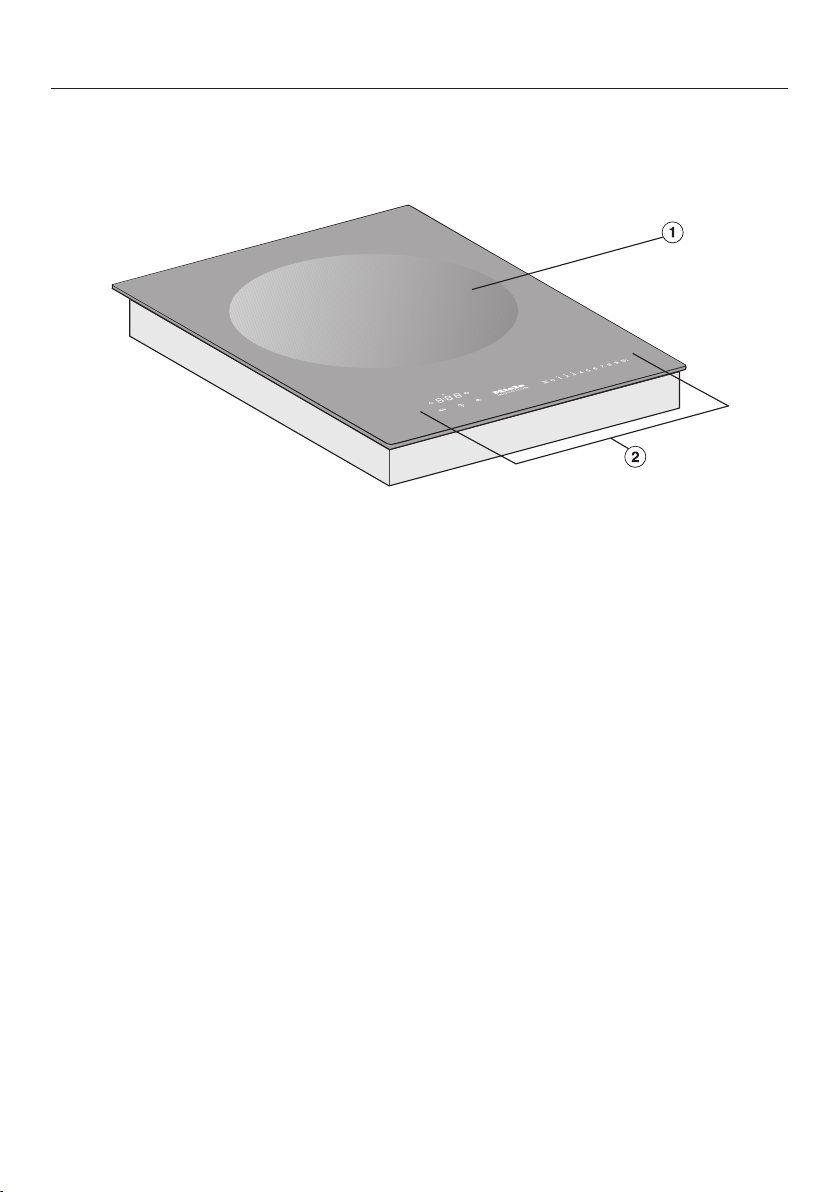

Wok burner
aWok basin
bControls / Indicators

Overview
16
Controls / Indicators
Sensor controls
aSwitching the wok on and off
bStop & Go
cWipe protection
dActivating/Deactivating the keeping warm function
eNumerical keybank
For setting power levels/minute minder and switch-off times
fAutomatic switch-off timer
gMinute minder
Indicator lights
hAutomatic switch-off indicator light
iResidual heat
jBooster
kTimer display
: to
:
Duration
 System lock/Safety lock activated
 Demonstration mode activated

Overview
17
Cooking zone data
Wok basin Øin cm Rating in watts for 230V
30.0 Normal
TwinBooster, level 1
TwinBooster, level 2
2400
2650
3000

Overview
18
Accessories supplied
The accessories supplied with your
appliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Wok pan CSWP 1450

Before using for the first time
19
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers (except the data plate).
Cleaning the SmartLine
appliance for the first time
Before using for the first time, clean
the wok with a damp cloth only and
then wipe dry.
Switching on the SmartLine
appliance for the first time
The metal components have a
protective coating. Smells and possibly
some vapours may occur when the
SmartLine appliance is used for the first
time. The heating of the induction coils
also causes odours in the first few
hours of operation. This smell will be
less noticeable with each subsequent
use before dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Please note that the heating-up time
on induction woks is much shorter
than on conventional woks.

Induction
20
How it works
An induction coil is located under the
wok basin. When the wok is switched
on, this coil creates a magnetic field
which impacts directly on the base of
the pan and heats it up. The wok basin
itself is heated up indirectly by the heat
given off by the wok pan.
Induction heating only works when the
wok pan supplied is used on the wok.
The set power level flashes in the
numerical keybank
– if the wok is switched on without the
wok pan in place,
– if the wok pan is removed from the
wok whilst it is switched on.
If the wok pan is placed on the cooking
zone within 3minutes, the flashing
power level will go out and you can
continue as normal.
If the wok pan is not replaced, the wok
will switch itself off automatically after
3minutes.
Risk of burning due to hot items.
When the wok is switched on, either
deliberately or by mistake, or when
there is residual heat present, there
is a risk of any metal items left on the
wok heating up.
Do not use the wok as a resting
place for other items.
After use, switch the wok off with
the sensor control.
