OPERATOR'S MANUAL
Cat. No.
No de Cat.
2266-40
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.
Laser Temp-Gun™ Thermometer

2
IMPORTANT SAFETY INSTRUCTIONS
PERSONAL SAFETY
LASER SAFETY
WORK AREA SAFETY
Symbology
BATTERY USE AND CARE
SERVICE
Federal Communications Commission
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the
equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-
WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow
the warnings and instructions may result in electric shock, re and/or serious injury. Save
these instructions - This operator’s manual contains important safety and operating instructions
for the MILWAUKEE Laser Temp-Gun™ Thermometer. Before using the Temp-Gun™, read this
operator’s manual and all labels on the Temp-Gun™.
• Laser light - Do not stare into beam or view
directly with optical instruments. Do not point
laser light at others. Laser light can cause eye
damage.
• Avoid exposure to laser radiation. Laser may
emit hazardous radiation.
• Do not point laser at reective surfaces. Un-
predictable results may occur.
• Keep children and bystanders away while op-
erating Temp-Gun™. Store idle Temp-Guns™
out of the reach of children and do not allow
persons unfamiliar with the tool or these in-
structions to operate them.
• Avoid dangerous environments. Do not use in
rain, snow, damp or wet locations. Do not use in
the presence of explosive atmospheres (gaseous
fumes, dust or ammable materials) because
sparks may be generated when inserting or remov-
ing battery pack, possibly causing re.
• Stay alert, watch what you are doing and use
common sense when operating Temp-Gun™.
Do not use while you are tired or under the
inuence of drugs, alcohol or medication. A
moment of inattention may result in serious per-
sonal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
in unexpected situations.
• This tool is designed to be powered by
3-AA batteries properly inserted into the
MILWAUKEE Temp-Gun™ Do not attempt to use
with any other voltage or power supply.
• Do not leave batteries within the reach of
children.
• Do not mix new and used batteries. Do not mix
brands (or types within brands) of batteries.
• Do not mix rechargeable and non-recharge-
able batteries.
• Install batteries according to polarity (+ / –)
diagrams.
• Properly dispose of used batteries immedi-
ately.
• Do not incinerate or dismantle batteries.
• Under abusive conditions, liquid may be eject-
ed from the battery, avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Have your Temp-Gun™ serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the tool is
maintained.
• Do not disassemble. Incorrect reassembly may
result in the risk of electric shock or re. If it is dam-
aged, take it to a MILWAUKEE service facility.
• Store in a cool, dry place. Do not store where
temperatures may exceed 120°F (50°C) such as
in direct sunlight, a vehicle or metal building during
the summer.
• Do not remove or deface labels. Maintain labels
and nameplates. These carry important information.
If unreadable or missing, contact a MILWAUKEE
service facility for a free replacement.
Volts Direct Current
CAUTION Laser Light - Do Not
Stare Into Beam
Laser product
Avoid Exposure: Laser Radiation Is
Emitted From This Aperture
To reduce the risk of injury, user must
read operator’s manual.

3
FUNCTIONAL DESCRIPTION
Specifications
Laser Type: Class II
Max Power: <1mW
Wavelength: 630-670 nm
IR Temperature range: -30°C to 500°C (-22°F to 932°F)
IR Accuracy:-30°C to 10°C (-22°F to 50°F): ±1.5°C (3°F)
10°C to 30°C (50°F to 86°F): ±1.0°C (2°F)
30°C to 380°C (86°F to 716°F): ±1.5°C (3°F)
or 1.5% of reading, whichever is greater
380°C to 500°C (716°F to 932°F): ±2°C (4°F)
or 2% of reading, whichever is greater
*Assume ambient operating temperature of
23°C to 25°C (73°F to 77°F)
Min. measuring distance: 2” < 50°C (122°F),
4” > 50°C (122°F)
Display resolution: 0.1°C (0.1°F)
Contact temperature range:
-30°C to 450°C (-22°F to 842°F)
Contact temperature input accuracy: ± 1.1°C (± 2°F)
Temperature display resolution:
0.1°C/°F in Primary, 1°C/°F in Secondary
Emissivity: 0.95
Response time:<500 msec
Spectral response: 8 to 14µm
Distance to spot: 12 to 1
Drop: 1.5 meter
Repeatability: ±0.5% OR ±1°C(±2°F)
(whichever is greater)
Operating temperature: 0°c to 50°C (32°F to 122°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
w/o battery
Relative humidity: 10 to 90% RH non-condensing
at <30°C ambient
Voltage: 4.5 DC
Battery life: Greater than 12 hrs with all functions
1
5
6
7
8
9

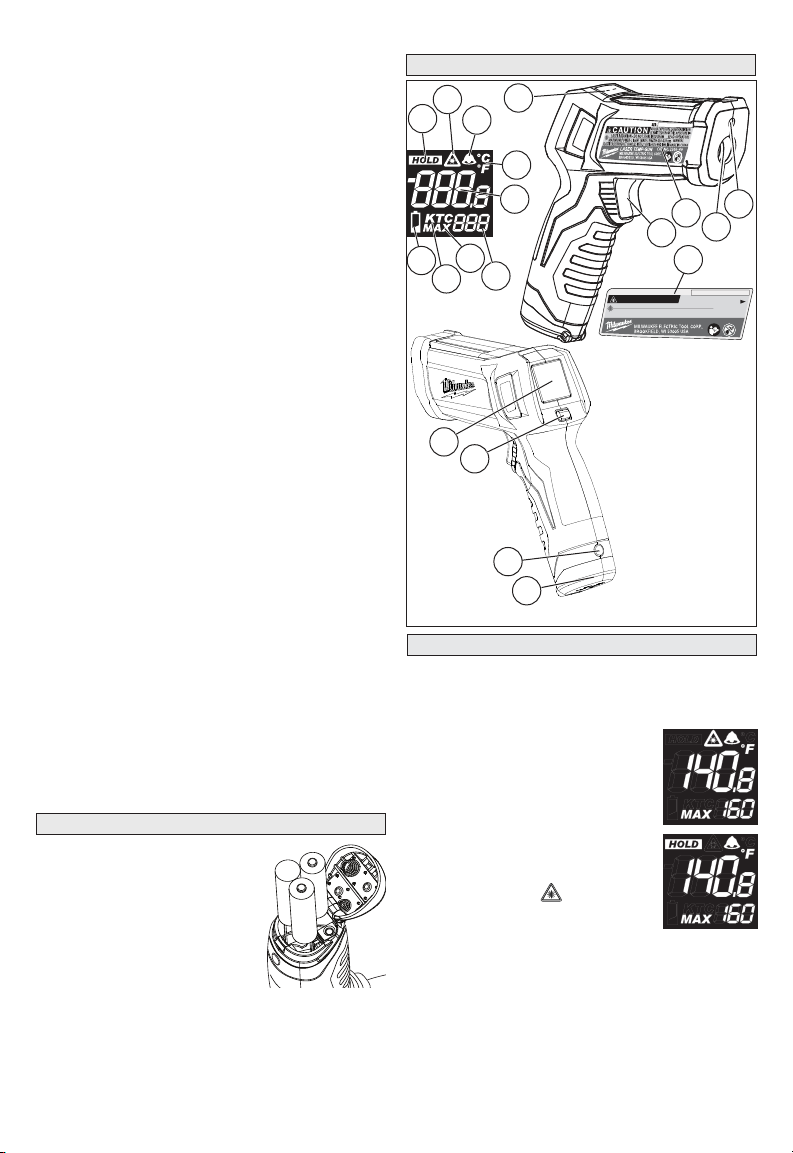

1. K-Type thermocouple input
2. Laser window
3. Infrared sensor
4. Nameplate
5. Trigger
6. Display
7. Alarm Button
8. Battery door
9. Battery door lock
10. Hold indicator
11. Laser active indicator
12. Alarm indicator
13. C° or F° indicator
14. Primary measurement
15. Secondary
measurement
16. Max reading indicator
17. K-Type thermocouple indicator
18. Low battery indicator
4
MADE IN CHINA
LASER TEMP-GUN
AVOID EXPOSURE LASER RADIATION
IS EMITTED FROM THIS APERTURE
LASER RADIATION - DO NOT STARE INTO BEAM
MAXIMUM POWER < 1mW WAVE LENGTH 630-670 nm
CLASS II LASER PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11
SER.
CAT. NO. 2266-40
MADE IN CHINA
CAU TIO N
READ OPERATORS
MANUAL
READ
OPERATORS
MANUAL
4
10
11
12
13
14
15
18
17
16
3
2
OPERATION
Scanning Object IR Temperature
1. Pull and hold the trigger for at least 2 seconds
and scan the surface temperature of an object.
A laser pointer indicates the
center of the circular area being
scanned.
NOTE: The object should be larg-
er than the spot being scanned. If
not, readings will be affected. See
Distance To Spot for necessary
object size.
2.As you continue to hold the
trigger, the icon
12V LASER TEMP-GUN
AVOID EXPOSURE
LASER RADIATION
IS EMITTED FROM THIS APERTURE
LASER RADIATION - DO NOT STARE INTO BEAM
MAXIMUM POWER < 1mW WAVE LENGTH 630-670 nm
CLASS II LASER PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11
CAUTION
CAT. NO. 2277-20
ASSEMBLY
Loading/Changing the Batteries
1. Press in the battery door lock
and open the battery door.
2. Before installing batteries
for the first time, remove the
white, rectangular tag in the
battery compartment.
3. Insert three (3) AA batteries,
as displayed.
4. Close the battery door securely.
Selecting Celsius or Fahrenheit
Switch between Celsius and Fahrenheit tempera-
ture display anytime by using the switch inside the
battery compartment.
tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV techni-
cian for help.
is displayed
along with the surface tempera-
ture (primary measurement) and
maximum temperature (secondary measure-
ment) readings.
3. Release the trigger. HOLD is displayed until the
screen shuts off in about seven seconds.
NOTE: A quick change in temperature (>10°F) af-
fects the meter’s readings. Allow the meter to reach
ambient temperature before use (5 to 30 minutes,
depending on temperature change).

4

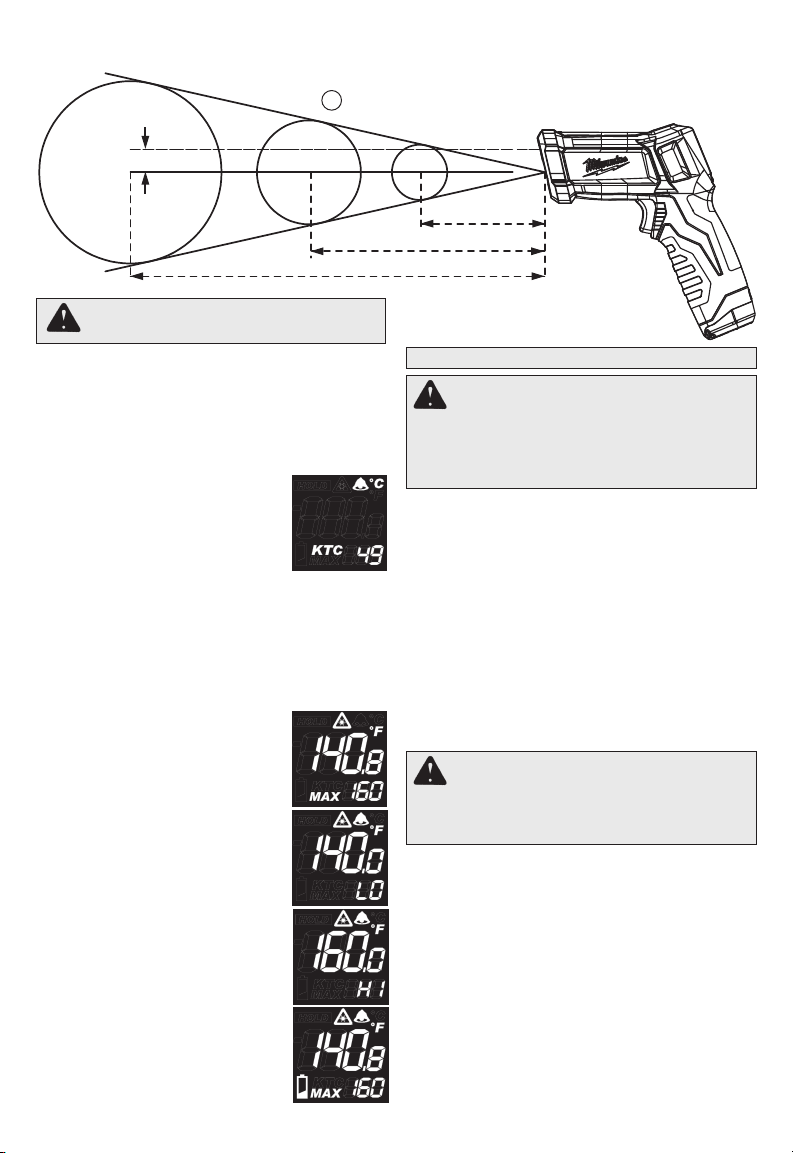

—— Center of Spot
– – – Laser pointer (approx. 19mm above center of spot)
Spot size at distance indicated
c:b ≈ 12:1
a
b
3
=Ø125mm
C 3 =Ø1,5m
C
2 =Ø1m
C
1
=Ø0,5m
b
3
=Ø83mm b
1 =Ø41mm
WARNING Never connect the Tem-
perature Probe to an energized circuit.
MAINTENANCE
WARNING To reduce the risk of per-
sonal injury and damage, never immerse
your tool in liquid or allow a liquid to ow
inside it.
WARNING To reduce the risk of injury,
always remove the batteries from the tool
before performing any maintenance. Never
disassemble the tool. Contact a MILWAUKEE
service facility for ALL repairs.
Cleaning
Clean dust and debris from tool. Keep tool handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean the tool since certain
cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include
gasoline, turpentine, lacquer thinner, paint thinner,
chlorinated cleaning solvents, ammonia and house-
hold detergents containing ammonia. Never use
ammable or combustible solvents around tools.
Repairs
For repairs, return the tool to the nearest service
center listed on the back cover of this operator's
manual.
Maintaining Tool
Keep your tool in good repair by adopting a regular
maintenance program. After six months to one year,
depending on use, return the tool to a MILWAUKEE
service facility for repairs.
If the tool does not start or operate at full power
with fully charged batteries, clean the contacts
on the battery door. If the tool still does not work
properly, return the tool to a MILWAUKEE service
facility for repairs.
Cleaning the Laser Windows
Clean the laser windows with a soft, moist cloth to
keep them clean and clear. Remove battery pack
before cleaning.
Contact Temperature Measurement with K-Type
Probe
Only use K-type Temperature Probes with this
meter.
1.Insert the probe. The unit detects a connection of
a K-type probe and displays the contact tempera-
ture (KTC) as the secondary measurement.
2 The display will continue to update
the contact temperature (KTC)
while the temperature probe reach-
es thermal equilibrium with the
object being measured.The display
will shut off after about 20 min.
3.To return to IR mode, remove the K-type probe.
Temperature Alarm
Press the Alarm button to turn on the alarm func-
tion. If the temperature reading is outside the preset
range, the temperature reading and bell icon will
ash and an alarm will sound.
Muting Alarm
Mute the alarm by pressing the
Alarm button. The bell icon will go
off. The temperature reading will
continue to ash as long as it is
outside the preset range.
Setting Preset Range for the
Alarm
1. To set the alarm range, pull and
hold the trigger and then press
theAlarm button. Repeat to toggle
between LO and HI settings.
2. Pull the trigger to increase the
values, press the Alarm button
to decrease the values. Wait 3
seconds for the ranges to save
and exit.
Low Battery
When the Low Battery icon is dis-
played, change the batteries.

5
ACCESSORIES
For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online to
www.milwaukeetool.com. To obtain a catalog, con-
tact your local distributor or a service center.
WARNING Always remove batteries
before changing or removing accessories.
Only use accessories specifically recommend-
ed for this tool. Others may behazardous.
MILWAUKEETest & Measurement Products (including bare
tool, li-ion battery pack(s) and battery charger but excluding
alkaline batteries) are warranted to the original purchaser
.pihsnamkrowdnalairetamnistcefedmorfeerfebotylno
Subject to certain exceptions, MILWAUKEEwill repair or
replace any part on this product which, after examination,
is determined by MILWAUKEE to be defective in material or
workmanship for a period of five (5) years* after the date of
purchase. Return the Test & Measurement tool and a copy
of proof of purchase to the nearest Milwaukee Electric Tool
Corporation - factory Service Center. This warranty does not
apply to damage that MILWAUKEE determines to be from re-
pairs made or attempted by anyone other than MILWAUKEE
authorized personnel, misuse, alterations, abuse, normal
wear and tear, lack of maintenance, or accidents.
*The warranty period for the LITHIUM-ION battery pack
that ships with the Test & Measurement tool is two (2)
years from the date of purchase. *Alkaline battery that
ships with Test & Measurement tool is separately war-
ranted by the battery manufacturer. *The warranty period
for a NON-CONTACT VOLTAGE DETECTOR – 2201 20
is one (1) year from the date of purchase.
Warranty Registration is not necessary to obtain the
applicable warranty on MILWAUKEE product. The manu-
facturing date of the product will be used to determine the
warranty period if no proof of purchase is provided at the
time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT
REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON-
TRACT FOR THE PURCHASE OF EVERY MILWAUKEEPRODUCT. IF
YOU DO NOTAGREE TO THIS CONDITION, YOU SHOULD NOT PUR-
CHASE THE PRODUCT. IN NO EVENT SHALLMILWAUKEEBE LIABLE
FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE
DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES,
LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF
ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT
INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF
PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT
PERMITTED BY LAW, MILWAUKEEDISCLAIMS ANY IMPLIED WAR-
RANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WAR-
RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT
PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED
TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTYAS
DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAYALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Model:
Date of Purchase:
Distributor or Store Stamp:
LIMITED WARRANTY -
USA AND CANADA

uniTed sTaTes - milwaukee Service
MILWAUKEE prides itself in producing a premium
quality product that is No t h i N g Bu t he a v y Du t y ®.
Your satisfaction with our products is very impor-
tant to us! If you encounter any problems with the
operation of this tool, or you would like to locate the
factory Service/Sales Support Branch or authorized
service station nearest you, please call...
1-800-SAWDUST
(1.800.729.3878)
Monday-Friday
7:00 AM - 6:30 PM
Central Time
or visit our website at
www.milwaukeetool.com
Additionally, we have a nationwide network of
authorized Distributors ready to assist you with
your tool and accessory needs. Check your “Yellow
Pages” phone directory under “Tools-Electric” for
the names & addresses of those nearest you or see
the 'Where To Buy' section of our website.
Contact our Corporate After Sales Service
Technical Support about ...
•Technical Questions
•Service/Repair Questions
•Warranty
call: 1-800-SAWDUST
fax: [phone]
email: [email protected]
Register your tool online at
www.milwaukeetool.com and...
• receive important notications regarding
your purchase
• ensure that your tool is protected under the
warranty
• become a he a v y Du t y club member
For service information, use the 'Service Center
Search' icon found in the 'Parts & Service' section.

Model Number:
Serial Number:
Distributor Name:
Distributor Location:
Effective for all purchases from 1st January 2009 otherwise please revert to previous warranty policy 58-22-0540d1
In accordance with the following terms and conditions, Techtronic Industries Australia Pty Ltd ABN 98 002 277 509 and Techtronic Industries New Zealand
Limited agrees to repair or replace at its own discretion any Milwaukee product (and any accessory supplied with it) that has been purchased in Australia or
New Zealand from an authorised Milwaukee stockist when the Product is determined by Techtronic Industries Australia Pty Ltd or Techtronic Industries New
Zealand Limited to have a defect in its material or workmanship.
The period of the warranty will vary depending on the Product. Please refer to the schedule below to determine the warranty period for your Product. The
warranty period commences from the date of sale of the Product by a retailer to the purchaser.
1. This Warranty:
a) Covers the Product only described against labour and faulty materials.
b) Covers the replacement of parts and the repair labour used, for the remainder of the warranty period.
2. This Warranty will not apply if:
a) The Product is opened by a person other than Techtronic Industries Australia Pty Ltd, Techtronic Industries New Zealand Limited or by an authorised
service centre.
b) Repairs made or attempted by other than Techtronic Industries Australia Pty Ltd, Techtronic Industries New Zealand Limited or the authorised
service centre’s.
c) Normal wear and tear. Parts such as carbon brushes, bearings, seals, o rings etc. must be regularly inspected so that the wear and tear on such
parts do not lead to failure of the tool. For optimum performance the tool should be inspected regularly by an authorised service centre.
d) Abuse, misuse, the subject of an accident , being dropped, crushed, impacted with any hard surface, exposed to extreme heat (including fire) or
cold, improper maintenance, continued use after partial failure.
e) Acts of God, vermin or foreign matter entering e.g. dirt and moisture.
f) The Product has been modified, incorrectly adjusted or operated, the subject of incorrect electrical supply or inconsistent electrical supply, used with
inappropriate accessories.
g) The Product is tampered with any way or if the damaged has been caused by any event of force majeure.
h) If the Product has not been used or maintained in accordance with the manufacturer’s instructions as provided with the product.
i) If the Product’s serial number, as applied by the manufacture, has been altered or removed from the product.
j) To the repair or replacement of any consumables relating to the Product.
k) Subject to clause 3, to the full extent permitted by law, Techtronic Industries Australia Pty Ltd and Techtronic Industries New Zealand Limited
aggregate liability for all claims made under this warranty will not exceed the original purchase price of the Product or, at Techtronic Industries
Australia Pty Ltd and Techtronic Industries New Zealand Limited election, the cost of replacing the Product. In no circumstances will Techtronic
Industries Australia Pty Ltd and Techtronic Industries New Zealand Limited be liable for any indirect or consequential loss arising from any defect in
the Product or for any loss of profits, loss of contracts, production downtime, damaged to goodwill or for any inconvenience caused.
l) Techtronic Industries Australia Pty Ltd and Techtronic Industries New Zealand Limited exclude all other warranties, conditions or obligations, either
expressed or implied.
3. Exclusion of implied warranties: To the full extent permitted by law, all warranties, conditions and other terms implied by statute, custom or common
law are excluded. Nothing contained in these terms and conditions excludes or restricts any warranty, condition, right or remedy implied by any statute
(including the Trade Practices Act 1974 (cth)) which cannot be excluded, provided that, to the extent that the statute permits Techtronic Industries
Australia Pty Ltd and Techtronic Industries New Zealand Limited to limit its liability for a breach of a condition or a warranty implied by that statute,
Techtronic Industries Australia Pty Ltd and Techtronic Industries New Zealand Limited liability for such a breach will be limited to, at Techtronic Industries
Australia Pty Ltd and Techtronic Industries New Zealand Limited election, the repair or replacement of the goods or payment of the cost of the repair or
replacement.
4. Under this Warranty:
a) The product defects covered by this warranty will be repaired, during normal business hours at the premises of Techtronic Industries Australia Pty
Ltd, Techtronic Industries New Zealand Limited or the authorised service centre. Without cost to the owner for parts and repair labour or, at the
option of Techtronic Industries Australia Pty Ltd, Techtronic Industries New Zealand Limited will be replaced.
b) The owner is responsible at all times for freight costs and insurance costs if the Product has to be returned for repair/inspection to Techtronic
Industries Australia Pty Ltd, Techtronic Industries New Zealand Limited or the authorised service centre.
5. For repair under this Warranty:
a) The owner must present the sales docket receipt to the authorised service centre.
b) For Service in Australia the customer should contact the Australian Customer Support line on 1300 557 442 to obtain the nearest authorised service centre.
c) For Service in New Zealand the customer should contact the New Zealand Hotline Application on 0800 279 624 to obtain the nearest authorised
service centre.
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 West Lisbon Road • Brookfield, Wisconsin, U.S.A. 53005
Customer warranty reference details
Schedule to Warranty Terms and Conditions for Milwaukee Products and Accessories
AUSTRALIA AND NEW ZEALAND WARRANTY�
Warranty Terms and Conditions for Milwaukee Products and Accessories
Warranty
Product type Warranty period
Corded power tools 3 (three) years
3 (three) years
Cordless lithium-ion power tools,
excluding batteries and chargers
5 (five) years
Product type Warranty period
NiCd & NiMH batteries and chargers 12 (twelve) months
Lithium-ion batteries and chargers. 2 (two) years
Power tool accessories and attachments, including
chucks, collets, fixtec systems, quicklok cables,
grinder flanges, drill bits and dust bags.
3 (three) months
Cordless NiCd & NiMH power tools
excluding batteries and chargers.
Australia Head Office –
Building B, Rosehill Estate, 3 Shirley Street, Rosehill, NSW, 2142, Australia (PO Box 6700 Silverwater NSW 1811)
Toll Free Telephone Number 1300 557 442
New Zealand Office –
27 Clemow Drive, Mt Wellington, Auckland (PO Box 12-806, Penrose, Auckland)
Toll Free Telephone Number 0800 279 624
