Mindeo CS2190 User manual

Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: CS2190_QG_EN_V1.3.
CS2190 Cordless Laser Scanner Quick Guide
Notice
Parts of the handheld unit
①Exit window ②Trigger (Press to triggr / Long press 2 seconds to turn on)
③Beeper ④Power indicator (Blue LED) ⑤Successful decoding indicator (Green
LED) / Communication fail indicator (Red LED) / Charging (Red LED)
Parts of the cradle
⑥Power indicator (Blue LED)
⑦Communication indicator (Green LED)
⑧Key (Long press 2 seconds to restore factory default
setting of cradle)
Installation of cradle
1. Switch off power of the host. Refer to the below pictures, connect the host with the scanner with
different cables firstly, and then connect the adaptor to the power socket.
2. Ensure that all connections are secure. Switch on the power of the host. After a few seconds, if
only the blue LED on the cradle is ON, it indicates the cradle is in normal working mode.
USB cable
RS232 cable
PS/2 keyboard cable
Charge battery
1. Please charge the battery before the first time of use. The
charge indicator (Red LED) on the handheld unit is turned on
when the charging is in process. When the charging process
completes, the charge indicator (Red LED) is turned off.
2. Charging time: 4 hours for fully charged.
3. You can charge the battery via a USB port on the device or an
optional 5V adapter.
Indication of handheld unit for wireless data transmission
Successful Transmission
Beeper
Red LED
Vibration
Yes
Off
Off
Off
No
Three beeps
Blinks 3 times,
and then turns off
Short vibrates 3 times,
and then turns off
Programming instruction and example
Scan “SETUP”
Scan “Option barcode”
Scan “the 1st character of option”
Scan “the 2nd character of option”
Scan “END”
Example: to set Flow control to be XON/XOFF.
Initialization settings and information display
Initialize all parameters of handheld unit
Initialize all parameters of cradle
Handheld unit firmware version display
Cradle firmware version display
Handheld unit radio setting display
Cradle radio setting display
Turn off handheld unit Note
Note: 1) If you want to turn on the handheld unit again, please keep the trigger key being pressing for
2 seconds. 2) If you want to turn off the handheld unit via trigger key, please press and hold the
trigger key, after the laser beam turns off, wait for another 5 seconds, the handheld unit will be turned
off, then you can release the trigger key at this moment.
A standard kit contains: a handheld unit, a cradle, a USB cable, and a CD-ROM (containing
software and manuals).
It is suggested to read the user manual in details before use.
Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: CS2190_QG_EN_V1.3.
Notes about radio communication
1. If multi-clusters are working in the same area, it is strongly recommended that different radio
frequency channel numbers are applied to different clusters. While setting up, only the radio
frequency channel number of the first handheld unit of a single cluster is required to be set.
2. In order to obtain constantly good communication quality, when in multi-clusters working mode,
the physical space between two cradles is required to be at least 2 meters. And it is recommended
to place the cradle on a higher location, generally more than 1 meter above the ground. If
working outdoor, the higher location the better.
Quick setting to wireless network
1. Make sure that both the handheld unit and the cradle are in normal working mode. Normally it
means that only the blue LED on the handheld unit and only the blue LED on the cradle are ON as
shown below.
2. Use the handheld unit to scan the following setting barcode.
Quick binding
3. The blue LED on the handheld unit will blink and the beeper will beep regularly to indicate that the
handheld unit is ready to be positioned onto the cradle.
4. Firmly position the handheld unit onto the cradle within 15 seconds. Two short beeps will be
emitted to indicate a successful setting; otherwise, two long beeps and a short beep will be emitted to
indicate a failed setting.
Vibration indication
Disable
Enable*
Note: the factory default settings are indicated with asterisks (*).
Beeper indication
Disable
Enable*
Volume of beeper
Low
Middle
High*

Other manuals for CS2190

1

Other Mindeo Barcode Reader manuals

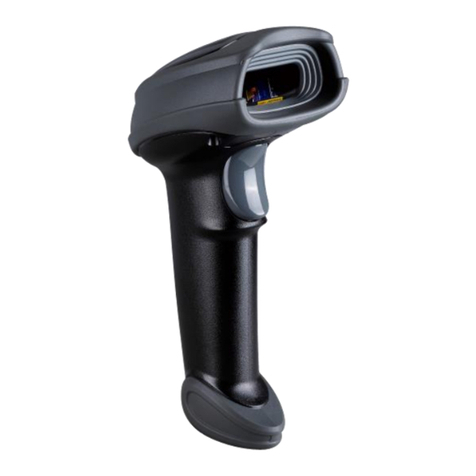

Mindeo MD29 Series User manual
