Mindeo CS2290 User manual

Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: CS2290_QG_EN_V1.1.
CS2290 Cordless Image Scanner Quick Guide
Notice
Parts of the handheld unit
①Scan window ②Trigger (Press to triggr / Long press 2 seconds to turn on)
③Beeper ④Power indicator (Blue LED) ⑤Successful decoding indicator
(Green LED) / Communication fail indicator (Red LED) / Charging (Red LED)
Parts of the cradle
⑥Power indicator (Blue LED)
⑦Communication indicator (Green LED)
⑧Key (Long press 2 seconds to restore factory default
setting of cradle)
Installation of cradle
1. Switch off power of the host. Refer to the below pictures, connect the host with the
scanner with different cables firstly, and then connect the adaptor to the power socket.
2. Ensure that all connections are secure. Switch on the power of the host. After a few
seconds, if only the blue LED on the cradle is ON, it indicates the cradle is in normal
working mode.
USB cable
RS232 cable
PS/2 keyboard cable
Charge battery
1. Please charge the battery before the first time of use.
The charge indicator (Red LED) on the handheld unit is
turned on when the charging is in process. When the
charging process completes, the charge indicator (Red
LED) is turned off.
2. Charging time: 4 hours for fully charged.
3. You can charge the battery via a USB port on the device or
an optional 5 VDC adapter.
Indication of handheld unit for wireless data transmission
Successful
Transmission
Beeper
Red LED
Vibration
Yes
Off
Off
Off
No
Three beeps
Blinks 3 times, and
then turns off
Short vibrates 3 times,
and then turns off
Programming instruction and example
Two programming modes have been provided as bellows:
Single-scan setting
Scan the appropriate
Single-scan setting
Example: To set Flow control to be XON/XOFF.
Multiple-scan setting
Scan “Option bar code”
Scan “The 1st character of option”
Scan “The 2nd character of option”
Scan “END”
Example: To set Flow control to be XON/XOFF.
A standard kit contains: a handheld unit, a cradle, a USB cable, and a CD-ROM
(containing software and manuals).
It is suggested to read the user manual in details before use.
Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: CS2290_QG_EN_V1.1.
Notes about radio communication
1. If multi-clusters are working in the same area, it is strongly recommended that different
radio frequency channel numbers are applied to different clusters. While setting up, only
the radio frequency channel number of the first handheld unit of a single cluster is required
to be set.
2. In order to obtain constantly good communication quality, when in multi-clusters working
mode, the physical space between two cradles is required to be at least 2 meters. And it is
recommended to place the cradle on a higher location, generally more than 1 meter above
the ground. If working outdoor, the higher location the better.
Quick setting to wireless network
1. Make sure that both the handheld unit and the cradle are in normal working mode.
Normally it means that only the blue LED on the handheld unit and only the blue LED on the
cradle are ON as shown below.
2. Use the handheld unit to scan the following setting barcode.
Quick binding
3. The blue LED on the handheld unit will blink and the beeper will beep regularly to indicate
that the handheld unit is ready to be positioned onto the cradle.
4. Firmly position the handheld unit onto the cradle within 15 seconds. Two short beeps will
be emitted to indicate a successful setting; otherwise, two long beeps and a short beep will
be emitted to indicate a failed setting.
Initialization settings and information display
Initialize all parameters of handheld unit
Initialize all parameters of cradle
Handheld unit firmware version display
Cradle firmware version display
Handheld unit radio setting display
Cradle radio setting display
Turn off handheld unit Note
Note: 1) If you want to turn on the handheld unit again, please keep the trigger key being
pressing for 2 seconds. 2) If you want to turn off the handheld unit via trigger key, please
press and hold the trigger key, after the laser beam turns off, wait for another 5 seconds, the
handheld unit will be turned off, then you can release the trigger key at this moment.
Vibration indication
Disable
Enable*
Note: The factory default settings are indicated with asterisks (*).
Beeper indication
Disable
Enable*
Volume of beeper
Low
Middle
High*

Other Mindeo Barcode Reader manuals

Mindeo MP82 Series User manual

Mindeo

Mindeo MP82 Series User manual

Mindeo MP8600 User manual

Mindeo

Mindeo MP8600 User manual

Mindeo FS580 User manual

Mindeo

Mindeo FS580 User manual

Mindeo MD61 Series User manual

Mindeo

Mindeo MD61 Series User manual

Mindeo MS3390 User manual

Mindeo

Mindeo MS3390 User manual

Mindeo MD62 Series User manual

Mindeo

Mindeo MD62 Series User manual

Mindeo MP758 User manual

Mindeo

Mindeo MP758 User manual

Mindeo CS3290 User manual

Mindeo

Mindeo CS3290 User manual

Mindeo ES168 User manual

Mindeo

Mindeo ES168 User manual

Mindeo MP725 User manual

Mindeo

Mindeo MP725 User manual

Mindeo MD60 Series User manual

Mindeo

Mindeo MD60 Series User manual

Mindeo MS3390 User manual

Mindeo

Mindeo MS3390 User manual

Mindeo MP80 Series User manual

Mindeo

Mindeo MP80 Series User manual

Mindeo MD61 Series User manual

Mindeo

Mindeo MD61 Series User manual

Mindeo MD6850 User manual

Mindeo

Mindeo MD6850 User manual

Mindeo ES4200 User manual

Mindeo

Mindeo ES4200 User manual

Mindeo MP168 User manual

Mindeo

Mindeo MP168 User manual

Mindeo CS3290 User manual

Mindeo

Mindeo CS3290 User manual

Mindeo MD6100S User manual

Mindeo

Mindeo MD6100S User manual

Mindeo MD6600 User manual

Mindeo

Mindeo MD6600 User manual

Mindeo CS3290-2D User manual

Mindeo

Mindeo CS3290-2D User manual

Mindeo MD22 Series User manual

Mindeo

Mindeo MD22 Series User manual

Mindeo CS2190 User manual

Mindeo

Mindeo CS2190 User manual

Mindeo MD6000 User manual

Mindeo

Mindeo MD6000 User manual

Popular Barcode Reader manuals by other brands

Intermec 1280 Series Quick reference card

Intermec

Intermec 1280 Series Quick reference card

Unitech MS650BT quick guide

Unitech

Unitech MS650BT quick guide

Sealey VS8812.V2 manual

Sealey

Sealey VS8812.V2 manual

KoamTac KDC100 user manual

KoamTac

KoamTac KDC100 user manual

Unitech MS840B quick start guide

Unitech

Unitech MS840B quick start guide

NADAMOO Bur3069 user manual

NADAMOO

NADAMOO Bur3069 user manual

Allen-Bradley 2755-LS7-SB user manual

Allen-Bradley

Allen-Bradley 2755-LS7-SB user manual

Cognex DataMan 300 Series Quick reference guide

Cognex

Cognex DataMan 300 Series Quick reference guide

axiome eBARman manual

axiome

axiome eBARman manual

Scantech Pollux P-4010 user manual

Scantech

Scantech Pollux P-4010 user manual

Motorola LS3408-FZ20005 Product reference guide

Motorola

Motorola LS3408-FZ20005 Product reference guide

PSC QuickScan QS6500 reference guide

PSC

PSC QuickScan QS6500 reference guide

Detalles iLS 6300BU user manual

Detalles

Detalles iLS 6300BU user manual

Omron Microscan MicroHAWK ID-20 quick start guide

Omron Microscan

Omron Microscan MicroHAWK ID-20 quick start guide

Datalogic Magellan 2200VS Quick reference guide

Datalogic

Datalogic Magellan 2200VS Quick reference guide

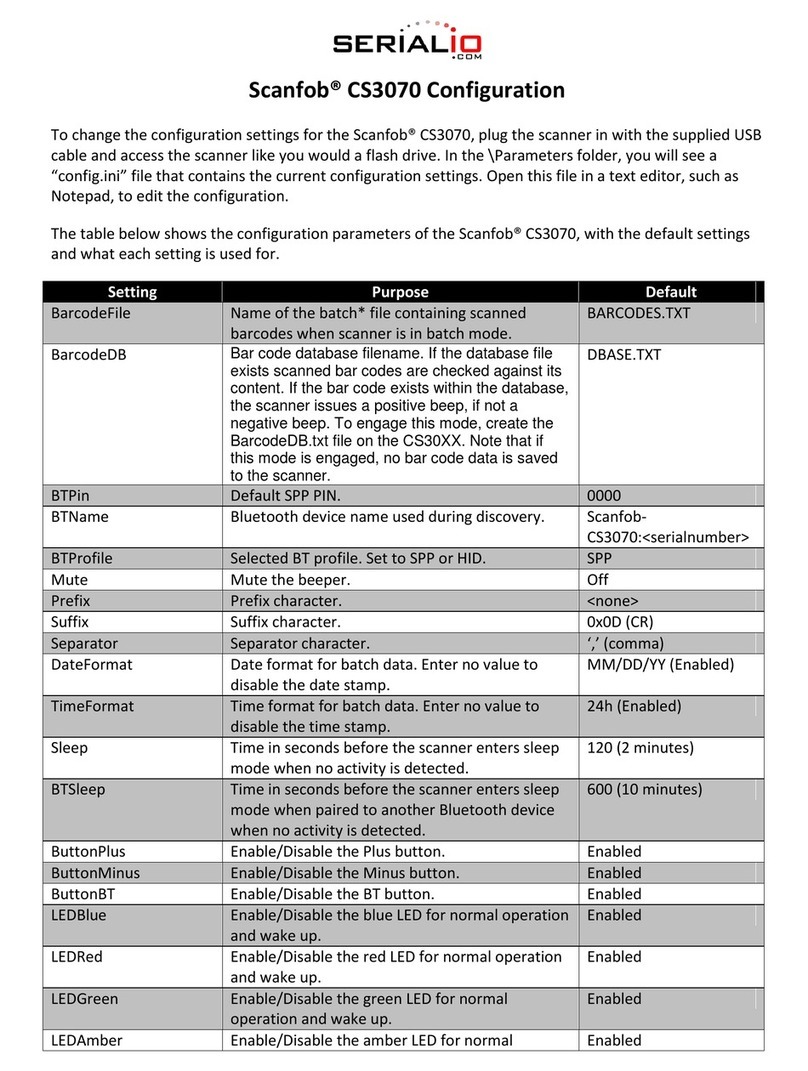

Serialio Scanfob CS3070 Configuration manual

Serialio

Serialio Scanfob CS3070 Configuration manual

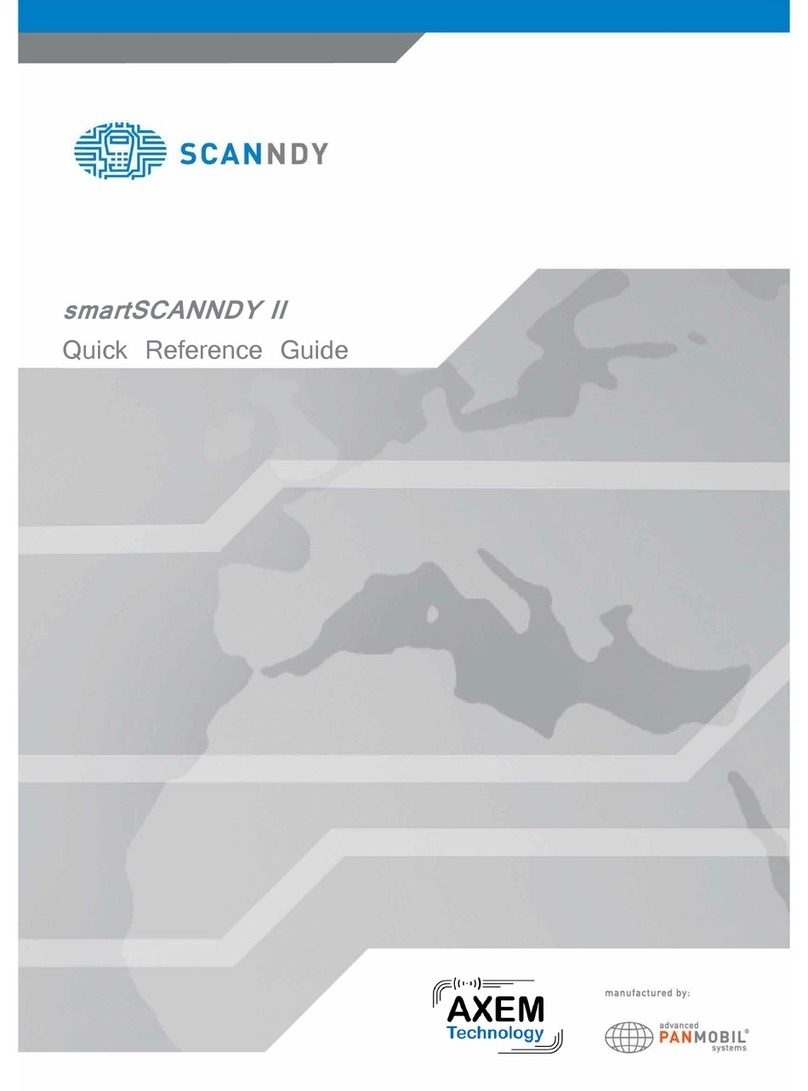

Scanndy smartSCANNDY II Quick reference guide
