MIRKA RPS 300CV User manual

1
Parts Page
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
41
39
28
29
30
31
32
34
35
36
37
38
33
42
43
44
45
46
ITEM
TORQUE SETTING
in.-lbs. (Nm)
14 55 - 65 (6.2 - 7.3)
30 16 - 20 (1.8 - 2.3)
34 60 - 72 (6.8 - 8.1)
46 30 - 35 (3.4 - 3.9)
40
F
D
D
B
G
C
A
H
E

2
Parts List
ITEM NO. DESCRIPTION Qty.
D ENDPLATE BEARING KIT
1 EXTERNAL RETAINING RING 1
2 BEARING 1
3 REAR ENDPLATE 1
E CYLINDER & O-RING KIT
4CYLINDER ASSEMBLY 1
5 O-RING 1
F ROTOR, VANES & KEY KIT
6 ROTOR 1
7 VANE 5
8 KEY 1
9 FRONT ENDPLATE 1
D ENDPLATE BEARING KIT
10 BEARING 1
11 MOTOR SHAFT ASSEMBLY 1
12 RING GEAR 1
13 O-RING 1
14 SPINDLE HOUSING 1
15 PLANET GEAR 3
16 NEEDLE BEARING 3
17 ASSEMBLY FOR PLANETARY SPINDLE ( 1/4-20 UNC-2B ) 1
B PLANETARY SPINDLE BEARING KIT
18 BEARING 1
19 SPACER 1
20 BEARING 1
21 RETAINING RING 1
22 RETAINING RING 1
23 THROTTLE LEVER FOR Mirka 3,000 rpm 1
24 LEVER SPRING PIN 1
25
GRIP 65mm (2 1/2 in.) OPT
GRIP 70mm (2 3/4 in.) OPT
GRIP 75mm (3 in.) 1
G SPEED VALVE KIT
26 VALVE SLEEVE 1
27 HOUSING 1
A MUFFLER KIT
28 INTERNAL MUFFLER 1
29 MUFFLER INSERT 1
30 MUFFLER HOUSING 1
C AIR INLET KIT
31 VALVE SEAT 1
32 VALVE 1
33 VALVE SPRING 1
34 INLET BUSHING ASSEMBLY 1
G SPEED VALVE KIT
35 VALVE STEM ASSEMBLY 1
36 O-RING 1
37 SPEED CONTROL 1
38 INTERNAL RETAINING RING 1
39 3 in. SuperVAC SHROUD 1
40 13 mm WRENCH 1
41 BACKING PAD 77mm 1/4” GRIP 6H MEDIUM 1
42 ROS SuperVAC CV 3/4 in. SWIVEL EXHAUST ASSEMBLY OPT
H CV SWIVEL FITTING KIT
43 ROS SuperVAC™ CV 1 in./28 mm SWIVEL EXHAUST ASSEMBLY 1
44 NUT 1
45 WASHER 1
46 SCREW 1

Spare Parts Kits
A MPA0797 Mufer Kit
Code: 8993017311
BMPA2226 Planetary Spindle Bearing Kit
Code: 8994222711
DMPA0799 Endplate Bearing Kit
Code: 8993019811
GMPA0800 Speed Valve Kit
Code: 8993019011
FMPA0801 Rotor, Vanes & Key Kit
Code: 8993017711
Scaled 50%
Scaled 50%
EMPA0994 Cylinder & O-ring Kit
Code: 8993009211
Scaled 50%
CMPA0798 Air Inlet Kit
Code: 8993018811
HMPA0988 CV Swivel Fitting Kit
Code: 8993006611

Required Personal Safety Equipment
Safety Glasses Breathing Masks
Safety Gloves Ear Protection
Recommended Airline
Size – Minimum
10 mm 3/8 in
Recommended Maximum
Hose Length
8 meters 25 feet
Air Pressure
Maximum Working Pressure 6.2 bar 90 psig
Recommended Minimum NA NA
Operator Instructions
Includes – Please Read and Comply with, Proper Use of
Tool, Work Stations, Putting the Tool Into Service, Operating
Instructions, Product Conguration/Specications Tables,
Parts Page, Parts List, Spare Parts Kits, Troubleshooting
Guide
Important
Read these instructions carefully
before installing, operating,
servicing or repairing this tool.
Keep these instructions in a safe
accessible location.
Declaration of conformity
Mirka Ltd.
FI-66850 Jeppo, Finland
declare on our sole responsibility that the product 77 mm )3”( 3,000 rpm Rotary Polisher & Sander )see “Product Conguration/Specications”
table for particular model( to which this declaration relates is in conformity with the following standard)s( or other normative document)s(: EN ISO
15744:2008. Following the provisions of 89/392/EEC as amended by 91/368/EEC, 93/44/EEC and 93/68/EEC Directives and consolidating Directive
2006/42/EC.
RPS 300CV
77 mm Polisher & Sander
Original Instructions

Putting the Tool into Service
Operating Instructions
Work Stations
Proper Use of Tool
Figure 1
This tool is designed for use on all types of materials i.e. metals,
wood, stone, plastics, etc. using abrasive designed for this pur-
pose. Do not use this tool for any other purpose than that speci-
ed without consulting the manufacturer or the manufacturer’s
authorized supplier. Do not use backing pads that have a working
speed less than 3,000 rpm free speed.
The tool is intended to be operated as a hand-held tool. It is
always recommended that the tool be used when standing on a
solid oor. It can be used in any position but before any such use,
the operator must be in a secure position and have a rm grip and
footing, and be aware that the tool can develop a torque reaction.
See the section “Operating Instructions”.
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 6.2 bar )90 psig( bar when the tool is run-
ning with the lever fully depressed. It is recommended to use an
approved 10 mm )3/8 in.( x 8 m )25 ft( maximum length airline. It
is recommended that the tool be connected to the air supply as
shown in Figure 1.
Do not connect the tool to the airline system without incorporating
an easy to reach and operate air shut-off valve. The air supply
should be lubricated. It is strongly recommended that an air lter,
regulator and lubricator )FRL( be used as shown in Figure 1 as
this will supply clean, lubricated air at the correct pressure to
the tool. Details of such equipment can be obtained from your
supplier. If such equipment is not used then the tool should be
manually lubricated.
To manually lubricate the tool, disconnect the airline and put 2 to
3 drops of suitable pneumatic motor lubricating oil such as Fuji
Kosan FK-20, Mobil ALMO 525 or Shell TORCULA® 32 into the
hose end )inlet( of the machine. Reconnect the tool to the air
supply and run the tool slowly for a few seconds to allow air to
circulate the oil. If the tool is used frequently, lubricate it on a daily
basis or lubricate it if the tool starts to slow or lose power.
It is recommended that the air pressure at the tool is 6.2 bar )90
psig( while the tool is running. The tool can run at lower pressures
but never higher than 6.2 bar )90 psig(.
1( Read all instructions before using this tool. All operators must be fully trained in its use
and be aware of these safety rules. All servicing and repairs must be carried out by trained
personnel.
2( Make sure the tool is disconnected from the air supply.
Select a suitable abrasive and secure it to the backing
pad. Take care to center the abrasive on the backing
pad.
3( Always wear the required safety equipment when using
this tool.
4( When sanding always place the tool on the work then
start the tool. Always remove the tool from the work
before stopping. This will prevent gouging of the work
due to excess speed of the abrasive.
5( Always disconnect the air supply from the tool before
tting, adjusting or removing the abrasive or backing pad.
6( Always adopt a rm footing and/or position and be aware
of the torque reaction developed by the tool.
7) Use only correct spare parts.
8( Always ensure that the material to be sanded is rmly
xed to prevent its movement.
9( Check the hose and ttings regularly for wear. Do not
carry the tool by its hose; always be careful to prevent
the tool from being started when carrying the tool with
the air supply connected.
10( Do not exceed the maximum recommended air pressure.
Use safety equipment as recommended.
11( The tool is not electrically insulated. Do not use where
there is a possibility of coming into contact with live
electricity, gas pipes, water pipes, etc. Check the working area before operation.
12( Take care to avoid entanglement of the moving parts of the tool with clothing, ties, hair,
cleaning rags, etc. If entangled, it will cause the body to be pulled towards the work and
moving parts of the machine, which can be very dangerous.
13( Keep hands clear of the spinning pad during use.
14( If the tool appears to malfunction, remove from use immediately and arrange for servicing
and repair.
15( Do not allow the tool to free-speed without taking precautions to protect any persons or
objects from the loss of the abrasive or pad.

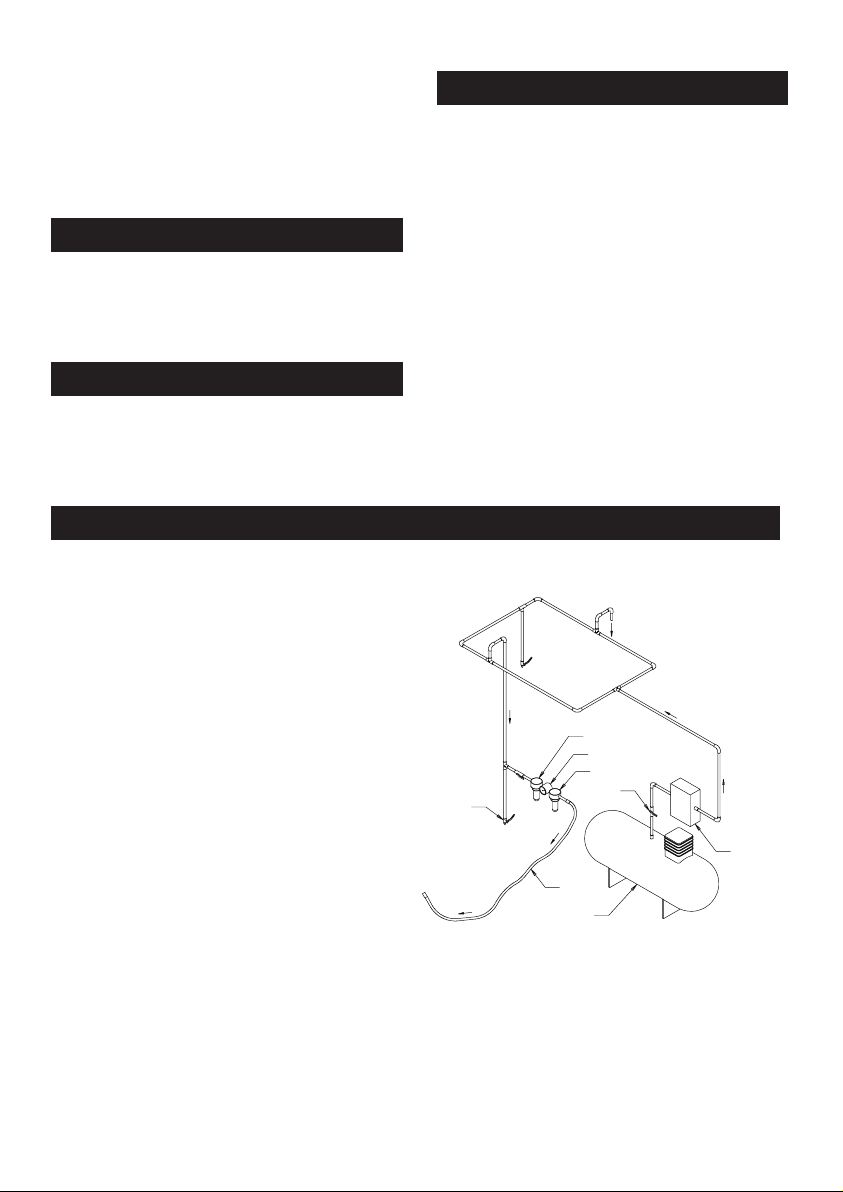

Closed Loop Pipe System
Sloped in the direction of air flow
Drain Leg
Ball Valve
To Tool Station
Filter
Drain Valve
Regulator
Lubricator
Ball
Valve
Ball Valve Air Flow
Air Dryer
Air Compressor
and Tank
Air Hose
To Coupler
at or near Tool

Specications subject to change without prior notice.
*The values stated in the table are from laboratory testing in conformity with stated codes and standards, and are not sufcient for risk
evaluation. Values measured in a particular work place may be higher than the declared values. The actual exposure values and amount
of risk or harm experienced by an individual are unique to each situation and depend upon the surrounding environment, the way in which
the individual works, the particular material being worked, work station design as well as upon the exposure time and the physical condi-
tion of the user. Mirka Ltd. cannot be held responsible for the consequences of using declared values instead of actual exposure values
for any individual risk assessment.
Product Conguration/Specications: Mirka RPS 300CV 3,000 rpm
Vacuum
Type
Pad Size
mm )in.(
Model
Number
Product
Net
Weight kg
)pounds(
Height
mm
)in.(
Length
mm
)in.(
Power
watts
)hp(
Air Con-
sumption
LPM )scfm(
*Noise
Level
dBA
*Vibra-
tion
Level m/
s2
*Uncer-
tainty K
m/s2
Central
Vacuum
77 mm
(3 in.) RPS 300CV 0.63 (1.37)
89.0
(3.50)
186.2
(7.30)
209
(0.28) 481 (17) 78.5 2.86 0.78
The noise test is carried out in accordance with EN ISO 15744:2008 – Hand-held non-electric power tools – Noise measurement code
– Engineering method )grade 2( and EN ISO 11203:2009 Acoustics – Noise emitted by machinery and equipment – Determination of
emission sound pressure levels at a work station and other specied positions from the sound power level.
The vibration test is carried out in accordance with EN ISO 28927-3, Hand-held portable power tools – Test method for evaluation of
vibration emission – Part 3: Polishers and rotary , orbital and random orbital sanders.
