MIRKA DEROS 650CV User manual

en Operating Instructions 4-9
de Betriebsanleitung 10 -15
fr Notice d´utilisation 16-21
it Istruzioni sull´uso 22-27
sv Bruksanvisning 28-33
no Brugsanvisning 34-39
da Brugsanvisning 40-45
 Käyttöohje 46-51
es Instrucciones de manejo 52-57
nl Gebruiksaanwijzing 58-63
ru Руководство по эксплуатации 64-69
pt Instruções de uso 70-75
et Kasutusjuhend 76-81
lt Operatoriaus instrukcijos 82-87
lv Norādījumi lietotājam 88-93
150mm (6 in.)
MIRKA® DEROS

2

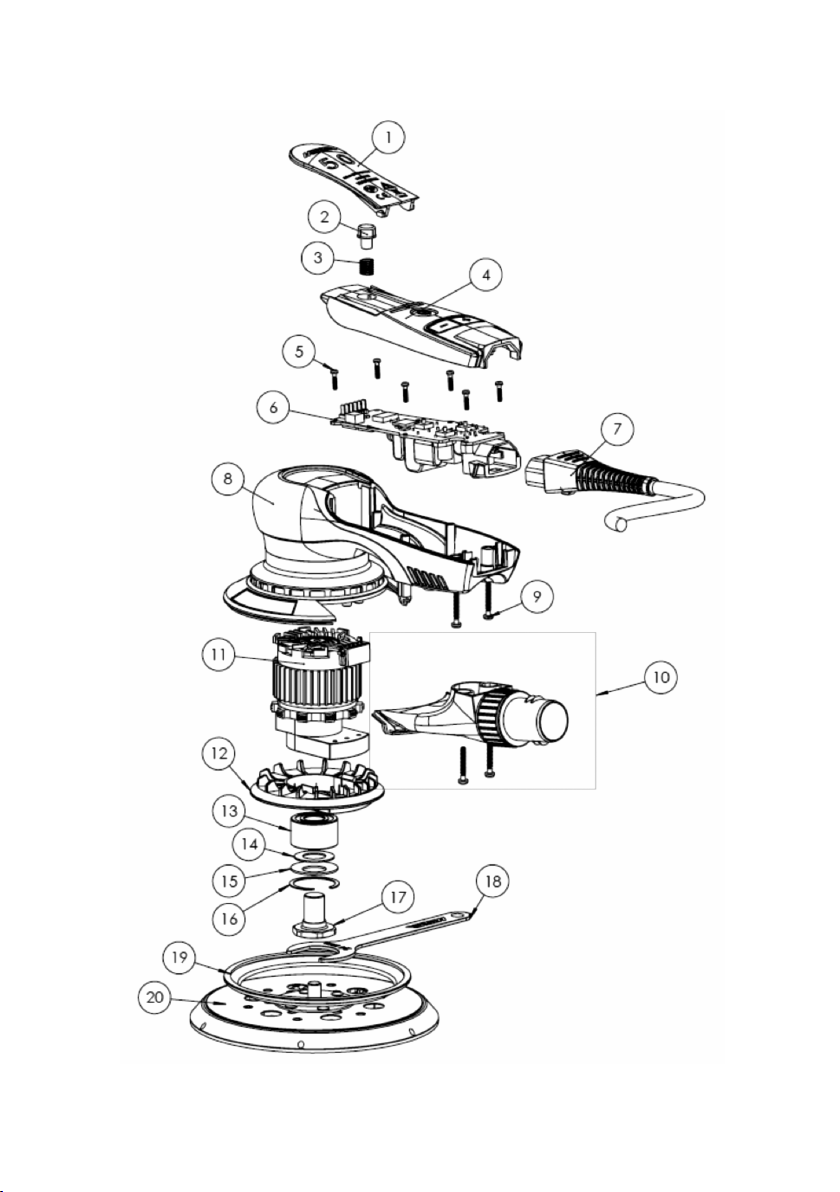

Exploded view

3
Parts list
Figure 1
Item# DESCRIPTION MIRKA CODE
1 LEVER 5,0MM
2 START BUTTON
3 START BUTTON SPRING
4 COVER PLATE
5 PCB SCREW
6 SPEED CONTROLLER
7 MAINS CABLE CE 230V MIE6516011
MAINS CABLE UK 230V MIE6517011
8 HOUSING
9 HOUSING SCREW
10 SWIVEL EXHAUST ASSEMBLY MIE6521011
11 MOTOR ASSEMBLY ORBIT 5,0/130G PAD
12 FAN ORBIT 5,0/130G PAD
13 DOUBLE ROW BEARING
14 FELT WASHER
15 WASHER
16 RETAINING RING
17 SPINDLE MIE6511711
18 24MM PAD WRENCH 8995608011
19 BREAK SEAL 150MM MIE6511911
20 PAD 150MM (6”) 8292605011
PAD 125MM 130G (5”) 8292502511

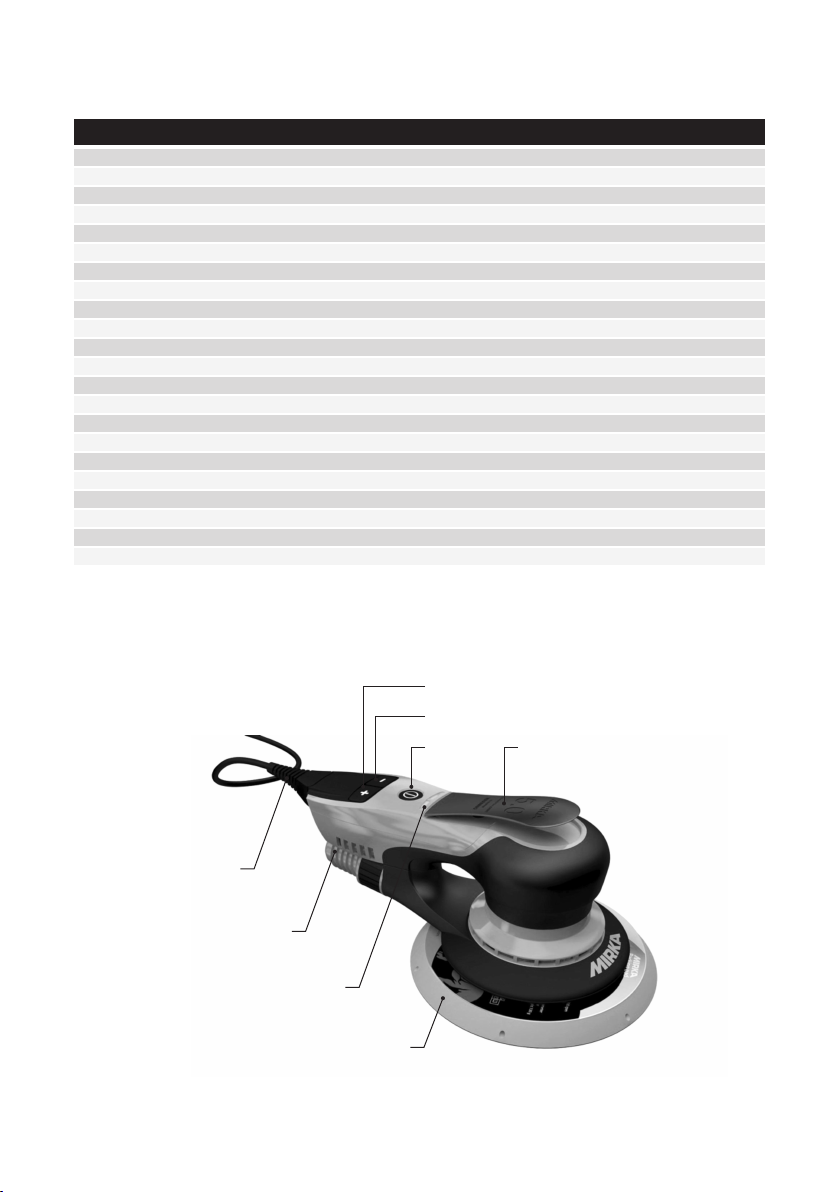

Lever
LED
Hose Connection
Backing Pad
Power Cord
On/O
RPM–
RPM+

4
Declaration of conformity
KWH Mirka Ltd.
66850 Jeppo, Finland
declare on our sole responsibility that the product MIRKA® DEROS 150 mm (6 in.) & 125mm (5 in.)
10,000 RPM Electrical Random Orbital Sander (See “Product Conguration/Specications”Table for particular Model)
to which this declaration relates is in conformity with the following standard(s) or other normative document(s)
EN ISO EN 60 745, EN 55 014, EN 61 000 in accordance with the regulations 98/37/EC (until 28 Dec. 2009), 2006/42/EC
(from 29 Dec. 2009), 2004/108/EC
Important
Read these safety and operating instructions carefully before installing, operating or maintaining this
tool. Keep these instructions in a safe accessible location.
Required Personal Safety Equipment
Operating Instructions
Includes – Exploded view, Parts list, Spare Parts Kit,
Declaration of conformity, Important, General Power
Tools safety warnings, Warning, Caution, Additional safety
Warnings, Technical data, Proper Use of Tool, Work Stations,
How to get started, Operating Instructions, Maintenance,
Service, Trouble Shooting Guide, Disposal
Manufacturer/Supplier
KWH Mirka Ltd.
66850 Jeppo, Finland
Tel: + 358 20 760 2111
Fax: [phone]
Place and Date of issue
Jeppo 31.01.2012
Name Ralf Karlsrtöm, Managing Director
Warning: Potential hazardous situation that may result in death or serious injury and/or
property damage.
Caution: Potential hazardous situation that may result minor or moderate injury and/or
property damage.
Safety Glasses Ear Protection Safety Gloves Face Mask
Please Read and Comply with
1) General Industry Safety & Health Regulations, Part 1910, OSHA 2206, available from: Superintendent of
Documents; Government Printing Oce; Washington DC 20402
2) Safety Code for Portable Air Tools, ANSI B186.1 available from: American National Standards Institute,
Inc.; 1430 Broadway; New York, New York 10018
3) State and Local Regulations

5
WARNING
• Alwayswearrequiredpersonalsafetyprotectioninaccordancewithmanufacturer’sinstructionand
local/national standards while using this tool.
• Donotuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication.
• ReadtheMaterialsSafetyDataSheet(MSDS)fortheworkingsurface.
• Usethetoolwithdustextraction.Suiteddustextractionunitwillreducehazardousdust.
• Donotoverreach.Theoperatormustensuretohaveasecurepositionwitharmgripandfootingon
solidoor.
• Donotwearlooseclothingorjewellery.Keepyourhair,clothingandglovesawayfrommovingparts.
Loose clothes, jewellery or long hair can be caught in moving parts.
• Ifanyphysicalhand/wristdiscomfortisexperienced,Stopworkingandseekmedicalattention.Hand,
wrist and arm injury may result from repetitive work, motion and overexposure to vibrations.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammableliquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
CAUTION
• Removepadwrenchbeforeconnectingthetooltothepowersource.
• Keepworkareacleanandwelllit.
• Alwaysensurethattheworkpiecetobesandedisrmlyxed.
• Beforechangingabrasivealwaysdisconnectthepowersource.Becarefultoproperlyattachandcenter
the abrasive to the backing pad.
• Keepchildrenandbystandersawaywhileoperatingapowertool.Distractionscancauseyoutolosecontrol.
• Alwayscareforworksafety,nevercarry,storeorleavethetoolunattendedwiththepowersourceconnected.
• Keephandsclearofthespinningpadduringuse.
• Donotallowthetooltofreespeedwithouttakingprecautionstoprotectanypersonsorobjectsfrom
the loss of the abrasive or pad.
ADDITIONAL SAFETY WARNINGS
• Readallinstructionsbeforeusingthistool.Alloperatorsmustbefullytrainedinusageandsafetyofthistool.
• Allmaintenancemustbecarriedoutbytrainedpersonnel.Forservice,contactMirkaauthorizedservicecenter!
• Powersupplysocketandconnectorarenon-IECappliancecouplers.OnlyMIRKAoriginalpowersupply
cable should be used. The MIRKA power supply cable can be bought from your Mirka Dealer; (Code:
8292605011), UK (Code: 8292502511).
• Checktool,backingpad,powercordandttingsregularlyforwear.
• Vacuumunitdustcollectionbagshouldbecleanedorreplaceddaily.Dustcanbehighlycombustible.
Cleaning or replacing of bag also assures optimum performance.
• Alwaysensurethatthepowertoolspecicationscorrespondtothepowersource(Volt,Hz).
• Takecaretoavoidentanglementwiththemovingpartsofthetoolwithclothing,ties,hair,cleaningrags,etc.
• Ifthetoolappearstomalfunction,removefromuseimmediatelyandarrangeforserviceandrepair.

6
Technical Data
Noise and Vibration Information
MIRKA® DEROS
MIRKA® DEROS
650CV
650CV
5650CV
5650CV
Power 350 W 350 W
MainsVoltage 220-240VAC 220-240VAC
Speed 4,000-10,000rpm 4,000-10,000rpm
Orbit 5.0 mm 5.0 mm
Size of backing pad Ø 150 mm Ø 125/150 mm
Weight 1010 g 1010 g
Degree of protection II
Sound pressure level Lpa 71 db (A) 71 db (A)
Sound power level Lwa 82 db (A) 82 db (A)
Sound measurement uncertainty K 2.0 db 2.0 db
Vibration emission value ah* 3.4 m/s23.4 m/s2
Vibration emission uncertainty K* 1.5 m/s21.5 m/s2
Specications subject to change without prior notice.
* The values stated in the table are from laboratory testing in conformity with stated codes, standards and
are not sucient for risk evaluation. Values measured in a particular work place may be higher than the
declared values. The actual exposure values and amount of risk or harm experienced to an individual is
uniquetoeachsituationanddependsuponthesurroundingenvironment,thewayinwhichtheindividual
works, the particular material being worked, work station design as well as upon the exposure time and
thephysicalconditionoftheuser.KWHMirka,Ltd.cannotbeheldresponsiblefortheconsequencesof
using declared values instead of actual exposure values for any individual risk assessment.
Further occupational health and safety information can be obtained from the following websites:
http://europe.osha.eu.int (Europe) or http://www.osha.gov (USA)
Measured values are determined according to EN 60745.

7
Proper Use of Tool
This sander is designed for sanding all types of materials i.e. metals, wood, stone, plastics, etc. using
abrasive designed for this purpose. Do not use this sander for any other purpose than that specied
withoutconsultingthemanufacturerorthemanufacturer’sauthorizedsupplier.Donotusebackingpads
that have a working speed less than 10,000 RPM free speed. Only use MIRKA backing pad 150mm (6”)
Code: 8292605011, 125mm 130g (5”) Code: 8292502511 that are designed for optimal performance with
the brake seal. Never mount a backing pad without distance washer. Other backing pad may reduce
performance and will increase vibrations. The cooling air vents on the housing must always be free
ofblockagesandcleantoensureaircirculation.Anymaintenanceorrepairworkrequiringthemotor
housing to be opened may only be carried out by an authorized service center.
Work Stations
The tool is intended to be operated as a hand held tool. It is always recommended that the tool should be
usedwhenstandingonasolidoor.Itcanbeinanypositionbutbeforeanysuchuse,theoperatormust
beinasecurepositionhavingarmgripandfootingandbeawarethatthesandercandevelopatorque
reaction. See the section “Operating Instructions”.
How to Get Started
Unpacking, check that the tool is complete without any transport damages. A damaged tool shall not be used.
Before using, check that the pad are correctly mounted and tightened. Connect the power cord to the
sander.Connectthepowercordtoagroundedoutlet(220-240VAC,50Hz).
In order to take the full power out of this tool it is recommended to use it together with the Mirka vacuum
cleaner 912/915 (or other suited dust extraction unit) and Mirka Net Sanding products. The combination
of MIRKA sanders, net sanding products and Mirka vacuum cleaner are the base of MIRKA dust-free
sanding solutions.
The power cord from the sander is in this application connected to the mains supply in the front of the
vacuum cleaner. By connecting the sanders power cord to the outlet on the vacuum cleaner makes it
possibletouseauto-startfunctiononvacuumcleaner.

8
Operating Instructions
• Thetoolisintendedtobeoperatedasahandheldtool.Thetoolcanbeusedinanyposition.Note!The
sandercandevelopatorquereactionwhenstarted.
• Makesurethesanderisswitchedo.Selectasuitableabrasiveandsecureittothebackingpad.Be
careful and center the abrasive on it. For optimal use of the machine we recommend a MIRKA backing
pad 150mm (6”) Code: 8292605011, 125mm 130g (5”) Code: 8292502511and Mirka Net Sanding product.
• SwitchonthesanderbypressingtheOn/OkeyFigure1.ThesanderLEDisnowgreen.
• Thesandercannowbestartedbypressingthelever.
• Thespeedcanbeadjustedbetweenthe4000andmaxRPMbyadjustingthepositionofthelever.
• ThemaxRPMcanbeadjustedbypressingtheRPM+orRPM-Figure1.Everypressaddsorremoves
1000 RPM until it reaches the limits. The RPM can be adjusted in the range 4,000 to 10,000 RPM.
• Thetool hastwo modesof controllingthe speed.In thedefault modethe speedcan beadjusted
linearly by adjusting the position of the lever. In the other mode the speed is xed to the adjusted max
RPMalwayswhenthetoolisrunning.BypressingsimultaneouslybothRPM+andRPM-keysthetool
toggles between the two controlling modes.
• Whensandingalwaysplacethetoolontheworksurfacethenstartthetool.Alwaysremovethetool
from the work surface before stopping. This will prevent gouging of the work surface due to excess
speed of the abrasive.
• WhensandingisnishedturnothesanderbypressingtheOn/Okey.ThesanderLEDisnowturnedo.
Maintenance
Alwaysdisconnectpowersourcebeforemaintenance!
UseonlyoriginalMirkaspareparts!
Replacing backing pad
• Insertpadwrenchbetweenthebackingpadandbrakesealtoholdthespindlenut.
• Turnthebackingpadcounterclockwisetoremoveit.
• Mountandtightennewbackingpadwithtwowashers.
• Removethepadwrench.
Replacing the brake seal
Note!Toomuchvacuuminyourdustextractionsystemmaycausethebrakesealtomalfunction.
• Dismountthebackingpadasdescribedabove.
• Pulltheoldbrakesealfromitsgroove.
• Applythenewbrakesealinthegroove.
• Mountthebackingpadasdescribedabove.
• Checkbrakesealfunction.Bychangingthenumberofwashersbetweenthespindleandbackingpad,
the eect of the brake seal can be adjusted.
FURTHER SERVICE
Service must always be performed by trained personnel. To keep the tool warranty valid and to ensure
thetoolsafetyandfunctionit’srequiredthatserviceareperformedbyMirkaauthorizedservicecenter.
To locate your local Mirka authorized service center, contact Mirka Customer service or your Mirka dealer.

9
Symptom Possible Cause Solution
Troubleshooting Guide
No light from Sander LED when
switched on.
The sander LED is red and the sander
is slowing down to 4000 RPM when
sanding.
The sander LED is red and RPM is
slightly reduced.
Break seal do not work.
Connect it properly.
Have lighter load to the sander for
some time and the sander will speed
up again.
Use lighter load and the LED will
automatically change to green.
Check and replace if needed break
seal or spindle bearing.
Power cord not properly attached to
the sander or to the mains socket.
Temperature too high in the sander.
Too heavy long term load.
Too heavy short term load.
Worn out brake seal or damaged
spindle bearing.
Disposal Information
DANGER: Disposal information for the old appliance! Render redundant power tools
unusable by removing the power cord. Only for EU countries. Do not dispose of electric
tools together with household waste material! In observance of European Directive
2002/95/CE,2002/96/EC+2003/108/CEonwasteelectricalandelectronicequipmentand
its implementation in accordance with national law, electric tools that have reached
the end of their life must be collected separately and returned to an environmentally
compatible recycling facility.

10
Wichtig
Lesen Sie diese Instruktionen sorgfältig bevor Sie die Maschine in Betrieb nehmen, warten oder reparieren.
Bewahren Sie die Instruktionen auf.
Erforderliche persönliche Schutzausrüstung
Warnung: Mögliche Gefährdung, die zum Tod oder zu schweren Verletzungen und/oder
Sachschäden führen kann.
Vorsicht: Mögliche Gefährdung, die zu leichten oder mittelschweren Verletzungen und/oder
Sachschäden führen kann.
Schutzbrille Gehörschutz Sicherheitshandschuhe Atemschutzmaske
Konformitätserklärung
KWH Mirka Ltd.
66850 Jeppo, Finland
erklärt in alleiniger Verantwortung, dass das Produkt MIRKA® DEROS 150 mm (6 in.) & 125mm (5 in.)
10,000 RPM Elektrischer Exzenterschleifer(Siehe“Produkt Konguration / Spezikationen”Tabelle für bestimmtes Model),
auf welchessich diese Erklärung bezieht, konform mit den folgenden Standards und Normen ist:
EN ISO EN 60 745, EN 55 014, EN 61 000 in Übereinstimmung mit den Vorschriften 98/37/EC (bis 28 Dez. 2009),
2006/42/EC (ab 29 Dez. 2009), 2004/108/EC
Gebrauchsanweisung
Inhalt – Explosionszeichnung, Liste der Teile, Ersatzteilliste,
Konformitätserklärung, Generelle Sicherheitshinweise,
Spezielle Sicherheitshinweise, Technische Daten, Richtige
Benutzung, Anwendungshinweise, Inbetriebnahme,
Wartungsinstruktionen, Service, Anleitung zur
Fehlerbehebung
Hersteller/Lieferant
KWH Mirka Ltd.
66850 Jeppo, Finland
Tel: + 358 20 760 2111
Fax: [phone]
Ort und Datum
Jeppo 31.01.2012
Name Ralf Karlsrtöm, Geschäftsführer
Hinweis, bitte lesen und beachten:
1) General Industry Safety & Health Regulations, Part 1910, OSHA 2206, erhältlich von: Superintendent of
Documents; Government Printing Oce; Washington DC 20402
2) Safety Code for Portable Air Tools, ANSI B186.1 erhältlich von: American National Standards Institute,
Inc.; 1430 Broadway; New York, New York 10018
3) Nationale und lokale Vorschriften
