MiTAC TYAN S7103 User manual

http://www.tyan.com
1
S7103
Version 1.0c
Copyright
Copyright © 2018 MITAC COMPUTING TECHNOLOGY CORPORATION. All rights
reserved. No part of this manual may be reproduced or translated without prior
written consent from MITAC COMPUTING TECHNOLOGY CORPORATION.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN® is a trademark of MITAC COMPUTING TECHNOLOGY CORPORATION.
Intel® is a trademark of Intel® Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows® are trademarks of Microsoft Corporation.
Nuvoton® is a trademark of Nuvoton Technology Corporation.
Notice
Information contained in this document is furnished by MITAC COMPUTING
TECHNOLOGY CORPORATION and has been reviewed for accuracy and reliability
prior to printing. MITAC assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of TYAN® products including liability
or warranties relating to fitness for a particular purpose or merchantability. MITAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MITAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2

http://www.tyan.com
3
Contents
Before you begin… .................................................................................... 4
Chapter 1: Instruction ................................................................................ 5
1.1 Congratulations ................................................................................. 5
1.2 Hardware Specifications .................................................................... 5
1.3 Software Specifications ................................................................... 20
Chapter 2: Board Installation ................................................................... 21
2.1 Board Image .................................................................................... 22
2.2 Block Diagram ................................................................................. 23
2.3 Mainboard Mechanical Drawing ...................................................... 24
2.4 Board Parts, Jumpers and Connectors ........................................... 25
2.6 Installing the Processor and Heat sink ............................................ 32
2.7 Tips on Installing Motherboard in Chassis ...................................... 35
2.8 Installing the Memory ...................................................................... 37
2.9 Attaching Drive Cables .................................................................... 40
2.10 Installing Add-In Cards .................................................................. 41
2.11 Connecting External Devices ........................................................ 42
2.13 Installing the Power Supply ........................................................... 43
2.14 Finishing Up ................................................................................... 44
Chapter 3: BIOS Setup ............................................................................. 45
3.1 About the BIOS ................................................................................ 45
3.2 Main Menu ....................................................................................... 47
3.3 Advanced Menu ............................................................................... 48
3.4 Platform Configuration ..................................................................... 87
3.5 Socket Configuration ....................................................................... 99
3.6 Server Management ...................................................................... 132
3.7 Security .......................................................................................... 137
3.8 Boot .............................................................................................. 142
3.9 Save & Exit .................................................................................... 146
Chapter 4: Diagnostics ........................................................................... 149
4.1 Flash Utility .................................................................................... 149
4.2 AMIBIOS Post Code (Aptio) .......................................................... 150
Appendix: Fan and Temp Sensors........................................................ 157
Glossary ................................................................................................... 161
Technical Support .................................................................................. 167

http://www.tyan.com
4
Before you begin…

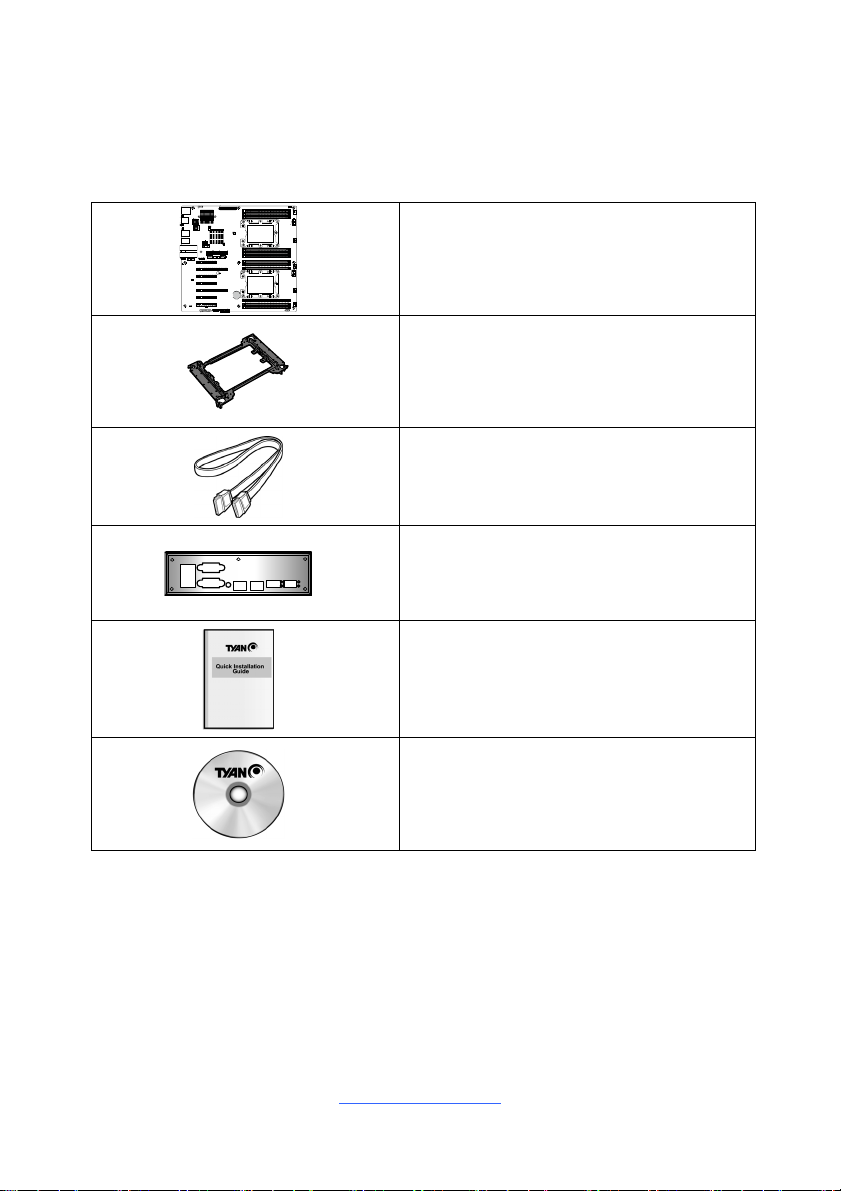

Check the box contents!
The retail motherboard package should contain the following:
1 x S7103 Motherboard
2 x CPU clip for
Narrow Non-Fabric
CPU Carrier
2 x SATA Cable
1 x Rear IO Shield
1 x S7103 Quick reference guide
1 x TYAN® Driver’s and Utilities DVD
IMPORTANT NOTE:
Sales sample may not come with the accessory listed above.
Please contact your sales representative to help order accessory for your
evaluation.

http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S7103 motherboard, based on the
Intel® C621 chipset. The S7103 is designed to support dual Intel® Xeon Scalable
Processor Family, and up to 384GB RDIMM/768GB LRDIMM DDR4 memory.
Leveraging advanced technology from Intel®, the S7103 is capable of offering
scalable 32 and 64-bit computing, high-bandwidth memory design, and lightning-
fast PCI-E bus implementation.
The S7103 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provides the S7103 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can
find all the information on all TYAN® products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
TYAN S7103 (S7103GM2NR)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU Series Intel Xeon Scalable Processor
Thermal Design Power
(TDP) wattage Max up to 205W
System Bus Up to 10.4/9.6 GT/s with Intel UltraPath
Interconnect (UPI) support
Chipset PCH Intel C621
Memory
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity Up to 384GB RDIMM/768GB LRDIMM
*Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN Port Q'ty (2) GbE ports, (1) PHY dedicated for

http://www.tyan.com
6
IPMI
Controller Intel I350-AM2
PHY Realtek RTL8211E
Storage
SATA
Connector (2) Mini-SAS (8-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output
USB (2) USB3.0 ports (via cable), (2) USB3.0
ports (at rear), (1) Type-A USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors + (3)
Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED Over temperature warning indicator,
Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management AST2500 iKVM Feature IPMI 2.0 compliant baseboard

http://www.tyan.com
7
management controller (BMC), Supports
storage over IP and remote platform-
flash, USB 2.0 virtual hub
AST2500 IPMI Feature 24-bit high quality video compression,
10/100/1000 Mb/s MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0, SMBIOS
3.0/PnP/Wake on LAN, Boot from USB
device/PXE via LAN/Storage, User
Configurable FAN PWM Duty Cycle,
Console Redirection, ACPI sleeping
states S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class A
CE (DoC) Class A
Operating
Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
TYAN S7103 (S7103WGM2NR)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU
Series Intel Xeon Scalable Processor
Thermal Design
Power (TDP) wattage Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel
UltraPath Interconnect (UPI)
support
Chipset PCH Intel C621
Memory Supported DIMM Qty (6)+(6) DIMM slots

http://www.tyan.com
8
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity
Up to 384GB RDIMM/768GB
LRDIMM *Follow latest Intel DDR4
Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN
Port Q'ty (2) GbE ports, (1) PHY dedicated
for IPMI
Controller Intel I350-AM2
PHY Realtek RTL8211E
Storage
SAS
Connector
(2) Mini-SAS HD
connectors (totally
support 8 ports)
Controller LSI SAS3008
Speed 12.0 Gb/s
RAID RAID 0/1/10/1E (LSI
Integrated RAID)
SATA
Connector (2) Mini-SAS (8-ports)
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C621
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output
USB
(2) USB3.0 ports (via cable), (2)
USB3.0 ports (at rear), (1) Type-A
USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)

http://www.tyan.com
9
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SAS (2) Mini-SAS (4-in-1) connectors
SATA (2) SATA/SATA-DOM connectors +
(3) Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported
list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED
Over temperature warning
indicator, Fan & PSU fail LED
indicator
Others Watchdog timer support
Server Management
AST2500 iKVM
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
Supports storage over IP and
remote platform-flash, USB 2.0
virtual hub
AST2500 IPMI
Feature
24-bit high quality video
compression, 10/100/1000 Mb/s
MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0,
SMBIOS 3.0/PnP/Wake on LAN,
Boot from USB device/PXE via
LAN/Storage, User Configurable
FAN PWM Duty Cycle, Console
Redirection, ACPI sleeping states
S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class A
CE (DoC) Class A

http://www.tyan.com
10
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support
lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
TYAN S7103 (S7103GM4NR-2F-L2)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU
Series Intel Xeon Scalable Processor
Thermal Design
Power (TDP) wattage Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel
UltraPath Interconnect (UPI)
support
Chipset PCH Intel C622
Memory
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity
Up to 384GB RDIMM/768GB
LRDIMM *Follow latest Intel DDR4
Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN
Port Q'ty (2) 10GbE SFP+, (2) GbE, (1) PHY
Controller Intel I350-AM2, Intel C622 PCH
PHY Realtek RTL8211E
Storage SATA Connector (2) Mini-SAS (8-ports)
Controller Intel C622

http://www.tyan.com
11
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output
USB
(2) USB3.0 ports (via cable), (2)
USB3.0 ports (at rear), (1) Type-A
USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors +
(3) Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
SFP+ (2) 10GbE ports
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported
list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED
Over temperature warning
indicator, Fan & PSU fail LED
indicator
Others Watchdog timer support
Server Management
AST2500 iKVM
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),

http://www.tyan.com
12
Supports storage over IP and
remote platform-flash, USB 2.0
virtual hub
AST2500 IPMI
Feature
24-bit high quality video
compression, 10/100/1000 Mb/s
MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0,
SMBIOS 3.0/PnP/Wake on LAN,
Boot from USB device/PXE via
LAN/Storage, User Configurable
FAN PWM Duty Cycle, Console
Redirection, ACPI sleeping states
S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class A
CE (DoC) Class A
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support
lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
TYAN S7103 (S7103WGM4NR-2F-L2)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU
Series Intel Xeon Scalable Processor
Thermal Design
Power (TDP) wattage Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel
UltraPath Interconnect (UPI)
support

http://www.tyan.com
13
Chipset PCH Intel C622
Memory
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity
Up to 384GB RDIMM/768GB
LRDIMM *Follow latest Intel DDR4
Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN
Port Q'ty (2) 10GbE ports, (2) GbE ports, (1)
PHY dedicated for IPMI
Controller Intel I350-AM2, Intel C622 PCH
PHY Realtek RTL8211E
Storage
SAS
Connector
(2) Mini-SAS HD
connectors (totally
support 8 ports)
Controller LSI SAS3008
Speed 12.0 Gb/s
RAID RAID 0/1/10/1E (LSI
Integrated RAID)
SATA
Connector (2) Mini-SAS (8-ports)
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output USB (2) USB3.0 ports (via cable), (2)
USB3.0 ports (at rear), (1) Type-A

http://www.tyan.com
14
USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors +
(3) Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
SFP+ (2) 10GbE ports
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported
list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED
Over temperature warning
indicator, Fan & PSU fail LED
indicator
Others Watchdog timer support
Server Management
AST2500 iKVM
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
Supports storage over IP and
remote platform-flash, USB 2.0
virtual hub
AST2500 IPMI
Feature
24-bit high quality video
compression, 10/100/1000 Mb/s
MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0,
SMBIOS 3.0/PnP/Wake on LAN,
Boot from USB device/PXE via
LAN/Storage, User Configurable
FAN PWM Duty Cycle, Console
Redirection, ACPI sleeping states
S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)

http://www.tyan.com
15
Regulation
FCC (DoC) Class A
CE (DoC) Class A
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support
lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
TYAN S7103 (S7103GM2NR-2F-L2)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU
Series Intel Xeon Scalable Processor
Thermal Design
Power (TDP) wattage Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel
UltraPath Interconnect (UPI)
support
Chipset PCH Intel C622
Memory
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity
Up to 384GB RDIMM/ 768GB
LRDIMM *Follow latest Intel DDR4
Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN
Port Q'ty (2) 10GbE ports, (1) GbE port
dedicated for IPMI
Controller Intel I350-AM2, Intel C622 PCH

http://www.tyan.com
16
PHY Realtek RTL8211E
Storage
SATA
Connector (2) Mini-SAS (8-ports)
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
Graphic
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output
USB
(2) USB3.0 ports (via cable), (2)
USB3.0 ports (at rear), (1) Type-A
USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (1) GbE port dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors +
(3) Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
SFP+ (2) 10GbE ports
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported
list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED
Over temperature warning
indicator, Fan & PSU fail LED
indicator

http://www.tyan.com
17
Others Watchdog timer support
Server Management
AST2500 iKVM
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
Supports storage over IP and
remote platform-flash, USB 2.0
virtual hub
AST2500 IPMI
Feature
24-bit high quality video
compression, 10/100/1000 Mb/s
MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0,
SMBIOS 3.0/PnP/Wake on LAN,
Boot from USB device/PXE via
LAN/Storage, User Configurable
FAN PWM Duty Cycle, Console
Redirection, ACPI sleeping states
S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class A
CE (DoC) Class A
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support
lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
TYAN S7103 (S7103WGM2NR-2F-L2)
Processor
Socket Type / Q'ty LGA3647/ (2)
Supported CPU
Series Intel Xeon Scalable Processor

http://www.tyan.com
18
Thermal Design
Power (TDP) wattage Max up to 205W
System Bus
Up to 10.4/9.6 GT/s with Intel
UltraPath Interconnect (UPI)
support
Chipset PCH Intel C622
Memory
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/LRDIMM
2666/2400/2133
Capacity
Up to 384GB RDIMM/ 768GB
LRDIMM *Follow latest Intel DDR4
Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (2) PCI-E Gen3 x16 slots, (5) PCI-E
Gen3 x8 slots
LAN
Port Q'ty (2) 10GbE ports, (1) GbE port
dedicated for IPMI
Controller Intel I350-AM2, Intel C622 PCH
PHY Realtek RTL8211E
Storage
SAS
Connector
(2) Mini-SAS HD
connectors (totally
support 8 ports)
Controller LSI SAS3008
Speed 12.0 Gb/s
RAID RAID 0/1/10 (LSI
Integrated RAID)
SATA
Connector (2) Mini-SAS (8-ports)
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
sSATA
Connector (1) Mini-SAS (4-ports),
(2) SATA/SATA-DOM
Controller Intel C622
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel
RSTe)
Graphic Connector type D-Sub 15-pin

http://www.tyan.com
19
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output
USB
(2) USB3.0 ports (via cable), (2)
USB3.0 ports (at rear), (1) Type-A
USB3.0 port
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (1) GbE port dedicated for IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (2) SATA/SATA-DOM connectors +
(3) Mini-SAS (4-in-1) connectors
Power SSI/ATX 24-pin + 8-pin power
connectors
SFP+ (2) 10GbE ports
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported
list.
System Monitoring
Chipset Aspeed AST2500
Fan Total (1) 2 x 10-pin headers
Temperature Monitors temperature for CPU &
memory & system environment
Voltage Monitors voltage for CPU, memory,
chipset & power supply
LED
Over temperature warning
indicator, Fan & PSU fail LED
indicator
Others Watchdog timer support
Server Management
AST2500 iKVM
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
Supports storage over IP and
remote platform-flash, USB 2.0
virtual hub
AST2500 IPMI
Feature
24-bit high quality video
compression, 10/100/1000 Mb/s
MAC interface
BIOS
Brand / ROM size AMI, 32MB
Feature
Hardware Monitor, ACPI 5.0,
SMBIOS 3.0/PnP/Wake on LAN,
Boot from USB device/PXE via
LAN/Storage, User Configurable

http://www.tyan.com
20
FAN PWM Duty Cycle, Console
Redirection, ACPI sleeping states
S0,S1,S5
Physical Dimension
Form Factor EATX
Board Dimension 12"x13" (305x330mm)
Regulation
FCC (DoC) Class A
CE (DoC) Class A
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support
lists.
Package Contains
Motherboard (1) S7103 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
1.3 Software Specifications
For OS (operation system) support, please check with TYAN® support for latest
information.
