MiTAC PH10FEU User manual

MITAC Desktop Board PH10FEU

Desktop Board Features
This chapter briefly describes the features of Desktop Board PH10FEU.
Feature Summary
Form Factor
Micro-ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6 inches])
Processor
8th generation Intel® Core processor family with up to 95 W TDP in an LGA1151
socket
Main Memory
Support Dual channel DDR4
Support for up to 64 GB of system memory
288-pin DDR4 u-DIMM
4
Chipset
Intel® Q370 Platform Controller Hub (PCH)
Integrated
Graphics
Intel® HD Graphics (By CPU)
External Graphics
External graphics support provided through the PCIe 3.0 x16 bus slot
Audio
RealTek* ALC892 audio codec for 7.1 channel High Definition Audio
Front panel microphone/headphone header with support for HD Audio
Legacy I/O
Legacy I/O Controller (Nuvoton* NCT6683D) that provides:
Hardware management support
Expansion
Capabilities
PCIe 3.0 x16 (Black)
1
PCIe 3.0 x8 (Black) with x4 lanes
1
PCIe 3.0 x8 (Black) with x4 lanes
1
M.2 M key 2280, 2242
1
External I/O
USB 3.1 Gen2 port
4
USB2.0 port
2

Display Port
2
DVI-D
1
RJ-45
2
6-stack Audio Jack (with S/PDIF)
1
Internal I/O
USB 2.0 port
2
USB 3.0 port
2
Desktop front panel header
1
Audio Header (Front Panel Mic-in/Hp-out)
1
Universal ATX Power Connector: 2x12
1
12V CPU ATX Power Connector: 4x2
1
Serial Port port (RS232)
4
CPU FAN header (4-pin)
1
SYS FAN header (4-pin)
3
SATA Connector
6
2x8 pin TPM header
1
Hardware Monitor
Subsystem
Hardware monitoring through the Nuvoton* NCT6683D legacy I/O controller,
including:
Remote thermal sensor
4-pin system fan header
LAN Support
Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
BIOS
AMI UEFI BIOS Support for Advanced Configuration and Power Interface (ACPI)
Instantly Available PC
Technology
Support for PCI Express Revision 3.0
Wake on LAN
Power Requirement
ATX

Environment
Operating Temperature: 0 °C to +55 °C
Storage Temperature: -40°C to +70°C
Safety
CE
FCC

Desktop Board Components
The Figure shows the approximate location of the major components on the top side of
MiTAC Desktop Board PH10FEU.
Figure 1. MiTAC Desktop Board PH10FEU Components (Top)
RJ45+USB2.0
DP
DVI-D
DP+USB3.0
RJ45+USB3.0
Audio
A
C
B
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V

Table . MiTAC Desktop Board PH10FEU Components (Shown in the Figure)
A
Back Panel Connectors
B
Sys Fan header
C
ATX Power Connector 8P
D
LGA 1151 CPU Socket
E
CPU FAN header
F
DDR4 DIMM
G
Sys Fan header
H
ATX Power Connector 24P
I
COM Port
J
Sys Fan header
K
SATA 2 (SATA-DOM)
L
TPM header
M
SATA 0 (SATA-DOM)
N
SATA
O
Front Panel Header (Power Button/ Reset Button / HDD Active LED/ Power
ON LED)
P
USB2.0 header
Q
USB3.0 header
R
M.2 M key 2242/2280
S
Front Audio header
T
PCIE 3.0 Slot x8
U
PCIE 3.0 Slot x8
V
PCIE 3.0 Slot x16

Processor
The board supports 8th generation Intel Core processors. Other processors may be
supported in the future. This board supports processors with a maximum wattage of
95 W Thermal Design Power (TDP).
NOTE
This board has specific requirements for providing power to the processor. Additional
power required will depend on configurations chosen by the integrator.
System Memory
NOTE
To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with DIMMs that support the Serial Presence Detect (SPD) data
structure. This allows the BIOS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. If non-SPD memory
is installed, the BIOS will attempt to correctly configure the memory settings, but
performance and reliability may be impacted or the DIMMs may not function under the
determined frequency.
The Desktop Board has four 288-pin DDR4 u-DIMM sockets with gold-plated contacts.
These sockets support:
Serial Presence Detect (SPD) memory only
Non-ECC memory
Up to 64 GB of memory

MITAC Desktop Board PH10SU
Hardware Specifiction

Header Definition

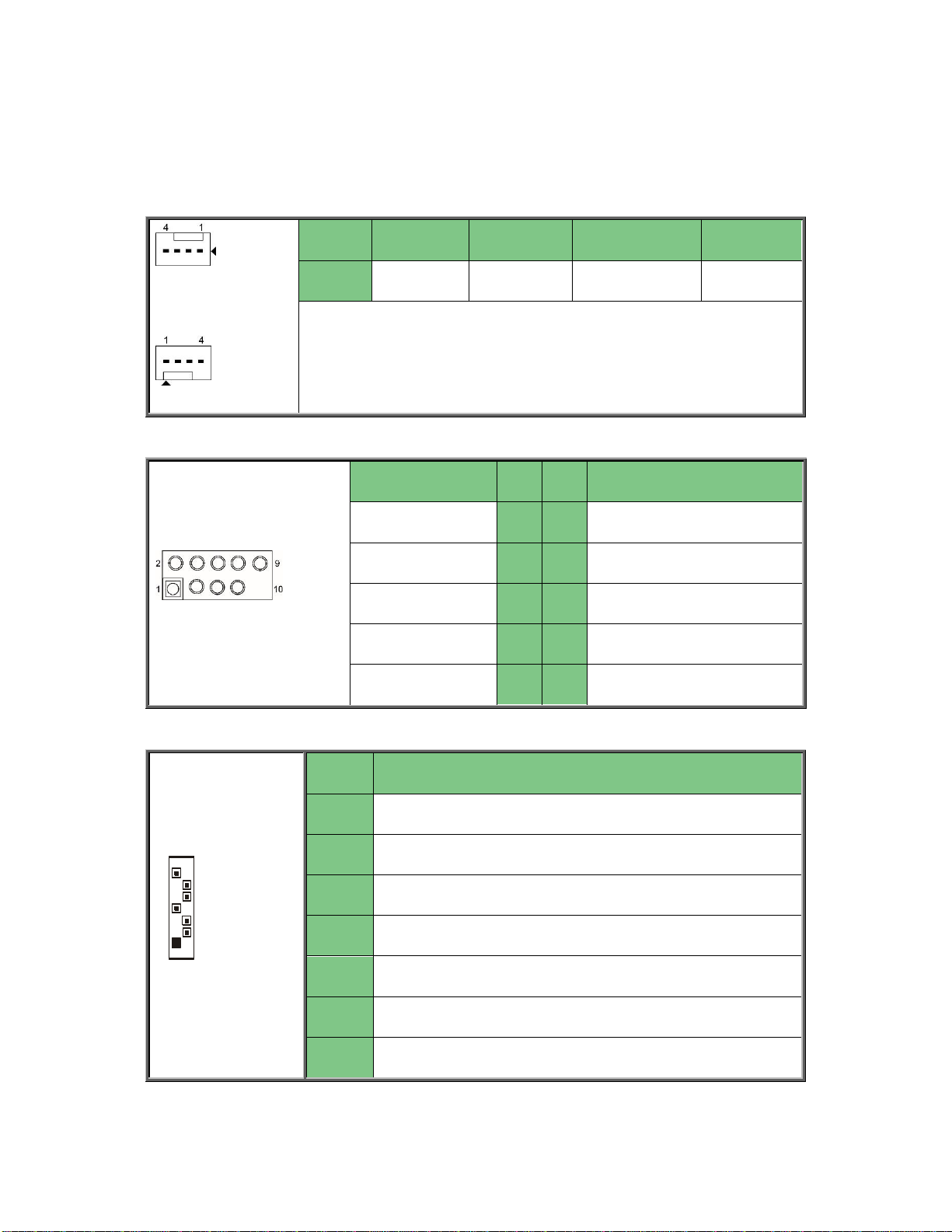

CPU FAN/ SYS FAN: 4-pin CPU Fan Connector(location B, E, G, J)
Pin
1
2
3
4
Signal
GND
VCC12
FAN_TACH
PWM
Use this header to connect the cooling fan to your motherboard to keep the system stable and
reliable.
Note: A 4-pin fan is required for fan support 4pin Control
Front Panel Header(location O)
Signal
Pin
Pin
Signal
SATA_LED_PWR
1
2
GRN_BLNK_HRD
SATA_LED_D_N
3
4
YLW_BLNK_HRD
GND
5
6
PWRBT_N_R
FP_RST_R_N
7
8
GND
FP PWR
9
10
SATA Connectors
7
1
Name
TYPE
S1
GND
S2
TXP
S3
TXN
S4
GND
S5
RXN
S6
RXP
S7
GND

Connects to the Serial ATA ready drives via the Serial ATA cable.
SATA DOM Connectors (Location K, M)
7
1
Name
TYPE
S1
GND
S2
TXP
S3
TXN
S4
GND
S5
RXN
S6
RXP
S7
P5V
Connects to the Serial ATA ready drives via the Serial ATA cable.
Internal Serial Port Header Pin-out (Location I)
Signal
Pin
Pin
Signal
SPA_DCD
1
2
SPA_DSR
SPA_SIN_N
3
4
SPA_RTS
SPA_OUT_N
5
6
SPA_CTS
SPA_DTR
7
8
SPA_RI
GND
9
TPM Header(Location L)
Signal
Pin
Pin
Signal
P3V3
1
2
FRAME_N
LAD0
3
4
KEY
LAD1
5
6
PLT_RST_N
LAD2
7
8
GND

LAD3
9
10
CLK_33M
DBG_SERIRQ
11
12
GND
DBG_PRES_N
13
14
VCC3_AUX
P3V3(NI) / GND
15
16
RST_ESPI_RESET_N
USB3.0 Header ( location Q)
Signal
Pin
Pin
Signal
+5V
1
2
P0_RX_N
P0_RX_P
3
4
GND
P0_TX_N
5
6
P0_TX_P
GND
7
8
P0_N
P0_P
9
10
OC_N
P1_P
11
12
P1_N
GND
13
14
P1_TX_P
P1_TX_N
15
16
GND
P1_RX_P
17
18
P1_RX_N
+5V
19
20
Key
USB2.0 Header ( Location P)
Signal
Pin
Pin
Signal
+5V
1
2
+5V
USB DATA1-
3
4
USB DATA2-
USBDATA1+
5
6
USB DATA2+
GND
7
8
GND
KEY
9
10
GND

Front Audio Header (Location S)
Signal
Pin
Pin
Signal
MIC2-L
1
2
GND
MIC2-R
3
4
FP_Present
LINE2-R
5
6
MIC2-JD
GND
7
8
Key
LINE2_L
9
10
LINE2-JD
J38: SATA-DOM power rail option for Pin1
Pin
1
2
3
Signal
5V
SATA-DOM P1
GND
Pin 1-2 Closed: P5V(Default)
Pin 2-3 Closed: GND
J43: SATA-DOM power rail option for Pin7
Pin
1
2
3
Signal
5V
SATA-DOM P7
GND
Pin 1-2 Closed: P5V(Default)
Pin 2-3 Closed: GND

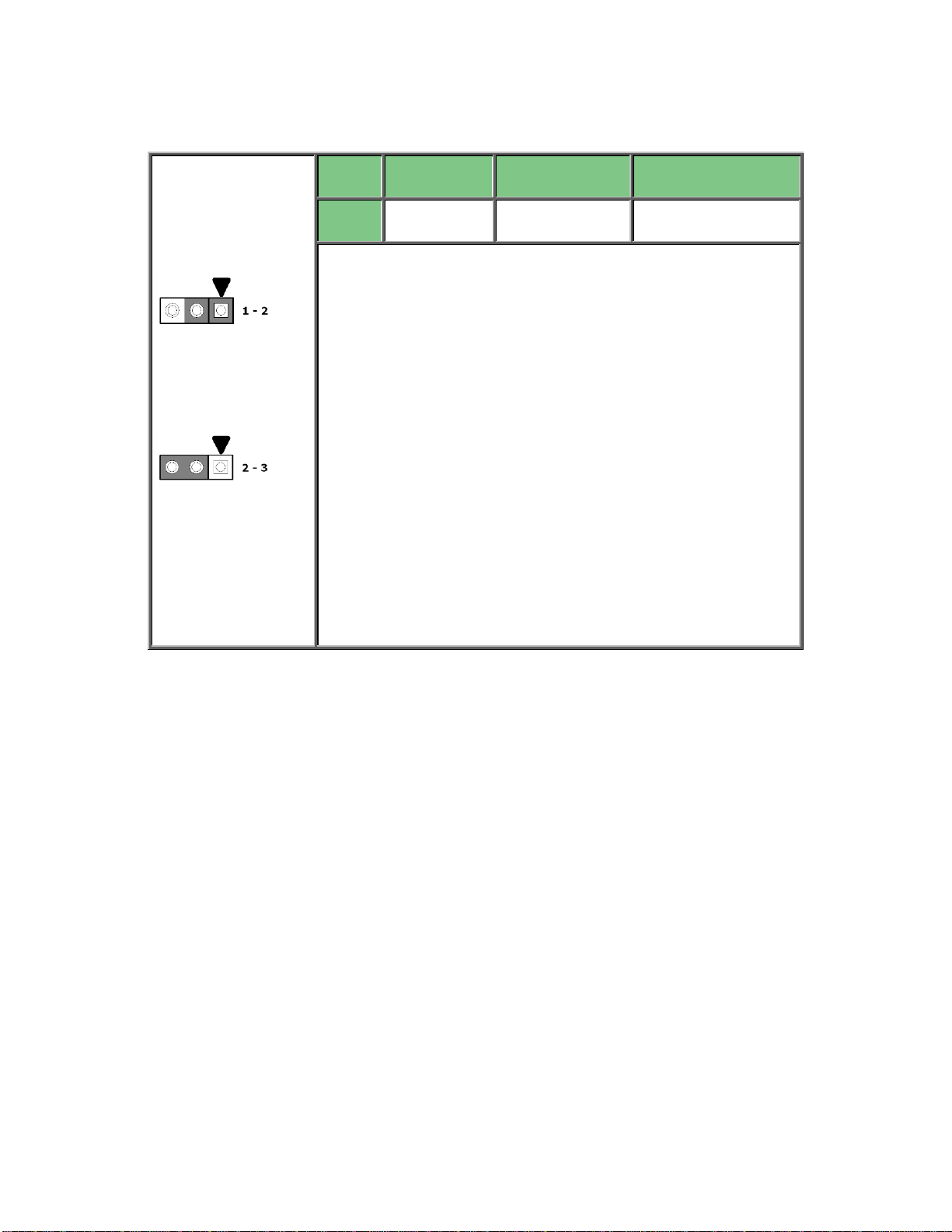

J60: Clear CMOS Jumper
Normal (Default)
Clear CMOS
Pin
1
2
3
Signal
VBAT
RTCRST#
GND
You can reset the CMOS settings by using this jumper. This can be
useful if you have forgotten your system/setup password, or need to
clear the system BIOS setting.
1. Power off system and disconnect power connectors from the
motherboard.
2. Remove the jumper from Pin_1 and Pin_2 (Default setting).
3. Move the jumper cap to close Pin_2 and Pin_3 for several seconds
to Clear CMOS.
4. Put jumper cap back to Pin_1 and Pin_2 (Default setting).
5. Reconnect power connectors to the motherboard and power on
system.

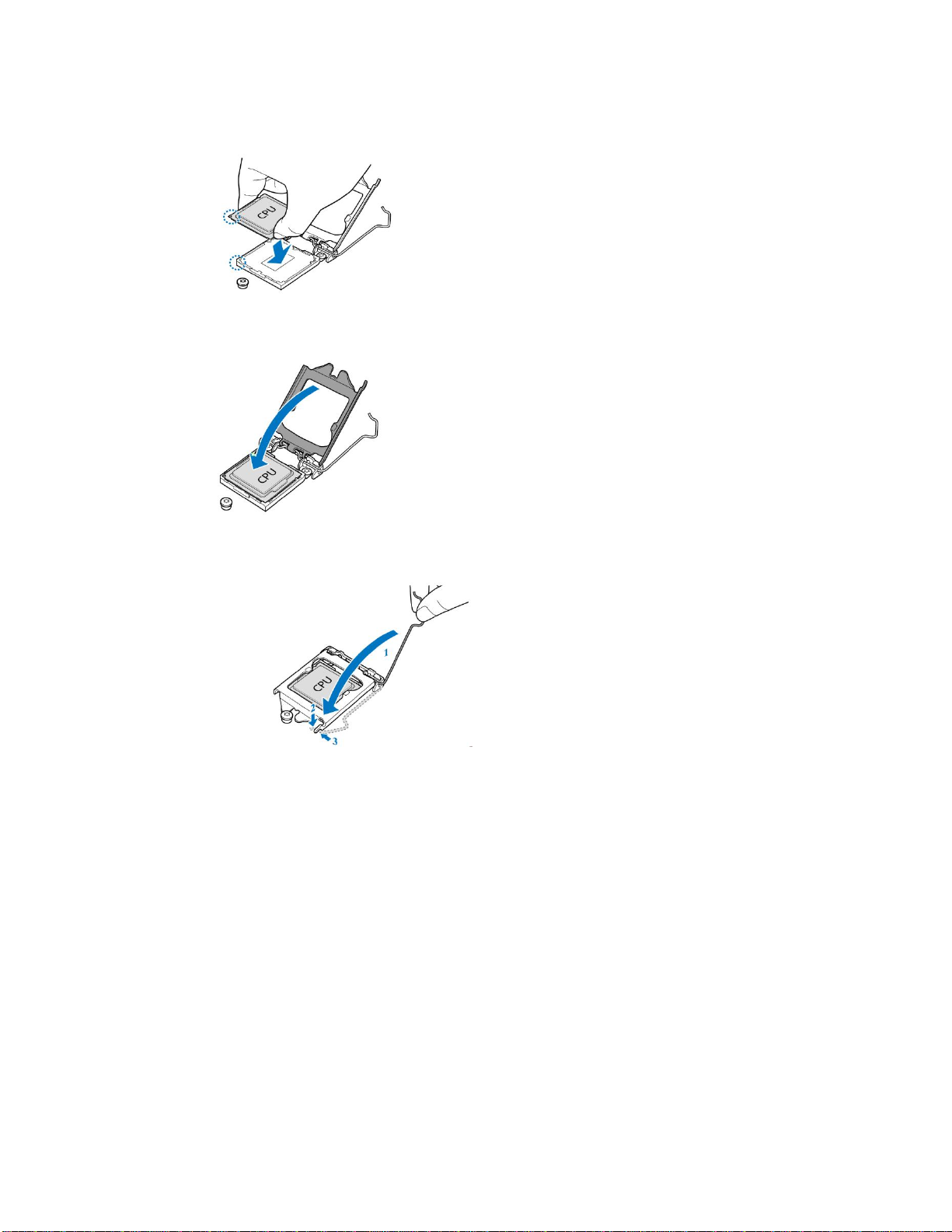

Processor Installation (Single Socket LGA1151 for Intel Coffee lake CPU)
Follow the steps below to install the processors and heat sinks.
Please note that the illustrations are based on LGA1151 socket which may not look exactly like the
motherboard you purchased. Therefore, the illustrations should be held for your reference only.
NOTE: Please save and replace the flip CPU protection cap when returning for service.
Press to unlock the lever and open the CPU socket cover.
Open the socket cover to a fully position.
Remove the socket protection cap. NOTE: Save and replace the socket cover if the processor is
removed from its socket.

Install the processor and make sure the golden arrow is in the right direction.
Close the CPU socket cover.
Close the socket lever.

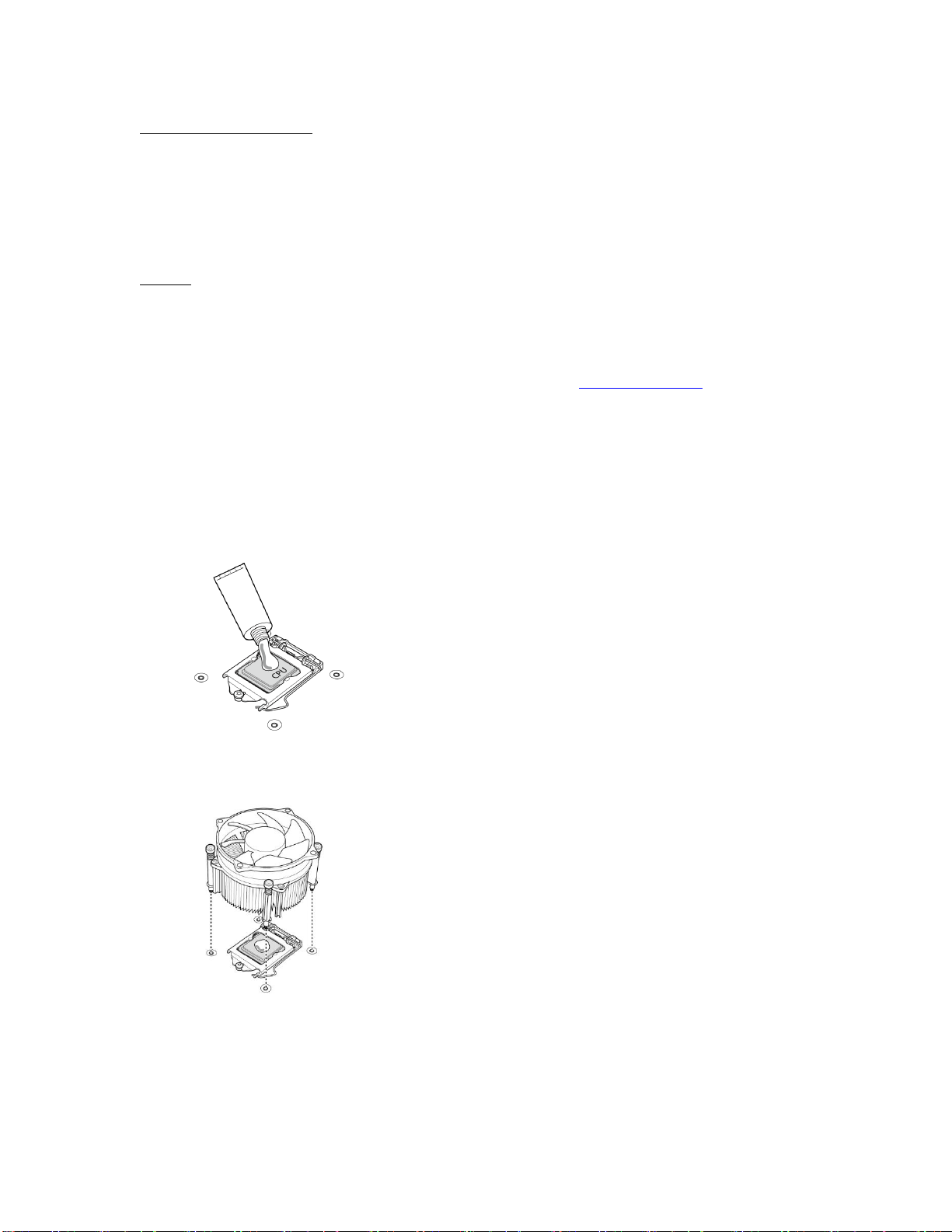

Heat sink Installation
After installing the processor, you will need to proceed to install the heat sink. The CPU heat sink will
ensure that the processor do not overheat and continue to operate at maximum performance for as
long as you own them. An overheated processor is dangerous to the motherboard. The processors
will overheat within seconds, enter thermal protection, and shut down if heatsinks are not installed.
Caution：Take caution of the air flow must be in the direction which paralleled with memories.
For the safest method of installation and information on choosing the appropriate heat sink, using
heat sinks validated by Intel®. Please refer to the Intel® website: http://www.intel.com
The following diagram illustrates how to install the heatsink on the Intel® Coffee lake Socket
LGA1151:
Apply the thermal grease.
Place the heat sink on top of the CPU.

Secure the heatsink screws.
Connect the heatsink fan cable.

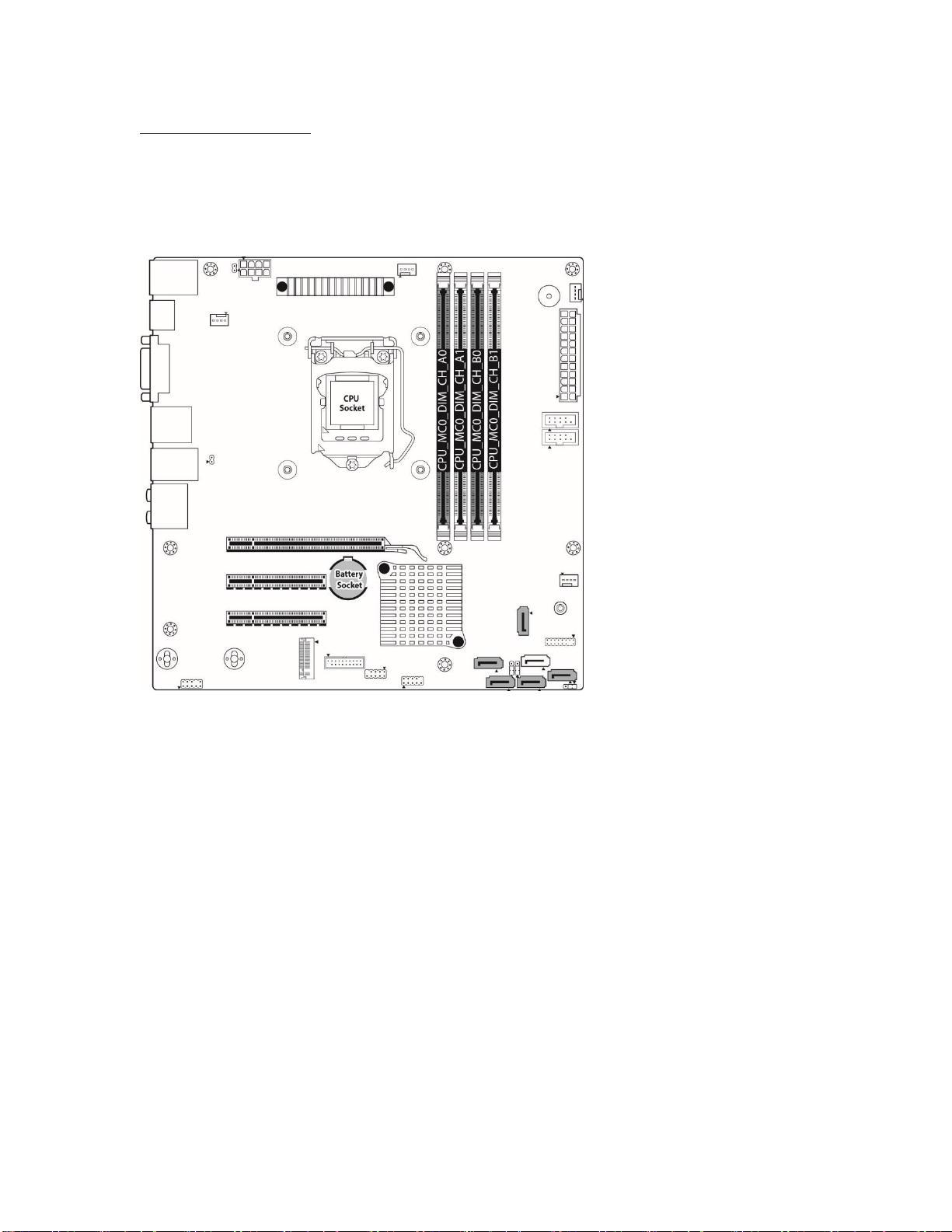

Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the motherboard and
processor.
Support (4)U-DDR4 288-pin DIMM slots
Support UDIMM DDR4 (Non-ECC).
Support (2) memory channels per CPU
Support UDIMM 2666MHz up to 64 GB

Recommended Memory Population Table (Single CPU)
Single CPU Installed
(CPU0 only)
Quantity of
memory installed
1
2
3
4
P0_MC0_DIM_CH_A0
√
√
P0_MC0_DIM_CH_A1
√
√
√
√
P0_MC0_DIM_CH_B0
√
P0_MC0_DIM_CH_B1
√
√
√
NOTE:
1. √indicates a populated DIMM slot.
2. Use paired memory installation for max performance.
3. Populate the same DIMM type in each channel, specifically
- Use the same DIMM size
- Use the same # of ranks per DIMM
4. Always install with DIMM_A1&B1 Slot first, following the alphabetical order.
Physical Ranks are used to calculate DIMM Capacity.
Supported DRAM Densities are 2Gb, 4Gb, 8Gb,16Gb.

Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard supports a
number of different interfaces through connecting peripherals. See the following diagrams for the
details.
Audio Jack Definition
