MiTAC PH10LU User manual

MITAC Desktop Board PH10LU
Product Guide

2
Desktop Board Features
This chapter briefly describes the features of Desktop Board PH10LU.
Table 1 summarizes the major features of the Desktop Board.
Feature Summary
T ABLE 1. M I TAC D ESKTOP B OARD PH1 LU F EATURES
Form Factor Micro ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6
inches])
Processor 4rd generation Intel® Core processor family with up to 95 W
TDP in an LGA1150 socket
Main Memory Support for DDR3 1066/1333/1600 MHz SO DIMMs
(DDR3 1333 MHz and DDR3 1600 MHz SO DIMMs operate
at 1066 MHz only)
Support for up to 32 GB of system memory
240 pin DDR3 DIMM 4
Chipset Intel® Q87 Platform Controller Hub (PCH)
Integrated
Graphics
Intel ® Graphics Media Accelerator 4600 (Intel ® GMA 4600)
External Graphics External graphics support provided through the PCIe 3.0 x16
bus connector
Audio RealTek* ALC662/888 audio codec for 5.1 (6 channel) High
Definition Audio (HD Audio) and AC ’97 Audio.
Front panel microphone/headphone header with support for HD
Audio or AC ’97 Audio
Legacy I/O
Legacy I/O Controller (Nuvoton* NCT6104D) that provides:
Hardware management support
Serial Port (Rear IO) 2
Serial Port (On board) 2
Parallel port via an onboard header 1
Expansion
Capabilities
PCIe 3.0 x16 (Blue) 1
PCIe 2.0 x1 (Black) Either Option
PCIe 2.0 x1 (Black) 1
PCIe 2.0 x16 (x4 Lanes) 1

3
PCI Express* Full Mini Card slot with Half Mini
Card support
Either Option
Peripheral
Inter aces
USB 3.0 back panel connectors (blue) 2
USB 2.0 back panel connectors (black) 4
USB 3.0 front panel ports 2 (Headers)
USB 2.0 front panel ports 4 (Headers)
Serial ATA (SATA) 6.0 Gb/s interfaces 6
Hardware Monitor
Subsystem
Hardware monitoring through the Nuvoton* NCT6104D legacy
I/O controller, including:
Remote thermal sensor
4 pin system fan header
LAN Support Intel® I217 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
BIOS AMI UEFI BIOS Support for Advanced Configuration and Power
Interface (ACPI)
Instantly Available
PC Technology
Support for PCI Express Revision 3.0
Wake on USB, PCI Express, LAN, serial, PS/2, and front
panel
Power Requirement
ATX12V
Environment Operating Temperature: 0 °C to +50 °C
Storage Temperature: 20°C to +70°C
Sa ety CE
FCC
UL

4
Desktop Board Components
Figure 1 shows the approximate location of the major components on the top side of
MiTAC Desktop Board PH10LU.
Figure 1. MiTAC Desktop Board PH1 LU Components (Top)

5
T ABLE 2. M I TAC D ESKTOP B OARD PH1 LU C OMPONENTS (S HOWN IN F IGURE 1)
A
Back
P
anel
C
onnectors
B
Parallel
P
ort
H
eader
C
LVDS Connector (Optional)
D
4
-
pin Power header
E
LVDS power x3 pin header
(Optional)
F
LVDS power header (3V, 5V, 2V)
(Optional)
G
LVDS inverter
board header
(Optional)
H
CPU Socket
I
CPU FAN header
J
DIMM Sockets
K
Front FAN header
L
Speaker
M
Main Power Connector (2x 2)
N
USB 3.0
Front Panel Connector
O
Chipset with Heatsink
P
COM RESET header
Q
Chassis Intrusion Header
R
Power LED
Header
S
Front Panel Connector
T
SATA Connectors
U
PCI Express X 6 Connector
V
USB 2.0 Front Panel Connector
W
Mini
-
PCIE Connector (Optional)
X
USB 2.0 Front Panel Connector
Y
Serial Port Header
Z
LPC Debug Header
AA
Serial Port Header
BB
Chassis
Fan Header
CC
S/PDIF Header
DD
Front Panel HD Audio Connector
EE
PCI Express X 6 Connector (x4 Electrically)
FF
PCI Express X Connector
GG
PCI Express X Connector (Optional)

6
Processor
The board supports 4th generation Intel Core processors. Other processors may be
supported in the future. This board supports processors with a maximum wattage of
95 W Thermal Design Power (TDP).
NOTE
This board has specific requirements for providing power to the processor. Additional
power required will depend on configurations chosen by the integrator.
System Memory
NOTE
To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with D MMs that support the Serial Presence Detect (SPD) data
structure. This allows the B OS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. f non-SPD memory
is installed, the B OS will attempt to correctly configure the memory settings, but
performance and reliability may be impacted or the D MMs may not function under the
determined frequency.
The Desktop Board has four 240 pin DDR3 u DIMM sockets with gold plated contacts.
These sockets support:
Support for DDR3 1066/1333/1600 MHz SO DIMMs (DDR3 1333 MHz and DDR3 1600
MHz SO DIMMs operate at 1066 MHz only)
Serial Presence Detect (SPD) memory only
Non ECC memory
Up to 32 GB of memory

7
Connecting to the Internal Headers and Connectors
Front panel main header
Figure 2 Front panel main header pin-out
Pin
Signal Name Description Pin Signal Name Description
1 HDD_POWER_LED Pull-up resistor (750) to +5V
2 POWER_LED_MAIN [Out] Front panel LED (main color)
3 HDD_LED# [Out] Hard disk activity LED 4 POWER_LED_ALT [Out] Front panel LED (alt color)
5 GROUND Ground 6 POWER_SWITCH# [In] Power switch
7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground
9 +5V_DC Power 10 KEY No pin
T ABLE 1 F RONT PANEL MAIN HEADER SIGNALS

8

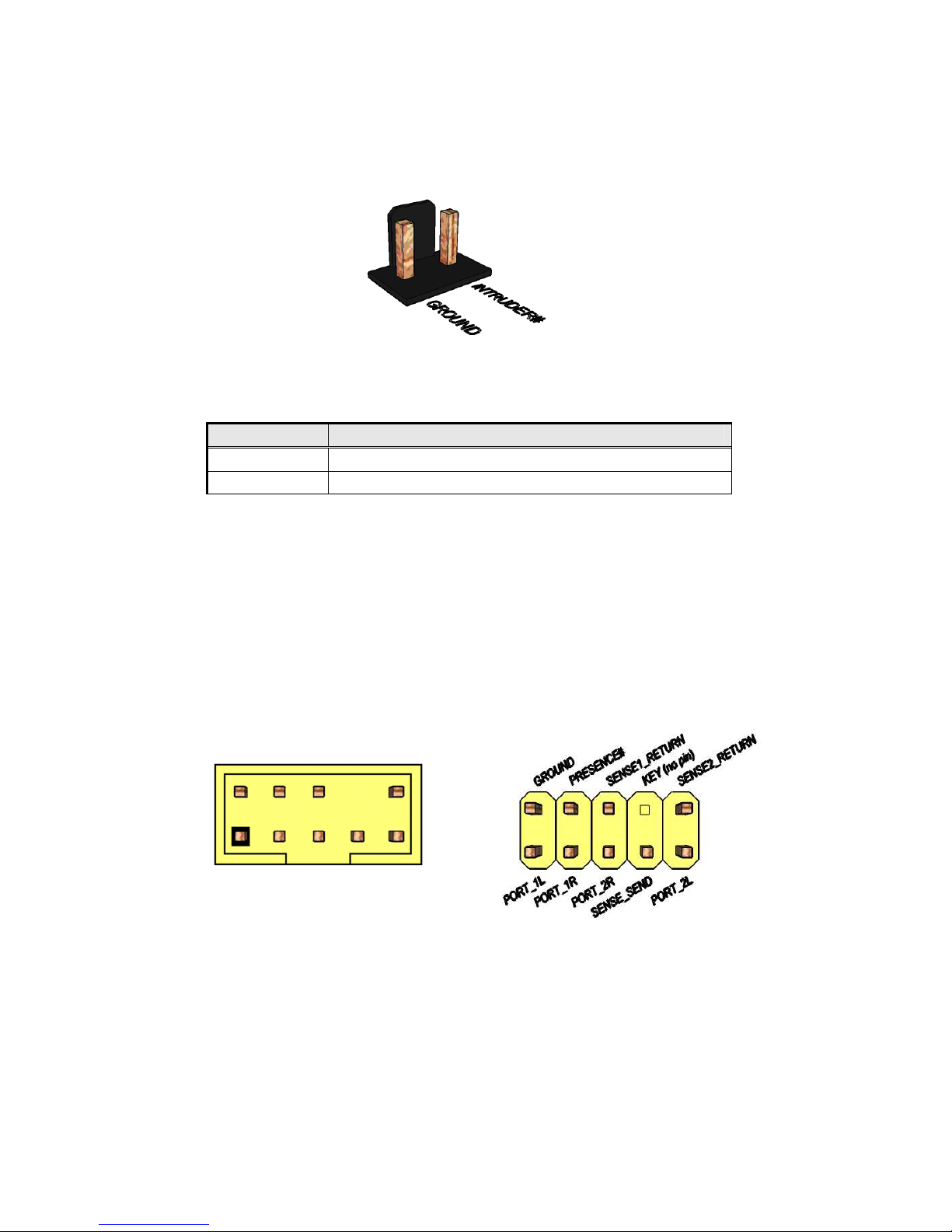

Chassis Intrusion Detection Header
The chassis intrusion detection header must be 1x2, 2.54mm pitch, colored black
and with extended back, as defined in below
Figure 3 Chassis intrusion detection header
Pin Signal Name
1
Intrusion Detection
2 Ground
T ABLE 3 C HASSIS INTRUSION DETECTION HEADER SIGNALS
HD Audio front panel audio header
Figure 4 HD Audio front panel audio header pin-out diagram

9
Pin
Signal name Description
1
PORT 1L Ana og Port 1 - Left channe (Microphone)
2
GND Ground
3
PORT 1R Ana og Port 1 - Right channe (Microphone)
4
PRESENCE#
Active ow signa that signa s BIOS that an Inte ® HD Audio dong e is connected to
the ana og header. PRESENCE# = 0 when an Inte ® HD Audio dong e is connected.
5
PORT 2R Ana og Port 2 - Right channe (Headphone)
6
SENSE1 RETURN Jack detection return for front pane (JACK1)
7
SENSE SEND
Jack detection sense ine from the Inte ® HD Audio CODEC jack detection resistor
network
8
KEY No pin
9
PORT 2L Ana og Port 2 - Left channe (Headphone)
10
SENSE2 RETURN Jack detection return for front pane (JACK2)
T ABLE 4 HD A UDIO FRONT PANEL AUDIO HEADER

10
Internal SPDIF header
Figure 5 Internal SPDIF header pin-out diagram
Pin
Signal name Description
1 GND Ground
2 SPDIF_OUT SPDIF signal from the codec
3 Key (no pin) Key (no pin)
4 +5V_DC 5V power (for optical/TOSLINK module)
T ABLE 5 I NTERNAL SPDIF HEADER
Front panel USB header
Figure 6 Front panel USB header pin-out
Pin
Signal Pin
Signal
1 +5V DC 2 +5V DC
3 Data (negative)
4 Data (negative)
5 Data (positive)
6 Data (positive)
7 Ground 8 Ground
9 Key (no pin) 10 No Connect
T ABLE 6 F RONT PANEL USB HEADER SIGNALS

11

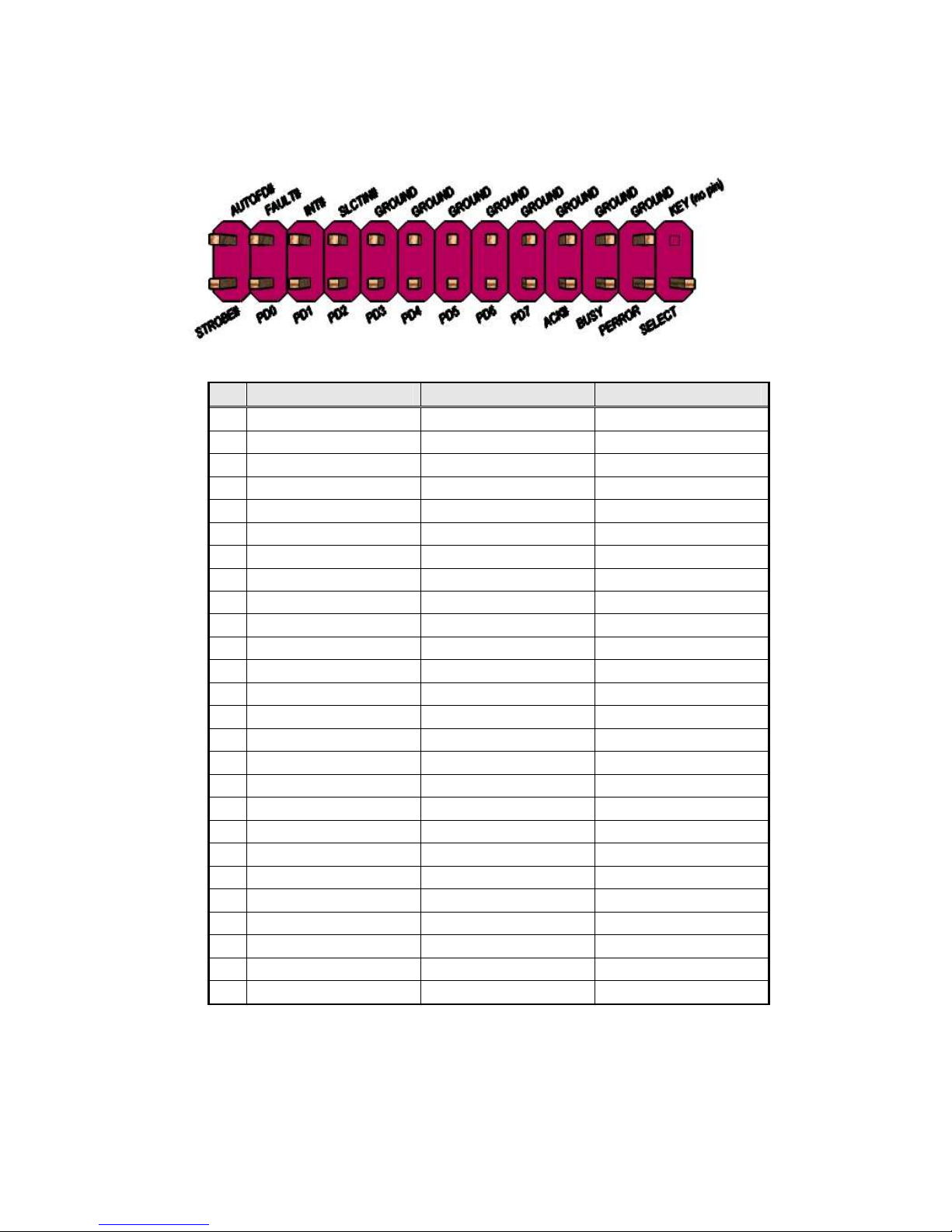

Parallel port header
Figure 7 Parallel port header pin-out
Pin
Standard Signal Name ECP Signal Name EPP Signal Name
1 STROBE# STROBE# WRITE#
2 AUTOFD# AUTOFD#, HOSACK DATASTB#
3 PD0 PD0 PD0
4 FAULT# FAULT#, PERIPHREQST#
FAULT#
5 PD1 PD1 PD1
6 INT# INT#, REVERSERQST# RESET#
7 PD2 PD2 PD2
8 SLCTIN# SLCTIN# ADDRSTB#
9 PD3 PD3 PD3
10 GROUND GROUND GROUND
11 PD4 PD4 PD4
12 GROUND GROUND GROUND
13 PD5 PD5 PD5
14 GROUND GROUND GROUND
15 PD6 PD6 PD6
16 GROUND GROUND GROUND
17 PD7 PD7 PD7
18 GROUND GROUND GROUND
19 ACK# ACK# INTR
20 GROUND GROUND GROUND
21 BUSY BUSY#, PERIPHACK WAIT#
22 GROUND GROUND GROUND
23 PERROR PE, ACKREVERSE# PE
24 GROUND GROUND GROUND
25 SELECT SELECT SELECT
26 KEY (no pin) KEY (no pin) KEY (no pin)
T ABLE 7 P ARALLEL PORT HEADER SIGNALS

12
Serial port header
Figure 8 Serial port header pin-out
Pin
Signal Pin
Signal
1 DCD (Data Carrier Detect)
2 RXD# (Receive Data)
3 TXD# (Transmit Data) 4 DTR (Data Terminal Ready)
5 Ground 6 DSR (Data Set Ready)
7 RTS (Request To Send) 8 CTS (Clear To Send)
9 RI (Ring Indicator) 10 Key (no pin)
T ABLE 8 S ERIAL PORT HEADER SIGNALS
Front Panel USB 3. header
Figure 9: Front Panel USB 3. header
PIN Signal Description
1 Vbus Power
2 IntA_P1_SSRX- USB3 ICC Port1 SuperSpeed Rx-
3 IntA_P1_SSRX+ USB3 ICC Port1 SuperSpeed Rx+
Data (positive)
4 GND Ground
Ground
5 IntA_P1_SSTX- USB3 ICC Port1 SuperSpeed Tx-
No Connect
6 IntA_P1_SSTX+ USB3 ICC Port1 SuperSpeed Tx+
7 GND Ground
Ground
8 IntA_P1_D- USB3 ICC Port1 D- (USB2 Signal D-)

13
9 IntA_P1_D+ USB3 ICC Port1 D- (USB2 Signal D+)
10 ID Over Current Protection
11 IntA_P2_D+ USB3 ICC Port2 D+ (USB2 Signal D+)
12 IntA_P2_D- USB3 ICC Port2 D- (USB2 Signal D-)
13 GND Ground
Ground
14 IntA_P2_SSTX+ USB3 ICC Port2 SuperSpeed Tx+
15 IntA_P2_SSTX- USB3 ICC Port2 SuperSpeed Tx-
16 GND Ground
Ground
17 IntA_P2_SSRX+ USB3 ICC Port2 SuperSpeed Rx+
18 IntA_P2_SSRX- USB3 ICC Port2 SuperSpeed Rx-
19 Vbus Power
20 Key Not Connected
T ABLE 9: F RONT P ANEL USB3. HEADER SIGNAL
Processor fan header
Figure 1 : Processor fan header
Pin
Signal
4
FAN_CTRL
3
FAN_TACH
2
VCC-12V
1
GND
T ABLE 1 : P ROCESSOR FAN HEADER

14
Front/Rear fan header
Figure 11: Front/Rear fan header
T ABLE 11: P ROCESSOR FAN HEADER
LVDS panel voltage selection header
Pins 2&4: jumper position for 3.3V Pins 6&4: jumper position for 5V Pins 3&4: jumper position for 12V
Figure 12: LVDS panel voltage selection header
Pin
Signal
4
FAN_CTRL
3
FAN_TACH
2
VCC-12V
1
GND

15
Pin
Signal Name
1 NC
2 VCC3/3V
3 12V
4 LCD SEL PWR
5 NC
6 VCC/5V
T ABLE 12: LVDS PANEL V OLTAGE SELECTION HEADER
Inverter power voltage selection header
Pins 1&2: jumper position for 5V Pins 3&2: jumper position for 12V
Figure 13: Inverter power voltage selection header
Pin Signal Name
1
VCC/5V
2
BKLT_PWR
3
12V
T ABLE 13: I NVERTER POWER VOLTAGE SELECTION HEADER

16
LVDS
Pin
Signal Name Description
1
BKLT_EN Backlight enable
2
BKLT_PWM Backlight PWM control
3
5V/12V Inverter power
4
5V/12V Inverter power
5
GND Ground
6
GND Ground
7
BRIGHTNESS_UP BRIGHTNESS UP
8
BRIGHTNESS_DOWN
BRIGHTNESS DOWN
T ABLE 14: 8- PIN LVDS INVERTER POWER HEADER PIN - OUT REFERENCE
Pin
Signal Description
1
LA_DATAP3 LVDS Channel A diff data output - positive
2
LA_DATAN3 LVDS Channel A diff data output - negative
3
LA_DATAP2 LVDS Channel A diff data output - positive
4
LA_DATAN2 LVDS Channel A diff data output - negative
5
LA_DATAP1 LVDS Channel A diff data output - positive
6
LA_DATAN1 LVDS Channel A diff data output - negative
7
LA_DATAP0 LVDS Channel A diff data output - positive
8
LA_DATAN0 LVDS Channel A diff data output - negative
9
LB_DATAP3 LVDS Channel B diff data output-positive
10
LB_DATAN3 LVDS Channel B diff data output-negative
11
LB_DATAP2 LVDS Channel B diff data output-positive
12
LB_DATAN2 LVDS Channel B diff data output-negative
13
LB_DATAP1 LVDS Channel B diff data output-positive
14
LB_DATAN1 LVDS Channel B diff data output-negative
15
LB_DATAP0 LVDS Channel B diff data output-positive
16
LB_DATAN0 LVDS Channel B diff data output-negative
17
GND Ground
18
3.3V/5V/12V Selectable LCD power output
19
3.3V/5V/12V Selectable LCD power output
20
3.3V/5V/12V Selectable LCD power output
21
NC NC
22
EDID_3.3V VCC3
23
GND Ground
24
GND Ground
25
GND Ground
26
LA_CLKP LVDS Channel A diff data output - positive

17
27
LA_CLKN LVDS Channel A diff data output - negative
28
GND Ground
29
GND Ground
30
GND Ground
31
EDID_CLK EDID/DDC clock signal
32
BKLT_EN
33
BKLT_CTRL
34
LB_CLKP LVDS Channel B diff data output - positive
35
LB_CLKN LVDS Channel B diff data output - negative
36
BKLT_PWR Selectable BKLT power output
37
BKLT_PWR Selectable BKLT power output
38
BKLT_PWR Selectable BKLT power output
39
NC NC
40
EDID_DATA EDID/DDC data signal
T ABLE 15: 4 - PIN LVDS DATA HEADER PIN - OUT REFERENCE
Alternate Power LED header
Figure 14 A ternate Power LED header
Pin Signal Name
1
MAIN COLOR LED
2
KEY
3
ALT COLOR LED
T ABLE 16: A LTERNATE P OWER LED HEADER

18

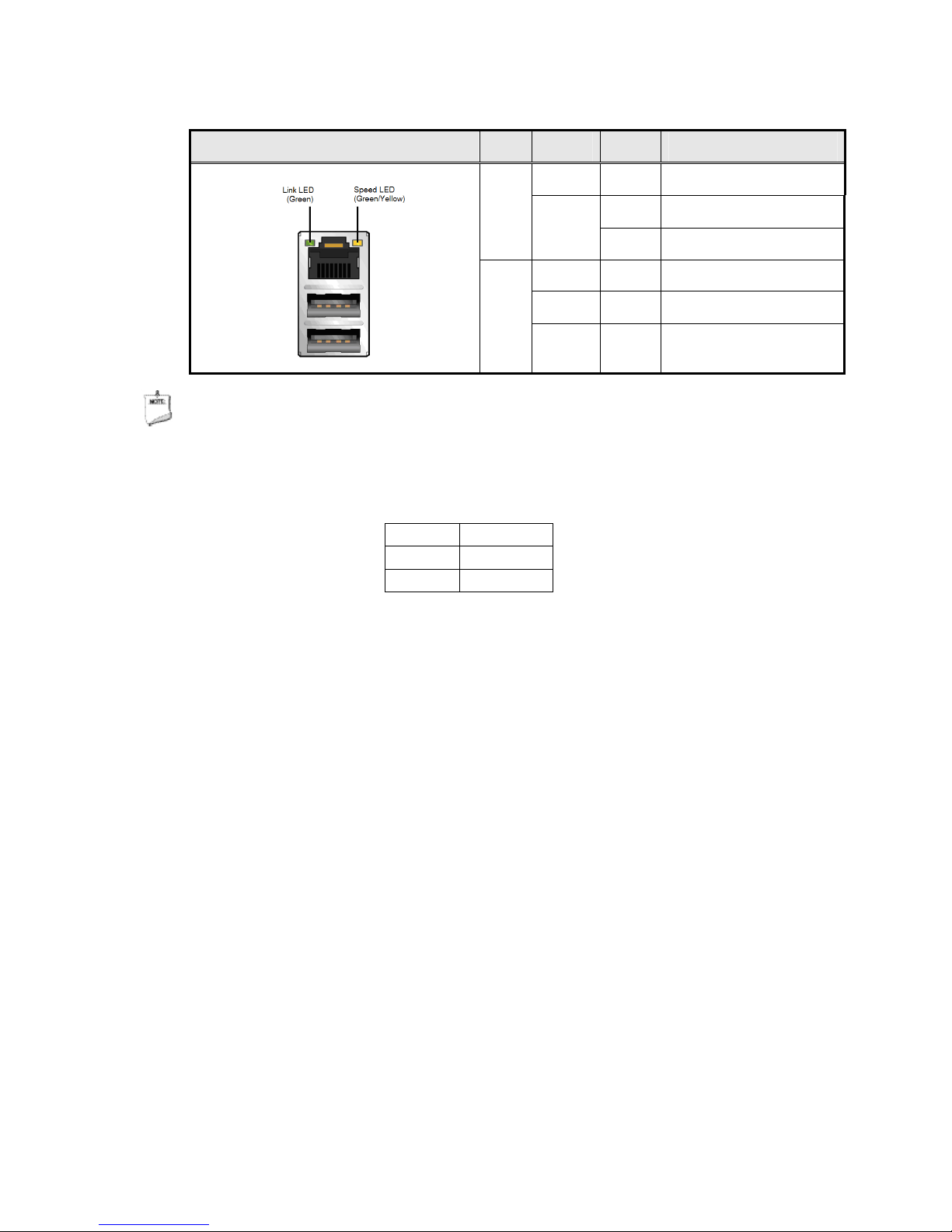

RJ45 LED Behavior
Diagram LED
Color State Condition
Link
N/A Off LAN link is not established
Green On LAN link is established
Blinking
LAN activity occurring
Speed
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
Yellow On 1000 Mb/s data rate
T ABLE 17: RJ45 LED BEHAVIOR
Note: LAN so ution must be tested for IEEE802.3 conformance.
CMOS Clear
CMOS Clear
1-2 Normal
2-3 Clear CMOS
T ABLE 18: CMOS C LEAR BEHAVIOR

19
MITAC Desktop Board PH10LU
BIOS Specifiction

20
GENERAL OVERVIEW
This document specifies the BIOS requirements for PH10LU
Note: The BIOS specification may be changed depend on hardware design. This is based on the
product specification document (PRD).
HARDWARE OVERVIEW
CPU
- Intel Haswell Series.
- Socket Type: LGA1150
System Memory
- 4 slots UDIMM with DDR3 1066/1333/1600MHz (By Intel processor specification)
Chipset
- Intel Lynx Point Q87
BIOS ROM
- 64Mbit SPI Flash ROM + 32Mbit SPI Flash ROM
Super I/O
- Nuvoton NCT6104
Keyboard/Mouse
- Standard USB Devices, PS2 swap
Storage
- SATA HDD
Graphics
- Intel HD Graphic
- 1920x1080p Panel (Option), 1x DP, 1x DVI-I
Audio
- Intel HD audio, Realtek ALC888 and ALC662 Codec co-design
LAN
- Intel Clarkville I217-LM and Intel Springville I210-AT (Optional)
Add-in Slot
- Slot 5 – PCIe 3.0 x16
- Slot 3 – PCIe 2.0 x1 (Either one with Mini card slot)
- Slot 2 – PCIe 2.0 x1
- Slot 1 – PCIe 2.0 x4
- Mini PCIe slot *1 (Either one with Slot3)
TPM(Optional)
- WPCT210I
Internal Header
- SATA 6.0Gb Header X 6
- Dual Port USB 2.0 Header x2
- Dual Port USB 3.0 Header x1
- Serial Port Header x2
- Parallel Port Header X1
