MiTAC PD11TGS User manual

PD11TGS
User Manual
V1.0
Embedded 3.5” SBC
Intel®Tiger Lake-UP3 Core-i/Celeron Processors
Performance, Versatile, and Reliable

PREFACE
Copyright Notice
Copyright © 2016-2021 MiTAC Computing Technology Corporation (MiTAC Group). No part of this
document may be reproduced, copied, translated, or transmitted in any form or by any means,
electronic or mechanical, for any purpose, without the prior written permission of MiTAC Corp., Ltd.
All information and specification provided in this manual are for reference only and remain subject to
change without prior notice.
Disclaimer
We reserve the right to make changes, without notice, to any product, including circuits and/or
software described or contained in this manual in order to improve design and/or performance. We
assume no responsibility or liability for the use of the described product(s) conveys no license or title
under any patent, copyright, or masks work rights to these products, and make no representations or
warranties that these products are free from patent, copyright, or mask work right infringement,
unless otherwise specified. Applications that are described in this manual are for illustration purposes
only. We make no representation or guarantee that such application will be suitable for the specified
use without further testing or modification.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a
class "A" digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at him own
expense.
CE
This equipment is in conformity with the requirement of the following EU
legislations and harmonized standards. Product also complies with the
Council directions.
Safety Information

WARNING! / AVERTISSEMENT!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronics
personnel should open the PC chassis.
CAUTION/ATTENTION
Always ground yourself to remove any static charge before touching
the CPU card. Modern electronic devices are very sensitive to static
electric charges. As a safety precaution, use a grounding wrist strap at
all times. Place all electronic components in a static-dissipative
surface or static-shielded bag when they are not in the chassis.
Safety Precautions
For your safety, please carefully read all the safety instructions before using the device. All cautions
and warnings on the equipment should be noted. Keep this user manual for future reference.
*Let service personnel to check the equipment in case any of the following problems appear:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you cannot get it to work according to the user manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage on the surface.

Ordering Information
Model Number
CPU Model
Heatsink Configuration
PD11TGS-6305E-HSK
Celeron 6305E
MB + Heatsink
PD11TGS-1115G4E-HSK
i3-1115G4E
MB + Heatsink
PD11TGS-1145G7E-HSK
i5-1145G7E
MB + Heatsink
PD11TGS-1185G7E-HSK
i7-1185G7E
MB + Heatsink

Packing List
Item
Description
Q’ty
1
PD11TGS Embedded Motherboard
1
2
SATA Power Cable
1
3
SATA Signal Cable
1

CONTENTS
CHAPTER 1: INTRODUCTION ................................................................................................................8
1.1 Overview ................................................................................................................................8
1.2 Product Features ....................................................................................................................8
1.3 Hardware Specification ..........................................................................................................9
1.4 Rear I/O Placement ..............................................................................................................11
CHAPTER 2: JUMPER SETTING AND PIN DEFINITION.........................................................................13
2.1 Jumper and Internal Connector Overall Placement.............................................................13
2.2 Jumper Setting .....................................................................................................................15
2.3 Internal Connector Pin Definition ........................................................................................16
2.4 External Connector Pin Definition........................................................................................20
CHAPTER 3: BIOS SETUP.....................................................................................................................22
3.1 Main Page.............................................................................................................................22
3.2 Advanced Page .....................................................................................................................24
3.3 Evnet logs .............................................................................................................................40
3.4 Security Page........................................................................................................................43
3.5 Boot Page .............................................................................................................................51
3.6 Save & Exit Page ...................................................................................................................55

INTRODUCTION
This chapter provides the PD11TGS Embedded
Motherboard product overview, including features,
hardware and mechanical specifications.
1

CHAPTER 1: INTRODUCTION
This chapter provides the PD11TGS Embedded System product overview, including features,
hardware, mechanical specifications, and I/O placement.
1.1 Overview
MiTAC’s PD11TGS embedded motherboard is the next generation embedded system with Intel®
11st Gen. (10nm+ manufacturing process) Tiger Lake-UP3 processor which integrates Iris Xe
outstanding graphic engine. The excellent graphic performance and performance processor
provide the solution for every complicated task and most types of application.
1.2 Product Features
PD11TGS Embedded System offers the following features:
11st Generation Intel® Tiger Lake-UP3 Core™ i7 / i5 / i3 / Celeron Processors
Integrated Intel® Iris Xe Graphic Engine
Quadruple Display with HDMI, DisplayPort, and LVDS/eDP (BOM option) Interface
8-24V Wide Power Voltage
15W TDP: -40 ~ 60°C
28W TDP: -40 ~ 50°C
*with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)

1.3 Hardware Specification
SYSTEM
CPU
11st Gen Tiger Lake-UP3 Intel®Core™ i /Celeron ULV Processor
Celeron 6305E (Dual Core, 4MB Cache, up to 1.80 GHz)
i3-1115G4E (Dual Core, 6MB Cache, up to 3.90 GHz)
i5-1145G7E (Quad Core, 8MB Cache, up to 4.10 GHz)
i7-1185G7E (Quad Core, 12MB Cache, up to 4.40 GHz)
System Memory
DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
Graphics
Intel®Iris Xe Graphics
Display Interface
HDMI, DisplayPort, and LVDS / eDP (BOM option)
Storage Slot
1 x SATAIII / 1 x SATApower header
1 x M.2 B Key 2280/2260/2242 Slot
Ethernet
Intel® I225-LM 2.5GbE LAN + Intel®I219-LM Giga LAN
Audio
Realtek®ALC256
I/O Chipset
Nuvoton NCT6126D
TPM
Nuvoton NPCT750AABYX TPM2.0
Expansion Slot
Wireless: M.2 2230 E key (PCIe, USB)
Storage/LTE/5G Slot: M.2 2280/2260/2242/3042/3052 B Key
(USB2.0/*PCIex1/SATAIII)
*Not support M.2 M Key NVMe SSD
**5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if
you have any request
Internal I/O
1 x SATAIII connector
1 x SATA power header
1 x SATAHDD Hot Swappable Detection header
2 x USB 2.0 (1 x USB Header)
1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
1 x Stereo Speaker Header
3 x RS232 and 1 x RS232 / 422 / 485 (2 x Dual COM Header)
1 x 4-pin CPU Fan Header
1 x AT / ATX Mode Select Jumper
1 x 8~24V 4-pin Power Connector
1 x CMOS Jumper
1 x Chassis Front Panel Header (2 x 5-pin)
1 x Front Audio Header (Mic-in & Line-out)
1 x Panel power select header
1 x Backlight power select header
1 x Buzzer

Rear I/O
1 x DisplayPort 1.2
2 x HDMI 1.4
2 x RJ-45 (1 for 2.5GbE LAN and 1 for 1GbE LAN)
4 x USB 3.1 Gen 2 (10 Gbps)
1 x 2-pin Terminal Block Remote Power on / off
POWER REQUIREMENT
Power Input
8~24V Wide Range DC Input w/ 4-pin header (Pitch 2.5mm)
MECHANICAL
Thermal Design
Heatsink
Dimension
4” x 5.8” (102 mm x 147 mm)
ENVIRONMENTAL
Operating
Temperature
15W TDP/cTDP: -40 ~ 60°C
28W TDP: -40 ~ 50°C
*with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)
Storage Temperature
-40 ~ 85°C
Operating Humidity
10%~95% R/H (Non-condensing)
Certification
CE & FCC Class B
OS
OS Support
Windows®10 64-bit, Linux (support by request)
*Note1: In the PXE application, please install i219-LM driver in OS image in
advance before installing OS via PXE server.
*Note2: CAUTION - Lithium battery is included in this embedded system.
Please do not puncture, mutilate, or dispose of battery in fire. There will be
danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by manufacturer. Dispose of used
battery according to manufacturer instructions and in accordance with your
local regulations.

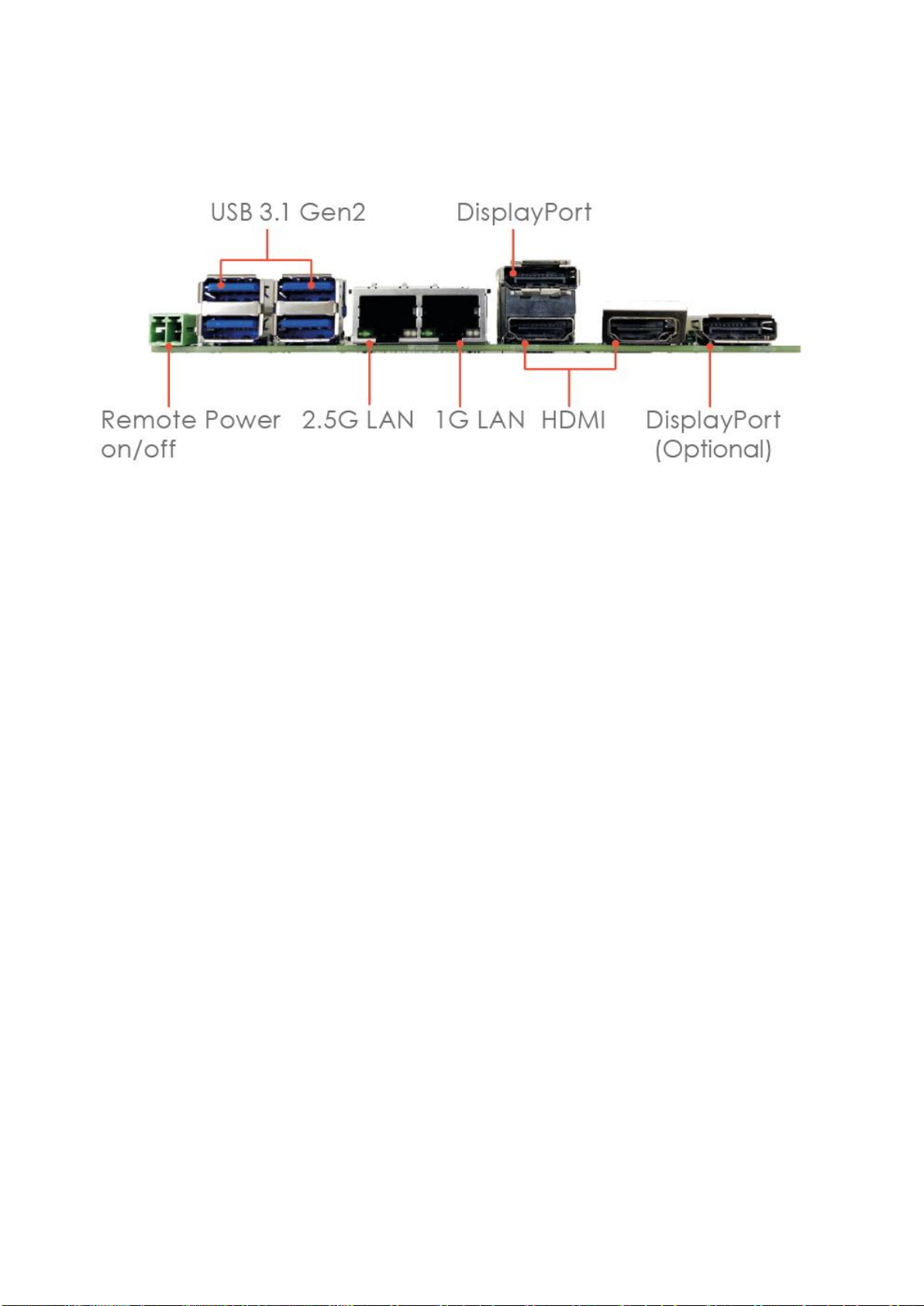

1.4 Rear I/O Placement

JUMPER SETTING AND PIN DEFINITION
This chapter provides information about how to set up the
jumper and use internal I/Os of PD11TGS Embedded
Motherboard hardware.
2

CHAPTER 2: JUMPER SETTING AND PIN DEFINITION
This chapter provides information about how to set up the jumper, and use internal I/Os of
PD11TGS Embedded Motherboard hardware.
2.1 Jumper and Internal Connector Overall Placement

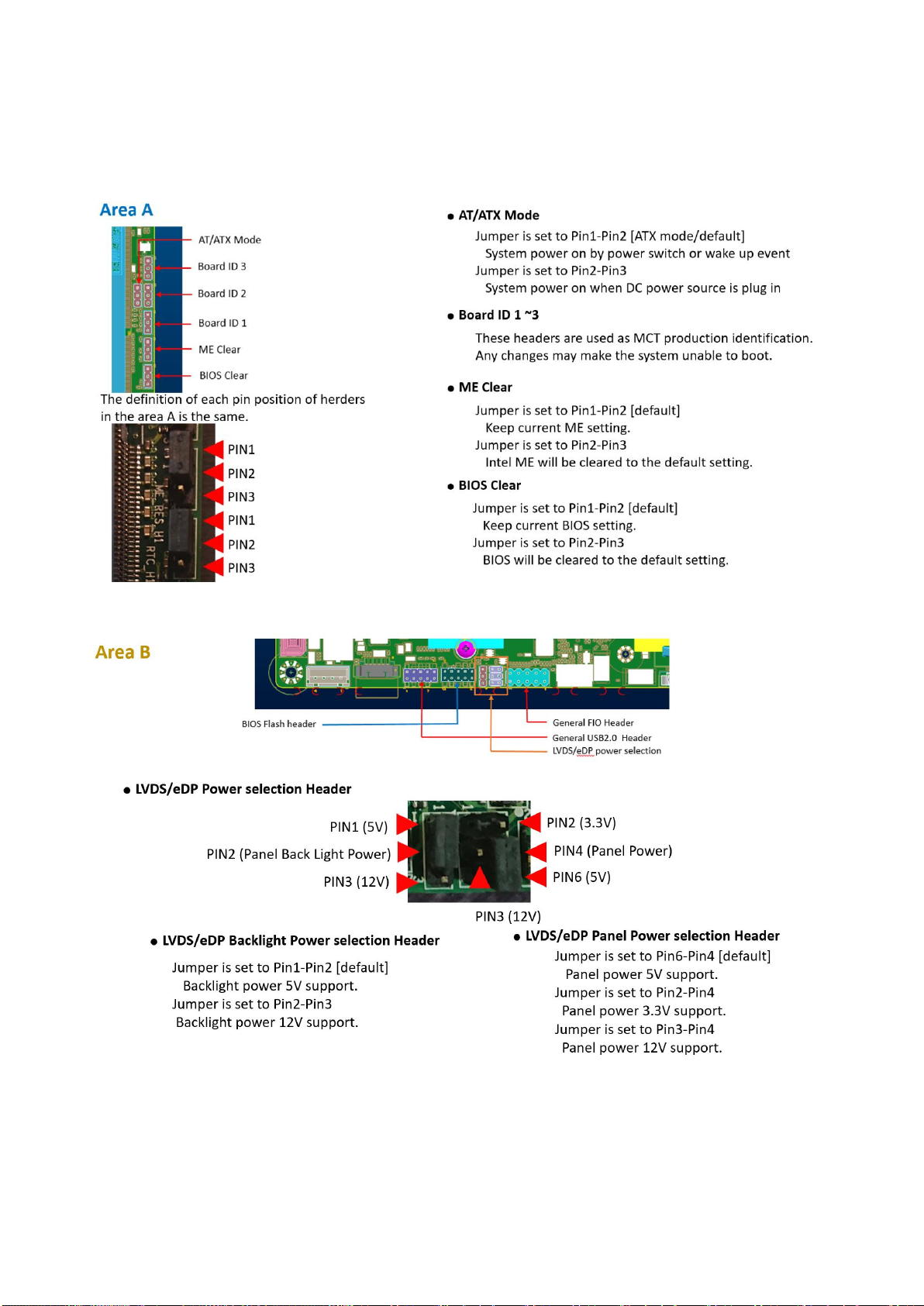

2.2 Jumper Setting

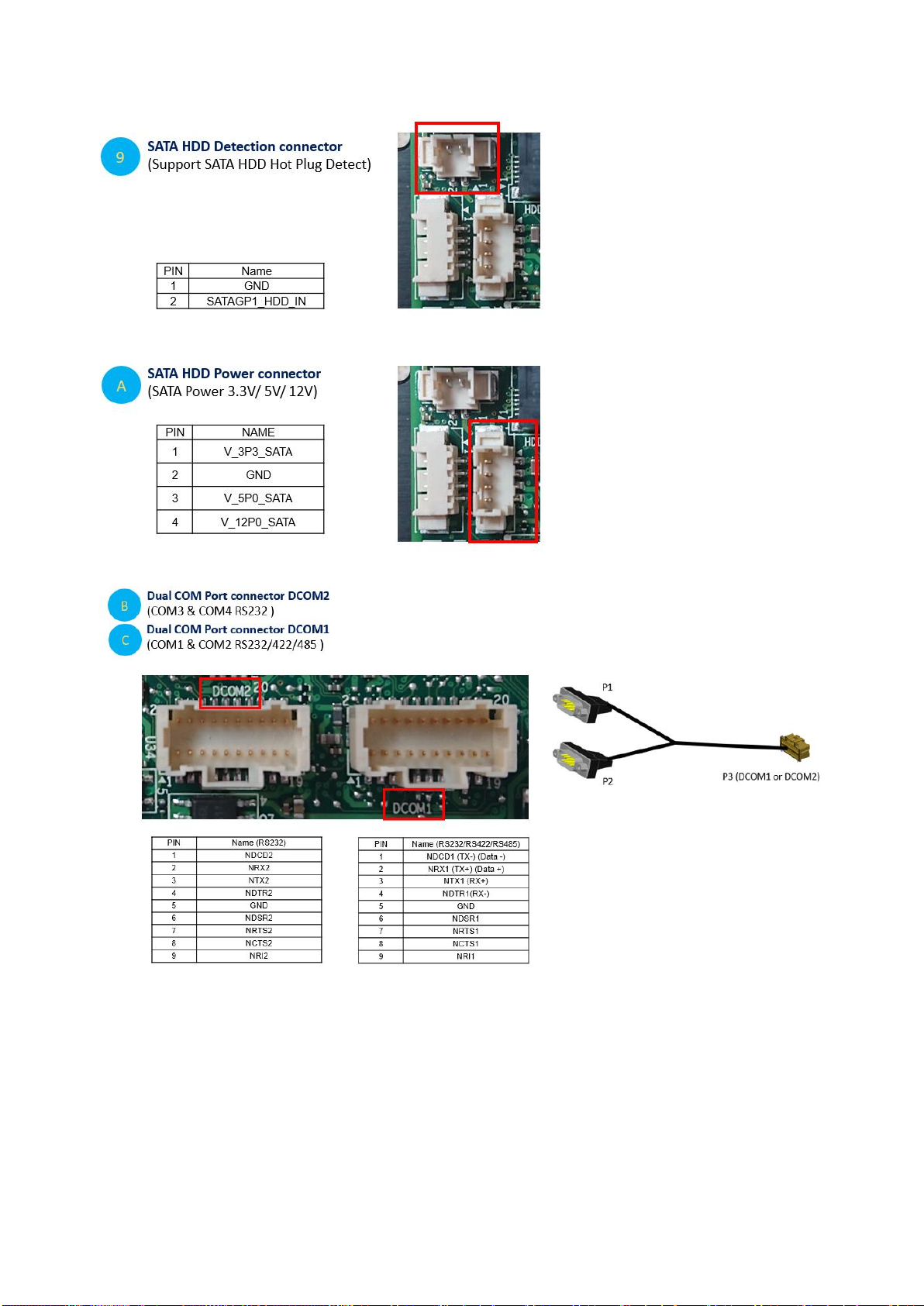

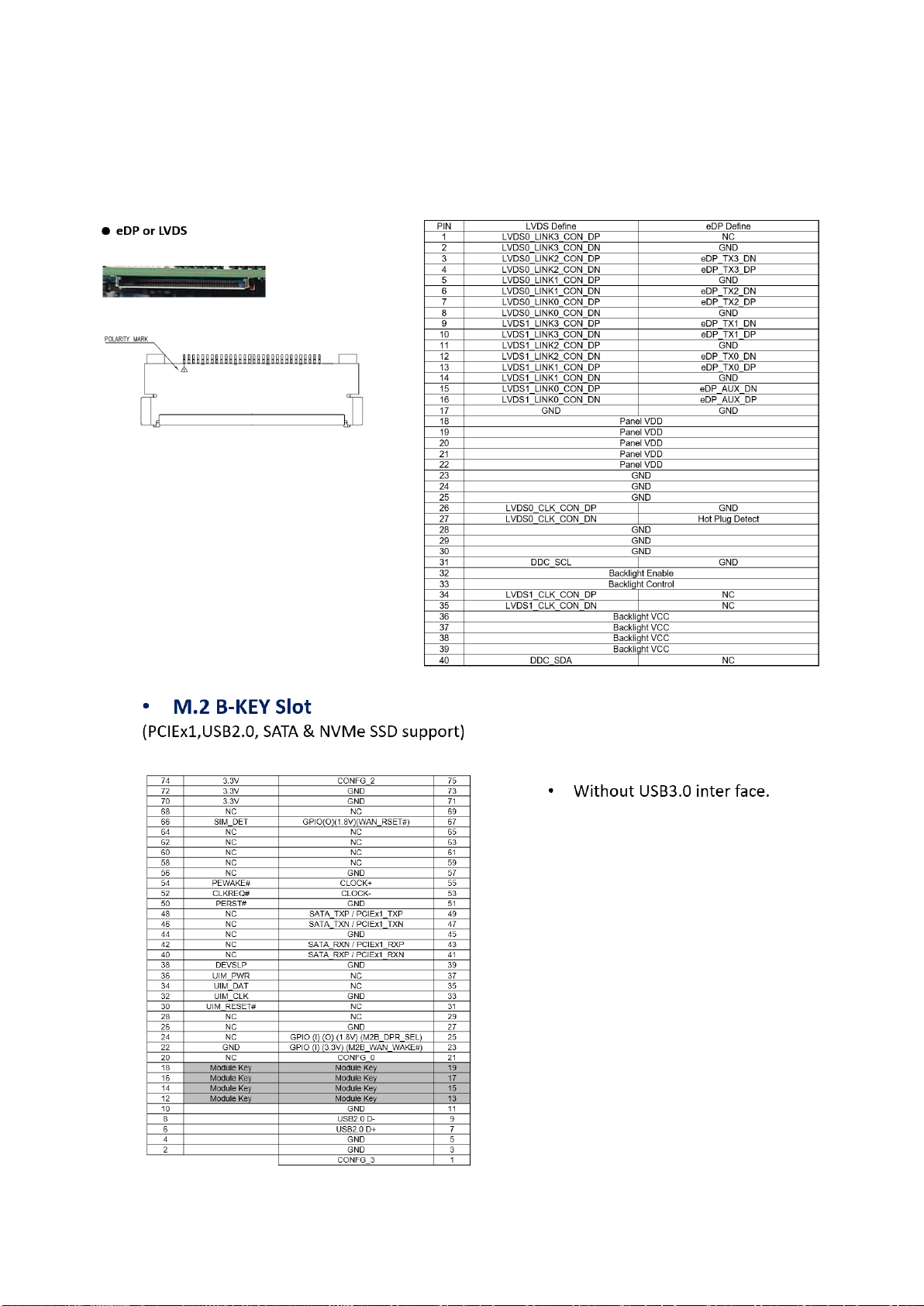

2.3 Internal Connector Pin Definition
Standard Connectors

Special Connectors

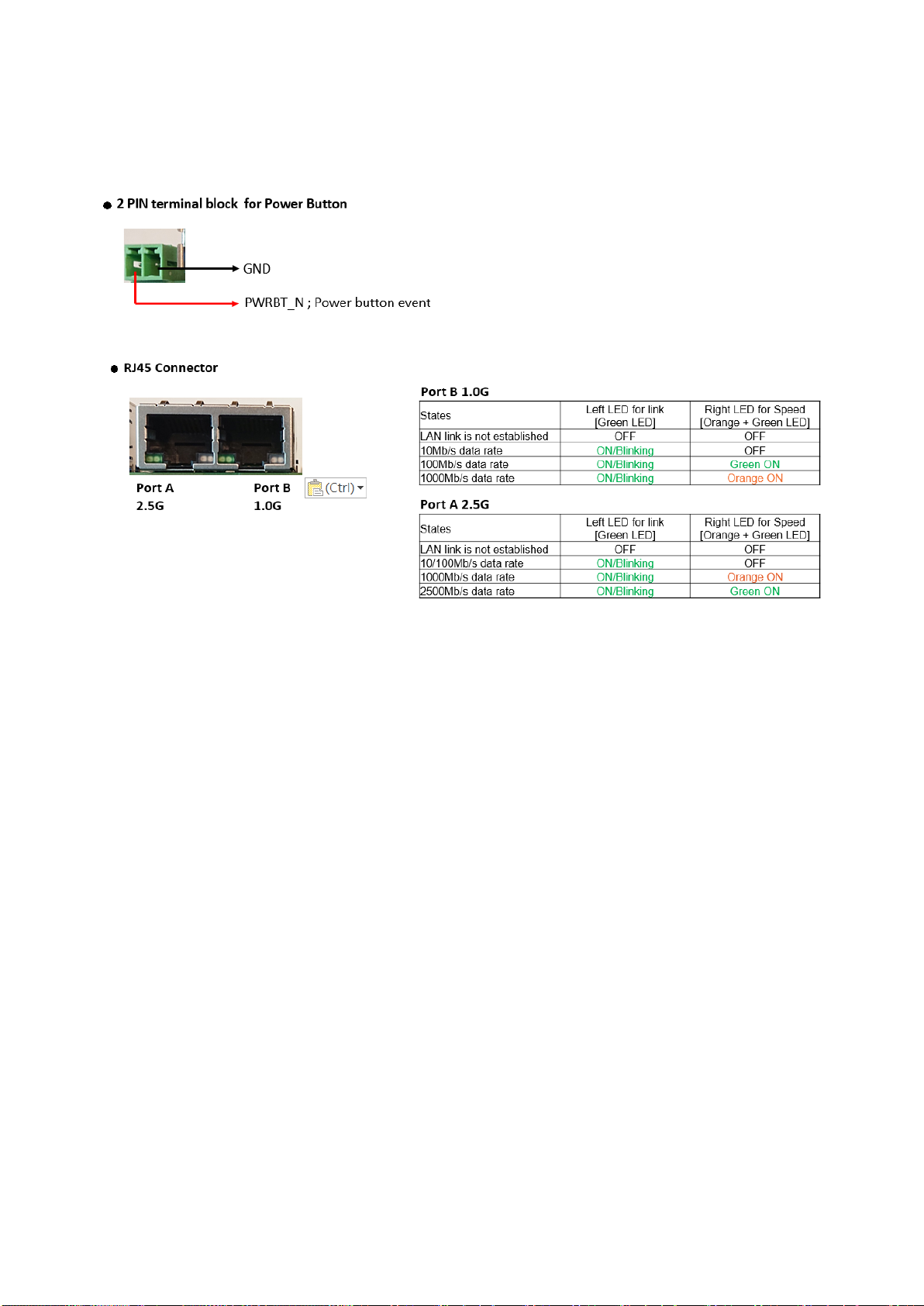

2.4 External Connector Pin Definition
