MITAC Desktop Board PH10SU
Product Guide

2
Desktop Board Features
This chapter briefly describes the features of Desktop Board PH10SU.
Table 1 summarizes the major features of the Desktop Board.
Feature Summary
T
ABLE
. M
I
TAC D
ESKTOP
B
OARD
PH10SU F
EATURES
Form Factor Micro-ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6
inches])
Processor 6th generation Intel® Core processor family with up to 91 W TDP in
an LGA1151 socket
Main Memory  Support Dual channel DDR4
 Support for up to 64 GB of system memory
 288-pin DDR4 u-DIMM 4
Chipset Intel® Q170 Platform Controller Hub (PCH)
Integrated
Graphics
Intel® HD Graphics/ Iris Graphics (By CPU)
External Graphics External graphics support provided through the PCIe 3.0 x16 bus
connector
Audio RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition
Audio (HD Audio) and AC ’97 Audio.
Front panel microphone/headphone header with support for HD
Audio or AC ’97 Audio
Legacy I/O Legacy I/O Controller (Nuvoton* NCT6104D) that provides:
Hardware management support
Serial Port (Rear IO) 2 (Support power
S232)
Serial Port (On board) 2 (configurable for
RS232/422/485)
Parallel port via an onboard header 1
Expansion
Capabilities
PCIe 3.0 x16 (Blue) 1
PCIe 2.0 x4 (Black) 1
PCIe 2.0 x1 (Black) 1
M.2 Suport Socket 3 Type2280, 2260, 2242 1
Peripheral
Interfaces
 USB 3.0 back panel connectors (blue) 4
 USB 2.0 back panel connectors (black) 2
 USB 3.0 front panel ports 2 (Headers)
 USB 2.0 front panel ports 2 (Headers)

3
 Serial ATA (SATA) 6.0 Gb/s interfaces 5
 4-pin SATA power for DOM 1
Hardware Monitor
Subsystem
Hardware monitoring through the Nuvoton* NCT6104D legacy I/O
controller, including:
 Remote thermal sensor
 4-pin system fan header
LAN Support Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
BIOS AMI UEFI BIOS Support for Advanced Configuration and Power
Interface (ACPI)
Instantly Available
PC Technology
 Support for PCI Express Revision 3.0
 Wake on USB, PCI Express, LAN, serial, PS/2, and front panel
Power Requirement ATX12V
Environment
 Operating Temperature: 0 °C to +50 °C
 Storage Temperature: -20°C to +70°C
Safety  CE
 FCC

4
Desktop Board Components
The Figure
shows the approximate location of the major components on the top side of
MiTAC Desktop Board PH10SU.
Figure 1. MiTAC Desktop Board PH10SU Com ponents (Top)

5
T
ABLE
. M
I
TAC D
ESKTOP
B
OARD
PH10SU C
OMPONENTS
(S
HOWN IN THE
F
IGURE
)
A

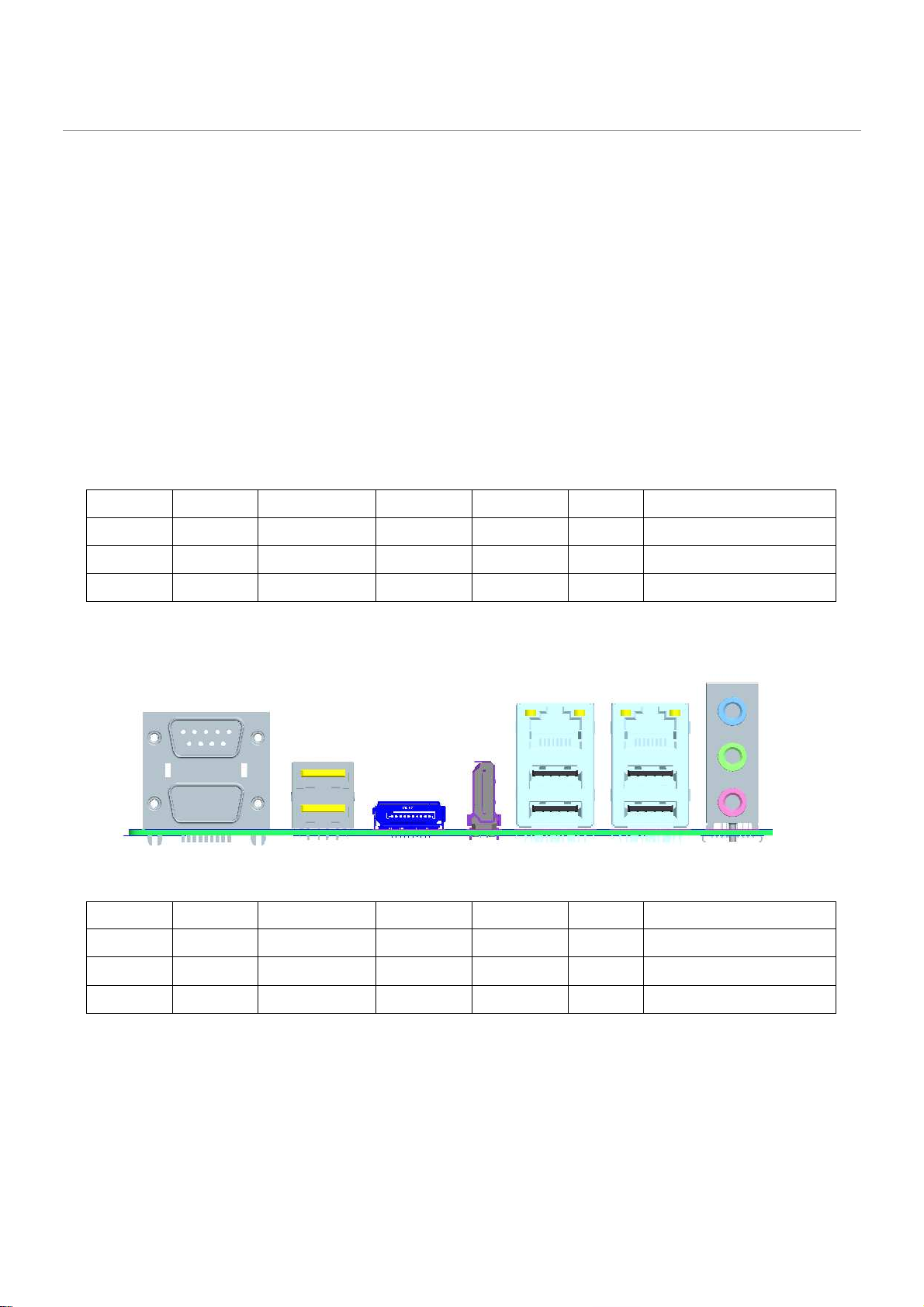

Back Panel Connectors
B
RS232 power select header
C
4-pin Power header
D
CPU Socket
E
CPU FAN header
F
DIMM Sockets
G
Front FAN header
H
ATX Power 24pin header
I
PCIe x16 slot
J
APS header
K
MiAPI header
L
MiAPI function select header
M
SATA Connector
N
Chassis Intrusion Header
O
CMOS clear header
P
Front panel main header
Q
SATA Connectors
R
Dual USB2.0 header
S
Dual USB3.0 header
T
M.2 slot
U
COM port header
V
Debug header
W
PCIe x4 slot
X
COM port header
Y
Rear FAN header
Z
PCIe x1 slot
AA
SPDIF Out header
BB
Front Audio header

6
Processor
The board supports 6th generation Intel Core processors. Other processors may be
supported in the future. This board supports processors with a maximum wattage of
91 W Thermal Design Power (TDP).
NOTE
This board has specific requirements for providing power to the processor. Additional
power required will depend on configurations chosen by the integrator.
System Memory
NOTE
To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with DIMMs that support the Serial Presence Detect (SPD) data
structure. This allows the BIOS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. If non-SPD memory
is installed, the BIOS will attempt to correctly configure the memory settings, but
performance and reliability may be impacted or the DIMMs may not function under the
determined frequency.
The Desktop Board has four 288-pin DDR4 u-DIMM sockets with gold-plated contacts.
These sockets support:
 Serial
Presence Detect (SPD) memory only
 Non-ECC memory
 Up to 64 GB
of memory

MITAC Desktop Board PH10SU
Hardware Specifiction

1. Platform Definition
1.1 Major Sub-systems
1.1.1 System Memory
Board must support the following memory configurations. .
•DDR4/-RS 1866MHz to 2133MHz or maximum multiplier supported by the CPU
oBoard must support all DIMMs in this range
•4Gb, 8Gb and 16Gb technology (and any others supported by the processor)
•Extended Memory Profiles (XMP) support
•Single-sided and double-sided memory module support
•Support for 1.2V (standard voltage) JEDEC-compliant memory
•Support for dual-channel interleaved mode
•32GB maximum memory with 4 DIMMs
•
DIMM connectors must be color coded as follows; refer to Figure 1:
•DIMM 1, DIMM 2 for channels A must be black with black latches
•DIMM 3, DIMM 4 for channels B must be black with black latches

Note: Channel A, DIMM0 must be closest to the CPU.
{Closest to CPU}
Channel A DIMM0 (DIMM1) A&B
Channel A DIMM1 (DIMM2) A&B
Channel B DIMM0 (DIMM3) A&B
Channel B DIMM1 (DIMM4) A&B
Figure 1: Q170 4xDIMMs Connector Layout
{Closest to CPU}
Channel A DIMM1 (DIMM2) A&B
Channel B DIMM1 (DIMM4) A&B
Figure 1: H110 2xDIMMs Connector Layout

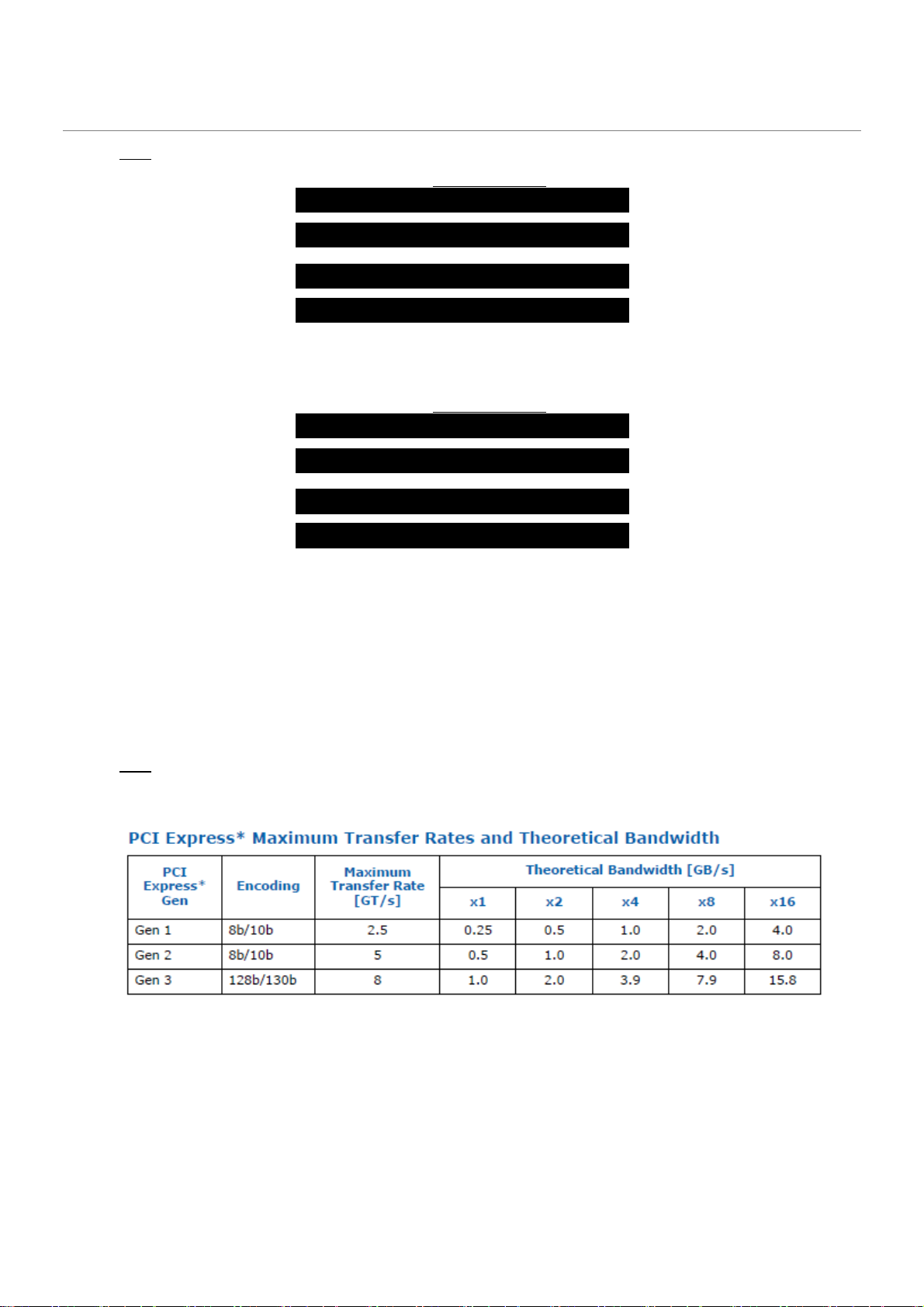

1.1.2 External Graphics
Board must support single primary PCIe x16 external graphics
o
Note: External graphics cards must also be supported on all PCI Express and PCI slot(s), if available.
System must be compatible with cards with and without ASPM support. BIOS must auto-detect if the
card supports ASPM. Refer to the BIOS Requirements Document for implementation details.

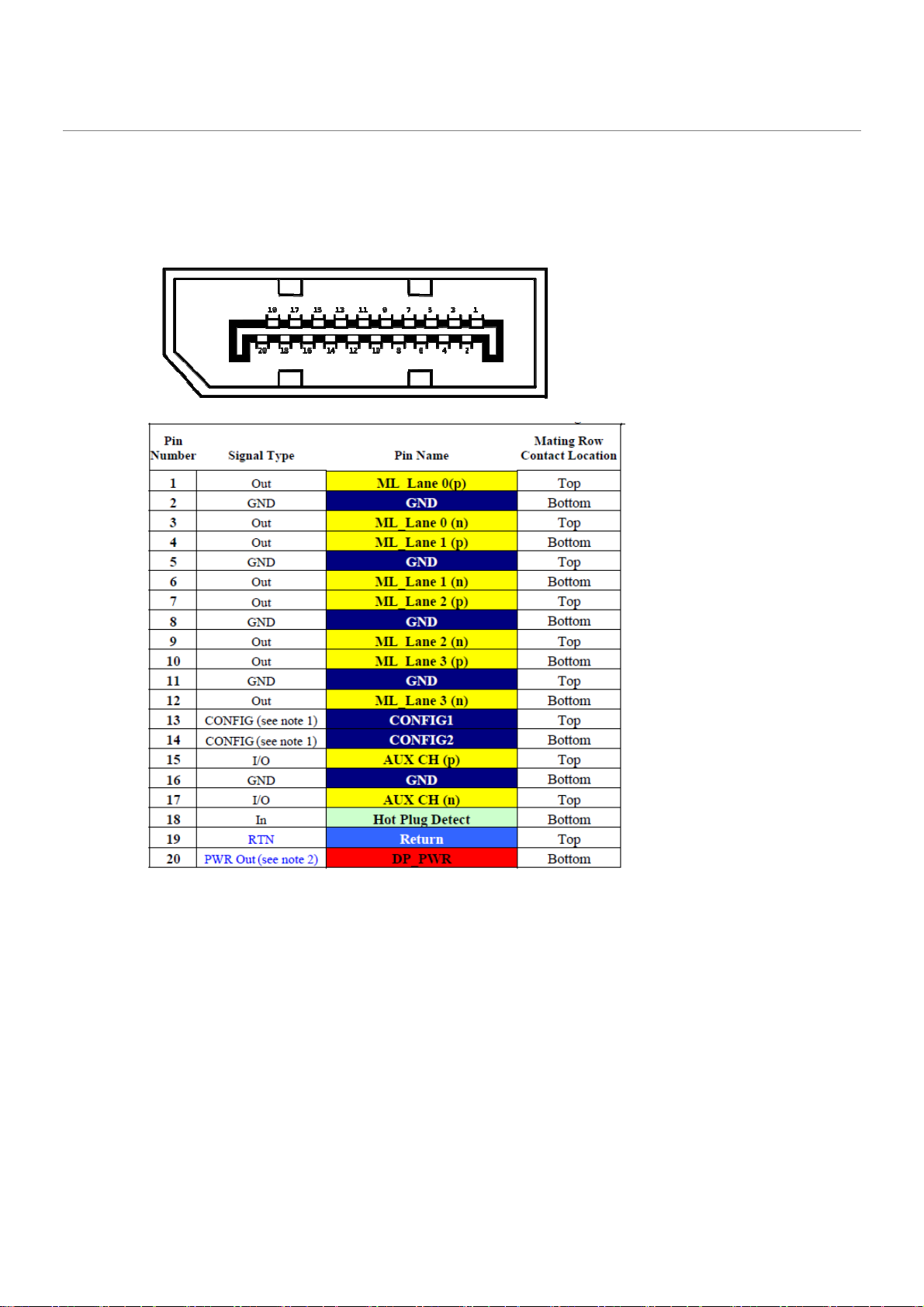

1.1.3 Onboard Graphics
Board must support all integrated graphics features supported by the processor through the PCH (including
but not limited to DirectX, HD/Blu-ray video hardware decoding, PAVP-Lite and HDCP).

The processor will continue to support Silent stream. Silent stream is an integrated audio feature that enables
short audio streams, such as system events to be heard over the HDMI* and DisplayPort* monitors. The
processor supports silent streams over the HDMI and DisplayPort interfaces at 44.1 kHz, 48 kHz, 88.2 kHz, 96
kHz, 176.4 kHz, and 192 kHz sampling rates.

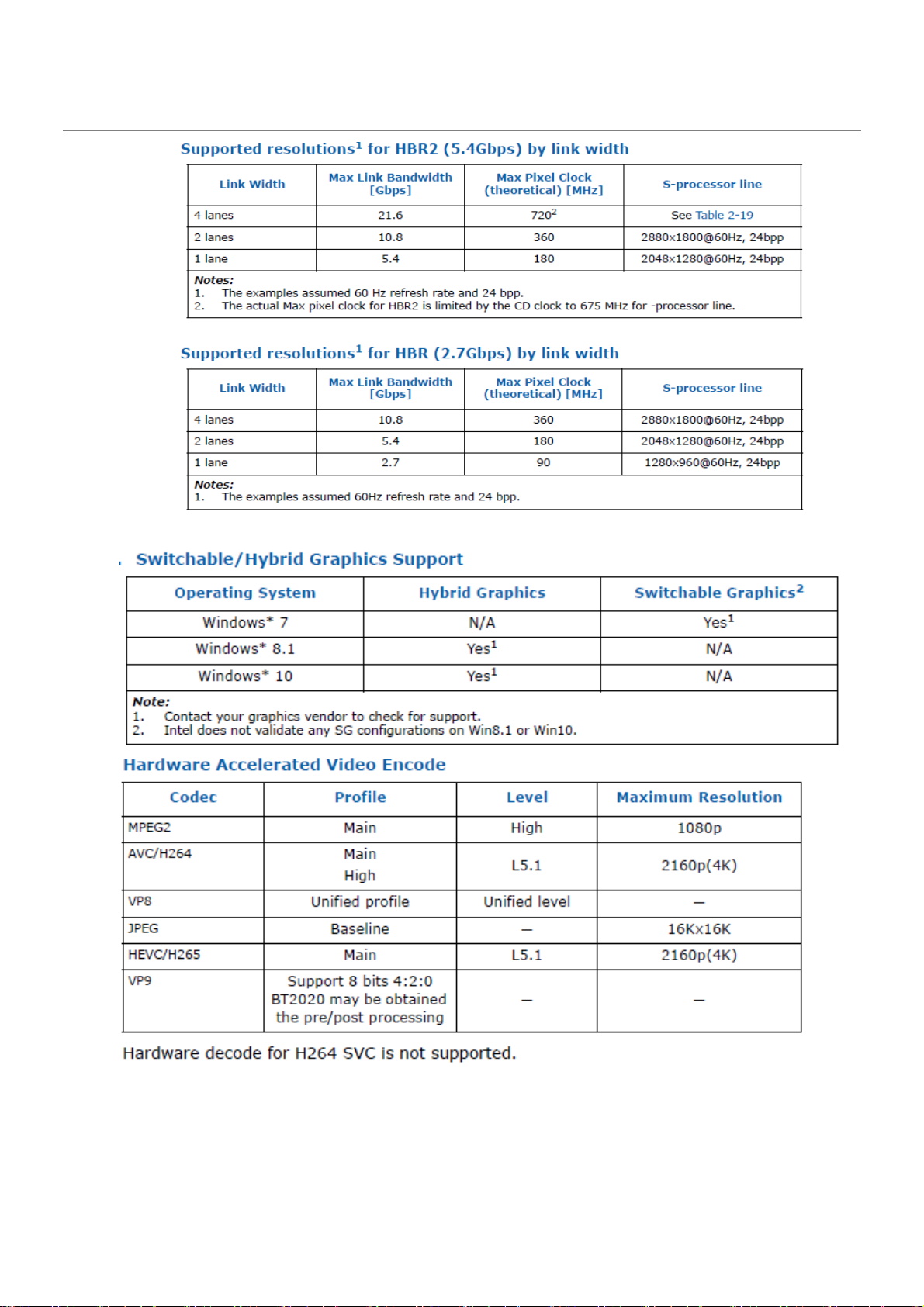

Notes:
1. Maximum resolution is based on implementation of 4 lanes with HBR2 link data rate.
2. bpp - bit per pixel.
3. S-processor line support up to 4 displays but only three can be active at the same time.
