Mitsubishi Electric GOT 1000 Series User manual

User's Manual
GT15-75J71LP23-Z
Set of A9GT-QJ71LP23 and GT15-75IF900
GT15-75J71BR13-Z
Set of A9GT-QJ71BR13 and GT15-75IF900
Thank you for purchasing the GOT1000 Series.
GT15 MELSECNET/10
communication unit
Prior to use, please read both this manual and detailed manual
thoroughly to fully understand the product.
MODEL GT15-75J71LP23-Z-U
MODEL
CODE 1D7M30
IB(NA)-0800315-D(2011)MEE

A-1
SAFETY PRECAUTIONS
(Always read these precautions before using this equipment.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "WARNING" and
"CAUTION".
Note that the CAUTION level may lead to a serious accident according to the
circumstances.
Always follow the precautions of both levels because they are important to
personal safety.
Please save this manual to make it accessible when required and always forward
it to the end user.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal
injury or physical damage.
WARNING
CAUTION

A-2
[DESIGN PRECAUTIONS]
If a communication fails in data link, the faulty station holds the data link data
generated before the communication error. Create an interlock circuit in the
sequence program using the communication status information in order that
the system will operate safely.
Check the faulty station and the operation status during communication error
by referring to the relevant manuals.
Some failures of cable or communication unit may cause the GOT to keep the
outputs on or off.
Create an external circuit for monitoring output signals that may lead to
serious accidents.
Failure to do so may cause mis-outputs or malfunctions, resulting in
accidents.
If a communication error (including cable disconnection) occurs during
monitoring, the communication between the GOT and PLC CPU may be
interrupted and the GOT may be inoperative.
For bus connection : The PLC CPU is down and the GOT is inoperative.
For other than above: The GOT is inoperative.
When configuring a system including the GOT, the possibility of GOT
communication error must be considered; make sure the operation significant
for the system will be performed by switches on devices other than the GOT.
Failure to do so may cause mis-outputs or malfunctions, resulting in
accidents.
To maintain the security (confidentiality, integrity, and availability) of the GOT
and the system against unauthorized access, DoS*1 attacks, computer
viruses, and other cyberattacks from unreliable networks and devices via
network, take appropriate measures such as firewalls, virtual private networks
(VPNs), and antivirus solutions.
Mitsubishi Electric shall have no responsibility or liability for any problems
involving GOT trouble and system trouble by unauthorized access, DoS
attacks, computer viruses, and other cyberattacks.
*1 DoS: A denial-of-service (DoS) attack disrupts services by overloading
systems or exploiting vulnerabilities, resulting in a denial-of-service (DoS)
state.
WARNING

A-3
[DESIGN PRECAUTIONS]
[INSTALLATION PRECAUTIONS]
Do not install the communication cables together with the main circuit or
power lines, or bring them close to each other. The distance of 100mm
(3.9inch) or more should be ensured. Failure to do so may cause
malfunctions due to noise.
Be sure to shut off all phases of the external power supply used by the system
before mounting or removing this unit to/from the GOT.
Not doing so can cause a unit failure or malfunction.
Use this unit in the environment given in the general specifications of the
GT15 User's Manual.
Not doing so can cause an electric shock, fire, malfunction or product damage
or deterioration.
When installing this unit to the GOT, fit it to the connection interface of the
GOT and tighten the mounting screws in the specified torque range.
Undertightening can cause a drop, failure or malfunction.
Overtightening can cause a drop, failure or malfunction due to screw or unit
damage.
Do not directory touch the conductive part or electronic components of the
unit.
This may cause the unit to fail or malfunction.
CAUTION
WARNING
CAUTION

A-4
[WIRING PRECAUTIONS]
[STARTUP AND MAINTENANCE PRECAUTIONS]
Be sure to shut off all phases of the external power supply used by the system
before wiring.
Failure to do so may cause electric shock, product damage or malfunctions.
Be careful not to let foreign matter such as dust or wire chips get inside the
unit. This may cause a fire, failure or malfunctions.
Make sure to securely connect the cable to the connector of unit.
Incorrect connection may cause malfunctions.
Make sure to fix communication cables and power cables to the unit by ducts
or clamps. Failure to do so may cause damage of the unit or the cables due to
accidental pull or unintentional shifting of the cables, or malfunctions due to
poor contact of the cables.
Do not hold the cable by hand and pull it out from the unit.
When removing the cable from the unit, make sure to hold the connector by
hand and pull it.
Failure to do so may cause malfunctions or damage to the unit or cable.
Solder the coaxial cable connector correctly.
Incomplete soldering may cause a malfunction.
Do not touch the connector while power is on.
Failure to do so may cause electric shock or malfunctions.
Before starting cleaning, always shut off GOT power externally in all phases.
Not doing so can cause a unit failure or malfunction.
WARNING
CAUTION
WARNING

A-5
[STARTUP AND MAINTENANCE PRECAUTIONS]
[DISPOSAL PRECAUTIONS]
[TRANSPORTATION PRECAUTIONS]
Do not disassemble or modify any unit.
This will cause failure, malfunction, injuries, or fire.
Do not touch the conductive areas and electronic parts of thisunit directly.
Doing so can cause a unit malfunction or failure.
Do not change the switch settings while power is on.
This may cause failures or malfunctions.
Make sure to externally shut off all phases of the power supply before
cleaning the unit and retightening unit mounting screws.
Failure to do so may cause the unit to fail or malfunction.
Loose tightening may cause a fall of the unit, short circuits, or malfunctions.
Overtightening may damage the screws and/or the unit, resulting in a fall of
the unit, short circuits or malfunctions.
Always make sure to touch the grounded metal to discharge the electricity
charged in the body, etc., before touching the unit.
Failure to do so may cause a failure or malfunctions of the unit.
Dispose of this product as industrial waste.
Make sure to transport the GOT main unit and/or relevant unit(s) in the
manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of the GT15 User's Manual,
as they are precision devices.
Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
CAUTION
CAUTION
CAUTION

A-6
REVISIONS
*The manual number is noted at the lower right of the top cover.
© 2005 MITSUBISHI ELECTRIC CORPORATION
Print Date *Manual Number Revision
Jan., 2005 IB(NA)-0800315-A First edition
Dec., 2005 IB(NA)-0800315-B Description of the front cover is reviewed.
Mar., 2006 IB(NA)-0800315-C Partial corrections
Chapter 1, 2, 7
Nov., 2020 IB(NA)-0800315-D Partial corrections
SAFETY PRECAUTIONS
This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.

A-7
CONTENTS
1. Overview ........................................................................................................ 1
2. Perfomance Specifications ............................................................................ 2

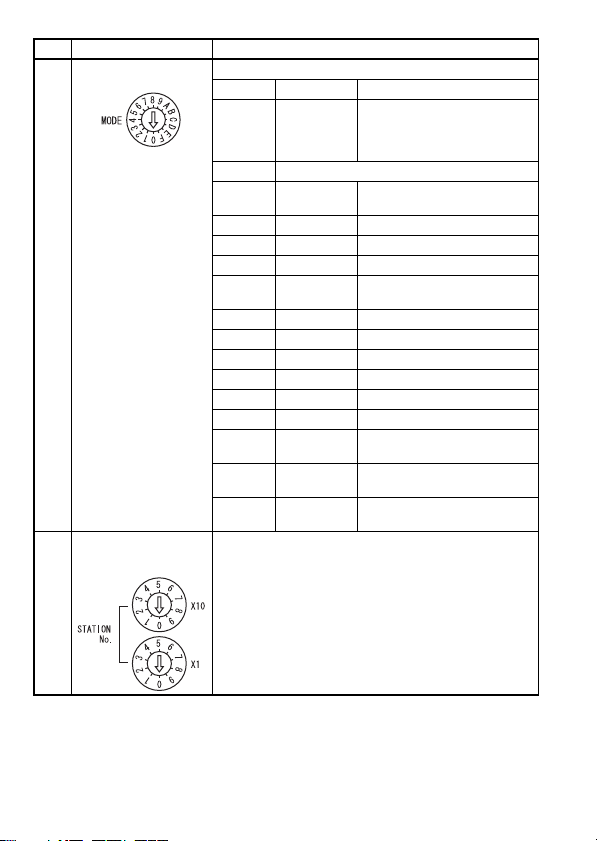

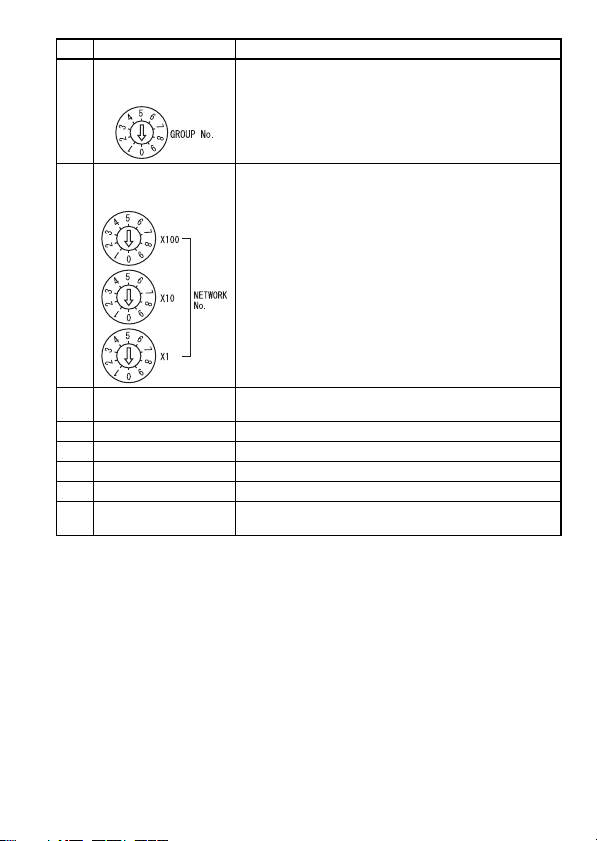

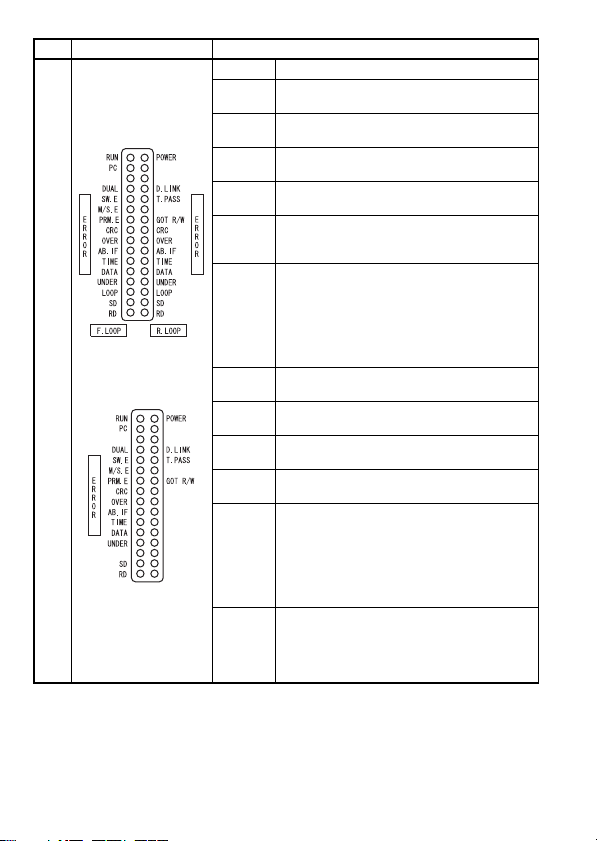

3. Part Names and the Settings ......................................................................... 4

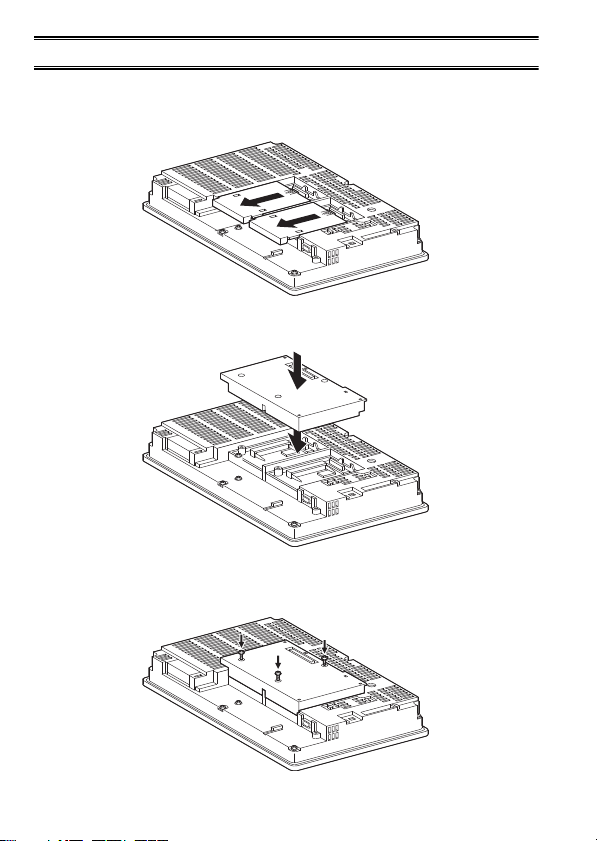

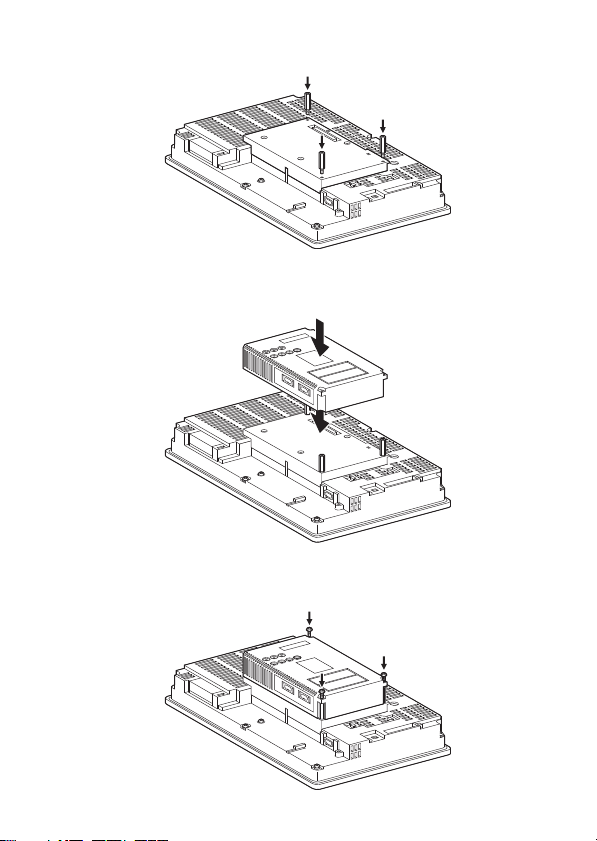

4. Installation Procedure .................................................................................... 9
5. Precautions for Laying Cables ..................................................................... 11
5.1 Precautions for cable connection (A9GT-QJ71LP23) ........................... 11
5.2 Precautions for cable connection (A9GT-QJ71BR13) ........................... 12
6. Wiring Method .............................................................................................. 15
7. External Dimensions .................................................................................... 16

A-8
Manuals
The following shows manuals relevant to this product.
For relevant manuals, refer to the PDF manual stored within the drawing
software used.
Detailed Manual
Manual name Manual number
(Type code)
GT15 User's Manual
(Option)
SH-080528ENG
(1D7M23)
GOT1000 Connection Manual
(Option)
SH-080532ENG
(1D7M26)
Relevant Manuals

1
1. Overview
This manual explains the GT15 MELSECNET/10 communication unit (hereinafter
referred to as GT15-75J71LP23-Z/GT15-75J71BR13-Z), i.e., the specifications,
switch settings and how to mount onto the GOT.
The GT15-75J71LP23-Z and GT15-75J71BR13-Z allow the GOT 1000 series to
function as a normal station (MELSECNET/10 connection) in the MELECNET/10
network system (PLC to PLC network).
After unpacking each product package, check if the following items are contained.
<GT15-75J71LP23-Z>
<GT15-75J71BR13-Z>
*1 : In the case of coaxial-type network system, terminal resistors must
be attached to both terminal stations of the network. The A9GT-
QJ71BR13 does not include terminal resistors (A6RCON-R75:75 ).
Therefore, they should be prepared by the user.
A network unit (A9GT-QJ71LP23 or A9GT-QJ71BR13) can be connected to the
GOT with the GT15-75IF900, which can perform monitoring as a normal station in
the MELSECNET/10 network system (PLC to PLC network).
Product name Model name Quantity
A9GT-QJ71LP23 network unit
(for optical loop network connection; normal station only) (A9GT-QJ71LP23) 1
Interface converter unit (GT15-75IF900) 1
Communication unit fixing bracket - 3
Product name Model name Quantity
A9GT-QJ71BR13 network unit*1
(for coaxial bus network connection; normal station only) (A9GT-QJ71BR13) 1
F-type connector (A6RCON-F) 1
Interface converter unit (GT15-75IF900) 1
Communication unit fixing bracket - 3
For system configuration when connecting the GOT to MELSECNET/10, refer to
GOT1000 Series Connection Manual.

2
2. Perfomance Specifications
The following is the performance specification of MELSECNET/10 communication
unit.
For the general specifications of MELSECNET/10 communication unit, refer to the
GT15 User's Manual *1.
Item A9GT-QJ71LP23 A9GT-QJ71BR13
Maximum number of link
points per network
LX/LY 8192 points
LB 8192 points
LW 8192 points
Maximum number of link
points per station {(B+Y)/8+(2 W)} 2000bytes
Communication speed 10Mbps (20 Mbps : multiples
transmission) 10Mbps
Communication method Token ring method Token bus method
Synchronous method Frame synchronous
Type of transmission
channel
Double loop (Optical fiber
cable) Coaxial single bus
Overall distance
(Distance between stations)
*2
30km 3C-2V
300m (0.19 mil)
(Distance between
stations: 300m
(0.19 mil))
5C-2V
500m (0.31 mil)
(Distance between
stations: 500m
(0.31 mil))
Repeater module (A6BR10,
A6BR10-DC) Maximum
expansion is 2.5km
Accessible network range Same network only
Maximum number of groups 9
Number of stations
connected to a network 63 stations 31 stations
RAS functions
• Loopback in case of error detection or cable disconnection
(Specific to A9GT-QJ71LP23)
• Link channel check for the host station
• Abnormality detection by link special relay, resistor
• Various diagnostic functions
Transient transmission • N:N communication
Cable Optical fiber cable
(Arranged by user*3)3C-3V 5C-2V or equivalent
SI optical cable inter station
500m
H-PCF optical cable inter
station 1km
Broad-band H-PCF optical
canle inter station 1km
QSI optical cable inter
station 1km

3
*1 : The vibration resistance of the MELSECNET/10 communication unit
is as follows. (Differs with the GT15.)
*2 : In the case of coaxial bus system, the cable length between stations
may be restricted, depending on the number of connected stations.
(Refer to Section 5.2 (1).)
*3 : Please note that use of optical fiber cable requires the expertise,
special tools and dedicated connector for connection. Please
contact your local Mitsubishi Electric System Service or
representative, for the purchase of the required items.
Applicable connectors 2-core optical connettor plug
(Arranged by user*3)
BNC-P-3-NiCAu (For 3C-2V)
BNC-P-5-NiCAu (For 5C-2V)
Equivalent goods
(manufactured by DDK
Electronics., LTD.)
Internal current consumption 0.52A in total with GT15-75IF900
Weight 0.5kg (1.1lb) in total with GT15-75IF900
Item Specifications
Vibration
resistance
Conforming
to
JIS B 3502,
IEC 61131-2
Frequency Acceleration Amplitude Sweep
count
Under
intermittent
vibration
10 to 57Hz --- 0.075mm
(0.003inch) 10 times
each in
X, Y, Z
directions
(for 80
minch)
57 to 150Hz 9.8m/s2---
Under
continuous
vibration
10 to 57H z --- 0.035mm
(0.001inch)
57 to 150Hz 4.9m/s2---
Item A9GT-QJ71LP23 A9GT-QJ71BR13

4
3. Part Names and the Settings
The following indicates part names and the setting of each part of A9GT-
QJ71LP23, A9GT-QJ71BR13 and GT15-75IF900.
A9GT-QJ71LP23
A9GT-QJ71BR13
GT15-75IF900
1)
5) 6) 7)
8)
7)
2)
3)
4)
(Front) (Back)
1)
5) 6) 7)
8)
7)
2)
3)
4)
(Front) (Back)
11)
(Front)
9)
10)
(Back)

5
No. Name Details
1) LED
A9GT-QJ71LP23
A9GT-QJ71BR13
Name Details
RUN On : Normal operation
Off : The WDT error has Toccurred.
PC On : Set to the PLC to PLC network
(Always ON)
DUAL On : Multiple transmission is being executed.
Off : Multiple transmission is not being executed.
SW.E On : No.2 to 5 switch settings are incorrect.
Off : Normal
M/S.E
On : Station No. settings are overlapped on the
same network.
Off : Normal
PRM.E
On : An error has occurred because common
parameters are inconsistent with station-
specific parameters, i.e., parameters
received from sub-control station are
different from those of host station
(received from control station).
Off : Normal
POWER On : Power is supplied.
Off : Power is not supplied.
D.LINK On : Data link is being executed.
Off : Data link is not being executed.
T.PASS On : Participating in the button passing.
Off : Not participating in the button passing.
GOT R/W On : Communicating with GOT
Off : Not communicating with GOT
CRC
On : An error has occurred, i.e., an error code is
detected in the received data.
<Cause> The timing when the station that
sends data to the corresponding station is
disconnected, H/W failure, cable failure,
noise, etc.
Off : Normal
OVER
On : An error has occurred, i.e., the received
data processing is delayed.
<Cause> H/W failure, cable failure, noise,
etc.
Off : Normal

6
No. Name Details
1) LED
AB.IF
On : An error has occurred, i.e., "1" is
continuously received more than specified
times, or the received data length is too
short.
<Cause> The timing when the station that
sends data to the corresponding station is
disconnected, H/W failure, cable failure,
noise, etc.
Off : Normal
TIME
On : When the baton has not been passed to the
host station within the monitor time.
<Cause> Short monitor time, cable failure,
noise, etc.
Off : Normal
DATA
On : An error has occurred, i.e., an error code is
received.
<Cause> Cable failure, noise, etc.
Off : Normal
UNDER
On : An error has occurred, i.e., the internal
processing of the data to be sent is not
executed at constant intervals.
<Cause> H/W failure.
Off : Normal
LOOP
On : An error has occurred in forward loop/
reverse loop.
<Cause> The adjacent station power is off,
cable is disconnected/unconnected.
(Specific to A9GT-QJ71LP23)
Off : Normal
SD Barely on : Data transmitting
RD Barely on : Data transmitting*2

7
No. Name Details
2) *3 Mode setting switch Setting of mode (Factory setting at time of shipping: 0)
Mode Name Contents
0
On-line
(automatic
double line
existent)
Data link
(automatic double line existent)
1 Use not possible
2 Off-line Placing local station in parallel
condition
3 - Unusable
4 - Unusable
5 - Unusable
6 Test mode 4 Station-to station test
(Slave station)
7 Test mode 5 Self- loopback test
8 Test mode 6 Internal self- loopback test
9 Test mode 7 Hardware test
A - Unusable
B - Unusable
C - Unusable
D Test mode 8 Network number confirmation
(LED indication)
E Test mode 9 Group number confirmation
(LED indication)
F Test mode 10 Station number confirmation
(LED indication)
3) *3 Station number setting
switch
Station number setting (factory setting at time of shipping: 1)
<Setting range>
1 to 64 : station number
Other than 1 to 64 : setting error (SW.E LED lamp is lit)

8
*1 : Even if the station No. settings are overlapped, the M/S.E. LED may
not be on, depending on the line status or cable connection status. It
is recommended to confirm the settings by performing a visual
check and executing a confirmation test.
*2 : If no terminal resistors are attached, this may be always on.
(This is not a network error (specific to A9GT-QJ71BR13.))
*3 : Make sure to reset the GOT after changing the settings. However,
this does not apply when 2) mode setting switch is changed to any
of "D" to "F".
*4 : The GOT does not use a group number. Set as 0 (No group
designation).
No. Name Details
4) *3 Group number setting
Switch
Group number setting (factory setting at time of shipping: 0)
<Setting range>
0 : No group setting (Fixed)*4
5) *3 Network number setting
switch
Network number setting
(factory setting at time of shipping: 1)
<Setting range>
1 to 239 : Network number
Other than 1 to 239: Setting error (SW.E LED lamp is lit)
6) Connector A9GT-QJ71LP23 : Connect the optical fiber cable
A9GT-QJ71BR13 : Connect the F-type connector
7) Mounting screw Screw for mounting to the GT15-75IF900
8) Connector Connector for connection to the GT15-75IF900
9) Mounting screw Mounting screw to be fixed with the GOT main unit
10) Interface connector Connector connecting to GOT
11) Extension connector Connector connecting with A9GT-QJ71LP23/
A9GT-QJ71BR13

9
4. Installation Procedure
(1) Power off the GOT.
(2) Remove the two extension unit covers of the GOT.
(3) Fit the GT15-75IF900 along the groove of the GOT case.
(4) Fasten the GT15-75IF900 by tightening its mounting screws (3 places)
with tightening torque 0.36 to 0.48 N•m.

10
(5) Attach the communication unit fixing brackets (3 places) to GT15-
75IF900, then fasten them with tightening torque of 0.36 to 0.48 N•m.
(6) Mount the network unit (A9GT-QJ71LP23 or A9GT-QJ71BR13) to GT15-
75IF900.
(7) Fasten the unit fixing brackets (3 places) with tightening torque of 0.36 to
0.48N•m.

11
5. Precautions for Laying Cables
5.1 Precautions for cable connection (A9GT-QJ71LP23)
(1) The distance between stations varies depending on the type of
optical fiber cable used.
(2) When connecting an optical fiber cable, the following restrictions on
the bending radius must be observed.
For further details, please ask the supplier where you parchase the
cable.
(3) When laying the optical fiber cable, do not touch the fiber core of the
cable connector or module connector, or let dirt or dust collect on it.
If oil from the hands, dirt or dust should adhere to the core, the
transmission loss will increase, causing a malfunction in the data
link.
(4) When attaching or detaching the optical-fiber cable to/from the
module, hold the cable connector securely with the hands.
(5) Connect the cable connector and module connector securely until
you hear a "click" sound.
(6) Please wire IN/OUT of the connector for the cable correctly.
After wiring, perform a loop test or station-to-station test or others to
confirm if the setting and wiring of A9GT-QJ71LP23 have been done
properly.
For testing methods, refer to the following manuals.
• Type MELSECNET/10 Network system (PLC to PLC network)
Reference Manual
• For QnA/Q4AR MELSECNET/10 Network System
Reference Manual
• Q Corresponding MELSECNET/H Network System
Reference Manual (PLC to PLC network)
Type Distance between stations [m (ft.)]
SI optical fiber cable
(Old type: A-2P- )
L type 500 (1640.5)
H type 300 (984.3)
SI optical fiber cable 500 (1640.5)
H-PCF optical fiber cable 1000 (3281)
Broad-band H-PCF optical fiber cable 1000 (3281)
QSI optical fiber cable 1000 (3281)
