User's Manual
GT15-J71GP23-SX
Thank you for choosing Mitsubishi Electric Graphic Operation
Termin a l ( G O T).
GOT2000/GOT1000 Series
CC-Link IE Controller Network
Communication Unit
Prior to use, please read both this manual and detailed manual
thoroughly to fully understand the product.
MODEL GT15-J71GP23-SX-U
MODEL
CODE 1D7M76
IB(NA)-0800412-I(1806)MEE

A-1
SAFETY PRECAUTIONS
(Always read these precautions before using this equipment.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "WARNING" and
"CAUTION".
Note that the CAUTION level may lead to a serious accident according to the
circumstances.
Always follow the precautions of both levels because they are important to
personal safety.
Please save this manual to make it accessible when required and always forward
it to the end user.
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal
injury or physical damage.
WARNING
CAUTION

A-2
[DESIGN PRECAUTIONS]
If a communication fails in data link, the faulty station holds the data link data
generated before the communication error. Create an interlock circuit in the
sequence program using the communication status information in order that
the system will operate safely.
Failure to do so may cause mis-outputs or malfunctions, resulting in
accidents.
Check the faulty station and the operation status during communication error
by referring to the relevant manuals.
Some failures of cable or communication unit may cause the GOT to keep the
outputs on or off.
Create an external circuit for monitoring output signals that may lead to
serious accidents.
Failure to do so may cause mis-outputs or malfunctions, resulting in
accidents.
If a communication error (including cable disconnection) occurs during
monitoring, the communication between the GOT and programmable
controller CPU may be interrupted and the GOT may be inoperative.
For bus connection : The programmable controller CPU is down and the
GOT is inoperative.
For other than above: The GOT is inoperative.
When configuring a system including the GOT, the possibility of GOT
communication error must be considered; make sure the operation significant
for the system will be performed by switches on devices other than the GOT.
Failure to do so may cause mis-outputs or malfunctions, resulting in
accidents.
Laser diodes are used in optical transceivers for the CC-Link IE Controller
Network. The class of these laser diodes is Class 1.
Do not bunch the control wires or communication cables with the main circuit
or power wires, or lay them close to each other.
As a guide, separate the lines by a distance of at least 100mm (3.94 inches)
otherwise malfunctions may occur due to noise.
WARNING
CAUTION

A-3
[INSTALLATION PRECAUTIONS]
[WIRING PRECAUTIONS]
Be sure to shut off all phases of the external power supply used by the system
before mounting or removing this unit to/from the GOT.
Not doing so can cause a unit failure or malfunction.
Use this unit in the environment that satisfies the general specifications
described in the User's Manual for the GOT used.
Not doing so can cause an electric shock, fire, malfunction or product damage
or deterioration.
When installing this unit to the GOT, fit it to the connection interface of the
GOT and tighten the mounting screws in the specified torque range (0.36 N•m
to 0.48 N•m) with a Phillips-head screwdriver No.2.
Undertightening can cause a drop, failure or malfunction.
Overtightening can cause a drop, failure or malfunction due to screw or unit
damage.
Do not directory touch the conductive part or electronic components of the
unit.
This may cause the unit to fail or malfunction.
Be sure to shut off all phases of the external power supply used by the system
before wiring.
Failure to do so may cause electric shock, product damage or malfunctions.
WARNING
CAUTION
WARNING

A-4
[WIRING PRECAUTIONS]
[STARTUP AND MAINTENANCE PRECAUTIONS]
Be careful not to let foreign matter such as dust or wire chips get inside the
unit. This may cause a fire, failure or malfunctions.
Make sure to securely connect the cable to the connector of unit.
Incorrect connection may cause malfunctions.
Make sure to fix communication cables and power cables to the unit by ducts
or clamps. Failure to do so may cause damage of the unit or the cables due to
accidental pull or unintentional shifting of the cables, or malfunctions due to
poor contact of the cables.
Do not hold the cable by hand and pull it out from the unit.
When removing the cable from the unit, make sure to hold the connector by
hand and pull it.
Failure to do so may cause malfunctions or damage to the unit or cable.
Do not touch the connector while power is on.
Failure to do so may cause electric shock or malfunctions.
Before starting cleaning, always shut off GOT power externally in all phases.
Not doing so can cause a unit failure or malfunction.
CAUTION
WARNING

A-5
[STARTUP AND MAINTENANCE PRECAUTIONS]
[DISPOSAL PRECAUTIONS]
[TRANSPORTATION PRECAUTIONS]
Do not disassemble or modify any unit.
This will cause failure, malfunction, injuries, or fire.
Do not touch the conductive areas and electronic parts of this unit directly.
Doing so can cause a unit malfunction or failure.
Make sure to externally shut off all phases of the power supply before
cleaning the unit and retightening unit mounting screws.
Failure to do so may cause the unit to fail or malfunction.
Loose tightening may cause a fall of the unit, short circuits, or malfunctions.
Overtightening may damage the screws and/or the unit, resulting in a fall of
the unit, short circuits or malfunctions.
Make sure to touch the grounded metal to discharge the electricity charged in
the body, etc., before touching the unit.
Failure to do so may cause a failure or malfunctions of the unit.
Dispose of this product as industrial waste.
Make sure to transport the GOT main unit and/or relevant unit(s) in the
manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of Use this unit in the
environment that satisfies the general specifications described in the User's
Manual for the GOT used, as they are precision devices.
Failure to do so may cause the unit to fail.
Check if the unit operates correctly after transportation.
When fumigants that contain halogen materials such as fluorine, chlorine,
bromine, and iodine are used for disinfecting and protecting wooden
packaging from insects, they cause malfunction when entering our
products.Please take necessary precautions to ensure that remaining
materials from fumigant do not enter our products, or treat packaging with
methods other than fumigation (heat method).Additionally, disinfect and
protect wood from insects before packing products.
CAUTION
CAUTION
CAUTION

A-6
REVISIONS
* The manual number is noted at the lower right of the top cover.
© 2008 MITSUBISHI ELECTRIC CORPORATION
Print Date *Manual Number Revision
Jan., 2008 IB(NA)-0800412-A First edition
Jan., 2009 IB(NA)-0800412-B Patial addition
Chapter 1, 2, 4, 7
Jun., 2009 IB(NA)-0800412-C Partial corrections
Compliance with the EMC and Low
Voltage Directives
Jun., 2011 IB(NA)-0800412-D Partial corrections
Chapter 7
Patial addition
Compliance with the Radio Waves Act
(South Korea)
Oct., 2014 IB(NA)-0800412-E Partial corrections
SAFETY PRECAUTIONS
Chapter 4, 7
May, 2014 IB(NA)-0800412-F Partial corrections
Cover
Oct., 2016 IB(NA)-0800412-G Partial corrections
Compliance with the RoHS
Apr., 2017 IB(NA)-0800412-H Partial corrections
Cover
Jun., 2018 IB(NA)-0800412-I Patial addition
Compliance with Chinese standardized
law
This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.

A-7
CONTENTS
1. OVERVIEW ................................................................................................... 1
2. SPECIFICATIONS ......................................................................................... 1

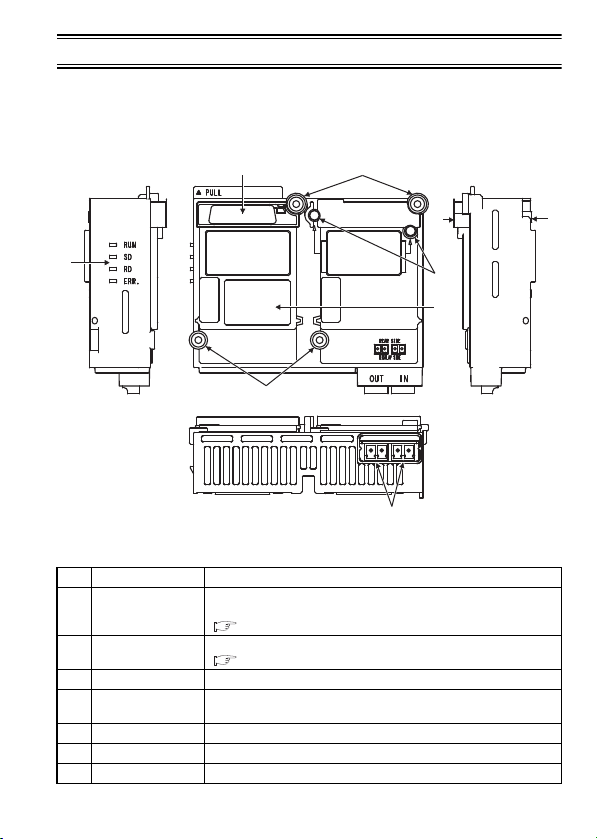

3. PART NAMES ............................................................................................... 3
4. INSTALLATION PROCEDURE ..................................................................... 6
5. PRECAUTIONS FOR WIRING CABLES ....................................................... 8
6. WIRING METHOD ......................................................................................... 9

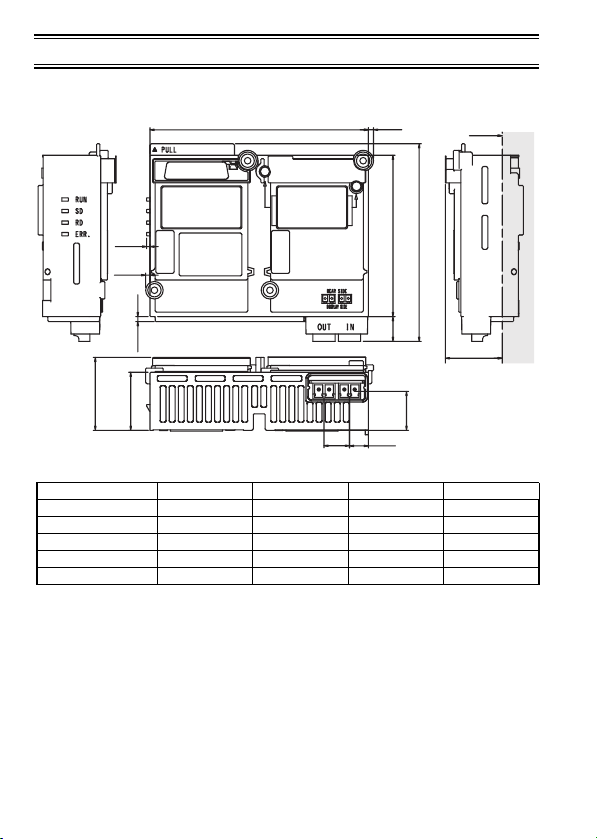

7. EXTERNAL DIMENSIONS .......................................................................... 10

A-8
Compliance with the EMC and Low Voltage Directives
To configure a system meeting the requirements of the EMC and Low Voltage
Directives when incorporating the Mitsubishi GOT (EMC and Low Voltage
Directives compliant) into other machinery or equipment, refer to "EMC AND
LOW VOLTAGE DIRECTIVES" of the General Description included with the
GOT used.
The CE mark, indicating compliance with the EMC and Low Voltage Directives,
is printed on the rating plate of the GOT.
Manual
The following shows manuals relevant to this product.
For relevant manuals, refer to the PDF manuals stored in the DVD-ROM for the
drawing software used.
Detailed Manual
Manual name Manual number
(Model code)
GOT2000 Series User's Manual (Hardware)
(Sold separately)
SH-081194ENG
(1D7MJ5)
GOT2000 Series Connection Manual
(Mitsubishi Products) For GT Works3 Version1
(Sold separately)
SH-081197ENG
(1D7MJ8)
GT16 User's Manual (Hardware)
(Sold separately)
SH-080928ENG
(1D7MD3)
GT15 User's Manual
(Sold separately)
SH-080528ENG
(1D7M23)
GOT1000 Series Connection Manual
(Mitsubishi Products) for GT Works3
(Sold separately)
SH-080868ENG
(1D7MC2)
Relevant Manuals

A-9
Compliance with the new China RoHS directive
GOT 相关的基于 “ 电器电子产品有害物质限制使用管理办法 ” 要求的表示方法
含有有害 6 物质的名称、含有量、含有部件
本产品中所含有的有害 6 物质的名称、含有量、含有部件如下表所示。
产品中有害物质的名称及含量
本表格依据 SJ/T11364 的规定编制。
○ : 表示该有害物质在该部件所有均质材料中的含量均在 GB/T26572 规定的限量
要求以下。
× : 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T26572 规定
的限量要求。
Referenced Standard: GB/T15969.2
(Requirement of Chinese standardized law)
Packing List
The following items are included.
Note: This symbol mark is for China only.
部件名称
有害物质
铅
（Pb）
汞
（Hg）
镉
（Cd）
六价铬
（Cr(VI)）
多溴联苯
（PBB）
多溴二苯醚
（PBDE）
电路板组件 × ○ ○ ○ ○ ○
树脂壳体、电缆、膜材 ○ ○ ○ ○ ○ ○
钣金部件、螺丝等金属部件 × ○ ○ ○ ○ ○
Model Product Quantity
GT15-J71GP23-SX
CC-Link IE Controller Network
communication unit 1
Mounting screw set (4 screws, 4 stickers) 1
Extension interface relay board 1
GOT2000/GOT1000 Series CC-Link IE
Controller Network Communication Unit
User's Manual (This manual)
1

1
1. OVERVIEW
This user's manual describes the GOT2000/GOT1000 series CC-Link IE
Controller Network communication unit (hereinafter referred to as the CC-Link IE
communication unit).
The CC-Link IE communication unit allows the GOT2000 or GOT1000 series to
function as a normal station on the CC-Link IE Controller Network.
Refer to the User's Manual for the GOT used for GOT to which this unit can be
installed.
2. SPECIFICATIONS
The performance specifications of the CC-Link IE communication unit are
indicated below.
The general specifications of the CC-Link IE communication unit are the same as
those of the GOT.
For the general specifications of the GOT, refer to the User's Manual for the GOT
used.
When using the CC-Link IE Controller Network connection, make the
communication setting to perform communication with programmable
controllers.
For the details of the CC-Link IE Controller Network connection, refer to the
GOT2000 or GOT1000 Series Connection Manual (Mitsubishi Products).
Item Specification
Max. link points
per network
LB 32K points (32768 points, 4KB)
LW 128K points (131072 points, 256KB)
LX 8K points (8192 points, 1KB)
LY 8K points (8192 points, 1KB)
Max. link points
per station
LB 16K points (16384 points, 2KB)
LW 16K points (16384 points, 32KB)
LX 8K points (8192 points, 1KB)
LY 8K points (8192 points, 1KB)
Transient transmission
capacity Up to 1920 bytes
Communication speed 1Gbps
Communication method Token ring
Number of stations per
network
Up to 120 stations
(Control station: 1, Normal station: 119)
Connection cable Fiber-optic cable (Multi-mode fiber) *1
( CC-Link IE Controller Network Reference Manual)

2
*1 : Please note that use of a fiber-optic cable requires the expertise,
special tools and dedicated connector for connection. Please
contact your local Mitsubishi Electric System & Service Co., Ltd. or
representative, for the purchase of the required items.
Overall cable distance 66000m (When 120 stations are connected)
Station-to-station
distance (Max.) 550m (Core/Clad = 50/125 ( m))
Max. number of
networks 239
Max. number of groups 32
Transmission path Duplex loop
Optical fiber
specifications 1000BASE-SX(MMF) fiber-optic cable
Standard IEC60793-2-10 Types A1a.1 (50/125 m multimode)
Transmission
loss (max.) 3.5 (dB/km) or less ( = 850nm)
Transmission
band (min.) 500 (MHz•km) or more ( = 850nm)
Connector specifications Duplex LC connector
Standard IEC61754-20: Type LC connector
Connection
loss 0.3 (dB) or less
Polished
surface PC (Physical Contact) polishing
Internal current
consumption 1.07A
Weight 0.28kg (0.62lb)
Item Specification

3
3. PART NAMES
The following describes part names and descriptions of the CC-Link IE
communication unit.
No. Name Description
1) Indicator LED
Indicates the operating status of the CC-Link IE communication
unit.
( (1) in this section)
2) Connector (IN side,
OUT side)
Connector for connecting a fiber-optic cable
( (2) in this section)
3) Interface connector Extension connector installed to a front extension unit or the GOT
4) Extension
connector Extension connector to which a back extension unit is installed
5) Board fixing screw Screws for fixing the extension interface relay board
6) Mounting screw Mounting screws fixed with a front extension unit or the GOT
7) Rating plate -
1)
7)
5)
4)
3)
2)
3)
6)
6)

4
(1) Indicator LED
A LED indicates the status of the CC-Link IE communication unit and the
communication status.
When the LED is lighted up, there are two display formats, one for the
normal mode and the other for the error mode.
(1) Normal mode
If any communication error occurs in the normal mode, specify the
error cause by the [NETWK unit status display] screen of the GOT
utility.
Refer to the User's Manual for the GOT used for details on the
[NETWK unit status display] screen.
(2) Error mode
When the RUN LED is blinking, the LED display format is the error
mode.In the error mode, if an error occurs, restart the GOT.
If the error mode is not released after restarting the GOT, the system
alarm "460 Communication unit error" may occur.
For system alarms, refer to the User's Manual for the GOT used.
LED name Status Description
RUN Off The GOT is being reset.
On The unit is in a normal status.
SD Off Not sending data
On Sending data
RD Off Not receiving data
On Receiving data
ERR. Off Normal status
On Communication error
LED name Status Description
RUN Blinking Shows that it is in the error mode.
On or off No error
RD Off No hardware failure
On Hardware failure
ERR. Off No starting error
On Starting error

5
(2) Connector (IN side, OUT side)
IN Forward loop, receiving
IN Reverse loop, sending
OUT Reverse loop, receiving
OUT Forward loop, sending
OUT IN

6
4. INSTALLATION PROCEDURE
The installation procedure for the CC-Link IE communication unit is
explained using the GT1575.
(1) Power off the GOT.
(2) Remove two extension unit covers of the GOT.
(3) Attach the extension interface relay board to the extension interface 2 on
the GOT.
After the installation, detach the connector cover from the extension
interface relay board.
For the following GOT types, the extension interface relay board is not
needed.
•GT1655,GT155 of the GOT1000 series
•GT27,GT25 of the GOT2000 series
(4) Fit the CC-Link IE communication unit in the GOT case.
(5) Fix the CC-Link IE communication unit by tightening its mounting screws
(4 places) with a tightening torgue of 0.36 to 0.48 N•m.
4) 3)
Remove the connector cover.

7
(6) Fix the CC-Link IE communication unit by tightening two board fixing
screws with a tightening torque of 0.36 to 0.48 N•m.
(7) When installing an extension unit on the unit that has been installed,
remove the connector cover and the stickers.
When not installing an extension unit on the unit that has been installed,
in order to avoid receiving electrostatic, stick accessory stickers to cover
the top of mounting screws (4 places).
Keep the connector cover fixed.
Keep the accessory sticker stuck.
Point
Remove the screws that fixes the extension interface relay board before removing the unit.
(Above (6))
6)5)
Sticke
r
Accessory sticker
Accessory sticker
Connector cover

8
5. PRECAUTIONS FOR WIRING CABLES
(1) Wire fiber-optic cables described in the following manual.
• CC-Link IE Controller Network Reference Manual
(2) For connecting fiber-optic cables to the unit, the bending radius of the
cables must be within the specified range.
For the details, check the specifications of the cables to be used.
(3) When wiring a fiber-optic cable, do not touch the fiber core of the cable
connector or unit connector, or let dirt or dust collect on it.
If oil from the hands, dirt or dust should adhere to the core, the
transmission loss will increase, causing a malfunction in the data link.
(4) When connecting or removing the fiber-optic cables to/from the unit, hold
the cable connector securely with the hands.
(5) Connect the cable connector and unit connector securely until you hear a
"click" sound.
(6) For connecting or removing the fiber-optic cables, be sure to shut off all
phases of the external power supplies used in the system.
(7) Please wire IN/OUT of the connector for the cable correctly.
After wiring, perform a loop test or station-to-station test or others to
confirm if the setting and wiring of CC-Link IE communication unit have
been done properly.
For testing methods, refer to the following manual.
• CC-Link IE Controller Network Reference Manual
Miswiring may cause the following and others.
• Baton passing error
• No loopback at any stations
• Failed station that cannot reconnect to the network with reclosing
the power

9
6.WIRING METHOD
(1) Connection method
Connect fiber-optic cables between OUT and IN side connectors as
shown below.
Note that there is no need to connect the cables in the order of
station numbers.
(2) Connecting fiber-optic cable
(3) Disconnecting fiber-optic cable
Control station
Station No.1
Power supply module
CPU module
Normal station
Station No.2
Normal station
Station No.n
CC-Link IE Controller Network module
Power supply module
CPU module
CC-Link IE
communication unit
IN OUT IN OUT
IN
OUT
n 120
Connector hook
CC-Link IE
communication uni
t
Unit-side
connector
Cable-side
connector
Connection
Connect the cable-side connector to
the module-side connector, paying
attention to the orientation.
Push it until a “click” is heard.
Lightly pull it to check that it is
securely connected.
Completed
Turn the power off.
CC-Link IE
communication uni
t
Unit-side
connector
Cable-side
connector
Connector hook
Completed
Disconnection
Press the connector hook to
disconnect the cable.
Turn the power off.

10
7. EXTERNAL DIMENSIONS
(1) CC-Link IE communication unit
Unit:mm (inch)
Dimensions of X when the CC-Link IE communication unit is mounted to the GOT.
GOT GT27 GT25 GT16 GT15
15" 37(1.46) - 33.5(1.32) 35(1.38)
12.1" 37(1.46) 37(1.46) 32(1.26) 32(1.26)
10.4" 37(1.46) 37(1.46) 35(1.38) 35(1.38)
8.4" 37(1.46) 37(1.46) 37(1.46) 37(1.46)
5.7" 37(1.46) - 37(1.46) 37(1.46)
133(5.24) 3
(0.12)
98(3.86)
2.5
(0.10)
2
(0.08)
35(1.38)
44(1.73)
11.5
(0.45)
15.5
(0.61)
23.5
(0.93)
3
(0.12)
15
(0.59)
120(4.72)
X
GOT
main unit
Unit : mm(inch)
