Mitsubishi Electric PAC-SF44SRA User manual

Building Air Conditioning Control System
System Remote Controller PAC-SF44SRA
Schedule Timer PAC-YT34STA
ON/OFF Remote Controller PAC-YT40ANRA
Installation Manual
This manual describes only the installation of the System Controller, capable of managing and controlling air conditioners, and LOSSNAY. Refer to
the installation manuals enclosed with the air conditioner for details on wiring and installing the air conditioner unit.
To ensure safety, always read below before starting installation.

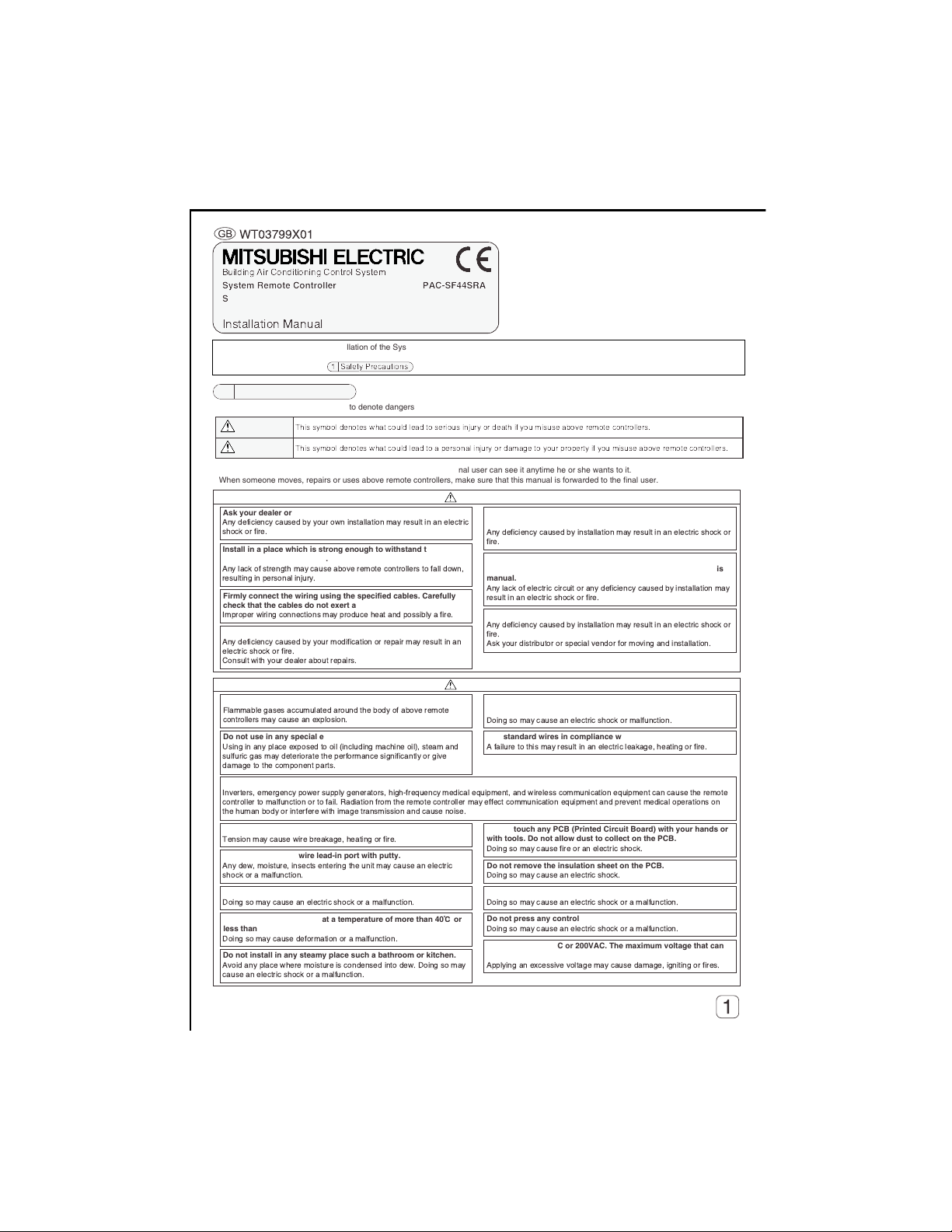

1 Safety Precautions
1 Safety Precautions
• The following two symbols are used to denote dangers that may be caused by incorrect use and their degree:
WARNING
CAUTION
This symbol denotes what could lead to serious injury or death if you misuse above remote controllers.
This symbol denotes what could lead to a personal injury or damage to your property if you misuse above remote controllers.
• After reading this installation manual, keep it in a place where the final user can see it anytime he or she wants to it.
When someone moves, repairs or uses above remote controllers, make sure that this manual is forwarded to the final user.
Ask your dealer or technical representative to install the unit.
Never modify or repair above remote controllers.
Do not move and re-install above remote controllers yourself.
Do not install in any place exposed to flammable gas leakage.
Using in any place exposed to oil (including machine oil), steam and
sulfuric gas may deteriorate the performance significantly or give
damage to the component parts.
Doing so may cause an electric shock or malfunction.
A failure to this may result in an electric leakage, heating or fire.
Wire so that it does not receive any tension.
Tension may cause wire breakage, heating or fire.
Do not touch any control button with your wet hands.
Doing so may cause an electric shock or a malfunction.
Doing so may cause deformation or a malfunction.
WARNING
CAUTION
Do not wash with water.
Doing so may cause an electric shock or a malfunction.
mproper wiring connections may produce heat and possibly a fire.
When installing the remote controller in a hospital or communication facility, take ample countermeasures against noise.
Do not touch any PCB (Printed Circuit Board) with your hands or
with tools. Do not allow dust to collect on the PCB.
Doing so may cause fire or an electric shock.
Do not install in any steamy place such a bathroom or kitchen.
Do not remove the insulation sheet on the PCB.
Doing so may cause an electric shock.
Do not press any control button using a sharp object.
Doing so may cause an electric shock or a malfunction.
Never apply 100VAC or 200VAC. The maximum voltage that can
be applied on this unit is 30VDC.
Applying an excessive voltage may cause damage, igniting or fires.
Completely seal the wire lead-in port with putty.
Any dew, moisture, insects entering the unit may cause an electric
shock or a malfunction.
Any deficiency caused by your own installation may result in an electric
shock or fire.
Install in a place which is strong enough to withstand the weight
of above remote controllers.
Any lack of strength may cause above remote controllers to fall down,
resulting in personal injury.
Firmly connect the wiring using the specified cables. Carefully
check that the cables do not exert any force on the terminals.
Any deficiency caused by your modification or repair may result in an
electric shock or fire.
Consult with your dealer about repairs.
Ensure that installation work is done correctly following this
installation manual.
Any deficiency caused by installation may result in an electric shock or
fire.
All electrical work must be performed by a licensed technician,
according to local regulations and the instructions given in this
manual.
Any lack of electric circuit or any deficiency caused by installation may
result in an electric shock or fire.
Any deficiency caused by installation may result in an electric shock or
fire.
Ask your distributor or special vendor for moving and installation.
Flammable gases accumulated around the body of above remote
controllers may cause an explosion.
Do not use in any special environment.
Do not install in any place where acidic or alkaline solution or
special spray are often used.
Use standard wires in compliance with the current capacity.
nverters, emergency power supply generators, high-frequency medical equipment, and wireless communication equipment can cause the remote
controller to malfunction or to fail. Radiation from the remote controller may effect communication equipment and prevent medical operations on
the human body or interfere with image transmission and cause noise.
Do not install in any place at a temperature of more than 40; or
less than 0; or exposed to direct sunlight.
Avoid any place where moisture is condensed into dew. Doing so may
cause an electric shock or a malfunction.


Confirm that the box includes the following parts, in addition to this installation manual:
(1) Remote controller (Body, lower case) ........................................................
(2) Cable for external input (5 wire) .................................................................
(3) Cable for external output (4 wire)...............................................................
(4) Cross recessed pan head screw (M4 ×30) ...............................................
(5) Wood screw (4.1 ×16, used for directly hooking to the wall).....................
(6) Room name label or room name record sheet...........................................
(7) Operation Manual.......................................................................................
2 Confirming the Supplied Parts
Remote
controller
lower case
Remote
controller
body
NOTE: The remote control cord is not supplied with the product.
Prepare electrical wiring that conforms to the specifications given below.
Electrical wiring specification (CVVS)
Use 1. 5mm cable for any extension that exceeds 10m.
¥ 10m or shorter : 0.75mm two-wire cable
¥ Longer than 10m : 1. 5mm two-wire cable
Remote controller wiring entry points can support electrical
wiring of maximum 1. 5mm .
However 0.75mm electrical wiring is recommended for use.
3 System Configurations
(Refer to the "System Design and Work Manual" for the outdoor unit for details.)
Central management
transmission line
Indoor and
outdoor transmission line
Interlocked operation
with ventilation unit
Indoor unit
LOSSNAY
(independent/
interlocked)
M NET remote controller
Outdoor unit
(1) When connecting to a central management transmission line
A power supply unit (PAC-SC34KUA) is required.
* The power consumption of the system controller, schedule timer and group remote controller is half of the ON/OFF remote
controller. Thus, interpret the power consumption per unit as half of the ON/OFF remote controller.
Power supply unit
PAC-SC34KUA
Number of connected system controllers
1to5units
ON/O remote controller
1to10units
System remote controller
schedule timer
group remote controller
Schedule timer
PAC-YT34STA
ON/OFF
remote controller
PAC-YT40ANRA
[051]
CN41
Leave as is
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
Group 2
[003]
[002]
[001]
[005]
[004]
[006] [007]
[009]
[101] [102] [103]
[105] [106] [107]
[201] [202] [203]
Group 1 Group 3
Group 4 Group 7 Group 6Group 5
System
remote controller
PAC-SF44SRA
[008]
[108]
Power supply unit
Model: PAC-SC34KUA
[052]
CN41
TB7 TB3
1
SW2-1[ON]
* Outdoor unit
: SW position
ON
OFF
234 5678910
Leave as is
* Number of units that can be supplied with power supply unit (For above system)
One system remote controller One schedule timer One ON/OFF remote controller
1×1/2 + 1×1/2 + 1×1 = 2 (unit)
1
1
1
2
2
1
1

!

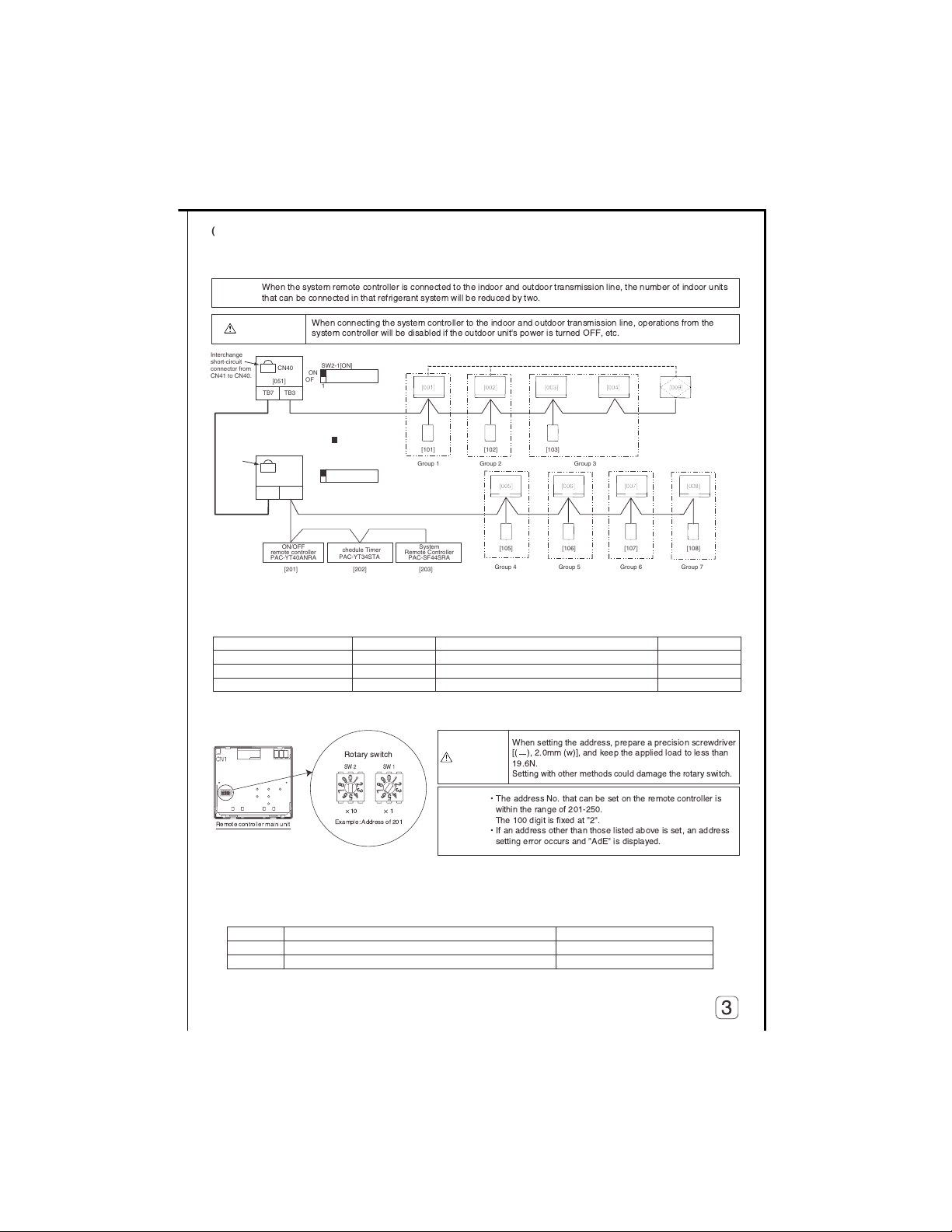

(2) When connecting to indoor and outdoor transmission line
Up to three system controllers can be connected to the M-NET transmission line's indoor and outdoor transmission line.
A power supply unit is not required in this case, but the short-circuit connector of one of the connected outdoor units must be
connected to CN40.
(3) Setting the various M-NET addresses
The need for address settings and the address setting range will differ according to the system configuration. (The address can-
not be set in duplicate).
(4) Setting the system controller address
(5) When using with master system controller
When connecting multiple system controllers, the system controller with many functions is designated as the "master", and the
system controllers with few functions are designated as the "slaves". The "master/slave" functions of the system controller used
together are as follows.
The functions have a priority in order of G50A (MJ-103MTRA) > PAC-SF44SRA > PAC-YT34STA > PAC-YT40ANRA > PAC-SC30GRA > LMAP02-E.
NOTE :
CAUTION
When the system remote controller is connected to the indoor and outdoor transmission line, the number of indoor units
that can be connected in that refrigerant system will be reduced by two.
When connecting the system controller to the indoor and outdoor transmission line, operations from the
system controller will be disabled if the outdoor unit's power is turned OFF, etc.
Schedule Timer
PAC-YT34STA
ON/OFF
remote controller
PAC-YT40ANRA
Group 2
[003][002][001]
[005]
[004]
[006] [007]
[009]
[101] [102] [103]
[105] [106] [107]
[201] [202] [203]
Group 1 Group 3
Group 4 Group 7Group 6Group 5
System
Remote Controller
PAC-SF44SRA
[008]
[108]
[051]
CN40
Interchange
short-circuit
connector from
CN41 to CN40.
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
* Outdoor unit
: SW position
[052]
CN41
Leave as is
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
System controller
Address setting range
201 to 250
201 to 250
201 to 250
Setting method
Random within address range shown on left
Random within address range shown on left
Set to the minimum group No. to be controlled + "200"
System remote controller
Schedule timer
ON/OFF remote controller
Default address setting
201
202
201
Rotary switch
SW 2 SW 1
10 1
Example: Address of 201
Remote controller main unit
NOTE :
CAUTION
When setting the address, prepare a precision screwdriver
[( ), 2.0mm (w)], and keep the applied load to less than
19.6N.
etting with other methods could damage the rotary switch.
¥ The address No. that can be set on the remote controller is
within the range of 201-250.
The 100 digit is fixed at "2".
¥ If an address other than those listed above is set, an address
setting error occurs and "AdE" is displayed.
Master side
Slave side
System remote controller (44SRA)/Schedule timer (34STA)
SW3-1: OFF
SW3-1: ON
ON/OFF remote controller (40ANRA)
SW4-1: OFF
SW4-1: ON
* The switch is set to "Master" as the factory setting.

"
When using the external input and output functions, use the external input and output cables provided with the remote controller.
(5 wire cable for input and 4 wire cable for output are provided.)
1. External signal input function
(1) External Input
Emergency stop/Normal, ON/OFF and Prohibit/Permit local remote controller operation control can be applied to all units
being controlled by inputting the no-voltage contact signal from an external source.
(2) Level signal and pulse signal
(3) External input specification
(4) Example of a recommended circuit
•The relays and extension cables, etc. must be prepared separately at the site.
•Use a no-voltage contact and minute load relay (minimum application load 5VDC-1mA).
•The length of the connection cable extension should not exceed 10m. (Use a cable of 0.3mm2or thicker.)
•Cut of the cable not being used close the connector and properly insulate the cut off ends with tape or the like.

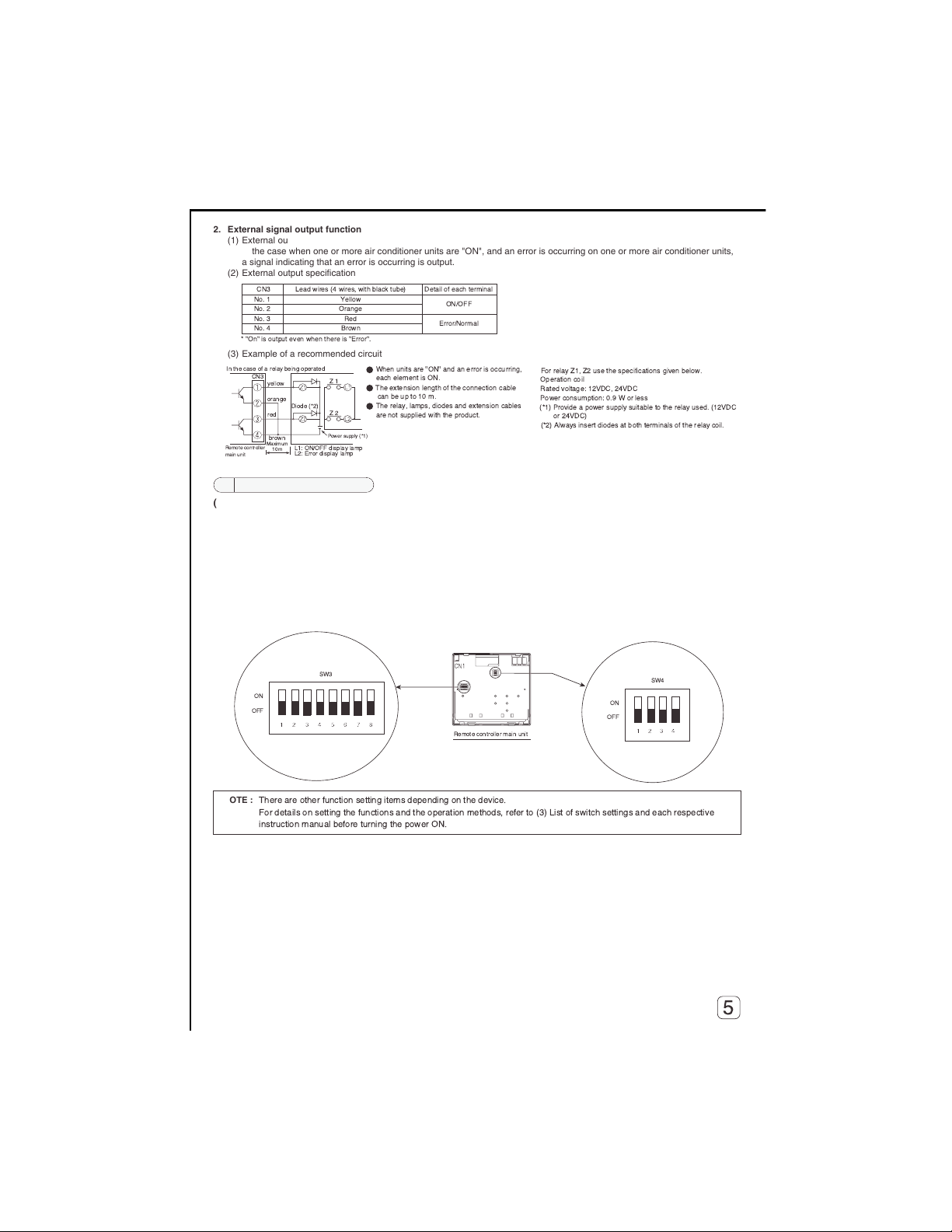

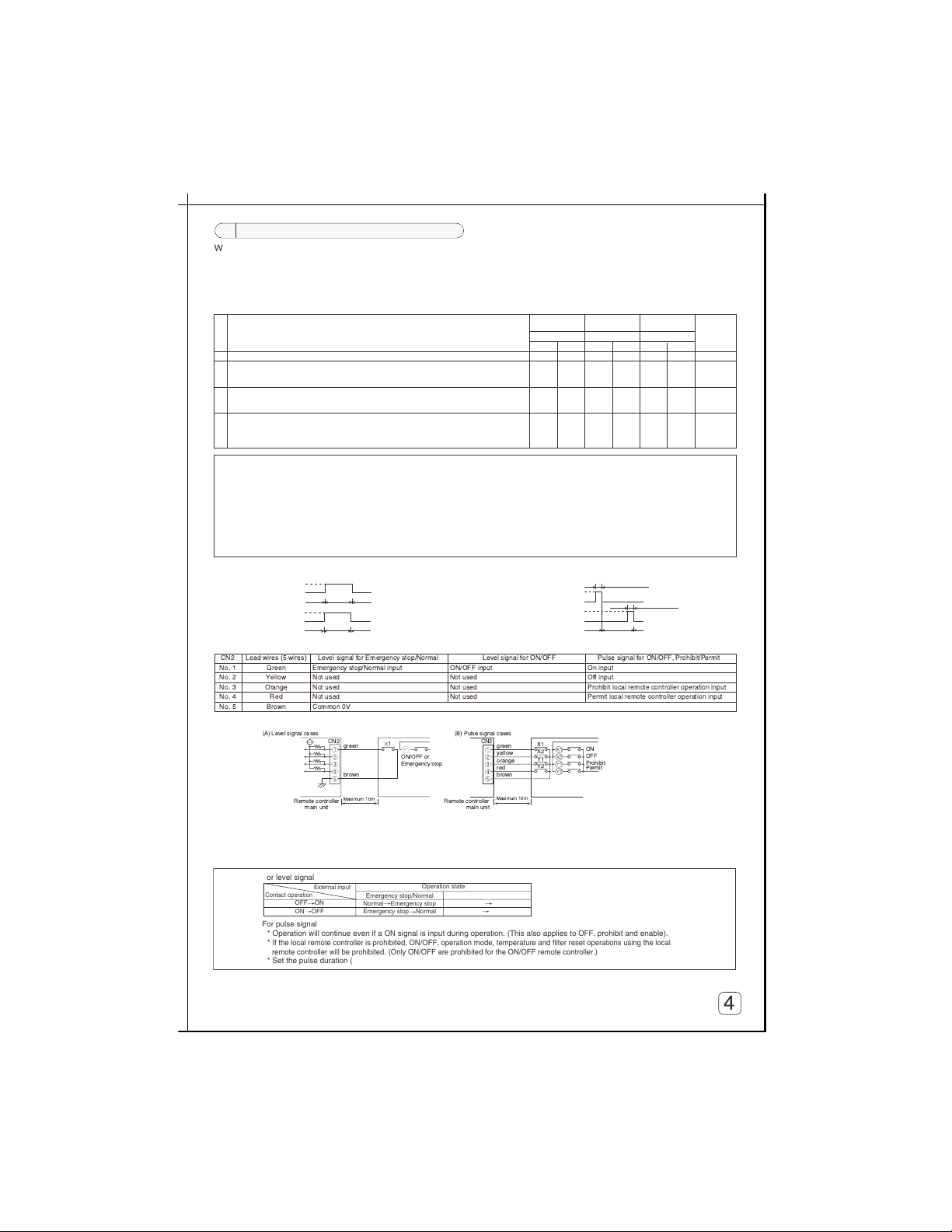

4 Using the External Input and Output
No.
1
2
3
4
Do not use external input
Change between Emergency stop/Normal.
Set ON/OFF
Set ON/OFF and Prohibit/Permit.
Input state
—
ON/OFF remote
controller
SW4
2
Schedule timer
SW3
233
OFF OFFOFF OFF
Level input
Level input
Pulse input
(0.5sec or more)
OFF
ON
ON
ON
OFF
ON
System remote
controller
SW3
23
OFF OFF
OFF
ON
ON
ON
OFF
ON
OFF
ON
ON
ON
OFF
ON
External input signal functions
All units will stop with the external input,and all operations of this unit,other system controllers and
local remote controller will be prohibited.
All units will turn ON/OFF according to the input state. ON/OFF operations using this unit and the
local remote controller will be prohibited when using this function.
All units are started or stopped, or all local remote controller operations are prohibited according to
the input state. When prohibit is input, the local remote controller’s ON/OFF, operation mode, set
temperature and filter reset operations will be prohibited. Operation with this system will be enabled.
NOTE : For System remote controller and Schedule timer
* If the SW3-4 "operation prohibit setting changeover" is set to "OFF (disable)", use is possible only for emergency stop.
* If the SW3-5 "operation prohibit range setting changeover" is set to "ON (including system controller), operations of the local remote
controller and other system controllers will be prohibited by the prohibit input. If set to "OFF (only local remote controller)", operation
of only the local remote controller will be prohibited. (When the level "emergency stop" or "ON/OFF" is input, operation of the other
system controllers will also be prohibited regardless of the switch setting.)
For ON/OFF remote controller
* All units are stopped when emergency stop is input, and ON/OFF operations of this unit, other system controllers and local remote
controller will be prohibited.
* Only ON/OFF of the local remote controller will be prohibited with the prohibit input.
Contact ON
Contact OFF
Contact ON
Contact OFF
Contact ON
Contact OFF
Contact ON
Contact OFF
OFF OFFON
Normal Normal
Emergency
STOP OFF OFFON
(A) Level signal (B) Pulse signal
0.5sec or more
0.5sec or more
(Example) Case of ON/OFF signal
Signal 1 (ON)
Signal 2 (OFF)
* The same applies to Prohibit/Permit.
       
 
 
 



 
 
 


 !! 
"# $

#

%

&'
&'
('
(

!!
)

CN2
No. 1
No. 2
No. 3
No. 4
No. 5
Lead wires (5 wires)
Green
Yellow
Orange
Red
Brown
Level signal for Emergen y stop/Normal
Emergen y stop/Normal input
Not used
Not used
Not used
Common 0V
Level signal for ON/OFF
ON/OFF input
Not used
Not used
Not used
Pulse signal for ON/OFF, Prohibit/Permit
On input
Off input
Prohibit lo al remote ontroller operation input
Permit lo al remote ontroller operation input
For level signal
Contact operation
OFF ON
Operation state
Emergency stop/Normal
Normal Emergency stop
Emergency stop Normal
ON OFF
External input
For pulse signal
* Operation will continue even if a ON signal is input during operation. (This also applies to OFF , prohibit and enable).
* If the local remote controller is prohibited, ON/OFF, operation mode, temperature and filter reset operations using the local
remote controller will be prohibited. (Only ON/OFF are prohibited for the ON/OFF remote controller.)
* Set the pulse duration (contact ON time) to 0.5sec or more.
ON/OFF
OFF ON
ON OFF
NOTE :

#
(1) Setting local remote controller operation prohibit function from this controller
(excluding ON/OFF remote controller)
When connecting several system controllers, and setting the "local remote controller operation prohibit"
function from this controller, set this controller's SW3-4 "operation prohibit setting changeover" to "ON (permit)".
(2) Changing set temperature display to "Fahrenheit display" (excluding ON/OFF remote controller)
To prohibit the operation of a system controller other than this system when local remote controller operation prohibit is set from
this system, set SW3-5 "operation prohibit range setting changeover" to "ON (including system controller)".
5 Setting the functions
[System remote controller (SF44SRA)
/Schedule timer (YT34STA)]
[ON/OFF remote controller (YT40ANRA)]
SW3
1234
SW4
ON
OFF
ON
OFF
Remote controller main unit
12345678
NOTE : There are other function setting items depending on the device.
For details on setting the functions and the operation methods, refer to (3) List of switch settings and each respective
instruction manual before turning the power ON.
In the case of a relay being operated
Maximum
10m
Remote controller
main unit
CN3 yellow
orange
red
Diode ( 2)
Power supply ( 1)
L1: ON/OFF display lamp
L2: Error display lamp
Z1
Z2
brown
Operation coil
Rated voltage: 12VDC, 24VDC
Power consumption: 0.9 W or less
When units are "ON" and an error is occurring,
each element is ON.
The extension length of the connection cable
canbeupto10m.
The relay, lamps, diodes and extension cables
are not supplied with the product.
For relay Z1, Z2 use the specifications given below.
( 1) Provide a power supply suitable to the relay used. (12VDC
or 24VDC)
( 2) Always insert diodes at both terminals of the relay coil.
CN3
No. 1
No. 2
No. 3
No. 4
Lead wires (4 wires, with black tube)
Yellow
Orange
Red
rown
Detail of each terminal
ON/OFF
Error/Normal
* "On" is output even when there is "Error".
2. External signal output function
(1) External output
In the case when one or more air conditioner units are "ON", and an error is occurring on one or more air conditioner units,
a signal indicating that an error is occurring is output.
(2) External output specification
(3) Example of a recommended circuit

(3) List of switch settings
System remote controller (SF44SRA)
Name Switch NO. Setting methodFunction
SW3-1 OFF
ON
Master SC setting
Slave SC setting
To set system controller as master
To set system controller as slave
External input function changeover SW3-2, 3
Operation prohibit range setting changeover
SW3-5
Set the range to control the operation prohibit functions used with this system.
ON
OFF
Including system controller
Only local remote controller To prohibit operation of only the local remote controller
To prohibit operation of the local remote controller
and other system controllers
Not used SW3-7
Not used SW3-8
OFF
OFF
OFF
OFF
OFF
OFF
System controller master/slave
setting changeover
Default
setting
1
2
3
4
2
SW3 External input signal function
Do not use external inputs
Change between emergency stop/normal
Input state
Level input
Set ON/OFF Level input
Set ON/OFF, prohibit/enable
Pulse input (0.5sec or more)
OFF
OFF
ON
ON
3
OFF
ON
OFF
ON
No.
Operation prohibit setting changeover
* Valid only when SW3-4 is ON
SW3-4 Set the local remote controller operation prohibit functions
ON
OFF
Operation prohibit enable
Operation prohibit use disable To not use this system's operation prohibit function
To use this system's operation prohibit function
Schedule timer (YT34STA)
Name Switch NO. Setting methodFunction
SW3-1 OFF
ON
Master SC setting
Slave SC setting
To set system controller as master
To set system controller as slave
OFF
ON
Celsius display
Fahrenheit display
To display set temperature as Celsius ( ; )
To display set temperature as Fahrenheit ( , )
External input function changeover SW3-2, 3
Operation prohibit range setting changeover
SW3-5
Set the range to control the operation prohibit functions used with this system.
ON
OFF
Including system controller
Only local remote controller To prohibit operation of only the local remote controller
To prohibit operation of the local remote controller
and other system controllers
Set temperature display changeover SW3-6
OFF
OFF
OFF
OFF
OFF
System controller master/slave
setting changeover
Default
setting
1
2
3
4
2
SW3 External input signal function
Do not use external inputs
Change between Emergency stop/Normal
Input state
Level input
Set ON/OFF Level input
Set ON/OFF, prohibit/permit
Pulse input (0.5sec or more)
OFF
OFF
ON
ON
3
OFF
ON
OFF
ON
No.
Operation prohibit setting changeover
* Valid only when SW3-4 is ON
SW3-4 Set the local remote controller operation prohibit functions
ON
OFF
Operation prohibit enable
Operation prohibit use disable To not use this system's operation prohibit function
To use this system's operation prohibit function
OFFNot used SW3-7
OFFNot used SW3-8
ON/OFF remote controller (YT40ANRA)
Name Switch NO. Setting methodFunction
SW4-1 OFF
ON
Master SC setting
Slave SC setting
To set system controller as master
To set system controller as slave
External input function changeover SW4-2, 3
OFF
OFF
System controller master/slave
setting changeover
Default
setting
1
2
3
4
2
SW4 External input signal function
Do not use external inputs
Change between Emergency stop/Normal
Input state
Level input
Set ON/OFF Level input
Set ON/OFF, prohibit/permit
Pulse input (0.5sec or more)
OFF
OFF
ON
ON
3
OFF
ON
OFF
ON
No.
$

%
(1) Choose a location in which to install the system remote controller (electric
box) in accordance with the following requirements:
qThe space as shown in the diagram at right is required whether the controller is installed
on the wall or in the electric box.
wProcure the following parts locally.
• Electric box for two units
• Thin-copper wiring pipe
• Locknut and bushing
(2) Seal the remote controller cord lead-in with putty in order to prevent the possible entry of dew, water
droplets, other insects.
• When fitting to the electric box, seal the join
between the electric box and the wiring con-
duit with putty.
(3) Install the lower case on the electric box or directly on the wall.
6 How To Install
• When cutting a hole in the wall for the remote controller cord (when the
remote controller cord exits from the rear of the remote controller), seal this
hole in the same way.
• When fitting directly to the wall as in 3, seal the cut-out in the upper case
with putty.
When using the electric box
When fitting directly on the wall
Bushing
Wall
Remote controller cords
Wiring pipe
Lock nut
Electric box
Seal with putty.
Remote controller cord
Seal with putty.
Seal with putty.
Cord Taken Through Rear of Remote Controller Cord Taken Through Top of Remote Controller
External size
of remote controller
Extra space around
remote controller
30 30
120 30
When using the electric box
When installing directly on the wall
Electric box
for two units
Remote controller cord
See (4) below
Cross recessed pan
head screws
Connects to CN1
of the remote controller
main unit Refer to (6)
External output cable (4 wire)
Connects to CN3
External input cable (5 wire)
Connects to CN
Seal the cord lead-in hole with putty or silicon rubber.
See ( ) above
In the case where external input
and output functions are used
Push open the knock-outs
covering the entry points for the
external input and output cables
on the lower case and thread the
external input and output cables
as described on the left.
External input
cable entry point External output cable
entry point
Remote controller cord
See (4) below Wood screw
Connects to CN1 of
the remote controller
main unit Refer to (6)
NOTE :
Over-tightening the screws may result in deformation or cracking of the lower case.
CAUTION
¥ Choose a flat plane for installation.
¥ Fasten the electric box at more than two places when installing directly on the wall.

&
(4) Connect the remote controller cord to the terminal block on the lower case.
Install wiring correctly in accordance with the diagram below.
No polarity
Remote controller cord procured locally.
(5) Wiring hole for fitting directly on the wall (For exposed wiring)
Remote Controller cord
• Cut off the shaded area from the upper cover using a knife, nippers, etc.
• Take out the remote control cord connected to the terminal block via this portion.
External input/output cables (Only in the case when using external input and output functions directly connected to the wall)
• Using a suitable knife or cutting implement, cut and remove the thin walled part on the left and right side of the remote con-
troller main unit.
CN2 side: For external input cable CN3 side: For external output cable
• Insert the external input/output cables through these points.
(6) Connect the lower case connector to connector CN1 on the upper case.
When using the extemal input and output function, also connect the extemal input cable connector (5 wire) to CN2 and connect
the extemal output cable connector (4 wire) to CN3.
(7) Mount the remote controller main unit.
The first, hook the two upper claws and then fit it as shown in the diagram at right.
When the external input and output functions are used and the lower case cable entry points are
being used, mount the remote controller main unit while pushing the external input/output cables
to the electric box side.
(Push towards the electric box sides from the lower case until the cable sheath part is reached.)
To remove the remote controller body, insert a minus screwdriver into one of the open slots
and move it in the direction of the arrow as shown in the diagram at right.
Initial settings is necessary before test run. Consult the Instruction Book for details of initial settings.
Please perform a test run of each air conditioning unit with the local remote controller.

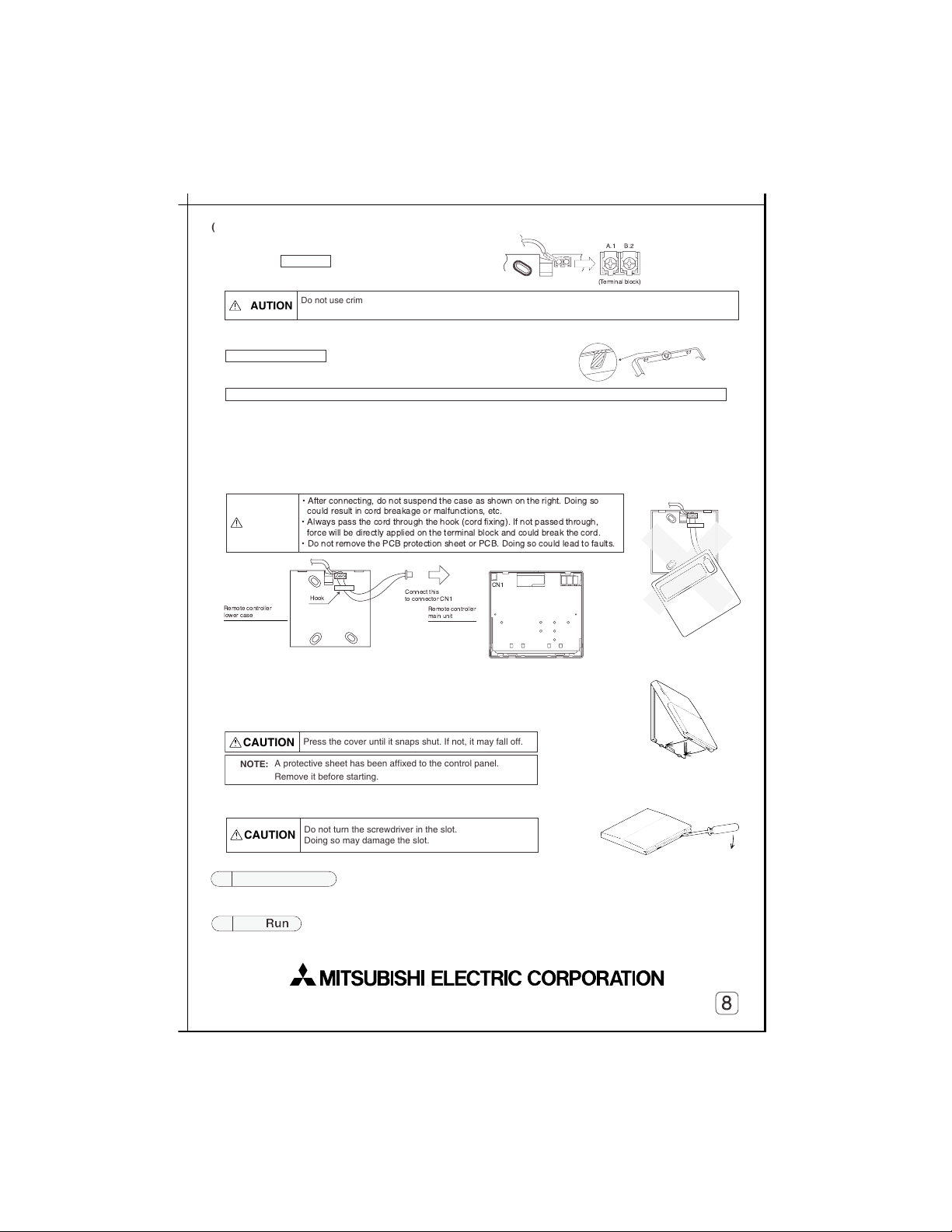

A.1 B.2
(Terminal block)
CAUTION Do not use crimp terminals to connect to remote controller terminal blocks. It connects to the circuit board and
will cause trouble.
CAUTION
¥ After connecting, do not suspend the case as shown on the right. Doing so
could result in cord breakage or malfunctions, etc.
¥ Always pass the cord through the hook (cord fixing). If not passed through,
force will be directly applied on the terminal block and could break the cord.
¥ Do not remove the CB protection sheet or CB. Doing so could lead to faults.
Remote controller
lower case
Hook Connect this
to connector CN1
Remote controller
main unit
CN1
7 Initial Settings
8 Test Run
NOTE:
Remove it before starting.
Press the cover until it snaps shut. If not, it may fall off.
CAUTION
A protective sheet has been affixed to the control panel.
CAUTION Do not turn the screwdriver in the slot.
Doing so may damage the slot.

PAC-SF44SRA
PAC-YT34STA
PAC-YT40ANRA

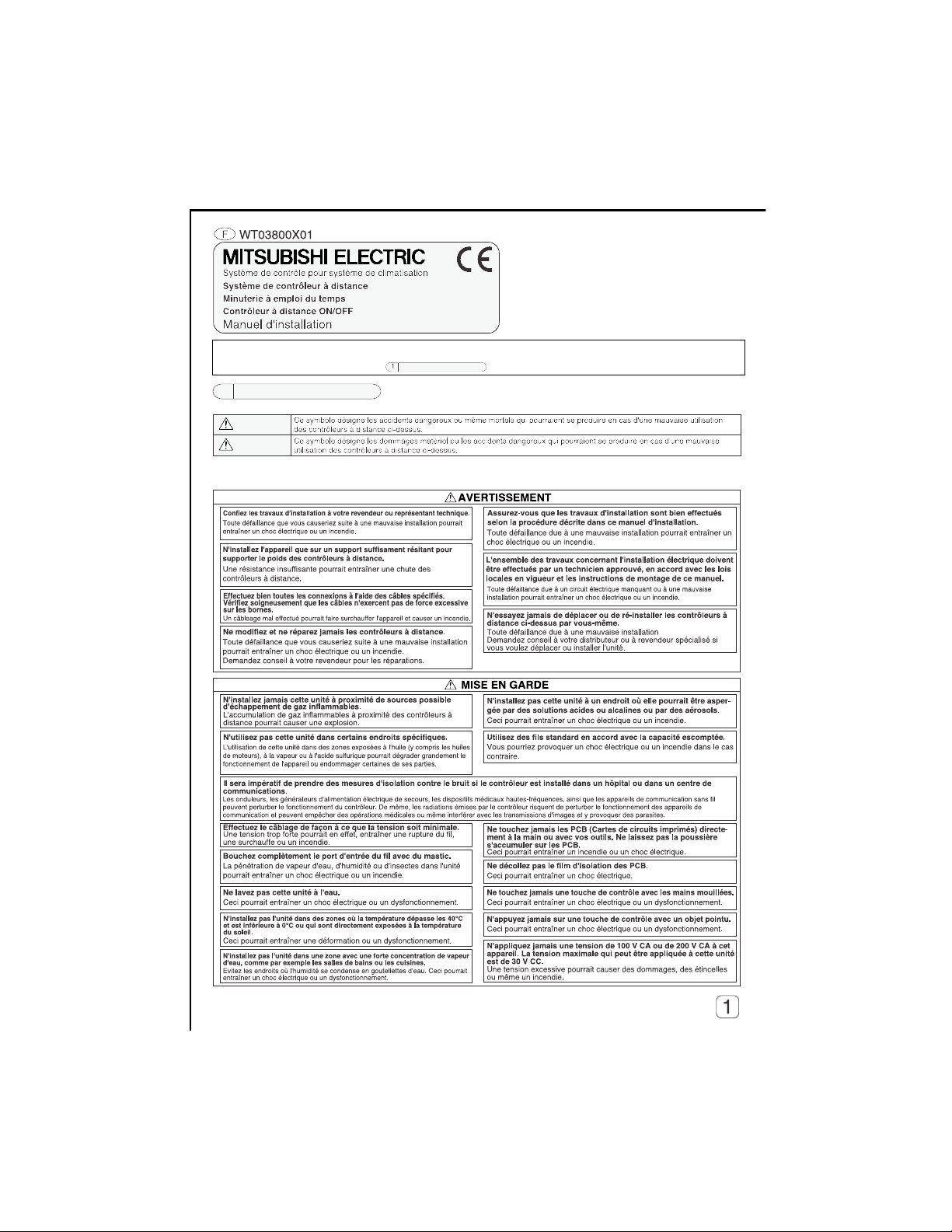

Ce manuel d'installation décrit uniquement la procédure d'installation du contrôleur de système capable de gérer et de contrôler des climatiseurs ainsi que des unités
LOSSNAY. Veuillez consulter les modes d'emploi fournis avec le climatiseur pour plus de détails sur le câblage et l'installation proprement dite du climatiseur.
Afin de garantir votre sécurité, veuillez toujours lire: ci-dessous avant de commencer l'installation.
1 Précautions de sécurité
• Les deux symboles suivants sont utilisés pour indiquer des dangers pouvant être causés par une utilisation incorrecte de l'appareil ainsi que leur gravité:
AVERTISSE-
MENT
MISE EN
GARDE
•Après avoir lu ce manuel d'installation, veuillez le conserver à la portée de l'utilisateur final qui pourra le consulter à n'importe quel moment.
En cas de déplacement, de réparation, ou d'utilisation normale de cet appareil, il est impératif que l'utilisateur final soit en possession de ce mode d'emploi.

1 Précautions de sécurité

Vérifiez que la boîte contient bien les articles suivants, en plus de ce manuel d'installation:
(1) Contrôleur à distance (Corps, boîtier inférieur) ........................................................
(2) Câble pour entrée externe (5 fils) .............................................................................
(3) Câble pour sortie externe (4 fils) ..............................................................................
(4) Vis à tête croisée encastrée (M4 x 30) .....................................................................
(5) Vis à bois (4,1 x 16, s'utilise pour l'accrochage direct au mur)..................................
(6) Etiquette de nom de pièces ou tableau des noms de pièces ....................................
(7) Manuel.......................................................................................................................
2Vérification de réception des articles fournis
3 Configurations du système
(Reportez-vous au "Manuel de construction du système et de fonctionnement" pour plus de détails sur les unités externes.)
(1) En cas de connexion sur une conduite d'amenée de gestion centralisée
Un générateur (PAC-SC34KUA) est nécessaire.
* La puissance absorbée par le contrôleur à distance, la minuterie à emploi du temps et le contrôleur à distance de groupe est égale à la moitié de celle du con-
trôleur à distance ON/OFF. Vous devrez par conséquent considérer la puissance absorbée par chaque unité comme étant égale à la moitié de celle du contrôleur
à distance.
PAC-YT34STA
PAC-YT40ANRA
[051]
CN41
Laissez
tel quel
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
Groupe 2
[003]
[002]
[001]
[005]
[004]
[006] [007]
[009]
[101] [102] [103]
[105] [106] [107]
[201] [202] [203]
Groupe 1 Groupe 3
Groupe 4 Groupe 7 Groupe 6Groupe 5
PAC-SF44SRA
[008]
[108]
[052]
CN41
TB7 TB3
1
SW2-1[ON]
: Position SW
ON
OFF
234 5678910
Laissez
tel quel
1
1
1
2
2
1
1

!
(2) En cas de connexion sur une conduite d'amenée interne et externe
Il est possible de connecter jusqu'à trois contrôleurs système sur une conduite d'amenée M-NET interne et externe.
L'utilisation d'un générateur n'est pas nécessaire dans ce cas, mais le connecteur de court-circuit d'une des unités externes
connectées doit être connecté au CN40.
(3) Réglages des différentes adresses M-NET
La nécessité d'effectuer le réglage des adresses ainsi que la plage de réglage des adresses varie en fonction de la configuration
du système. Il est impossible d’attribuer une même adresse deux fois.
(4) Réglage de l'adresse du contrôleur de système
(5) Utilisation avec un contrôleur de système maître
En cas de connexion de plusieurs composants du système, le rôle de "maître" est assumé par le contrôleur système ayant le
plus de fonctions, et celui d' "esclaves" par les contrôleurs ayant le moins de fonctions. Les fonctions "maître/esclave" du con-
trôleur système utilisées ensemble sont:
L'ordre des priorités est comme ceci: G50A (MJ-103MTRA) > PAC-SF44SRA > PAC-YT34STA > PAC-YT40ANRA > PAC-SC30GRA > LMAP02-E.
Groupe 2
[003][002][001]
[005]
[004]
[006] [007]
[009]
[101] [102] [103]
[105] [106] [107]
[201] [202] [203]
Groupe 1 Groupe 3
Groupe 4 Groupe 7Groupe 6Groupe 5
[008]
[108]
[051]
CN40
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
: Postion SW
[052]
CN41
TB7 TB3
1
SW2-1[ON]
ON
OFF
234 5678910
SW 2 SW 1
10 1

"
Veuillez utilisez le câble d'entrée et de sortie externe fourni avec le contrôleur externe si vous voulez utiliser les fonctions d'entrée et
de sortie externe. (Un câble à 5 fils pour l'entrée ainsi qu'un câble à 4 fils pour la sortie sont fournis avec l'appareil.)
1. Fonction de signal externe en entrée
(1) Entrée externe
Il est possible d'envoyer des commandes d'arrêt d'urgence/activité normale, ON/OFF (MARCHE/ARRET) ou
d'interdire/autoriser le fonctionnement du contrôleur à distance local à toutes les unités commandées, en utilisant un signal
de détection de disparition de tension.
(2) Signal d'entrée constant et signal d'entrée à impulsion
(3) Caractéristiques du signal d'entrée externe
(4) Exemple de circuit recommandé
•Les relais ainsi que les câbles de rallonge, etc. doivent être fournis sur place lors de l’installation.
•Utilisez une pièce de détection de disparition de contact et un relais de commande (charge d’application minimum 5 V CC-1mA).
•La longueur du câble de rallonge ne devrait pas dépasser les 10m. (Utilisez un câble de section 0,3mm2ou plus.)
•Coupez l'extrémité du câble non utilisée à côté du connecteur puis recouvrez proprement le bout coupé avec du ruban adhésif ou un produit similaire.
4 Utilisation de l'entrée et de la sortie externe
Contact ON
Contact OFF
Contact ON
Contact OFF
Contact ON
Contact OFF
Contact ON
Contact OFF
OFF OFFON
Normal Normal OFF OFFON
0,5 sec ou plus
0,5 sec ou plus
10 m au
maximum
Vert
Brun
CN2 CN2
1Vert
Jaune
Orange
Rouge
Brun
X1
X2
Y1
Y2
ON
OFF
10 m au
maximum
OFF ON
ON OFF
ON/OFF
OFF ON
ON OFF
REMARQUE:

#
(1) Activation de la fonction d'interdiction de marche de contrôleur local depuis ce système
(mis à part le contrôleur à distance ON/OFF)
Lorsque vous connectez plusieurs contrôleurs système ensemble, et que vous réglez la fonction "interdiction du contrôleur à
distance local" à partir de ce contrôleur, réglez la fonction de ce contrôleur SW3-4 "commutation du réglage d’interdiction de
marche" sur "ON (autorisé)".
(2) Changement de l'affichage de la température réglée en "Degrés Fahrenheit"
(mis à part pour le contrôleur à distance ON/OFF)
Si vous souhaitez interdire un contrôleur système autre que celui-ci lorsque l’interdiction de contrôleur à distance local est
réglée depuis ce système, réglez le SW3-5 " commutation du réglage d’interdiction de marche" sur "ON (y compris le contrôleur
système)".
5 Réglage des fonctions
[Contrôleur système à distance (SF44SRA)]
/Minuterie à emploi du temps (YT34STA)]
[Contrôleur à distance ON/OFF (YT40ANRA)]
SW3
1234
SW4
ON
OFF
ON
OFF
12345678

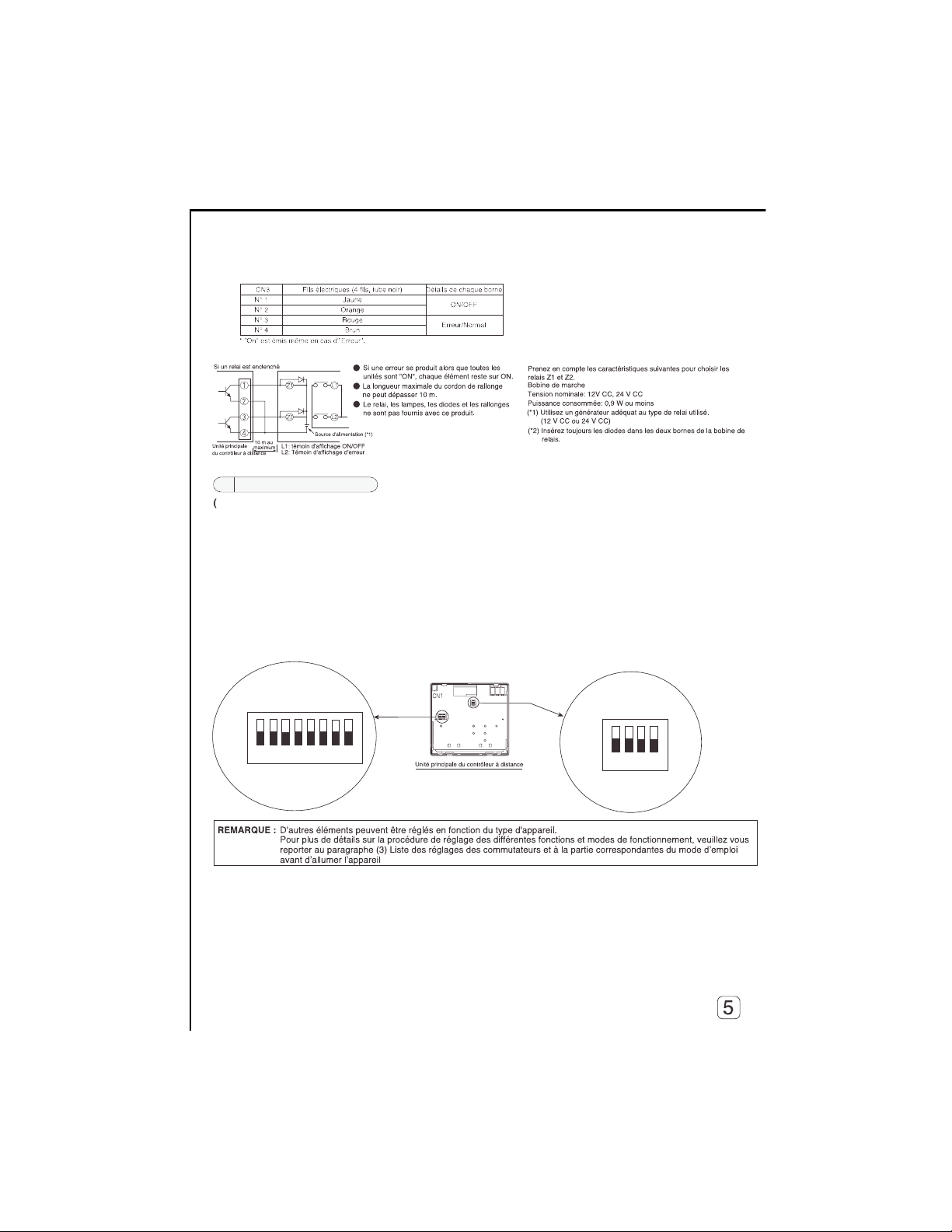

CN3
Jaune
Orange
Rouge
Diode (*2)
Z 1
Z 2
Brun
2. Fonction de signal externe en sortie
(1) Signal externe en sortie
Un signal indiquant la présence d'une erreur sera émis en sortie lorsqu'un ou plusieurs climatiseurs marchent ensemble sur
"ON " et qu'une erreur se produit sur un d'entre eux.
(2) Caractéristiques du signal externe en sortie
(3) Exemple de circuit recommandé

(3) Liste des réglages des commutateurs
$

%
(1) Choisissez un emplacement adéquat pour l'installation du contrôleur système
à distance (boîtier électrique) en suivant les consignes ci-dessous:
qL'espace requis pour l'installation du contrôleur au mur, ou dans un boîtier électrique est
indiqué sur le schéma ci-contre.
wProcurez-vous les pièces suivantes.
• Boîtier électrique pour deux unités
• Tube en étain
• Ecrou de sûreté et douille
(2) Bouchez l'orifice d'entrée du cordon avec du mastic afin d'empêcher la
pénétration de rosée, de gouttes d'eau ou d'insectes dans l'unité.
• Scellez bien les jointures entre du boîtier et
les orifices d'entrée des câbles avec du
mastic.
(3) Installez le boîtier inférieur sur le boîtier électrique ou directement sur le mur.
6 Procédure d'installation
• Bouchez de la même manière les orifices que vous aurez éventuellement
forés dans le mur pour faire passer le cordon du contrôleur à distance
(lorsque le cordon du contrôleur à distance ressort par l'arrière).
• Pour une installation directe au mur comme dans le cas 3, bouchez égale-
ment l'ouverture avec du mastic.
30 30
120 30
Pour une installation directe au mur

&
(4) Connectez le cordon du contrôleur à distance au bloc des bornes du boîtier inférieur.
Effectuez le câblage en suivant les instructions ci-dessous.
Pas de polarité
Le cordon du contrôleur à distance fourni localement.
(5) Trou de passage des câbles pour installation au mur (pour un câblage exposé)
Cordon du contrôleur à distance
• Découpez la zone sombre du couvercle supérieur à l'aide d'un couteau, de pinces, etc.
• Faites passer le cordon du contrôleur à distance connecté au bloc de bornes par cette partie.
Câbles d'entrée/sortie externe (Uniquement si vous utilisez les fonctions d'entrée/sortie externe et que l'appareil est directement monté au mur)
• Coupez, à l'aide d'un couteau ou d'un autre outil semblable, puis retirez la partie fine sur la gauche et la droite de l'unité princi-
pale du contrôleur à distance.
Côté CN2: Pour le câble d'entrée externe Côté CN3 : Pour le câble de sortie externe
• Faites passer les câbles d'entrée/sortie externe par ces points.
(6) Connectez le connecteur du boîtier inférieur sur le connecteur CN1 bu boîtier supérieur.
En cas d’utilisation de la fonction d’entrée et sortie externe, veuillez également connecter le connecteur du câble d’entrée
externe (5 fils) sur le connecteur CN2 puis connectez le connecteur du câble de sortie externe (4 fils) sur le connecteur CN3.
(7) Montez l'unité principale du contrôleur à distance.
Accrochez tout d'abord les deux rainures supérieures puis placez l'appareil comme indiqué sur le schéma ci-contre.
Si vous utilisez les fonction d'entrée/sortie externe et les points d'entrée des câbles du boîtier
inférieur sont utilisés, montez l'unité principale du contrôleur à distance tout en poussant les
câbles d'entrée/sortie externe vers le boîtier électrique.
(Poussez les côtés du boîtier électrique du boîtier inférieur jusqu'à ce que vous puissiez atteindre le câble.)
Si vous voulez démonter l'unité principale du contrôleur à distance, insérez un tournevis dans une des fentes libres et déplacez-
le dans le sens de la flèche comme indiqué sur le schéma à droite.
Il est nécessaire d'effectuer uen configugration initiale avant chaque test. Reportez-vous au mode d'emploi pour plus de détails
sur la configuration initiale.
Veuillez effectuer une série de tests avec chaque climatiseur devant être connecté avec ce contrôleur à distance local.
A.1 B.2
(Bloc de bornes)
Crochet
Connectez au connecteur CN1
CN1
7 Configuration initiale
8 Série de tests
