Mitsubishi A8GT-50KBF User manual

A8GT-50KBF
External I/O Module
Mitsubishi General Purpose PC
User's Manual
Thank you for choosing the Mitsubishi General Purpose PC Graphic Operation
Terminal 800 series. To ensure correct use of this equipment, please read this
manual carefully before operating it.
MODEL A8GT-50KBF-U-E
MODEL
CODE 13JL28
IB-NA-66787-A (9707)MEE
©1997 MITSUBISHI ELECTRIC CORPORATION

The United States Mitsubishi Electronics America, Inc., (Industrial Automation Division)
800 Biemann Court, Mt. Prospect, IL 60056.
Phone : [phone]
Canada Mitsubishi Electric Sales Canada, Inc., (Industrial Automation Division)
4299 14th Avenue, Markham, Ontario L3R OJ2
Phone : [phone]
United Kingdom Mitsubishi Electric UK Ltd., (Industrial Sales Division)
Travellers Lane, Hatfield, Herts., AL10 8XB
Phone : [phone]
Germany Mitsubishi Electric Europe GmbH, (Industrial Automation Division)
Gothaer Strasse 8, Postfach 1548, D-4030 Ratingen 1
Phone : [phone]
Taiwan Setsuyo Enterprise Co., Ltd.,
(106) 11th FI., Chung-Ling Bldg., 363, Sec. 2, Fu-Hsing S. Rd., Taipei,
Taiwan. R.O.C.
Phone : [phone]
Hongkong (& China) Ryoden International Ltd., (Industrial & Electrical Controls Division)
10/F., Manulife Tower, 169 Electric Rd., North Point, Hong Kong.
Phone : [phone]
Singapore (& Malaysia) MELCO Sales Singapore Pte. Ltd., (Industrial Division)
307 Alexandra Rd. #05-01/02, Mitsubishi Electric Bldg., Singapore 0315.
Phone : [phone]
Thailand F.A. Tech Co., Ltd.,
1138/33-34 Rama 3 Rd., Yannawa, Bangkok 10120.
Phone : [phone]
Australia Mitsubishi Electric Australia Pty. Ltd., (Industrial Controls Division)
348 Victoria Rd., Rydalm ere, N.S.W. 2116.
Phone : [phone]
Republic of South Africa M.S.A. Manufacturing (Pty) Ltd., (Factory Automation Division)
P.O. Box 39733, Bramley, Johannesburg 2018.
Phone : [phone]
When exported from Japan, this manual does not require application to the
Ministry of International Trade and Industry for service transaction permission.
Printed in Japan Specifications subject to change without notice.
HEAD OFFICE: MITSUBISHI DENKI BLDG MARUNOUCHI TOKYO 100 TELEX: J24532 CABLE MELCO TOKY
O
NAGOYA WORKS: 1-14, YADA-MINAMI 5, HIGASHI-KU, NAGOYA, JAPAN

A-1
•
SAFETY PRECAUTIONS•
(Read these precautions before using.)
When using Mitsubishi equipment, thoroughly read this manual and the
associated manuals introduced in this manual. Also pay careful attention to
safety and handle the module properly.
These precautions apply only to Mitsubishi equipment. Refer to the CPU
module user's manual for a description of the PC system safety precautions.
These •
SAFETY PRECAUTIONS• classify the safety precautions into two
categories: "DANGER" and "CAUTION".
DANGER
Procedures which may lead to a dangerous
condition and cause death or serious injury if not
carried out properly.
CAUTION
Procedures which may lead to a dangerous
condition and cause superficial to medium injury, or
physical damage only, if not carried out properly.
Depending on circumstances, procedures indicated by CAUTION may also
be linked to serious results.
In any case, it is important to follow the directions for usage.
Store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
[DESIGN PRECAUTIONS]
DANGER
!
Some faults of the GOT, this unit or connection cables may keep the
outputs on or off.
An external monitoring circuit should therefore be provided to check for
output signals which may lead to a serious accident.
Otherwise, mis-output or misoperation can cause an accident.

A-2
[INSTALLATION PRECAUTIONS]
DANGER
!
When installing and removing this module from the GOT main module be sure
to shut off the power at all external switches. If all the switches are not turned
off, the module could be damaged or malfunction.
!
When connecting the bus connection cable to this module be sure to turn off
the switch to all external power switches to the GOT and PC CPU. If all the
switches are not turned off, it may cause malfunction.
CAUTION
!
Use this module in an environment that is within the general specifications
written in the GOT User's Manual. If the power supply is used in an
environment that is outside of the general specifications then electric shock,
fire, malfunction, or product damage or degradation could occur.
!
For a correct installation, insert the bus connection cable to this module,
A7GT-BUS2S, bus connector conversion module, and base unit connector
until you hear it click.
A bad connection could cause erroneous input or output.
!
When installing this module in the GOT main module, install it in the GOT
installation area and be sure it is fastened with a module fastening screw
that is tightened within the specified torque range.
If the module fixing screws are loosen, it may cause malfunction, damage
or falling of the module.
If the module fixing screws are too tight, the GOT main module or the
screws could break.
[Wiring Instructions]
DANGER
!
Before starting wiring, always switch off all phases of the power
supply externally.
CAUTION
!
During wiring, care should be taken so that foreign matter such as
shield and wire offcuts do not enter this unit.
Otherwise, a fire, fault or misoperation can occur.

A-3
[WIRNG INSTRUCTIONS]
CAUTION
!
The communication and power cables connected to the module must be
fixed securely, e.g. contained in ducts or clamped.
A failure to do so could cause the cables to dangle, move, or be carelessly
pulled, leading to a damaged module or cable or a malfunction due to a
cable connection fault.
[STARTING AND MAINTENANCE PRECAUTIONS]
DANGER
!
While power is on, do not touch the terminals.Otherwise, an electric shock
or malfunction could occur.
!
Before starting cleaning or terminal screw retightening, always switch off
external GOT power in all phases.
A failure to do so could cause an electric shock.
Undertightening could cause the module to drop, short-circuit or
malfunction.
Overtightening could cause the module to drop, short-circuit or malfunction
CAUTION
!
Do not disassemble or modify this module.
Otherwise, a failure, malfunction, injury or fire could occur.
!
Do not touch the conducive and electronic parts of this module directly.
Otherwise, the module could malfunction or fail.
!
This module is made of resin. Do not drop it or subject it to hard impact.
This may cause the module to fail.
!
When disconnecting the communication or power cable from the module,
do not hold and pull the cable part.
When disconnecting the cable having a connector, hold the connector
plugged in the module.
Before disconnecting the cable having no connector, loosen the screws in
the module.
If the cable connected to the module is pulled, the module or cable may be
damaged or a malfunction may occur due to a cable connection fault.

A-4
[DISPOSAL PRECAUTIONS]
CAUTION
!
When disposing of this product, treat it as industrial waste.

Revisions
* The manual number is noted at the lower left of the back cover.
Print Date *Manual Number Revision
Jul. 1997 IB (NA)-66787-A First printing
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent
licenses. Mitsubishi electric Corporation cannot be held responsible for any problems involving industrial
property rights which may occur as a result of using the contents noted in this manual.
© 1997 Mitsubishi Electric Corporation

About This Manual
The following product manuals are available. Please use this table as a
reference to request the appropriate manual as necessary.
Detailed Manual
Manual Name Manual No.
(Type Code)
A850GOT Graphic Operation Terminal User's Manual
(Packaged with the A850GOT)
IB-66669
(13J847)
A852GOT Graphic Operation Terminal User's Manual
(Packaged with the A852GOT)
IB-66767
(13JL15)
A853GOT Graphic Operation Terminal User's Manual
(Packaged with the A853GOT)
IB-66785
(13JL26)
Compact Building Block Type I/O Module User's Manual
(Optional)
IB-66541
(13JE81)
Building Block Type I/O Module User's Manual
(Optional)
IB-66140
(13J643)
GOT Upgrade Additional Manual
(Packaged with the Software Package Product Packing)
IB-66744
(13J888)

Table of Contents
1 Overview ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 1
2 Components Including in the Package••••••••••••••••••• 1
3 Specifications•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2
4 System configuration •••••••••••••••••••••••••••••••••••••••••••••••••• 7
4.1 System Configuration for No Outputs ••••••••••••••••••••••••••••••••••••••••••••••••••• 7
4.2 System Configuration for Outputs ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 8
4.2.1 System configuration••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 8
4.2.2 Connection of external I/O unit and terminal block conversion
unit. ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••10
4.2.3 Connection of external inputs and external outputs to the
terminal block conversion •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••12
5 User-fabricasted connection cables•••••••••••••••••••••• 14
5.1 cable for connection between external I/O unit and original
operator panel••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••14
5.2 cable for connection between external I/O unit and terminal block
conversion unit.••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••16
6 Parts Identifcation •••••••••••••••••••••••••••••••••••••••••••••••••••••••• 18
7 Installation Procedure ••••••••••••••••••••••••••••••••••••••••••••••••• 19
8 Outline Dimension Drawing••••••••••••••••••••••••••••••••••••••• 21
APPENDIX
Appendix 1 Depth Dirgram for Use of the STE ••••••••••• 22

1
1 Overview
This user's manual gives the specifications, system configurations, parts
identification, installation procedure and outline dimensions of the
A8GT-50KBF type external I/O unit (referred to as the external I/O unit).
The external I/O unit is fitted to the A85 GOT type graphic operation
terminal (referred to as the GOT) to receive up to 8/64 points of inputs and
provide up to 16 points of outputs.

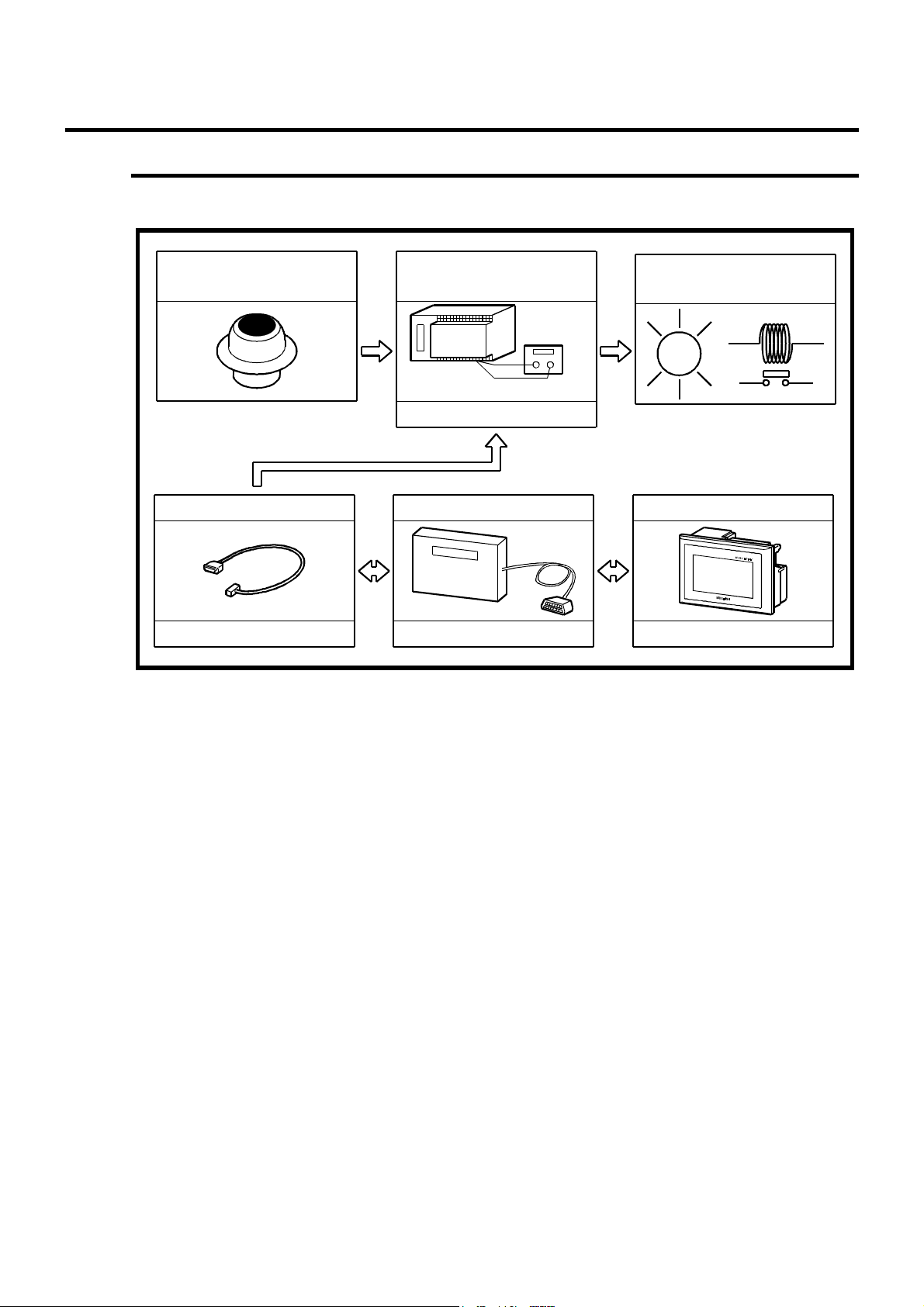

LAMP
GOT
16 points such as
lamps and relays
Terminal block
conversion unit
Operator panel,pushbuttons
DC power supply 12/24V
External I/O
unit
Note: This unit is used with the following versions of software:
SW2NIW-A8GOTP, SW2NIW-A8SYSP; version J or later
.
2 Accessories
After opening the container, check that the following products are present.
Description Quantity
External I/O unit 1
External connector (soldered type) 1
This manual 1

2
3 Specifications
Input Specifications
Input system Dynamic scan
Number of input points 8/64 points
Isolation system Photocoupler isolation
Rated input voltage 12VDC 24DVC
Rated input current Approx. 4mA Approx. 9mA
Operating voltage range 10.2 to 26.4VDC (ripple percentage within 5%)
Max. number of
simultaneous input points 100% simultaneous ON (at 26.4VDC)
ON voltage/ON current 8VDC or more/2mA or more
OFF voltage/OFF current 4VDC or less/1mA or less
Input resistance Approx. 2.4K•
ON to OFF Approx. 0.4ms or less (24VDC)Response
time *1OFF to ON Approx. 0.4ms or less (24VDC)
Dynamic scan cycle 13.3ms
.
Output Specifications
Output system Direct
Number of output points 16 points
Isolation system Photocoupler isolation
Rated load voltage 12/24DVC
Max. load current*2 0.1A/1 point
Operating load voltage
range 10.2 to 26.4VDC (ripple percentage within 5%)
Max. inrush current 0.4A
Leakage current at OFF 0.1mA or less
Max. voltage drop at ON 2.5VDC (0.1A)
ON to OFF 2ms or less
Response
time*1 OFF to ON 2ms or less (resistive load)
Surge suppressor Clamp diode

3
I/O Specifications
External connection system 40-pin connector
Applicable wire size 0.3mm2
Operation indicator None
Voltage*312/24VDC
(10.2 to 26.4V, ripple percentage 5% or less)
External
supply
power Current 1.65A for external output
0.05A for internal consumption only
Fuse rating*42A fuse, unreplaceable
Internal current consumption 0.10A
Weight 250g(0.55lb)
Accessory 1 piece of external wiring connector
(soldered type)

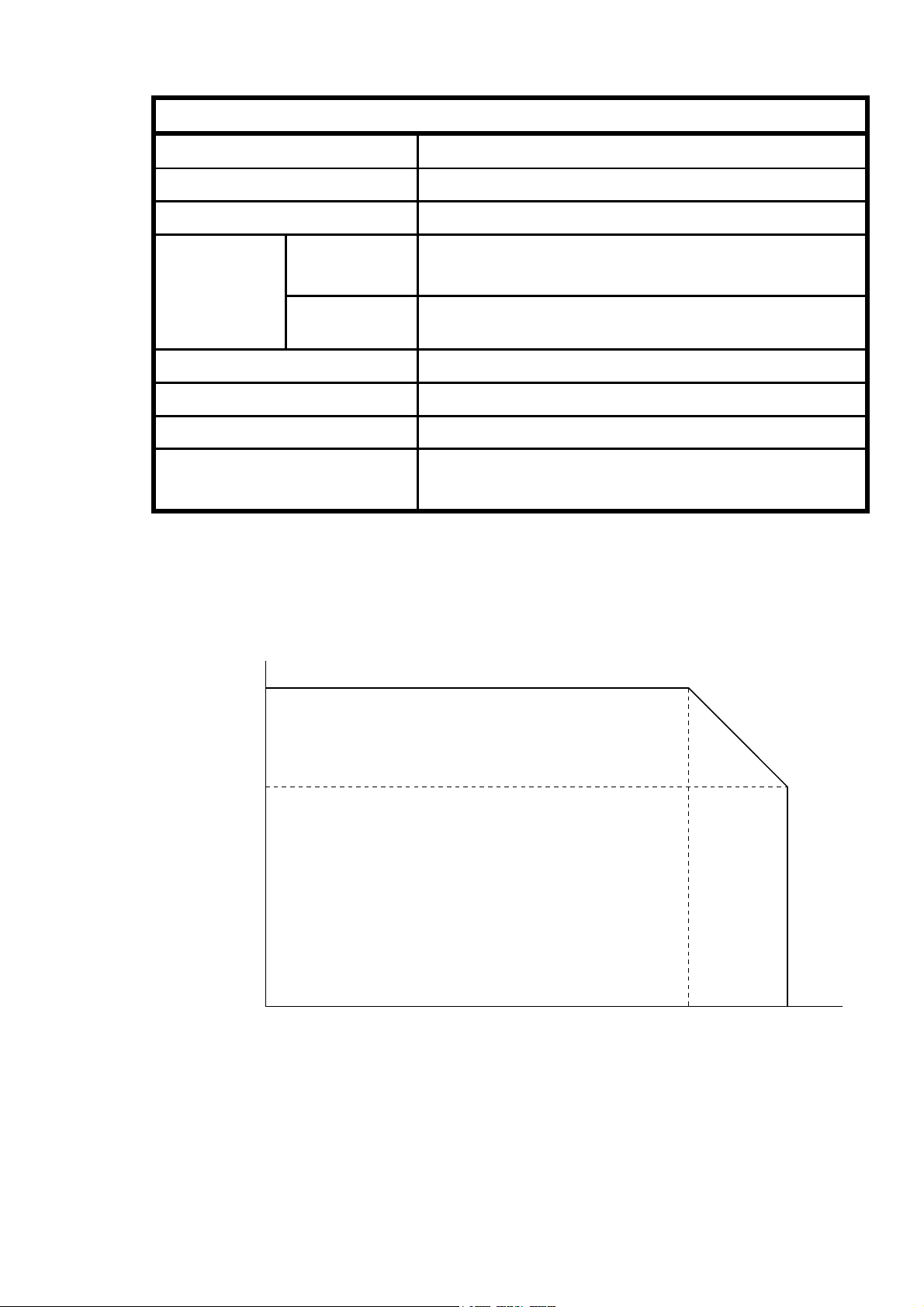

*1: Time in the I/O section.
*2: The maximum load current varies with the number of simultaneous ON points.
Refer to the following information:
Relationships between output load current (common current), number of
simultan-eous ON points and ambient temperature
55•51•
0.1A~ 16points
1.6A
0.08A~ 16points
1.28A
Common current
Ambient temperature
*3: A fuse-blown error will also be displayed when the external supply power
switches off.
*4: The fuse in the output unit is provided to prevent the external wiring from burning
out if the outputs of the unit are shorted.
Therefore, it may not protect the output elements.
The fuse may not be blown if the output elements are damaged in the fault mode
other than a short circuit.

4

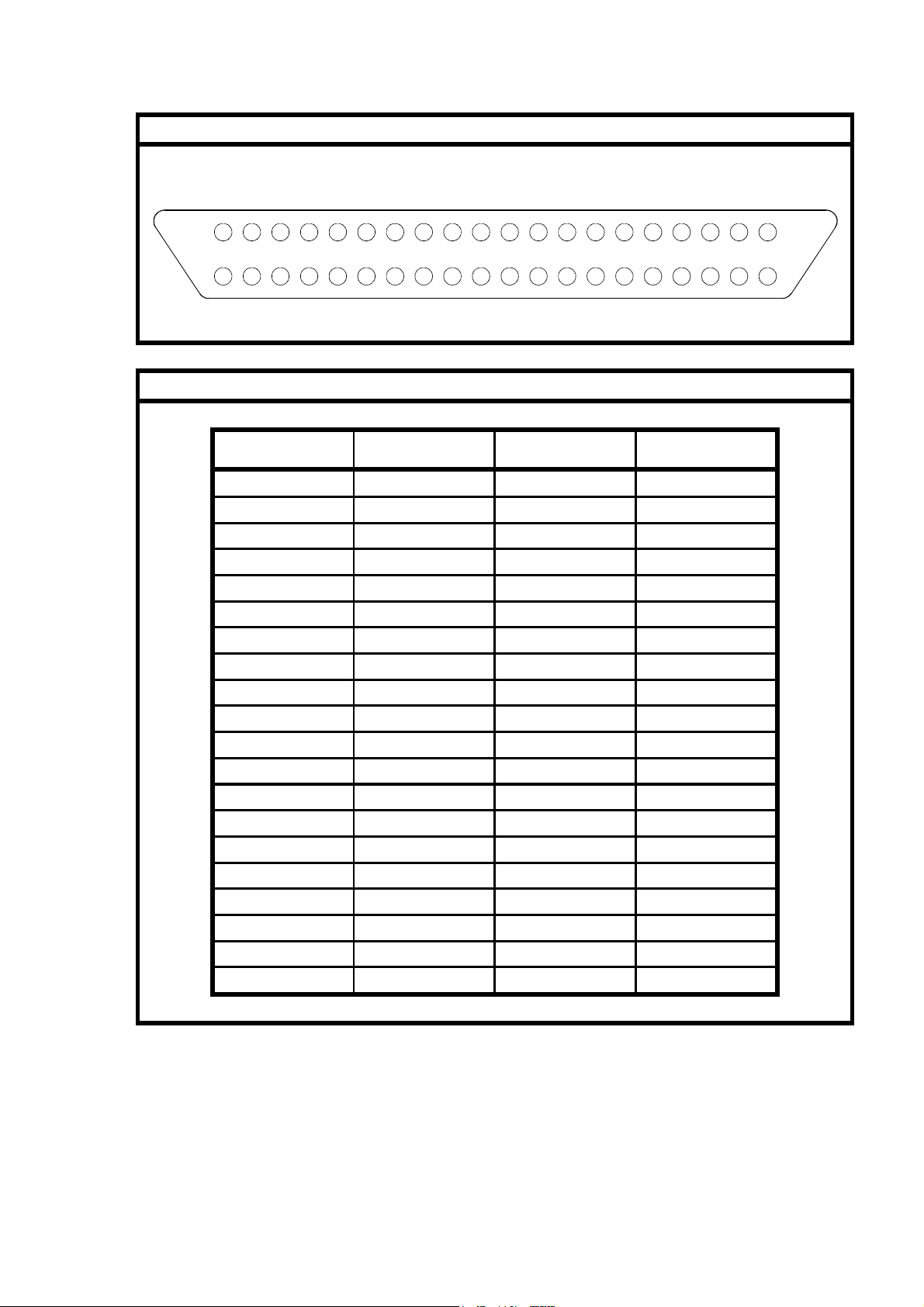

External Connector Pin-Outs
View from the unit front Connector used: Fujitsu's FCN-364P040-AU
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10B11B12B13B14B15B16B17B18B19B20
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10A11A12A13A14A15A16A17A18A19A20
Pin Numbers and Signal Names of External Connector
Pin Number Signal Name Pin Number Signal Name
1A XD7 1B XD6
2A XD5 2B XD4
3A XD3 3B XD2
4A XD1 4B XD0
5A XSCN7 5B XSCN8
6A XSCN5 6B XSCN4
7A XSCN3 7B XSCN2
8A XSCN1 8B XSCN0
9A YDF 9B YDE
10A YDD 10B YDC
11A YDB 11B YDA
12A YD9 12B YD8
13A YD7 13B YD6
14A YD5 14B YD4
15A YD3 15B YD2
16A YD1 16B YD0
17A HOT24/12 17B HOT24/12
18A HOT24/12 18B RTN24/12
19A RTN24/12 19B
20A 20B FG

5

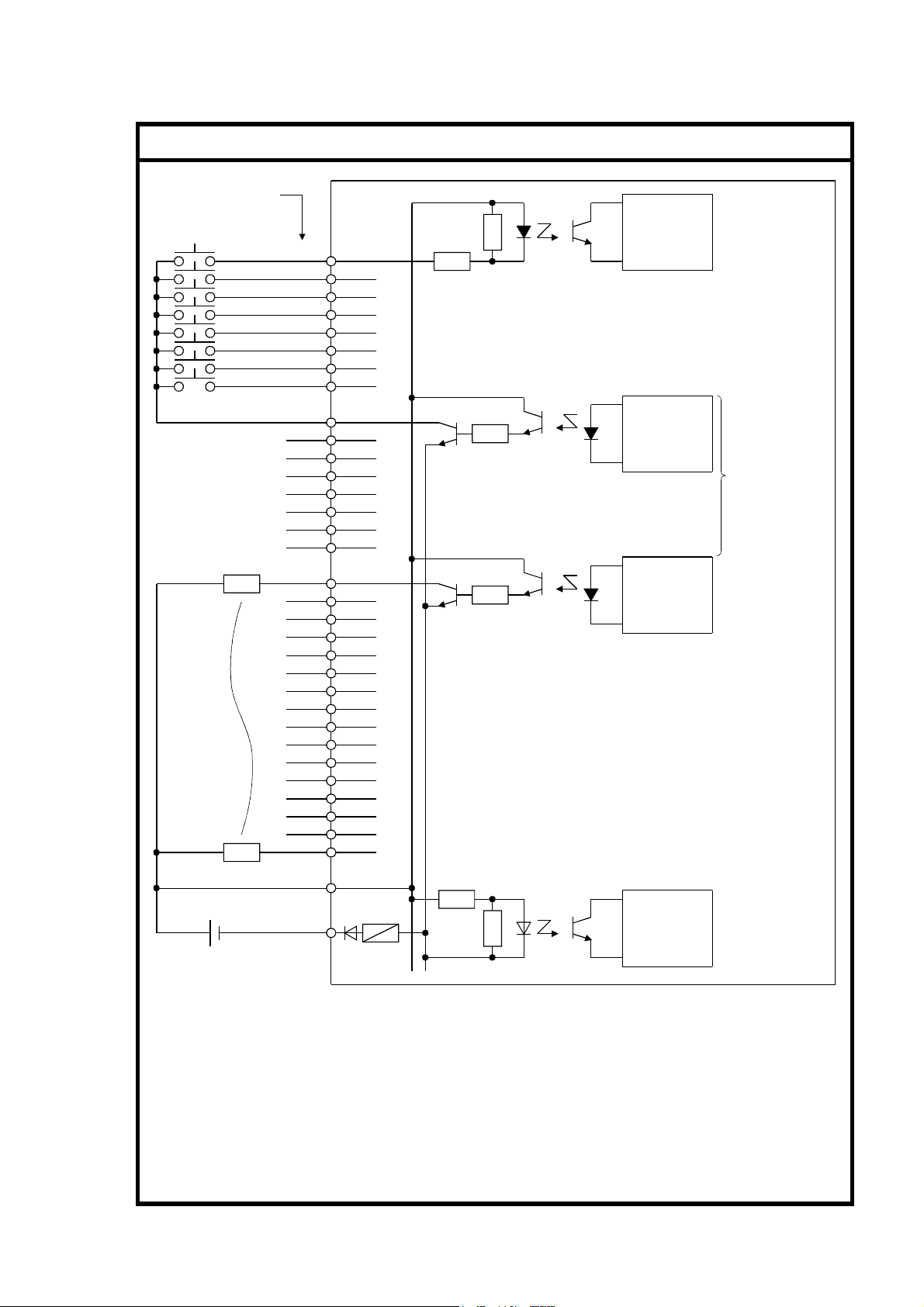

External Connection Diagram (1) (8-point inputs, 16-point outputs)
XD1
XD2
XD3
XD4
XD5
XD6
XD7
8A
7B
7A
6B
6A
5B
5A
XSCN0
XSCN1
XSCN2
XSCN3
XSCN4
XSCN5
XSCN6
XSCN7
16A YD1
15B YD2
15A YD3
14B YD4
14A YD5
13B YD6
13A YD7
12B YD8
12A YD9
11B YDA
11A YDB
10B YDC
10A YDD
9B YDE
9A YDF
RR
4B
4A
3B
3A
2B
2A
1B
1A
XD0
8B R
16B R YD0
L
L
18B,19A
DC12/24V
{|
17A,17B,18A
Pin number
Fuse-blown
detector
circuit
Internal
control
circuit
Internal
scan is
made at
1/8 duty.
Internal
control
circuit
Internal
control
circuit
*1: A fuse-blown error will also be displayed when the external supply power
switches off.
*2: The fuse in the output unit is provided to prevent the external wiring from
burning out if the outputs of the unit are shorted.
Therefore, it may not protect the output elements.
The fuse may not be blown if the output elements are damaged in the
fault mode other than a short circuit.

6

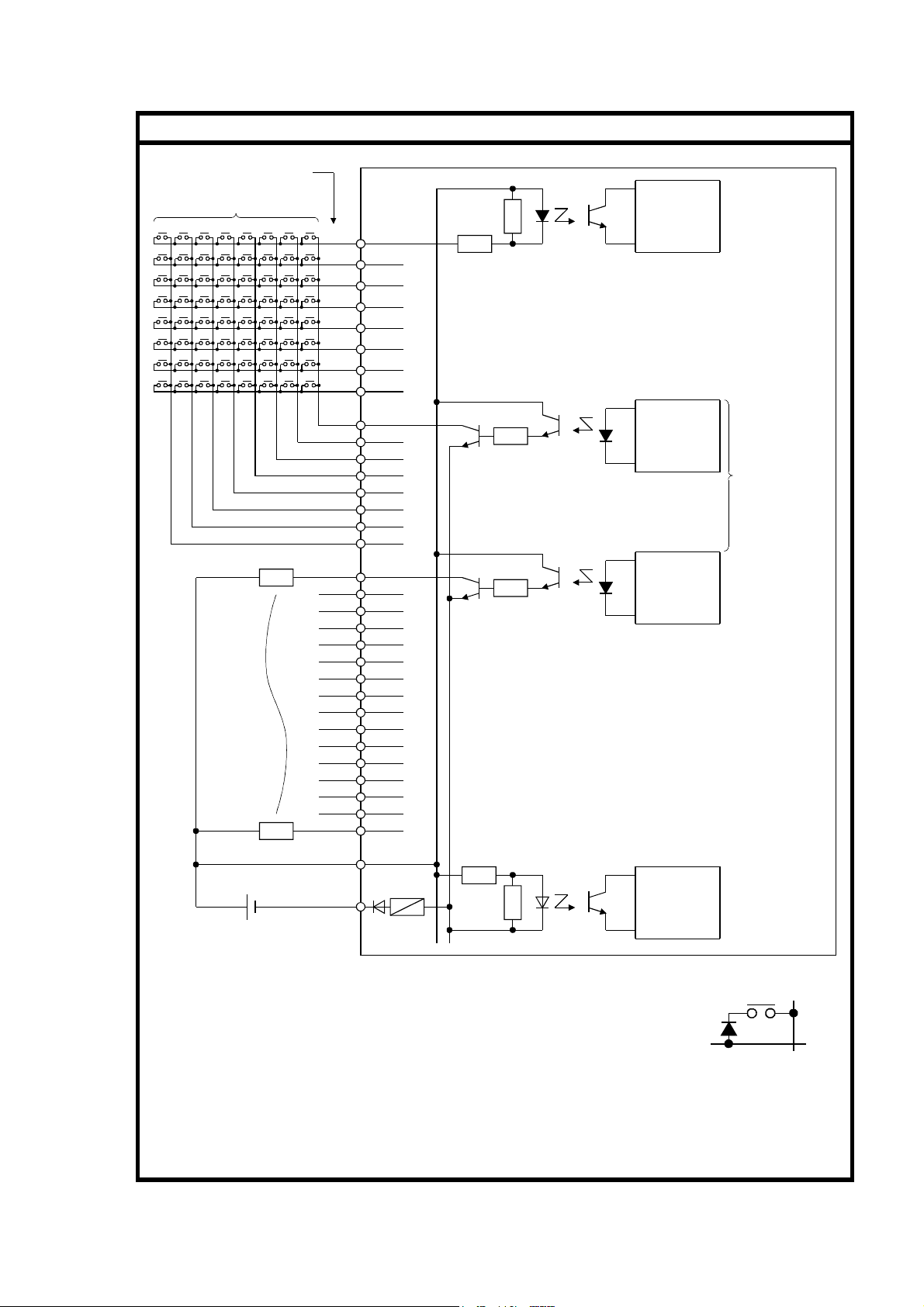

External Connection Diagram (2) (64-point inputs, 16-point outputs)
17A,17B,18A
0109111921293139
020A121A222A323A
030B131B232B333B
040C141C242C343C
050D151D252D353D
080E161E282E383E
070F171F272F373F
XD1
XD2
XD3
XD4
XD5
XD6
XD7
8A
7B
7A
6B
6A
5B
5A
XSCN0
XSCN1
XSCN2
XSCN3
XSCN4
XSCN5
XSCN6
XSCN7
16A YD1
15B YD2
15A YD3
14B YD4
14A YD5
13B YD6
13A YD7
12B YD8
12A YD9
11B YDA
11A YDB
10B YDC
10A YDD
9B YDE
9A YDF
RR
4B
4A
3B
3A
2B
2A
1B
1A
XD0
8B R
16B R
YD0
L
L
18B,19A
DC12/24V
{|
0008101820283038
Fuse-blown
detector
circuit
Input terminals
Pin number
Internal
scan is
made at
1/8 duty.
Internal
control
circuit
Internal
control
circuit
Internal
control
circuit
*1: When there is a probability that two or more switches are pressed
simultaneously, each switch must be provided with a diode.
(Refer to the right figure.)
*2: A fuse-blown error will also be displayed when the external
supply power switches off.
*3: The fuse in the output unit is provided to prevent the external wiring from
burning out if the outputs of the unit are shorted.
Therefore, it may not protect the output elements.
The fuse may not be blown if the output elements are damaged in the fault
mode other than a short circuit.

7
4 System Configuration
The system configuration depends on whether the external I/O unit
provides outputs or not.

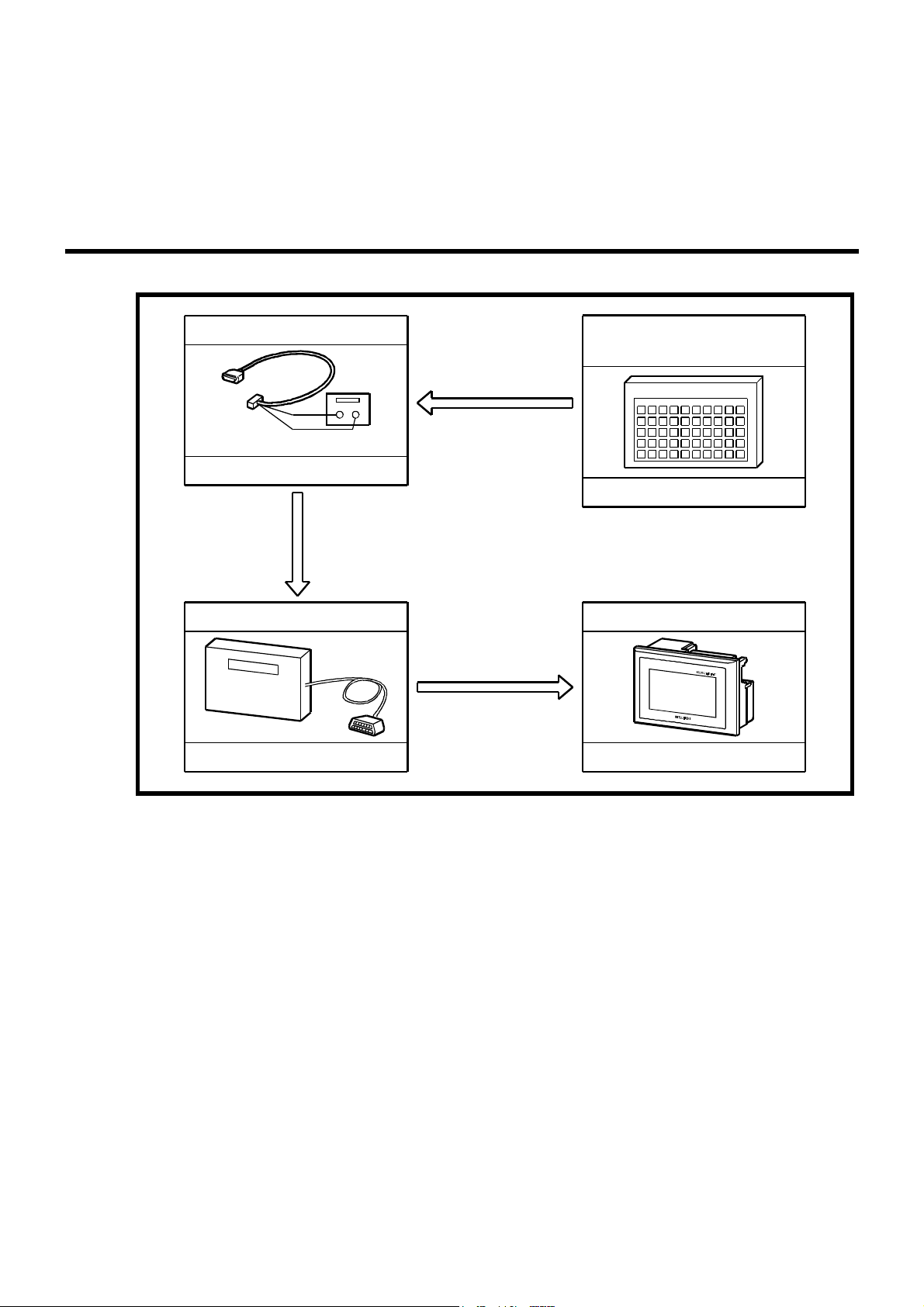

4.1 System Configuration for No Outputs
User-fabricated
Inputs
(Originaloperator panel)
GOT
A85 GOT
A8GT-50KBF
External I/O unit
Connection cable
DC power supply 12/24V
User-fabricated

8
4.2 System Configuration for Outputs
4.2.1 System configuration
(1) For 8-point inputs
LAMP
Terminal block
conversion unit
A6TBY36-E,A6TBY54-E
DC poewr supply 12/24V
Outputs
(e.g.lamps,relays)
Inputs
(e.g.pushbuttons)
GOT
A85 GOT
A8GT-C30TB*1
Connection cable
A8GT-50KBF
External I/O unit
•
1 The cable for connection between external I/O unit and terminal block
conversion unit may also be fabricated by the user.

9
(2) For 64-point inputs
GOT
A870GOT/A810GOTA8GT-70KBF
A8GT-C30TB–1
LAMP
Terminal block
conversion unit
A6TBY36-E,A6TBY54-E
DC poewr supply 12/24V
Connection cable
Outputs
(e.g.lamps,relays)
External I/O unit
User-fabricated
Inputs(Original
operator panel)
User-fabricated
Connection cable
•
1 The cable for connection between external I/O unit and terminal block
conversion unit may also be fabricated by the user.

10
4.2.2 Connection between the external I/O unit and terminal
block conversion unit

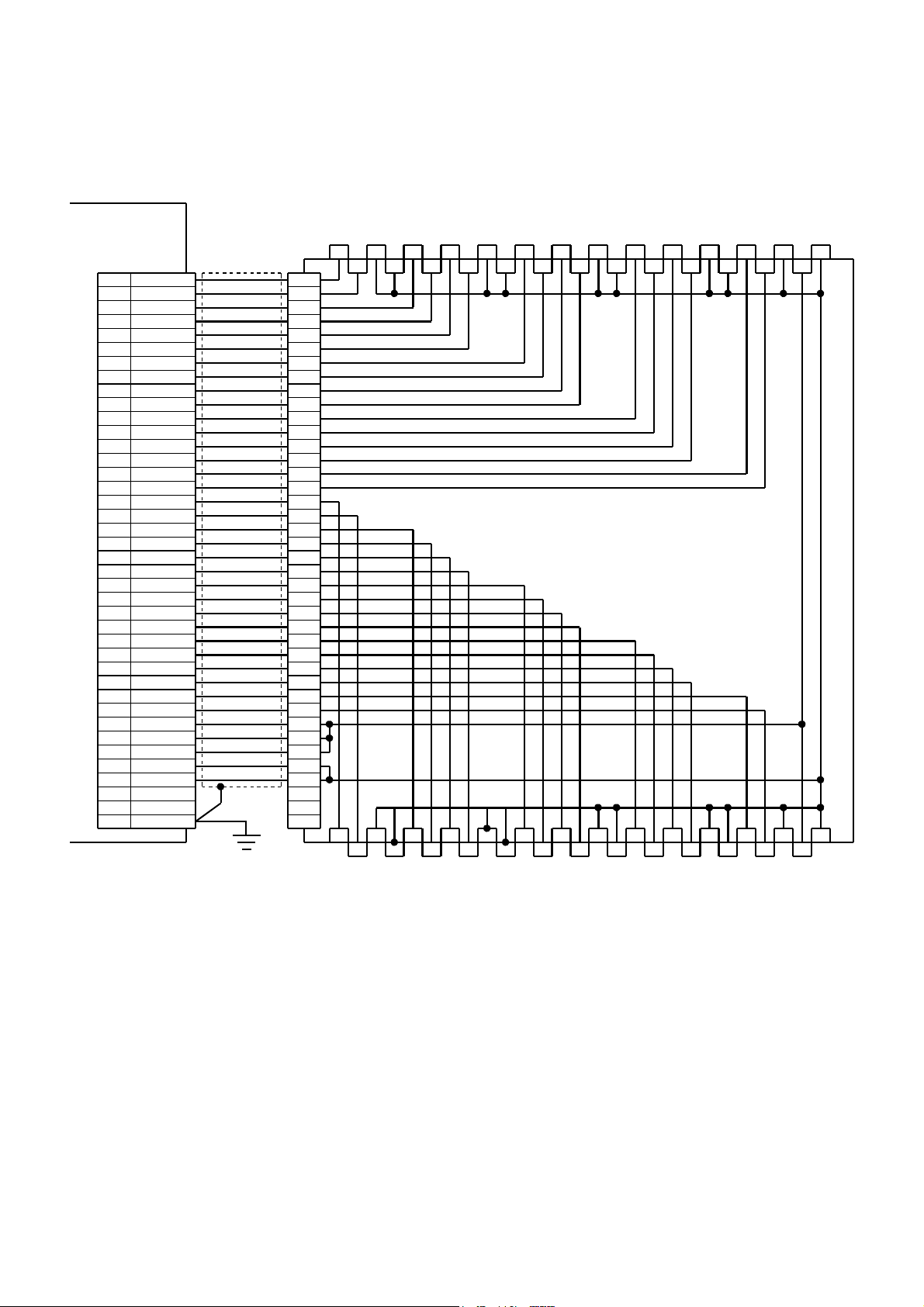

(1) For use of the terminal block conversion unit (A6TBY36-E)
4B XD0
4A XD1
3B XD2
3A XD3
2B XD4
2A XD5
1B XD6
1A XD7
8B XSCN0
8A
7B
7A
6B
6A
5B
5A
16B YD0
16A
15B
15A
14B
14A
13B
LOT24/12
12B
12A
11B
11A
10B
10A
9B
9A
17A
17B
18A
18B
19A
19B
20A
20B FG
13A
XSCN1
XSCN2
XSCN3
XSCN4
XSCN5
XSCN6
XSCN7
YD1
YD2
YD3
YD4
YD5
YD6
YD7
YD10
YD11
YD12
YD13
YD14
YD15
YD8
YD9
LOT24/12
LOT24/12
RTN24/12
RTN24/12
B4
A4
B3
A3
B2
A2
B1
A1
B5
A5
B6
A6
B7
A7
B8
A8
B9
A9
B10
A10
B11
A11
B12
A12
B13
A13
B14
A14
B15
A15
B16
A16
B17
A17
B18
A18
B19
A19
B20
A20
0 2 4 6 8 A C E 24V
1 3 5 7 9 B D F 0V
10 12 14 16 18 1A 1C 1E 24V
11 13 15 17 19 1B 1D 1F 0V
A6TBY36-E
A8GT-50KBF
Shield
Empty
Empty
Cable for connection
between external
I/O unit and
terminal block
conversion unit

11
(2) For use of the terminal block conversion unit (A6TBY54-E)
4B XD0
4A XD1
3B XD2
3A XD3
2B XD4
2A XD5
1B XD6
1A XD7
8B XSCN0
8A
7B
7A
6B
6A
5B
5A
16B YD0
16A
15B
15A
14B
14A
13B
LOT24/12
Empty
12B
12A
11B
11A
10B
10A
9B
9A
17A
17B
18A
18B
19A
19B
20A
20B FG
13A
XSCN1
XSCN2
XSCN3
XSCN4
XSCN5
XSCN6
XSCN7
YD1
YD2
YD3
YD4
YD5
YD6
YD7
YD10
YD11
YD12
YD13
YD14
YD15
YD8
YD9
LOT24/12
LOT24/12
RTN24/12
RTN24/12
B4
A4
B3
A3
B2
A2
B1
A1
B5
A5
B6
A6
B7
A7
B8
A8
B9
A9
B10
A10
B11
A11
B12
A12
B13
A13
B14
A14
B15
A15
B16
A16
B17
A17
B18
A18
B19
A19
B20
A20
02 4 6 8 A C E
13 5 7 9 B D F 24V
10 12 14 16 18 -C 1C 1E
11 13 15 17 19 -C 1D 1F 24V
A6TBY54-E
A8GT-50KBF
Cable for connection
between external
I/O unit and
terminal block
conversion unit -C -C -C -C -C -C 0V-C
-C -C -C -C 1A 1B -C -C
-C -C
0V-C
Empty
Shield
