MIURA STEAM EO
INSTALLATION MANUAL
INFORMATION IN THIS MANUAL MAY BE CHANGED WITHOUTANY NOTICE.
Please ensure that installation manual is read and observed in full by all persons working with
the EO. Please also ensure that it is stored in a location where it may be easily accessed by
said persons.
Operation Manual Number: E23-087-04
Date Issued: 4/29/2019

Applicable to All Products (Safety Information)
Document No.: E23-087-04
<Precautions for installation and use> —Safety information
When installing and using a product, you are obligated as an operator to submit official notification, and to install,
construct and utilize the product in compliance with applicable laws and regulations. In order that the product can
be put to safe and reliable use, it is crucial that in addition to fulfilling these legal obligations, you also establish and
implement a safety management system.
This section highlights situations where failure to follow the guidelines
could lead to serious injury or death.
(1) Relocation and Resale
If you intend to relocate or sell your MIURA product, contact your dealer or
MIURA sales office in order that installation work can be carried out correctly
and that the required peripheral equipment may be set up. In addition, ensure
that Operation Manual and the like are kept in order that they may also be
provided to the new owner in the event of resale.
(2) Prohibition of Modification without Permission
Customization or modification not recommended by MIURA may present safety
problems and is therefore prohibited. If you wish to modify the product, contact
your dealer or MIURAsales office in advance. It should be noted that MIURA will
accept no responsibility for the outcome of unapproved customization.
(3) Electrical Work
When connecting a power supply to the product, use wire of the specified
diameter and ensure that the product is correctly grounded. Furthermore, a
dedicated power supply must be used, and an earth leakage circuit breaker
(with overcurrent protection) must be installed.
If this precaution is not observed, serious accidents such as electric shock and
the outbreak of fire may result.
NOTE
(1) Exporting from Japan
Under the Foreign Exchange and Foreign TradeAct, permission must be granted in advance by the Government
of Japan for products under export control to be shipped overseas. In addition, many countries have enacted
regulations and the like covering the import and usage of products from Japan—in certain cases, import and use
of these products is prohibited. Therefore, if you wish to export the product from Japan, contact your dealer or
MIURA sales office in advance.
(2) Product Installation
Ensure that installation work is carried out correctly as set forth in the applicable MIURAInstallation Manual.
Furthermore, anybody who will work with the product should carefully study the content of the Operation Manual
in advance and ensure that it is fully understood.
<Precautions for installation and use> —Related laws and regulations
1) The table below shows part of the laws and regulations on installation and use. There are also prefectural
and municipal ordinances; therefore, contact the supervisory authority or competent authority for more
information.
2) The details herein are based on the regulatory standards at the time of preparation.
3) The documents to be submitted and their destination vary depending on your equipment and facilities.
If you have any questions, contact your dealer, MIURAsales office, or the competent supervisory authority.
Related laws and
regulations
Form(s) to be
submitted
Destination
Submission timing
Remarks
N/A
—
—
—
アース端子
Ground
terminal

Introduction
This Installation Manual explains the transport and installation of the online communication
interface unit EO. Carefully read this Installation Manual and understand the contents before
installing the online communication interface unit EO. Particularly important points are denoted
as DANGER, WARNING, CAUTION, and NOTE in descending order of severity.
Indicates an imminently dangerous situation which leads to
serious injury or death to the user, if the product is mishandled.
Indicates a situation which might cause serious injury or death
to the user, if the product is mishandled.
Indicates a situation which might cause minor injury to the user
or the occurrence of physical damage only, if the product is
mishandled.
Describes the precautions to prevent failures of the product,
points to perform effective operation, and useful information to
know.
DANGER
WARNING
CAUTION
NOTE

Table of Contents
1. Precautions Regarding Installation..................................................................................................... 1
2. Specifications........................................................................................................................................ 2
2.1. Main Unit Specifications................................................................................................................... 2
2.2. System Configuration....................................................................................................................... 3
2.3. Overall Dimensions.......................................................................................................................... 4
2.4. Layout and Names of Internal Parts................................................................................................ 5
2.4.1. EO-010A................................................................................................................................... 5
2.4.2. EO-020A................................................................................................................................... 6
3. Carrying.................................................................................................................................................. 6
4. Installation.............................................................................................................................................. 7
4.1. Precautions when Installing the Main Unit....................................................................................... 7
4.2. Installation Procedures .................................................................................................................... 8
4.3. Installation of the Antenna (EO-020A)........................................................................................... 10
5. Wiring Work.......................................................................................................................................... 12
5.1. Precautions.................................................................................................................................... 12
5.1.1. Wiring Power Supply Line and Installing Earth Leakage Circuit Breaker (with Overcurrent
Protection)............................................................................................................................... 12
5.1.2. Precautions when Wiring Communication Line...................................................................... 12
5.1.3. Precautions when Wiring theAntenna Cable (EO-020A) ...................................................... 12
5.2. Wiring Procedures.......................................................................................................................... 13
5.2.1. Power Supply Wire and Grounding Wire ............................................................................... 13
5.2.2. M-NET3 Cable........................................................................................................................ 13
5.2.3. Telephone Line Wire (EO-010A) ............................................................................................ 14
5.2.4. Antenna Cable for Cellular Modem (EO-020A)...................................................................... 15
5.3. Wiring Procedures for Wires inside the Box.................................................................................. 16
5.3.1. Typical Wiring inside the Box (EO-010A)............................................................................... 16
5.3.2. Typical Wiring inside the Box (EO-020A)............................................................................... 17

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 1 / 18
1. Precautions Regarding Installation
When installing the equipment and performing the instrumentation work, take due care of the
following precautions.
1. Perform D-type grounding. When performing the grounding work, connect IV wire or equivalent to
the ground terminal inside the box. Use wire with a diameter equal to or larger than the power
supply wire (AWG #14).
2. Do not install an overcurrent circuit breaker in the grounding wire.
3. Install an independent earth leakage circuit breaker (with overcurrent protection) within 3 m of the
node point in the low-voltage interior wiring.
Power circuit breaker capacity
[A]
Rated sensitivity current
[mA]
EO-010A
EO-020A
5
30
4. Install an earth leakage circuit breaker (with overcurrent protection) for each phase (L phase and
N phase).
5. Use a power supply wire with insulation resistance of 0.1 MΩ or higher.
6. Use CV wire or equivalent with AWG #14 for the power line. Protect the wire in a conduit.
7. Use MIURA-specified ferrules for connections.
8. Use MIURA-specified communication wires described in this manual.
9. Install the power supply wire (power wire) and communication wire separately.

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 2 / 18
2. Specifications
2.1. Main Unit Specifications
Table 2-1: Main unit specifications
Equipment name
Online communication interface unit
Type
EO-010A
EO-020A
Telephone line
Communication
equipment
Telephone modem
Cellular modem
Line connection
method
Modular jack
—
Applicable line
Analog telephone line
Cellular network
M-NET3
Communication
wire
M-NET3 cable (RJ45 connector)
Communication
wire standard
Category 5 shielded cable (Cat. 5 STP)
Maximum
connection
distance
M-NET3 cable: 330’ (100 m)
Operating environment
Temperature: 32F–120F
Humidity: 30–85% (no condensation and freezing)
Power supply
120 VAC, 50/60 Hz, single-phase
Electrical consumption
45 VA (max.)
130 VA (max.)
Product mass
22lb (10 kg)
Overall dimensions
12.3” (W) × 6” (D) × 16.3” (H)
Paint color
White

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 3 / 18
POWER
CommunicationsRelay Unit
POWER
OnlineCommunication Unit
2.2. System Configuration
Figure 2-1: Typical system configuration (EO-010A)
The system configuration shown above is an example. The configuration varies depending on the
customer’s facility.
NOTE
System integrated
water softener
MW
Colormetry
CMU-224HE
M-NET3 cable
DS-NET cable
Online
communication
interface unit
EO-010A
Communication
relay unit
EN-021A
Boiler
To MIURA
maintenance
office
(Telephone line)

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 4 / 18
2.3. Overall Dimensions
Figure 2-2: Overall dimensions
Online Communication Unit
POWER
3-φ27

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 5 / 18
2.4. Layout and Names of Internal Parts
2.4.1. EO-010A
Figure 2-3: EO-010A parts layout
L
N
L1
G
G1 G1
max.10A
max.10A
OUTPUT
NAME
PLATE
L
N
VR51
INPUT
CN1
CN51
5
3
1
+
-
2
1
N1
ヒューズ
モデム
スイッチング電源
CPU BOARD ASSY
EE21-CPU(EM11ﾂｷ）
端子台
アウトレット
サージアブゾーバ
Switching power supply
CPU board assembly
EE21-CPU (with EM11)
Modem
Fuse
Terminal block
Outlet
Surge absorber

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 6 / 18
2.4.2. EO-020A
Figure 2-4: EO-020A parts layout
3. Carrying
•See the overall view for the dimensions.
•The EO-010A/EO-020A is packaged by cardboards.
•Take care not to impart shocks during carrying the EO-010A/EO-020A.
L N
L1 L2
G
G1 G1
max.10A
max.10 A
OUTPUT
L
N
VR51
INPUT
CN51
CN1
NAME
PLATE
-
+
5
3
1
2
1
4
3
C5
CPU ボード
EE21-CPU
端子台
スイッチング
電源
COM ボード
EE21-CPU
携帯モデム
ヒューズ サージアブゾーバ
CAUTION
Wear protective equipment when carrying the EO-010A/EO-020A.
The weight of the EO-010A/EO-020A is approx. 22lb (10 kg).
Switching
power supply
CPU board
EE21-CPU
Cellular modem
Fuse
Terminal block
Surge absorber
CPU board
EE21-CPU

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 7 / 18
4. Installation
4.1. Precautions when Installing the Main Unit
•Install in a location within the equipment operating environment range (temperature and humidity).
•Avoid the following locations, which may cause equipment failure.
1) Locations subject to direct sunlight or near equipment that generates heat
2) Hot locations or locations with large temperature fluctuations
3) Locations with high levels of moisture or dust
4) Locations subject to shocks or vibrations
5) Locations in a chemical atmosphere, or locations that may contact chemicals or water
6) Locations near power lines or near equipment that generates strong magnetic fields
7) Locations subject to severe supply voltage fluctuations
•Ensure adequate space to open the door for maintenance work.
•During installation, do not touch any of the internal circuit boards. Do not allow dust or metal
fragments to enter inside the main unit.
CAUTION
Do not directly weld the box onto a column or wall. The
EO-010A/EO-020A contains electrical equipment that may be
damaged by the effects of arc welding.
CAUTION
Observe the following precautions about installation and ensure that
the EO-010A/EO-020A is installed in an appropriate location.
Installation in an inappropriate location may result in equipment
failure.

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 8 / 18

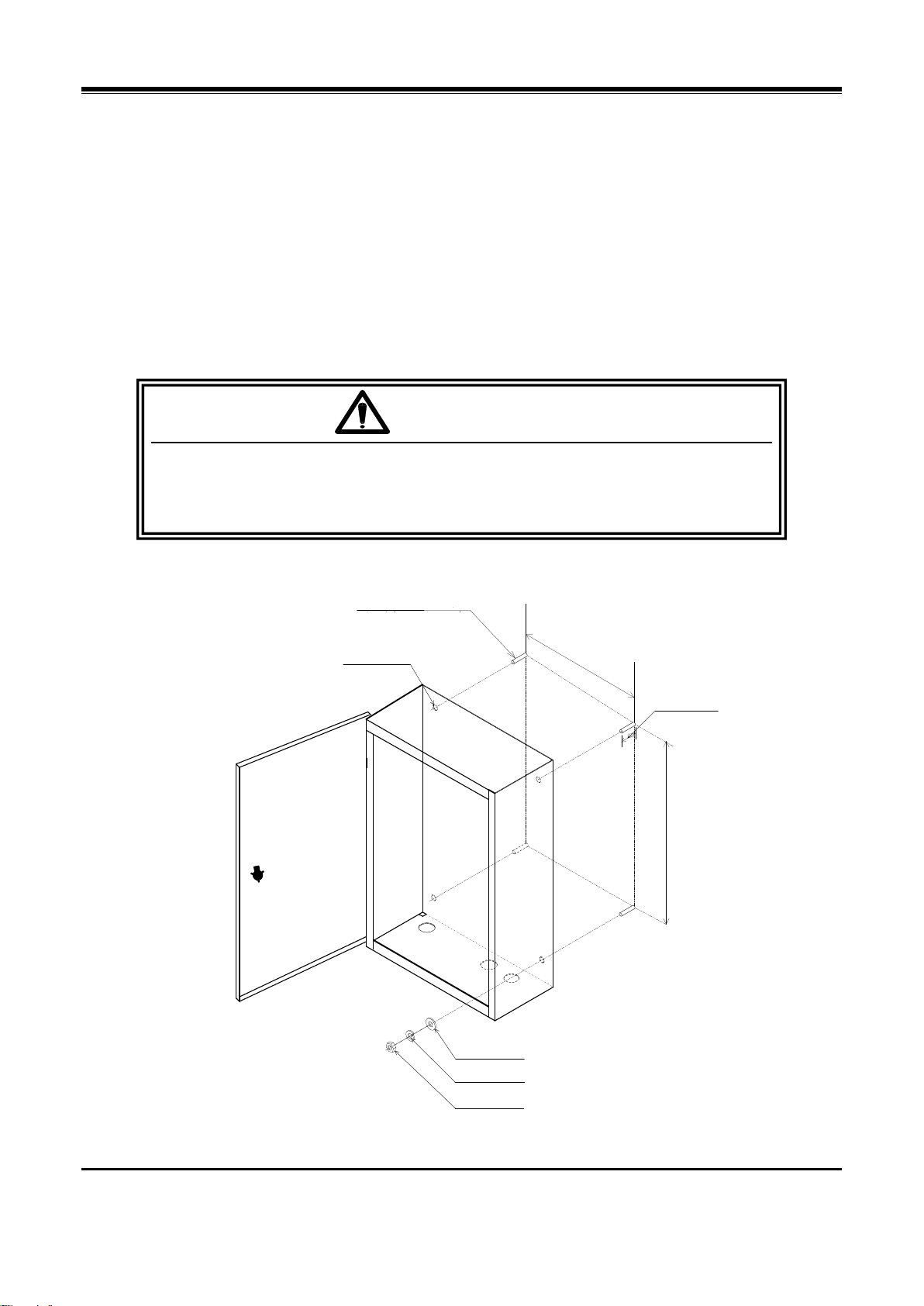

4.2. Installation Procedures
•There are holes for installation inside the equipment. Use them to fix the equipment on the wall, etc.
•Check the withstand load of the wall that the equipment is installed on. For the weight of the
equipment, refer to “2.1 Main Unit Specifications”.
•Install the embedded anchor or hole-in anchor on the wall to fix the equipment.
•For the position of the holes used for installation, refer to Figure 4-1 and Figure 4-2.
•When the protruding portion of the anchor bolt is over the specified length, prepare a tool that can
be used to fasten nuts such as deep sockets.
Figure 4-1: EO-010A/EO-020Ainstallation procedure
279
330
埋込みアンカ ネジ部M6
（又はホールインアンカ）
15～20mm
平座金 M6
ばね座金 M6
六角ナット M6
取付穴φ7
CAUTION
Always have the face with the wiring hole at the bottom. If this
precaution is not observed, dew drops may enter the equipment along
the wiring.
Plain washer M6
Spring washer M6
Embedded anchor, M6 thread
(or hole-in anchor)
Mounting hole φ7
Hexagon nut M6
15 to 20 mm

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 9 / 18
Figure 4-2: EO-010A/EO-020Amounting hole position (mm)
305
279
38
330
13
4-φ7

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 10 / 18
4.3. Installation of the Antenna (EO-020A)
Figure 4-3: Installation of the EO-020A and antenna
ケーブル保護材（電線管等）
アンテナ
CAUTION
The EO-020A must be installed at a location where sufficient radio
waves can be detected by the supplied antenna (antenna cable
length: 3 m). Decide the installation location of the EO-020A and the
antenna according to the instructions of MIURA personnel.
Antenna
Cable protector (conduit, etc.)

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 11 / 18
Install the antenna by using the supplied mounting plate and screws.
When securing the antenna, leave a space of 3/4” (20 mm) or more between the wall and the
antenna if the rear behind the EO-020Ais made of metal.
Figure 4-4: Antenna installation method
付属ネジ（M3X8)
付属ネジ
（M4タッピンネジ)
アンテナ
アンテナ取付板
Supplied screws (M3 × 8)
Antenna
Antenna mounting plate
Supplied screws
(M4 tapping screws)

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 12 / 18
5. Wiring Work
5.1. Precautions
5.1.1. Wiring Power Supply Line and Installing Earth Leakage Circuit Breaker (with Overcurrent
Protection)
•Use power supply wire with cross-sectional area of AWG#14.
•Connect the grounding phase of the power supply line to the N phase.Always ground the
equipment ground terminal using a wire of the same or larger diameter than the power supply wire.
When performing the grounding work, perform D-type grounding or better.
•Install an earth leakage circuit breaker (with overcurrent protection) in the EO power supply line.
•When installing the earth leakage circuit breaker (with overcurrent protection), do not connect the
overcurrent circuit breaker to the grounding wire.
5.1.2. Precautions when Wiring Communication Line
•Communication line described in this section are the M-NET3 cable line and telephone line.
•Use the communication wires and connectors (terminal processing) specified in Table 2-1.
•Separate the communication wires from power wires and power supply wires and do not pass
them through the same conduit.
Do not pass wires next to high-output equipment that generates strong electrical or magnetic
fields, such as a machine tool.
•Do not use communication wires made by joining multiple wires in order to prevent
communication failure.
•If wires are passed near parts that generate heat of 120F or higher (such as steam piping and
boiler main unit), block the communication wires from the heating parts using insulation materials,
etc. so that the temperature around the wires remains less than 120F.
•Connect the wiring such that water cannot flow along pipes or wires into the main unit.
•Attach a tag indicating the connection destination on both ends of communication wires so that the
equipment to which the wires are connected can be identified.
•When pulling out communication wires from the equipment, do not twist them too much.
•When bundling communication wires, do not tie them too much to avoid deformation.
•When using a cable protector such as a conduit and metal flexible tube, select a protector with an
appropriate size to prevent pressure from being applied to communication wires inside the
protector.
5.1.3. Precautions when Wiring the Antenna Cable (EO-020A)
•Separate the antenna cable from power wires and power supply wires and do not pass them
through the same conduit.
Do not pass the antenna cable next to high-output equipment that generates strong electrical or
magnetic fields, such as a machine tool.
•If the antenna cable is passed near parts that generate heat of 120F.or higher (such as steam
piping and boiler main unit), block the antenna cable from the heating parts using insulation
materials, etc. so that the temperature around the cable remains less than 120F.
•Connect the wiring such that water cannot flow along pipes or cable into the main unit.
•When pulling out the antenna cable from the equipment, do not twist it too much.
•When using a cable protector such as a conduit and metal flexible tube, select a protector with an
appropriate size to prevent pressure from being applied to the antenna cable inside the protector.

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 13 / 18
5.2. Wiring Procedures
5.2.1. Power Supply Wire and Grounding Wire
1) Requirements
For details about the power supply wires and grounding, refer to “5.1.1 Wiring Power Supply
Line and Installing Earth Leakage Circuit Breaker (with Overcurrent Protection)”.
2) Wiring inside the box
•Connect the power supply wire to the L and N terminals and the main grounding wire to the G
terminal.
•Fix the power supply wire using cable clamps in the box.
•For installing the power supply wire and grounding wire inside the box, refer to “5.3 Wiring
Procedures for Wires inside the Box”.
Figure 5-1: Connection of power supply wire and grounding wire to the terminal block
5.2.2. M-NET3 Cable
1) Requirements
•Ensure that the bending radius of M-NET3 cables is equal to or above the allowable bending
radius recommended by the manufacturer.
If the recommended value is unknown, ensure that the bending radius is at least 8 times the
finished cable outside diameter.
•Ensure that M-NET3 cables are connected to the equipment (between the equipment and hub
and between the hub and hub) no longer than 330’ (100 m).
•Use the M-NET3 cables and connectors specified in Table 2-1.
2) Wiring inside the box
•The M-NET3 cable can be inserted into an arbitrary communication port of the hub. Insert it to
an open communication port.
•Insert M-NET3 cables properly until they are locked with a clicking sound.
•Connect M-NET3 cables perpendicular to avoid stress to the connection port of the hub. If a
LAN cable is not inserted perpendicularly at the connection port (the cable is slanted),
communication failure may occur due to poor connection.
•Fix the cables securely with cable clamps to prevent their own weight from being applied to
them.
•For installing the power supply wire and grounding wire inside the box, refer to “5.3 Wiring
Procedures for Wires inside the Box”.
G G G
Power
supply wire
120 VAC
Grounding
wire

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 14 / 18
5.2.3. Telephone Line Wire (EO-010A)
1) Requirements
Install a telephone line wire so that a 6-pole, 2-core modular cable (commercially available) from
the connection port of the modem does not exceed 120’ (3 m) in length.
2) Wiring inside the box
•Insert the modular jack of a regular telephone line wire into the “LINE” port of the telephone
modem (refer to the figure below).
•Insert the modular jack properly until it is locked with a clicking sound.
•For installing the telephone line wire inside the box, refer to “5.3 Wiring Procedures for Wires
inside the Box”.
Figure 5-2: Connection of a modular cable to the telephone modem
モジュラケーブル
（市販品）最大３m
電話回線工事
Telephone line wire installation
Modular cable (commercially available)
Up to 120’ (3 m)

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 15 / 18
5.2.4. Antenna Cable for Cellular Modem (EO-020A)
Connect the supplied antenna cable to theANT terminal of the modem.
Figure 5-3: Connection of the antenna cable to the cellular modem
Ensure that excessive stress is not applied to the cellular modem when fastening the cable.
アンテナケーブル
（同軸ケーブル）
携帯モデム
Antenna cable
(coaxial cable)
Cellular modem
NOTE

Document No.: E20-087-04
MIURAAMERICA CO., LTD. 16 / 18
5.3. Wiring Procedures for Wires inside the Box
5.3.1. Typical Wiring inside the Box (EO-010A)
Figure 5-4: EO-010A wiring procedure
Fix cables using cable clamps in the box.
Install cables using wiring holes in proper positions (refer to “Figure 2-2: Overall dimensions) to
avoid bended cables and stress to them as much as possible.
•Plug the wiring holes not used with the provided metal cap.
L
N
L1
G
G1 G1
max.10A
max.10A
OUTPUT
NAME
PLATE
L
N
VR51
INPUT
CN1
CN51
5
3
1
+
-
2
1
N1
スイッチング電源
CPU BOARD ASSY
EE21-CPU
モジューラケーブル
電話モデム
M-NET3ケーブル
NOTE
NOTE
Telephone
modem
M-NET3 cable
Modular cable
Switching power supply
CPU board assembly
EE21-CPU
