MOBILE STAIRLIFT ATLAS User manual

1.0-1.4
2

ATLAS WHEELCHAIR STAIRLIFT
1
INDEX
Introduction
1.1 - Indication for Use
1.2 - General Description / Intended Use
1.3 - Disclaimer
1.4 - Unpacking the Device
Symbols and Definitions Used in the Manual
2.1 - Warning/Cautions/Note Definitions
2.2 - Safety Precautions
Diagram of Chair
3.1 - Side View of the Atlas
Device Label
Care and Cleaning Instructions
Maintenance
Troubleshooting
FAQs
Warranty
1.0
2.0
3.0
10.0
5.0
7.0
6.0
8.0
9.0
Setting up the Mobile Stairlift Atlas
4.1 - Using the Atlas
4.0

ATLAS WHEELCHAIR STAIRLIFT
2
1.0-1.1
1.0 Introduction
Thank you for purchasing a Mobile Stairlift Atlas Wheelchair Lift! We aim to provide the safest
and most adaptable mobility equipment on the market. Please read this manual in its entirety
before operating or maintaining this product. To ensure safe use, all operators of this device
should be properly trained.
CAUTION
Improper usage of this device can cause injury to the rider or operator. The Atlas Wheelchair
Stairlift must only be operated as described in this manual. Do not modify the Atlas Wheelchair
Stairlift or any of its components unless you are a Certified Mobile Stairlift Technician, as
modifications can result in unpredictable performance and result in injury to the rider or operator.
NOTE: This manual should remain with the Atlas Wheelchair Stairlift at all times.
For customer service or technical assistance,
please contact us via email [email protected]
1.1 Indications for Use
The Mobile Stairlift Atlas Wheelchair Lift is a manual transport device that transports the rider
in a seated, upright position on the ground as well as up or down stairs in a safe and efficient
manner. The Atlas Wheelchair Stairlift is capable of moving adult, adolescent, or child occupants
who are able to remain seated and secured. The Atlas Wheelchair Stairlift’s four wheels also
allow the operator to transport the occupant on flat surfaces when the tracks are in an upright
and locked position.
WARNING
DO NOT use this stair chair lift to transport occupants
who may have cervical, spinal, or fracture injuries.

ATLAS WHEELCHAIR STAIRLIFT
3
1.2-1.4
1.2 General Description / Intended Use
The Mobile Stairlift Atlas Wheelchair Lift is intended as a transport device for a human occupant in
a seated position to be taken up or down flights of stairs. The occupant’s chair should be secured
in the chair by restraints for their safety and the safety of the operator. The operator must read this
manual and be properly trained on this product before use. The operator must practice with the
Atlas Wheelchair Stairlift and an unoccupied wheelchair before using it to transport a rider.
1.3 Disclaimer
This user manual contains general instructions and guidelines for the use, operation, and care of
this product. These instructions are not all-inclusive. The safe and proper use of this product is
solely at the discretion of the user. Safety information is included as a service to the user. All other
safety measures taken by the user should be within and under consideration of
applicable regulations. It is recommended that a complete training on how to properly use this
product should be provided before actual use.
1.4 Unpacking the Device
Unpack your brand new Mobile Stairlift Atlas Wheelchair Lift, remove all the shipping and packing
materials, and check all the items for proper operation. If anything is missing or noted not to be
correct, or any type of damage is present due to shipping, please contact Mobile Stairlift.
Items Included:
• 1 x Atlas Wheelchair Stairlift
• 1 x Battery & Key Set
• 1 x Charger
• 1 x Instruction Manual

ATLAS WHEELCHAIR STAIRLIFT
4
2.0-2.1
2.0 Symbols and Definitions Used in this Manual
Consult instructions for use.
General Warning of any possible damages, bodily injury, or even death resulting from
incorrect use or carelessness. (See Section 2.1 for more information)
Caution to alert the reader to hazardous situations and if instructions are not
properly followed could result in minor or moderate injury to the user or occupant.
(See Section 2.1 for more information)
Serial Number of the device.
Date of Manufacture
Product should not be disposed of with your other household waste.
Check sign explains the items that you should comply with upon operation, repair
and maintenance of this device.
Do not lubricate the belts or tracks of this device.
2.1 Warning / Caution / Note: Definitions
These words carry special meanings and should be carefully reviewed.
This symbol alerts the reader about a situation which, if not avoided, could result in
death or serious injury. It may also describe potential serious adverse reactions and
safety hazards.
This symbol alerts the reader of a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user or patient or damage
the product or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device
that may occur as a result of use or misuse.
NOTE: This provides special information to make maintenance easier or important instructions
clearer.

ATLAS WHEELCHAIR STAIRLIFT
5
2.2
2.2 Safety Precautions
1. Read this entire user manual before using the Mobile Stairlift Atlas Wheelchair Lift, and use
the Atlas Wheelchair Stairlift only as described in this manual.
2. Always make sure that the chair is locked in the unfolded position before use. An unlocked
chair may fold during use causing injury.
3. Do not use the chair with suspected cervical, spinal, or fracture injuries.
4. Do not leave an occupant unattended. Maintain a grip on the Atlas Wheelchair Stairlift while
an occupant is seated and secured to the Atlas Wheelchair Stairlift.
5. Always use the restraint straps to secure the occupant’s chair to the lift. An unrestrained
occupant may fall from the lift.
6. While on flat surfaces, do not push the chair with the upper control handle in the fully
extended position. Pushing the chair with the handle extended may cause the chair to tip
when you encounter obstacles.
7. Always lock the chair in position before you transport an occupant.
8. Make sure the occupant keeps hands inside the chair when moving up or down a staircase.
9. Avoid getting dirt inside the tracks.
10. Do not attach any additional items to this chair unless certified by Mobile Stairlift.
11. The Atlas Wheelchair Stairlift may not work the same on all stair surfaces and in all
environments and conditions.
12. Never lubricate the belts or tracks of this product. Lubricating the track system can result in
injury to the patient and /or operators.
13. Do not attempt to transport occupant loads greater than what you can safely lift.
14. To clean the Atlas Wheelchair Stairlift, wipe with a towel and clean water. Dry after cleaning.
Please note that cleaning products may cause corrosion and damage to the Atlas
Wheelchair Stairlift.
16. Use only parts that are specifically made for this Stairlift. If replacement parts are needed,
please contact Mobile Stairlift for assistance.
17. Maintain and operate the Atlas Wheelchair Stairlift only as described in this manual. Mobile
Stairlift can be reached for all service, maintenance and questions regarding this chair and
its operation.

ATLAS WHEELCHAIR STAIRLIFT
6
3.0

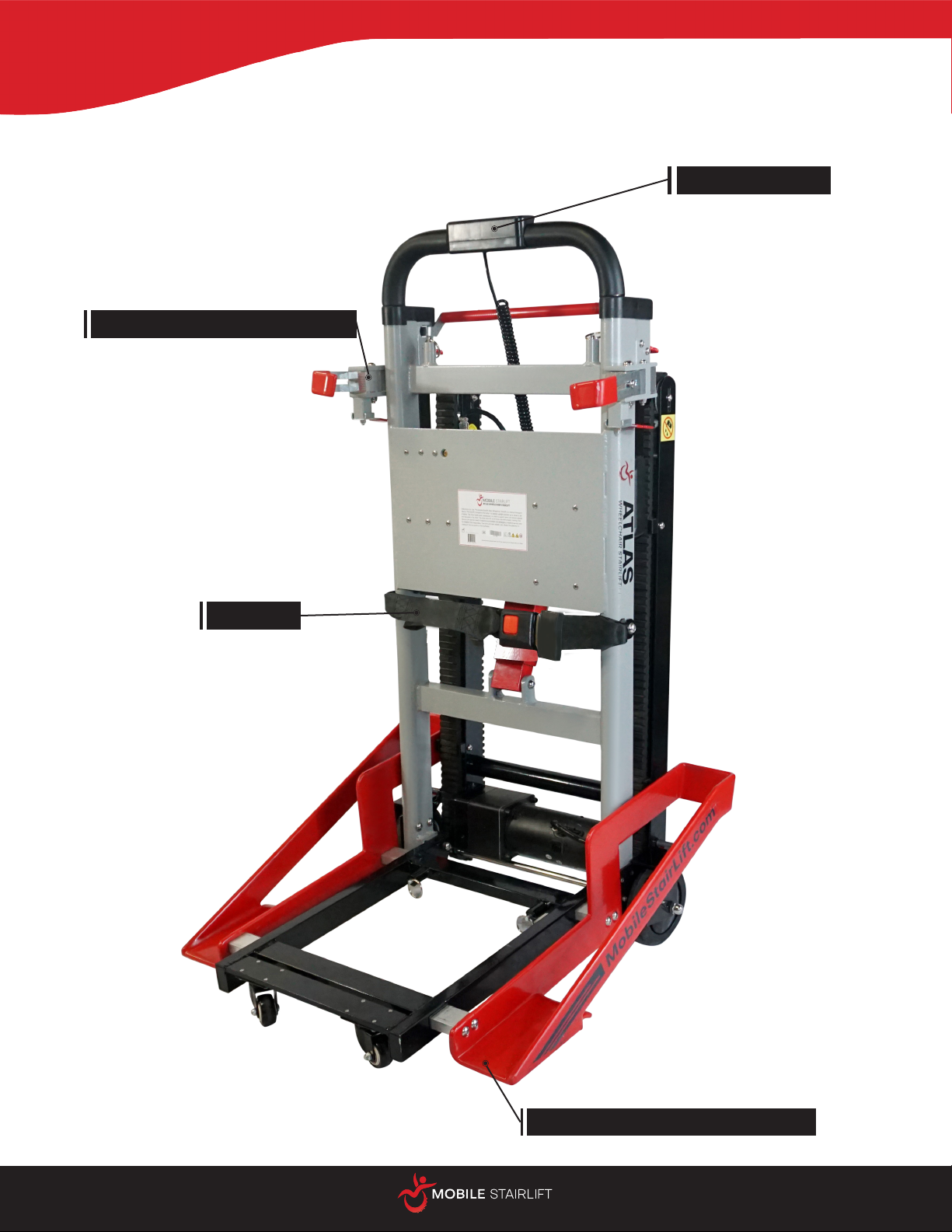

3.0 Diagram of Chair
Hand Controls
Wheelchair Frame Clasps
Wheelchair Wheel Supports
Seatbelt

ATLAS WHEELCHAIR STAIRLIFT
7
3.1
3.1 Side View of Mobile Stairlift Atlas Wheelchair Lift
ANTI SLIP RUBBER TRACKSWHEEL LOCKS
Foot brakes are located behind the two back
wheels. When at rest, please engage the
brakes to prevent unwanted movement.
Tension controlled tracks make controlled
descents safer, and durable rubber ensures
safe transport for years to come.
Handlebar Lock
Wheel Locks
Push Handles
Track Locks

ATLAS WHEELCHAIR STAIRLIFT
8
4.0
4.0 Setting Up The Mobile Stairlift Atlas Wheelchair Lift
NOTE:
It is recommended that the operator begin training by practicing using the Atlas Wheelchair
Stairlift without a rider. This will help them get familiarized with the working mechanisms of the
Atlas Wheelchair Stairlift and how to safely move on flat surfaces, as well as how to
ascend and descend staircases with a rider.
Before each use of the chair, make a visual check to see that all parts are in place and that there
are no loose or moving parts. If you see anything out of ordinary issues with the chair, do not use
it until you verify with our customer service rep that it is safe to use.

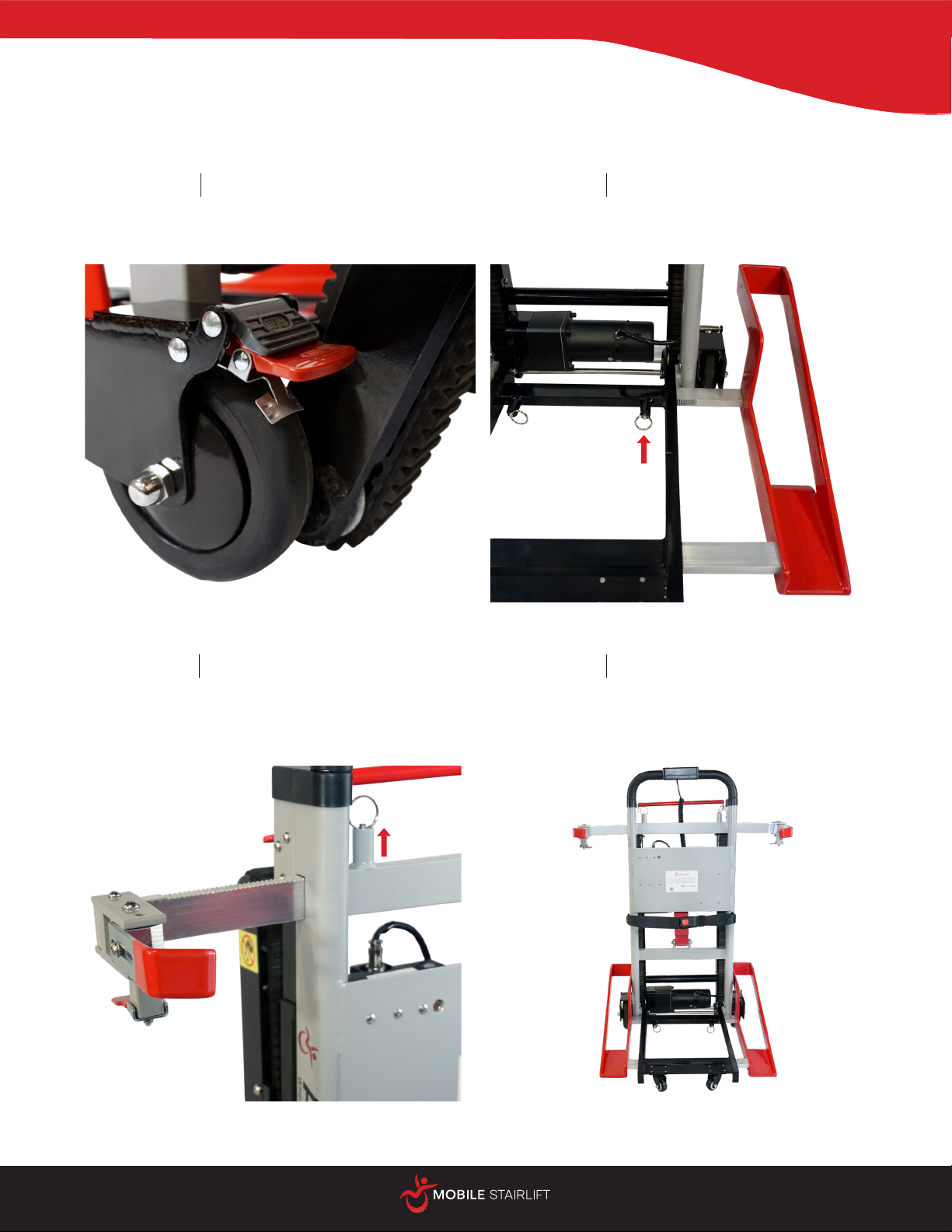

STEP 1 After taking your Atlas out of the
box, lay the device down with the
tracks on the ground.
STEP 2 Locate and remove the two wing
bolts on the black frame near the
large back wheels.
STEP 3 After removing the wing bolts, lift
the black base frame vertically
and reinsert the wing bolts into the
black frame—securing the frame
vertically.

ATLAS WHEELCHAIR STAIRLIFT
9
4.0
STEP 4 Stand the Atlas up and lock the
wheels on both sides by
pressing on the red levers on
the wheels.
STEP 5 Slide the red wheel supports
in either side by lining up the
pieces while pulling the linch
pins.
STEP 6 Similarly, slide the wheelchair
frame supports on either side
inward towards the handlebar
while pulling the linch pins.
STEP 7 Your Atlas is fully assembled
and ready to be adjusted for a
wheelchair.

ATLAS WHEELCHAIR STAIRLIFT
10
4.1
STEP 1 Slide the wheelchair into the
Atlas, making any minor
adjustments if needed, and lock
the wheelchair’s wheels.
STEP 2 Press on the red lever of the
wheelchair frame supports
to close and lock the handle
around the frame on either side.

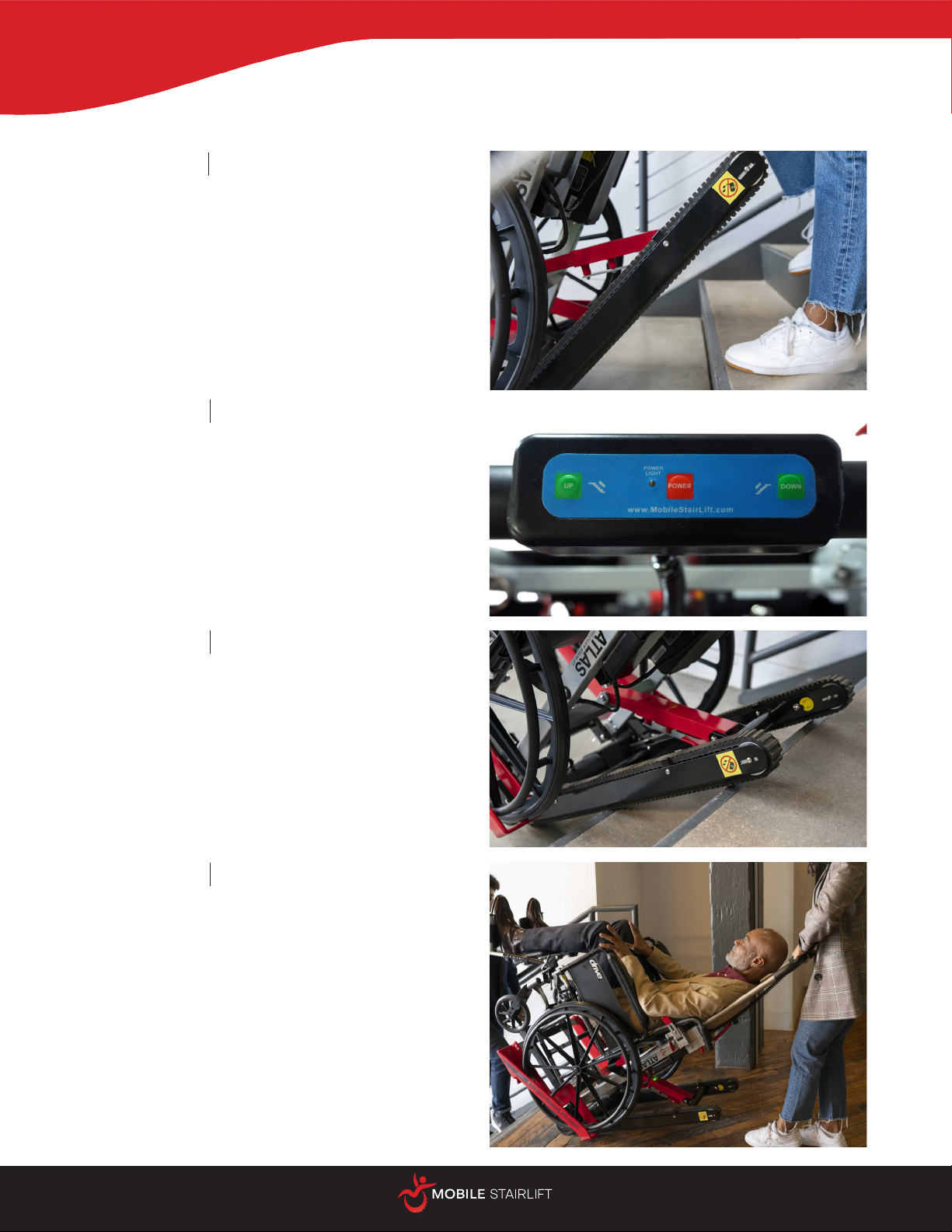

4.1 Using The Mobile Stairlift Atlas Wheelchair Lift
STEP 3 Secure the occupant into the
Atlas by buckling the seatbelt
around them and the
wheelchair.

ATLAS WHEELCHAIR STAIRLIFT
11
4.1
STEP 4 Pull on the red horizontal bar to
unlock the adjustable
handlebar. Set to a
comfortable height.
STEP 5 Locate the red lever between
the tracks and press while
pulling downwards to release
the tracks until they lock into
place.
STEP 6 Pull the push handles up by
pressing downwards on their
red release lever and move
them upwards until they also
lock into place.

ATLAS WHEELCHAIR STAIRLIFT
12
4.1
STEP 7 Using the push handles, align
the Atlas with the edge of the
stairs. Put the push handles in
their retracted position before
proceeding.
STEP 8 Power the device on, tilt the
Atlas backwards to the stairs
and hold the “up” button to
ascend, or the “down” button to
descend.
STEP 9 Pull the push levers up by
pressing downwards on their
red release lever and move
them upwards until they also
lock into place.
STEP 10 After arriving at the staircase
landing, keep moving
backwards or forwards until
there is adequate space to
set the Atlas down on all four
wheels safely.
NOTE: To descend a staircase, tilt the
Atlas backwards and use the
“down” button on the device
until the tracks catch on the
stairs.

ATLAS WHEELCHAIR STAIRLIFT
13
5.0-7.0
5.0 Care and Cleaning Instructions
• To clean the chair, use a clean cloth or soft brush with warm clean water.
• Dry completely before use.
• Do not use products that have bleach or phenolic cleaners.
• Avoid over-saturation or leaving the chair wet for any amount of time.
• To clean the track casing, use SD-20 All Purpose Cleaner and a cloth to remove any grease
or other substance.
• Thoroughly dry before use.
• In a medical setting, we recommend you disinfect the chair between riders with basic
disinfectant for patient and operator safety.
6.0 Maintenance
To obtain parts and service call Mobile Stairlift information in the front of this manual.
Please contact your representative for prior approval before returning this product
7.0 Troubleshooting
If you have any questions about the Stairlift, please call [phone] for customer service
assistance. The device label will also show the serial number and the date manufactured

ATLAS WHEELCHAIR STAIRLIFT
14
8.0
8.0 FAQs
Q: Can the rider operate the Mobile Stairlift Atlas Wheelchair Lift alone?
A: No.
Q: Can the chair be used in more than one location?
A: Yes, the chair folds up small enough to fit in most car trunks, and it is meant to be
transported wherever it is needed!
Q: Will this work on carpeted stairs? How about Wood, Cement, etc.?
A: Yes, the Atlas Wheelchair Stairlift is made to work on all surfaces. On carpeted stairs, the
carpet must be fully attached to the stairs. It will not work with unattached carpets: the
tracks will not be able to grip properly and may slip during use.
Q: So the Atlas Wheelchair Stairlift will work on cement, wood, iron and all types of stair
surfaces, but what about different shaped staircases, like round staircases?
A: The Mobile Stairlift Atlas Wheelchair Lift does not work on round staircases.

ATLAS WHEELCHAIR STAIRLIFT
15
9.0
9.0 Warranty
Thank you for your interest in the products and services of Climbing Steps, Inc.
This Limited Warranty applies to physical goods, and only for physical goods, purchased from
www.MobileStairLift.com
What does this Limited Warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty
Period. During the Warranty Period, Climbing Steps, Inc will repair or replace, at no charge, products or parts of
a product that proves defective because of improper material or workmanship, under normal use and mainte-
nance.
What will we do to correct problems?
Climbing Steps, Inc will either repair or replace the Product at no charge, using new or refurbished replacement
parts or products.
How long does the coverage last?
The Warranty Period for products purchased from Climbing Steps, Inc is Lifetime on the Frame Welds and 180
days on all parts from the date of purchase. A replacement product or part assumes the remaining warranty of
the original product or 180 days from the date of replacement or repair, whichever is longer.
What does this Limited Warranty not cover?
This Limited Warranty does not cover any problem that is caused by:
• Conditions, malfunctions, misuse, accidents, physical damage, modifications, or damage not resulting
from defects in material or workmanship.
What do you have to do?
To obtain warranty service, you must contact us to determine the problem and the most appropriate solution for
you.
For further information regarding this limited warranty, please contact Climbing Steps, Inc by calling
[phone], emailing at Inf[email protected], or writing Climbing Steps, Inc at the following address:
Climbing Steps Inc.
Attn Mobile Stairlift Warranty Department
1661 N. Dixie Highway
Pompano Beach, DL 33060

ATLAS WHEELCHAIR STAIRLIFT
16
10.0
10.0 Device Label
Indications for Use: The Mobile Stairlift Atlas Wheelchair Stairlift is a manual transport
device. The Stairlift transports the body in a seated, upright position up or down a set
of stairs. The chair holds adult, adolescent, or child occupants who can remain seated
and secured in the chair. The chair stair lift is for home use with proper training. This
device can also be used in hospital environment and emergency medical service and
for medical first responders. The front and rear wheels also allows the operator to
transport the occupant on flat surfaces.
Need UPC
Manufactured by: Mobile Stairlift, 1661 N. Dixie Highway, Bay 12, Pompano Beach, FL 33060
ATLAS WHEELCHAIR STAIRLIFT
Distributed by:
Mobile Stairlift
1661 N. Dixie Highway, Bay 12, Pompano Beach, FL 33060 • [phone]

ATLAS WHEELCHAIR STAIRLIFT
17
Have more questions? Contact us!
Mail:
Mobile Stairlift
1661 N. Dixie Highway, Bay 12,
Pompano Beach, FL 33060
Email: [email protected]
Web: www.mobilestairlift.com
Phone: [phone]
Scan with your smartphone camera to view
the Mobile Stairlift Atlas Wheelchair Lift Information and Product Video

Or go to MobileStairLift.com/Atlas

ATLAS WHEELCHAIR STAIRLIFT
WWW.MOBILESTAIRLIFT.COM
