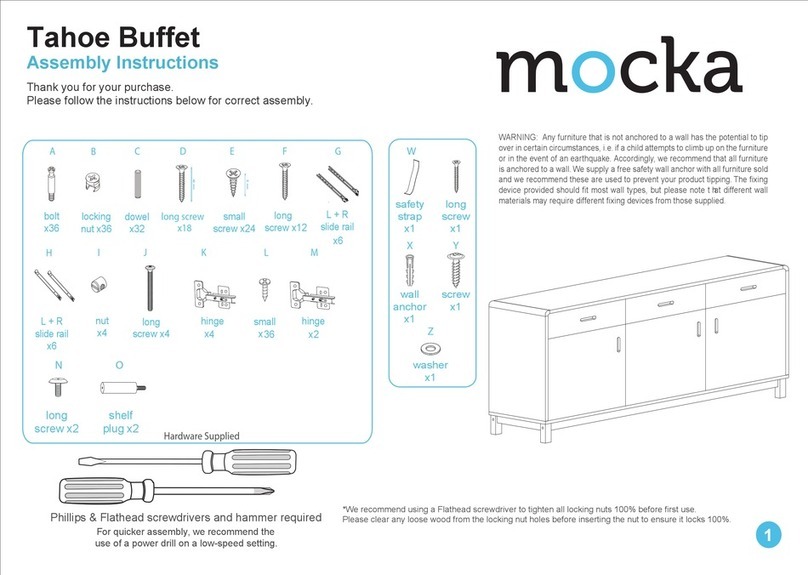

Mocka Tahoe User manual

Mocka

Mocka Tahoe User manual

Mocka Essentials 3 Cube User manual

Mocka

Mocka Essentials 3 Cube User manual

Mocka Zander Coffee Table User manual

Mocka

Mocka Zander Coffee Table User manual

Mocka Sadie User manual

Mocka

Mocka Sadie User manual

Mocka Aspen User manual

Mocka

Mocka Aspen User manual

Mocka Sintra Bedside Table User manual

Mocka

Mocka Sintra Bedside Table User manual

Mocka Oslo Bedside Table User manual

Mocka

Mocka Oslo Bedside Table User manual

Mocka Urban Tallboy User manual

Mocka

Mocka Urban Tallboy User manual

Mocka Locka User manual

Mocka

Mocka Locka User manual

Mocka Kris Chair User manual

Mocka

Mocka Kris Chair User manual

Popular Indoor Furnishing manuals by other brands

Homelegance California 1662PEK-1CK Assembly instruction

Homelegance

Homelegance California 1662PEK-1CK Assembly instruction

Osmond Ergonomics FLO instructions

Osmond Ergonomics

Osmond Ergonomics FLO instructions

OVE ELOISE 42 installation manual

OVE

OVE ELOISE 42 installation manual

overstock MF286255 Assembly instructions

overstock

overstock MF286255 Assembly instructions

Sonoma 160-801 Assembly instructions

Sonoma

Sonoma 160-801 Assembly instructions

BOLERO Wicker Side Chair CF158 Care Instructions

BOLERO

BOLERO Wicker Side Chair CF158 Care Instructions

Coaster 4799N Assembly instructions

Coaster

Coaster 4799N Assembly instructions

Stor-It-All WS39MP Assembly/installation instructions

Stor-It-All

Stor-It-All WS39MP Assembly/installation instructions

Lexicon 194840161868 Assembly instruction

Lexicon

Lexicon 194840161868 Assembly instruction

Next AMELIA NEW 462947 Assembly instructions

Next

Next AMELIA NEW 462947 Assembly instructions

impekk Manual II Assembly And Instructions

impekk

impekk Manual II Assembly And Instructions

Elements Ember Nightstand CEB700NSE Assembly instructions

Elements

Elements Ember Nightstand CEB700NSE Assembly instructions

JWA CARY 68429 Assembly instruction

JWA

JWA CARY 68429 Assembly instruction

VIPACK AMORI AMKB9014 Assembly instructions

VIPACK

VIPACK AMORI AMKB9014 Assembly instructions

Rowico SANNA Assembly instructions

Rowico

Rowico SANNA Assembly instructions

Southern Enterprises CK556000TX Assembly instructions

Southern Enterprises

Southern Enterprises CK556000TX Assembly instructions

hygena 314/5041 Assembly instructions

hygena

hygena 314/5041 Assembly instructions

VINNOVA Kinsley 536060S manual

VINNOVA

VINNOVA Kinsley 536060S manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Eliza Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
1
Wall Strap
x2
washer
Z
Y
wall
anchor
x1
X
safety
strap x1
WV
screw
x1
wall
screw
x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
bolt
x25
x8
AB C D E F G H
JKLM N O
I
Hardware Supplied
dowel
x14
screw
x36
slide
rail x3
slide
rail x3
slide
rail x3
slide
rail x3
locking
nut x25
screw
x6
x8
wedge
x3
handle
x16
screw bolt
x15
screw
key x1
Allen
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
Phillips & Flathead screwdrivers
long
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
2
12
Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] and [4] as
shown and secure with 18x screws (E). Insert 6x bolts (C) into panels [3]
and [4]. Tighten with a screwdriver.
F
CL
E
Attach panels [5], [6] and [7] to panel [4] with 3x dowels (A) and secure
with 3x locking nuts (D). Tighten with a screwdriver.
EF
G
E
G
CR
E
C
C
A
D
3
4
4
5
7
6
D
A
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
3
3 4
Attach panel [3] to the unit with 3x dowels (A) and secure with 3x
locking nuts (D). Tighten with a screwdriver.
Slide panel [8] down along the grooves between the panels [3] and [4],
to form the back of the unit as shown.
D
A
7
6
5
3
3
4
8
D
A
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
4
65
Attach panel [2] to panels [3] and [4] with 4x dowels (A) and
secure with 4x long screws (B). Tighten with a screwdriver.
Attach 4x legs [9] to panel [2] and secure with 16x bolts (L).
Tighten with an Allen Key (N).
A
B
L
2
3
4 2
9
N
L
9
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
5
7 8
Slide panel [8] down along the grooves between the panels [3] and [4]. Insert 4x bolts (C) into panel [1] as shown. Tighten with a screwdriver.
C
8
3
4 1
Eliza Three Drawer
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
6
910 Drawers x3
Assembly Instructions
Attach panel [1] to panels [3] and [4] with 4x dowels (A) and secure
with 4x locking nuts (D). Tighten with a screwdriver. Attach panel [6]
to panel [1] and secure with 2x long screws (B). Tighten with a screwdriver.
Insert 5x bolts (C) into panel [10]. Tighten with a screwdriver. Attach
panels [11], [12] and [13] to front panels [10] and secure with 5x
locking nuts (D). Tighten with a screwdriver.
A
D
B
1
3
4
6
A
D
C
D
10
10
11
12
13
D
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
7
12 Drawers x311 Drawers x3
Slide panel [14] along the grooves between the side panels [11] and
[12] to form the base of the drawer. Attach panels [11], [12], [13] and
[15] as shown using 5x screws (M). Tighten with a screwdriver.
Attach slide rail (I) and slide rail (H) to the underside of the side
panels as shown. Secure with 4x screws (E) and tighten with a
screwdriver. Attach handle (O) to panel [10] and secure with 2x
screws (E). Tighten with a screwdriver.
EO
10
12
E
H
I
11
E
M
10 15
11
12
14
11
12
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
8
13 14
Insert the assembled drawers into the corresponding compartments
as shown. Ensure the drawers slide easily along the rails.
Attach 8x wedges (J) into the corners of the back of the unit and secure
with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z) and
1x screws (W). Tighten with a screwdriver.
10
V
W
Z
J
K
1
J
K
V
Z
W
16
Eliza Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
9
15
Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and 1x
wall screw (Y).
Ensure unit is balanced and steady before use. You’re done, enjoy!
X
Y
Z
1
X
Y
Z
