Modena BV 3435 Owner's manual

User
Manual Book
Induction Cooker
Series
BV 3435

TABLE OF CONTENTS
SAFETY & WARNING 3
General safety instructions 3
FEATURES 5
BO 3435 5
INSTALLATION 8
Pre-step before installation 8
Installing the oven into kitchen set 9
Electrical connection 10
HOW TO USE 12
Cooking without fan 12
Cooking with fan 12
MAINTENANCE 15
Cleaning the oven 15
Change the oven light 16
Removal of oven door 16
Inspect the seal 16
TROUBLESHOOTING 17
SPECIFICATION 18
APPENDIX 1 19
APPENDIX 2 20
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com.

3
Advice and precautions
This unit is designed and manufactured in compliance with international
safety standards. Warnings and instructions below are for safety
reasons and must be read and followed carefully.
General safety instructions
•The unit is designed for household use and for use indoors and
is not intended for commercial use or industry.
•Unit should not be installed in an open area. Very dangerous to
let the unit exposed to rain and typhoon.
•When move and install the unit always use the handrail available
in the oven.
•Do not touching the side of the unit with bare feet or wet
conditions or wet hands and feet.
•Unit should be used only by adults to prepare the dish
accordance with the instructions in the guide book.
•Do not touch the heating element or a particular part of the oven
door when the unit is used, since some parts become very hot.
Keep children away from the oven and do not touch the hot parts
of the electrical wiring directly.
•Make sure other electronic equipment not in contact with the hot
parts oven.
•The open for ventilation and heat dissipation should not
obstruct.
•Always grasp handle of the oven in the middle, the end part of
the handle could be hot.
•Always wear gloves when placing or removing the cutlery into or
out of the oven.
•Do not use aluminium foil to line the bottom oven.
•Do not put combustible materials in the oven, if the unit is
accidentally turned on, these materials can burn.
•Always make sure the knob on the “●”/“○” position when the
unit is not in use.
•When you disconnect the power cord, always pull from the cable
head, do not pull the cord.
SAFETY AND WARNING

4
•Always unplug the power cord from its source when doing
maintenance or repair of the unit. If there is any damage on the
unit, however, do not try to fix it by yourself. For repairing that
was carried out by an inexperienced technician could potentially
cause injury or further damage to the unit. Contact MODENA
authorized service center for repair.
•Do nor laying or leaning heavy objects on the oven door.
•Do not let the children play with the unit.
•Units are not to be used by people (including children) with a
lack physical ability, sensory, or mental, or lack of experience
and knowledge about these products, unless they have been
given supervision or instruction concerning the use of tools by a
person responsible for their safety.
•Always turn off the oven before removing the oven rack and
plates.
•During the cooking process, fat or oil should be treated with
caution because this material is likely to cause a fire if it reaches
a certain temperature.
•When you smell gas, immediately release the regulator from the
gas tank, do not light a fire and immediately contact MODENA
Service Center.
•Frequently check the gas hose, to make sure that gas hose is far
from hot surface, and not in bent position. Make sure the outer
surface of hose is not cracked so that can be a leakage.
•Always remember that territory around the gas stove can be got
for the long time (around 30 minutes) after you turn off the gas
stove.
•Do the routine service on your built-in oven every 3 (three)
month, because if there is something wrong on your Built-in
oven, you can immediately detect and repair.
ATTENTION!
Disposal
When throwing the packaging, review and comply with local
regulations concerning waste management for a possible
re-cycle. Electronic and electrical products waste be
recycled at a special recycling facility. Contact our local
waste management agency or retailer for recycling advice.

5

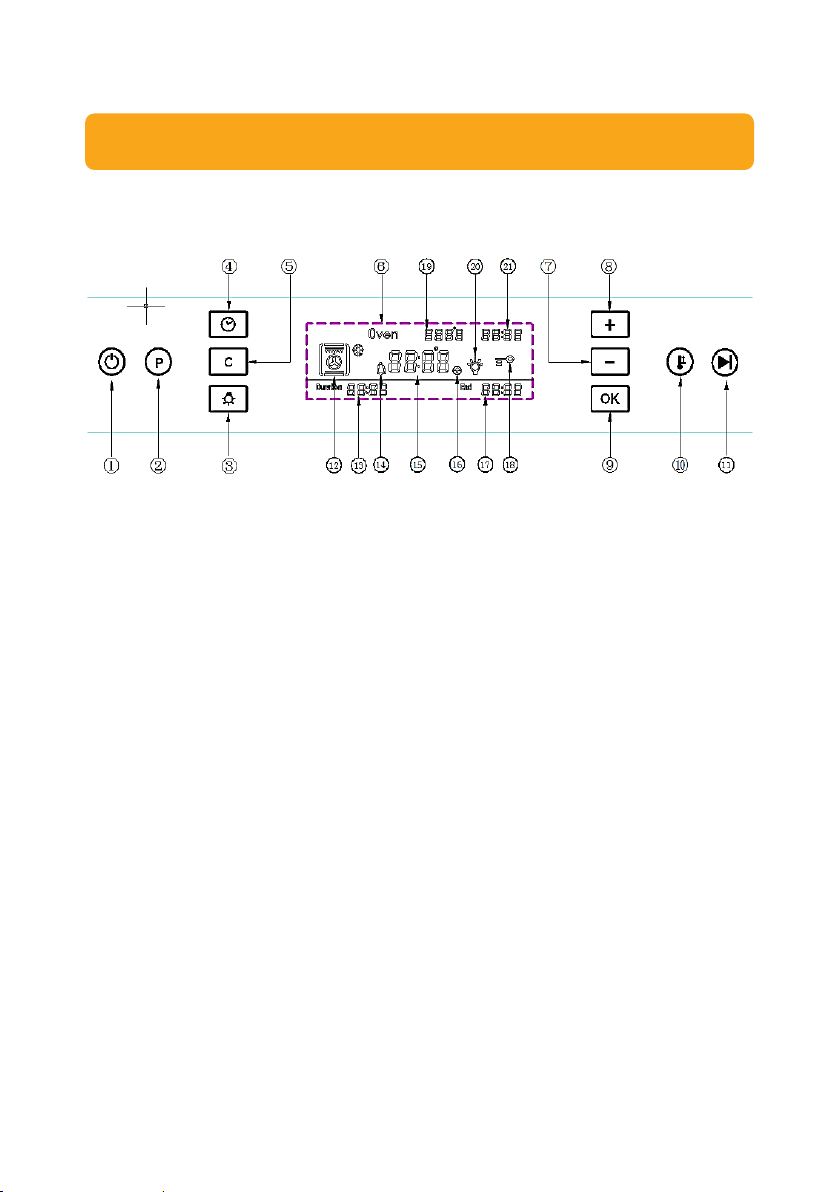

BO 3435
Remark:
1. On/Off Switch
2. Program button
3. Light button
4. Timer button
5. Temperature button
6. Display screen
7. Minus (-) button
8. Plus (+) button
9. OK button
10. Heat up button
11. Start/Stop button
FEATURES
12. Cooking mode symbol
13. Cooking time
14. Alarm symbol
15. Time and temperature
16. Heat up symbol
17. End cooking time
18. Child lock symbol
19. Temperature setting
20. Light symbol
21. Time of day

6

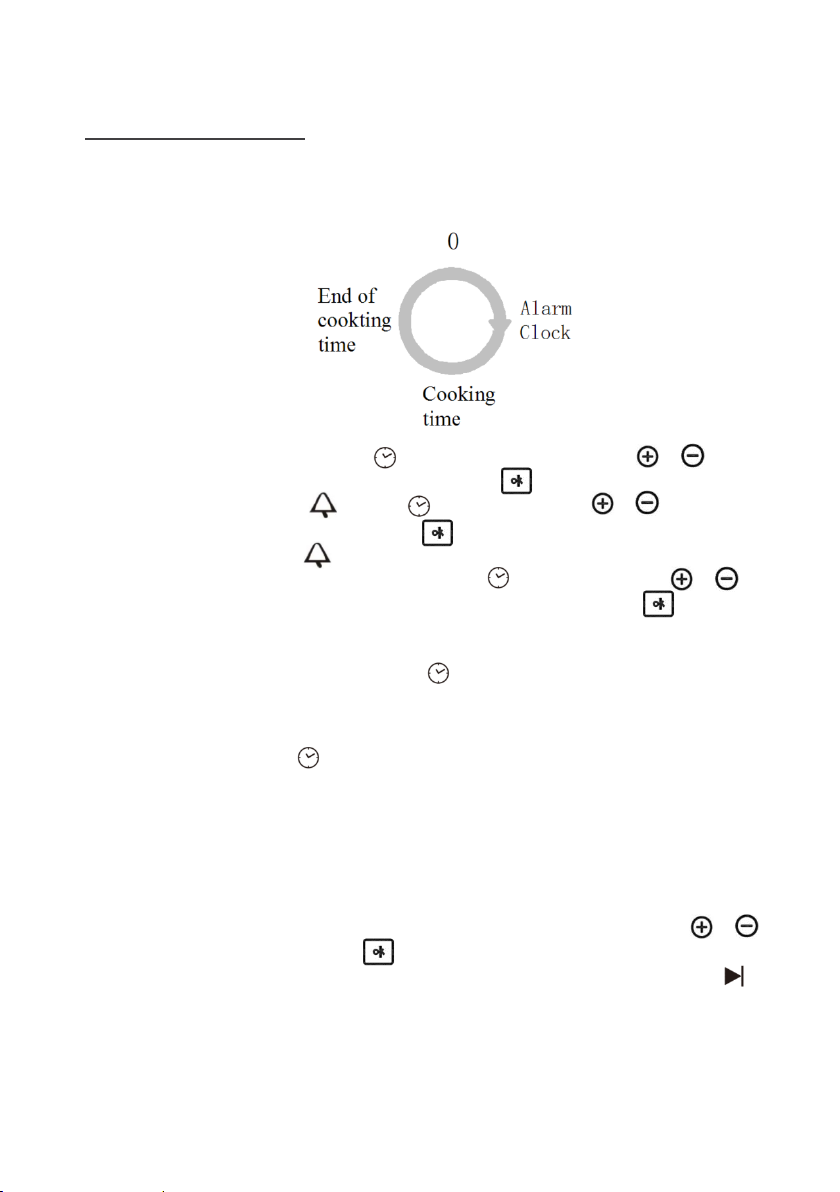

Over function setting
•Time of day / Alarm clock / Cooking time / End of time setting
The sequence of cooking modes displayed in the screen as
below:
1. Time of day: Press key for 2 seconds, press /
to adjust the time, press the key to confirm.
2. Alarm clock : Press key once, press / to set
the cooking time, press to confirm. The display shows
the symbol .
3. Cooking time “Duration”: Press key twice, press /
to set the cooking time 00:00 (hour:min), press to
confirm.
4. End of cooking time “End”: After user sets the cooking time
“Duration”, press the key 3 times to set the end of cooking
time. The oven starts as soon as the start time reaches.
For example: The time is 12:00 now, user sets the cooking time to 0:30
(hour:min), then press to set the end of time to 12:40. The oven starts
to cook at 12:10, and the display shows the end of cooking process.
•Function setting
1. Press the key “P” to switch on the oven. User can select the
different cooking modes by continuously pressing the key
“P”.
2. Temperature can be set by press “C” key then press /
to set then press to confirm after the cooking mode is
selected. Once the cooking mode is fixed, press the key “
to start cooking, press repeatedly to switch between the
start and pause.

7

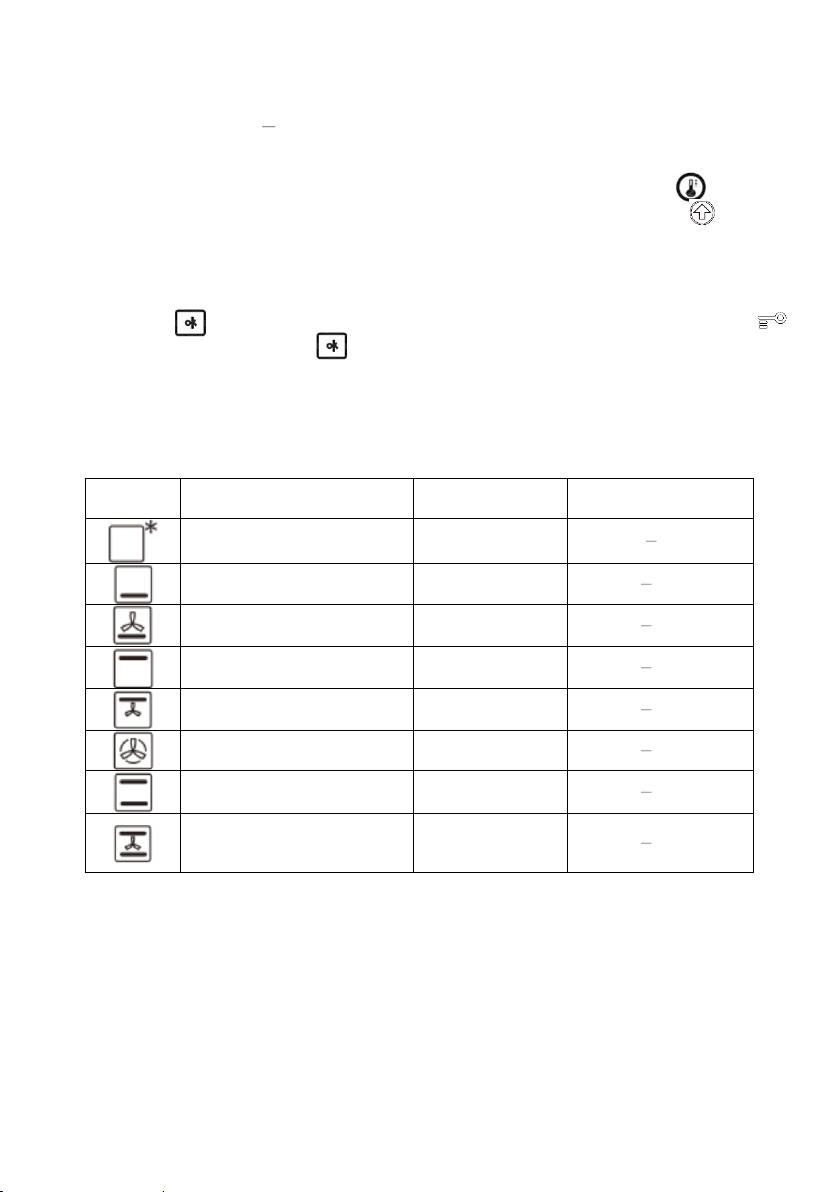

•Rapid heat up
When the setting temperature exceeds 100 degrees and the pre-
heat function has not been finished, user can press the key to
start the rapid heat-up mode. The display shows the symbol
continuously.
•Child lock set
Press key for 2 seconds. The display shows the Child lock symbol
continuously. Press key for 2 seconds once again. Unlock and
the symbol disappears.
•Cooking mode symbol
The sequence of cooking modes displayed in the screen as below:
Function
Working Parts
Default
Temperature
Adjustable
Temperature Range
Fan heating thaw
50℃
20 50℃
Lower heating element
220℃
50 250℃
Lower heating element +
Fan motor
220℃
50 250℃
Total grill element
220℃
50 250℃
Total grill element + Fan
motor
220℃
50 250℃
Circle heating element +
Fan motor
220℃
50 250℃
Total grill element + lower
heating element
220℃
50 250℃
Total grill element + lower
heating element + Fan
motor
220℃
50 250℃

8
Pre-step before installation
•Before using the unit, please read this guide carefully. This book
contains important information regarding to prioritize safe
operation, installation, and maintenance unit.
•Please keep this guide book in an easy place to find, so it will be
easier if necessary, to use at any time needed. Enclose this guide
book, if the unit is hand over.
•If you do not understand about the procedure/installation of
household stoves(oven), you should contact MODENA Service
Center to perform the installation.
•The air in the room that will put gas appliances should have good
ventilation so that airflow moves smoothly (there is circulation).
The room will contain combustion gas rather than oxygen if the
room has bad airflow circulation. Whereas, it will cause the flame
of the stove/burner could not be perfectly work (flame is yellow
due to lack of oxygen). Therefore, the room that will be put gas
appliances should have good ventilation.
•Prepare electrical outlet that is easily accessible to your oven
power cord.
•Open the box of built-in oven. Then, take it out and put on a flat
surface.
•Keep all packaging materials out of reach of children, as they
may cause choking or suffocation hazard.
•The unit must be installed in accordance with the instruction and
installed by skilled and experienced people. Installation errors
can be harmful to human and animals or may damage the
property.
INSTALLATION

9
Installing the oven into kitchen set
•The oven can be installed on the kitchen table as long the table
hold up to heat or installed at the column.
•Use the appropriate kitchen set to ensure that the unit can work
well. Frame or panels adjacent to the oven must be made of
heat-resistant material.
•Cabinet with lacquer r-coated exterior must be assembled with
adhesives that can with stand temperatures up to 100℃.

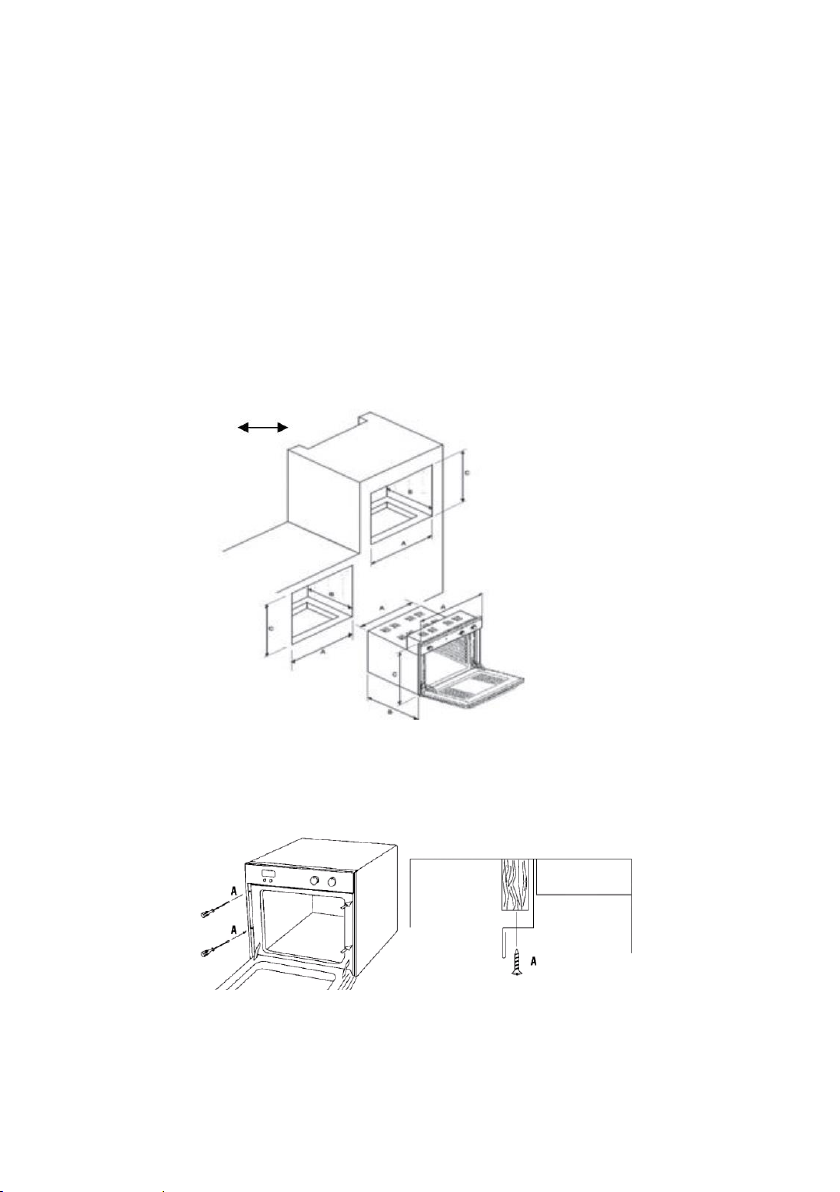

•Check if the size of the hole in the kitchen to put the oven is set
according to the size shown in the figure below.
BO 3435
A: 560mm
B: 550mm
C: 448mm
•Put/insert oven into the kitchen set hole by installing a screw
type A into the four holes in the oven. Screws can be found on
the side of the oven frame.
•Connect the power cord plug to the wall outlet and the oven is
ready to use.
ventilation

10
•For the most efficient air circulation, the oven must be installed
in accordance with the dimensions shown in Figure 1-2. Panel
rear of the cabinet must be removed so that air can circulate
freely. Panel that install on the oven must have a gap of at least
70mm at the rear.
Electrical connection
Oven is equipped with a three-pole power cord designed to operate with
alternating current at the voltage and frequency that written on the table
of specifications.
Connect the board power supply cord to the power
First a standard plug in accordance with the load shown in the table of
specifications.
The unit must be directly connected to the electricity using omnipolar
switch with opening contact of at least 3mm installed between the
appliance and the electricity.
The switch must be suitable for the load indicated on the label and must
comply with the regulation of electrical currents (earthing wire must not
be interrupted by the switch). Power supply cord should be positioned
so it does not contact with the higher temperature of 50℃ at any point.

11
Make sure that the correct electrical connection has been made and is
fully compliant with safety regulations. Before the appliance connect to
a power source, ensure that:
-Earthing/grounded the unit and use a plug-in accordance on the
data label (see below).
-Electric socket can withstand with the tool maximum power,
which is indicated on the data label (see below).
-The electric socket is compatible with the plug of the appliance.
If the socket is incompatible with the plug, ask the technician to
replace it. Do not use extension cords or multiple electric socket.
-After mounted the unit, power supply wiring and outlet should be
easily accessible.
-Cable must not be bent or crushed.
-Cable must be checked regularly and replaced only by an official
technician.
-The manufacture disclaims any duty which should, it this safety
measures are ignored.

12
Cooking without fan
1. Natural convection
•Preheat the oven for 10-15 minutes.
•Grease the meat with a little oil, put it on the drip-tray and
place everything quickly into the oven.
•In mid-cooking change the meat position, avoiding any
further opening of the door, if possible.
2. Grill
•Preheat the grill for about 5 minutes (till the heating
element becomes red).
•Prepare the meat and place it on a tray to grill, then put on
the top tack of the oven.
•Place the drip tray on the bottom shelf, which previously
were given water drip tray height of approximately 0.5cm.
this is to prevent oil droplets from cooking, so as not dry
quickly and difficult to clean.
•This function can be further used to grill food with grated
extra-grater and make brown food after the cooking
process normally.
Cooking with fan
•Defrosting
•To defrost food, place it still wrapped up in its aluminium or
polythene sheet protection on a dish.
•Place everything on the grid in the oven centre.
•The door oven must be closed.
•Fan oven
•It is not necessary to preheat the oven, expect for very short
cooking times or food with considerable quantity of liquid
(e.g. fruit tartes) to avoid condensation.
•In case of batch cooking, you can introduce food with
approximately equal cooking temperatures (even if the
HOW TO USE

13
length of time differs) on two or more shelves without mixing
tastes and flavours.
•It is possible to put food into the oven or to take it out of it
without heat losses caused by the door opening. Heat will be
quickly recovered by means of the fan.
•Cooking temperature are lower than those of the
convectional oven (from 20℃ to 30℃ for pastries and from
30℃-40℃ meats) whereas times are longer (50℃-10
minutes)
•Grill with fan
•It does not need preheating.
•Cooking must be operated with the door closed. The
distance between grill and food should be proportionable to
the required results:
-Nearer for undone meat brown on its surface.
-Far from it for food perfectly baked inside.
•The drip-tray with a little water for collecting meat juices has
to be placed on the first shelf underneath.
•Using turnspit
The turnspit (grill) can be use when the upper or bottom oven
burner are turned on.
•Turn on the upper or bottom oven burner. To turn on, follow
the instruction: Using the bottom or upper oven burner. Then
wait for a few second in order to spread the heat.
WARNING!
Marinated meat and boneless meat cook quicker that other sorts;
cooking progress can be checked by pressing the meat with a fork;
if it does not yield, it is properly cooked. Before slicing the meat
wait at least 15 minutes, to allow the juice to settle.
Do not place pans directly on to the oven base as the heat which
comes from below cannot escape.
This may cause breakage or cracking of the enamelling.

14
•Food/Meat that will be cooked, place into the turnspit and
install between both forks.
•Put the tray into the bottom shelves with distances around
0.5cm to prevent oil drop from the food.
•Insert turnspit with the food into the oven by
inserting the turns end to the special
hole/socket that located on the rear of oven.
•Closed the oven door slowly.
•After the meat is ready, turn off the turnspit, and then reset
the plastic handle to the turnspit before discharging the
turnspit from special hole/socket.
WARNING!
After the turnspit is on the right position, removed plastic handle
from the grill (see picture)

15
Cleaning the oven
•after finish used the oven, let the oven door is open for a few
minutes so that the oven is no hot.
•The inside of the oven should ideally be cleaned after each use.
•Clean the oven if whilst the oven is still warm (no hot), so that
the food spillages on the oven surface can be removed easily.
•Clean the rubber, stainless steel or parts are coated with enamel
or chrome using a soft sponge and warm soapy water or liquid
detergent that is not abrasive. Use special products to remove
stubborn stains. After cleaning, dry the unit until it is completely
dry.
•All accessories –with the exception of sliding shelves –can be
washed like everyday cooking equipment and also safe if
washed using a dishwasher.
•Do not use any type of steam cleaners or high-pressure cleaning
unit.
MAINTENANCE
WARNING!
•Wait until the appliance has cooled down before attempting
to clean it.
•Disconnect it from the power supply, either by pulling the
plug out or switching off the power supply at the mains.
•Do not leave corrosive or acidic substances (lemon juice,
vinegar, etc.) or enamelled, painted or stainless-steel parts.

16
Change the oven light
•Disconnect the oven from the power supply,
either by pulling the plug out or by switching
off the power supply at the mains;
•Remove the protection glass (A)
•Replace the burnt-out bulb with one of the
same types.
•Installed the cover protection “A”.

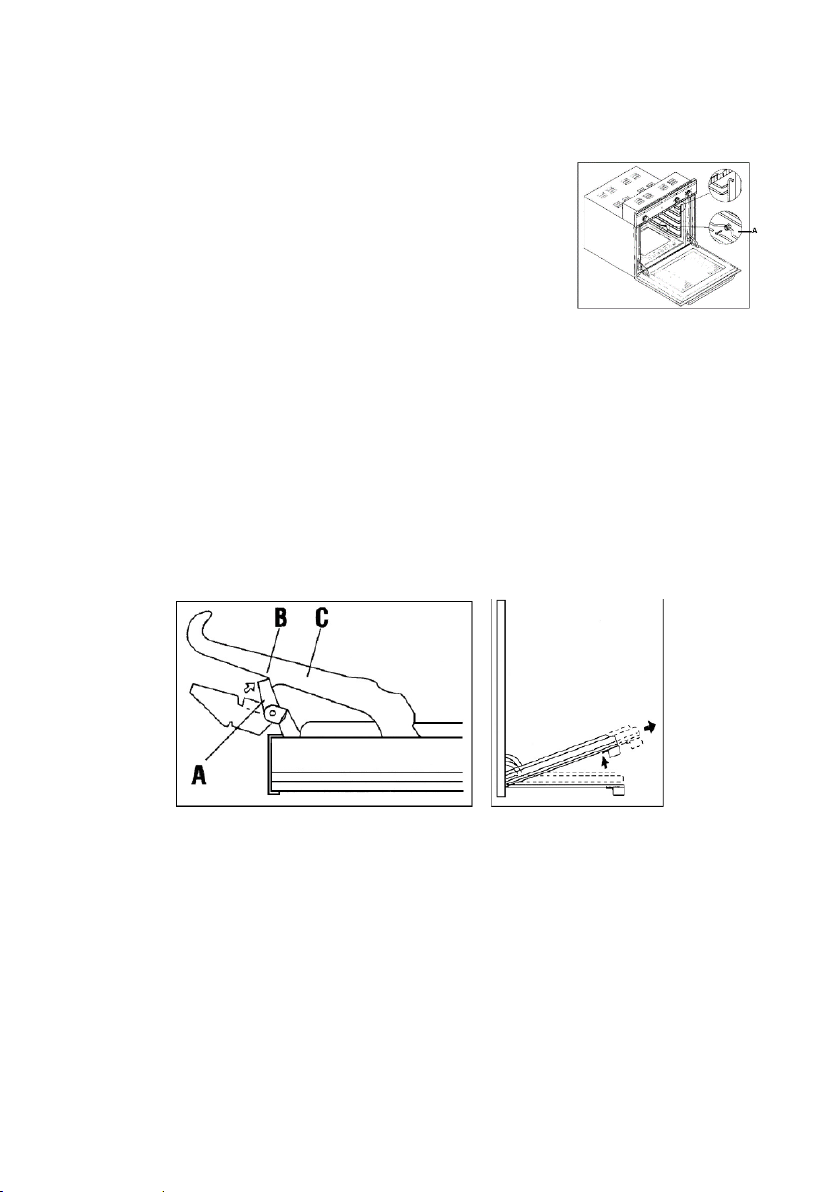

Removal of oven door
To water down in cleaning oven, door oven earns released by:
•To make cleaning easier, remove the oven door as follows: insert
hook A (see next figures) in hinge clot B.
•Half open the door and, using both hands, pull the door towards
you until it becomes unhooked.
•To refit the door, carry out the same operation in reverse, taking
care to introduce the two sectors C correctly.
Clean the glass with a sponge and cleaning products are non-abrasive,
then dry with a soft cloth. Do not use materials that are abrasive or have
sharp surfaces as it can scratch the surface and cause the glass to crack.
Inspect the seal
Check the seals around the doors on a regular basis. If the seal is
damaged, contact the service center MODENA for repairment or
replacement. It is advisable not to use the oven for separately seals have
not been replaced or repaired.

17
Make a check against the things below before contacting our Service
Center, if there is interference on your gas oven:
Some of cooking instructions can be found in the table below:
Problem
Causes
Solution
The upper crust is dark and
lower part too pale
Not enough heat
from the bottom
•Use the natural convection
position
•Use deeper cake tins
•Lower the temperature
•Put the cake on a lower
shelf
The lower part is dark and
the upper crust too pale
Excessive heat from
the bottom
•Use the natural convection
position
•Use lower side tins
•Lower the temperature
•Put the cake on a higher
shelf
The outside is too cooked
and the inside not cooked
enough
Too high
temperature
•Lower the temperature and
increase the cooking time
The outside is too dry even
though of the right color
Too low
temperature
•Increase the temperature
and reduce the cooking
time
TROUBELSHOOTING

18
Model
BO 3435
Oven type
Multifunction (Fan)
Cooking program
8
Color
Diamond black
Oven capacity (liter)
40
Grill
Electric
Oven
Electric
Convection fan
Yes
Turn spit
Yes
Door glass
3 layers
Oven light
Yes
Thermostat
Yes
Timer
Yes
Oven tray
Yes
Dripping pan
Yes
Voltage
220 240V/ 50Hz
Lower heater
1050W
Back heater
1600W
Upper/grill heater
1400W
Product dimension
(L x W x H) mm
595x455x440
Cut-out dimension
(L x W x H) mm
560x550x448
Weight
28 Kg
SPECIFICATION

19
Table for temperature and cooking timing
Cooking Type
Oven Temperature (℃)
Cooking Time (minutes)
PASTRY
Cake
175
40 50
Sponge cake
170
30
Fruit tart
180 190
20 30
Paradise cake
160
40 45
Margaret cake
160
40 45
Chocolate cake
160
25 35
Meringue
100
90
Puff pastry
200
20
MEAT
Roast beef 1.5kg
190
20 25
Roast veal 1kg
150 160
30 35
Roast lamb 1.5kg
190
30
BIRD
Roast pigeon
150 160
45
Turkey 2kg
175
180 240
Goose 4kg
200
240 270
Duck 2.5kg
175
90 150
Chicken 1.5kg
175
120 150
FISH
Trout
200
15 25
Cod-fish
190
50
OTHER
Lasagne
200
40
Souffle
180 200
20
Pizza
200
20
APPENDIX 1
NOTE:
Specification of this appliance may change without Notice to
improve the quality of the product

20
Table for grill time
Food will be grill
Time (minute)
1st side
2nd side
Sliced meat
6
4
Thick meat
8
5
Small fish
10
8
Big fish
15
12
Sausage
12
10
Grill sandwich
5
2
Small chicken
20
15
APPENDIX 2
