Modena Museo Series Owner's manual

User
Manual Book
Freestanding Cooker
Museo Series
FC 2940 LV, FC 2945 LV
Urbana Series
FC 3952, FC 3955
Carrara Series
FC 5942 S, FC 5642 S
FC 5942 LR, FC 5942 L
Prima Series
FC 7643 S, FC 7943 S
FC 7943 W
Fano Series
FC 8940 S, FC 8640
FC 8943 L, FC 8643 L
FC 8533 L
Cervia Series
FC 9942 S, FC 9642 S

2
TABLE OFCONTENTS
Part 1: Safety Warnings 3
Part 2: Nameof Parts 4
FC 2 Series 4
FC 3 Series 5
FC 5 Series 6
FC 7 Series 7
FC 8 Series 8
FC 9 Series 10
Part 3: Installation 11
Installation 11
Installation in the Kitchen Cabinet 13
Part 4: Howto Use 15
How to UseTop Burner 16
How to Usethe Oven 17
Shelf Position 21
Part 5: Maintenance 22
Enamel Part 21
Stanless Steel Part 21
Grid 21
Burner 21
Lighter and GasSafety Device 21
Removing the Glass from the Oven Door 21
Part 6: Troubleshooting 23
Part 7: Precaution 25
Part 8: Specification 26
Appendix 1 32
Appendix 2 33
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com

3
•If you don’t understand the procedure of installing freestanding
stove, do not hesitate to contact the MODENA Call Center for
installation procedure.
•Prepare the required supporting equipments for installation, for
example:
•LPG cylinder
•Standard gas supply hose with safety leak equipment.
•Hose clamp
•Low-pressure gas regulator
•Gas lighter
•Room ventilation
•The room where gas equipments are to be stored must have proper
air circulation to enable free flow of air. Any room with inadequate
ventilation system will have more emission gas molecules than the
oxygen, resulting in imperfect flammation (flame will become yellow
due to lack of oxygen). As such, make sure that the room where gas
equipments are contained have proper ventilation.
•Prepare easily accessible electrical socket for your stove power cord.
PART 1: SAFETY WARNINGS

4

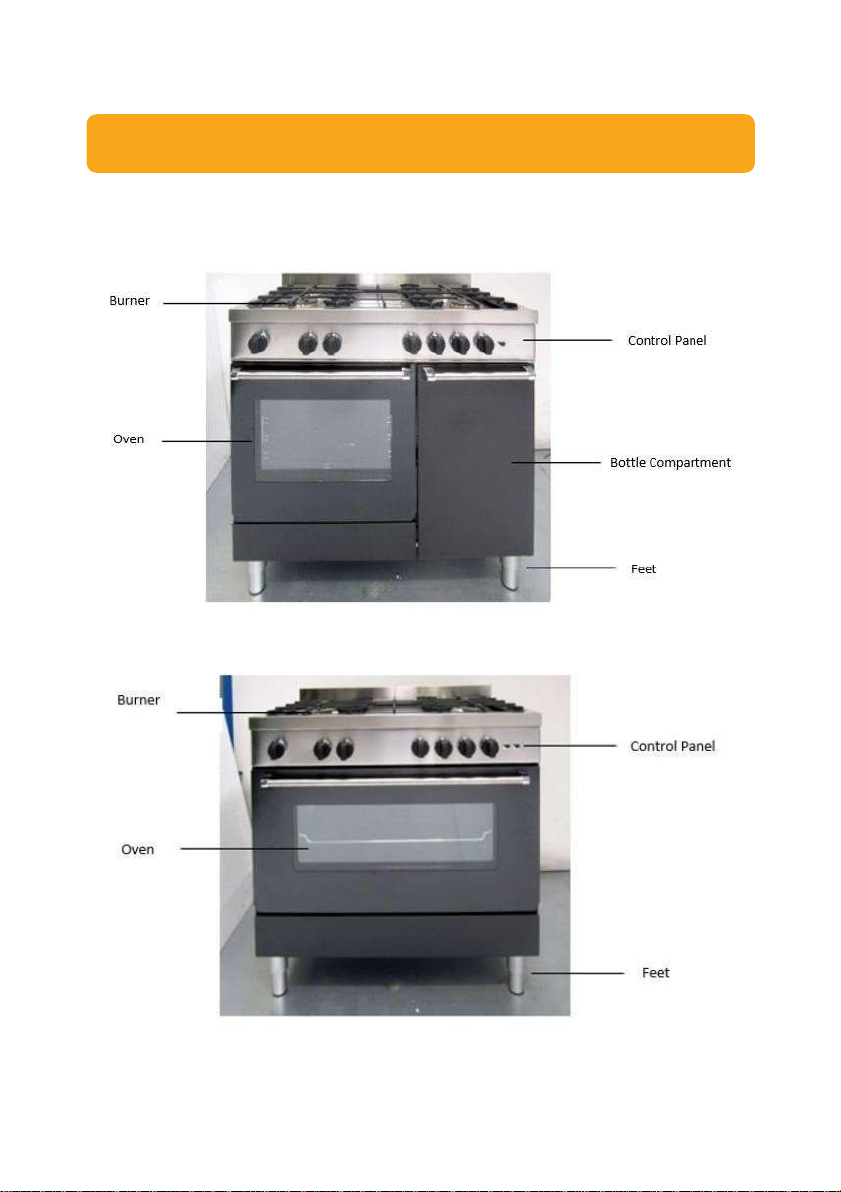

FC 2 Series
FC 2940LV
FC 2945LV

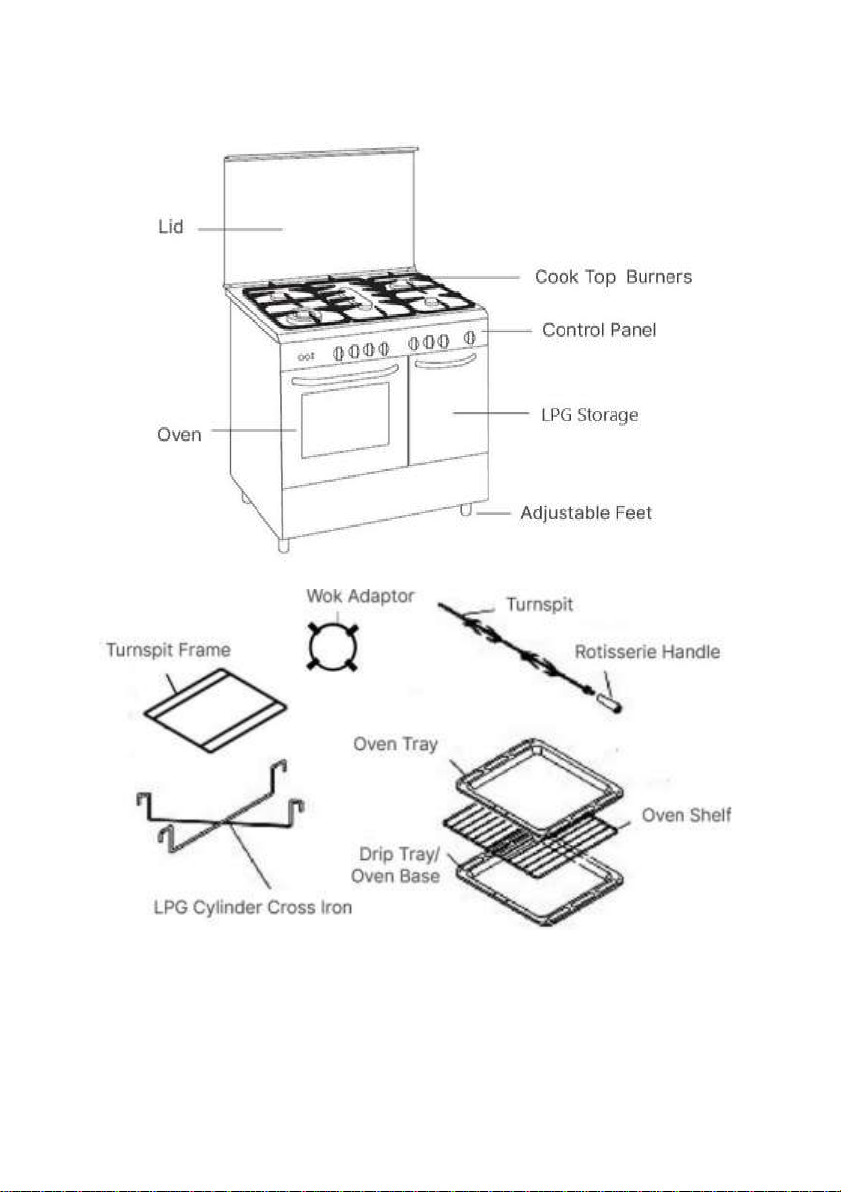

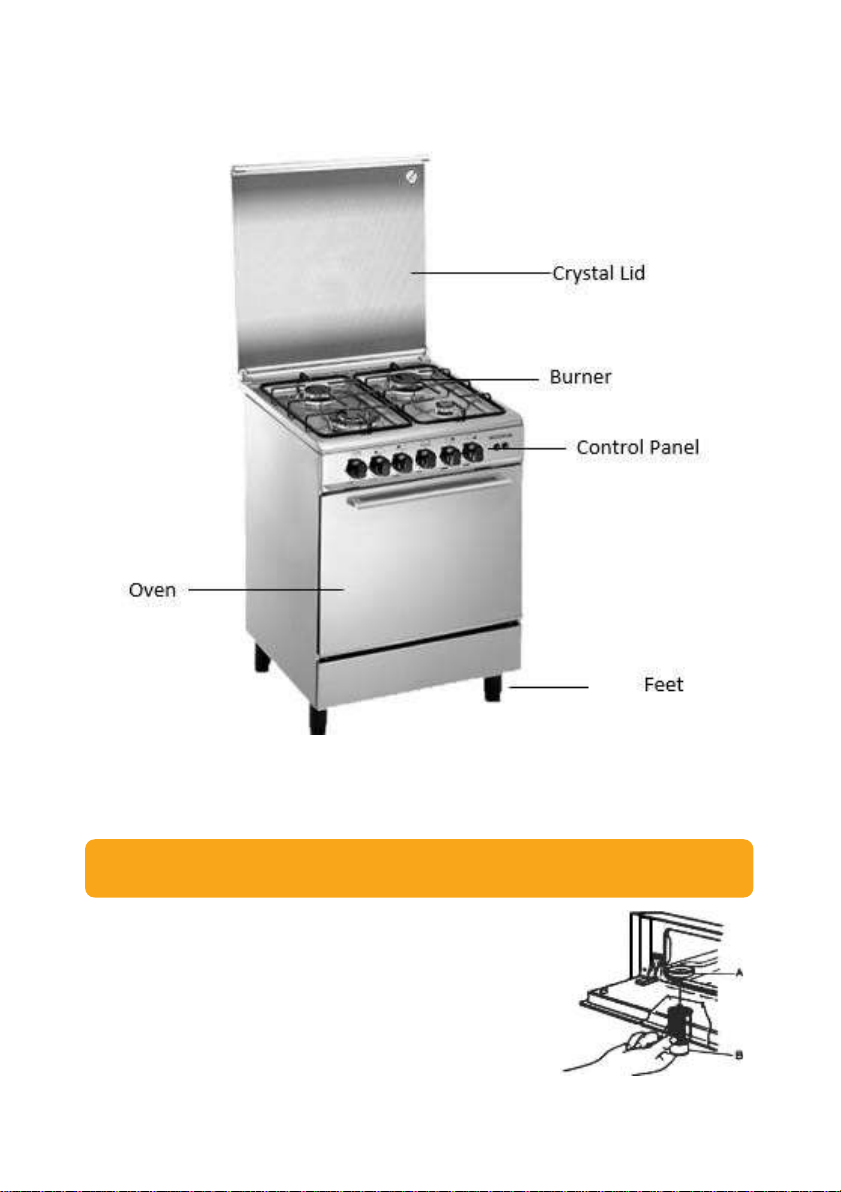

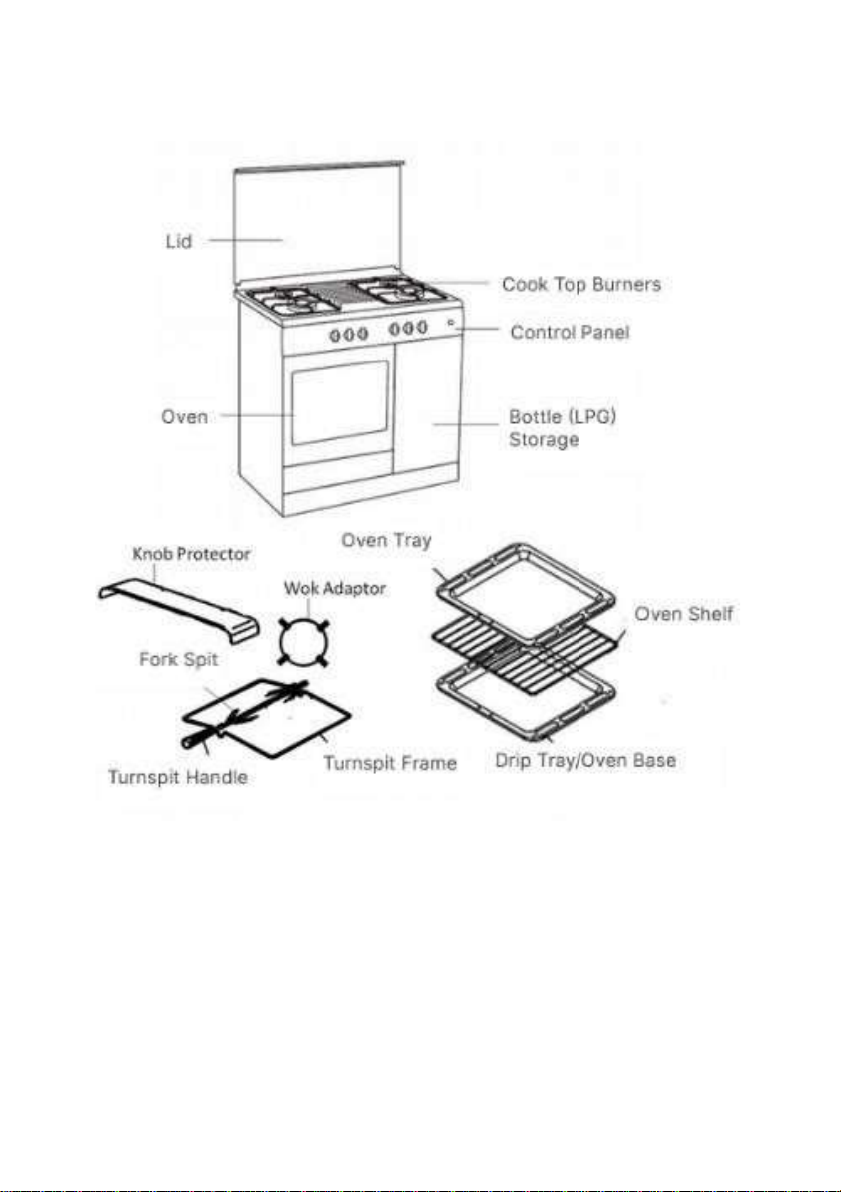

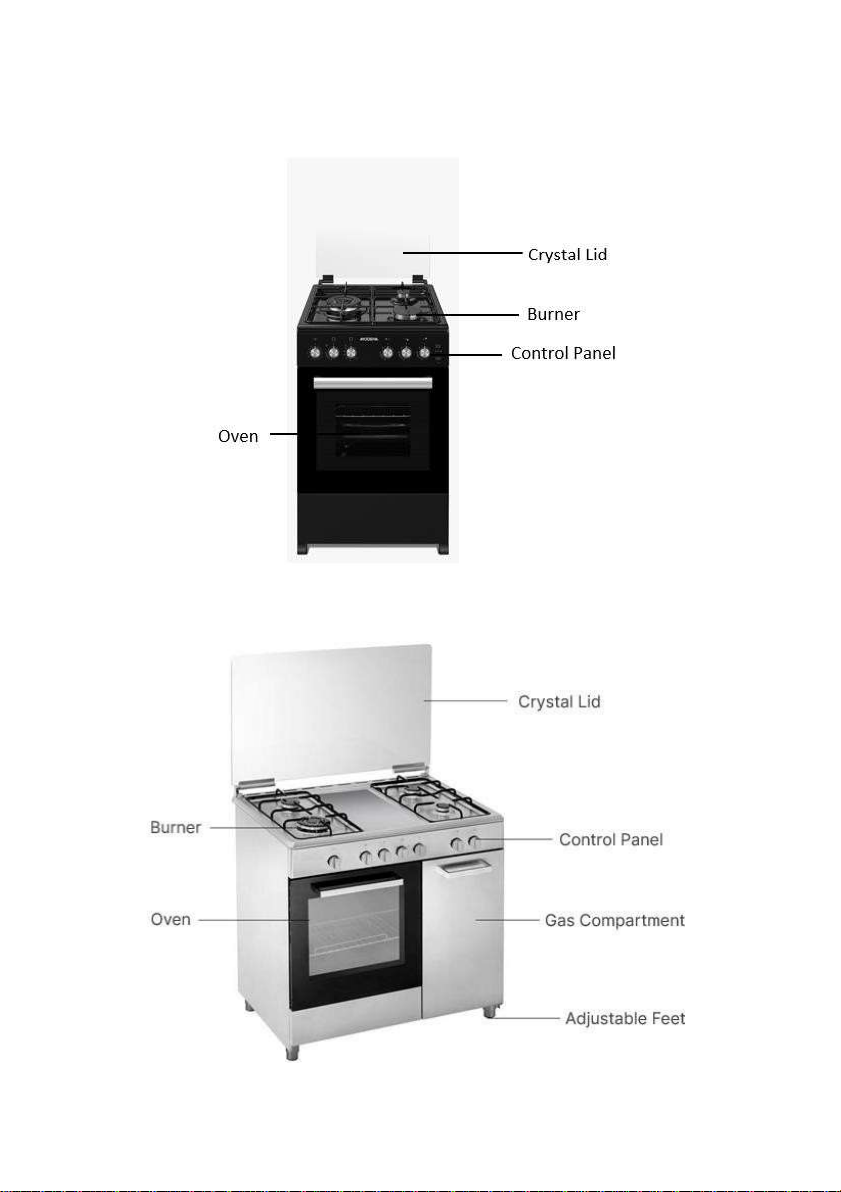

PART 2: NAME OF PARTS

5
FC 3 Series

6
FC 5 Series

7
FC 7 Series

8
FC 8 Series
FC 8943 L
FC 8643 L

9
FC 8533L
FC 8940S

10
FC 8640
FC 9 Series
FC 9942 S

11
FC 9426 S
•The picture is a general overview and is not necessarily the same as
the product you receive.
•Features and completeness depends on the type of product.
Installation

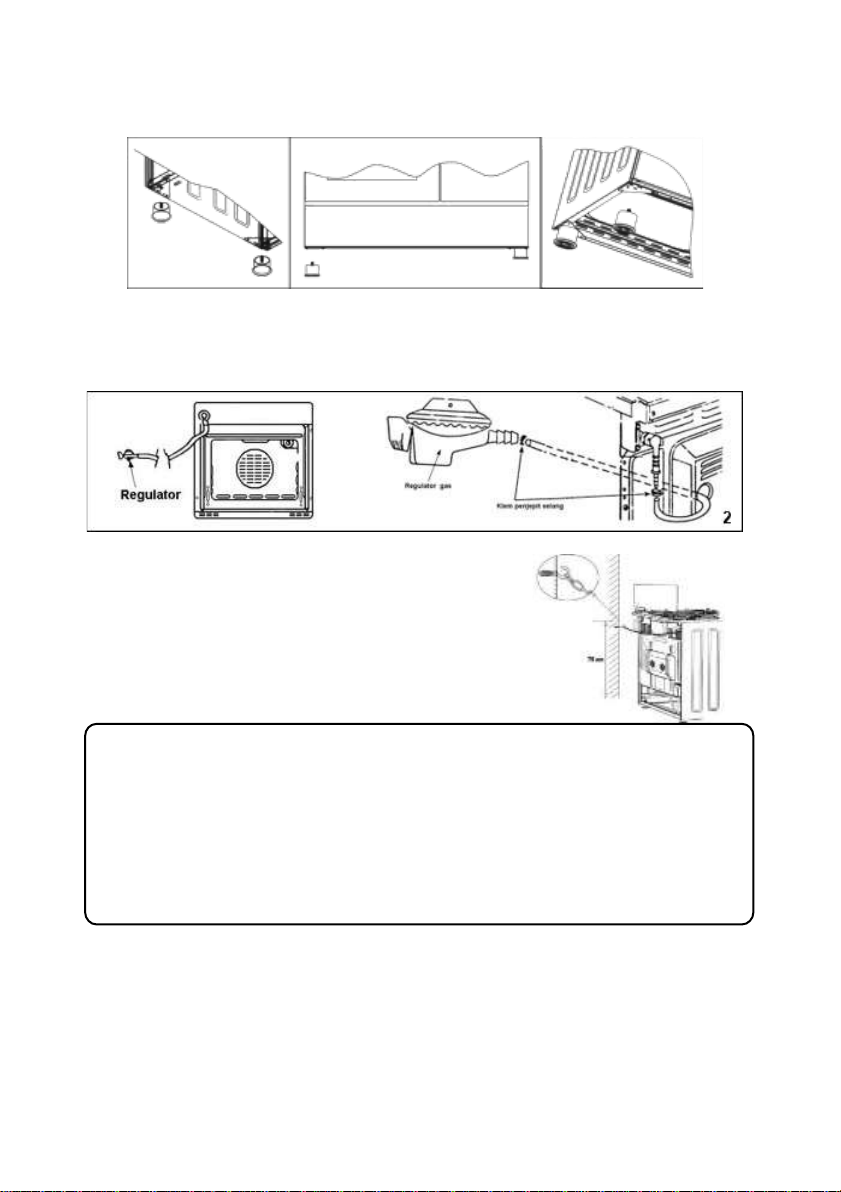

1. Open the stove carton box / packaging.
2. Some stoves are equipped with four corner
supports. Install the supports under the
stove on every corner. Use nut (A) and
wrench to secure the supports. (picture 1)
PART 3: INSTALLATION

12
3. Connect the gas hose to the stove and regulator by following the
steps specified in Picture 2, and secure both connections using hose
clamp.
4. To ensure the safety, hook the attached chain
to the wall and make sure the hook is
firmly attached to the wall. (For series
with hook provided)
After the gas hose is properly installed, perform gas leakage test on the
oven connector as follows
1. Connect the regulator with gas cylinder
2. Smear soap water (soap mixed with water) on the connection.
3. Observe the connection. Bubbles formed on the surface indicates
that gas pressure is leaking out of the connection.
ATTENTION
•Use standardized hose for gas stove equipped with leak safety
equipments.
•Use proper hose and regulator to avoid gas leak which may
result in explosion.
•Do not use high pressure gas regulator
•
Gas hose must not touch / attached to hot oven wall.

13
4. To repair a leaked connection, follow these instructions:
•Disconnect the regulator from the gas cylinder
•Secure the hose clamp on the leaked connection
•Repeat the gas leakage test (points a to c).
5. For gas stoves with gas cylinder compartment secured with cross
iron, install the cross iron on the stove, open the gas compartment
door on the stove and install the cross iron by inserting the cross iron
ends to the supporting holes.
6. Remove all stainless steel cover on stoves made of stainless steel
materials, especially its working table.
7. Connect the power cord to the power socket.
8. Insert the gas cylinder to the gas cylinder compartment for stoves
equipped with gas cylinder compartment
9. Install the regulator on the gas cylinder. Stove is ready to use

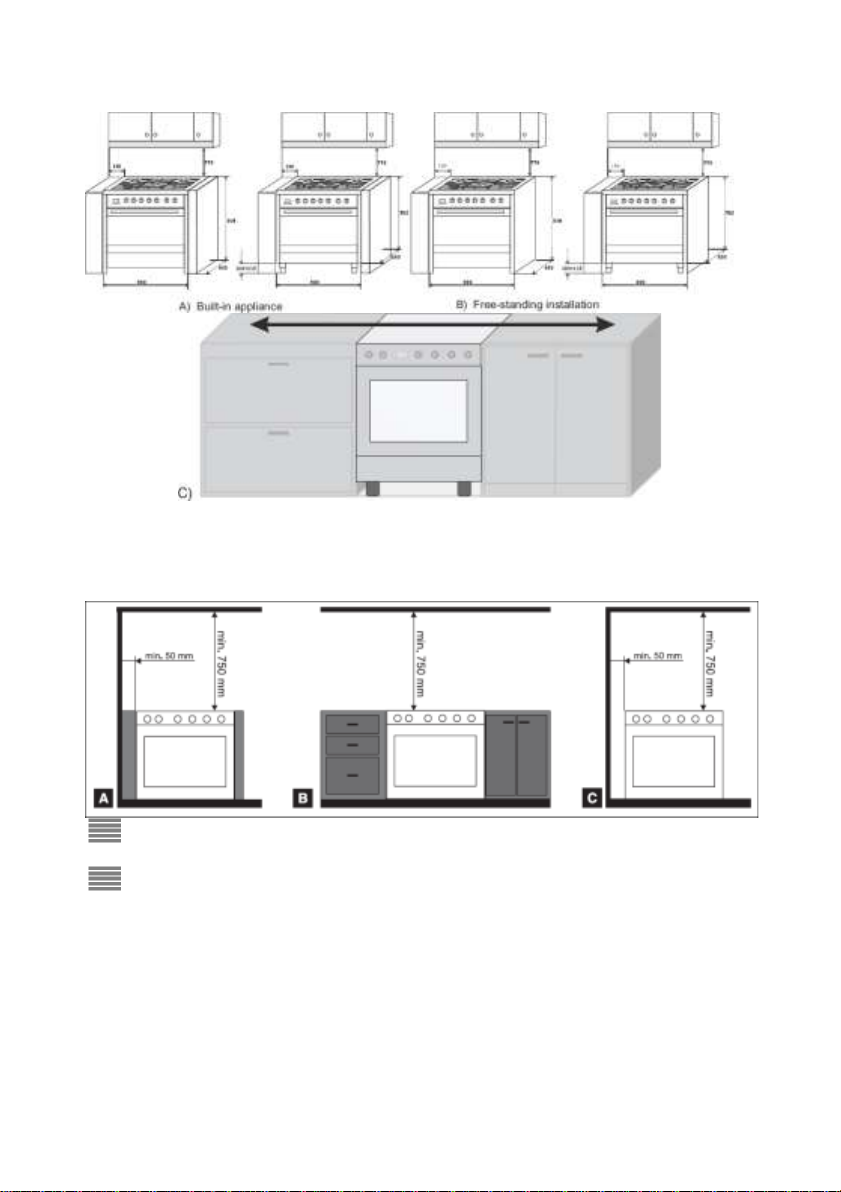

Installation in the Kitchen Cabinet
This product can be installed between the kitchen set, as long as the
sorrounding cabinets are resistant to heat over 90°C, including the
walls on the side and the back of the unit.
ATTENTION
Inspectelectricalvoltageandmakesurethatthevoltagemeets the
requirement specified in the manual.
ATTENTION
For stoves without gas cylinder compartment, store the gas
cylinder near the stove.
ATTENTION
Gas leak test should be performed by a certified technician
or MODENA Service Center official.

14
•The distance from the side wall to the unit, which the heights of the
wall exceed the unit, at least 150 mm.
•Distance from the cook top surface to the cabinet or the object
above the cook top at least 770 mm
The distance of the side wall to the unit, which the height of the wall
exceed the unit, at least 50 mm.
Distance from the cook top surface to the cabinet or the object
above the cook top at least 750 mm.

15
How To Use The Top Burner
How to ignite the top burner
1. With one hand ignition system, ignite the
burner simply by pressing and turning the
Knob. (Picture 3.a).
For automatic ignition, press ignition button
with one hand and press the knob with the
other hand while rotating counterclockwise
until the position of ignition is up. (Picture 3)
2. For top burner equipped with leak safety
device, hold the knob for around 5-10
seconds after pressing it and the fire is
ignited. If you release the pressure before
the specified period, the fire will
automatically be put out. Stoves equipped
with leak safety device can be identified
visually as shown in Picture 4.
3. To intensify or reduce the flame, turn the
knob towards the small flame or big flame
icons (Picture 5).
4. To put out the flame on the burner, rotate the
knob until it faces the extinguished flame
icon. (picture 6)
PART 4: HOW TO USE

16
5. Before using your device, make sure that the burner is placed
properly according to the picture.
How to Use the Top Burner
Pay attention and adjust the diameter of burner with the cooking
utensil when using a top burner to conserve gas and reduce cooking
time.
NOTES
Remember that cooking utensils with wide bottom will cook food
faster than those with narrower bottom surface.

17
How to Function the Oven
These buttons are provided to customize the
oven settings according to your needs.
Programs and Functions will be presented
below:
Rotisserie / Turnspit
Fan
Lower and upper heating
elements
Turbo heating and fan
Lamp
Lower-upper heating element and
fan
Lower heating element and
fan
Grill and fan
Grill and Rotisserie / Turnspit
Grill
Grill and lamp
Upper heating element
Electric timer
Lower heating element
Flame
Ignition lighter
How to Ignite Bottom Oven Burner
The bottom burner/oven according to point A.1.1.b. The oven’s burner is
equipped with Leak Safety System that requires the knob to be kept
held around 7 seconds after the fire is ignited. If the knob is released
before 7 seconds, the system will automatically stop the fire.
NOTES
For the bottom burner without automatic thermostat, hold the
knob and turn it towards the maximum position.

18
How To Use Bottom Burner
1. Light the bottom burner. After the burner
is lit, leave it for around 10 minutes so that
the temperature in the oven is evenly
distributed.
2. Open the oven door and put the cooking
ingredients on the oven shelf.
3. Adjust the required temperature by
rotating the bottom burner knob.
4. Cooking process can be observed from the oven window using oven
lighting. Turn on the oven lamp by pressing lamp icon. (Picture 11)
5. When the cooking process is finished,
turn off the fire on the bottom burner by
rotating knob clockwise to face the
extinguished fire icon (Picture 12)
NOTES
For unit without oven lamp, observe the cooking process by
opening the oven door. However, refrain from doing this
repeatedly because it will reduce the temperature inside the
oven.
Do not use the drip pan for cooking. Drip pan can only be used
to collect oil drip during the grilling process.

19
How to Use upper burner / Grill
1. Ignite the upper burner / oven and wait for about 5 minutes until the
heat is evenly distributed inside the oven.
2. Put the drip tray on the bottom shelf. Pour water to a height of 0.5
cm on the drip tray to prevent dripping oil from sticking to the drip
tray.
3. Install oven shelf on the shelf support according to your needs.
4. Put the food on the oven shelf.
5. Close the oven door slowly (oven door can be closed when using the
top burner
/ grill).
6. Turn over the food after a few minutes to evenly distribute the heat.

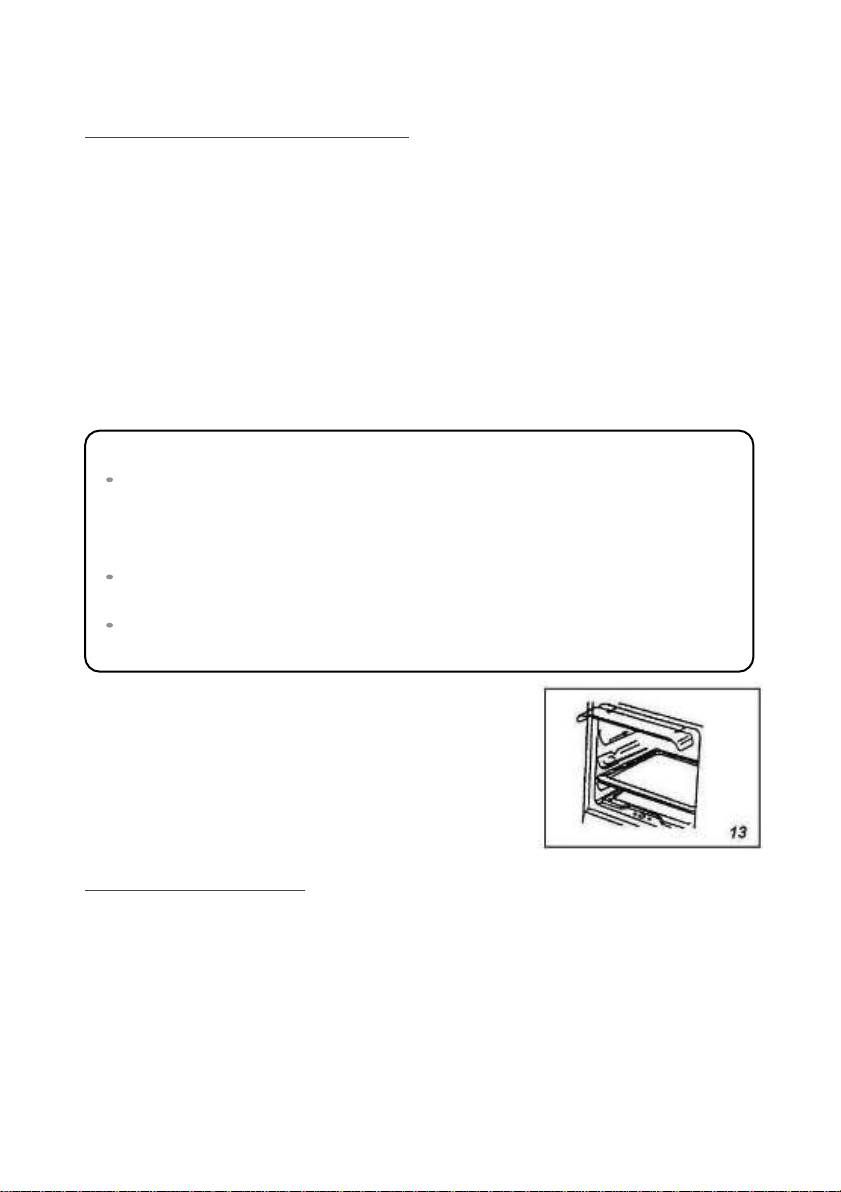

For series that come with knob protector,
before using upper burner/turnspit, install
knob protector as instructed in picture 13.
How To Use Turnspit
Stoves equipped with turnspit can be used according to the following
instructions.
1. Turn on the top burner / oven and wait for about 5 minutes until the
heat is evenly distributed in the oven.
NOTES
Smoke will be generated from inside the oven when the top
burner is used for the first time due to the oil layer on the top
burner. Wait until the remaining oil is completely burned before
food is put in the oven
The maximum cooking time with oven (bottom heating) is not
more than 3 hours.
The maximum cooking time with grill (upper heating) is not more
than 1 hour.

20
2. Skewer the meat with the turnspit and hang it in the middle of the
oven between two supporting forks (Picture 14).
3. Put the drip tray on the bottom-most shelf.
Pour water to a height of .5 cm on the drip
tray to prevent dripping oil from sticking to
the drip tray.
4. Put the turnspit in the oven by inserting
the end of the turnspit in the special
socket / hole on the inner sideoftheoven’s
back (Picture 15)
5. Close the oven door slowly and leave the
door leaning on the knob protector
6. Turn on the griller motor / turnspit by
pressing trident icon, so that the turnspit
turns automatically (Picture 16)
7. After the meat is cooked through, turn off
the griller motor / turnspit by pressing the
trident icon again, and then install the
plastic handle on the turnspit before
releasing the turnspit from the special
socket.
ATTENTION
After the turnspit is on the correct position, release the plastic
handle from the turnspit (Picture 15)
