Modena FC 2940 LV Owner's manual

User
Manual Book
Freestanding Cooker
FC 2940 LV
FC 2945 LV
FC 3952 S
FC 3955 S
FC 5942 S
FC 5942 L
FC 5642 S
FC 8940 S
FC 8640
FC 8943 L
FC 8643 L
FC 8533 L
FC 9942 S
FC 9642 S
FC 0534 AABK
FC 0434 AABK

2
TABLE OF CONTENTS
Bagian 1: Safety Warnings 3
Bagian 2: Name of Parts 6
Bagian 3: Installation 7
Installation 11
Installing in the Kitchen Cabinet 13
Bagian 4: How To Use 15
How To Use The Top Burner 15
Control Panel Top Burner 15
How To Use The Oven 17
Oven Control Panel 17
Bagian 5: Maintenance 22
Bagian 6: Troubleshooting 24
Bagian 7 : Precaution 26
Bagian 8 : Spesification 27
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com

3
•If you don’t understand the procedure of installing freestanding
stove, do not hesitate to contact the MODENA Call Center for
installation procedure.
•Prepare the required supporting equipments for installation, for
example:
LPG cylinder
Standard gas supply hose with safety leak equipment.
Hose clamp
Low-pressure gas regulator
Gas lighter
Room ventilation
•The room where gas equipments are to be stored must have proper
air circulation to enable free flow of air. Any room with inadequate
ventilation system will have more emission gas molecules than the
oxygen, resulting in imperfect flammation (flame will become yellow
due to lack of oxygen). As such, make sure that the room where gas
equipments are contained have proper ventilation.
•Prepare easily accessible electrical socket for your stove power
cord.
PART 1 : SAFETY WARNINGS

4

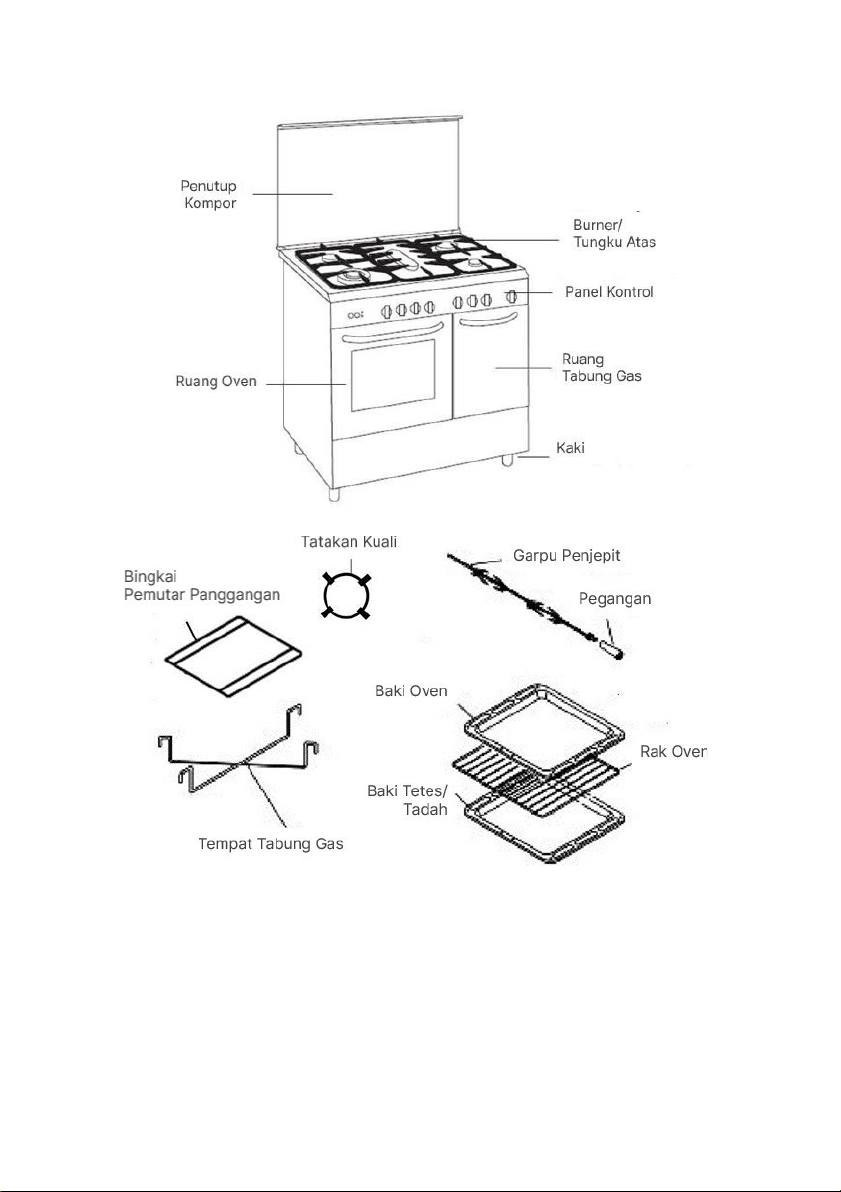

FC 2940 LV
FC 2945 LV

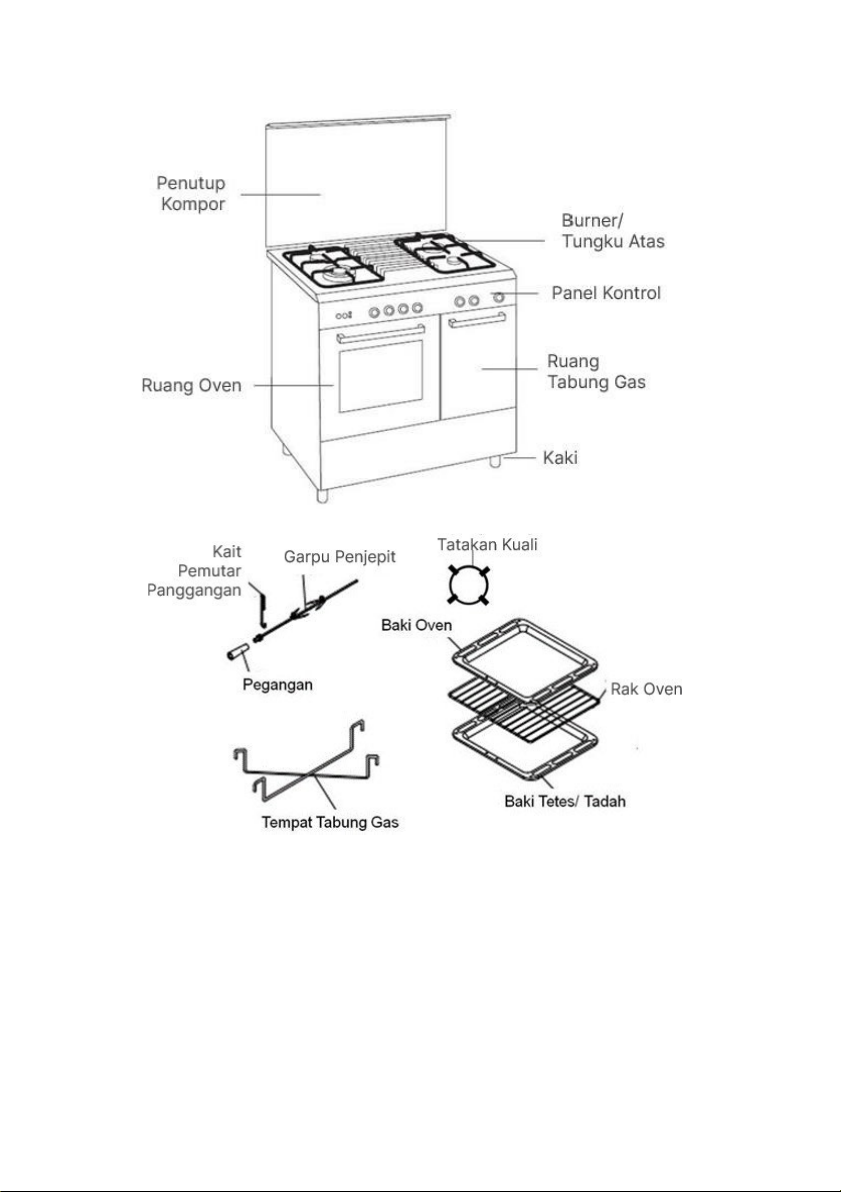

PART 2 : NAME OF PARTS

5

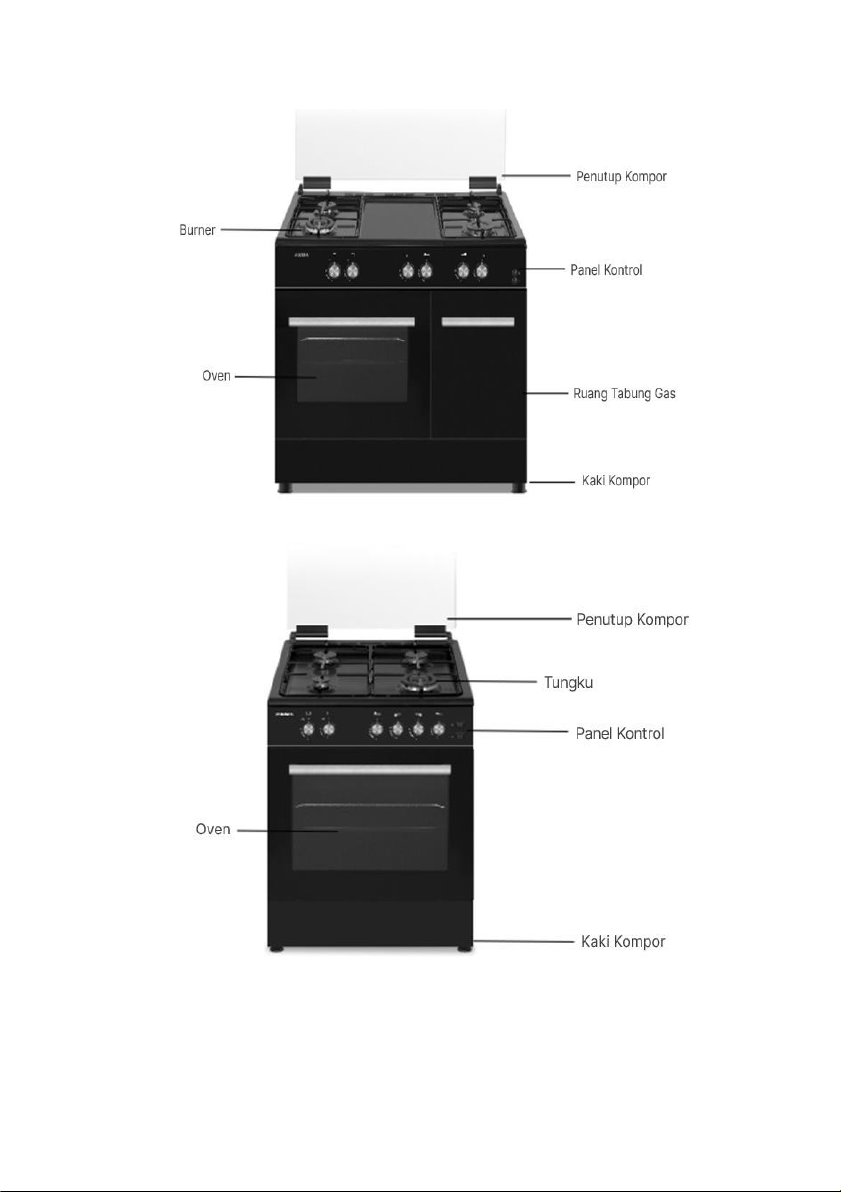

FC 3 Series

6
FC 5 Series

7

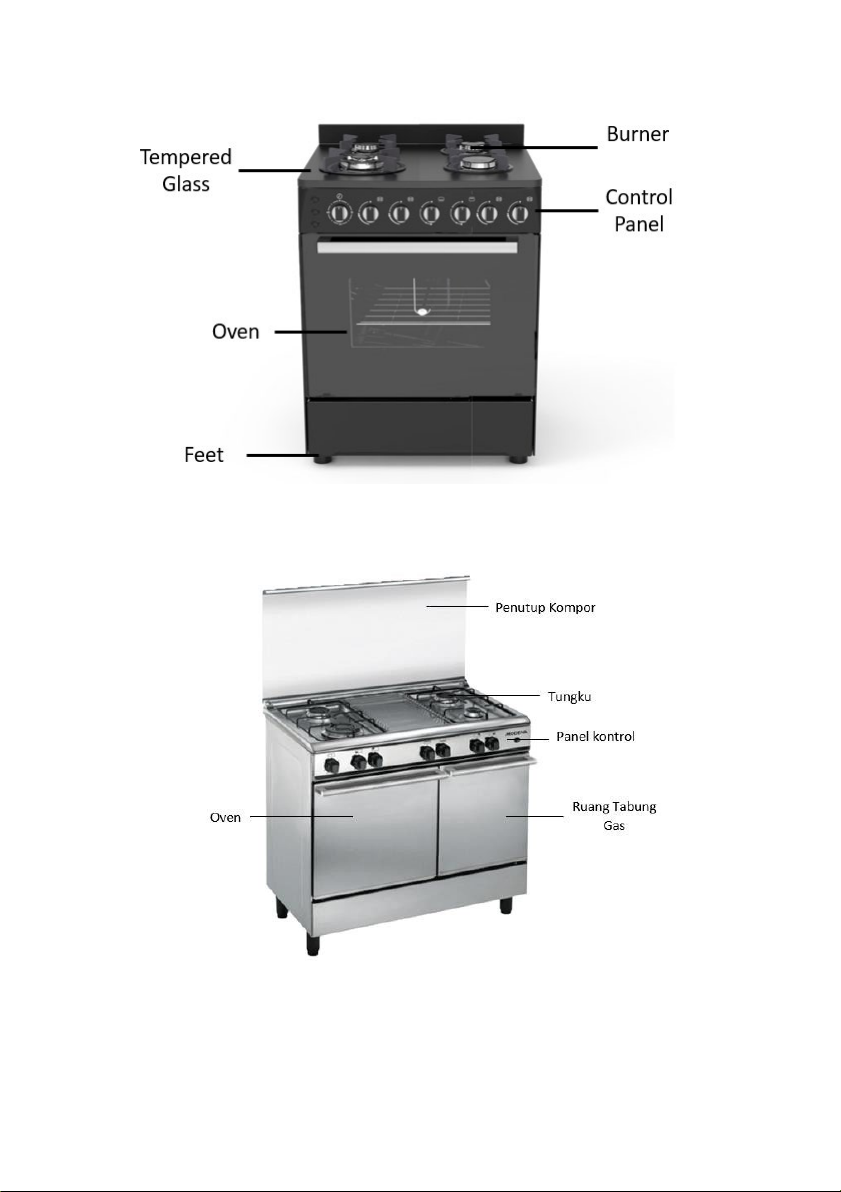

FC 8943 L
FC 8643 L

8
FC 8533 L
FC 8940 S

9

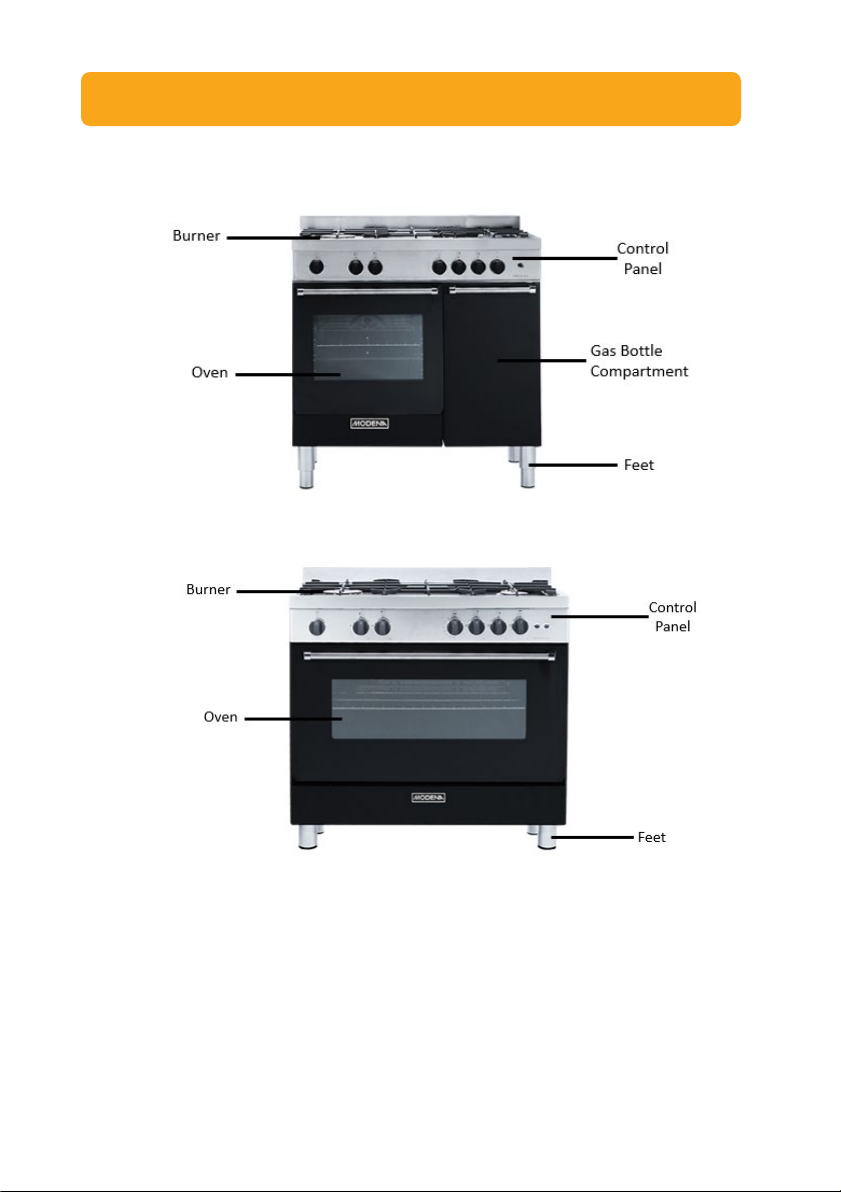

FC 8640
FC 0534 AABK

10
FC 0434 AABK
FC 9942 S

11
FC 9426 S
•The picture is a general overview and is not necessarily the same
as the product you receive.
•Features and completeness depends on the type of product.

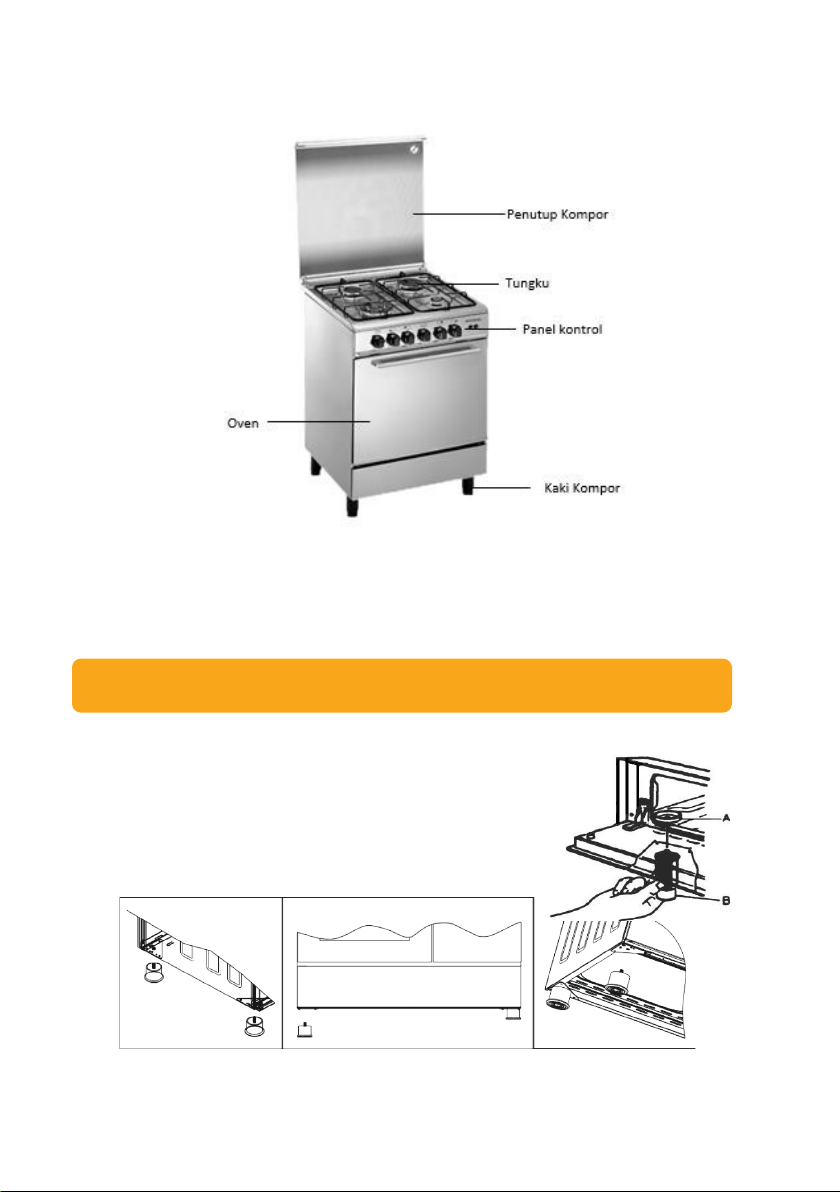

Installation
1. Open the stove carton box / packaging.
2. Some stoves are equipped with four corner supports. Install the
supports under the stove on every corner. Use nut (A) and wrench
to secure the supports.
PART 3 : INSTALLATION

12
3. Connect the gas hose to the stove and regulator by following the
steps specified in Picture 2, and secure both connections using
hose clamp.
4. To ensure the safety, hook the attached chain
to the wall and make sure the hook is firmly attached to the wall.
(For series with hook provided)
After the gas hose is properly installed, perform gas leakage test on the
NOTES :
If the hob height is not in same level, you can adjust the feet ( B )..
To Avoid damage caused by rodents / rats,it is highly
recommended to adding anti rat device ( optional )
NOTES :
• Use standardized hose for gas stove equipped with leak
safety equipments.
• Use proper hose and regulator to avoid gas leak which
may result in explosion.
• Do not use high pressure gas regulator
•
Gas hose must not touch / attached to hot oven wall.

13
oven connector as follows
1. Connect the regulator with gas cylinder
2. Smear soap water (soap mixed with water) on the connection.
3. Observe the connection. Bubbles formed on the surface indicates
that gas pressure is leaking out of the connection.
4. To repair a leaked connection, follow these instructions:
•Disconnect the regulator from the gas cylinder
•Secure the hose clamp on the leaked connection
•Repeat the gas leakage test (points a to c).
5. For gas stoves with gas cylinder compartment secured with cross
iron, install the cross iron on the stove, open the gas compartment
door on the stove and install the cross iron by inserting the cross
iron ends to the supporting holes.
6. Remove all stainless steel cover on stoves made of stainless steel
materials, especially its working table.
7. Connect the power cord to the power socket.
8. Insert the gas cylinder to the gas cylinder compartment for stoves
equipped with gas cylinder compartment
9. Install the regulator on the gas cylinder. Stove is ready to use
ATTENTION :
Gas leak test should be performed by a certified technician or
MODENA Service Center official
ATTENTION :
Inspect electrical voltage and make sure that the voltage meets
the requirement specified in the manual.
ATTENTION :
For stoves without gas cylinder compartment, store the gas
cylinder near the stove

14

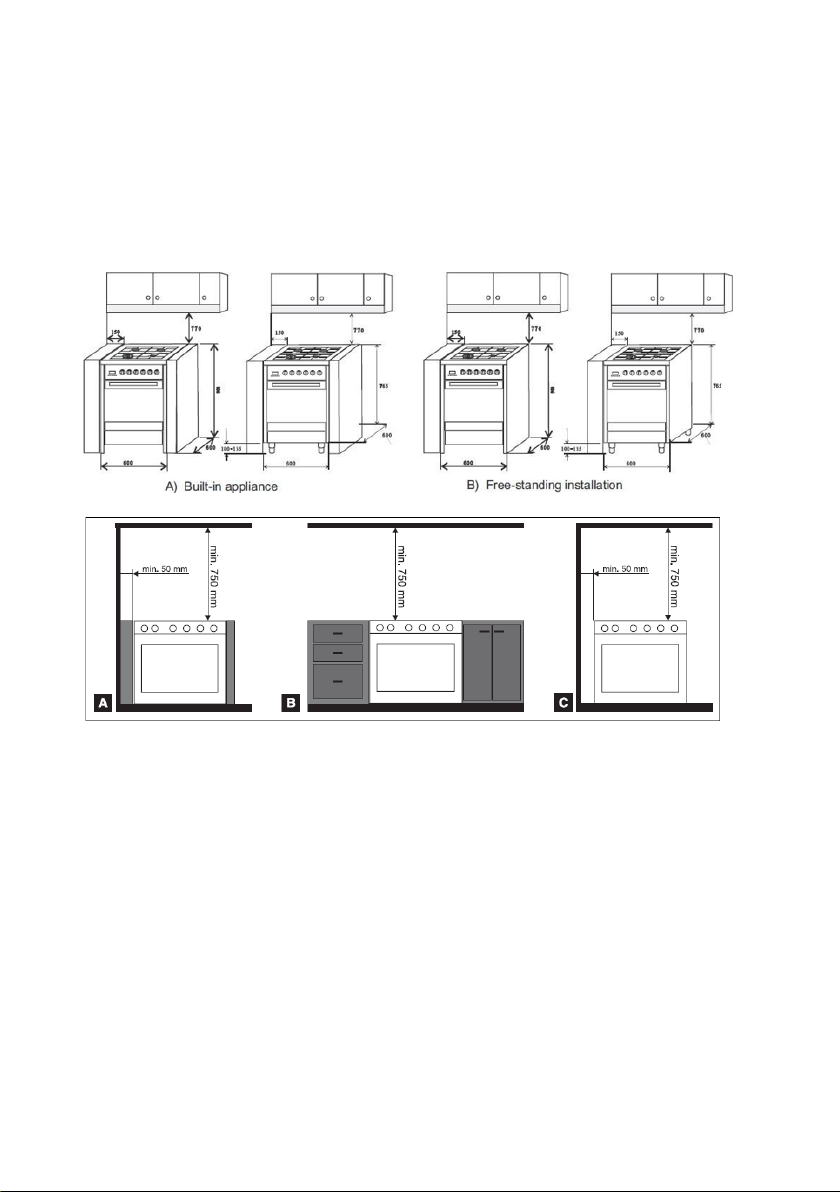

Installation in the Kitchen Cabinet
This product can be installed between the kitchen set, as long as the
sorrounding cabinets are resistant to heat over 90°C, including the
walls on the side and the back of the unit.
•The distance from the side wall to the unit, which the heights of the
wall exceed the unit, at least 150 mm.
•Distance from the cook top surface to the cabinet or the object
above the cook top at least 770 mm

15
How To Use The Top Burner
Control Panel Top Burner
Cooktop Burner left Side ( Top & Bottom )
Cooktop Burner Right Side ( Top & Bottom )
How to ignite the Cooktop Burner
With one hand ignition system, ignite the burner
simply by pressing and turning the Knob.
For automatic ignition, press ignition button with one hand and press the
knob with the other hand while rotating counterclockwise until the
position of ignition is up.
PART 4: HOW TO USE

16
For top burner equipped with leak safety
device, hold the knob for around 5-10 seconds
after pressing it and the fire is ignited. If you
release the pressure before the specified
period, the fire will automatically be put out.
Stoves equipped with leak safety device can
be identified visually as shown picture on the
side.
To intensify or reduce the flame, turn the knob
towards the small flame or big flame icons
To put out the flame on the burner, rotate the knob until it faces the
extinguished flame icon.

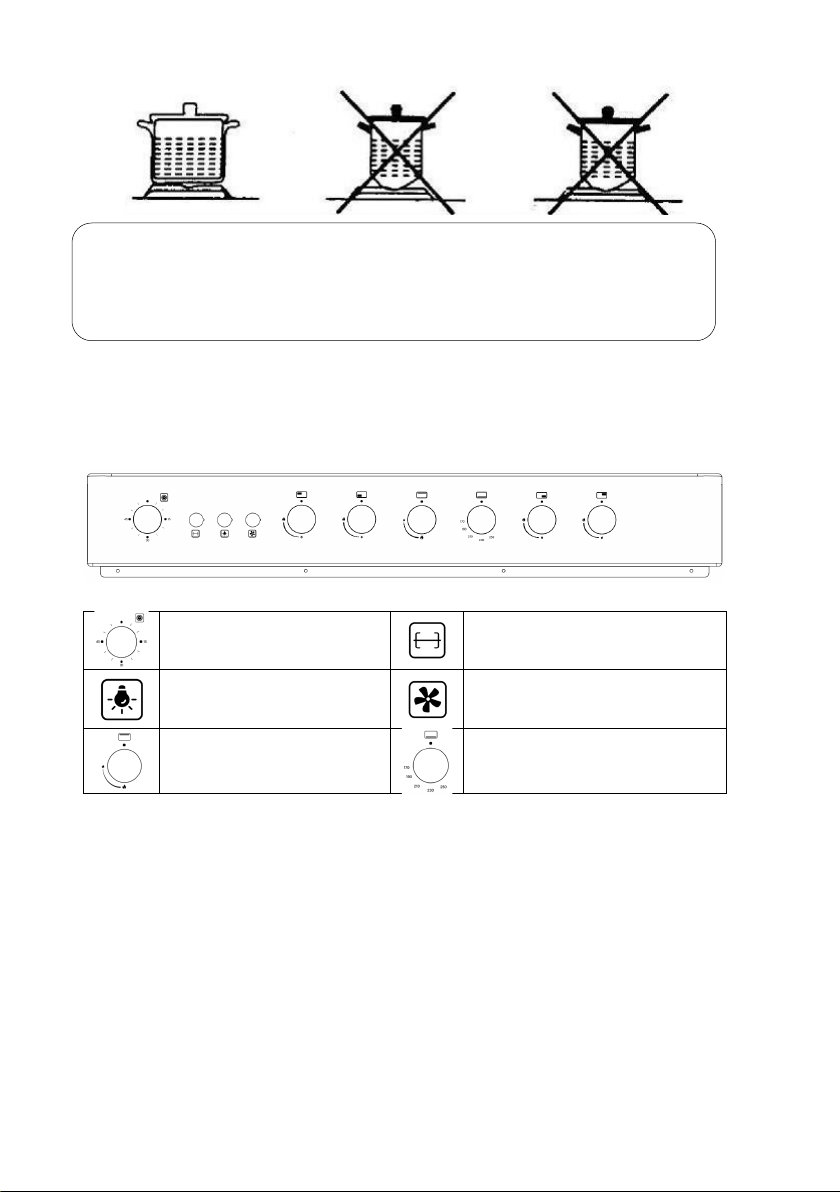

Before using your device, make sure that the burner is placed properly
according to the picture.
Pay attention and adjust the diameter of burner with the cooking utensil
when using a top burner to conserve gas and reduce cooking time.

17
How To Use The Oven
Oven Control Panel
Pengatur Waktu Pemanggang Ayam
Lampu Kipas
Tungku Oven Bagian
Atas
Tungku Oven Bagian
Bawah

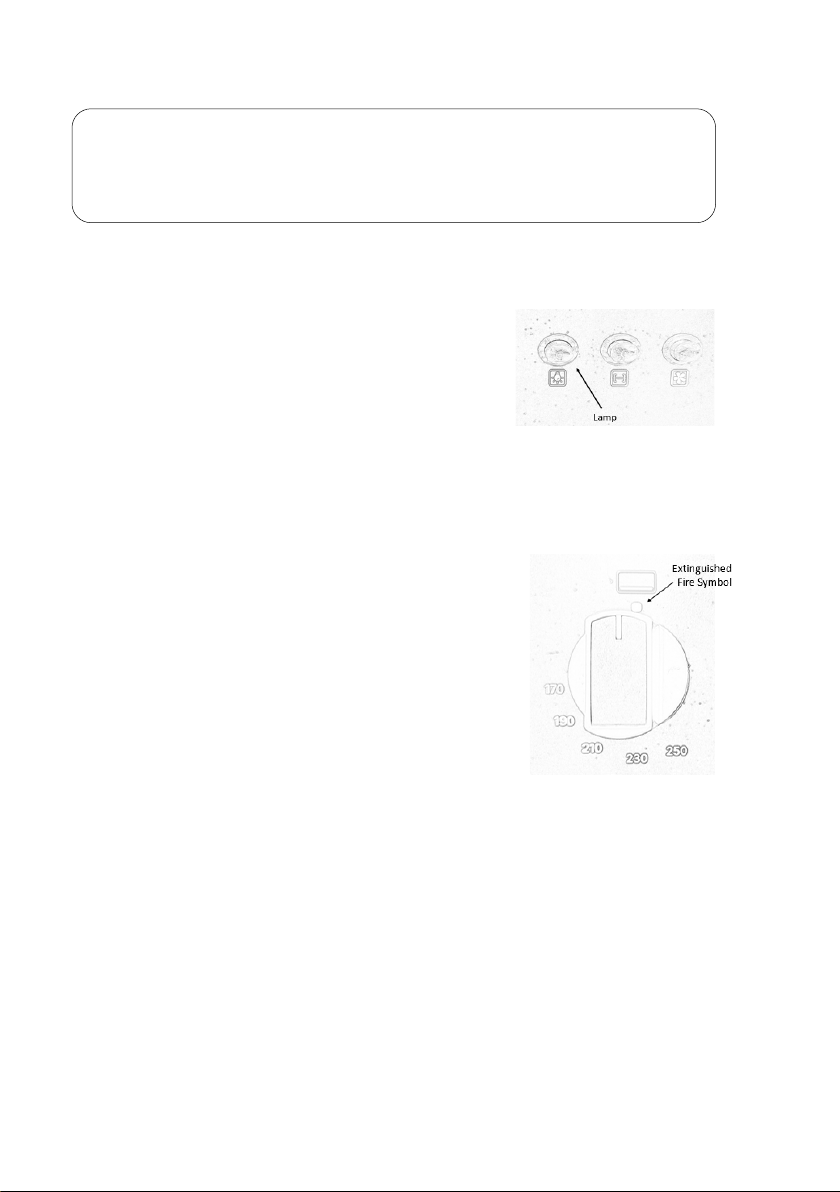

How to ignite the oven
The oven’s burner is equipped with Gas Safety System that requires
the knob to be kept held around 7 seconds after the fire is ignited. If
the knob is released before 7 seconds, the system will automatically
stop the fire.
NOTES :
Remember that cooking utensils with wide bottom will cook
food faster those with narrower bottom surface

18
How to use the oven
1. Light the bottom burner. After the burner
is lit, leave it for around 10 minutes so that
the temperature in the oven is evenly
distributed.
2. Open the oven door and put the cooking
ingredients on the oven shelf.
3. Adjust the required temperature by
rotating the bottom burner knob.
4. Cooking process can be observed from the oven window using
oven lighting. Turn on the oven lamp by pressing lamp icon.
5. When the cooking process is finished, turn
off the fire on the bottom burner by
rotating knob clockwise to face the
extinguished fire icon
NOTES :
For the bottom burner without automatic thermostat, hold the
knob and turn it towards the maximum position.

19
How to Use upper burner / Grill
1. Ignite the upper burner / oven and wait for about 5 minutes until the
heat is evenly distributed inside the oven.
2. Put the drip tray on the bottom shelf. Pour water to a height of 0.5
cm on the drip tray to prevent dripping oil from sticking to the drip
tray.
3. Install oven shelf on the shelf support according to yourneeds.
4. Put the food on the oven shelf.
5. Close the oven door slowly (oven door can be closed when using
the top burner / grill).
6. Turn over the food after a few minutes to evenly distribute the heat.
Knob Protector are used when using the upper
burner / grill to protect / cover the knob and
button from heat and create ideal cooking
conditions
How to Use Turnspit
Stoves equipped with turnspit can be used according to the following
instructions.
1. Turn on the top burner / oven and wait for about 5 minutes until the
heat is evenly distributed in the oven.
NOTES :
• Smoke will be generated from inside the oven when the
top burner is used for the first time due to the oil layer on
the top burner. Wait until the remaining oil is completely
burned before food is put in the oven
• The maximum cooking time with oven (bottom heating) is
not more than 3 hours.
• The maximum cooking time with grill (upper heating) is not
more than 1 hour.

20

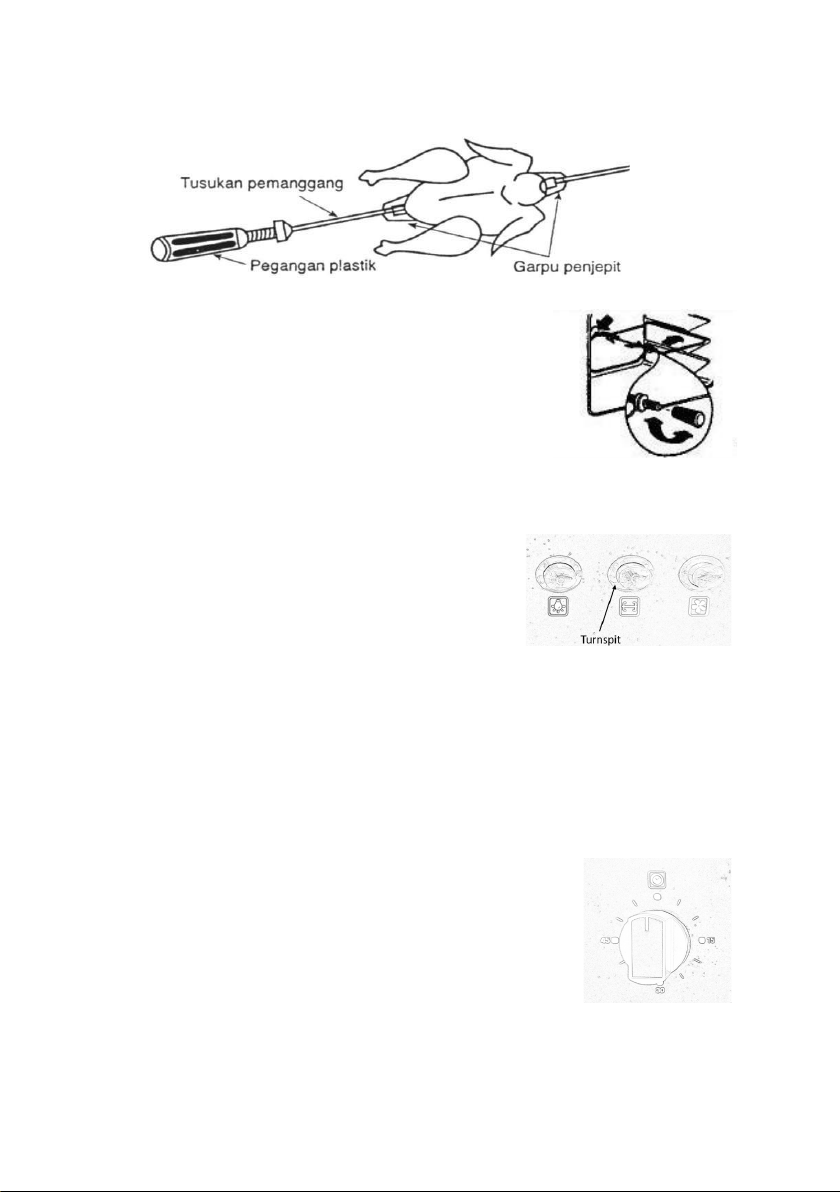

2. Skewer the meat with the turnspit and hang it in the middle of the
oven between two supporting forks
3. Put the drip tray on the bottom-most shelf.
Pour water to a height of 0.5 cm on the
drip tray to prevent dripping oil from
sticking to the drip tray.
4. Put the turnspit in the oven by inserting the end of the turnspit in
the special socket / hole on the inner side of the oven’s back
5. Close the oven door slowly and leave the
door leaning on the knob protector
6. Turn on the griller motor / turnspit by
pressing trident icon, so that the turnspit
turns automatically
7. After the meat is cooked through, turn off the griller motor / turnspit
by pressing the trident icon again, and then install the plastic handle
on the turnspit before releasing the turnspit from the special
socket.
How to Use the Mechanical Timer
Mechanical timer can be found on several models. Follow these
instructions to use the mechanical timer:
1. Adjust the cooking time by rotating the
mechanical timer knob.
2. After the timer is finished and the knob
rotates back to 0, there will be an alarm
sound playing.
