Modena FF 1061ES Owner's manual

User
Manual Book
Deep Fryer
FF 1061ES

2
Thank you for your trust in choosing MODENA products for your household needs. With your
satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped
with state-of-the-art technology to assist you in your daily activities.
This is your guidebook containing everything you need to know about our product. Please reach
out to us if you need further assistance or other information via our Customer Care or our
official website www.modena.com.

3
CONTENTS
Page
INTRODUCTION
2
-
Part 1
: Specification
4
-
Part 2
: Wiring Diagram
4
-
Part 3
: How to Use
4
-
Part 4
: Important Safety Information
5
-
Part 5
: Troubleshooting
5

4
Item Name
Electric Deep Fryer
Code Item
FF 1061 ES
Voltage
220V
Frequency
50Hz
Power
2.5KW
Product Dimension
285*450*310mm

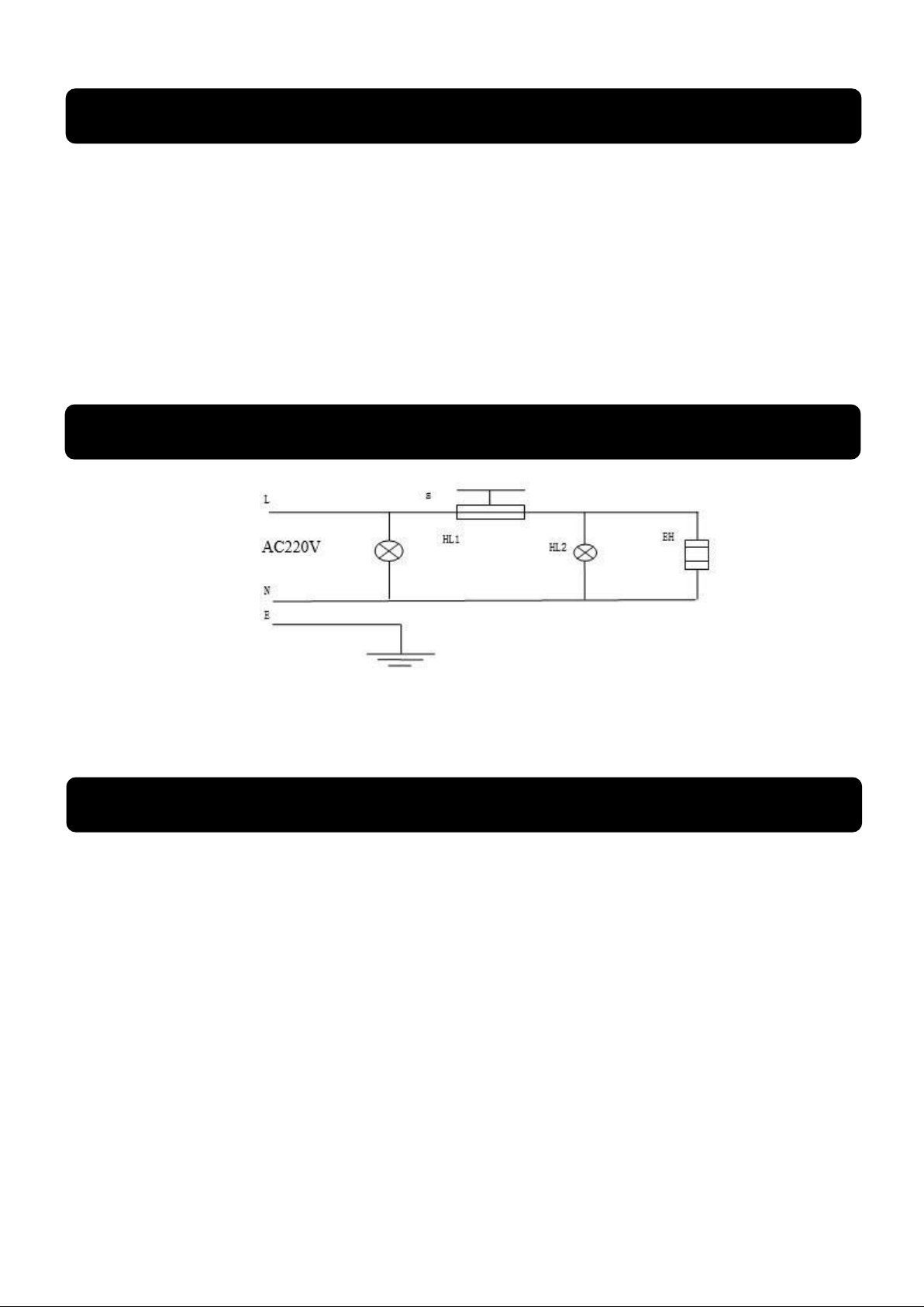

S –Temperature Controller
EH –Heating Tube
HL1 –Power Indicator (GN)
E –Ground Protection
HL2 –Heating Indicator (YE)
1. Before operating, check for the power supply installation and make sure the power supply voltage corresponds
with the working voltage of the appliance.
2. During operation, oil level in tank should be over half of oil pot.
3. 1) Turn off the K1 electric power switch, red indicator is on, at the same time electricity supplies to oven. Rotate
temperature knob clockwise and put red point on the needed degree. At the same time yellow indicator is on
and red indicator is off, it shows that electric heating tube stops heating. Oil temperature begins to rise.
2) When temperature rise to the desired one, the thermo-controller will cut electricity automatically, at the same
time yellow indicator is off, red indicator is on, electric heating tube stops heating.
3) When temperature lowers a little, thermo-controller will get through electricity automatically, yellow indicator
is on, red indicator is off, electricity heating tube works again, and temperature raises.
4) The procedure circulates to ensure the oil temperature keep constant in the set range.
4. The cover is designed for tank cleaning and heat preservation. When using the cover, pay attention that there
should not be any water on the cover. If the water drops into the hot oil in tank, it may cause injuries due to
splashing.
5. This appliance is equipped with baskets for smaller food. There is a hook and handle on the basket. During
operation, immerse the basket body into the oil. When the food is cooked, lift up the basket and hang it to the
slot up front the tank to drain off the excessive oil.
6. After operating, turn the thermostat counter clockwise to limit position and cut off the power supply to ensure
Part 1: Specification
Part 2: Wiring Diagram
Part 3: How to Use

5
safety.
7. To pour oil out of pot user should do it after oil temperature lowers down to normal. Take out of basket and
back-plate, then cut off electricity and turnover controlling box (at this moment electric heating tubes in pot are
upright). Or take out the controlling box and put it on a dry place. Take out the oil pot and clean it.
8. User should clean residue in oil and filth on electric heating tube in a regular time.
9. The back-plate is designed to protect electric heating tube. Back-plate must be put in oil potwhen frying food.
Notice: Every fryer with temperature range from 50℃to 200℃has a “reset”.
Protect the appliance from overheating. When temperature is higher than the desired one, protecting button will
work to protect the appliance. For reuse, press the reset button to reset for the appliance to be used normally.
1. This appliance uses the same rated voltage.
2. Users need to install the appliance near the power switch and fuse.
3. This appliance has equal potential grounding bolt, the application of not less than 2.5mm² Copper wire and
meet the safety requirements of a reliable ground connection.
4. For the first operation, ensure the copper wiring is not loose, the voltage is correct, safe , stable and grounded
well.
5. The appliance, the necessary grounding to ensure safety.
Problem
Possible Cause
Recommended Action
Indicator is not on.
Fuse in power swicth melts.
1. Change the fuse.
2. Change the main cords.
Red and yellow indicators are on
but oil temperature does not rise.
1. Connection of electric
heating tube is loosening.
2. Electric heating tube is
burned.
1. Firm connection screw of
electric heating tube.
2. Change the heating tube.
Yellow-in indicator is on, but the
oil temperature can not be
controlled.
Temperature control cannot
work.
Change the temperature control.
Indicator is not on, temperature
control is normal.
Indicator is broken
Change the indicator.
Part 4: Important Safety Instruction
Part 5: Troubleshooting
